Ultra-Clear 4K Image Quality that will Enhance a 1:1 Collaborative Learning Environment
The Lumens® DC172 Ladibug™ document camera provides ultra-clear 4K 30fps output resolution, supports 1080p, 720p and XGA resolutions. It can demonstrate remarkable detailed images of any object in real-time without delays and enhance the interaction between instructor and students.

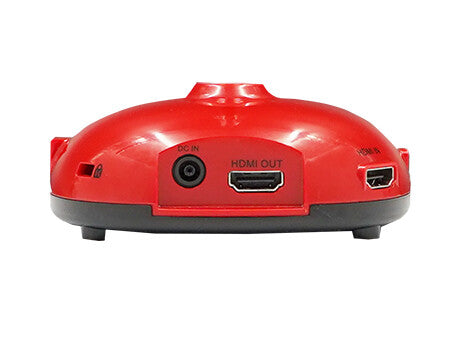

Supports HDMI and USB Output and HDMI Pass-Through up to 4K resolution
The DC172 is equipped with HDMI and USB outputs. HDMI pass-through is a handy function that allows you to pass your laptop or other sources through the DC172 to the display without an additional switcher.

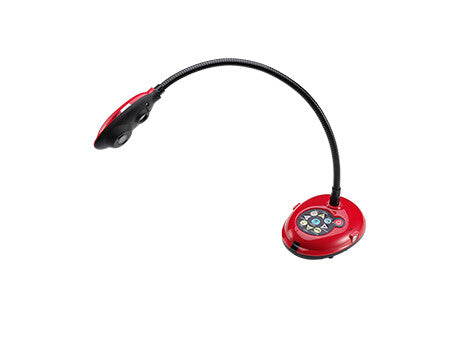

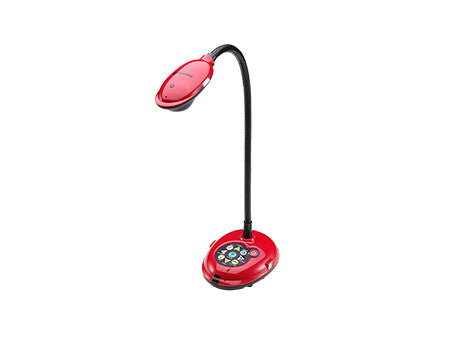

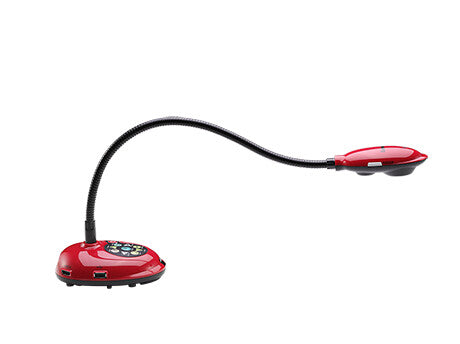

Highly Flexible Gooseneck Design
The unique joint-free gooseneck design lets users twist, bend and stretch the arm to enable a 360° view of your object.
| Camera |
|---|
| Image freeze |
Yes |
| Maximum frame rate |
60 fps |
| Supported graphics resolutions |
1024 x 768 (XGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 3840 x 2160 |
| Sensor type |
CMOS |
| Optical sensor size |
25.4 / 3 mm (1 / 3") |
| Effective sensor resolution |
13 MP |
| Lens system |
|---|
| Shooting area (WxD) |
420 x 316 mm |
| Digital zoom |
30x |
| Optical zoom |
6.8x |
| Auto focus |
Yes |
| Ports & interfaces |
|---|
| HDMI input ports quantity |
1 |
| HDMI output ports quantity |
1 |
| Interface |
USB 2.0 |
| Storage |
|---|
| Memory capacity (images) |
100 |
| Technical details |
|---|
| Focus |
Auto / Manual |
| Built-in microphone |
Yes |
| Lamp type |
LED |
| Cable lock slot |
Yes |
| Cable lock slot type |
Kensington |
| Product colour |
Black, Red |
| Power |
|---|
| AC input voltage |
100-240 V |
| Power supply type |
DC |
| Weight & dimensions |
|---|
| Dimensions folded (WxDxH) |
106 x 236 x 280 mm |
| Weight |
1.3 kg |
| Height |
380 mm |
| Depth |
350 mm |
| Width |
106 mm |
| Packaging content |
|---|
| Cables included |
AC, HDMI, USB |
| Microscope adapter included |
Yes |
| AC adapter included |
Yes |
