SKU: 152716

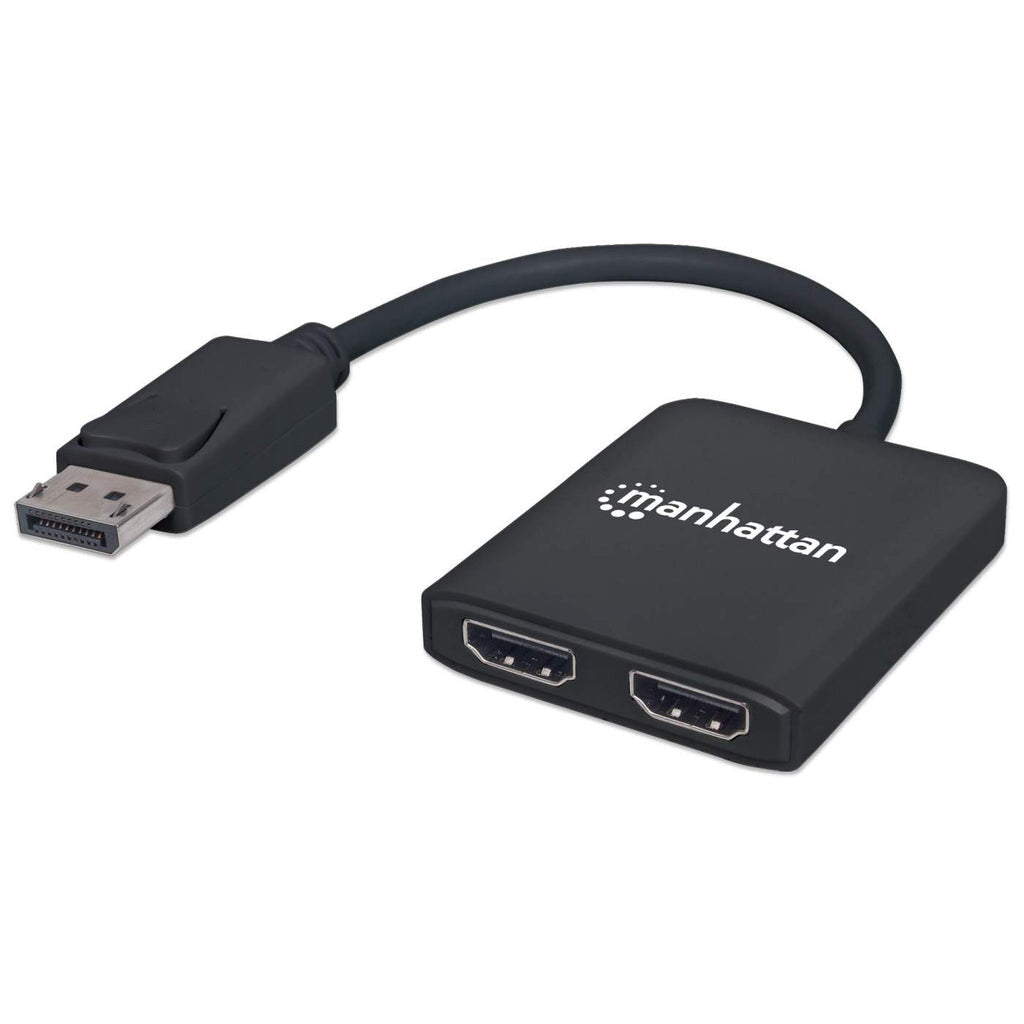

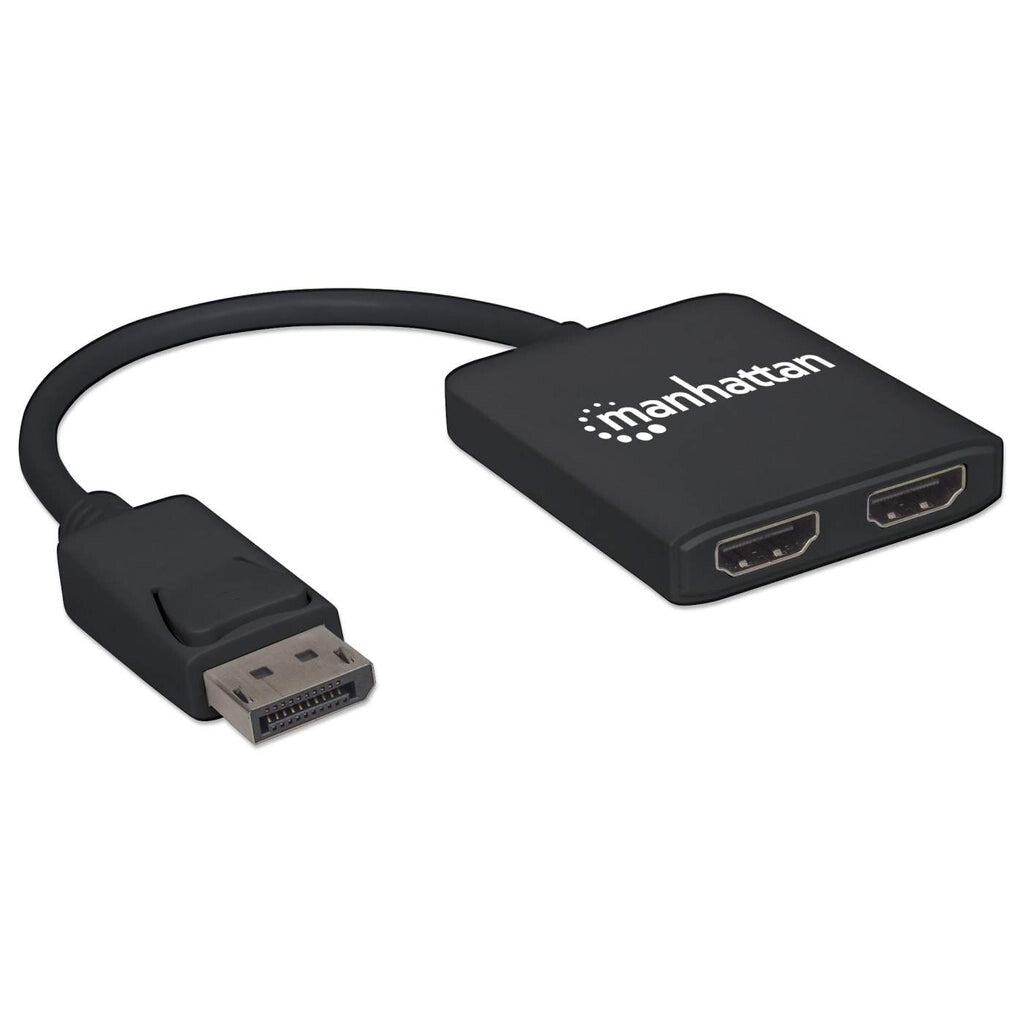

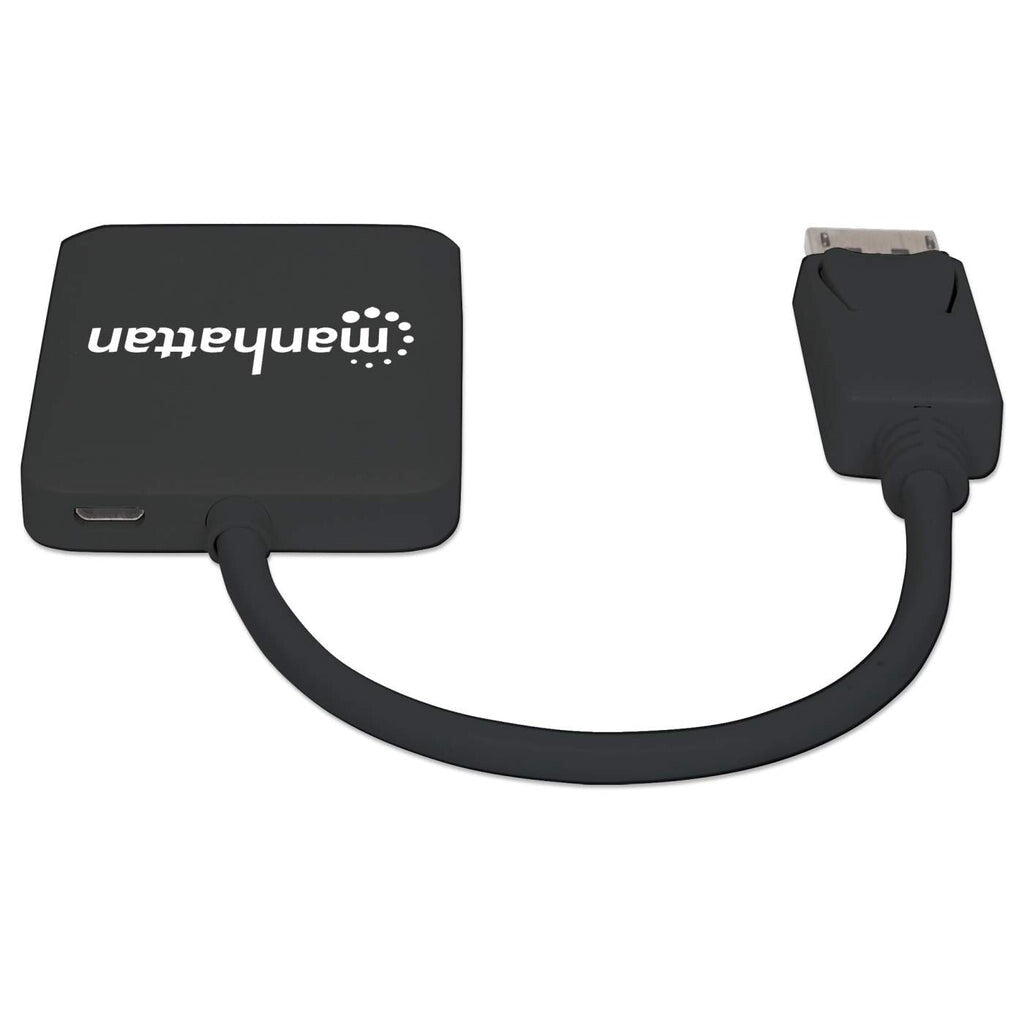

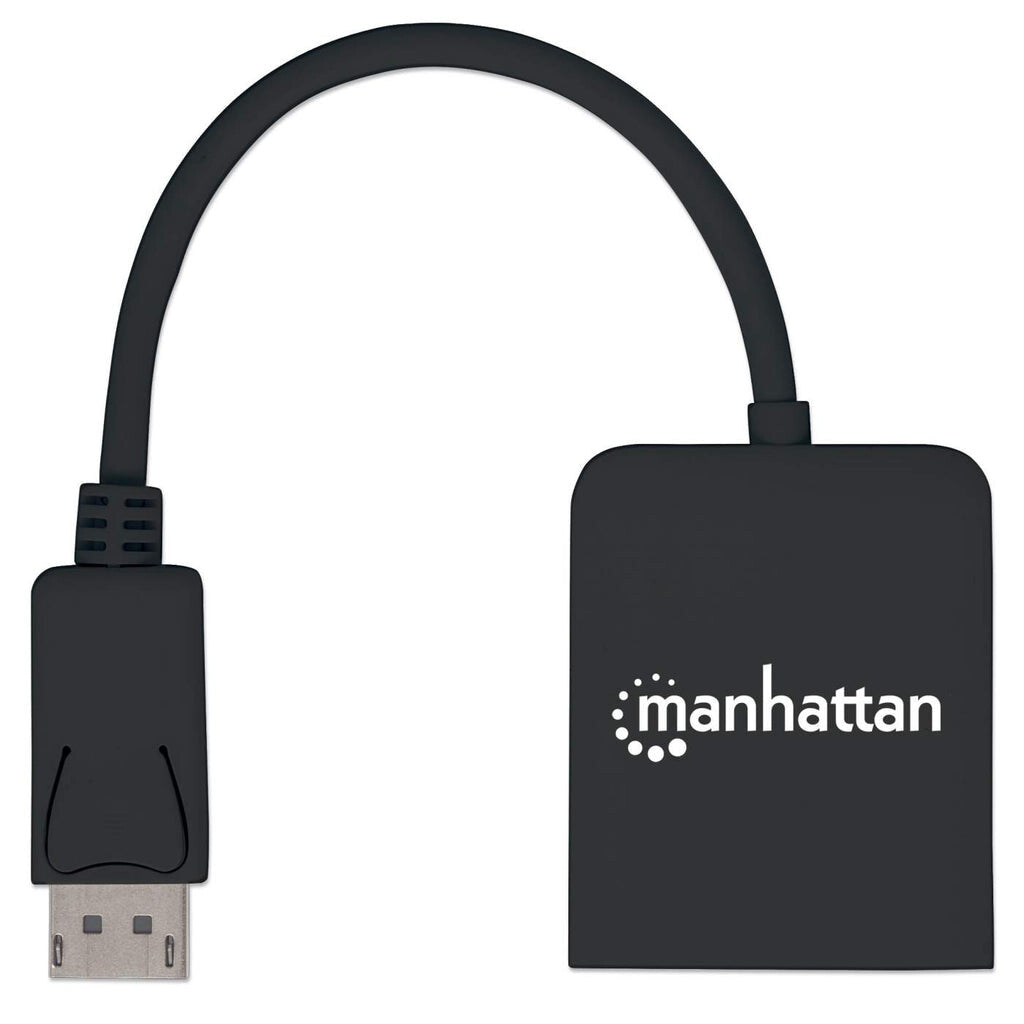

Manhattan DisplayPort 1.2 to 2-Port HDMI Splitter Hub with MST, 4K@30Hz, USB-A Powered, Video Wall Function, HDCP 2.2, Black, MST = Multi-Stream Transport, 3 Year Warranty

Manhattan
£42.72
  • Duplicates an Ultra-High-Definition (UHD) DisplayPort (DP) signal for up to two UHD HDMI displays
  • 4K@30Hz resolution, full 3D video and Deep colour
  • Supports compressed DTS Master Audio as well as 7.1 surround sound audio up to 192 kHz
  • Supports Mirror, Extended and Multi-Stream Transport (MST) modes to maximize work or gaming capabilities
  • Mirror mode duplicates the computer screen onto two displays with resolutions up to 4K@30Hz
  • Extended mode expands the desktop workspace to up to two additional screens with resolutions up to 4K@30Hz
  • MST mode creates a video wall for a more immersive experience, using two screens — with resolutions up to 3840x2160 at 30 Hz — as one; requires a graphics card that supports video-wall function
  • USB powered with Plug and Play installation; no special setup or remote required
  • Integrated DisplayPort cable
  • Ideal for enhancing display capabilities or creating a video wall in locations such as schools, churches, conference rooms, trade shows and retail outlets; perfect for digital signage and AMD Eyefinity Technology in gaming
  • HDCP 2.2 compliant
  • Gold-plated contacts for corrosion-free connections
  • Three-Year Warranty

Easily distribute a single Ultra-High-Definition (UHD) signal to multiple displays.
The Manhattan DisplayPort to Dual HDMI - MST Hub streams a 4K DisplayPort (DP) signal from a single UHD source to up to two UHD HDMI displays.

Flexible Solution for Many A/V Applications
Ideal for trade shows, classrooms, video conferencing, presentations and retail applications, the Manhattan DisplayPort to Dual HDMI - MST Hub features a built-in booster for added signal strength. It's a great choice for splitting and distributing a synchronous signal, in either mirrored or extended modes, to multiple 4K HDMI displays. MST mode creates a video wall from two displays to give the user a more immersive experience when gaming, in a conference setting or in a home office.

Quality Construction and Easy Installation

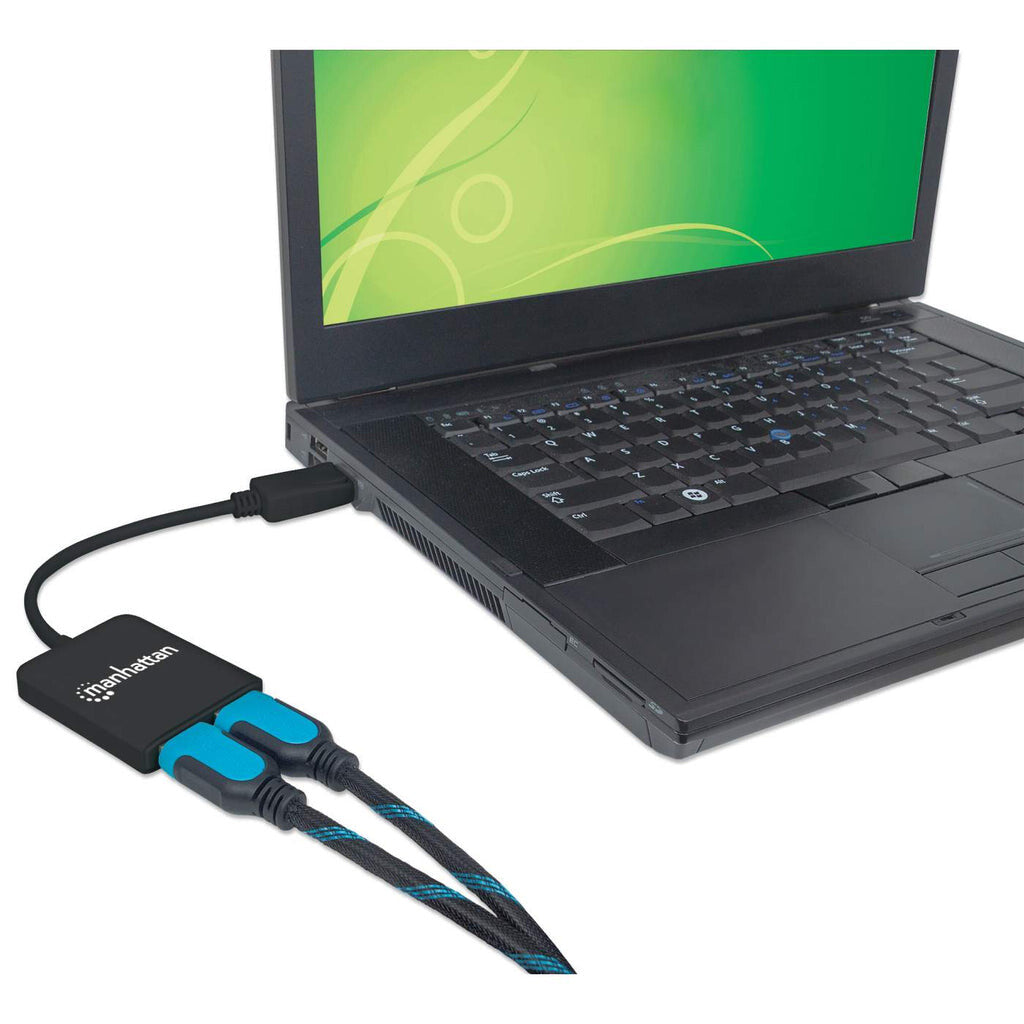

Full compliance with DisplayPort, HDCP 2.2 and DVI 1.0 ensures that the Manhattan DisplayPort to Dual HDMI - MST Hub can provide long service and reliable performance. Quickly connect HDMI cables (not included) and the included USB power cable, and this affordable, Ultra-High-Definition 4K DisplayPort/HDMI solution is complete - no software/hardware configuration or complicated settings required.

Ports & interfaces
DC-in jack Yes
Video out 2x HDMI
Video port type DisplayPort
Video ports quantity 2
Features
Windows operating systems supported Yes
Certification DVI 1.0CTS 1.4aCEFCCRoHS2
Supported video modes 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
Connector contacts plating Gold
HDCP Yes
Cable length 1 m
3D Yes
Maximum resolution 3840 x 2160 pixels
Housing material Plastic
Product colour Black
Power
USB powered Yes
Input current 2 A
AC input voltage 5 V
Weight & dimensions
Weight 50 g
Height 11 mm
Depth 255 mm
Width 50 mm
Packaging content
Cables included Micro-USB
Manual Yes
Operational conditions
Operating relative humidity (H-H) 0 - 96%
Storage temperature (T-T) -20 - 60 °C
Operating temperature (T-T) 0 - 40 °C
Technical details
Compliance certificates RoHS
Logistics data
Harmonized System (HS) code 85176990
