Easily distribute a single HDMI signal to multiple displays._x000D_

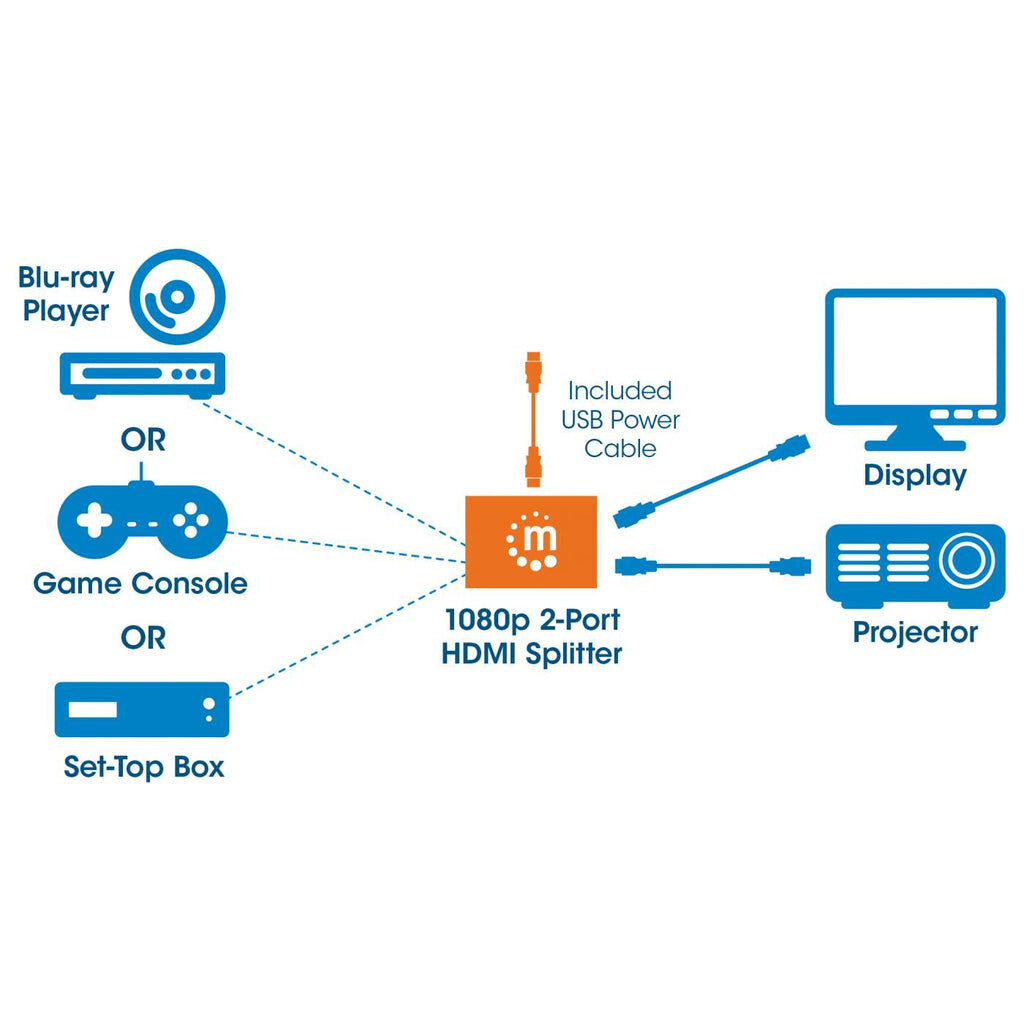

The Manhattan 1080p 2-Port HDMI Splitter sends HDMI signals from a single Blu-ray player, satellite receiver, digital recorder, set-top box, game console or other HDMI source to two HDMI displays. _x000D_
_x000D_
Flexible Solution for Many A/V Applications_x000D_
Ideal for trade shows, classrooms, video conferencing, presentations and retail applications, the Manhattan 1080p 2-Port HDMI Splitter features a built-in booster for added signal strength. It’s also a good choice for splitting and distributing a synchronous signal to multiple HDMI displays when source equipment is remotely stored in a secured room or cabinet. Users can cascade multiple units up to three levels and output HDMI video/audio to additional displays in widely distributed applications._x000D_
_x000D_
Quality Construction and Easy Installation_x000D_
Full compliance with HDMI, HDCP 1.0, 1.1 and 1.2 as well as DVI 1.0 ensures that the Manhattan 1080p 2-Port HDMI Splitter can provide long service and reliable performance. Quickly connect HDMI cables (not included) and the USB power cable, and this affordable HDMI solution is complete — no complicated settings or software or hardware configurations necessary.
| Ports & interfaces |
| HDMI version |
1.3b |
| Video out |
2x HDMI |
| Video port type |
HDMI |
| Video ports quantity |
3 |
| Features |
| Certification |
CE, FCC, RoHS2 |
| LED indicators |
Yes |
| Connector contacts plating |
Gold |
| Plug and Play |
Yes |
| Dolby technologies |
DTS, DTS-HD Master Audio, Dolby TrueHD |
| HDCP |
Yes |
| Cable length |
0.7 m |
| Bandwidth |
225 MHz |
| Maximum operating distance |
15 m |
| 3D |
Yes |
| Maximum resolution |
1920 x 1200 pixels |
| Housing material |
Plastic |
| Product colour |
Black |
| Power |
| USB powered |
Yes |
| Power consumption (typical) |
5 W |
| Weight & dimensions |
| Weight |
40 g |
| Height |
20 mm |
| Depth |
60 mm |
| Width |
54 mm |
| Packaging content |
| Cables included |
USB |
| Manual |
Yes |
| Operational conditions |
| Storage relative humidity (H-H) |
5 - 90% |
| Operating relative humidity (H-H) |
10 - 85% |
| Storage temperature (T-T) |
-10 - 80 °C |
| Operating temperature (T-T) |
0 - 70 °C |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
