Easily share a single Ultra-High-Definition (UHD) signal over two displays or switch between two sources on one display._x000D_

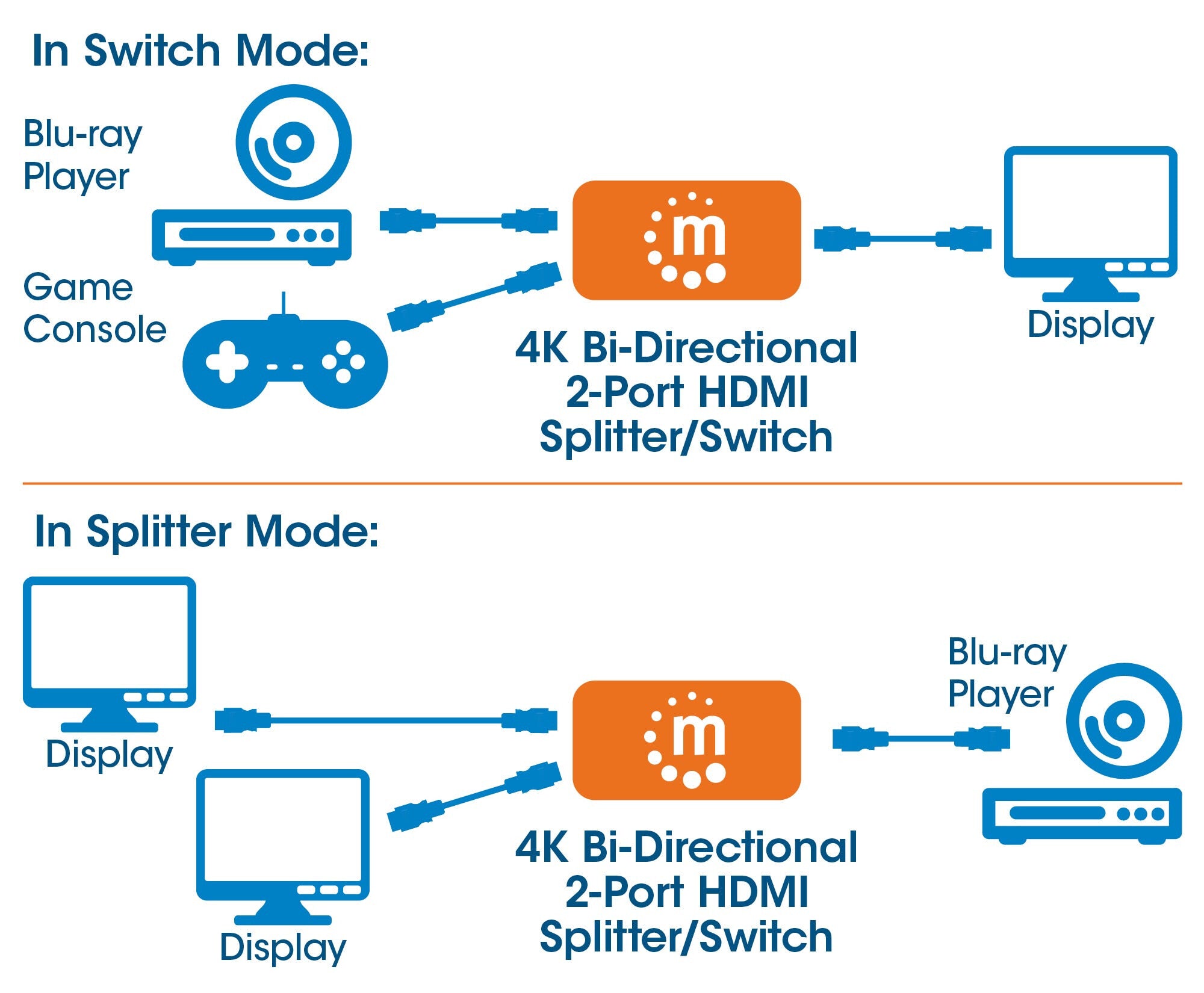

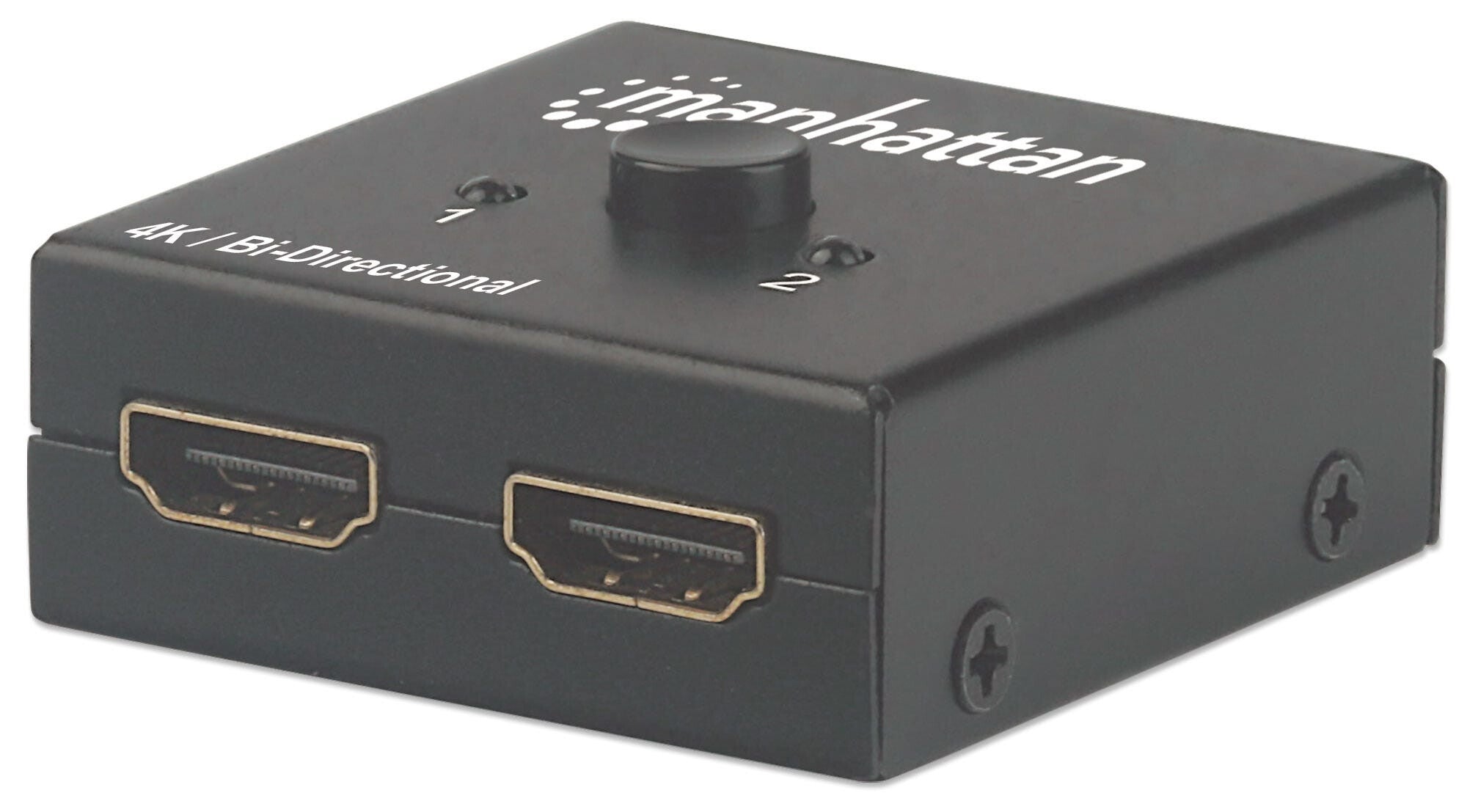

The Manhattan 4K Bi-Directional 2-Port HDMI Splitter Switch with built-in booster makes it possible to share a 4K HDMI signal from a single UHD source on one of two UHD displays or to connect two UHD sources and switch between them on one UHD display._x000D_
_x000D_
Best Possible Image Quality and Easy Installation_x000D_
Full compliance with HDMI and HDCP 1.4 ensures the Manhattan 4K Bi-Directional 2-Port HDMI Splitter Switch provides nothing short of high-quality performance and reliability. It delivers cinematic 4K resolution and supports 3D video, Deep colour as well as LPCM, DTS and Dolby TrueHD audio. Simply connect the HDMI cables (not included) to the device and create your desired setup. Power is drawn from the HDMI sources to support the signal(s). No software/hardware configuration or complicated settings are required to complete this cost-effective 4K solution.
| Ports & interfaces |
|---|
| Number of HDMI outputs |
2 |
| HDMI in |
1 |
| HDMI version |
1.4 |
| HDMI ports quantity |
3 |
| Video port type |
HDMI |
| Features |
|---|
| Connector contacts plating |
Gold |
| HD type |
4K Ultra HD |
| Audio decoders |
DTS-HD Master Audio, Dolby TrueHD |
| Plug and Play |
Yes |
| HDCP |
Yes |
| Supported video modes |
480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p |
| LED indicators |
Yes |
| Maximum resolution |
4096 x 2160 pixels |
| Audio output channels |
7.1 channels |
| 3D |
Yes |
| Bandwidth |
340 MHz |
| Material |
Metal |
| Product colour |
Black |
| Certificates |
|---|
| Certification |
CE, FCC |
| Weight & dimensions |
|---|
| Weight |
100 g |
| Height |
20 mm |
| Depth |
49 mm |
| Width |
52 mm |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
0 - 96% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Technical details |
|---|
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
