SKU: 130530

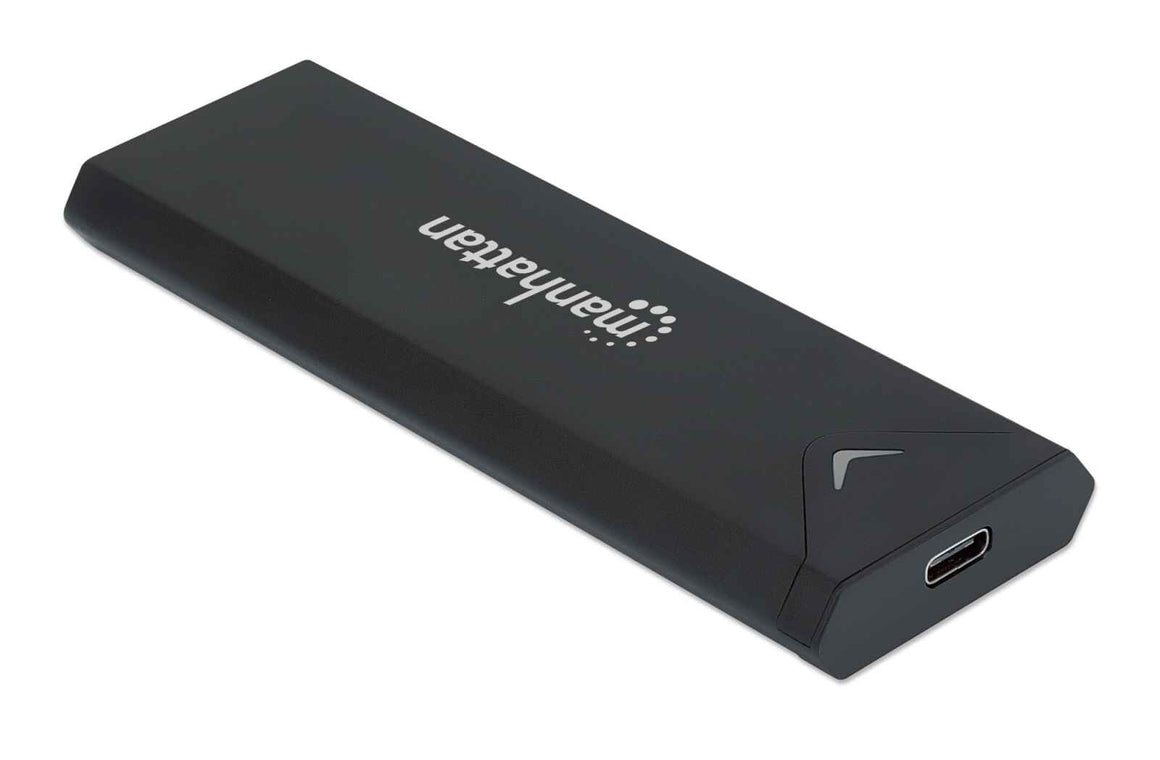

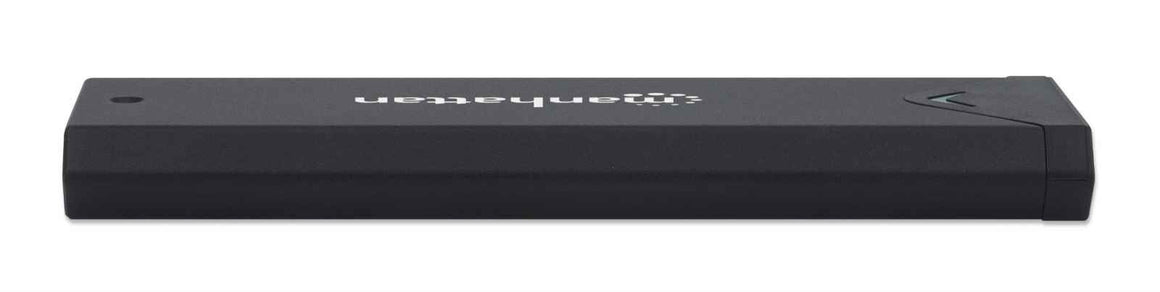

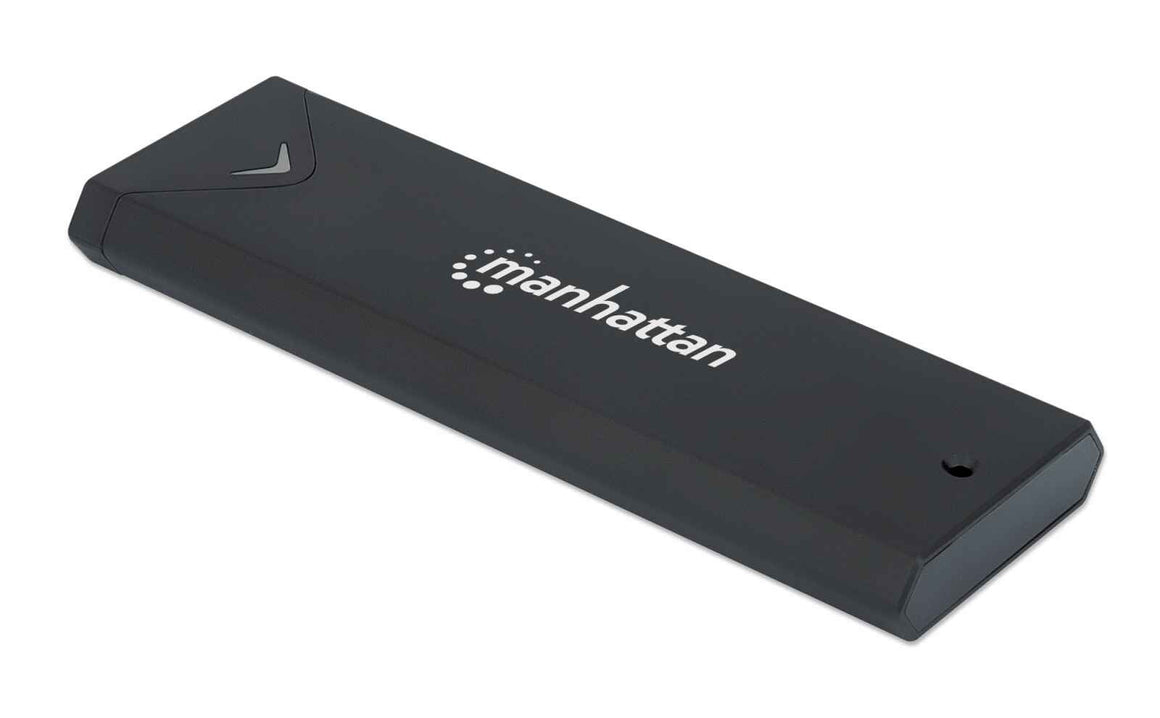

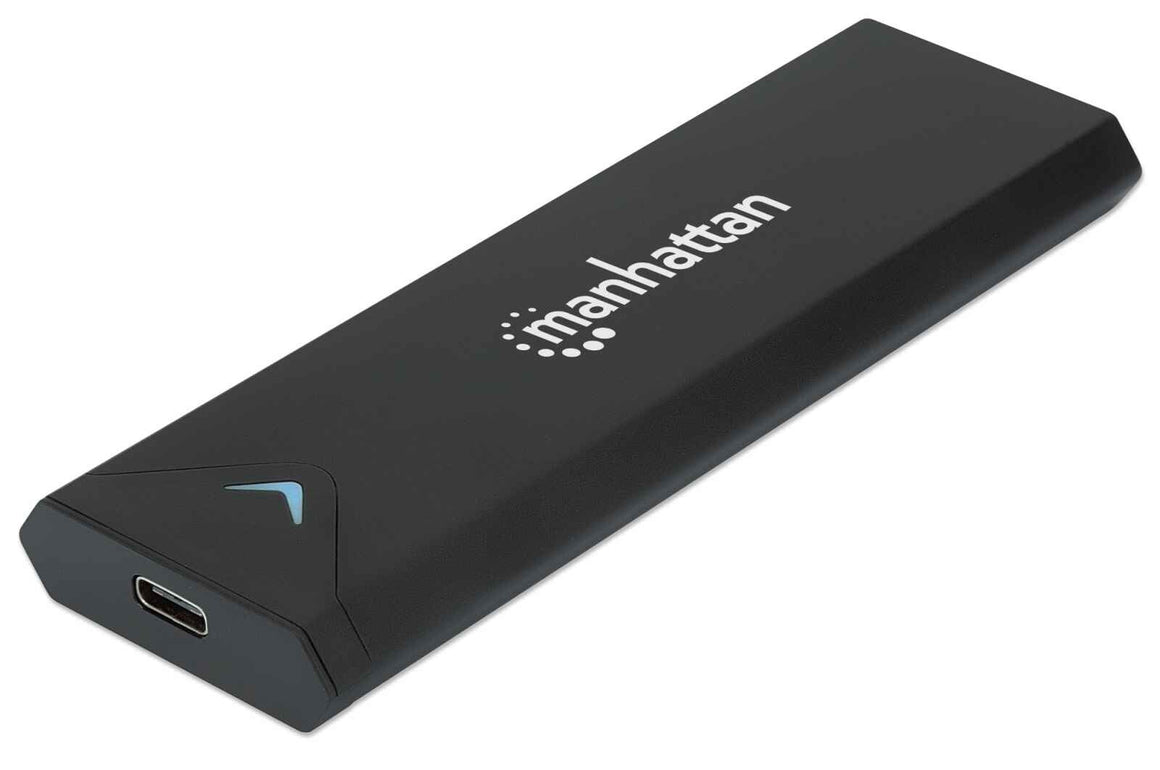

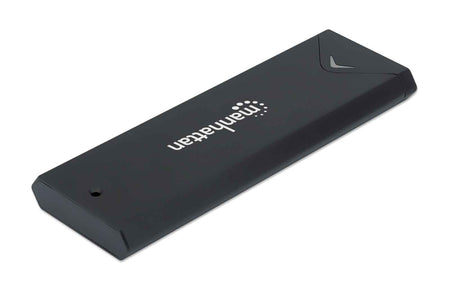

Manhattan M.2 NVMe SSD Enclosure, USB-C Female Connection, 10 Gbps (USB 3.2 Gen2 aka USB 3.1), UASP-compliant, SuperSpeed+ USB, Aluminum, Black, Three Year Warranty

Manhattan
£23.77
  • Offers USB 3.2 Gen 2 connection to support data transfer speeds up to 10 Gbps
  • Supports SATA M.2 NVMe SSDs: 42 mm, 60 mm and 80 mm
  • Supports only M-Key PCIe NVMe M.2 SSDs up to 2 TB
  • Compatible with SATA revisions I (1.5 Gbps), II (3 Gbps) and III (6 Gbps)
  • UASP-compliant for 70% faster read speeds and 40% faster write speeds over traditional USB 3.2 at peak performance
  • TRIM-compliant for improved data-writing to SSDs and longer SSD life
  • B-Key, M-Key PCIe AHCI SSD and SATA-based B & M-Key SSDs not supported
  • LED status indicator
  • Compact, lightweight aluminium case for enhanced portability
  • Bus-powered, plug and play, hot swappable

Protective portability for your SATA M.2 solid-state drive (SSD)

The Manhattan USB-C to M.2 NVMe SSD Enclosure boosts data transfer performance and storage using an M.2 SSD to unleash the full potential of your USB 3.2 Gen 2 (10 Gbps data transfer speed) computer. This enclosure is UASP-compliant to achieve transfer speeds up to 70% faster than traditional USB 3.2 when used in conjunction with a UASP-enabled host computer (Windows 8, Mac OS X [10.8 or above], and Linux).

The lightweight, robust design features durable aluminium housing so you can quickly and easily slip the enclosure into your pocket or laptop bag and be on your way. For added convenience, the enclosure is bus-powered, so it requires no external power to operate at peak performance. It also features an LED status indicator that lets you know when the drive is active.

Storage
Installed storage drive interface Serial ATA III
Number of storage drives supported 1
Supported storage drive interfaces M.2
Storage drive size M.2
Ports & interfaces
USB ports quantity 1
USB connector gender Female
USB connector type USB Type-C
USB version 3.2 Gen 1 (3.1 Gen 1)
USB connectivity Yes
Design
Certification CEFCCWEEE
LED indicators Status
Material Aluminium
Product colour Black
Product type SSD enclosure
Performance
Plug and Play Yes
Data transfer rate 10 Gbit/s
Power
Power source type USB
Operational conditions
Operating relative humidity (H-H) 10 - 90%
Storage temperature (T-T) -10 - 70 °C
Operating temperature (T-T) 0 - 45 °C
Weight & dimensions
Height 11 mm
Depth 39 mm
Width 115 mm
Packaging content
Manual Yes
Screwdriver included Yes
Screws included Yes
Cables included USB Type-C to USB Type-C
Technical details
Compliance certificates RoHS
Logistics data
Harmonized System (HS) code 84733080
