Get the ultimate full-motion experience for your display.

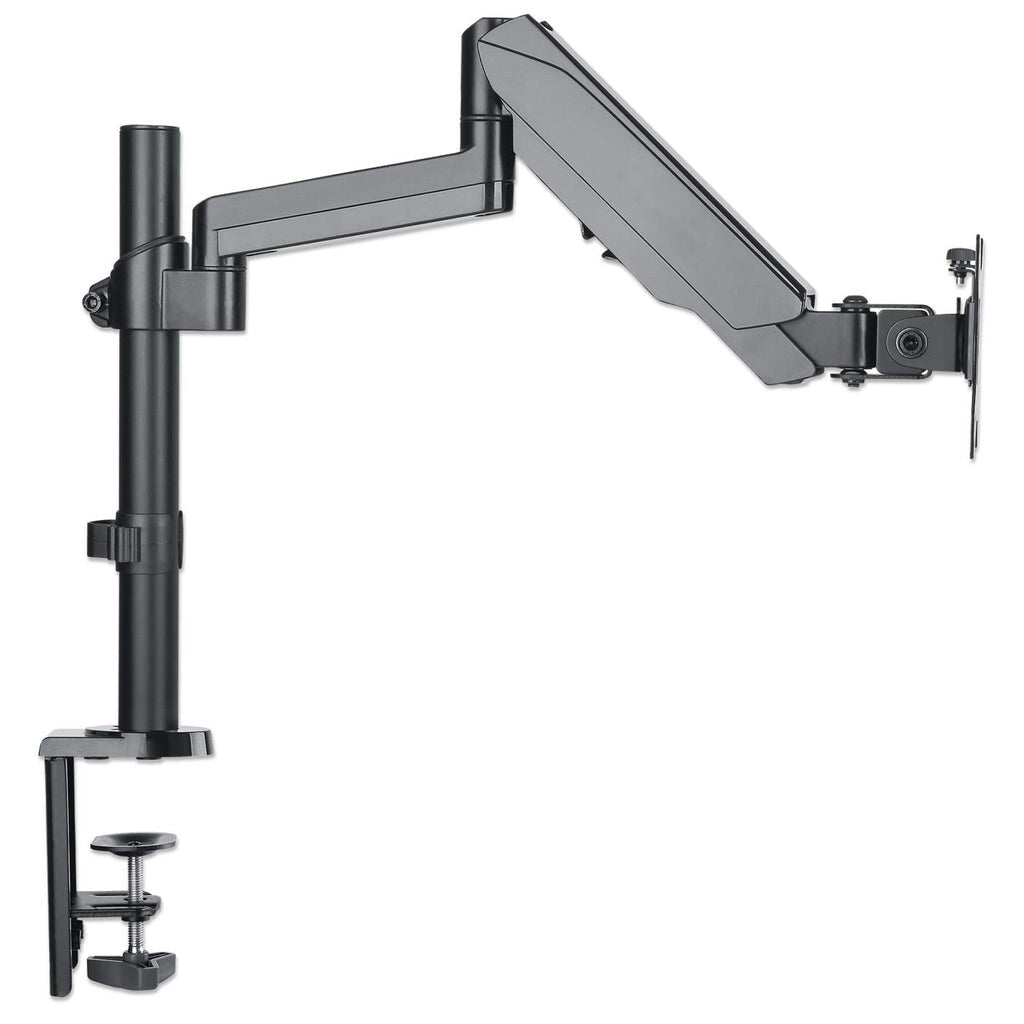

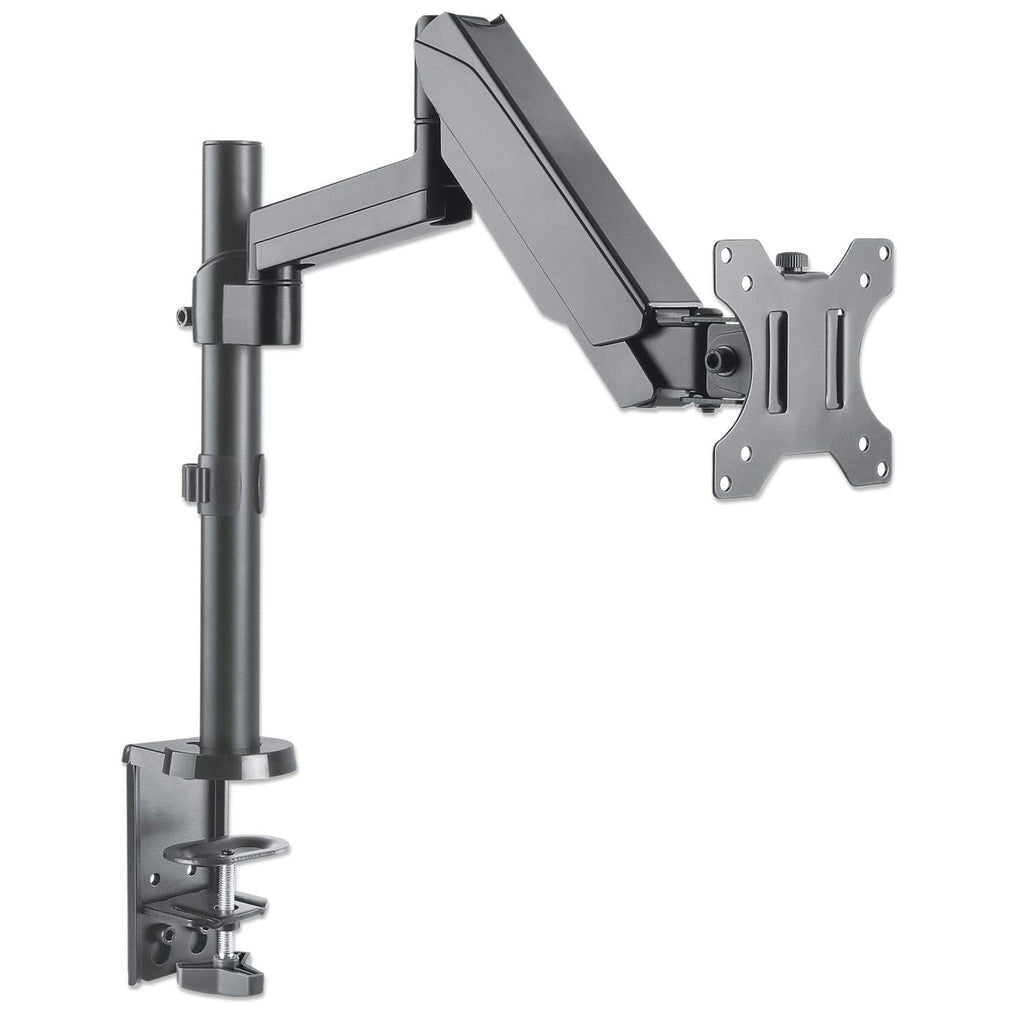

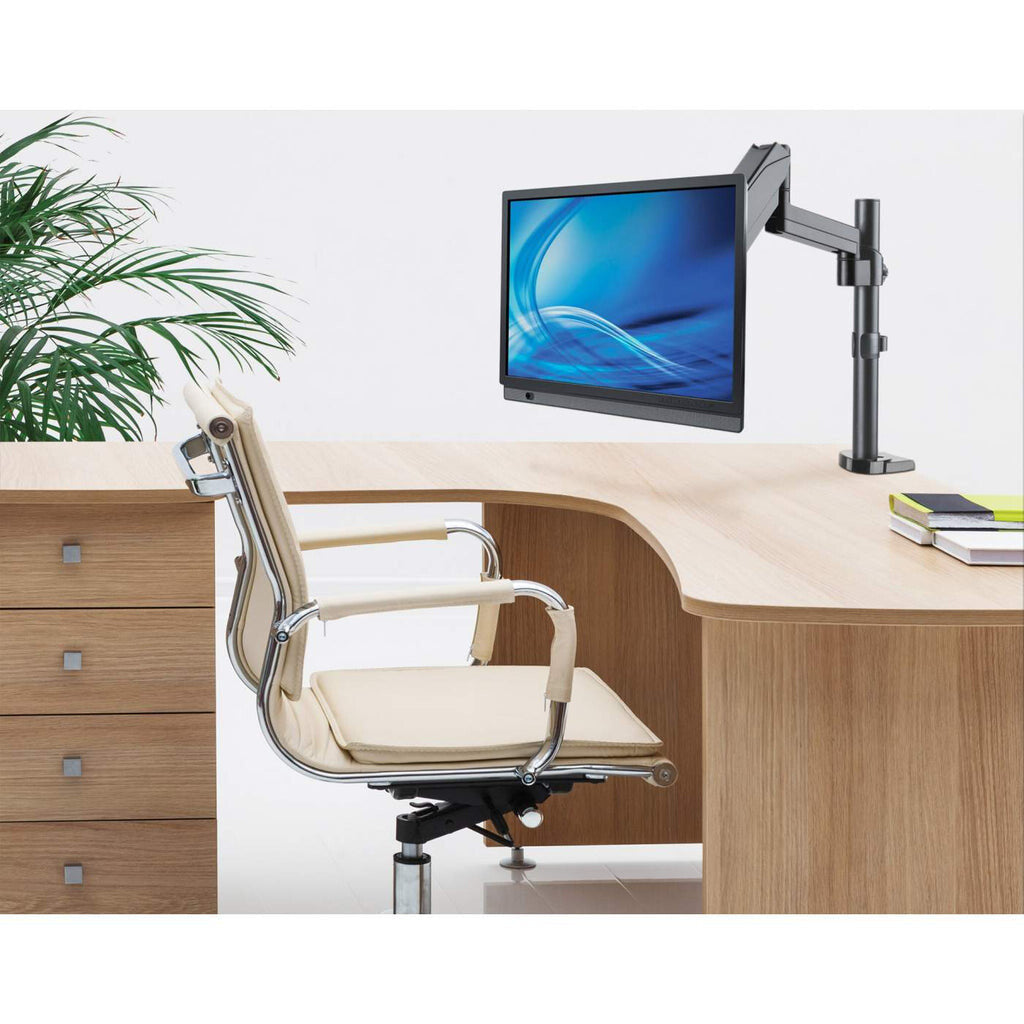

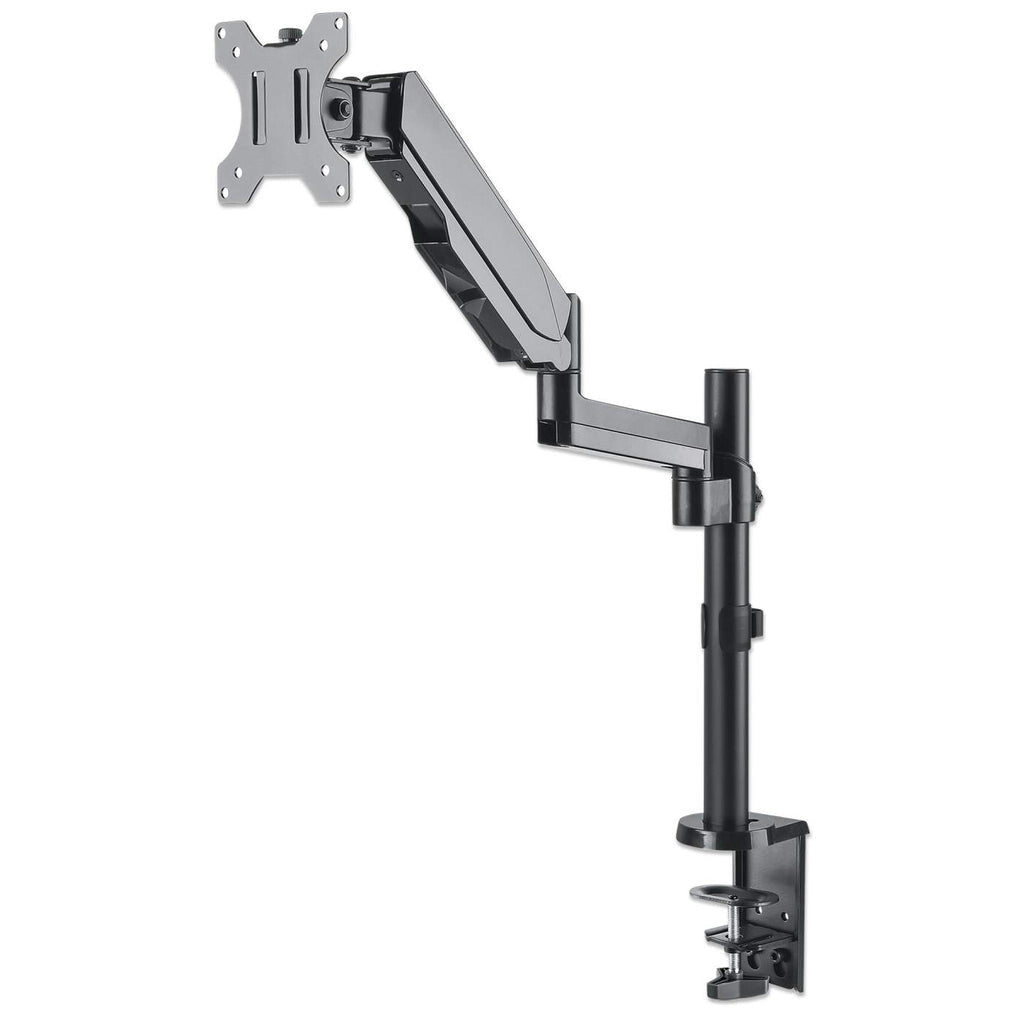

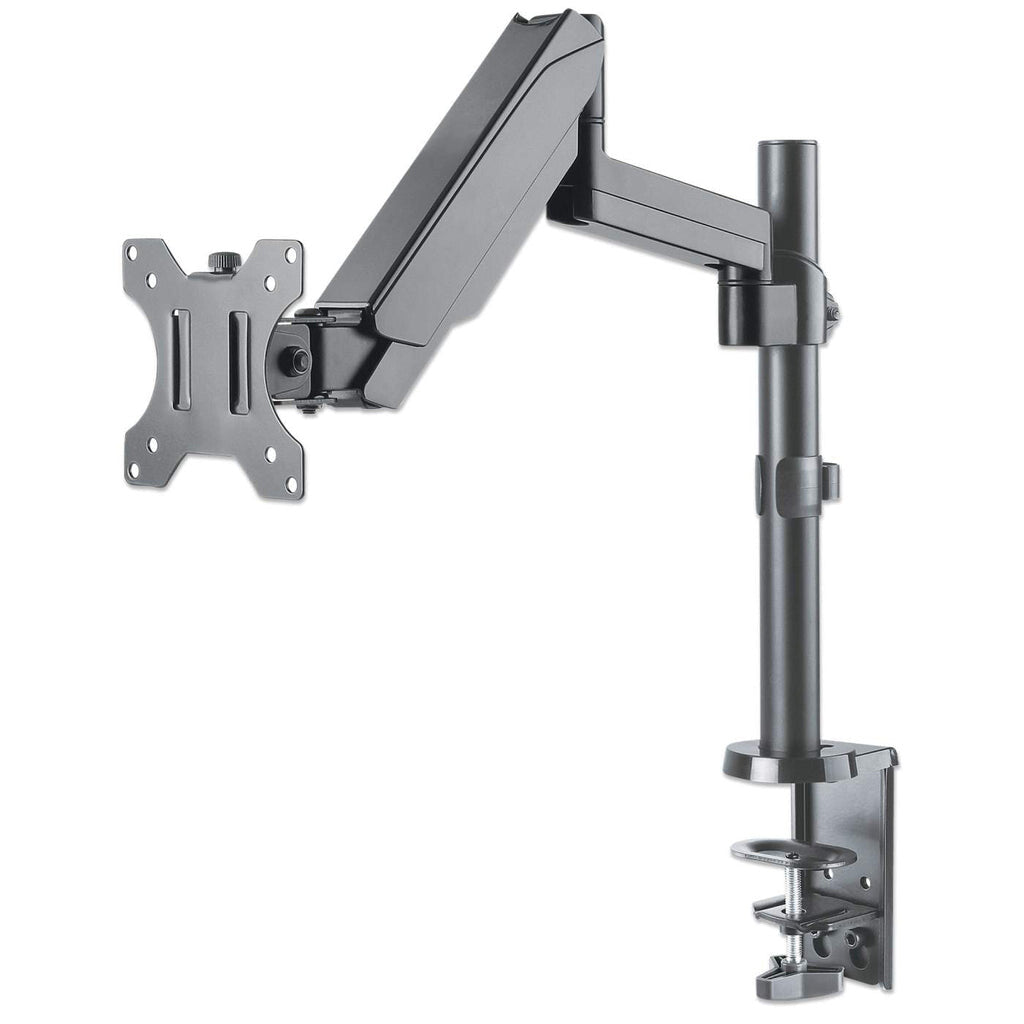

The Manhattan Universal Gas Spring Monitor Mount securely supports one 17" to 32" TV or monitor. Because it uses a gas spring to hold your display, its arm only needs the lightest touch to move your screen to the best viewing angle for you. The mount's high-quality aluminium and steel construction will provide years of reliable service. Ideal for installation on a large desk, the Manhattan Universal Gas Spring Monitor Mount lets you take advantage of the extra range of movement so you can have more space to get work done.
Key features
- Supports one 17" to 32" monitor (recommended)
- Gas spring provides light-touch adjustment of viewing height
- Built-in tension adjustment

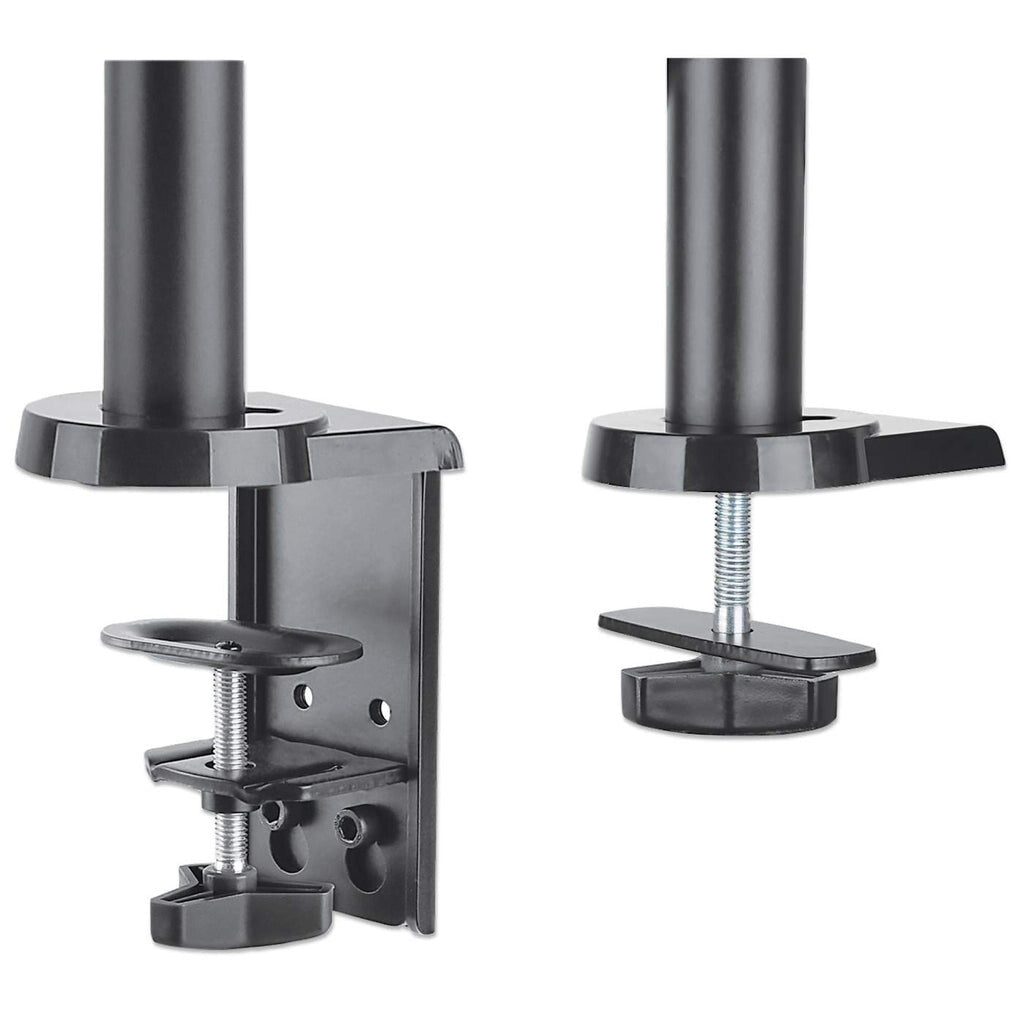

- Desktop clamp or hole clamp (both supplied)
- Three-year warranty
| Mounting |
|---|
| Maximum weight capacity |
8 kg |
| Minimum screen size |
43.2 cm (17") |
| Number of displays supported |
1 |
| Maximum screen size |
81.3 cm (32") |
| Mounting |
Clamp |
| Mounting type |
Desk |
| Minimum VESA mount |
75 x 75 mm |
| Maximum VESA mount |
100 x 100 mm |
| Panel mounting interface |
75 x 75,100 x 100 mm |
| Ergonomics |
|---|
| Height adjustment |
Yes |
| Tilt angle range |
-35 - 35° |
| Swivel angle range |
-90 - 90° |
| Angle of rotation |
360° |
| Design |
|---|
| Housing material |
Aluminium, Plastic, Steel |
| Product colour |
Grey |
| Weight & dimensions |
|---|
| Width |
114 mm |
| Depth |
534 mm |
| Height |
745 mm |
| Weight |
4.1 kg |
