SKU: 354844

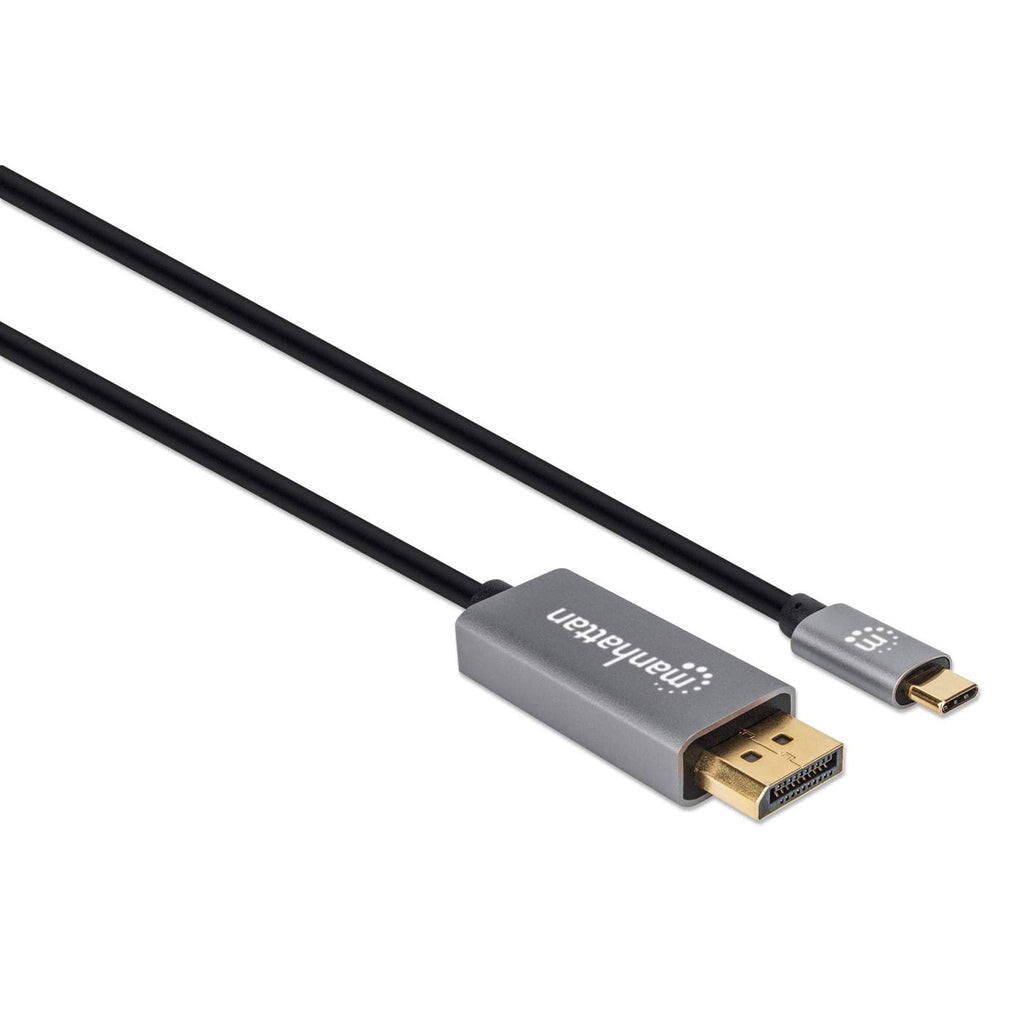

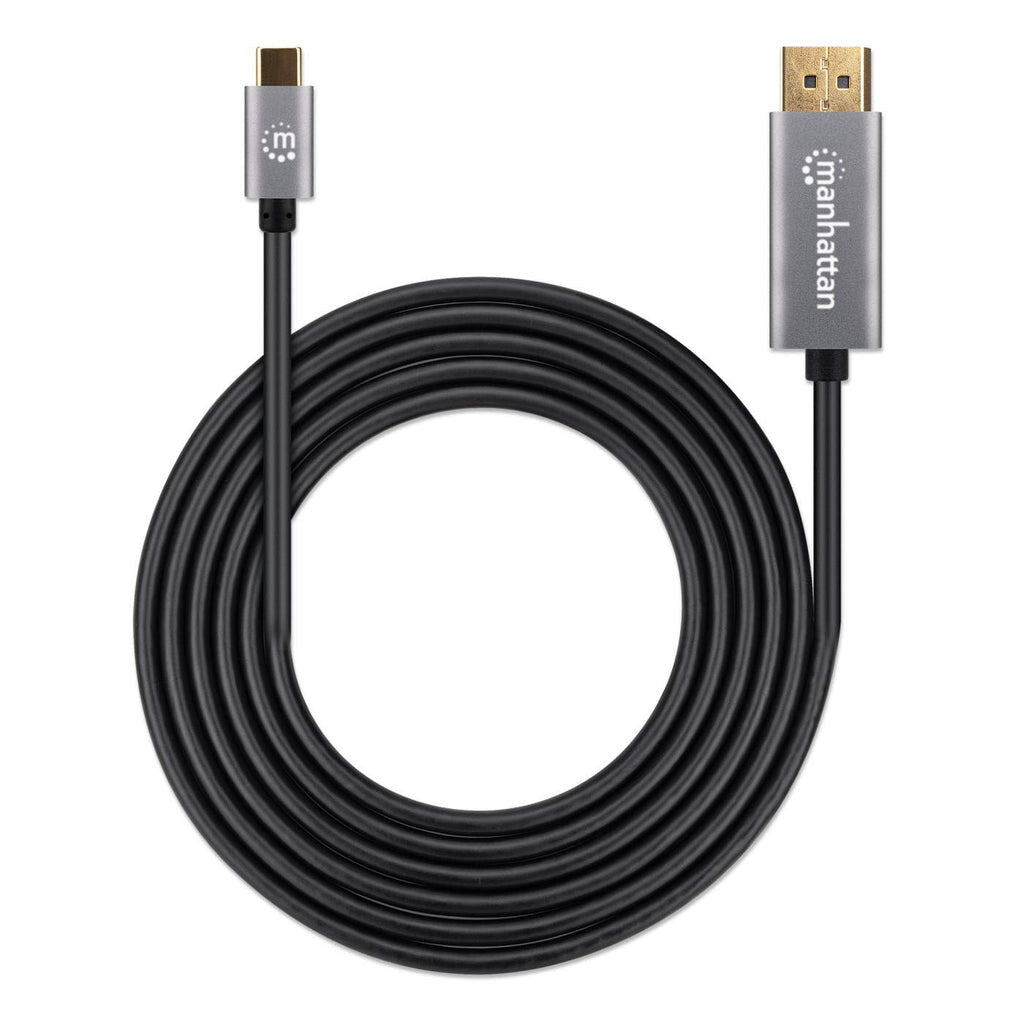

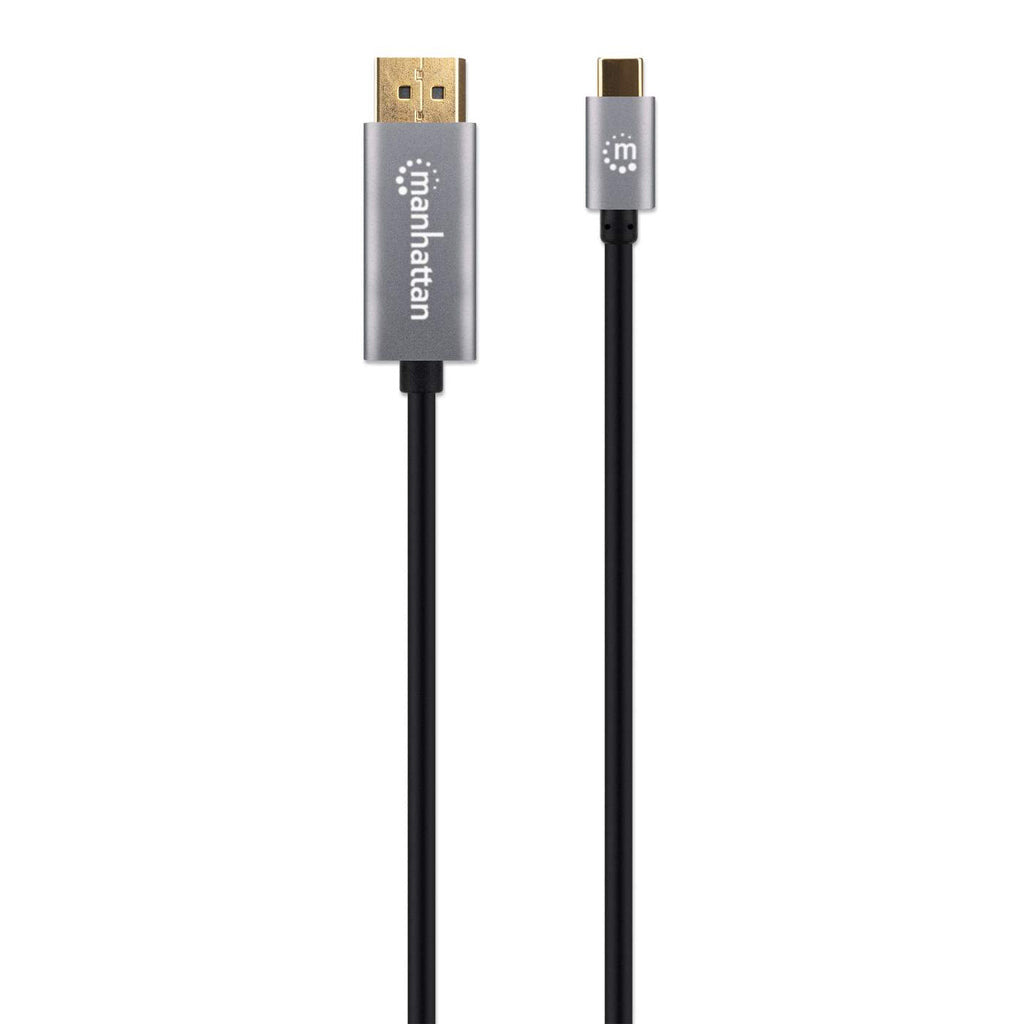

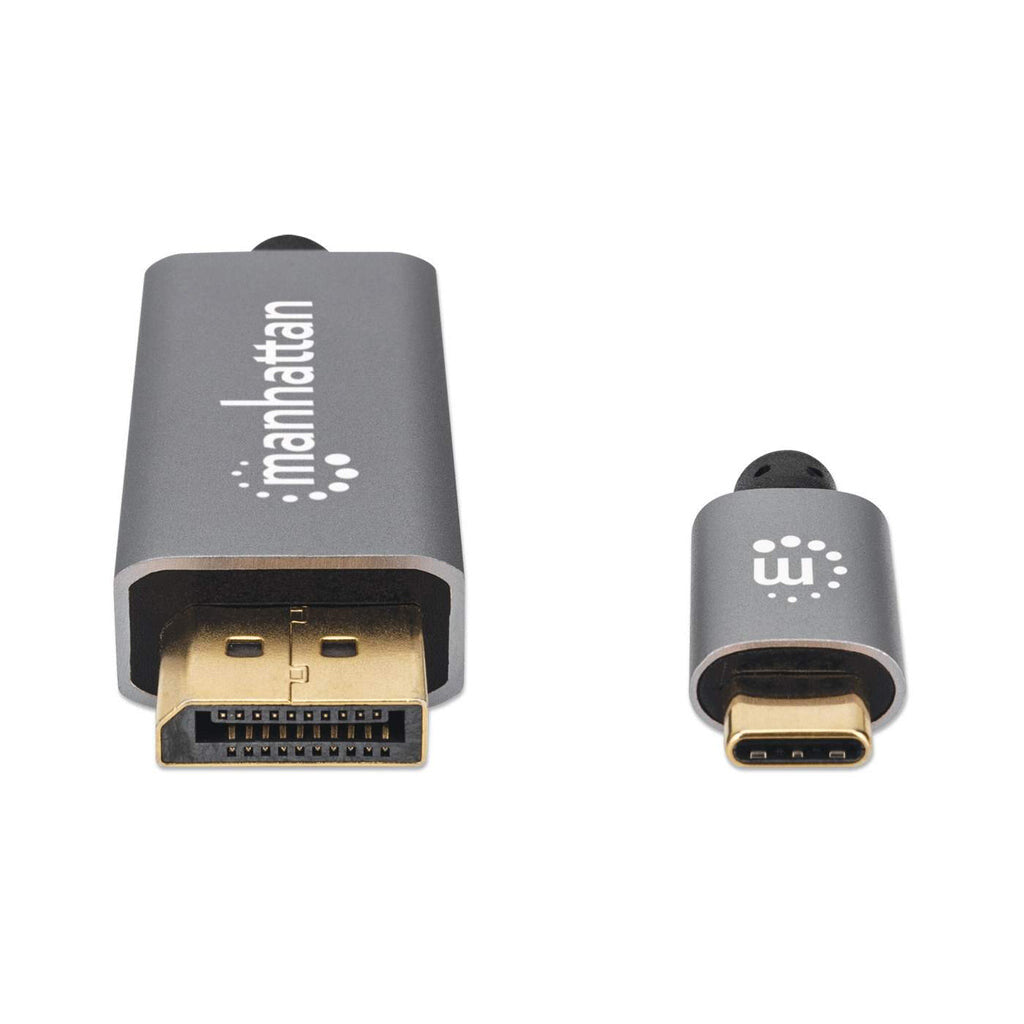

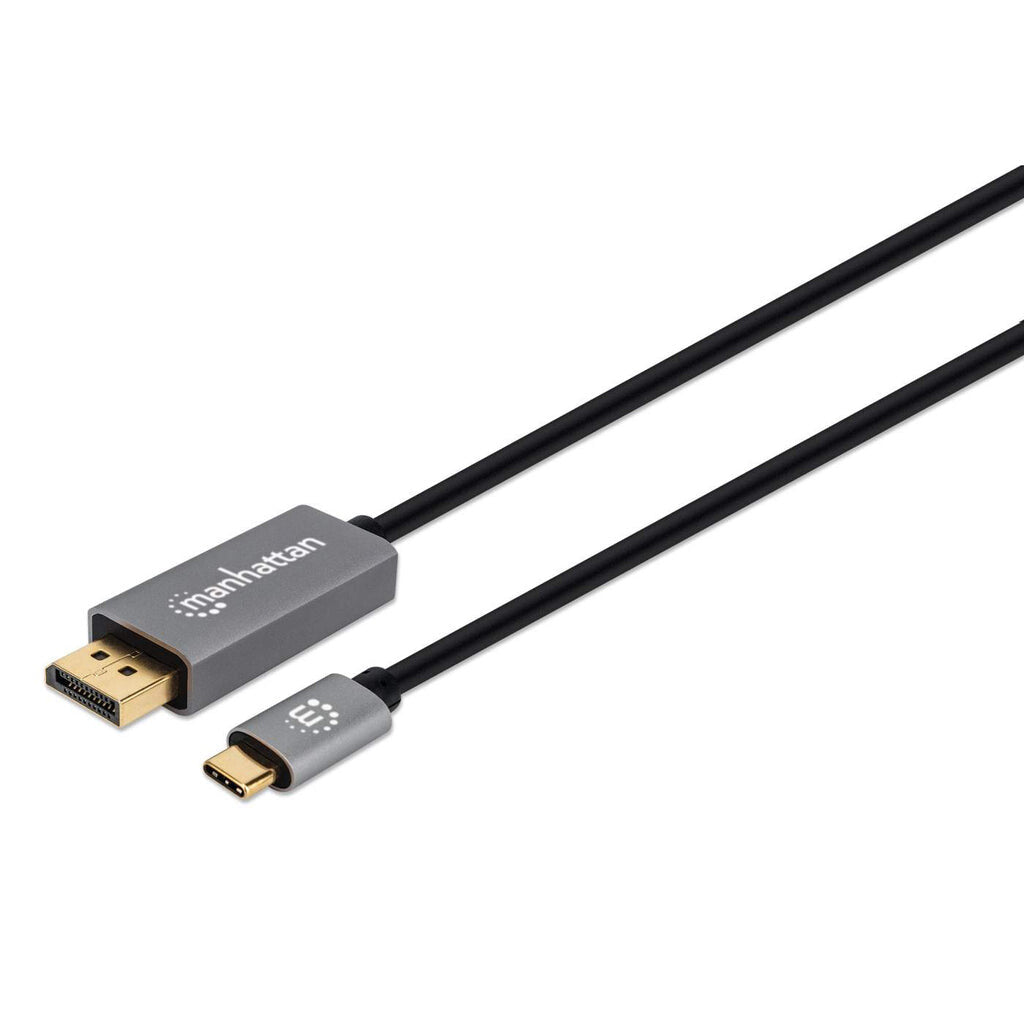

Manhattan USB-C to DisplayPort 1.4 Cable, 8K@60Hz, 2m, Male to Male, Black, Not Bi-Directional, Three Year Warranty, Equivalent to CDP2DP146B (except 20cm longer)

Manhattan
£33.73
iFrame
  • Easily connects a USB-C device to a DisplayPort display, monitor or projector
  • Supports resolutions 8K@60Hz, 4K@120Hz, 1440p@144Hz (UWQHD), 1440p@165Hz (WQHD) and 1080p@240Hz
  • Compatible with any USB-C device that supports DP Alt Mode, including smartphones, Apple® MacBooks®, Chromebooks™, Pixels™, tablets and more
  • DisplayPort 1.4 with state-of-the art, future-proof features for high-end gaming and AV applications
  • Thunderbolt™ 3 compatible
  • HDR10 for superior contrast and brilliant colors
  • Up to 32.4 Gbps bandwidth
  • Gold-plated contacts for corrosion-free connections
  • Triple shielded to reduce EMI and other interference sources
  • Unwired Pin 20 to prevent short circuits
  • Supports Multi-Stream Transport (MST) to daisy-chain multiple displays
  • Uncompressed 32-channel audio
  • Fully compliant with DisplayPort High Bit Rate 3 (HBR3)
  • Display Stream Compression 1.2 (DSC) for maximum resolution output

The DisplayPort Adapter Cable - connect a notebook, MacBook®, smartphone or tablet to a DisplayPort monitor
If you own a modern laptop or MacBook, you've noticed the lack of AV ports to connect a display. The Manhattan DisplayPort Adapter Cable opens up your connectivity options to link to a DP monitor, TV or projector through your device's USB-C port. Its superior DisplayPort 1.4 standard delivers images in brilliant 8K (7680 x 4320) at rapid 60 Hz or 4K UHD at blazing fast 120 Hz with HDR10 for perfect contrast and colors. But it doesn’t end there – if you have a smartphone or tablet that supports DP Alt Mode, you can connect it and take content from your mobile device to the big screen. Triple shielding and gold-plated contacts provide maximum conductivity as well as crisp, clear signal transmissions with zero EMI interference.

Features
Cable shielding Aluminium mylar foil
AWG wire size 32
Magnetically shielded Yes
Number of shielding layers 3
Conductor resistance 10 Ω
Insulation resistance 5 MΩ
Product colour Black, Silver
Voltage rating 300 V
Maximum refresh rate 60 Hz
DisplayPort version 1.4
Connector contacts plating Gold
Connector 2 form factor Straight
Connector 1 form factor Straight
Connector 2 gender Male
Connector 1 gender Male
Connector 2 DisplayPort
Connector 1 USB Type-C
Cable length 2 m
Operational conditions
Operating relative humidity (H-H) 0 - 96%
Storage temperature (T-T) -20 - 60 °C
Operating temperature (T-T) 0 - 40 °C
Certificates
Certification CERoHSFCC
Weight & dimensions
Weight 170 g
Packaging data
Package type Polybag
Packaging content
Quantity per pack 1 pc(s)
