Slim Ultra Heavy-Duty XXL TV Mounting Bracket - strong mount for flush-as-possible big-screen TV installations

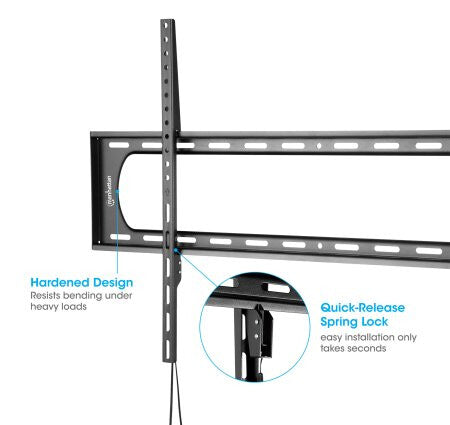

When viewing locations and TV heights are fixed at optimal positions, the Manhattan Heavy-Duty Low-Profile Large-Screen TV Wall Mount creates nearly flush, close-to-the-wall installations that enhance thin, modern TV silhouettes. This ultra-slim TV bracket extends only 35 mm (1.4 in.) from the wall. It's constructed of high-quality, powder-coated steel to fit flat and curved LCD, OLED or plasma TVs up to 120" and weighing up to 120 kg (264 lbs.) with VESA compliance up to 900x600. You're all set for a confident above-the-floor installation with an included bubble level that helps get the mount perfectly horizontal on the wall, and intuitive snap-in spring locks with release cords let you easily and securely put the TV in place. It's ideal for residential, office, hospitality, classroom, conference room, digital signage and other commercial applications.
| Mounting |
|---|
| Panel mounting interface |
50 x 50,75 x 75,100 x 100,100 x 150,100 x 200,150 x 100,150 x 150,200 x 100,200 x 200,200 x 300,200 x 400,300 x 200,300 x 400,400 x 200,400 x 400,400 x 300,400 x 600,600 x 200,600 x 300,600 x 400,600 x 600,700 x 400,800 x 400,800 x 500,800 x 600,900 x 600,1050 x 500,1100 x 100,1100 x 200,1200 x 400,1600 x 600 |
| Maximum VESA mount |
900 x 600 mm |
| Minimum VESA mount |
50 x 50 mm |
| Mounting type |
Wall |
| Maximum screen size |
3.05 m (120") |
| Minimum screen size |
152.4 cm (60") |
| Maximum weight capacity |
120 kg |
| Design |
|---|
| Housing material |
Steel |
| Product colour |
Black |
| Technical details |
|---|
| Orientation |
Landscape |
| Weight & dimensions |
|---|
| Weight |
3.16 kg |
| Height |
35 mm |
| Depth (max) |
62.5 cm |
| Width |
1005 mm |
| Packaging data |
|---|
| Package weight |
3.72 kg |
| Quantity per pack |
1 pair(s) |
