Overview

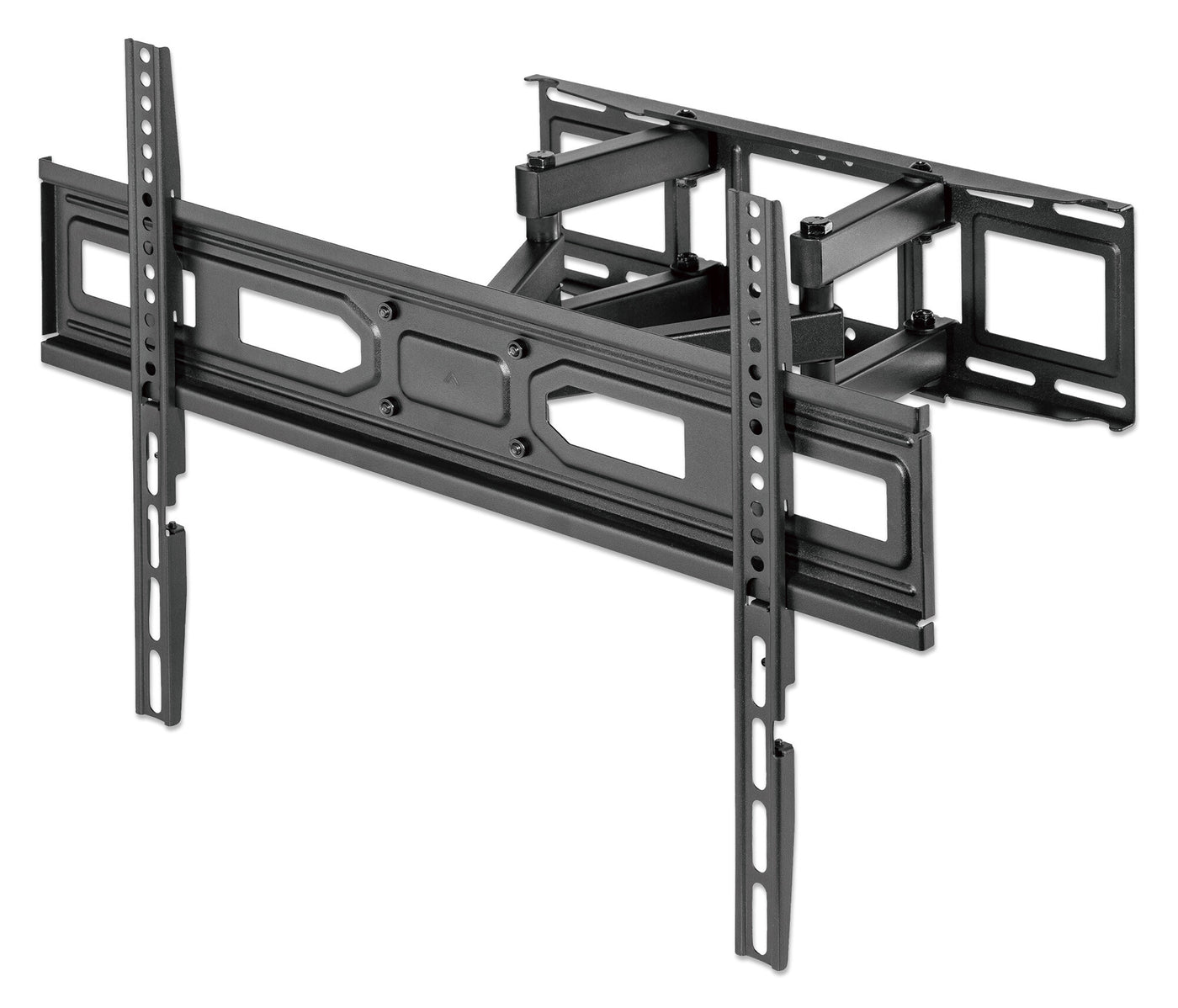

Articulating TV Wall Bracket – fully adjustable mounting bracket to fit almost any space

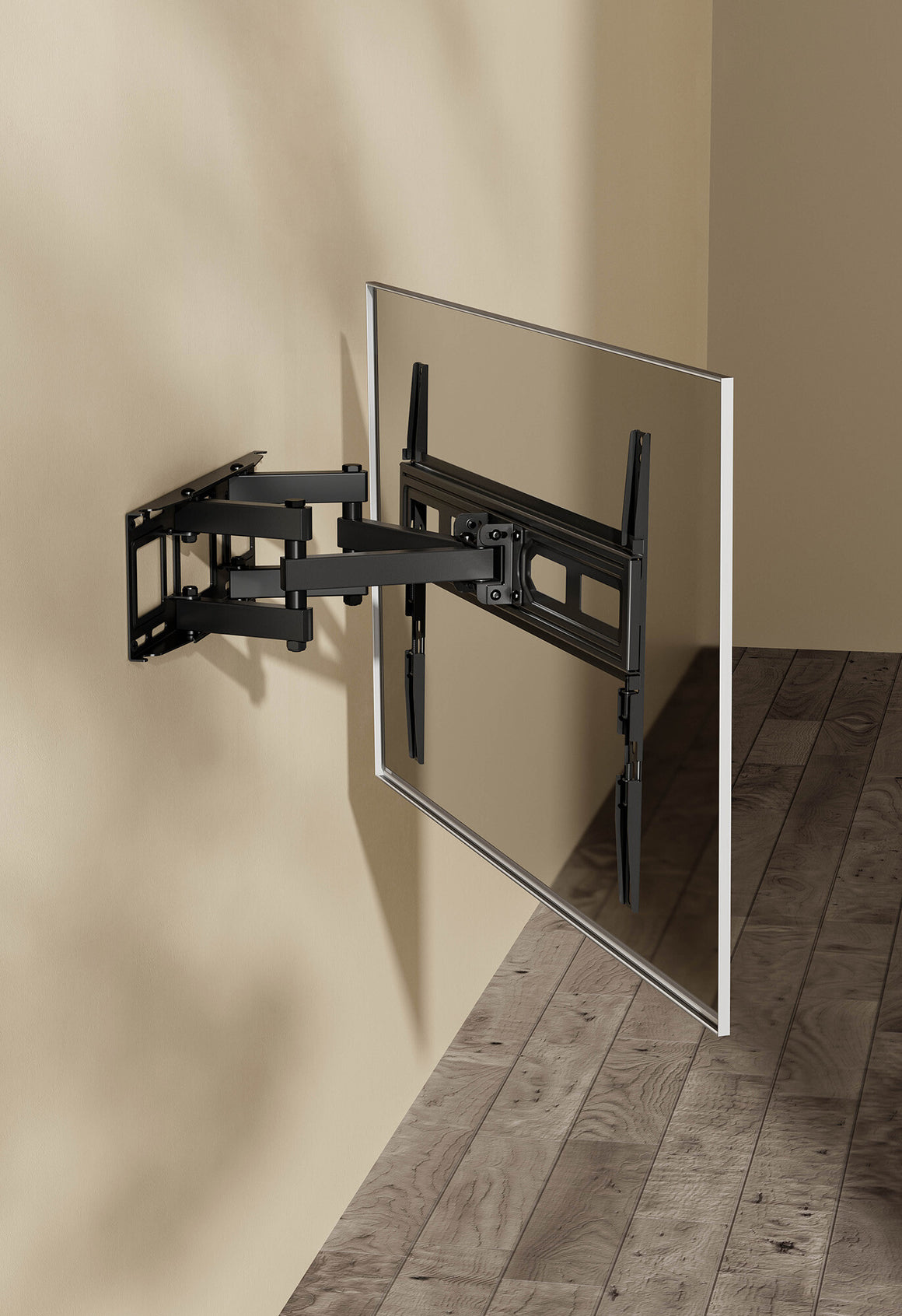

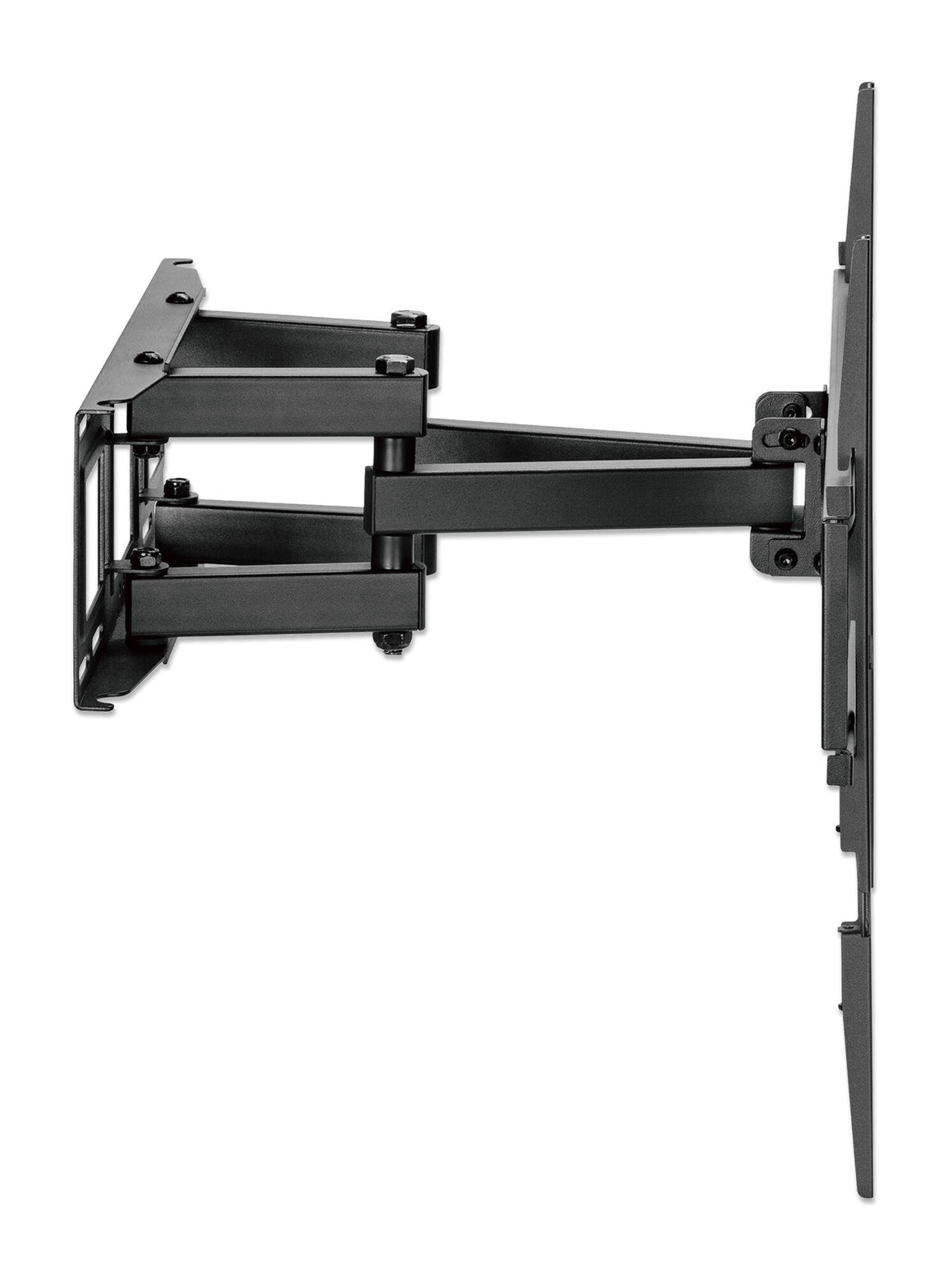

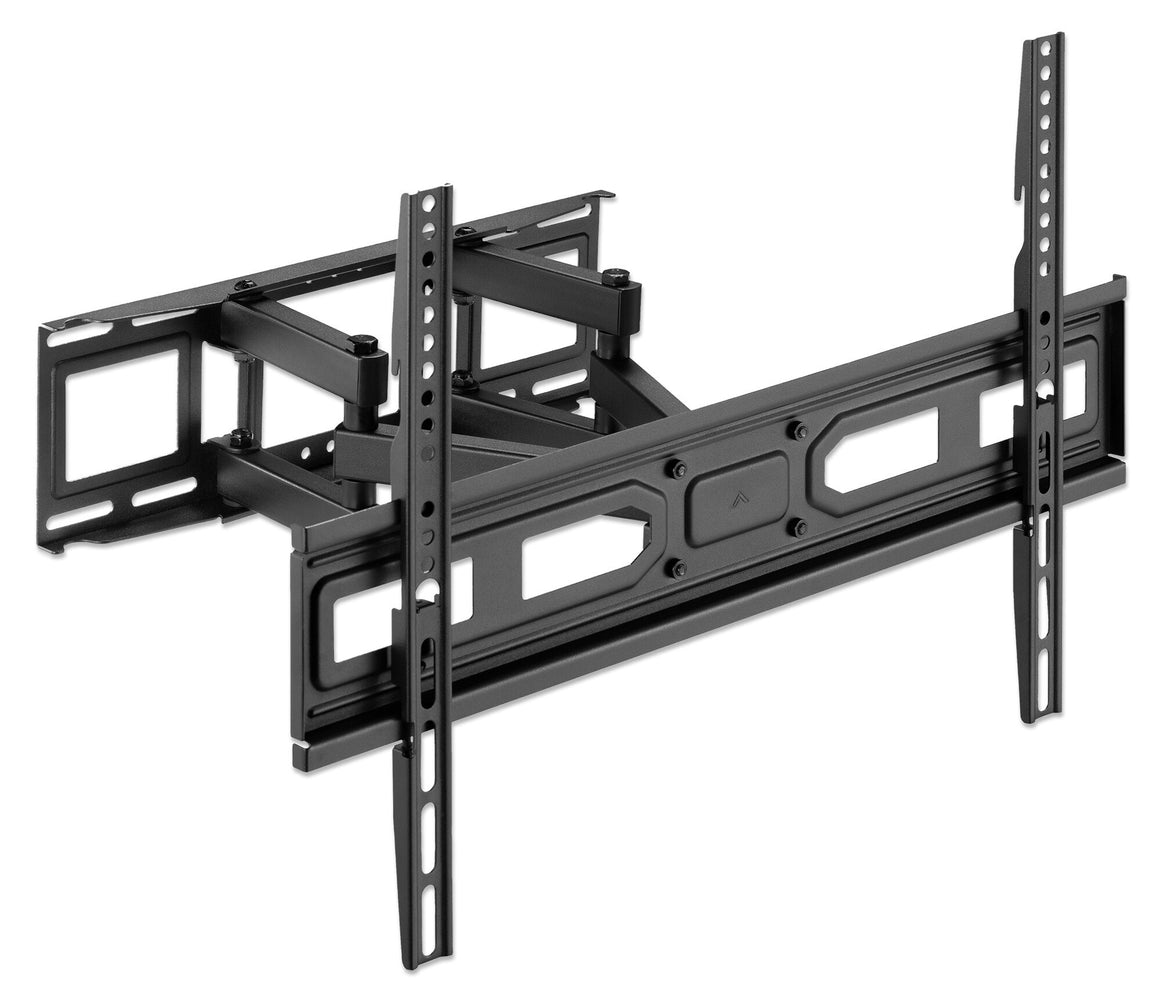

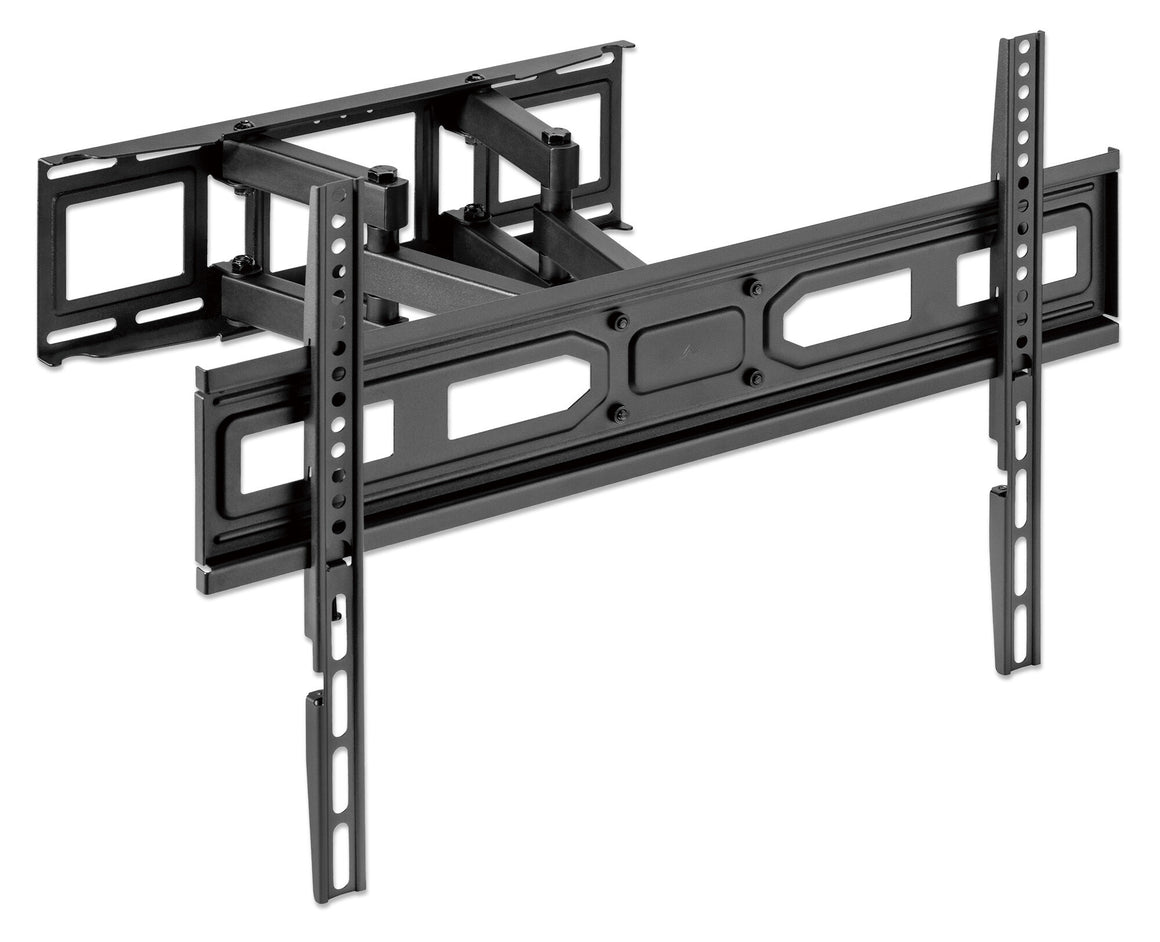

This strong, full-motion TV Wall Mount Bracket from Manhattan safely holds your TV on two articulating arms and provides optimized views with +3 to -15° tilt and +/-60° swivel adjustment. It fits flat and curved LCD, OLED or plasma TVs up to 80"" and weighing up to 40 kg (88 lbs.) with VESA compliance up to 600x400. You're all set for a confident above-the-floor installation with an included bubble level and +/-3° post-leveling adjustment that helps get the mount perfectly horizontal on the wall. This mount is ideal for residential, office, hospitality, classrooms, conference rooms, digital signage and other commercial applications. Wherever you install it, the universal Manhattan Full-Motion TV Wall Mount puts the best TV viewing experience front and center.
Key features
- Supports one flat or curved 37"" to 80"" TV up to 40 kg (88 lbs.)
- Optimized views with +3 to -15° tilt, +/-60° swivel and +/-3° post-installation leveling adjustment

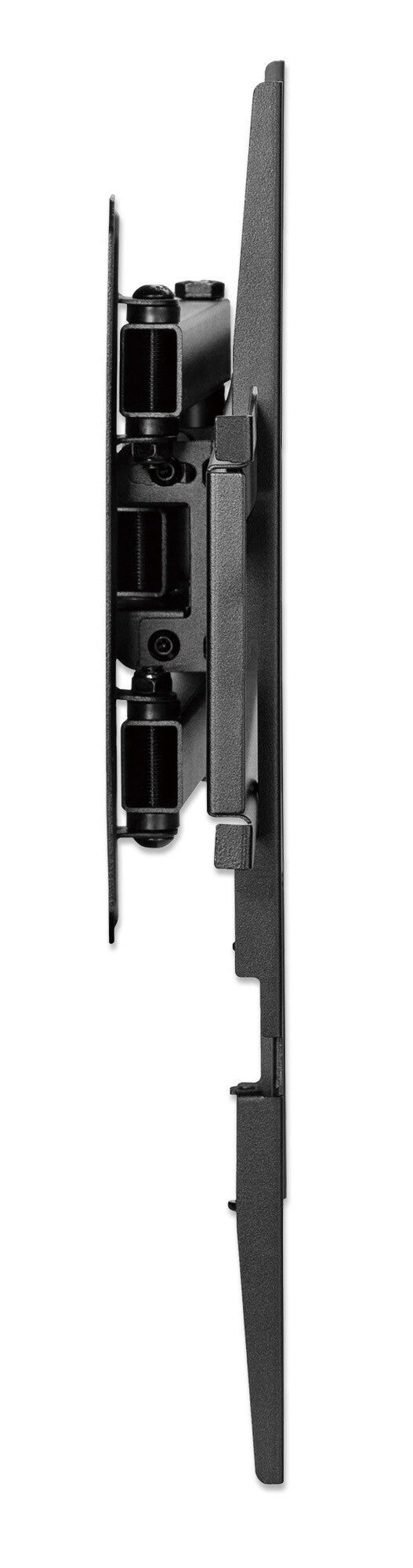

- Holds TV 67 to 355 mm (2.6 to 14 in.) from wall

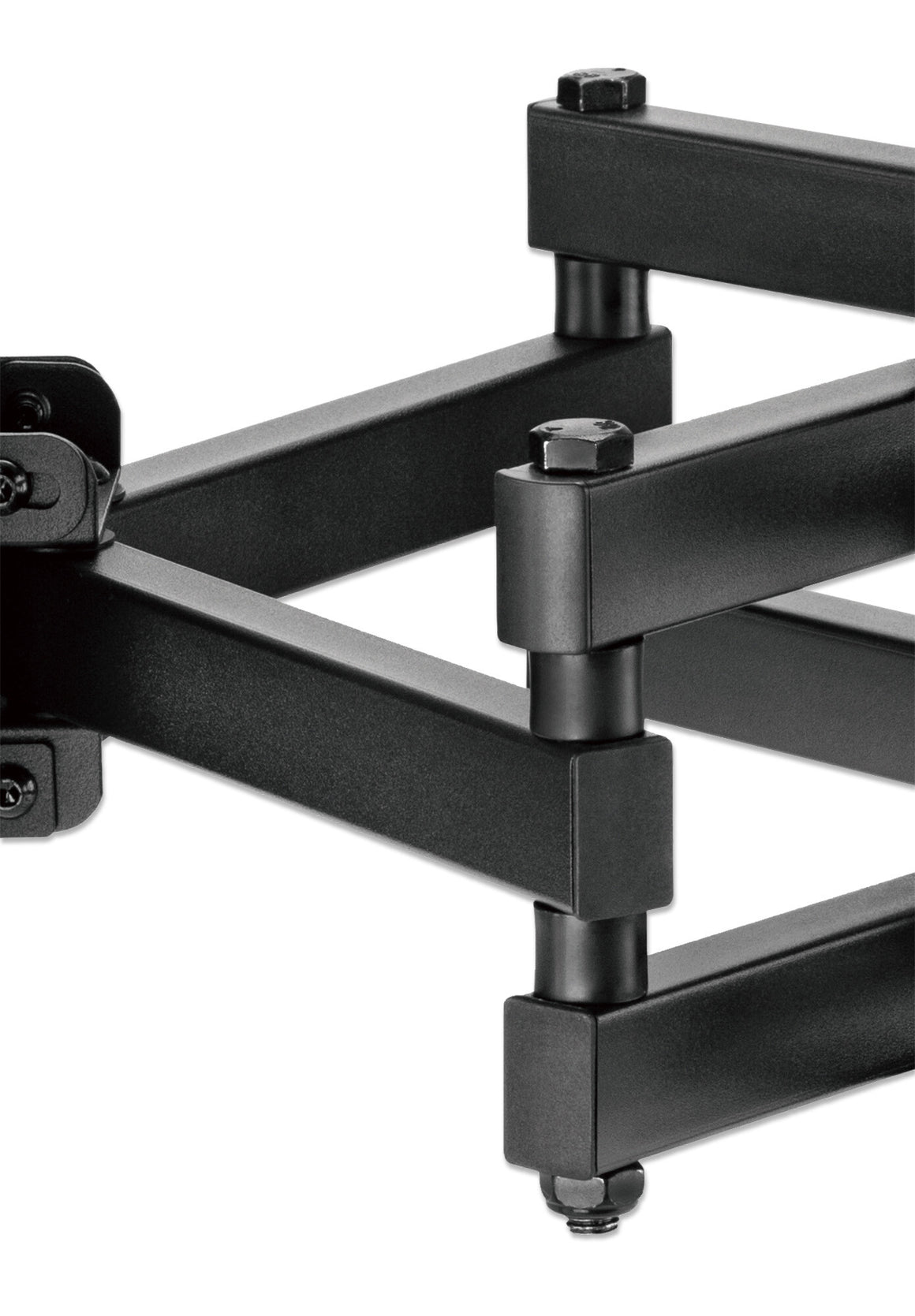

- Heavy-duty steel construction with powder coating
- Includes attachable bubble level

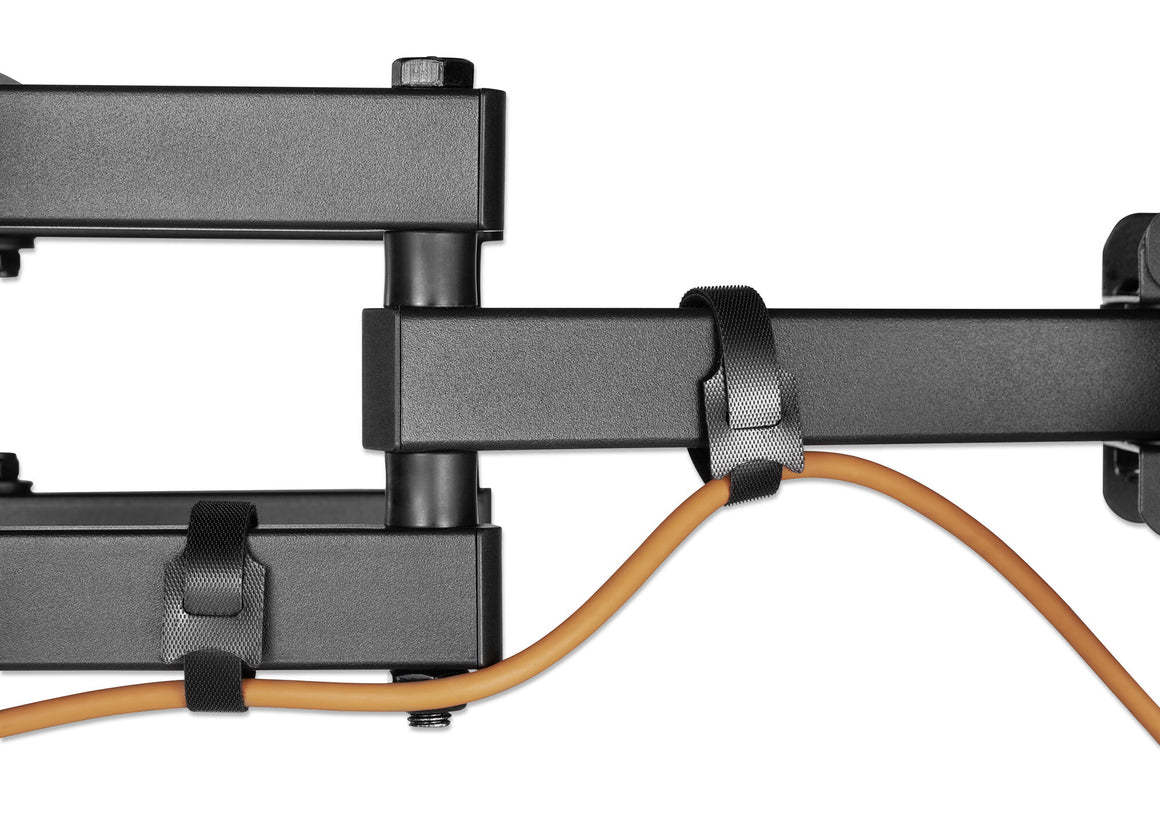

- Built-in cable management to minimize clutter
- Easy installation; ideal for home, office and commercial applications

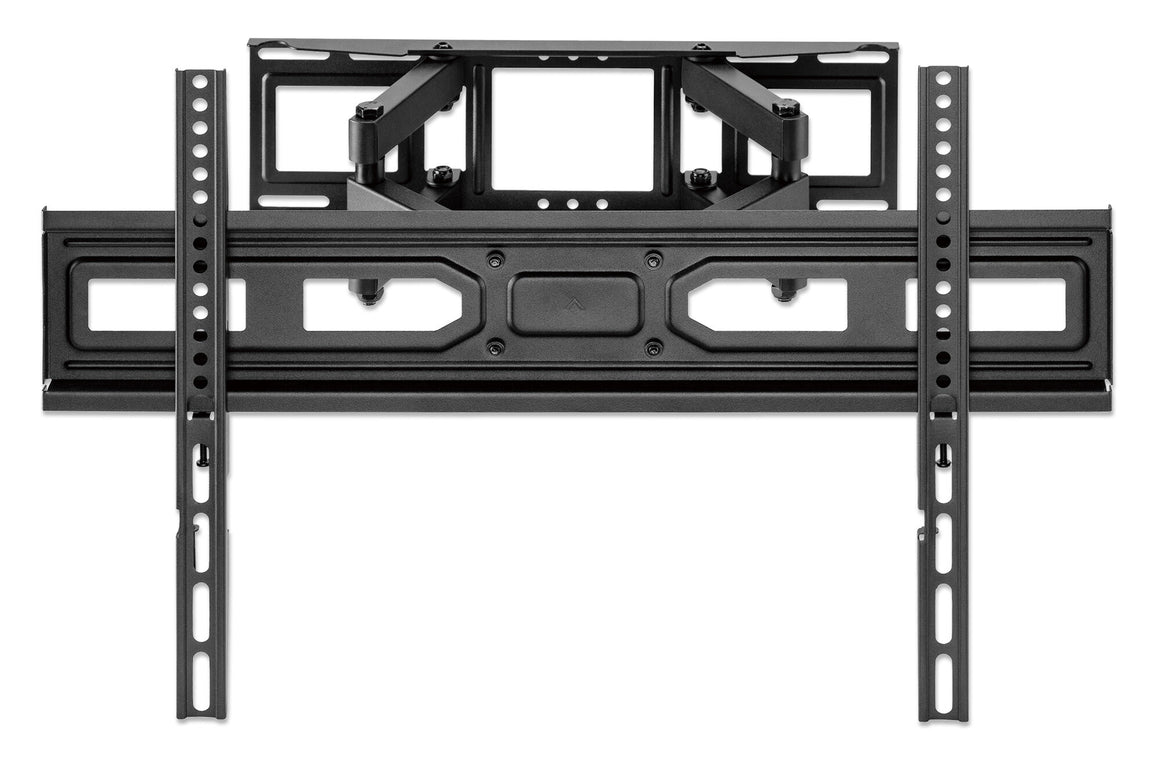

- Meets VESA standards from 100x100 to 600x400 (e.g., 100x100, 100x150, 150x100, 100x200, 200x100, 150x150, 200x200, 300x200, 400x200, 300x300, 400x300, 600x200, 400x400, 600x300, 600x400)
| Mounting | |
|---|---|
| Maximum weight capacity | 40 kg |
| Minimum screen size | 94 cm (37") |
| Number of displays supported | 1 |
| Maximum screen size | 2.03 m (80") |
| Minimum VESA mount | 100 x 100 mm |
| Maximum VESA mount | 600 x 400 mm |
| Panel mounting interface | 100 x 100,100 x 150,100 x 200,150 x 100,150 x 150,200 x 100,200 x 200,300 x 200,300 x 300,400 x 200,400 x 400,400 x 300,600 x 200,600 x 300,600 x 400 |
| Mounting type | Wall |
| Ergonomics | |
|---|---|
| Adjustable depth | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | -15 - 3° |
| Swivelling | Yes |
| Swivel angle range | -60 - 60° |
| Distance to the wall (max) | 35.5 cm |
| Distance to the wall (min) | 6.7 cm |
| Suitable for curved screen | Yes |
| Design | |
|---|---|
| Product colour | Black |
| Housing material | Steel |
| Technical details | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Orientation | Landscape |
| Post-installation leveling roll | Yes |
| Warranty period | 10 year(s) |
| Packaging content | |
|---|---|
| Manual | Yes |
| Mounting kit | Yes |
| Packaging content | Full-Motion TV Wall Mount with Post-Leveling Adjustment Attachable bubble level Installation hardware with instructions |
| Weight & dimensions | |
|---|---|
| Width | 640 mm |
| Depth (max) | 35.5 cm |
| Height | 420 mm |
| Weight | 3.4 kg |
| Packaging data | |
|---|---|
| Package width | 645 mm |
| Package depth | 62 mm |
| Package height | 155 mm |
| Package weight | 3.92 kg |
| Package type | Box |
