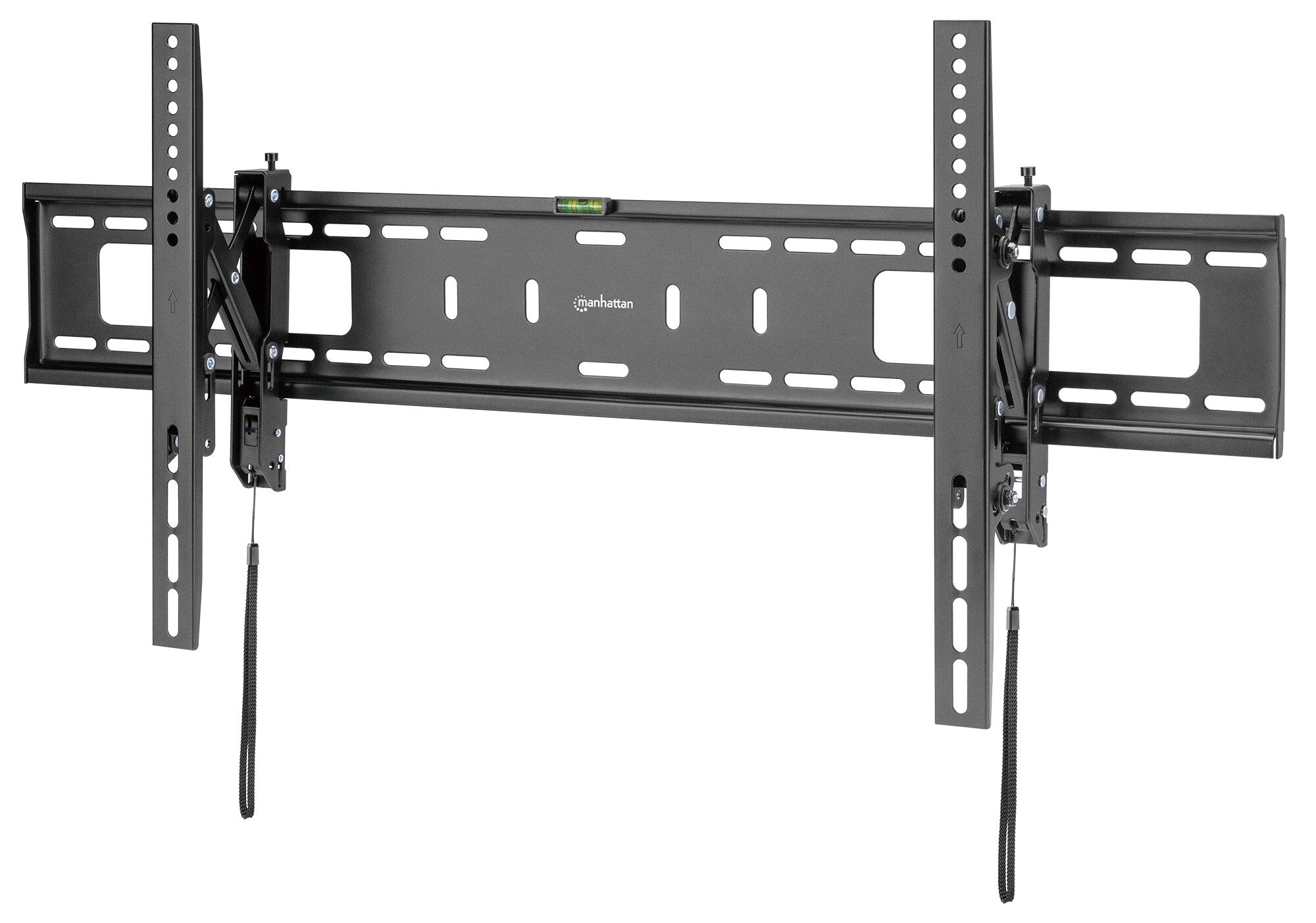

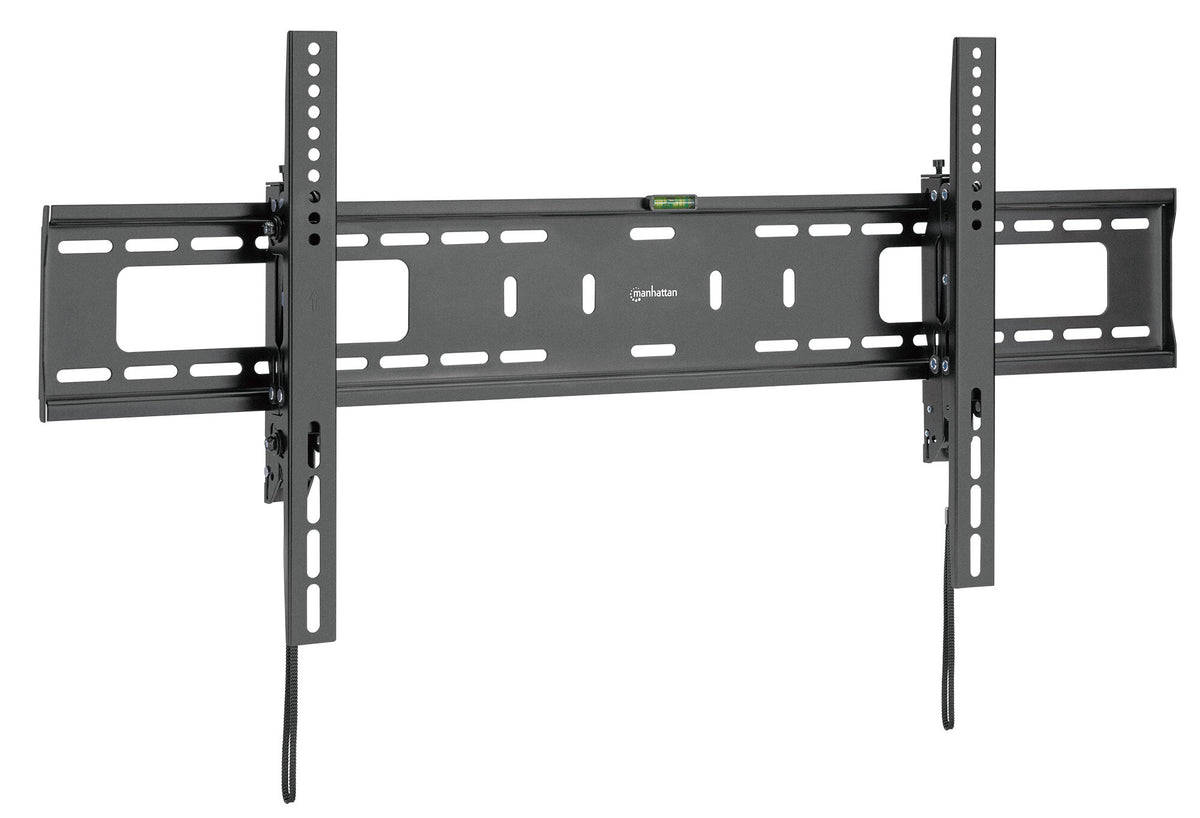

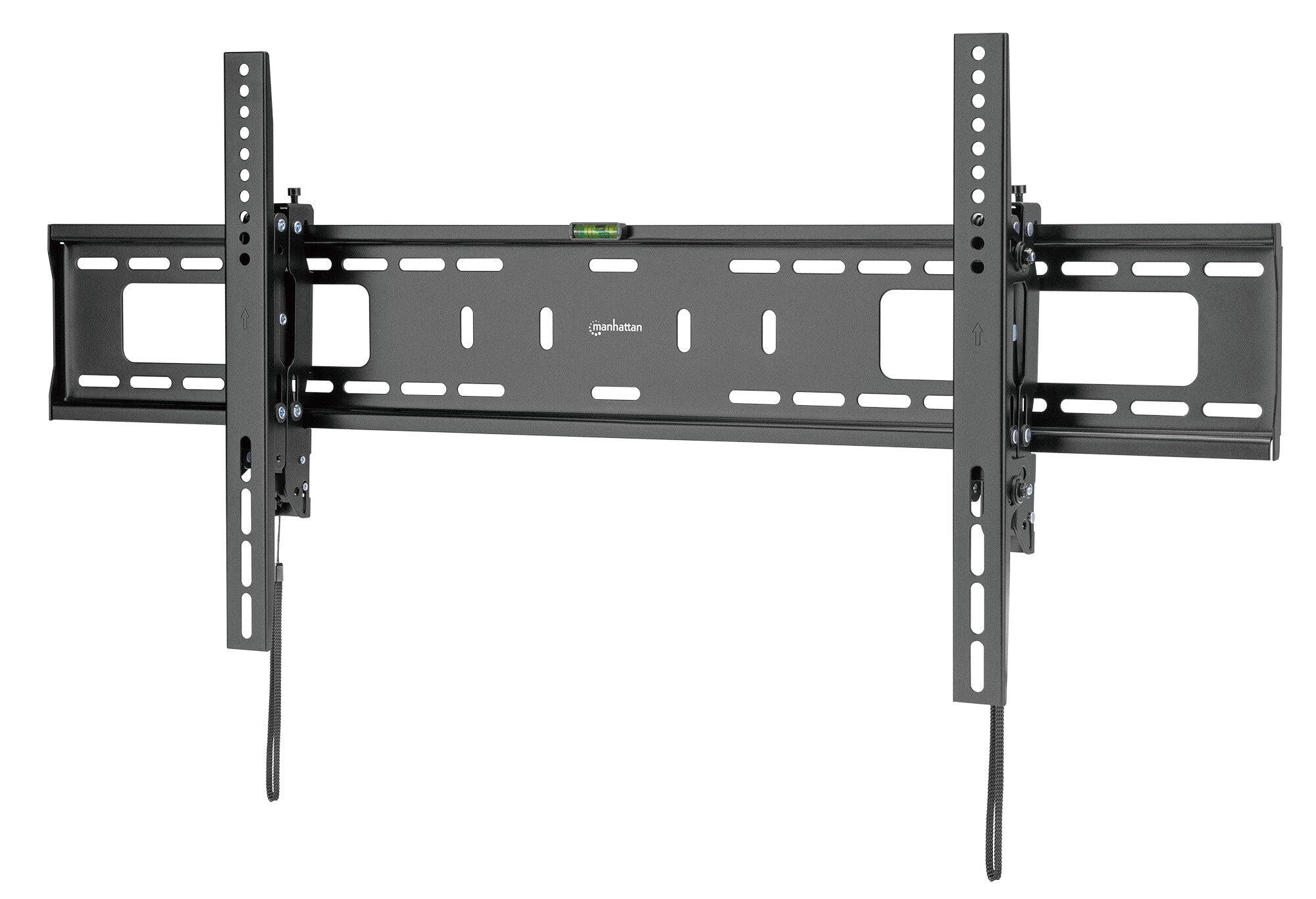

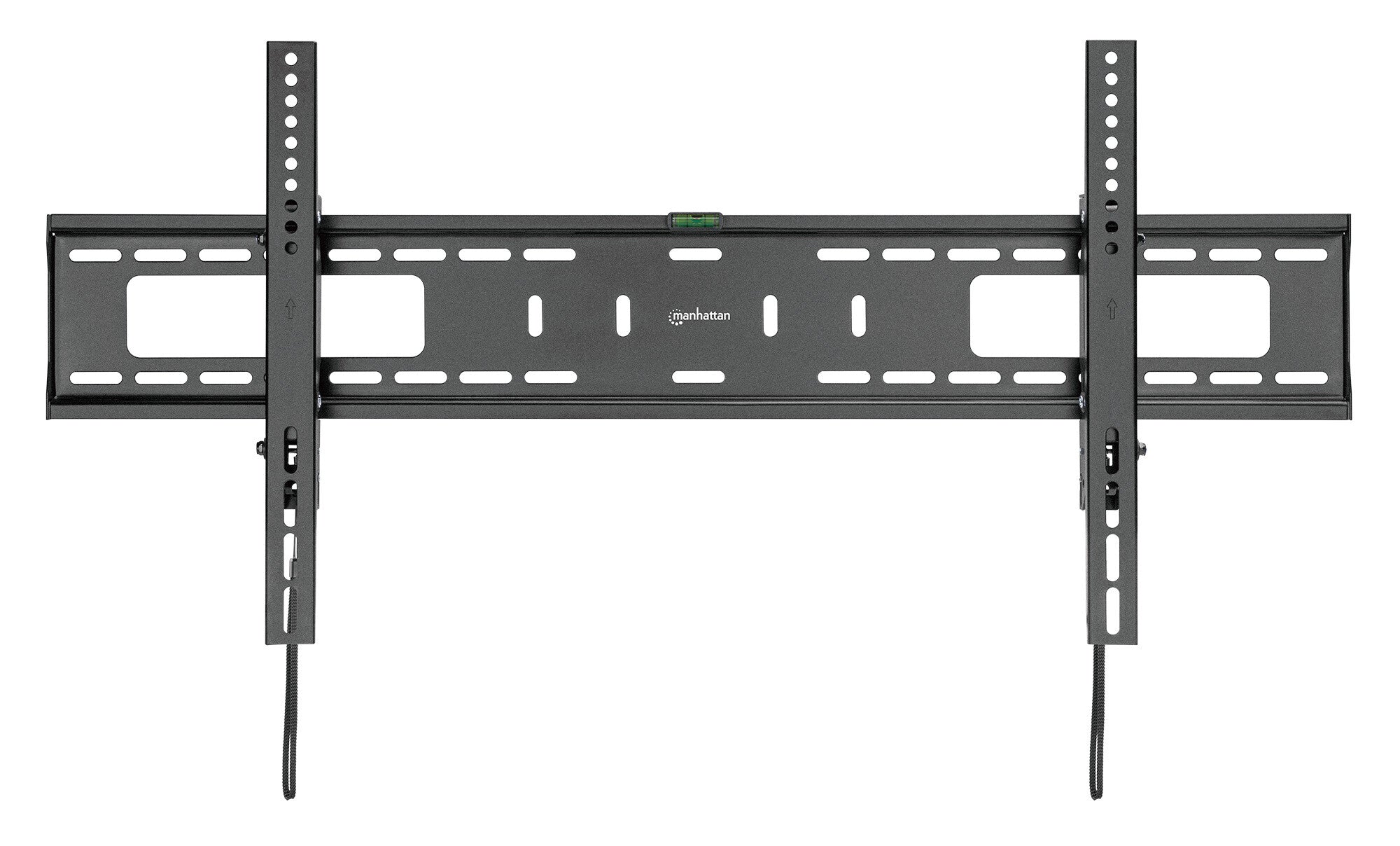

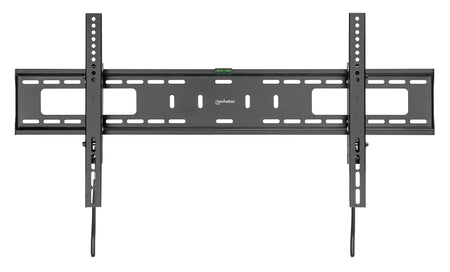

Adjustable, Secure TV Wall Bracket that Extends for Easy Cabling

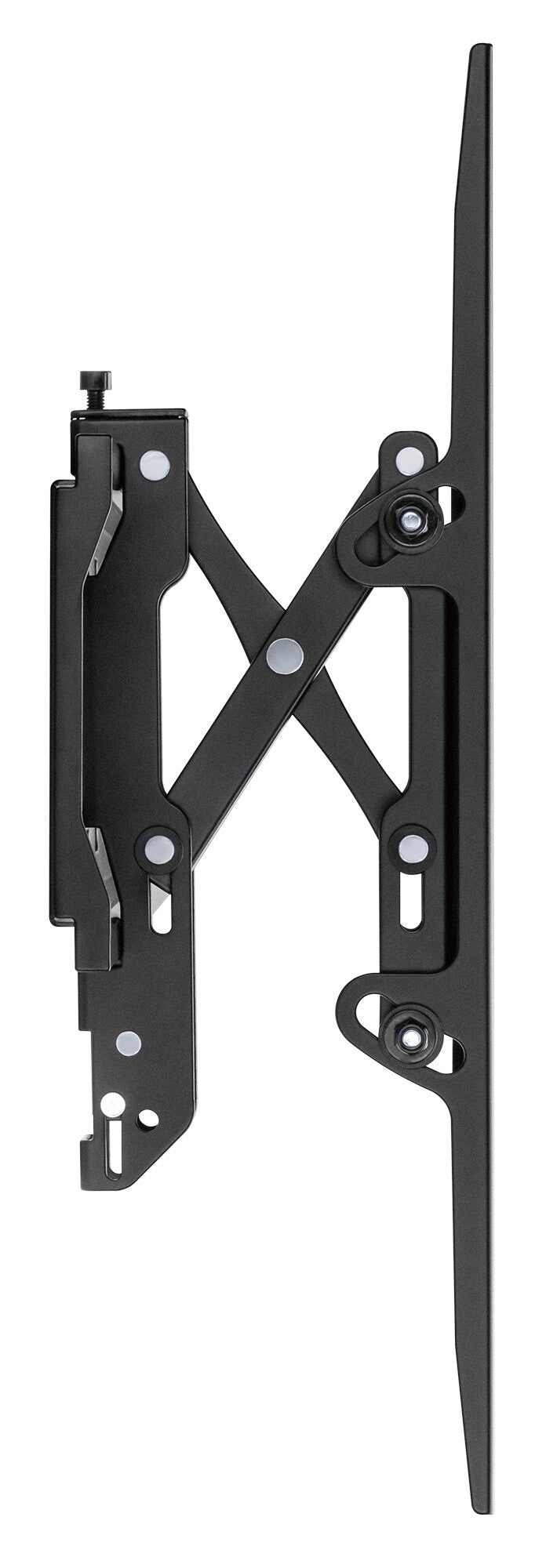

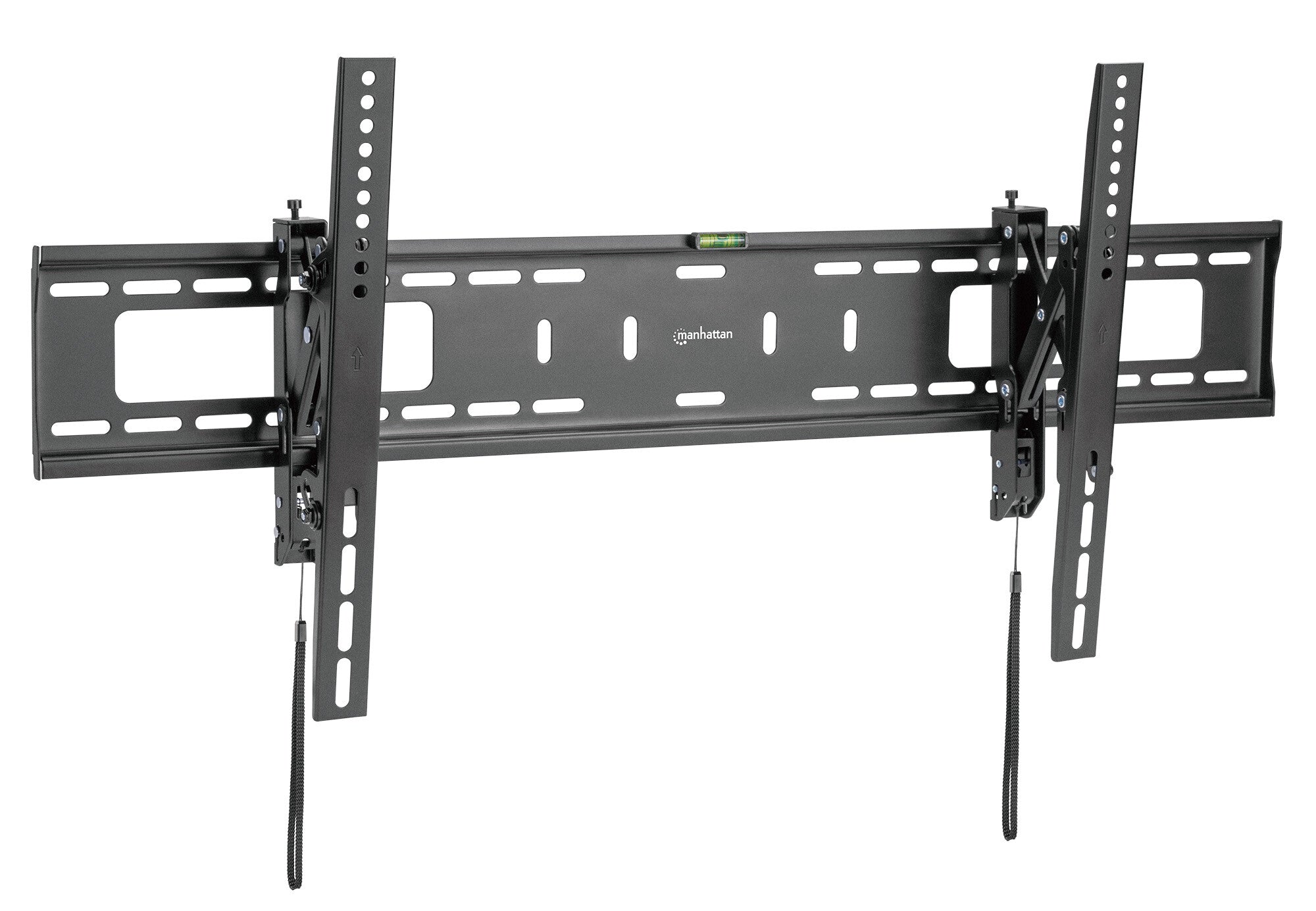

This TV Wall Mount from Manhattan is your convenient solution to safely hold your flat or curved 43" to 90" display up to 75 kg (165 lbs.). Mount your screen just 75 mm (3 in.) from the wall for a sleek, modern look. Need easier access to your cables? Its innovative design allows an optional extension of an additional 60 mm (2.4 in.), making it easier than ever to manage your cabling without hassle.
Optimal Viewing Angles

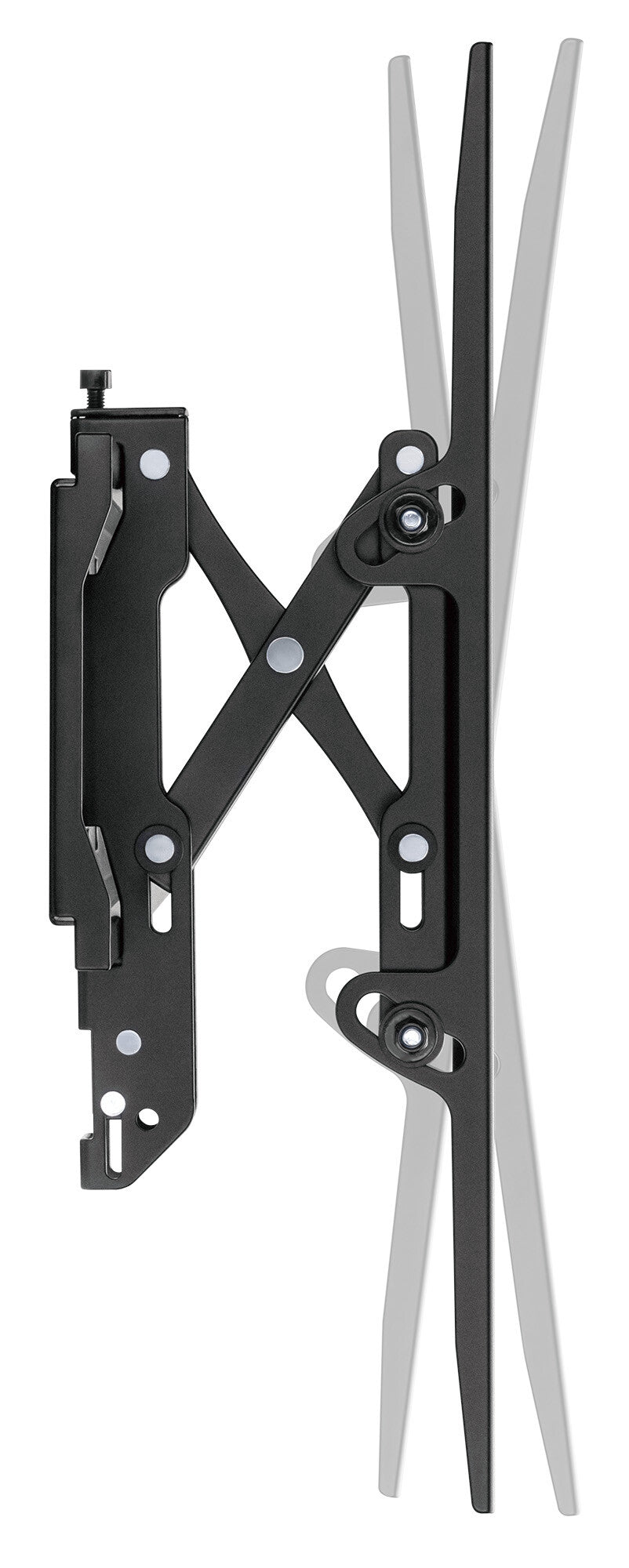

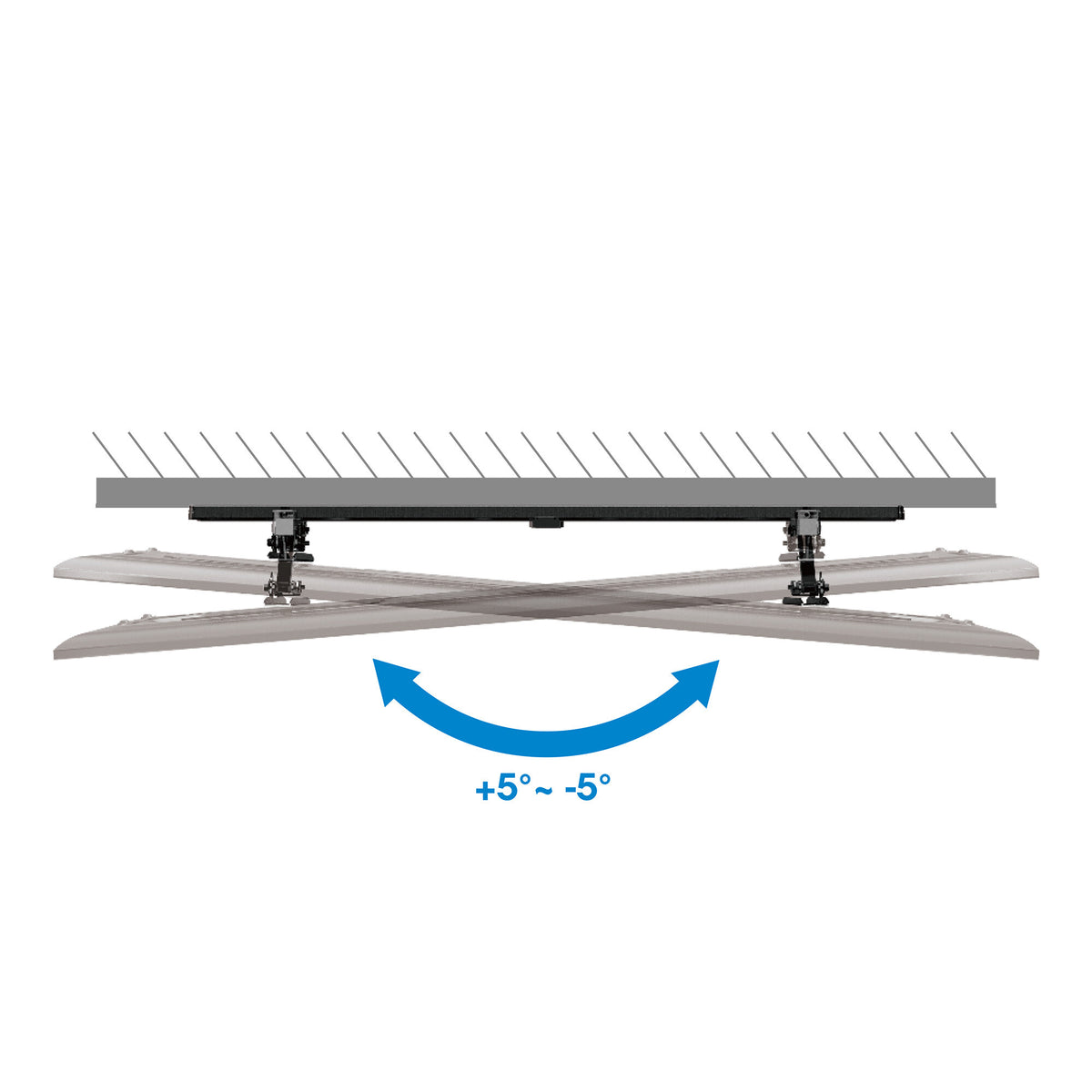

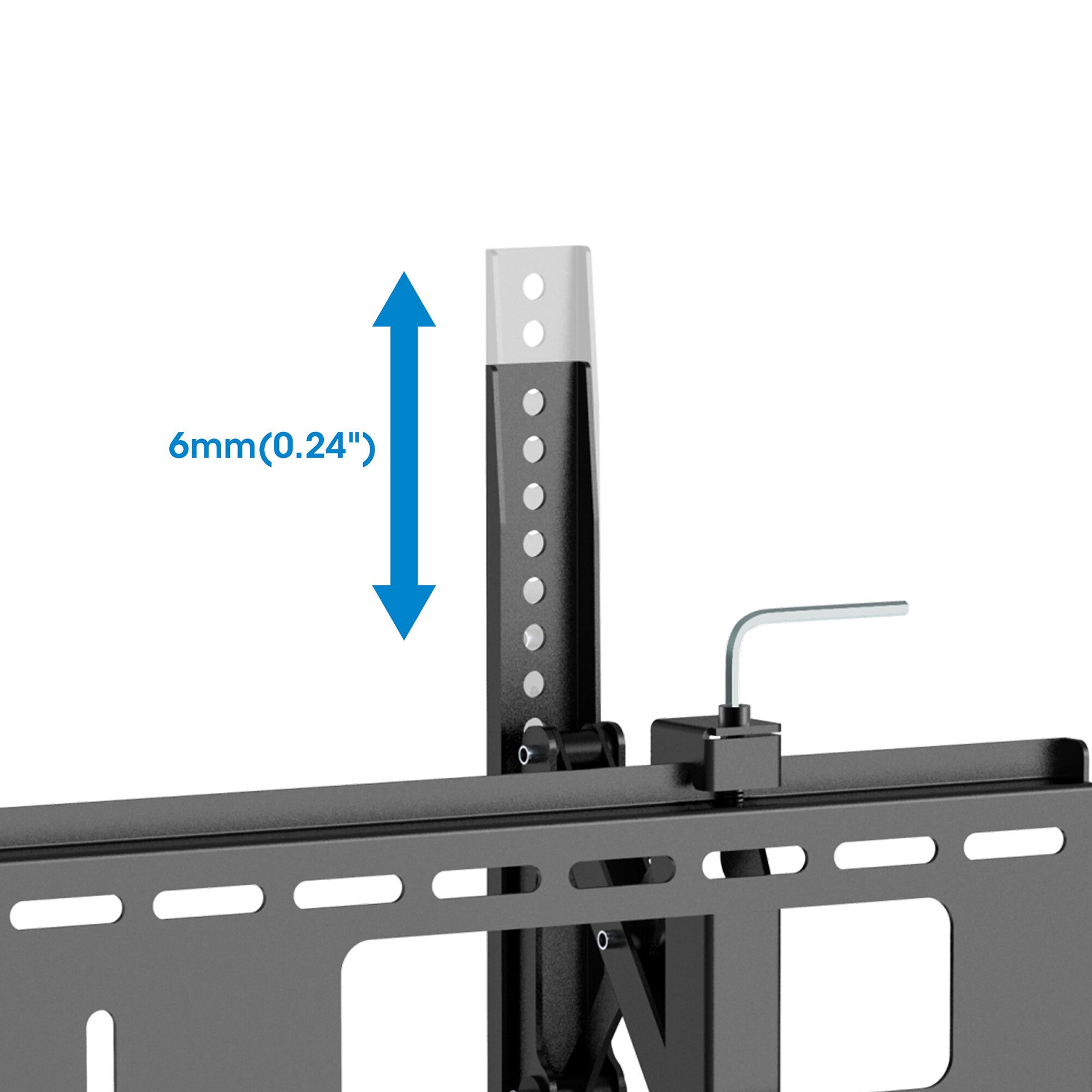

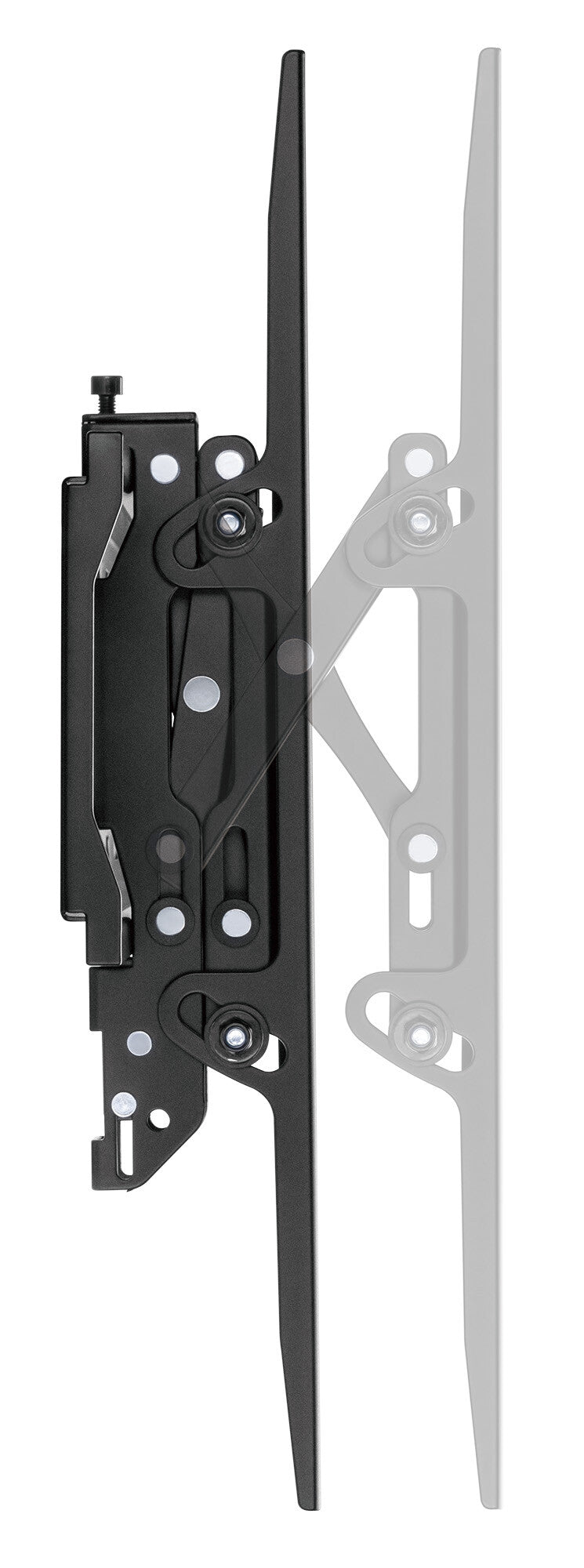

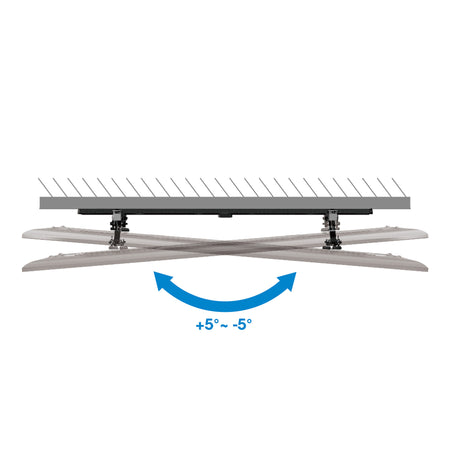

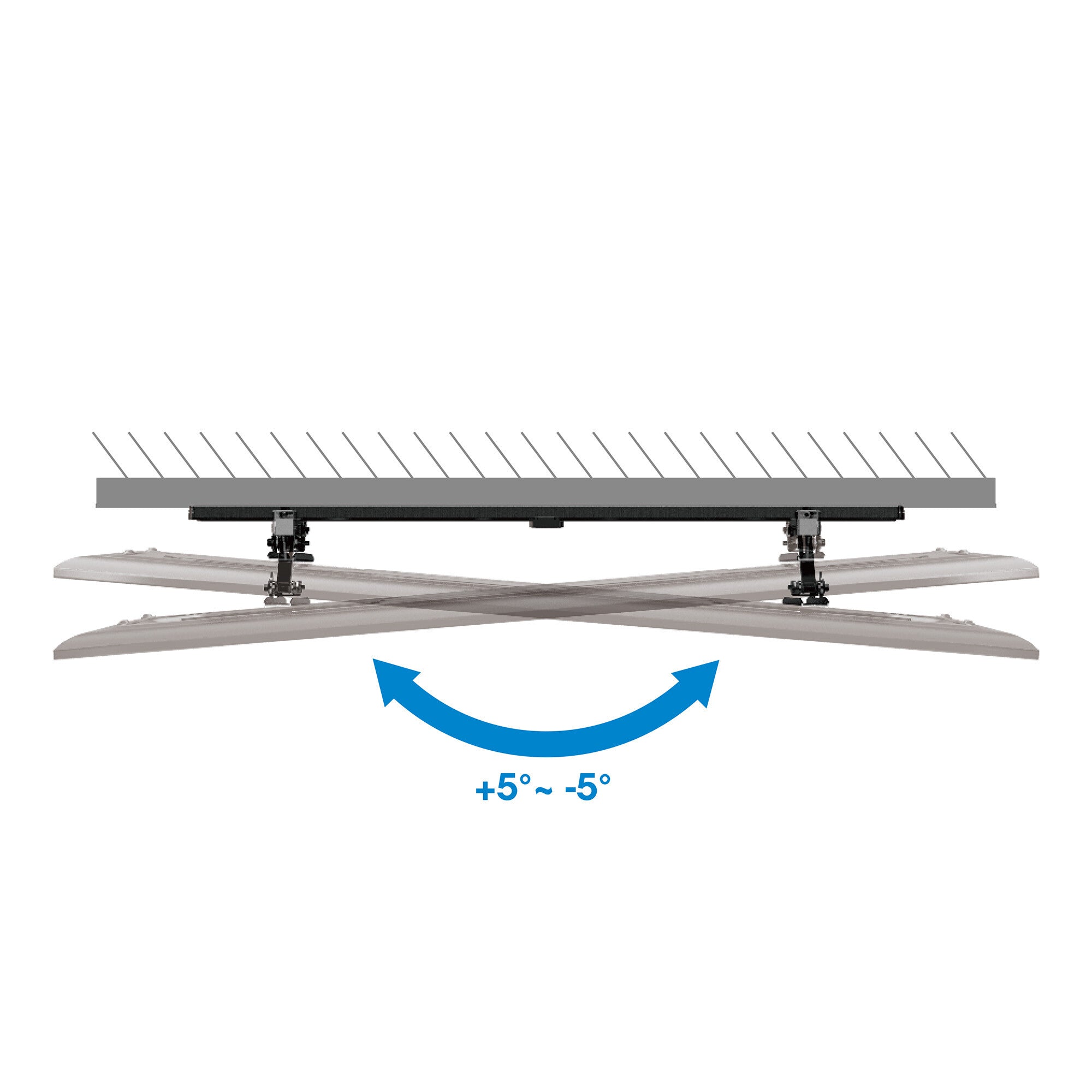

Achieve the perfect view with a versatile +5 to -10° tool-free tilt, +/-5° swivel, and +/-6 mm post-installation leveling adjustment.
Robust and Reliable Construction
Constructed with heavy-duty, 2 mm thick reinforced steel and a durable powder coating, this mount provides strength and reliability.
Precision Installation Made Simple
Included is an attachable bubble level for perfect alignment during installation. The snap-in spring locks with release cords make mounting or removing your TV a breeze, adding an extra layer of safety and ease.
Enhanced Security
Ideal for public or commercial spaces, the anti-theft locking option (padlock required, not included) provides an extra measure of security, perfect for digital signage or any setting where additional protection is desired, like office, hospitality or classroom.
| Mounting |
|---|
| Number of displays supported |
1 |
| Panel mounting interface |
200 x 200,200 x 300,200 x 400,300 x 200,300 x 400,400 x 200,400 x 400,400 x 300,600 x 200,600 x 300,600 x 400,800 x 400 |
| Maximum VESA mount |
800 x 400 mm |
| Minimum VESA mount |
200 x 200 mm |
| Mounting type |
Wall |
| Maximum screen size |
2.29 m (90") |
| Minimum screen size |
109.2 cm (43") |
| Maximum weight capacity |
75 kg |
| Ergonomics |
|---|
| Distance to the wall (min) |
7.5 cm |
| Distance to the wall (max) |
13.6 cm |
| Swivel angle range |
-5 - 5° |
| Swivelling |
Yes |
| Tilt angle range |
-10 - 5° |
| Tilt adjustment |
Yes |
| Design |
|---|
| Anti-theft function |
Yes |
| Housing material |
Steel |
| Product colour |
Black |
| Packaging content |
|---|
| Manual |
Yes |
| Mounting kit |
Yes |
| Weight & dimensions |
|---|
| Weight |
4.21 kg |
| Height |
430 mm |
| Depth (max) |
13.6 cm |
| Width |
954 mm |
| Packaging data |
|---|
| Package weight |
4.65 kg |
| Package height |
57 mm |
| Package depth |
980 mm |
| Package width |
165 mm |
| Logistics data |
|---|
| Products per master (outer) case |
4 pc(s) |
| Master (outer) case gross weight |
19.5 kg |
| Master (outer) case height |
135 mm |
| Master (outer) case length |
995 mm |
| Master (outer) case width |
340 mm |
