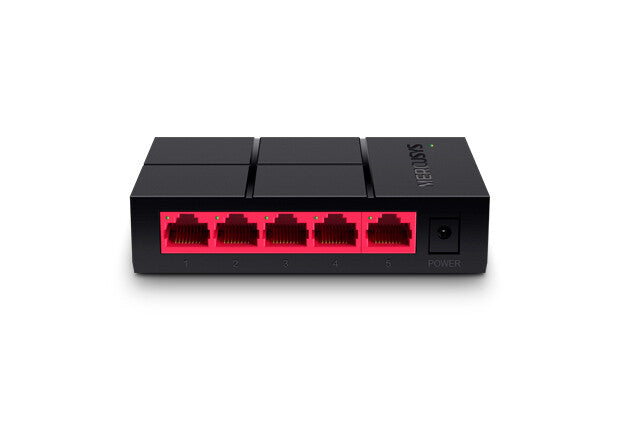

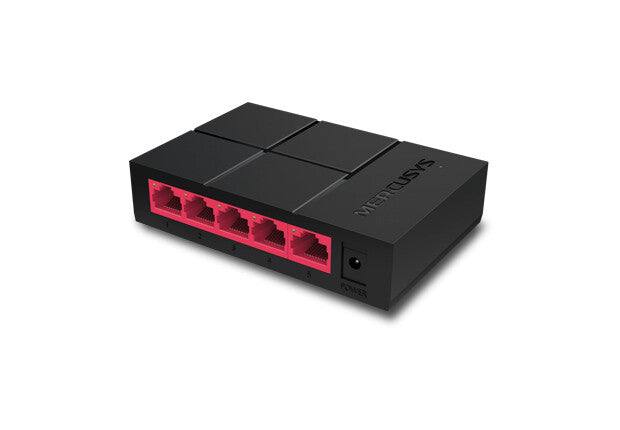

Mercusys 5-Port 10/100/1,000 Mbps Desktop Switch

SKU: MS105G
Regular price £20.84 inc. VAT
  • Five 10/100/1,000 Mbps auto-negotiation RJ45 ports with auto MDI / MDIX supported
  • Easily wired network expansion
  • Compact design for flexible arrangement
  • Plug and play setup, no configuration required
  • Green Ethernet technology saves power by up to 82%

More Efficient Transmission
5-Port 10/100/1000 Mbps Desktop Switch

Expand Ethernet Network with Gigabit Ports
Quickly expand your wired network with five 10/100/1000 Mbps Ethernet ports—10 times faster than regular 10/100 Mbps Ethernet ports. MS105G is flexible and fully compatible with 4K Ultra HD TVs, computers, printers, IP cameras, game consoles, and more. This makes it perfect for use in home, small office, and even dormitory environments.

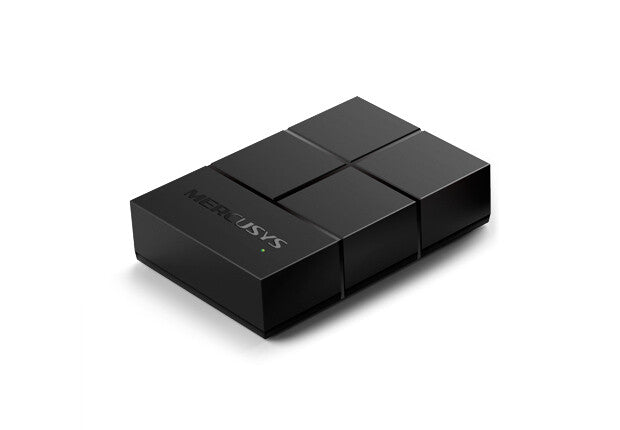

Cool, Ultra-Compact Design
A sleek, square build with a cool red and black color combination provides a high-tech look and feel. About the same size as a smartphone, MS105G sits anywhere in your home without taking up too much.

Plug and Play
Forget about complicated installation. Just connect the switch to your TV or computer via an Ethernet cable to immediately expand your wired network. Absolutely no configuration is required.

Reliable Performance
With Half/Full Duplex and MAC Address Learning Technology, MS105G provides up to 10 Gbps of stable switching bandwidth. Every unit undergoes extensive testing prior to shipment to ensure it will provide reliable, uninterrupted connections for years to come.

Go Green with Your Ethernet
You now have the choice to go green when upgrading to a gigabit network! MS105G features the latest innovative energy-efficient technologies to greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

Management features
Switch type Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity 5
Network
Auto MDI/MDI-X Yes
Auto-negotiation Yes
Full duplex Yes
Half duplex Yes
Networking standards IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Data transmission
Jumbo frames 9000
Jumbo frames support Yes
Design
LED indicators Activity, Power
Product colour Black
Stackable No
Rack mounting No
Power
Input voltage 5 V
Input current 0.6 A
Power supply included Yes
Power source DC
Power over Ethernet (PoE)
Power over Ethernet (PoE) No
Weight & dimensions
Height 24.9 mm
Depth 70 mm
Width 105 mm
Packaging content
Quick start guide Yes
Packaging data
Package weight 200 g
Package height 60 mm
Package depth 90 mm
Package width 110 mm
Logistics data
Harmonized System (HS) code 85176990
