SKU: MR30G

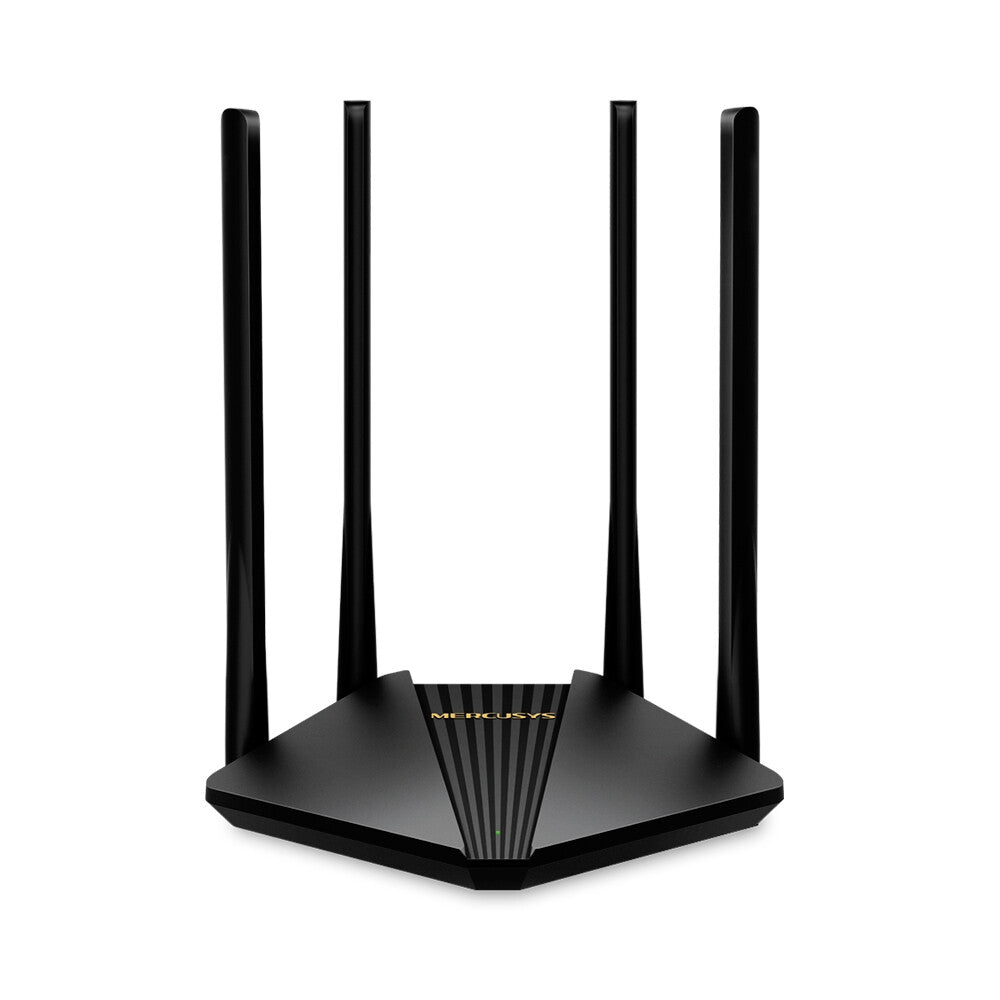

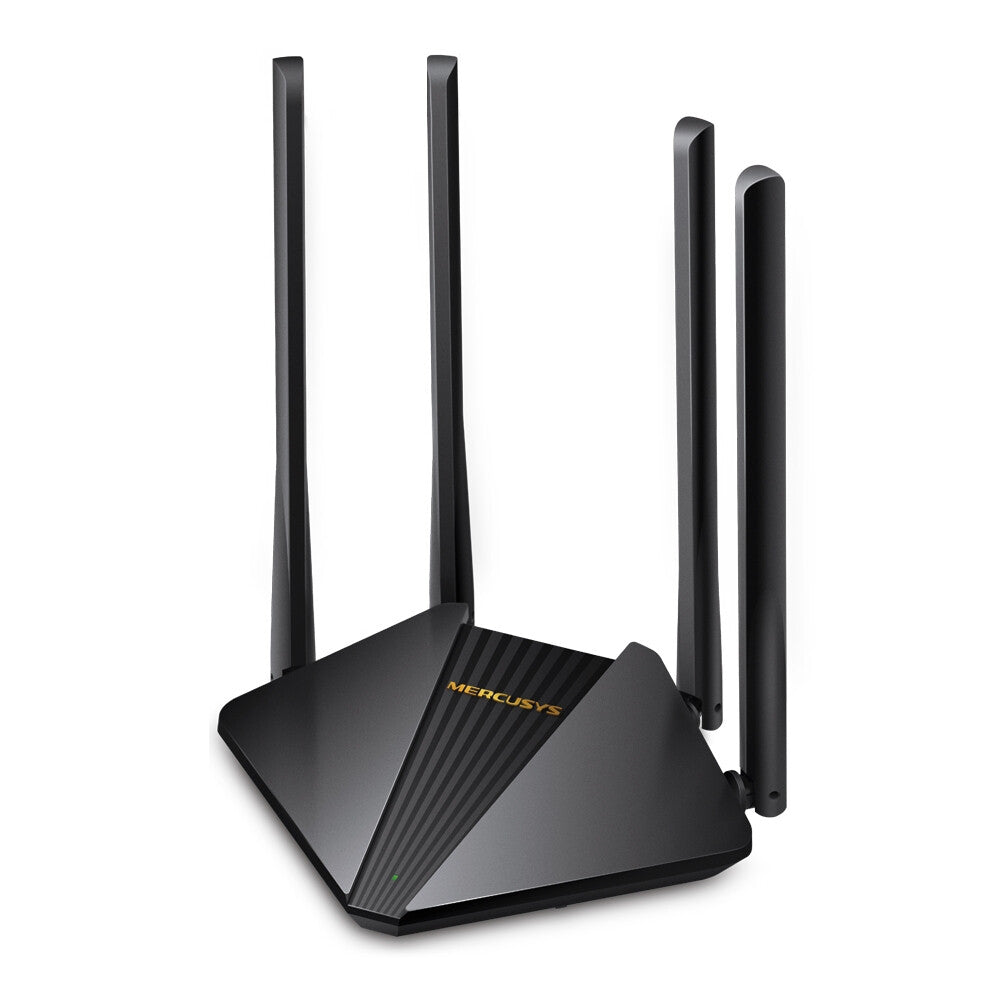

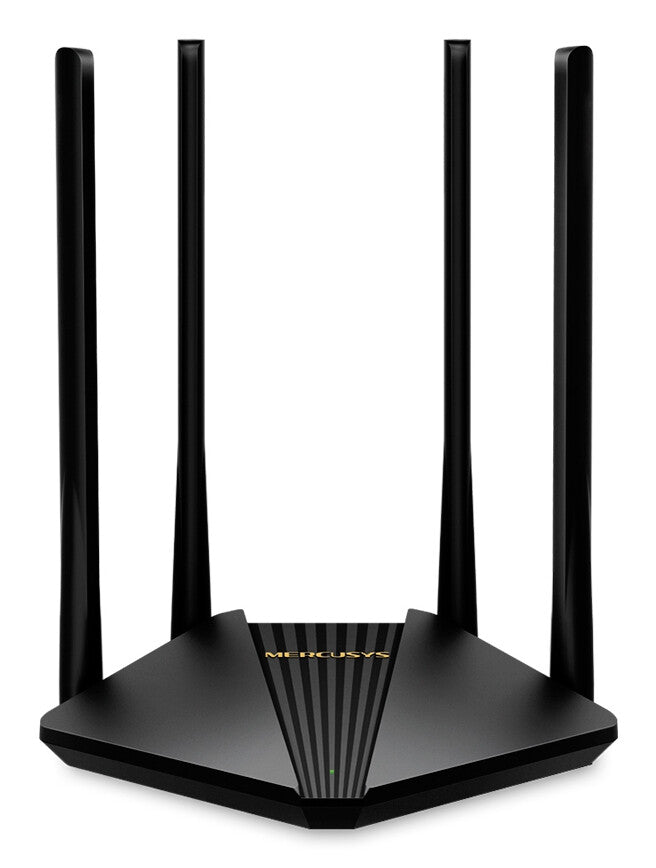

Mercusys AC1200 Wireless Dual Band Gigabit Router

Mercusys
£37.03
  • AC1200 Gigabit WiFi – Enjoy home entertainment without any lag, reaching speeds up to 1.2 Gbps (867 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band)
  • Broader Coverage – 4× high-gain antennas with Beamforming boost stable connections throughout your home for strong WiFi signals in every corner
  • Full Gigabit Ports – Make full use of your internet access and transfer data at dizzying speeds for peak performance
  • Higher Network Efficiency – MU-MIMO technology allows MR30G to communicate with multiple devices at the same time, increasing WiFi throughput for each device
  • Easily Manage Your Home Network – Varied software functions such as Parental Controls, QoS, and Guest Network for safety and effectiveness
  • IPTV Supported – Supports IGMP Proxy/Snooping, Bridge, and Tag VLAN to optimize IPTV streaming
  • IPv6 Supported – Allows you to both enjoy the IPv6 services provided by your ISP and visit IPv6 websites

Live Your Digital Life at Gigabit Speed
AC1200 Wireless Dual Band Gigabit Router

AC1200 Gigabit Speeds
Dual Band WiFi Delivers Fast Connections for All Devices
Complying with the powerful 802.11ac standard, MR30G delivers blazing-fast WiFi speeds up to 1.2 Gbps. Choose the 2.4 GHz band (300 Mbps) that transmits signals with better wall penetration for longer distance as you browse the internet, email a colleague, or share a link on social media. When you’re streaming HD videos, gaming, or other bandwidth-intensive tasks, choose the 5 GHz band (867 Mbps) which delivers higher speeds with less interference

High-Gain Antennas with Beamforming
Targeted Signals that Penetrate Walls
Four external 5 dBi high-gain antennas with well-designed internal structures greatly increase transmission performance, covering more rooms. Advanced Beamforming technology automatically locates wireless devices and forms targeted, highly efficient wireless connections, making your connections more stable.

Powerful Signal Amplifiers
Strong WiFi Signals Throughout Your Home
MR30G unleashes the full potential of your network by strengthening signal transmissions with power amplifiers, and accelerating signal capture with low-noise amplifiers. This means your home WiFi has improved range and full-signal strength for every device.

Gigabit Wired Speeds
Full Gigabit Ports for PCs, IPTVs, and Game Consoles
Equipped with full gigabit ports which are 10× faster than Ethernet ports, MR30G transfers data at dizzying speeds for peak performance. Connect your PCs, IPTVs, and game consoles to MR30G for robust stability.

Easily Manage Your Home Network

Parental Controls
Establish appropriate policies to protect children for responsible, safe internet access

Guest Network
Allows guests to join your WiFi network—all while protecting your privacy—making sharing easy and secure

Quality of Service
Prioritizes devices you select to perform better

Multi-Mode for Flexible Application Scenarios

Router Mode
Creates a wireless network for all your WiFi devices

Access Point Mode
Extends a wired network and makes it wireless

Simple Setup
No Need to Call for Help
Simply follow the step-by-step instructions on the intuitive webpage to get set up in minutes. No complicated configuration required.

WAN connection
WAN connection type RJ-45
3G/4G USB modem compatibility No
SIM card slot No
DSL WAN No
Ethernet WAN Yes
Wireless LAN features
WLAN data transfer rate (second band) 867 Mbit/s
WLAN data transfer rate (first band) 300 Mbit/s
Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max) 1167 Mbit/s
Top Wi-Fi standard Wi-Fi 5 (802.11ac)
Wi-Fi band Dual-band (2.4 GHz / 5 GHz)
Network
Receiver sensitivity 11g 6Mbps: -96dBm11g 54Mbps: -78dBm11n HT40 MCS7: -74dBm11n HT20 MCS7: -71dBm11a 6Mbps: -97dBm11a 54Mbps: -79dBm11ac VHT20 MCS8: -74dBm11ac VHT40 MCS9: -70dBm11ac VHT80 MCS9: -65dBm
Cabling technology 10/100/1000Base-T(X)
Ethernet LAN data rates 10,100,1000 Mbit/s
Ethernet LAN interface type Gigabit Ethernet
Ethernet LAN Yes
Mobile network
5G No
3G No
4G No

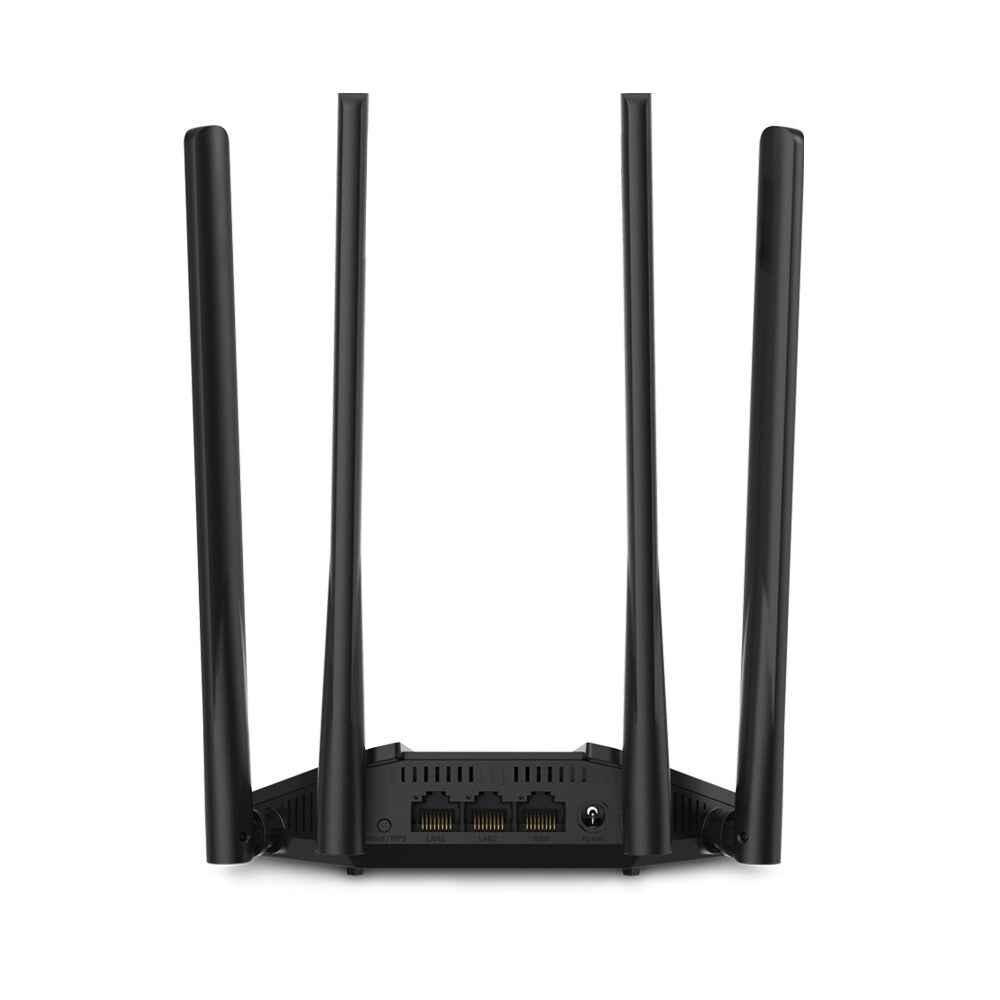

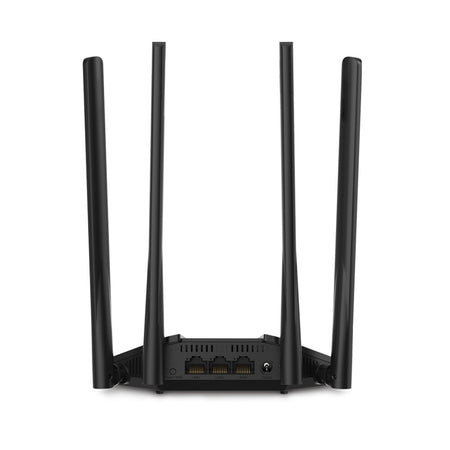

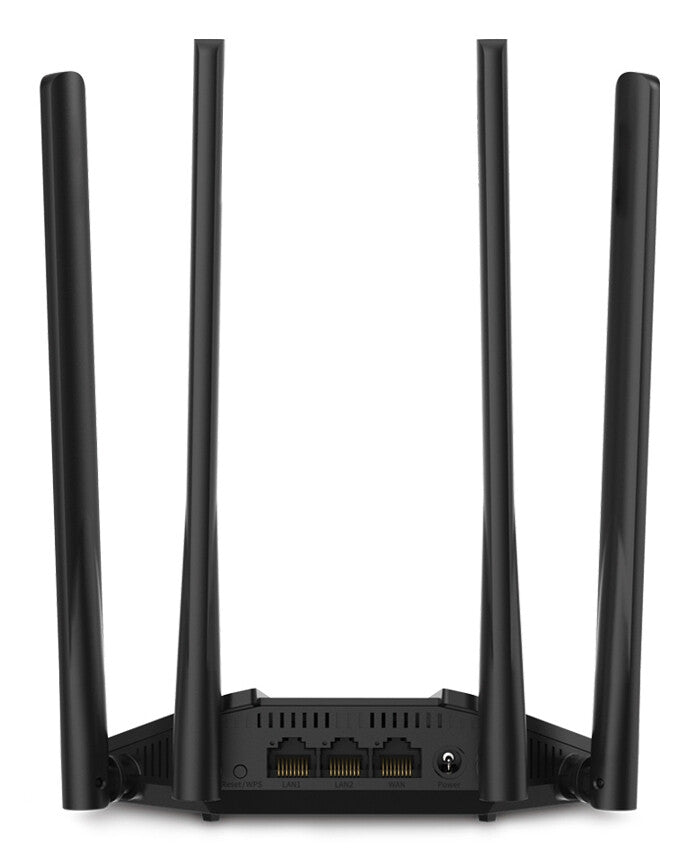

Ports & interfaces
DC-in jack Yes
USB port No
Ethernet LAN (RJ-45) ports 3
Management features
MU-MIMO technology Yes
MIMO Yes
WPS push button Yes
Reset button Yes
Web-based management Yes
Security
NAT functionality Port Forwarding, Port Triggering, UPnP, DMZ
Network address translation (NAT) Yes
Parental control Yes
Firewall security SPI Firewall, IP/MAC Address Binding
Access Control List (ACL) Yes
Guest access Yes
Firewall Yes
Security algorithms WPA-PSK, WPA2-PSK
Protocols
Supported network protocols PPPoE/L2TP/PPTP
DHCP server Yes
DHCP client Yes
Design
LED indicators Status
Product colour Black
Product type Tabletop router
Packaging content
Quick installation guide Yes
Antenna included Yes
AC adapter included Yes
Cables included LAN (RJ-45)
Antenna
Antennas quantity 4
Antenna gain level (max) 5 dBi
Antenna design External
Power
External power adapter Yes
Power source type AC
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 5 - 90%
Weight & dimensions
Width 159.7 mm
Depth 125.9 mm
Height 37.1 mm
Packaging data
Package type Box
