SKU: MB520-5G

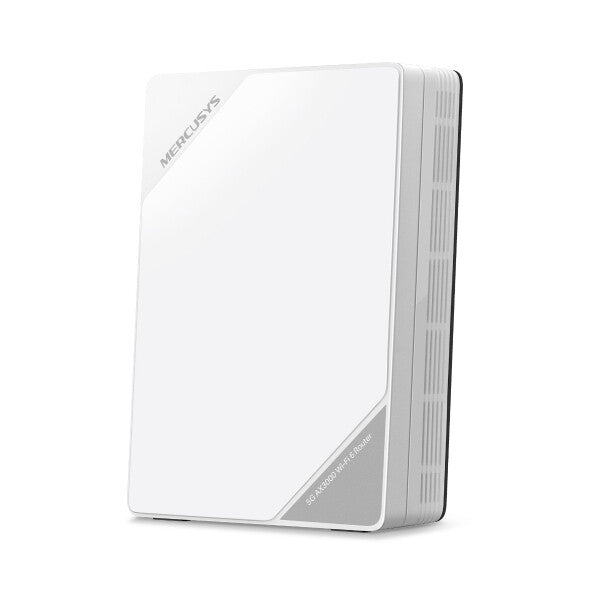

Mercusys MB520-5G 5G AX3000 wireless router 2.5 Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) White

Mercusys
£222.55
iFrame
  • Portable router White
  • Dual-band (2.4 GHz / 5 GHz) Wi-Fi 6 (802.11ax) 2976 Mbit/s
  • 2.5 Gigabit Ethernet
  • Ethernet WAN SIM card slot 3G/4G USB modem compatibility
  • Ethernet LAN (RJ-45) ports: 2
WAN connection
WAN connection type RJ-45
3G/4G USB modem compatibility Yes
SIM card slot Yes
Ethernet WAN Yes
Wireless LAN features
WLAN data transfer rate (second band) 2402 Mbit/s
WLAN data transfer rate (first band) 574 Mbit/s
Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max) 2976 Mbit/s
Top Wi-Fi standard Wi-Fi 6 (802.11ax)
Wi-Fi band Dual-band (2.4 GHz / 5 GHz)
Network
Receiver sensitivity 5 GHz:11ax HE20: -64 dBm11ax HE40: -61 dBm11ax HE80: -59 dBm11ax HE160: -56 dBm11ac VHT20: -70 dBm11ac VHT40: -67 dBm11ac VHT80: -64 dBm2.4 GHz:11ax HE20: -66 dBm11ax HE40: -62 dBm11ac VHT20: -71 dBm11ac VHT40: -67 dB
Ethernet LAN data rates 10,100,1000,2500 Mbit/s
Ethernet LAN interface type 2.5 Gigabit Ethernet
Ethernet LAN Yes
Mobile network
4G data rate (max) 4670 Mbit/s
SIM card type NanoSIM
Mobile network generation 5G
Ports & interfaces
DC-in jack Yes
RJ-11 ports quantity 1
USB port No
Ethernet LAN (RJ-45) ports 2
Design
Product colour White
Product type Portable router
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -40 - 60 °C
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 5 - 90%
Weight & dimensions
Width 190 mm
Depth 130 mm
Height 69.7 mm
