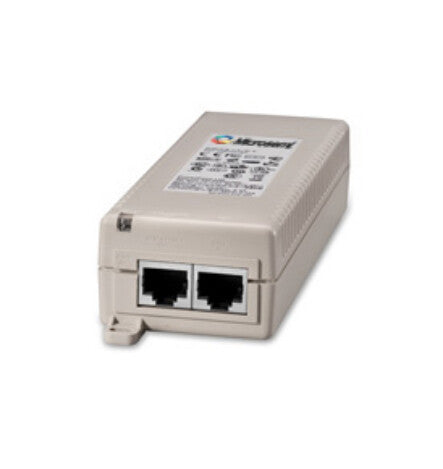

PowerDsine's 3501G Power over Ethernet (PoE) single port Midspan (PoE injector) offers a compact and cost effective, fully IEEE 802.3af compliant solution for IP phones, WLAN access points, network cameras and other IP terminal installations.
The 3501G PoE midspan offers compact, affordable and reliable power over standard Ethernet cables, leaving network infrastructure completely unaltered.
With the midspan's plug-and-play installation, they are easily and cost effectively implemented leveraging an existing Ethernet infrastructure while at the same time providing the assurance of a future proof network.
| Network |
|---|
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet interface type |
Gigabit Ethernet |
| Features |
|---|
| Safety |
UL/EN/IEC 60950-1 (Ed.2) |
| LED indicators |
Yes |
| Plug and Play |
Yes |
| Product colour |
Grey |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| Power |
|---|
| Power over Ethernet (PoE) power per port |
15.4 W |
| Input current |
0.43 A |
| AC adapter frequency |
50/60 Hz |
| AC adapter input voltage |
110 - 240 V |
| Power over Ethernet (PoE) voltage |
48 V |
| Certificates |
|---|
| Certification |
WEEE, CEFCC Part 15, Class BEN 55032 Class BEN 55024VCCI |
| Compliance certificates |
RoHS |
| Operational conditions |
|---|
| Operating altitude |
-304.8 - 3048 m |
| Storage temperature (T-T) |
-20 - 70 °C |
| Operating temperature (T-T) |
32 - 104 °F |
| Weight & dimensions |
|---|
| Dimensions (WxDxH) |
51.8 x 160.5 x 34.8 mm |
| Weight |
200 g |
| Packaging content |
|---|
| Number of products included |
1 pc(s) |
| Logistics data |
|---|
| Harmonized System (HS) code |
85044090 |
