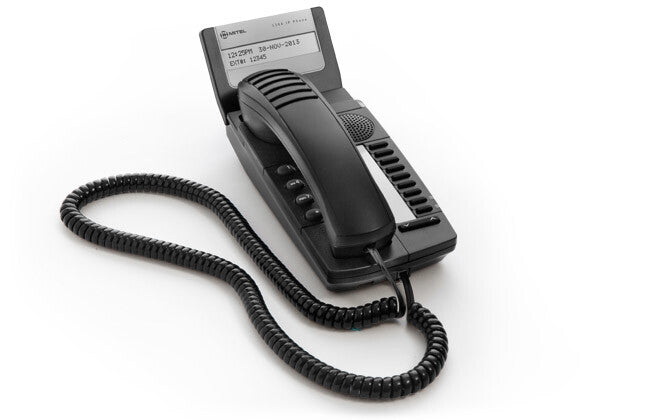

Mitel MiVoice 5304 IP Phone is a cost-effective entry-level display phone with a small base, making it perfect for hotel guest rooms, educational classrooms, retail stores and for teleworkers.
Mitel MiVoice 5304 IP Phone is a cost-effective entry-level display phone that provides access to the features and applications enabled by Mitel IP-based IP communications platforms. This two-line, dual-port IP phone with a 40-character backlit display supports both SIP and MiNet protocols and works behind a range of Mitel platforms and can be easily deployed as a Teleworker phone. It is specifically suited to be deployed in areas where a small footprint is required: cruise ship cabins, hotel guest room phones, university dorms, classrooms or beside a cash register in the retail environment.
- 40-character backlit display (with auto-dimming)
- Two lines with LED indication: one prime line and one programmable key with LED
- Eight programmable keys: speed dials, features access codes, paging, conferencing, voice mail access, etc.
- Paging & page receive capability
- Direct page & group page support
- Dual-mode: MiNet and SIP support
- Incoming call visual indication
- Message waiting indication
- Adjustable volume / ringing controls
- Wall-mountable (optional)
- Multiple powering options (802.3af compliant)
- ADA-compliant (HAC handset)
- Small footprint (26.5 cm x 10 cm or 10.5 in x 4 in)
- Designed for power conservation: reduces power consumption for overall energy savings
- Supported on Mitel MiVoice Business (formerly Mitel Communications Director (MCD)), Mitel SX-200 IP Communications Platform (ICP), Mitel MiVoice Office (formerly Mitel 5000 Communications Platform (CP)), and Mitel MiVoice Border Gateway
Design |
Mounting |
Desk/Wall |
Wall mountable |
Yes |
Product colour |
Black, Grey |
Handset type |
Wired handset |
Product type |
IP Phone |
Phone features |
Caller ID |
Yes |
Call waiting |
Yes |
Lines quantity |
2 lines |
Management features |
Display contacts list status |
Yes |
Volume control |
Digital |
Display |
Backlight display |
Yes |
Touchscreen |
No |
Display |
LCD |
Network |
Supported network protocols |
MiNet, SIP |
Quality of Service (QoS) support |
Yes |
Bluetooth |
No |
Wi-Fi |
No |
Ethernet LAN |
Yes |
Ports & interfaces |
Ethernet LAN (RJ-45) ports |
2 |
DC-in jack |
Yes |
Power |
Power consumption (typical) |
2.88 W |
Input frequency |
50 - 60 Hz |
AC adapter input voltage |
110 - 220 V |
Power over Ethernet (PoE) |
Yes |
Operational conditions |
Operating temperature (T-T) |
4 - 49 °C |
Operating relative humidity (H-H) |
34 - 95% |
Storage temperature (T-T) |
-40 - 66 °C |
Storage relative humidity (H-H) |
15 - 95% |
Weight & dimensions |
Package weight |
1.02 kg |
Package height |
81 mm |
Package depth |
296 mm |
Package width |
162 mm |
Weight |
610 g |
Height |
89 mm |
Depth |
267 mm |
Width |
102 mm |
Packaging content |
Ethernet cable |
Yes |
Logistics data |
Harmonized System (HS) code |
85171800 |
