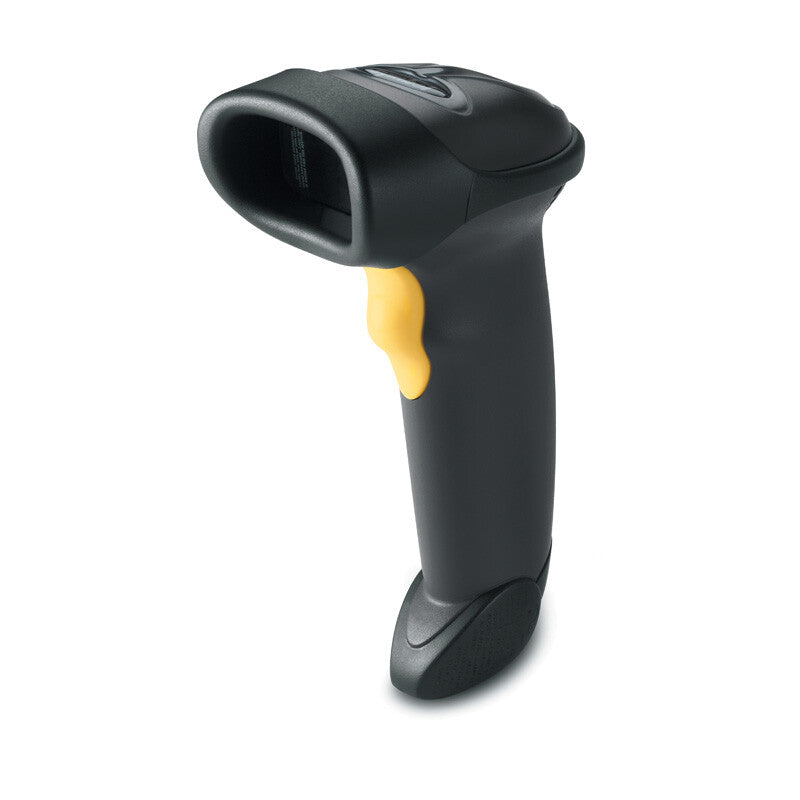

The affordable LS2208 handheld bar code scanner provides fast, reliable scanning in an ergonomic, lightweight form. The wide working range —from near-contact to 17 inches — makes this device ideal for retail, hospital, education or government settings. Multiple on-board interfaces ensure integration with a variety of host systems
Durable, single-board construction
Meets stringent 5-ft drop tests.
Scratch-resistant tempered glass exit window
Is designed for continuous use.
Accurate first-time capture of 1D bar codes
Increased productivity, resulting in shorter check-out lines and better customer service.
Wide working range
Delivers optimal performance from contact to 17 in (43 cm).
Multiple on-board interfaces
Simplify installation and integration and ensures future compatibility.
Plug-and-play, with universal cable
Means rapid deployment, with a single cable connecting to any computing environment.
Intuitive design
Minimizes setup and training time.
Ergonomic, lightweight design
Reduces user fatigue with sleek, balanced form for maximum comfort and productivity.
Hands-free Intellistand
Enables presentation scanning and easy switching between hands-free and handheld modes.
Advanced Data Formatting (ADF)
Enables users to modify data prior to sending to host computer, reducing costly modifications to the host software.
| Scanning |
| Scan speed |
100 sec/page |
| Decoding standards |
UPC/EANUPC/EAN + SupplementalsUCC/EAN 128Code 39Code 39 Full ASCIICode 39 TriOpticCode 128Code 128 Full ASCIICodabarInterleaved 2 of 5Discrete 2 of 5Code 93MSICode 11IATAGS1 DataBarChinese 2 of 5 |
| Yaw reading angle |
-60 - 60° |
| Pitch reading angle |
-65 - 65° |
| Tilt reading angle |
-30 - 30° |
| Sensor type |
Laser |
| Ports & interfaces |
| Standard interfaces |
RS-485, USB, Keyboard wedge, RS-232 |
| Performance |
| Product colour |
Black |
| Power |
| Power consumption |
130 mA |
| Input voltage |
5 V |
| Weight & dimensions |
| Weight |
146 g |
| Operational conditions |
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| General |
| Product family |
Motorola |
| Logistics data |
| Harmonized System (HS) code |
84716070 |
| Other features |
| Electromagnetic emissions |
FCC Part 15 Class B, ICES 003 Class B |
| Safety |
UL 60950-1, C22.2 No. 60950-1, EN 60950-1, IEC 60950-1 |
| Light source |
650nm |
| Dimensions (WxDxH) |
63 x 84 x 152 mm |
