SKU: CUBI 5 12M-001BEU

MSI Cubi 5 12M-001BEU 0.66L sized PC Black i7-1255U Intel SoC

MSI
£886.61
  • Up to 12th Gen Intel® Core™ i7 Processors
  • Support up to 8K UHD Display
  • Support three displays that allow you to see more and do more
  • Thunderbolt 4 delivers the fastest, most versatile connection to any dock, display, or data device & NAS
  • Dual LAN: the best way to back up your file / secure data and prevent the hacker (with MSI exclusive BIOS)
  • Get all the performance benefits from USB 3.2 Gen 2 and enjoy the best data transmission experience
  • Experience 75% lower latency with WiFi 6E technology(optional)
  • FW TPM design secures your confidential data with encryption keys
  • Supports standard VESA-mount

"Cubi 5 12M: The Energy Efficient Mini-PC

The MSI Cubi 5 12M is a small yet powerful mini-desktop with an incredibly compact 0.7L design suitable for commercial office work or use as home-theatre/entertainment PC (supports UHD/4K 60Hz display output & triple-monitor setups).

The Cubi 5 12M i7 1255U BB is a barebone system equipped with an Intel 12th Gen Core i7-1255U processor, but does not include required DDR4 memory, storage, or software. Features Intel Wi-Fi 6E & Bluetooth 5.3 connectivity.

The easy-to-upgrade SFF case can house both M.2 (with auto switch) & 2.5-inch SSD storage, as well as up to 64 GB of system memory (2 x DDR4 3200MHz SO-DIMMs), and is VESA-mountable for a cleaner desktop.

Thanks to its cooling-optimized layout and low-noise fan, the MSI Cubi 5 12M is not only an energy-efficient computing solution but is also very quiet, running at a whisper-level 28 dBA while in idle mode.

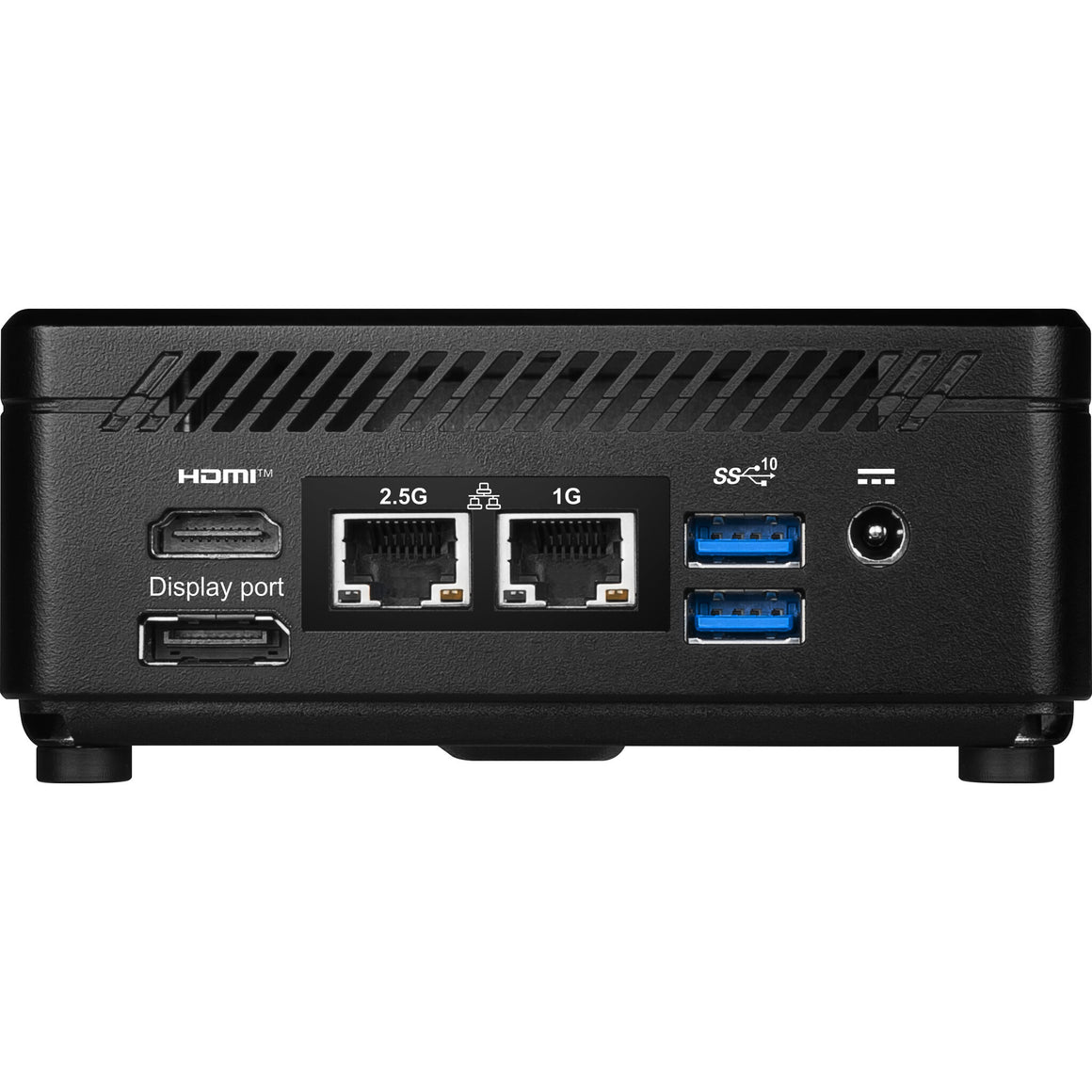

Front & rear I/O include dual Intel 2.5Gbps and 1Gbps ethernet LAN, Mic-in, Headphones-out, Thunderbolt 4 and 4 x USB 3.2 Gen 2 Type-A ports."

Processor
Thermal Design Power (TDP) 15 W
Processor cache 12 MB
Efficient-core boost frequency 3.5 GHz
Performance-core boost frequency 4.7 GHz
Processor lithography 14 nm
Efficient cores 8
Performance cores 2
Processor boost frequency 4.7 GHz
Processor threads 12
Processor cores 10
Processor model i7-1255U
Processor generation 12th gen Intel® Core™ i7
Processor family Intel® Core™ i7
Processor manufacturer Intel
Built-in processor Yes
Memory
Maximum internal memory 64 GB
Supported memory clock speeds 3200 MHz
Memory channels Dual-channel
Number of memory slots 2
Memory slots type SO-DIMM
Graphics
On-board graphics card model Intel Iris Xe Graphics
Graphics card family Intel
On-board graphics card Yes
Audio
Built-in speaker(s) No
Network
LAN controller Realtek RTL8111H, Realtek RTL8125-BG, Realtek RTL8125-CG
Bluetooth Yes
Bluetooth version 5.3
WLAN controller model Intel Wi-Fi 6E AX211
Wi-Fi standards Wi-Fi 6E (802.11ax)
Top Wi-Fi standard Wi-Fi 6E (802.11ax)
Wi-Fi Yes
Ethernet LAN Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports 2
HDMI ports quantity 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 4
Design
Product type Mini PC barebone
Cooling type Active
Product colour Black
Chassis type 0.66L sized PC
Performance
Number of processors supported 1
Motherboard chipset Intel SoC
Motherboard form factor NUC
General
Product family Cubi
Product series 5
Certificates
Certification FCC, CB/CE, UL & CUL, VCCI, RCM
Software
Operating system installed No
Power
Power supply 65 W
Number of power supply units 1
Power supply type External AC adapter
Operational conditions
Operating temperature (T-T) 0 - 35 °C
Storage temperature (T-T) -20 - 60 °C
Operating relative humidity (H-H) 0 - 85%
Weight & dimensions
Weight 590 g
Height 53.7 mm
Depth 124 mm
Width 124 mm
Packaging content
Drivers included Yes
