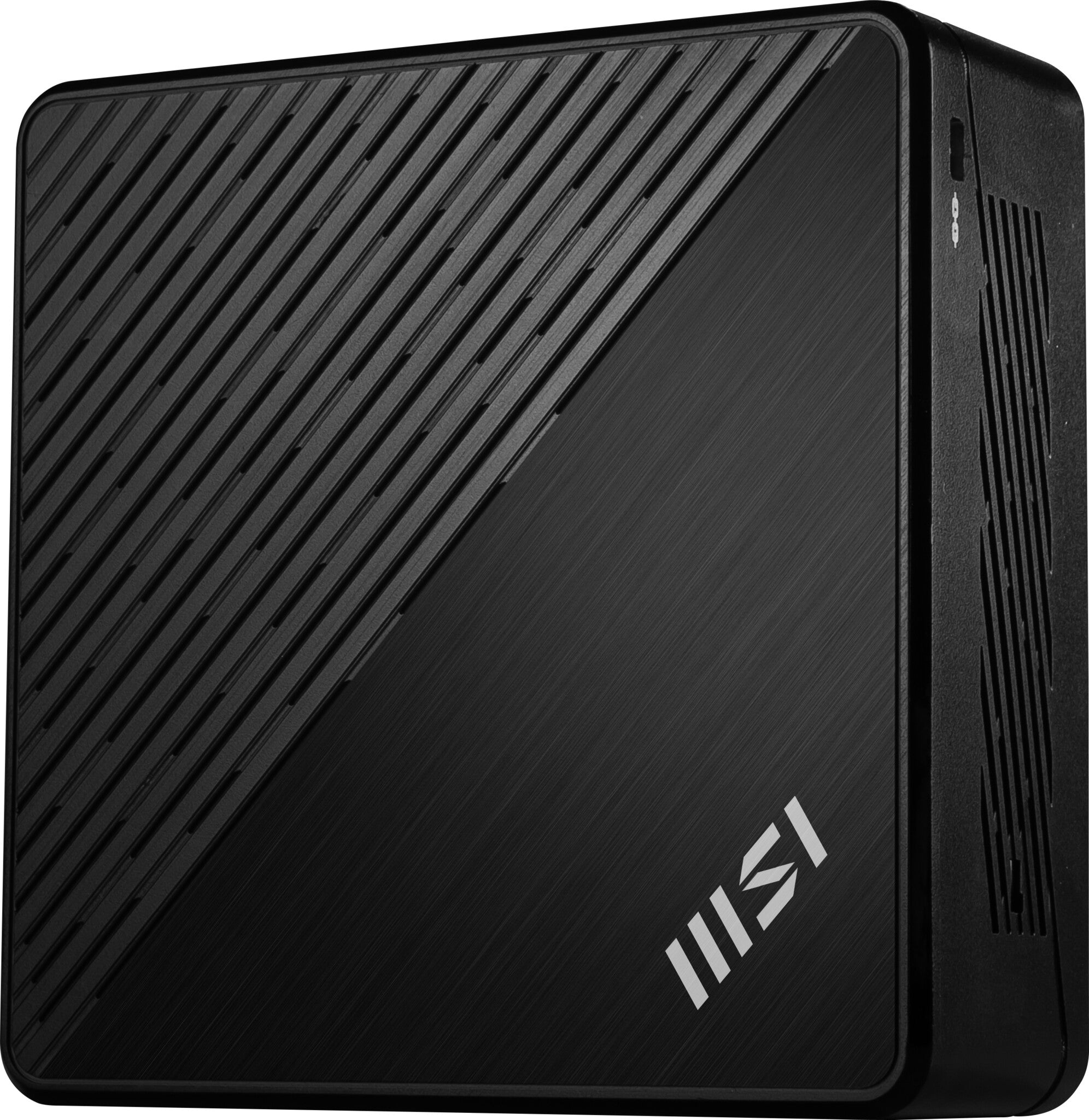

"Cubi N ADL: The Energy Efficient Mini-PC

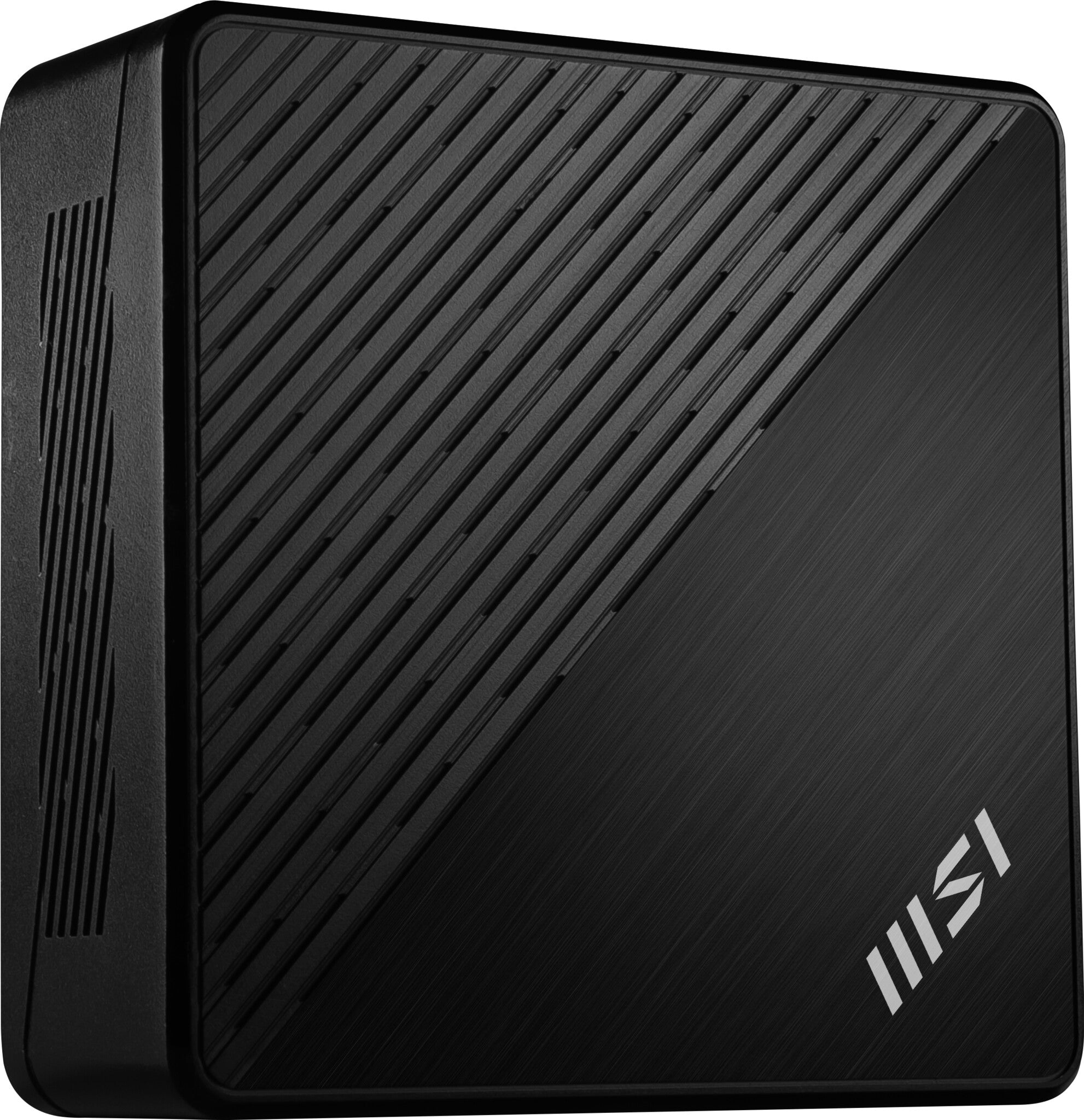

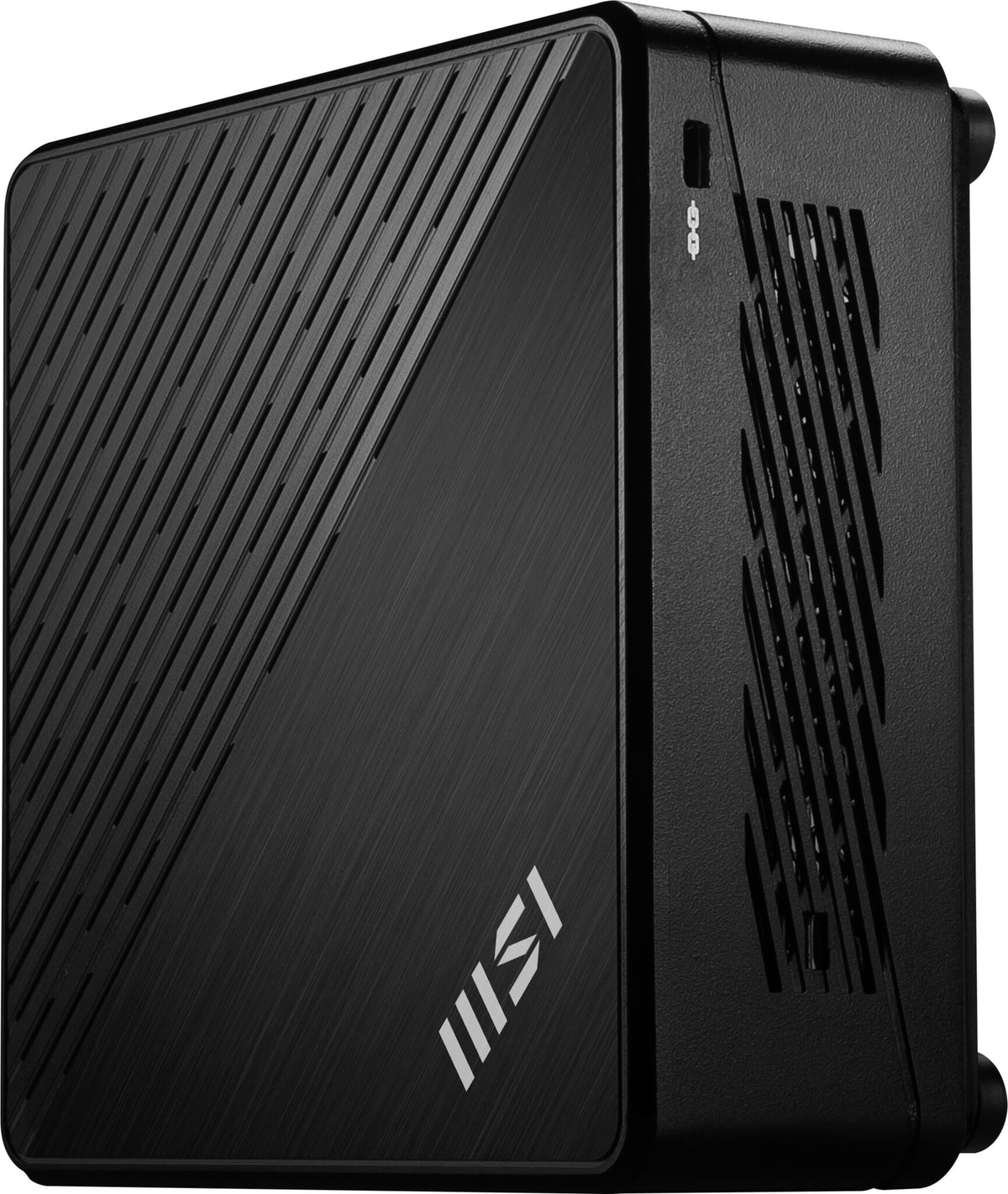

The MSI Cubi N ADL is a small yet powerful mini-desktop with an incredibly compact 0.66L design suitable for commercial office work or use as home-theatre/entertainment PC (supports UHD/4K 60Hz display output & triple-monitor setups).

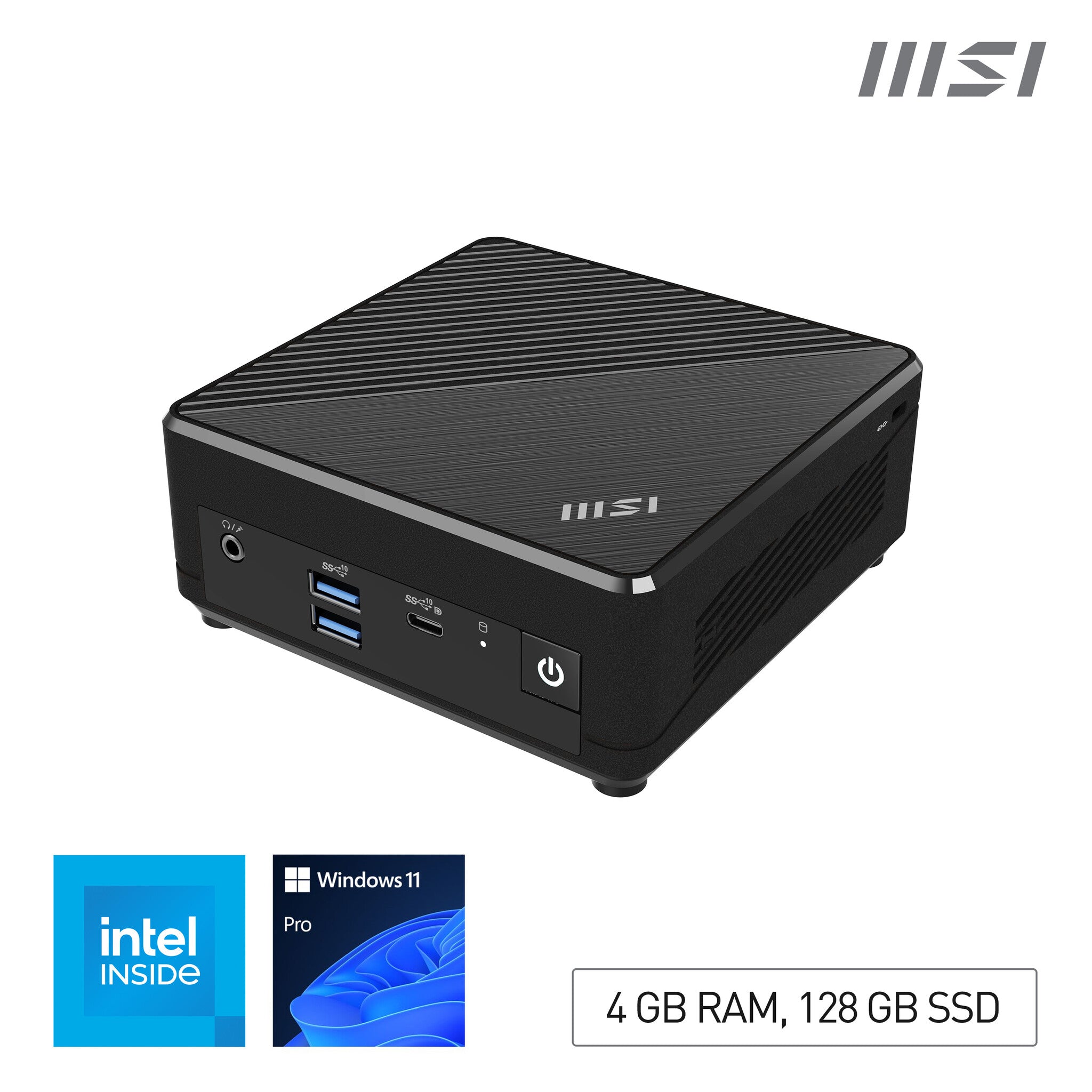

The Cubi N ADL-N200 FS 4GB 128GB W11P configuration is a complete system equipped with an Intel N200 processor, 4 GB of DDR4-3200MHz memory, 128 GB of M.2 SSD storage, Intel Wi-Fi 9462 & Bluetooth 5.1 connectivity, as well as Windows 11 Pro software pre-installed.

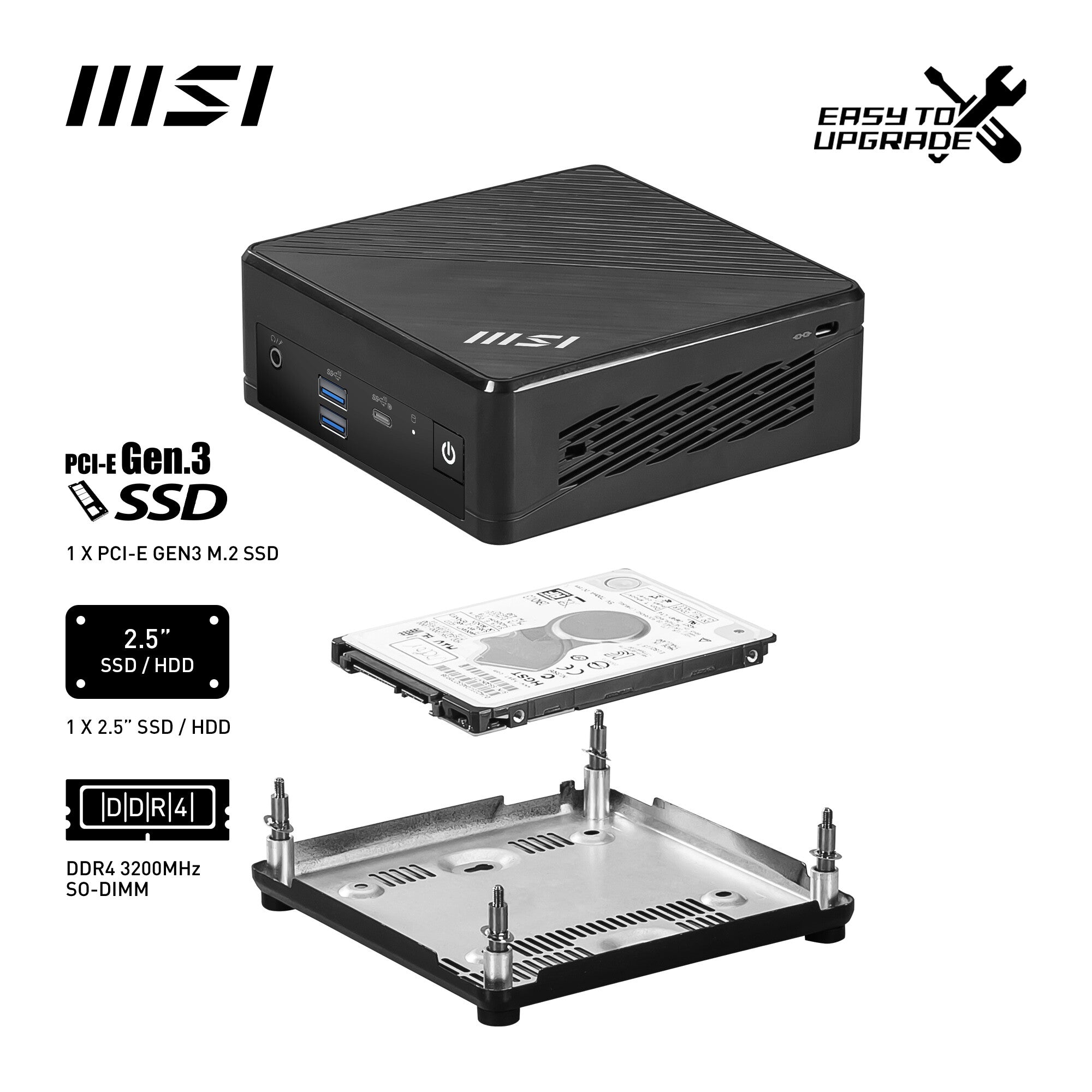

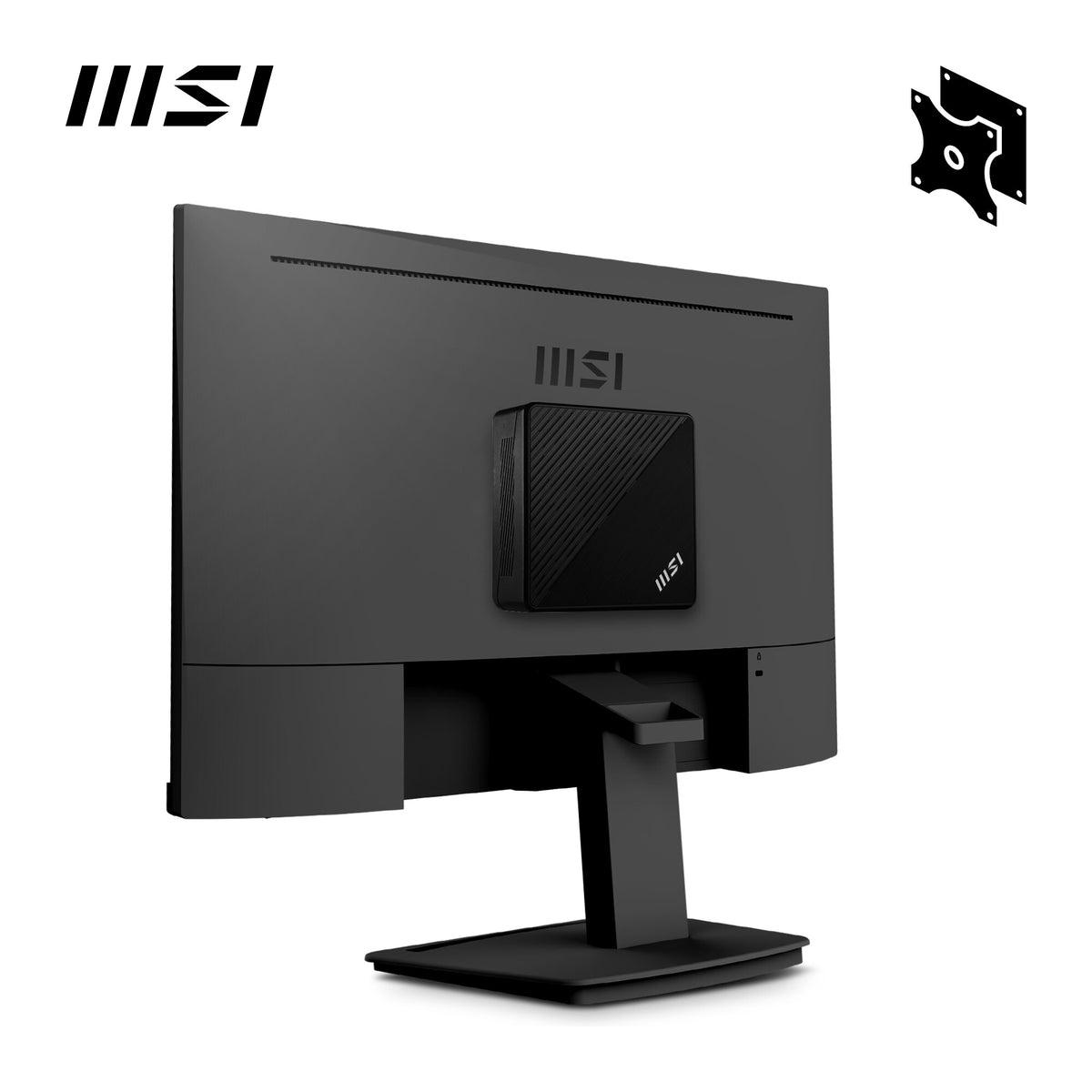

The easy-to-upgrade SFF case can house both M.2 (with auto switch) & 2.5-inch SSD storage, as well as up to 16 GB of system memory (1 x DDR4 3200MHz SO-DIMMs), and is VESA-mountable for a cleaner desktop.
Thanks to its cooling-optimized layout and low-noise fan, the MSI Cubi N ADL is not only an energy-efficient computing solution but is also very quiet, running at a whisper-level 28 dBA while in idle mode.

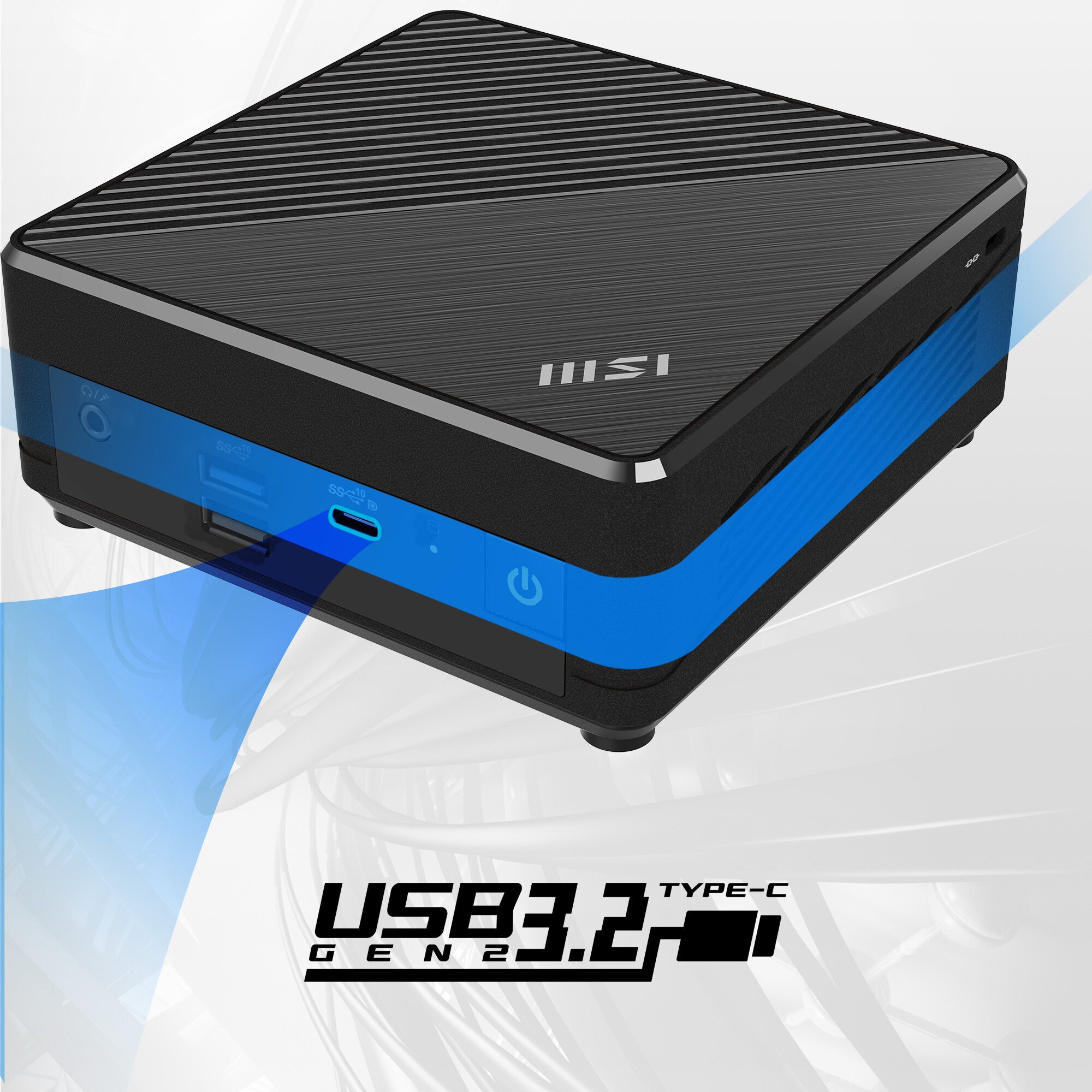

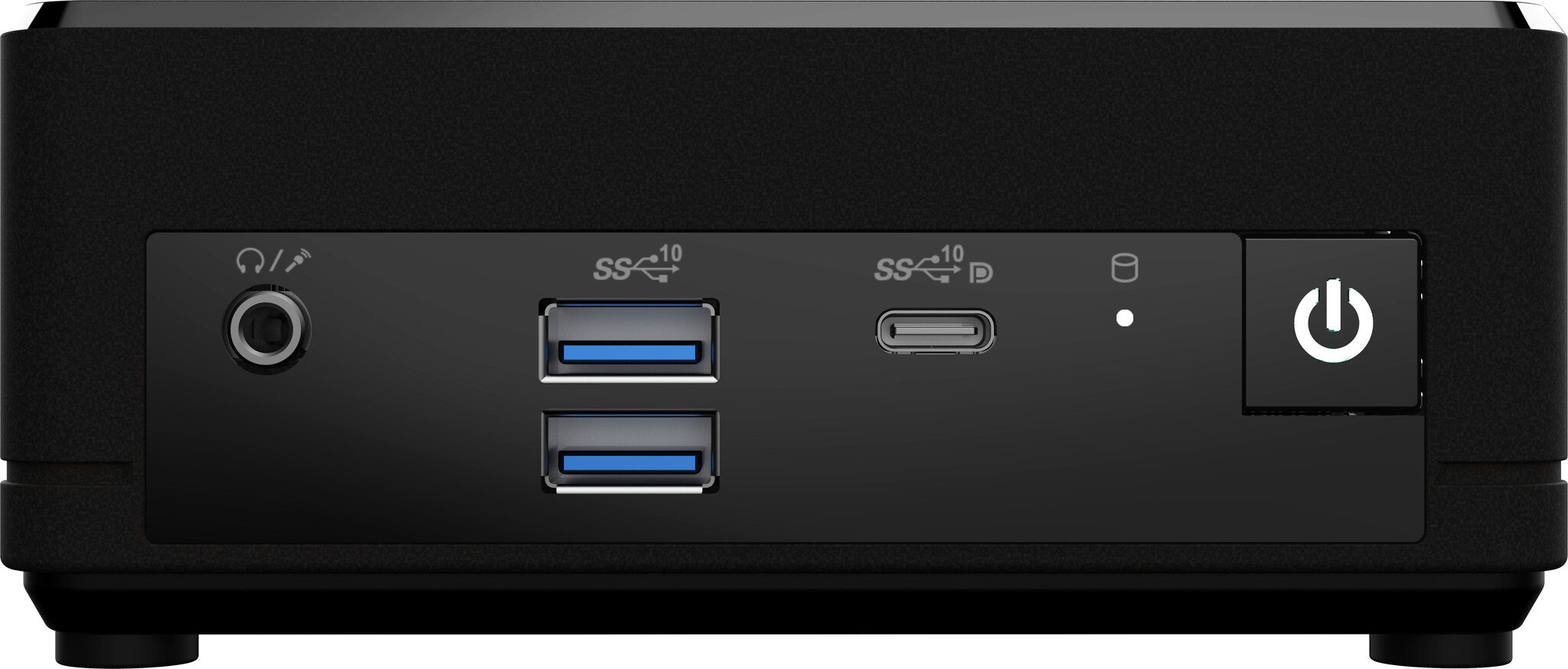

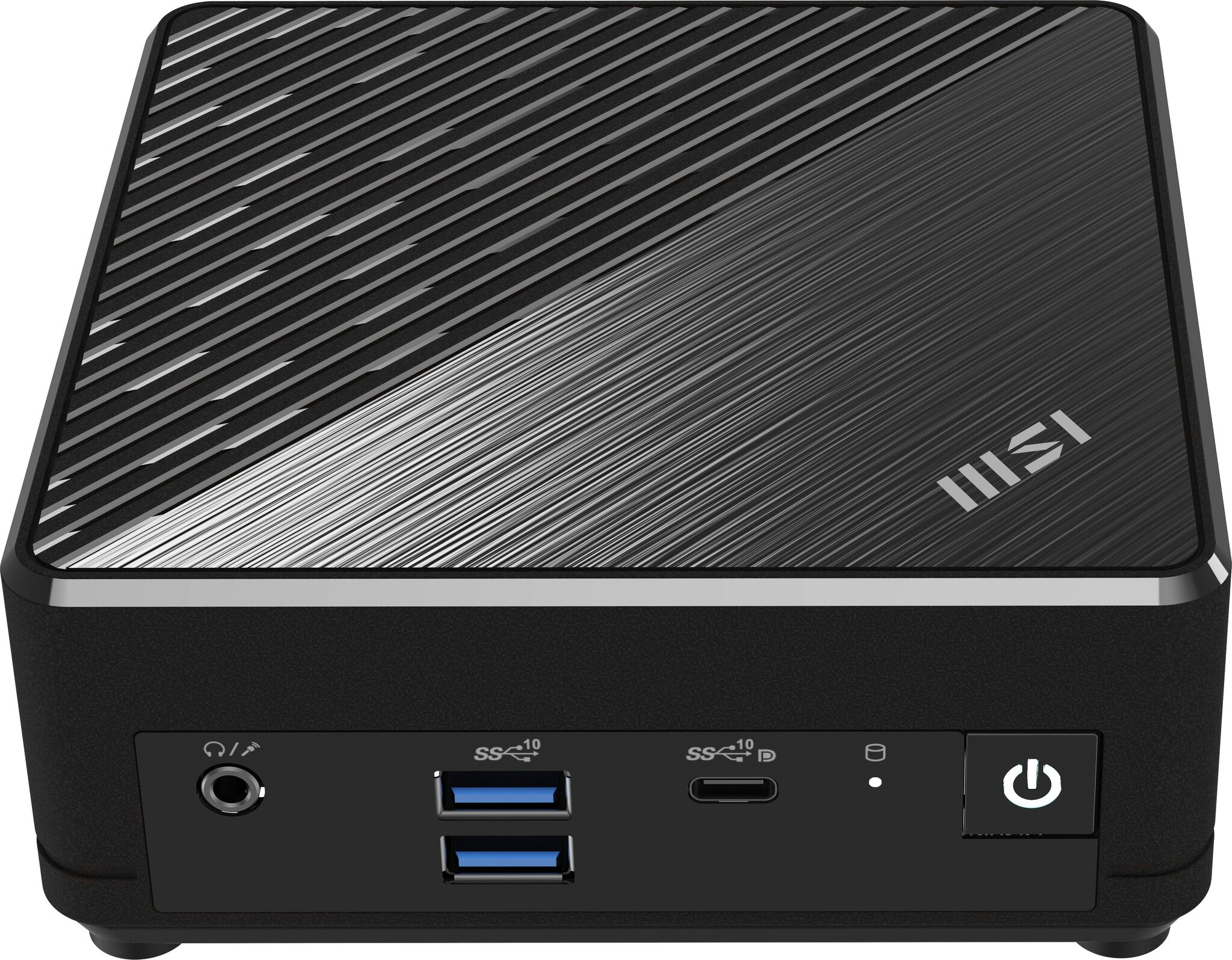

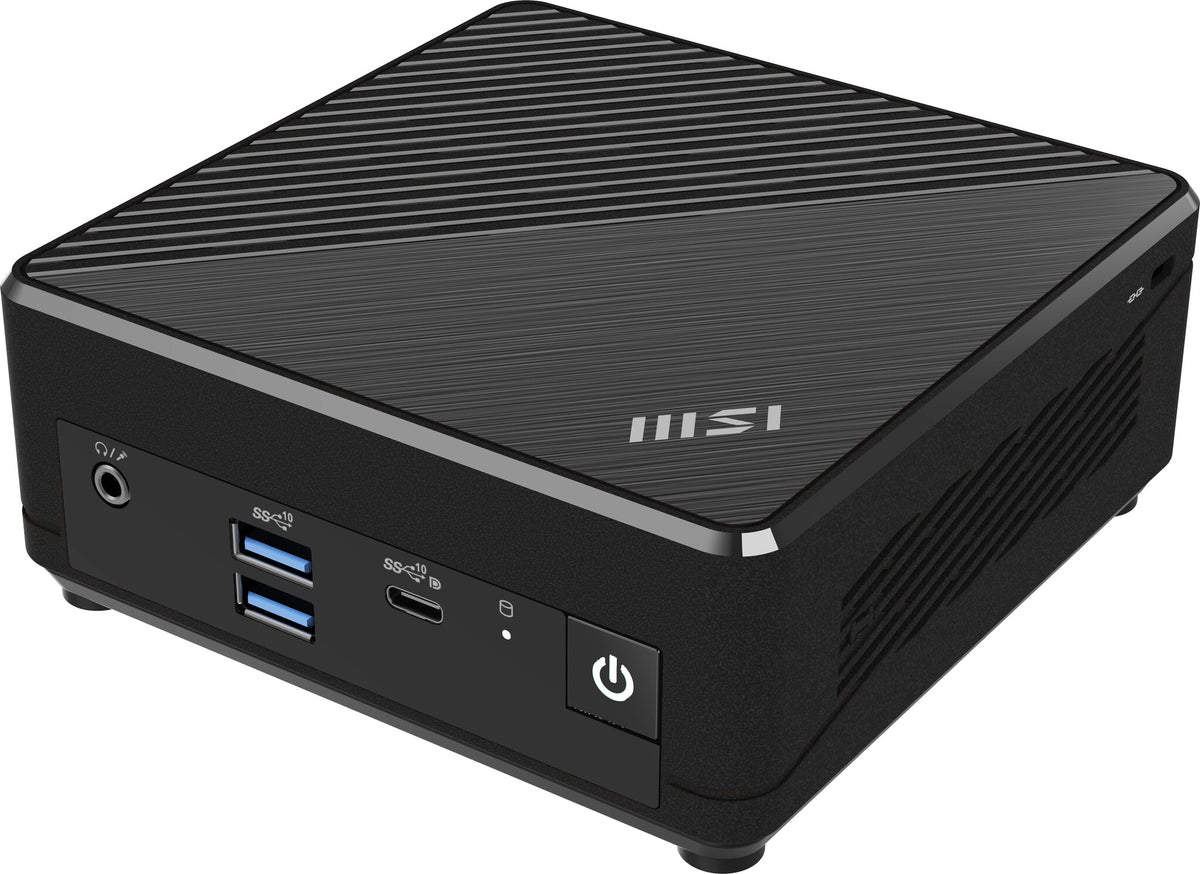

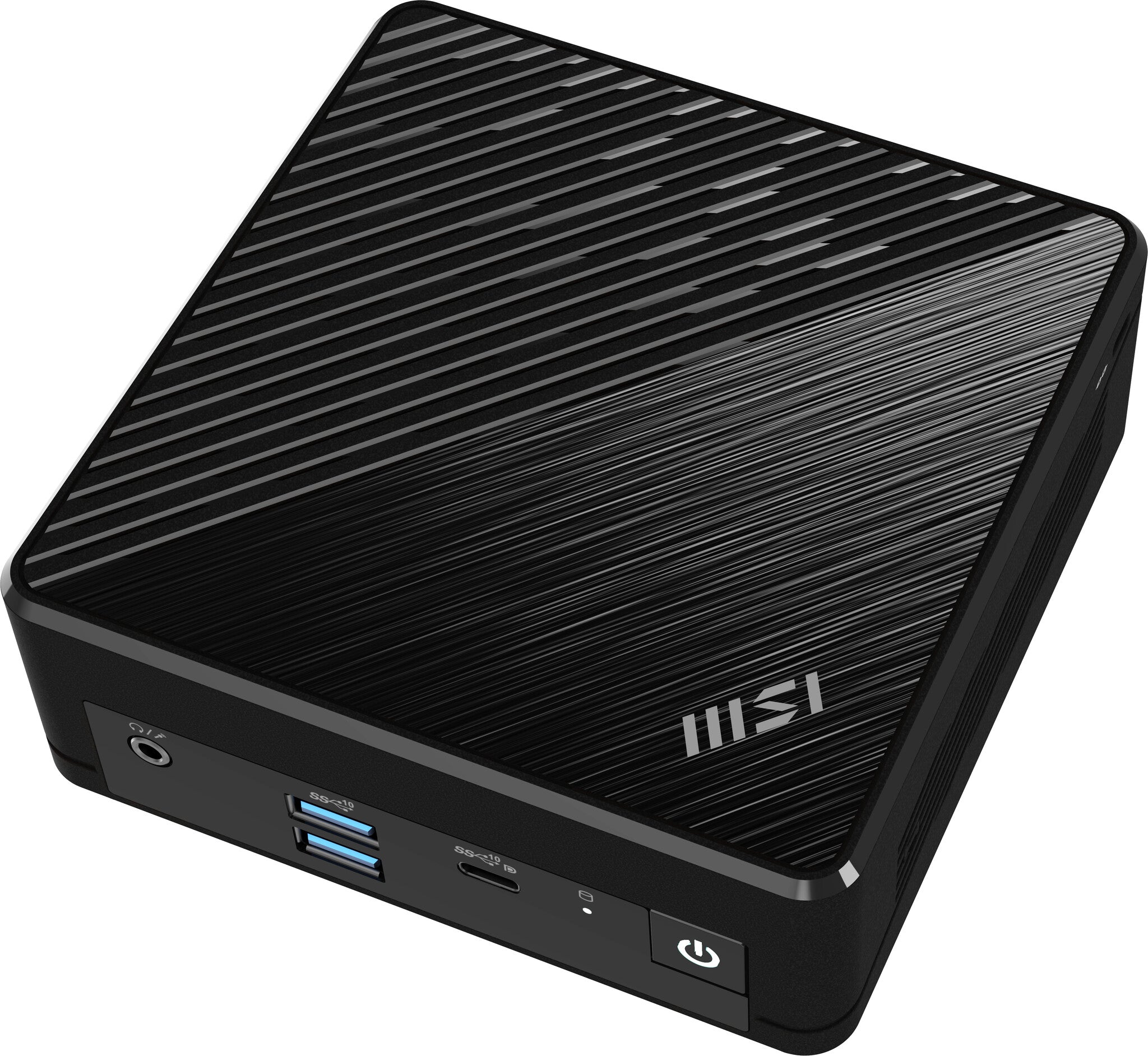

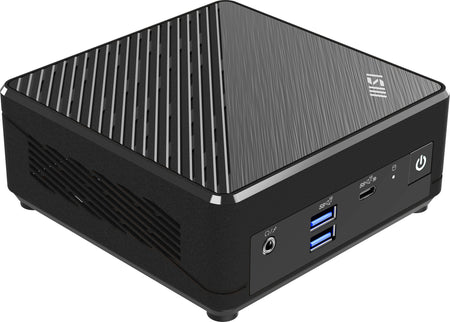

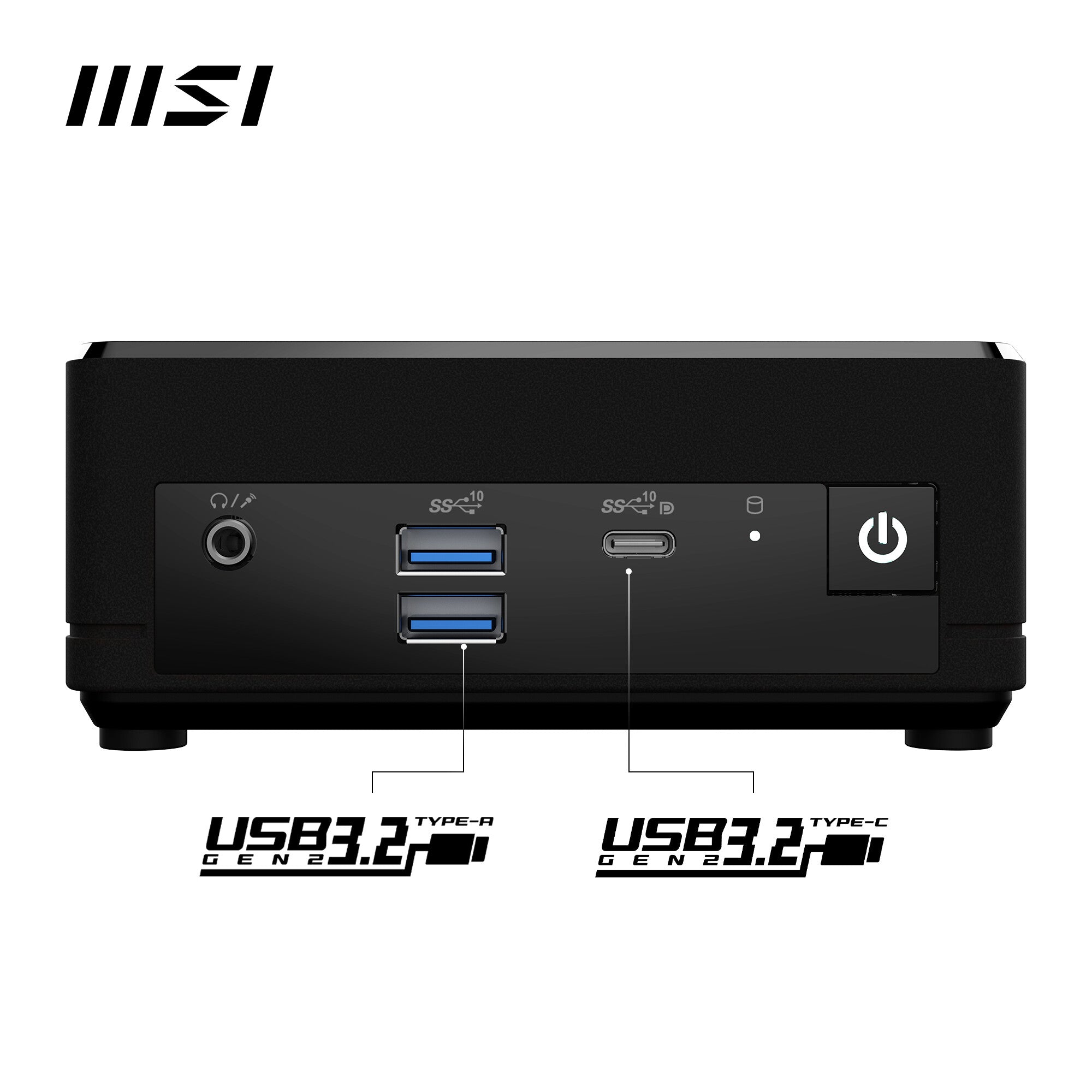

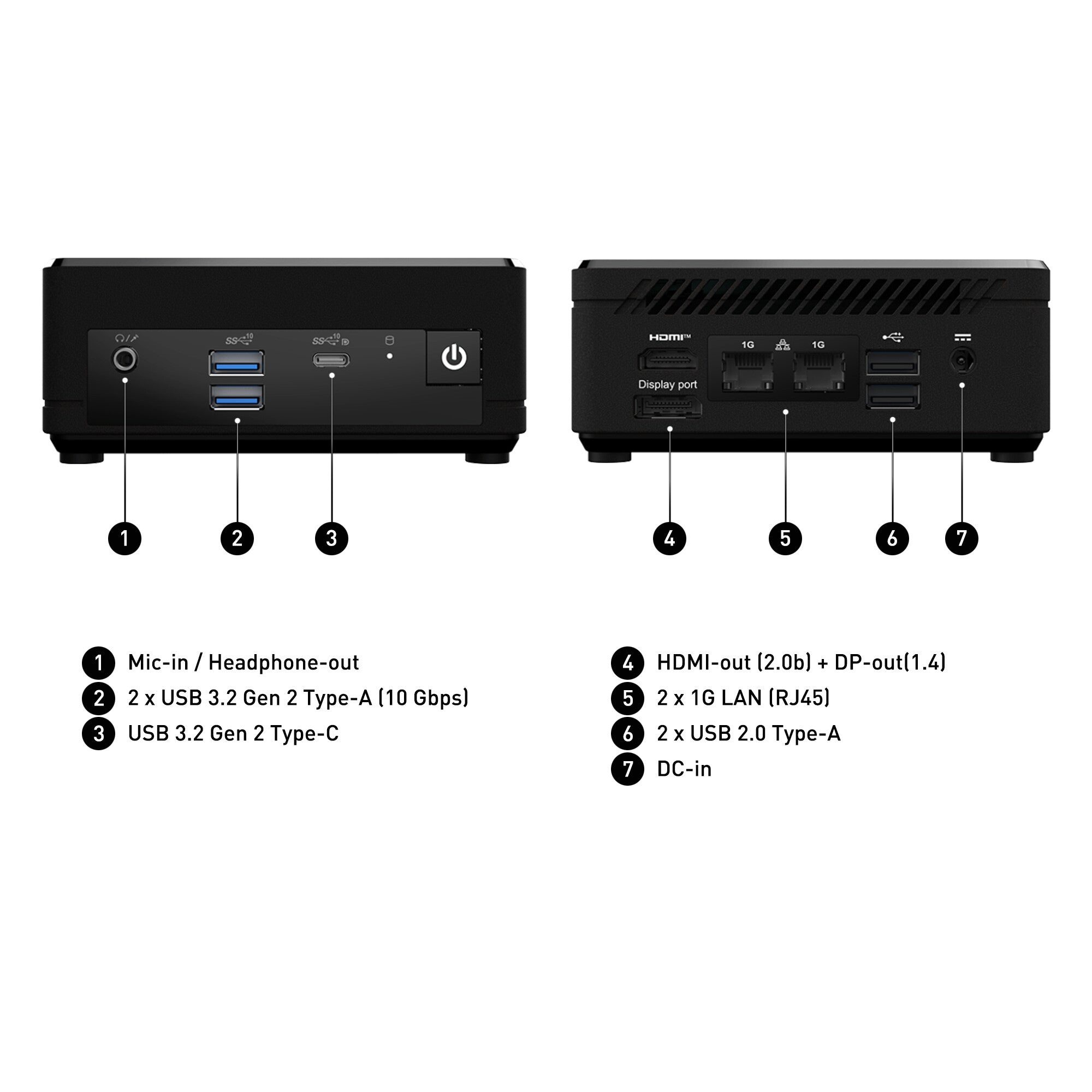

Front I/O connectivity includes a Mic-in/Headphone-out combo jack, USB 3.2 Gen 2 Type-C (DP Alt.) and dual USB 3.2 Gen 2 Type-A ports. The rear I/O features dual 1Gbps ethernet LAN ports, HDMI 2.1, DisplayPort 1.4, and dual USB 2.0 ports."
| Processor |
|---|
| Number of processors supported |
1 |
| Number of processors installed |
1 |
| Processor codename |
Alder Lake-N |
| Thermal Design Power (TDP) |
6 W |
| Processor lithography |
10 nm |
| Processor operating modes |
32-bit |
| Processor cache type |
Smart Cache |
| Processor cache |
6 MB |
| Efficient cores |
4 |
| Performance cores |
4 |
| Processor frequency |
3.7 GHz |
| Processor boost frequency |
3.7 GHz |
| Processor threads |
4 |
| Processor cores |
4 |
| Processor model |
N200 |
| Processor family |
Intel® N |
| Processor manufacturer |
Intel |
| Memory |
|---|
| Memory clock speed |
3200 MHz |
| Memory slots |
1x SO-DIMM |
| Memory layout (slots x size) |
1 x 4 GB |
| Internal memory type |
DDR4-SDRAM |
| Maximum internal memory |
16 GB |
| Internal memory |
4 GB |
| Storage |
|---|
| Card reader integrated |
No |
| SSD form factor |
M.2 |
| SSD interface |
M.2 |
| SSD capacity |
128 GB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
128 GB |
| Number of storage drives supported |
2 |
| Number of storage drives installed |
1 |
| Storage media |
SSD |
| Optical drive type |
No |
| Total storage capacity |
128 GB |
| Graphics |
|---|
| On-board graphics card model |
Intel® UHD Graphics |
| On-board graphics card family |
Intel® UHD Graphics |
| On-board GPU manufacturer |
Intel |
| Discrete graphics card model |
Not available |
| On-board graphics card |
Yes |
| Discrete graphics card |
No |
| Network |
|---|
| Bluetooth version |
5.1 |
| Wi-Fi standards |
Wi-Fi 5 (802.11ac) |
| Top Wi-Fi standard |
Wi-Fi 5 (802.11ac) |
| Wi-Fi |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
2 |
| HDMI ports quantity |
1 |
| USB 2.0 ports quantity |
2 |
| Performance |
|---|
| Product type |
Mini PC |
| Software |
|---|
| Drivers included |
Yes |
| Operating system installed |
Windows 11 Pro |
| Weight & dimensions |
|---|
| Package weight |
1.39 kg |
| Package height |
94 mm |
| Package depth |
220 mm |
| Package width |
205 mm |
| Weight |
540 g |

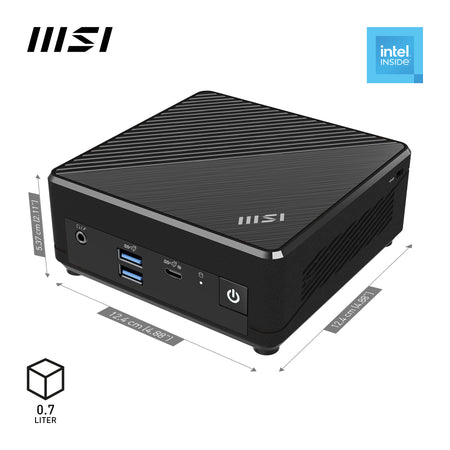

| Height |
53.7 mm |
| Depth |
124 mm |
| Width |
124 mm |
| Packaging content |
|---|
| Manual |
Yes |
| AC adapter included |
Yes |
| Power cord included |
Yes |
| VESA mount included |
Yes |
| Keyboard included |
No |
| Mouse included |
No |
| Display included |
No |
| General |
|---|
| Product family |
Cubi |
| Product series |
N |
| Other features |
|---|
| Warranty period |
2 year(s) |
