"Cubi NUC 1M: The Sustainable & Energy Efficient Mini-PC

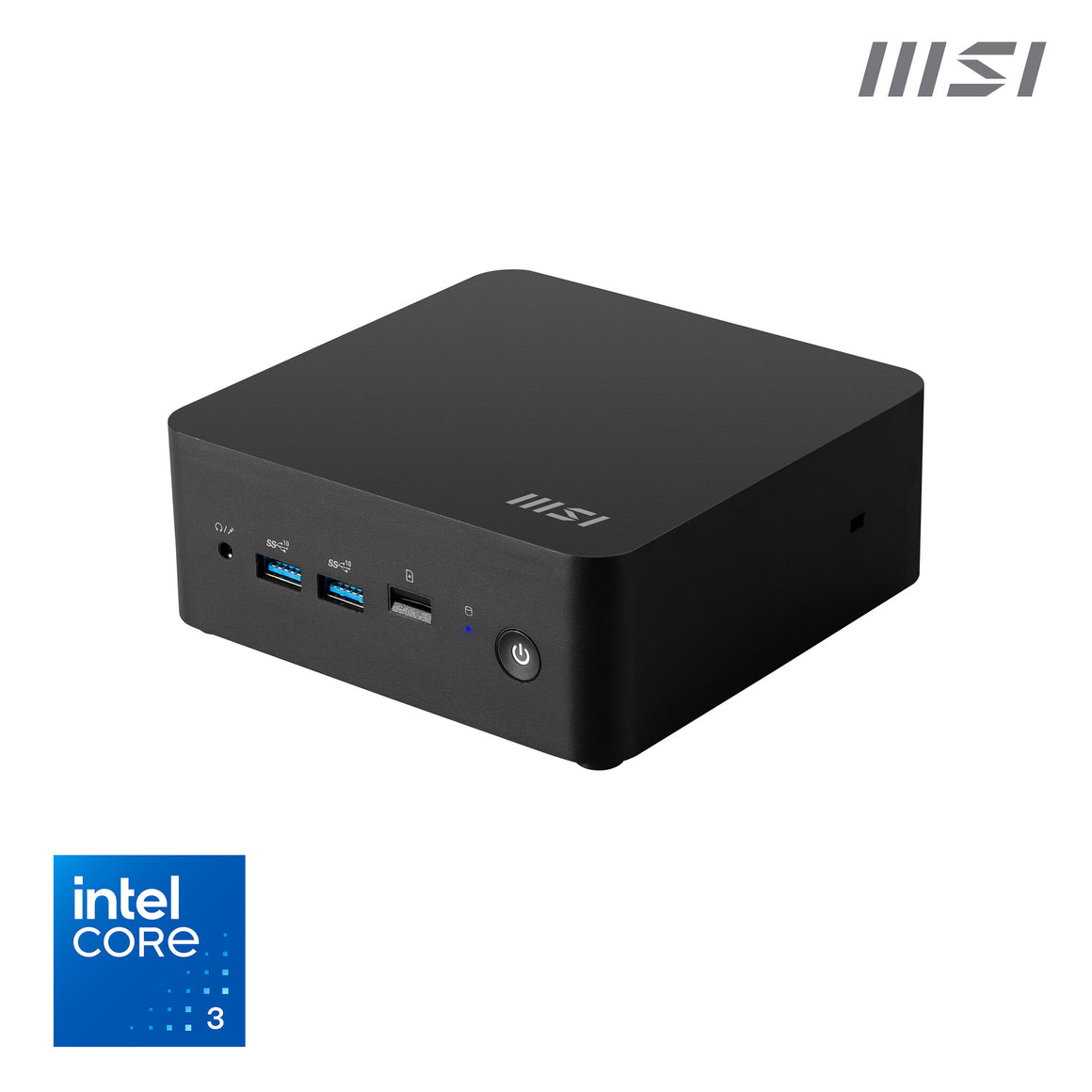

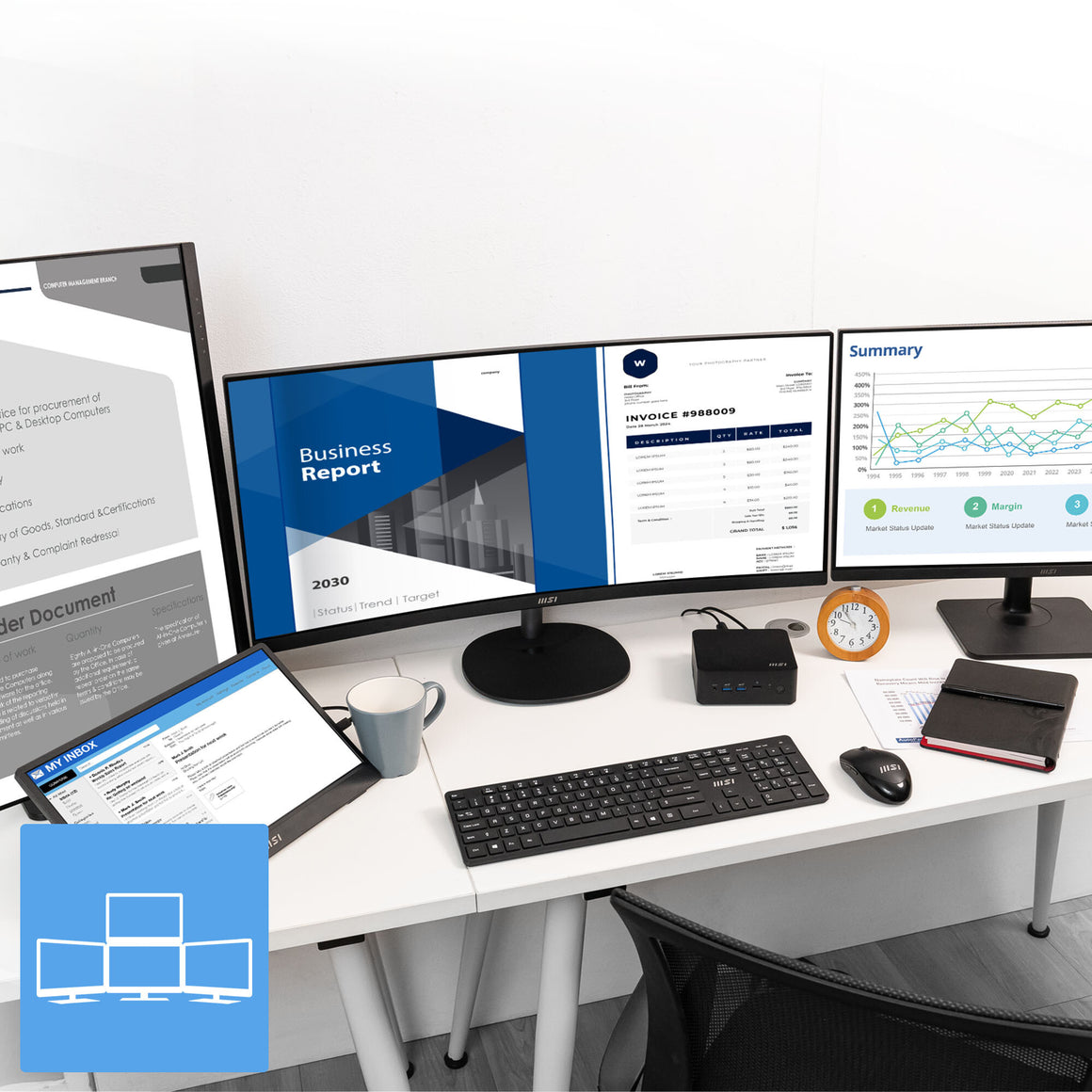

The MSI Cubi NUC 1M is a small yet powerful mini-desktop with an incredibly compact 0.826L design suitable for commercial office work or use as home-theatre/entertainment PC (supports UHD/4K 60Hz display output & quadruple-monitor setups).

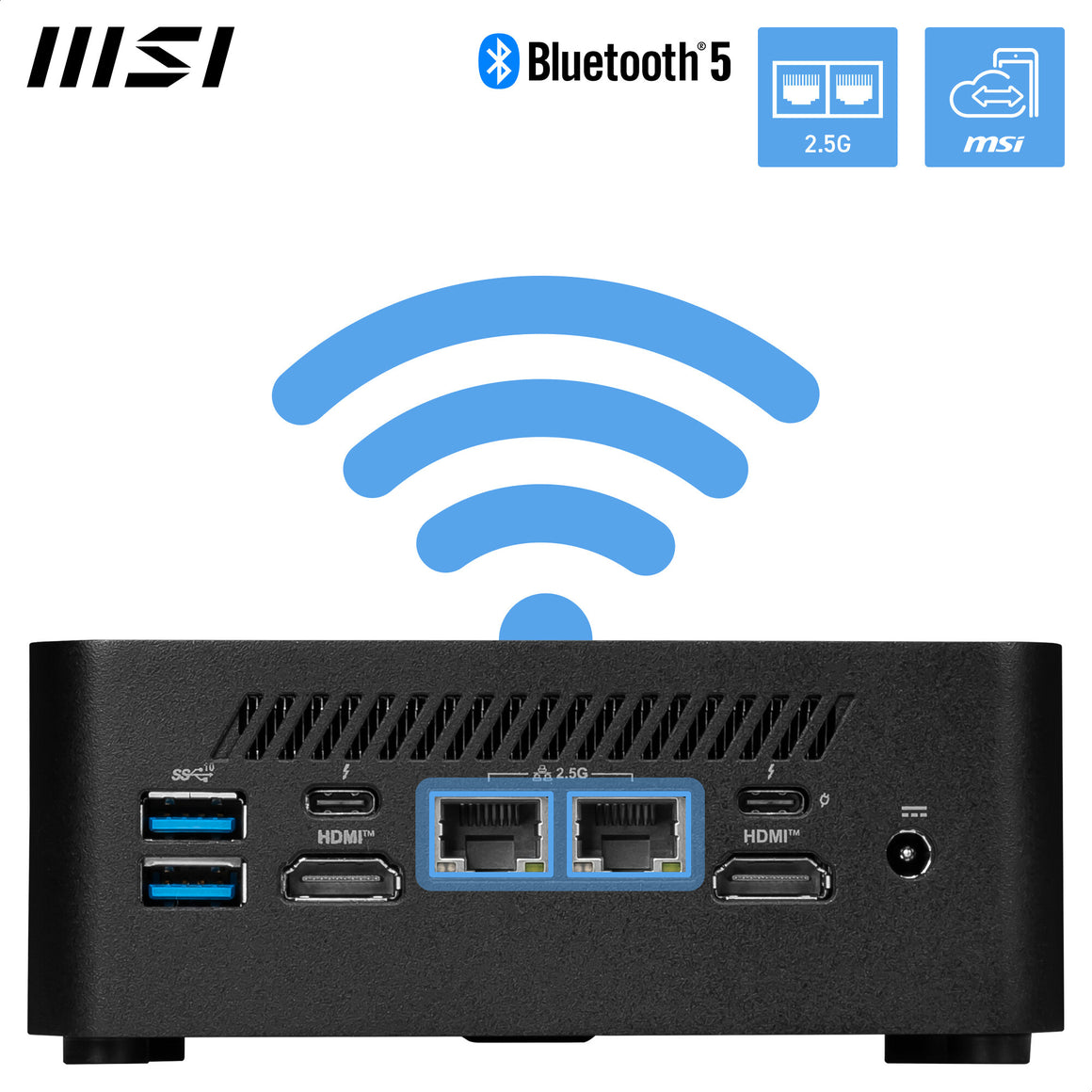

The Cubi NUC 1M i3 100U BB configuration is a barebone system equipped with an Intel® Core 3 processor 100U, but does not include required DDR5 memory, storage, or software. Features Intel Wi-Fi AX211 & Bluetooth 5.3 connectivity.

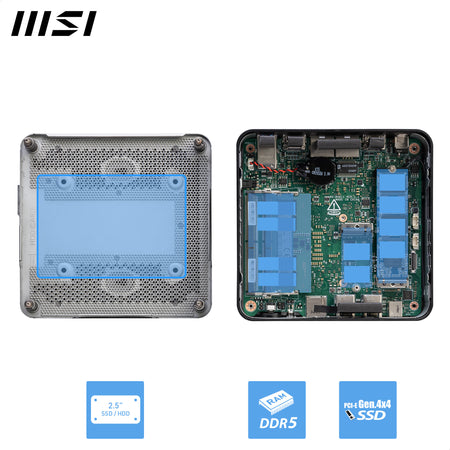

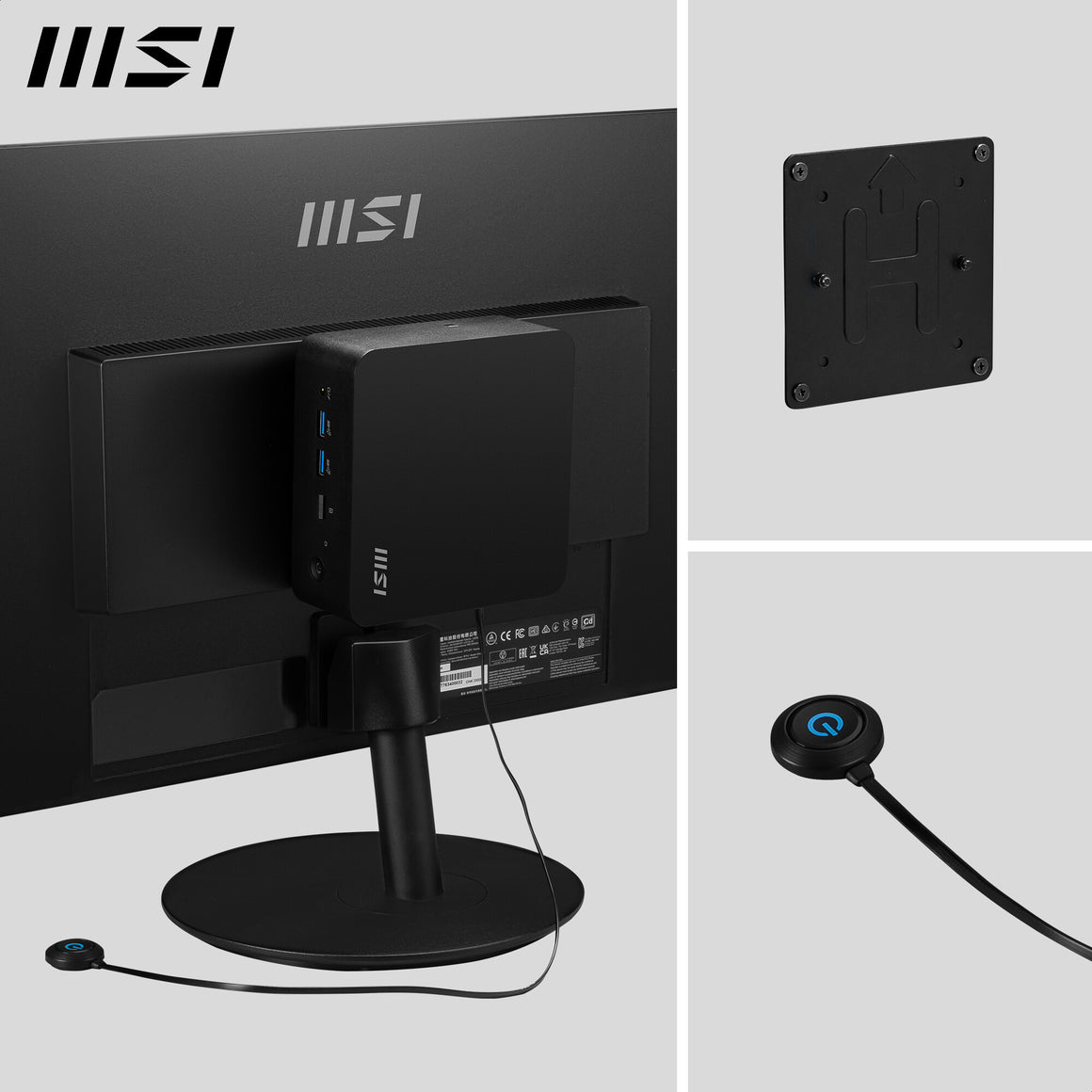

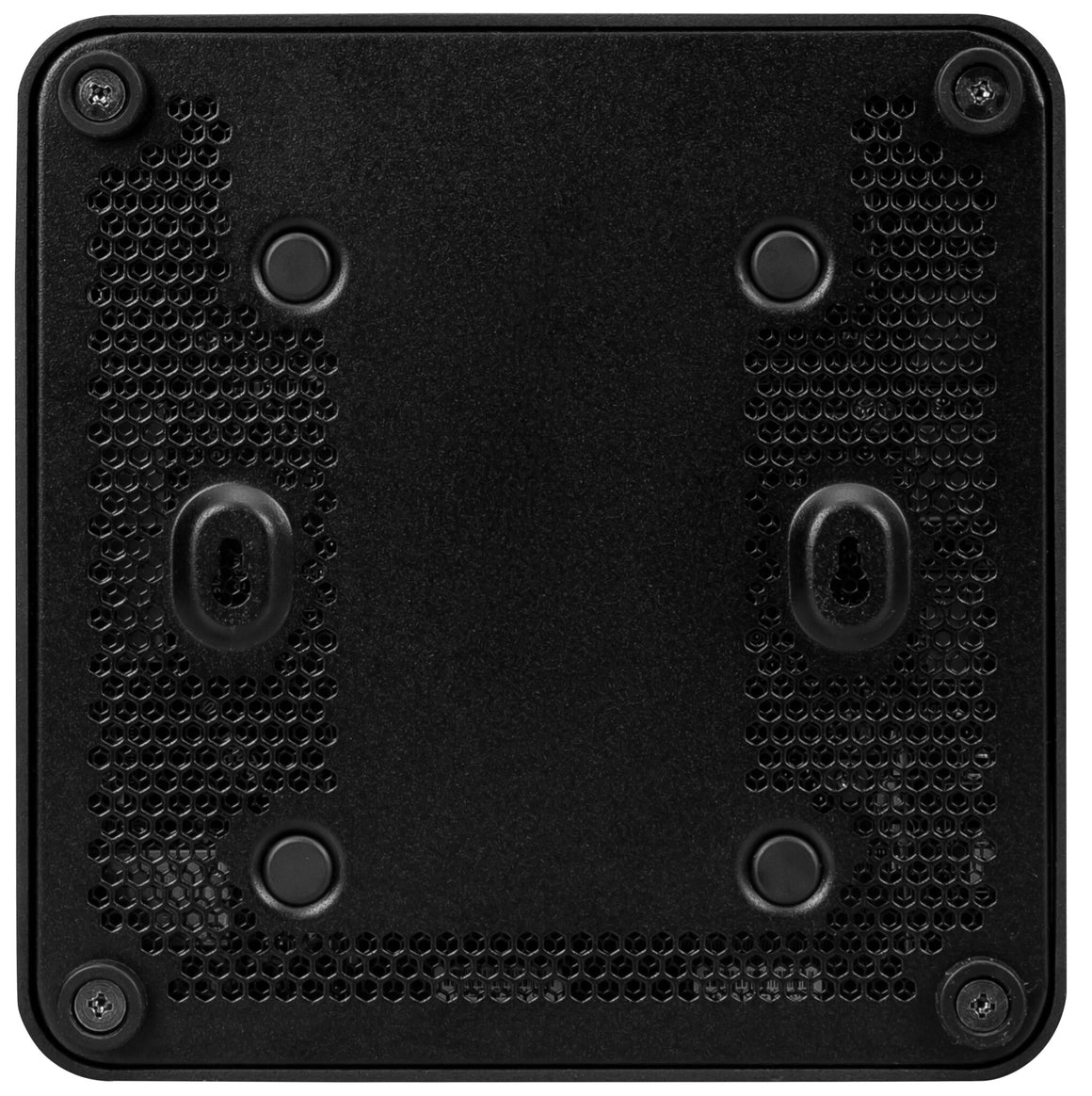

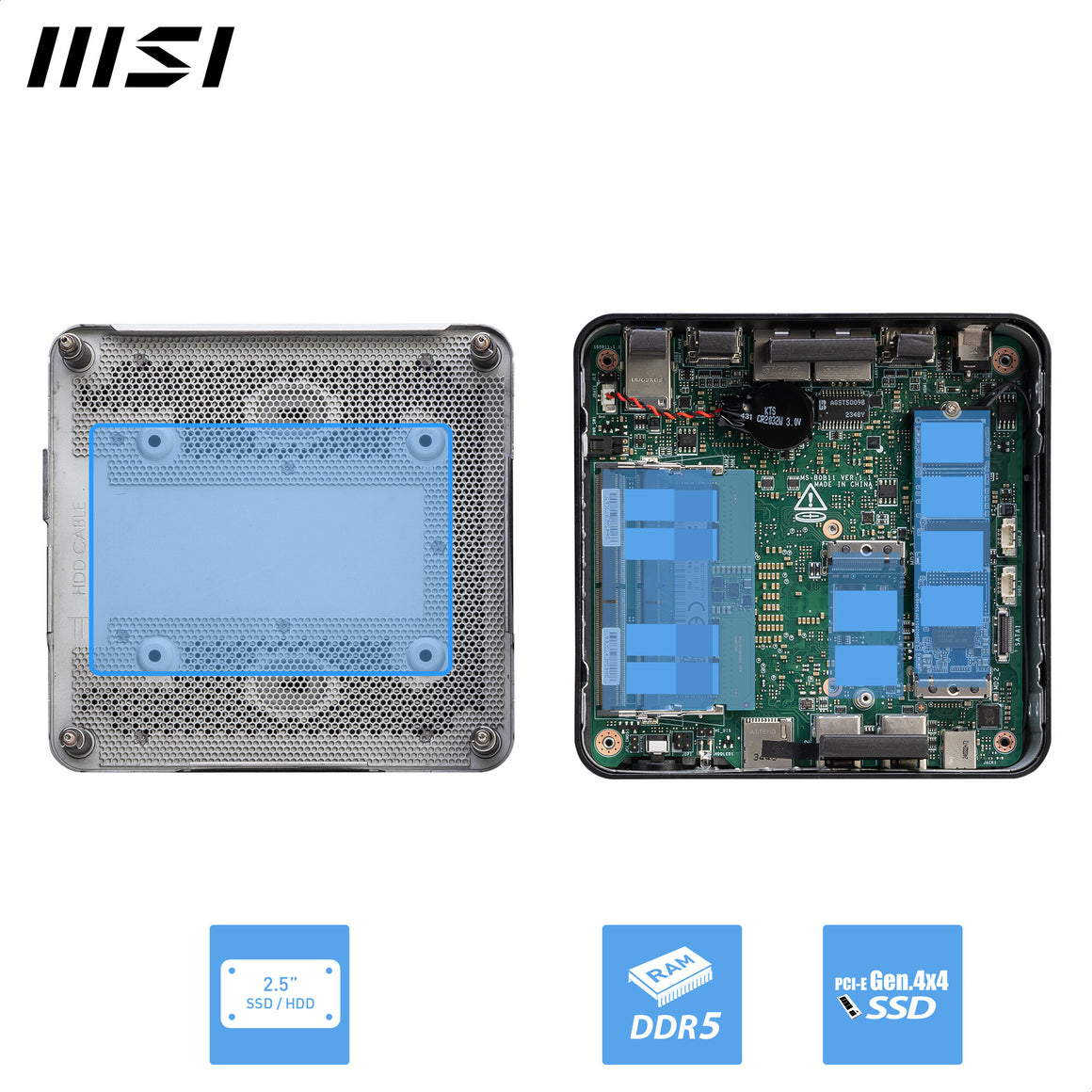

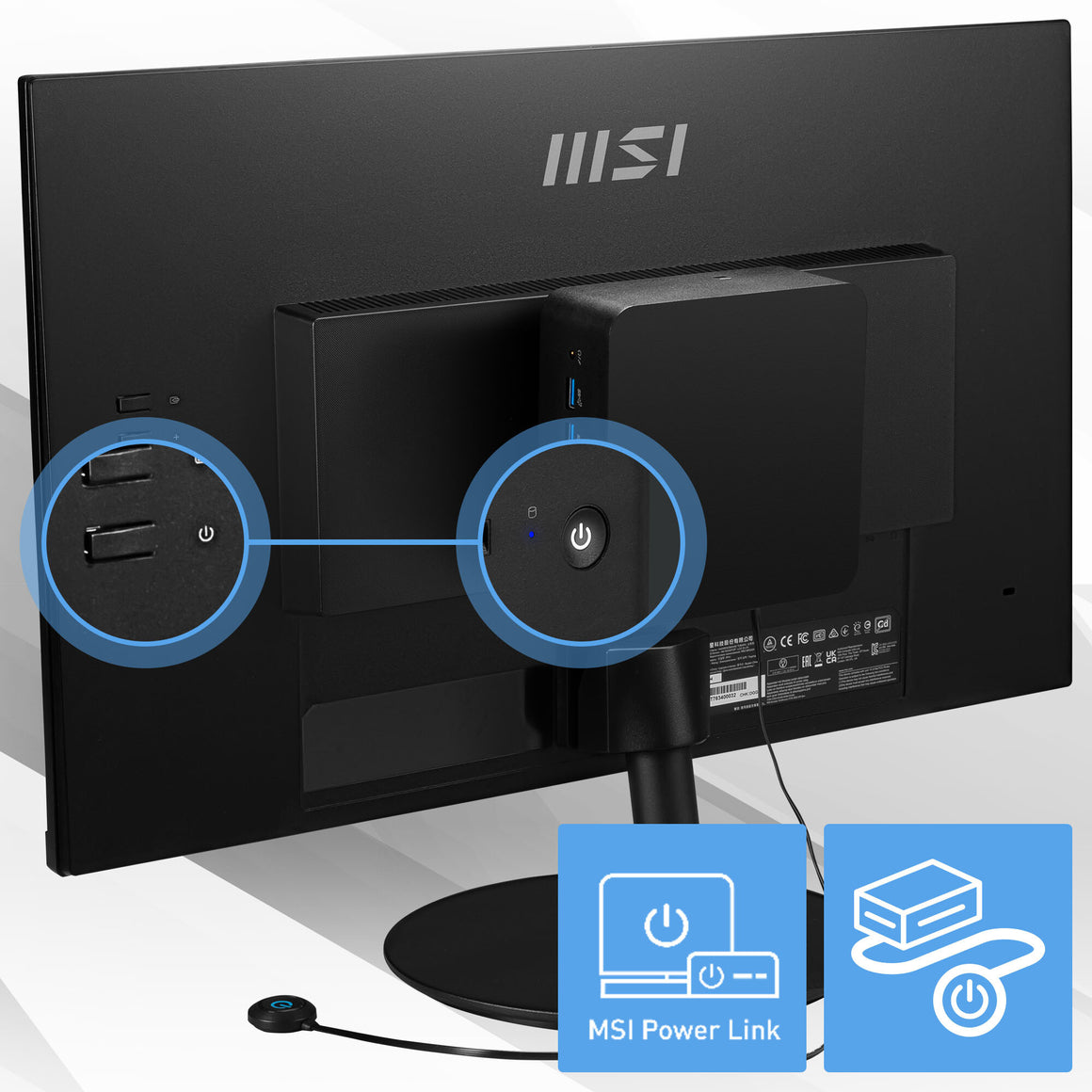

The easy-to-upgrade SFF case can house both M.2 (1 x 2280, 1x 2242) & 2.5-inch storage, as well as up to 64 GB of system memory (2 x DDR5 SO-DIMM slots), and is VESA-mountable for a cleaner desktop.
Made with PCR (Post-consumer Recycled) plastic materials and recycled molded pulp tray packing design.

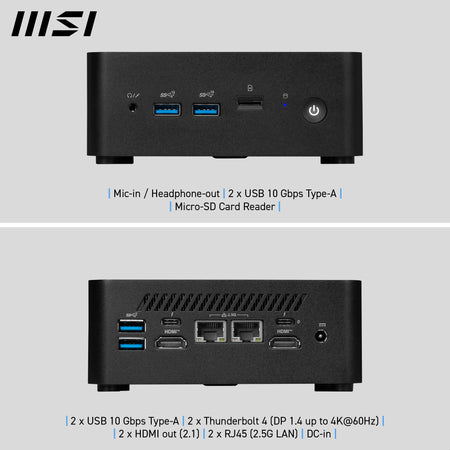

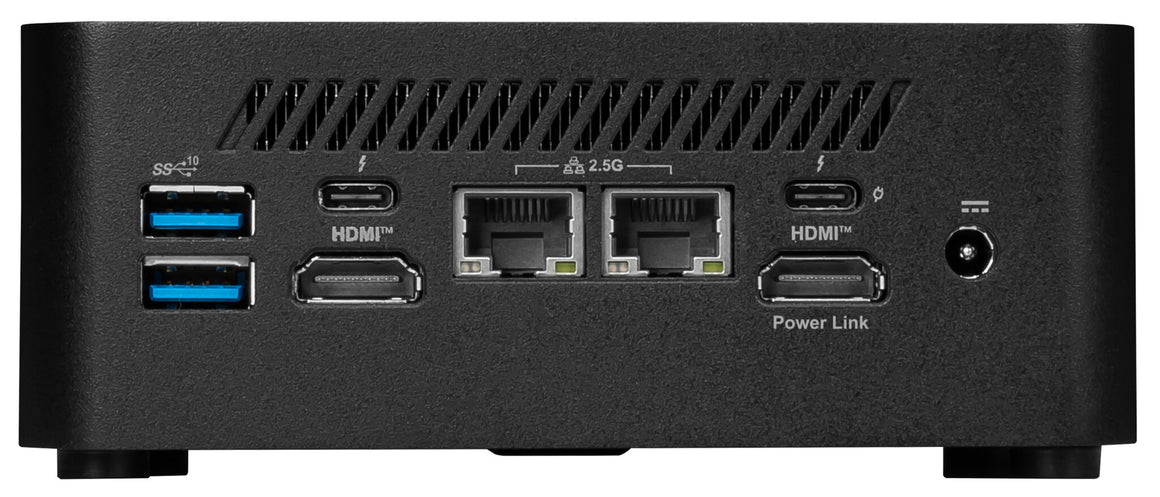

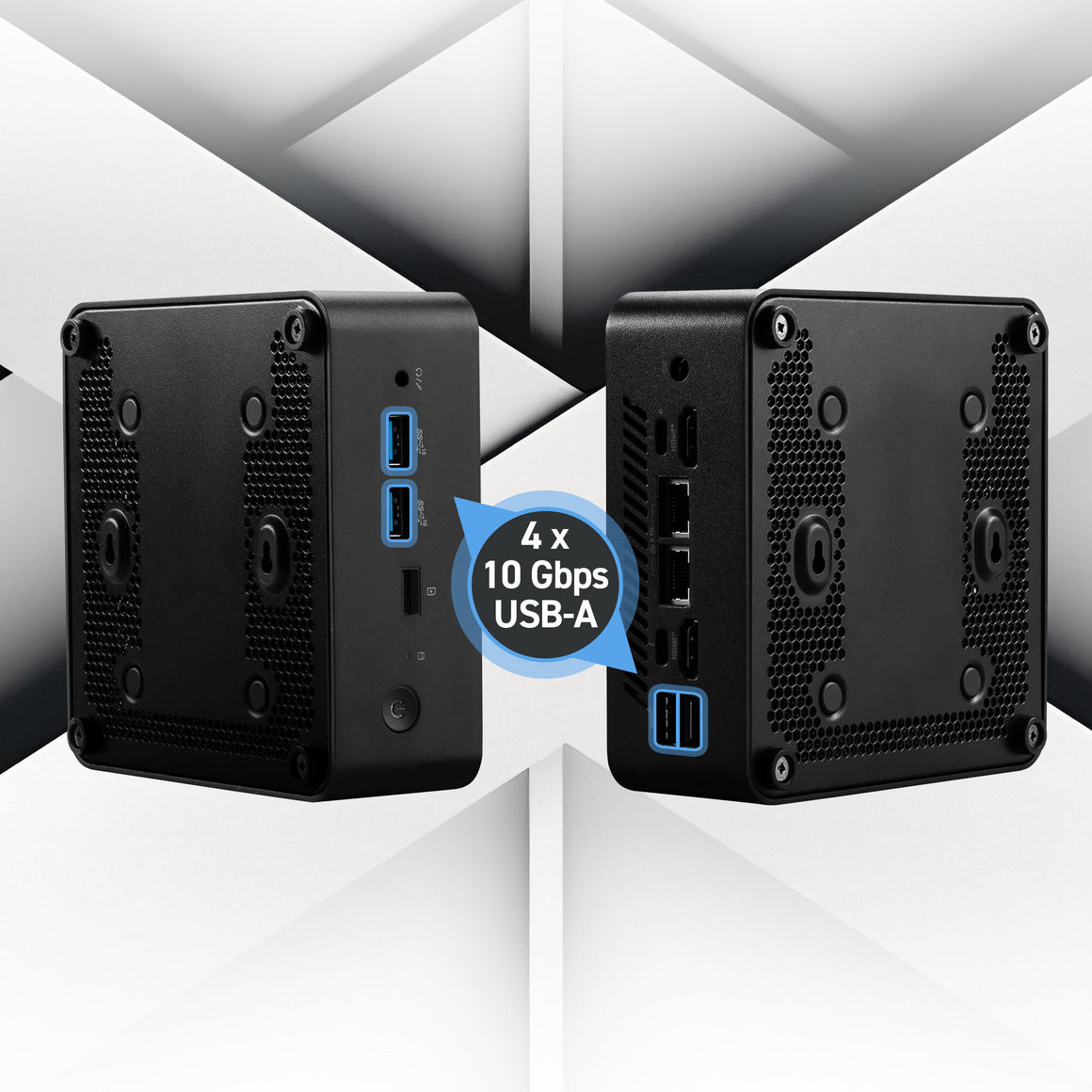

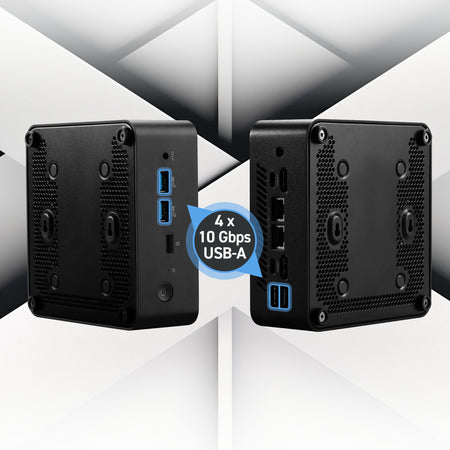

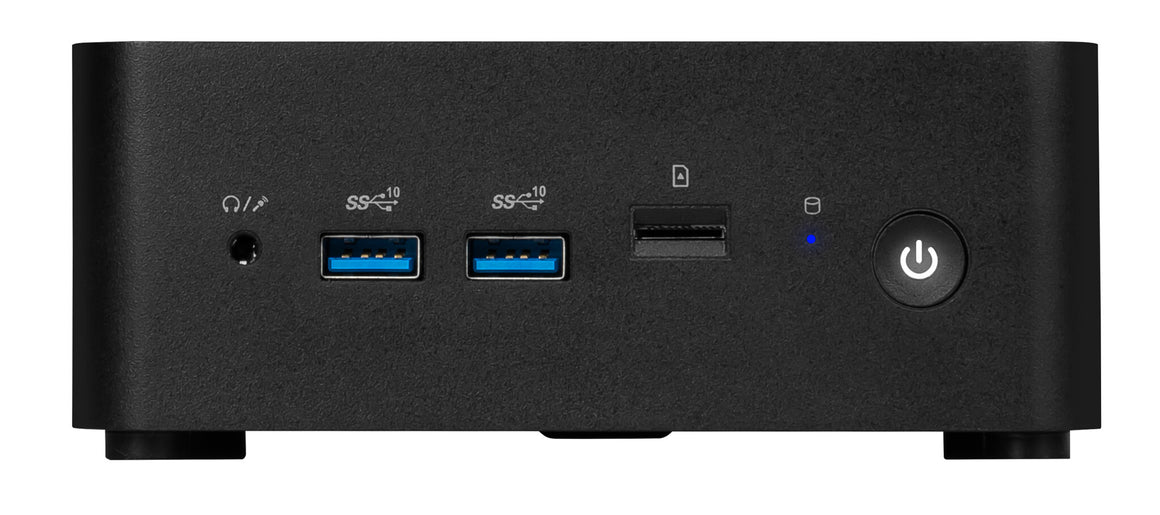

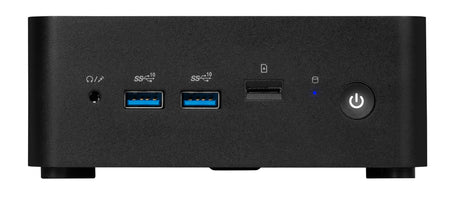

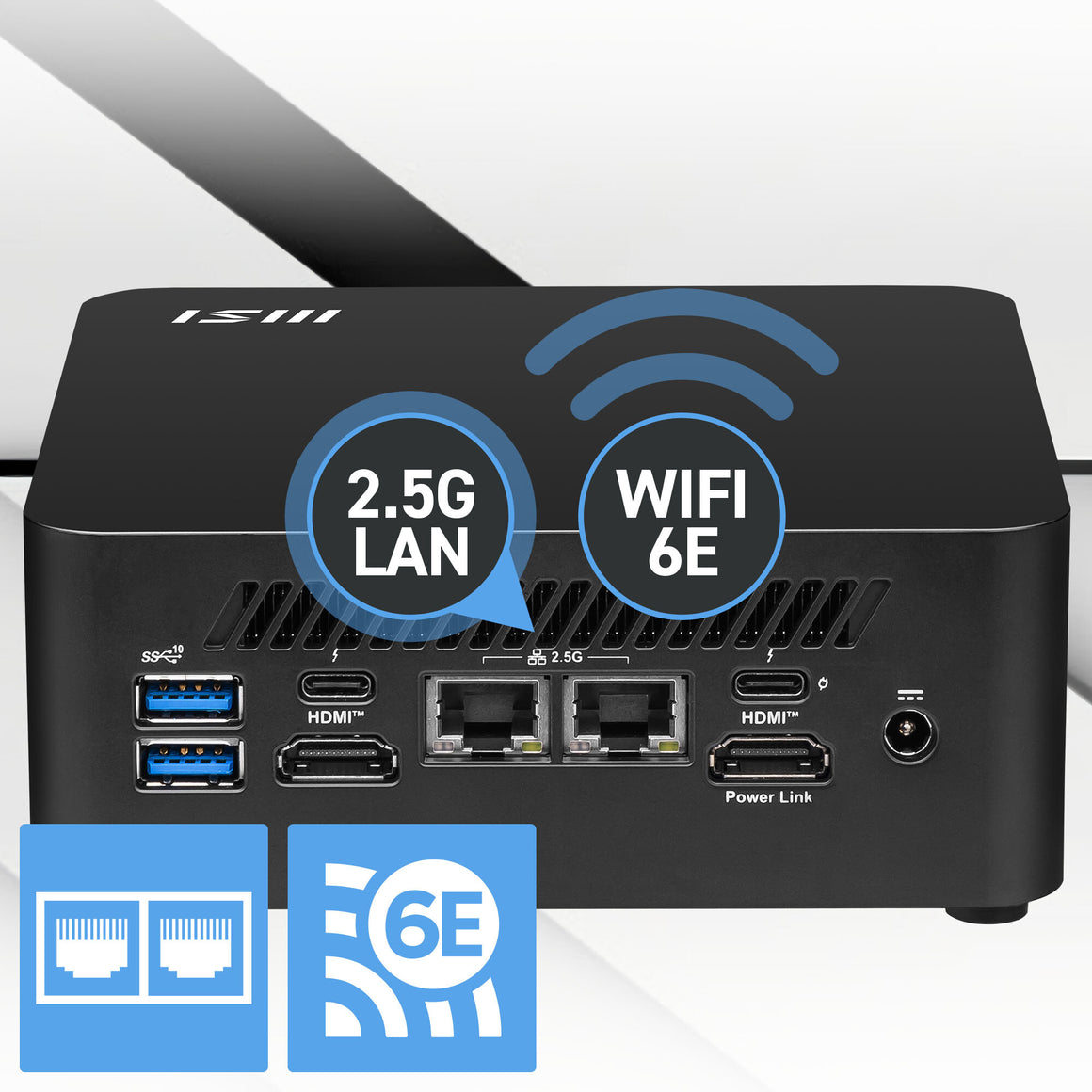

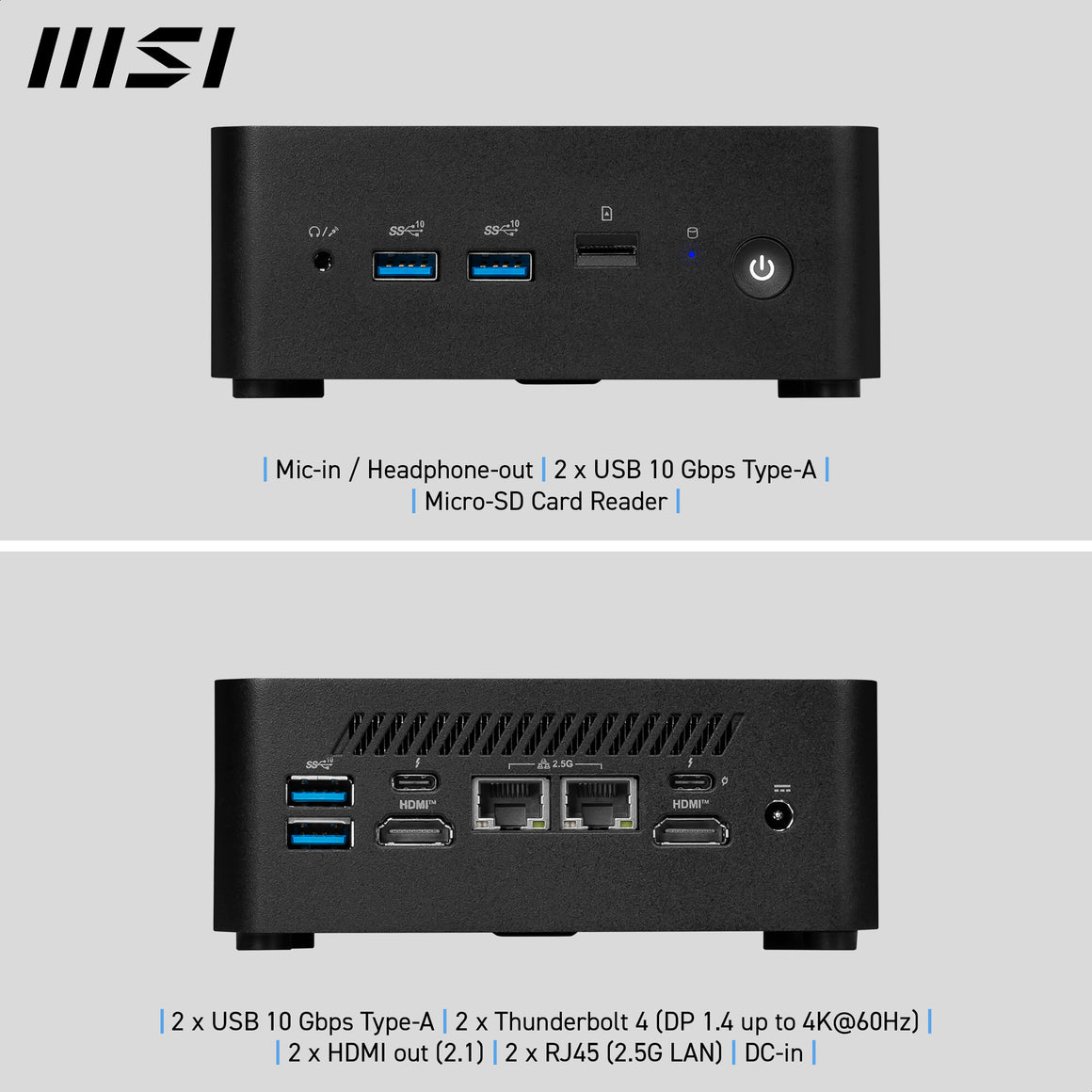

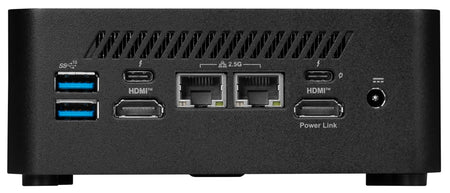

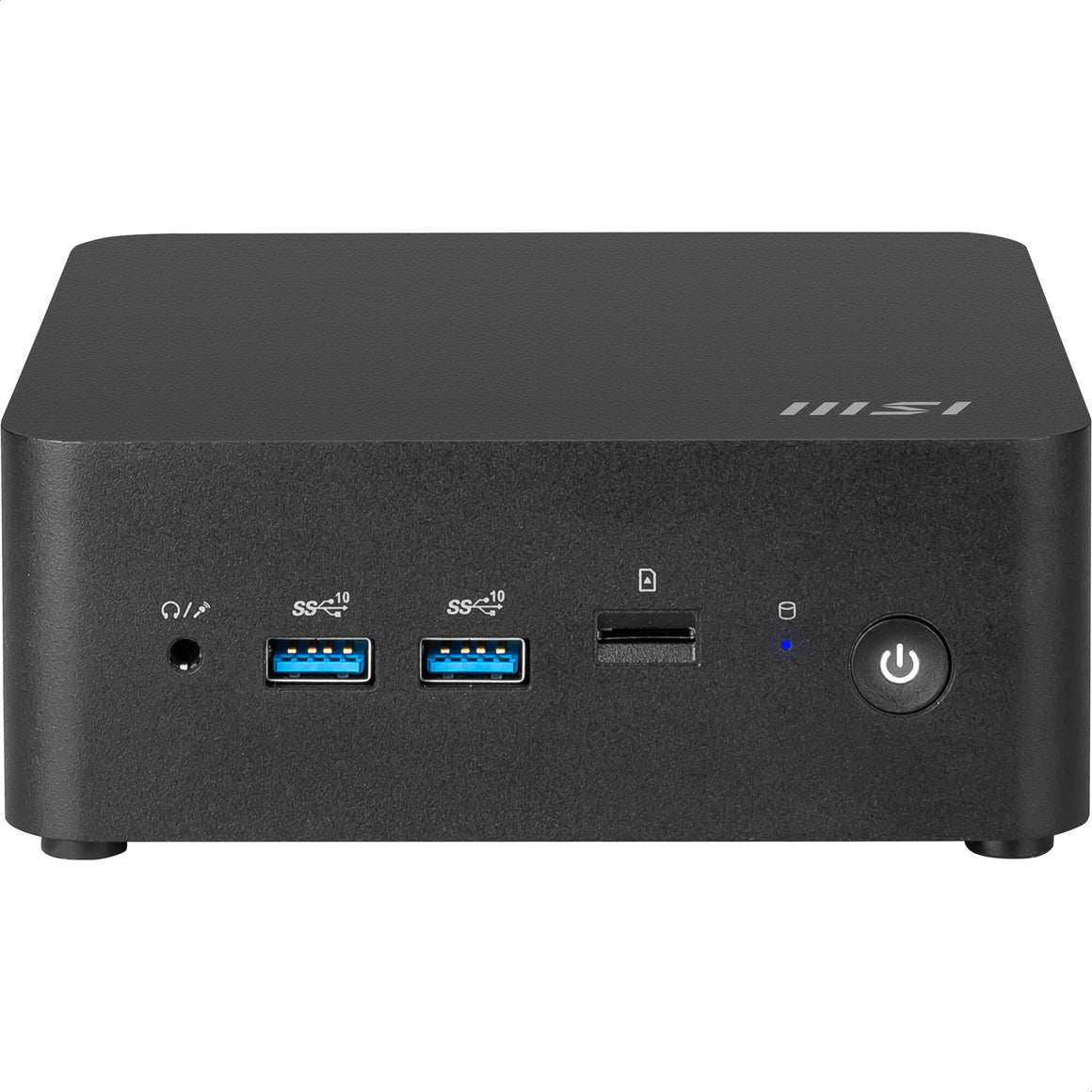

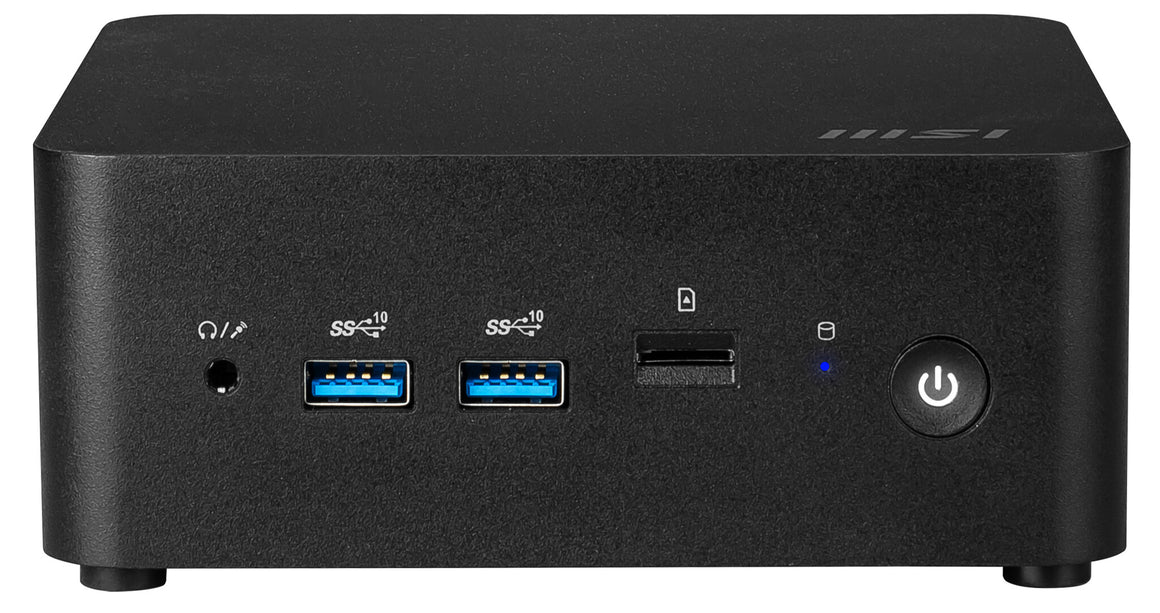

Front I/O connectivity includes a Mic-in/Headphone-out combo jack, 2x USB 10Gbps Type A and 1x Micro-SD card Reader. The rear I/O features dual 2.5Gbps ethernet LAN ports, 2x Thunderbolt 4, 2 x HDMI 2.1 and 2x USB 10Gbps Type A"
| Processor |
|---|
| Processor cache |
10 MB |
| Efficient-core base frequency |
0.9 GHz |
| Performance-core base frequency |
1.2 GHz |
| Efficient-core Max Turbo Frequency |
3.3 GHz |
| Performance-core Max Turbo Frequency |
4.7 GHz |
| Efficient cores |
4 |
| Performance cores |
2 |
| Processor threads |
8 |
| Processor cores |
6 |
| Processor model |
100U |
| Processor generation |
Intel Core (Series 1) |
| Processor family |
Intel Core 3 |
| Processor manufacturer |
Intel |
| Built-in processor |
Yes |
| Memory |
|---|
| Supported memory types |
DDR5-SDRAM |
| Maximum internal memory |
64 GB |
| Supported memory clock speeds |
5200 MHz |
| Number of memory slots |
2 |
| Memory slots type |
SO-DIMM |
| Graphics |
|---|
| On-board graphics card model |
Intel Graphics |
| Graphics card family |
Intel |
| On-board graphics card |
Yes |
| Audio |
|---|
| Built-in speaker(s) |
No |
| Network |
|---|
| LAN controller |
Intel I226-V |
| Bluetooth |
Yes |
| Bluetooth version |
5.3 |
| WLAN controller model |
Intel Wi-Fi 6E AX211 |
| Wi-Fi standards |
Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| Wi-Fi |
Yes |
| Ethernet LAN |
Yes |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
2 |
| HDMI ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| Design |
|---|
| Product type |
Mini PC barebone |
| Cooling type |
Active |
| Product colour |
Black |
| Chassis type |
0.84L sized PC |
| Performance |
|---|
| Number of processors supported |
1 |
| Motherboard chipset |
Intel SoC |
| Motherboard form factor |
NUC |
| General |
|---|
| Product family |
Cubi |
| Software |
|---|
| Operating system installed |
No |
| Sustainability |
|---|
| Sustainability certificates |
ENERGY STAR, Forest Stewardship Council (FSC), Post-Consumer Recycled Plastic |
| Power |
|---|
| Power supply |
120 W |
| Number of power supply units |
1 |
| Power supply type |
External AC adapter |

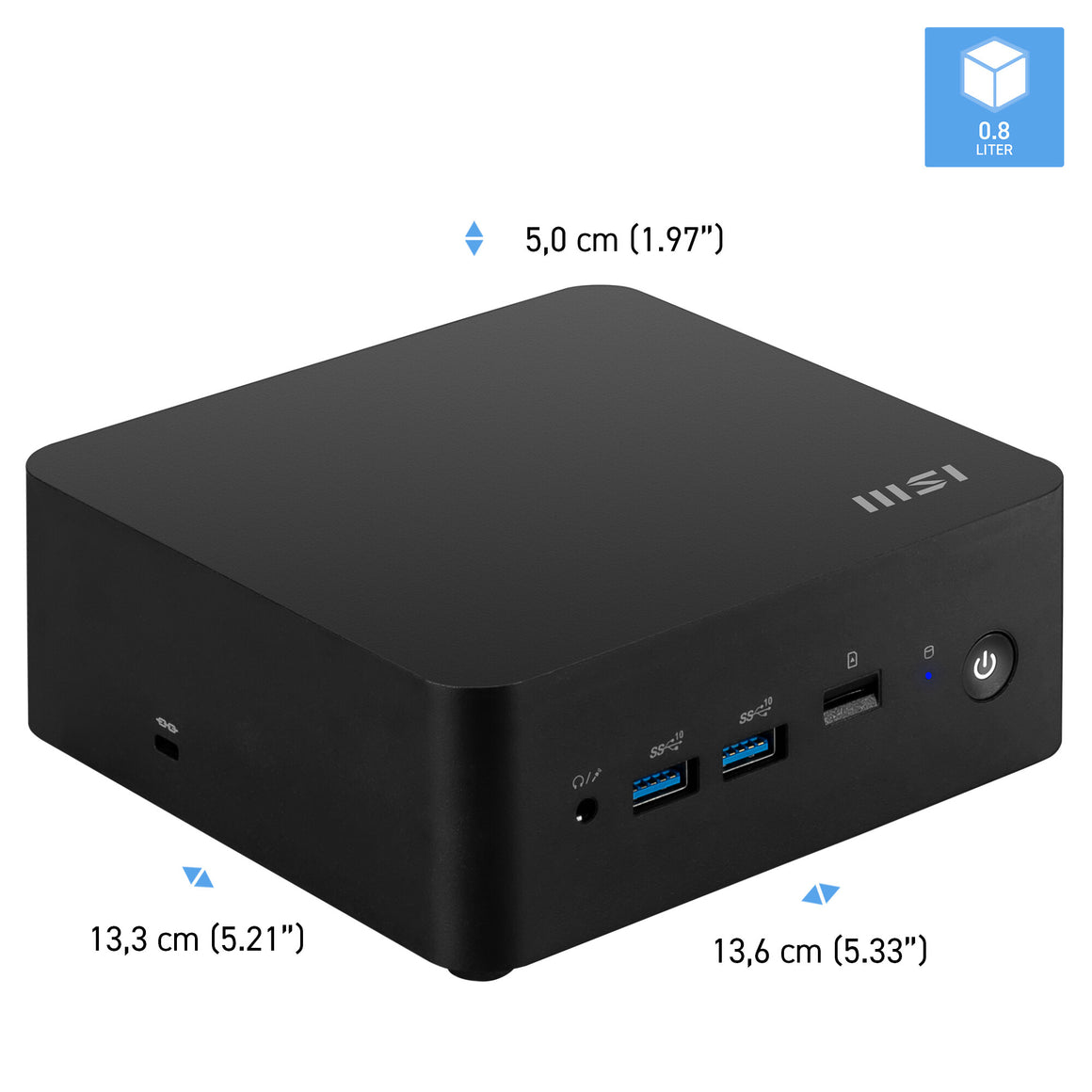

| Weight & dimensions |
|---|
| Weight |
0.625 g |
| Height |
50.1 mm |
| Depth |
135.6 mm |
| Width |
132.5 mm |
| Packaging content |
|---|
| Drivers included |
Yes |
