"Cubi NUC 1M: The Sustainable & Energy Efficient Mini-PC

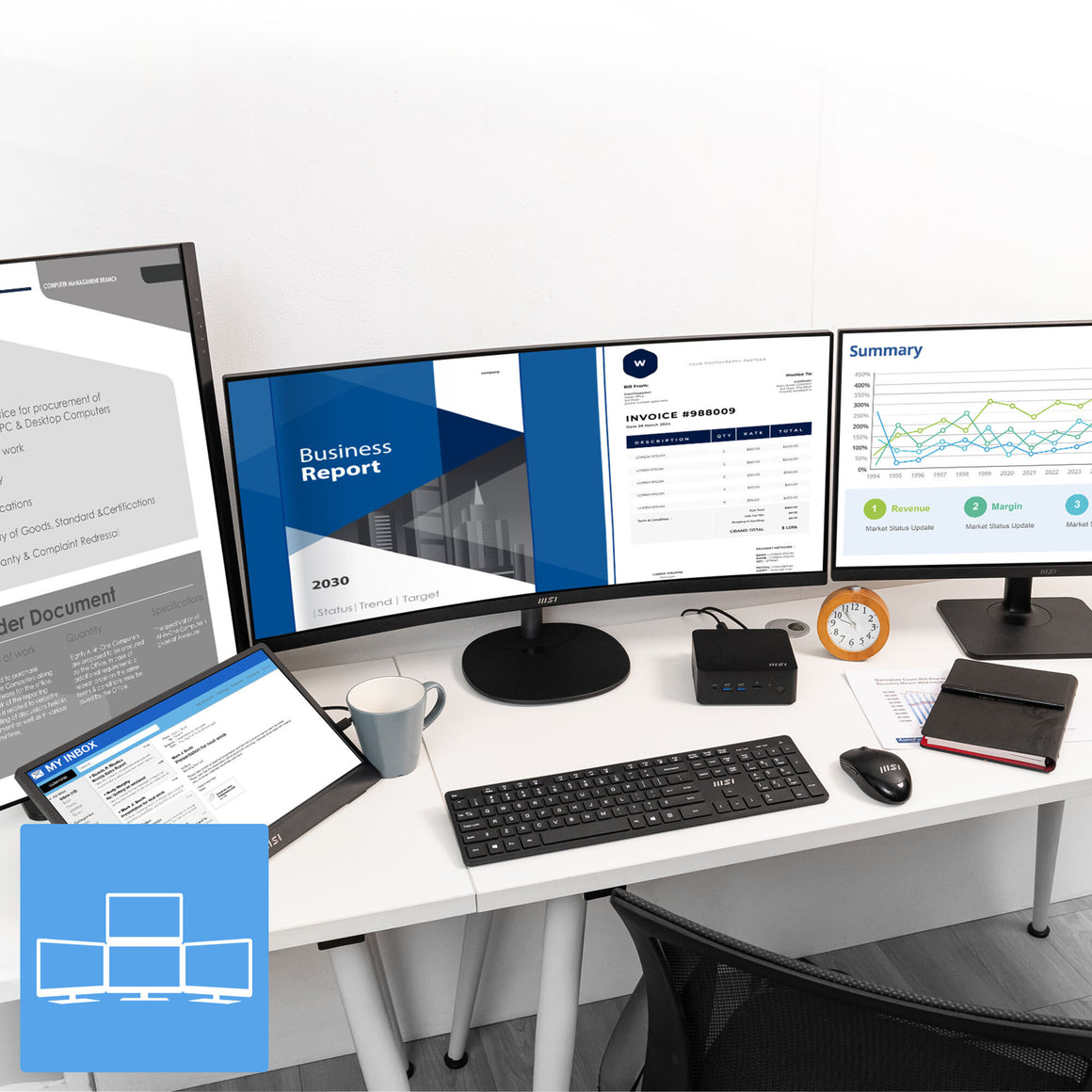

The MSI Cubi NUC 1M is a small yet powerful mini-desktop with an incredibly compact 0.826L design suitable for commercial office work or use as home-theatre/entertainment PC (supports UHD/4K 60Hz display output & quadruple-monitor setups).

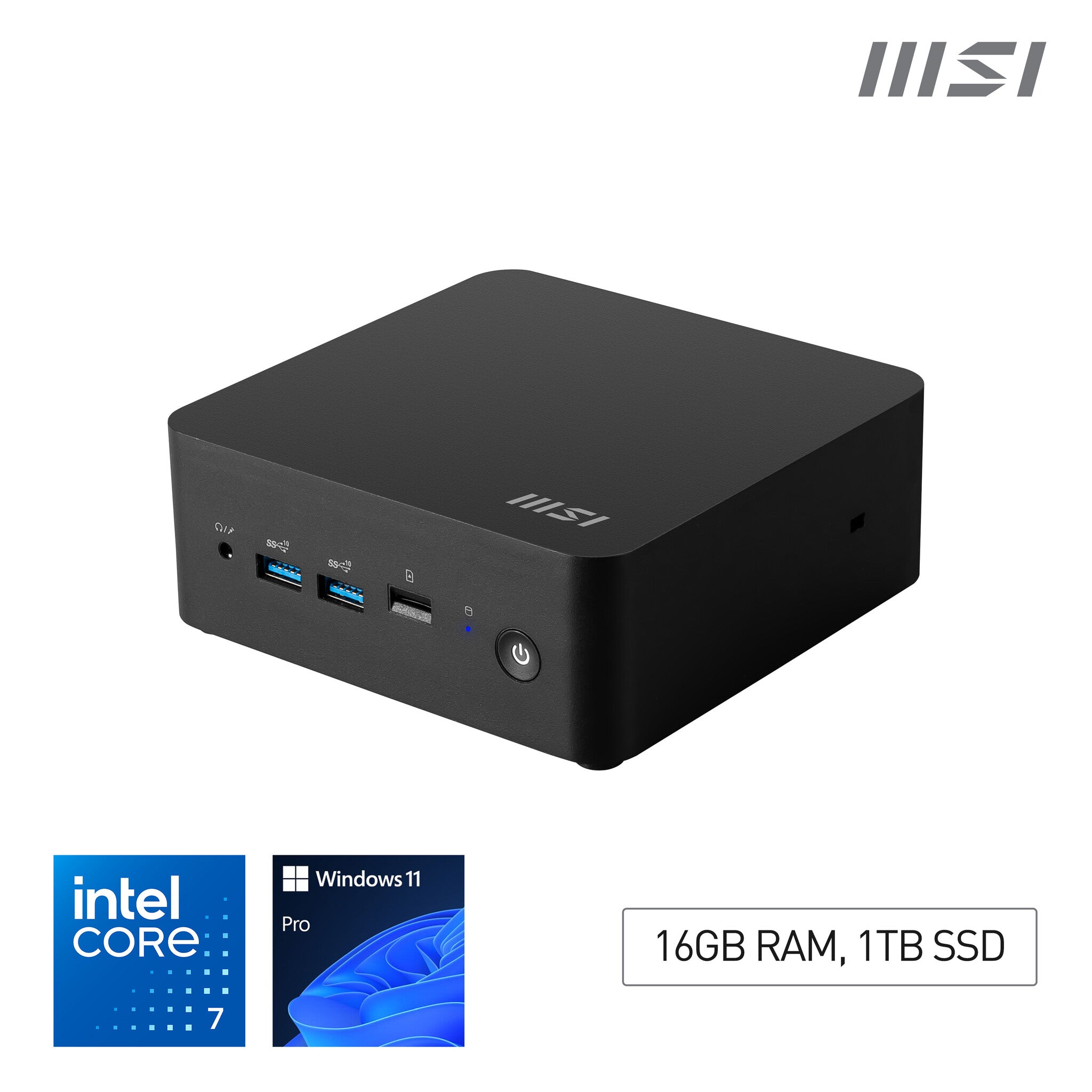

The Cubi NUC 1M i7 150U FS 16GB 1TB W11P configuration is a complete system equipped with an Intel Intel® Core 7 processor 150U, 16GB of DDR5-5200MHz memory, 1TB of M.2 SSD storage, Intel Wi-Fi AX211 & Bluetooth 5.3 connectivity, as well as Windows 11 Pro software pre-installed.

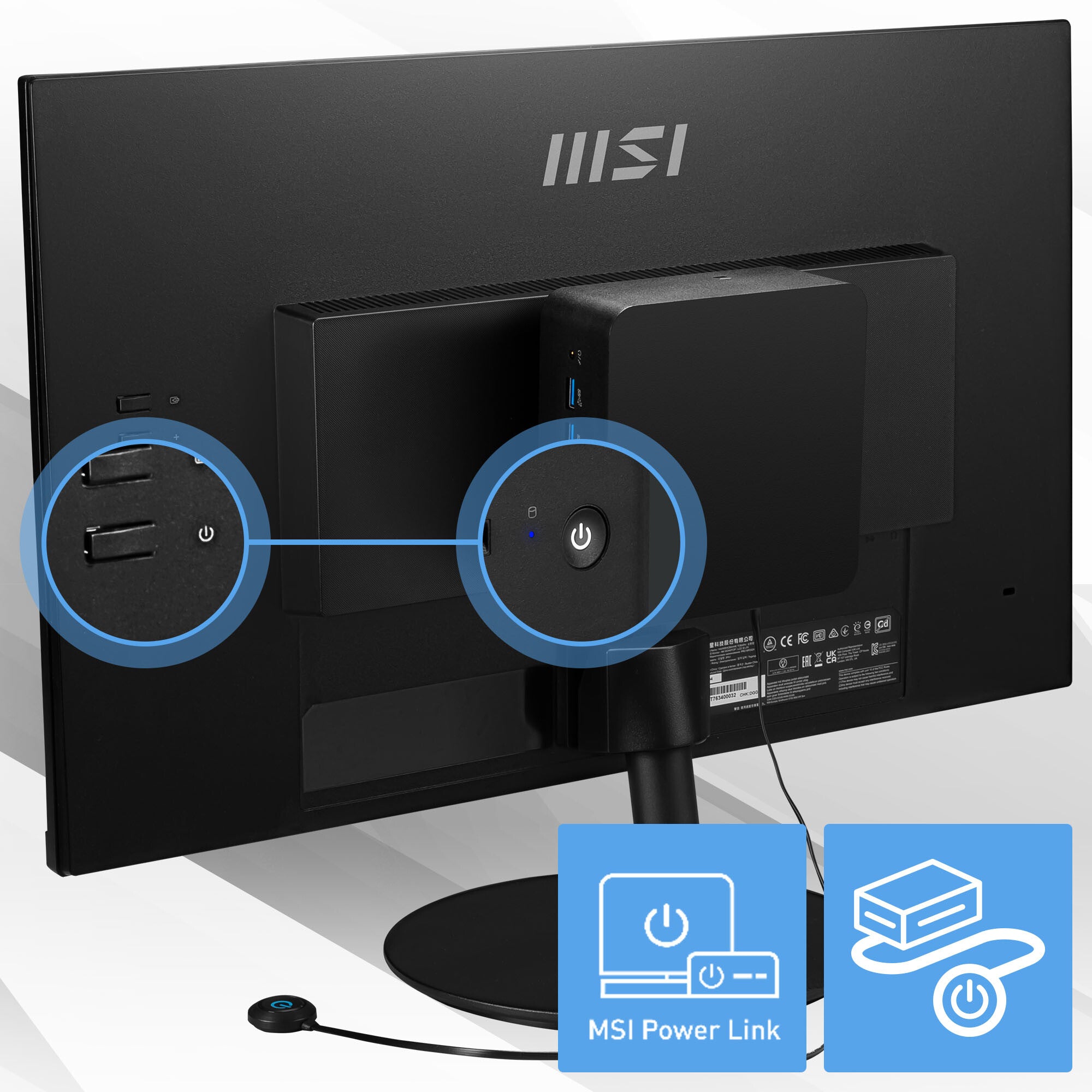

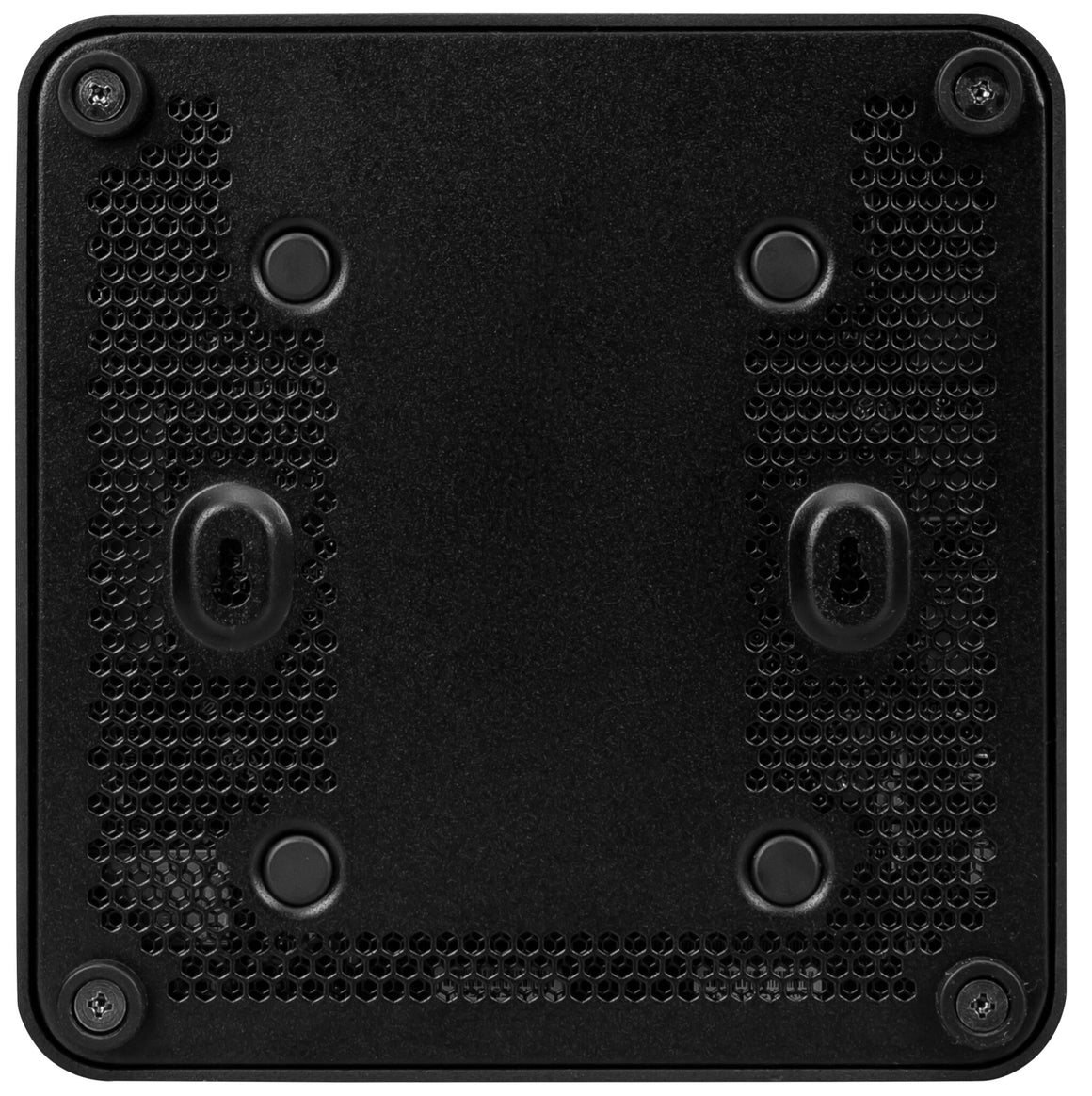

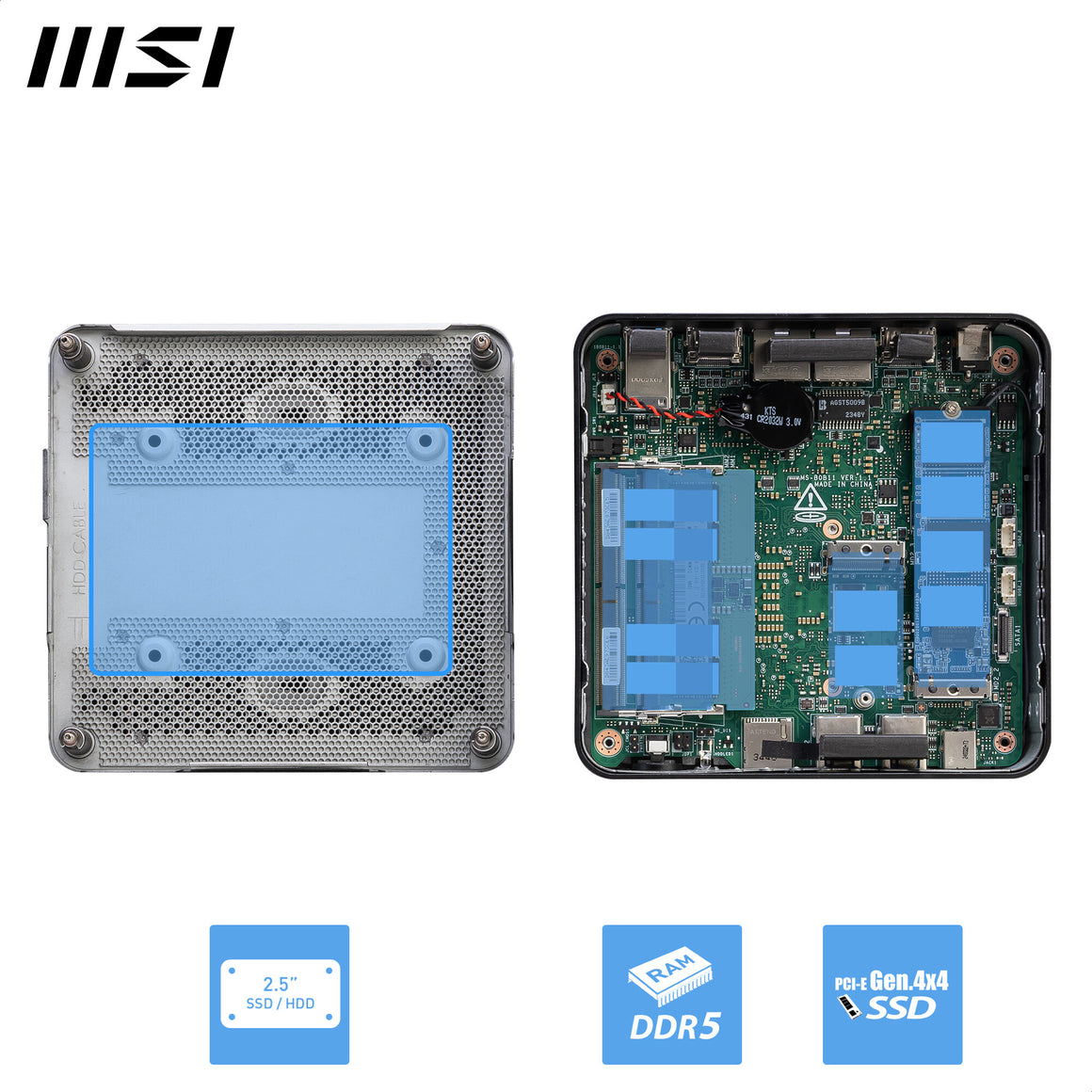

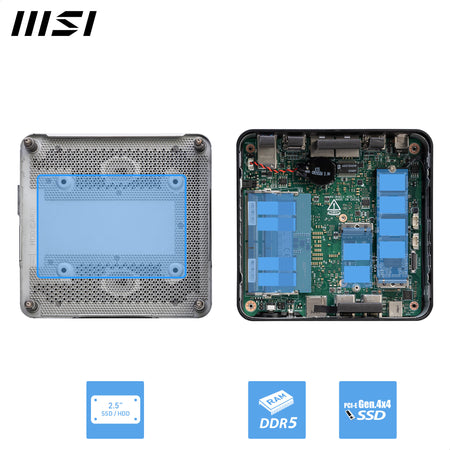

The easy-to-upgrade SFF case can house both M.2 (1 x 2280, 1x 2242) & 2.5-inch storage, as well as up to 64 GB of system memory (2 x DDR5 SO-DIMM slots), and is VESA-mountable for a cleaner desktop.
Made with PCR (Post-consumer Recycled) plastic materials and recycled molded pulp tray packing design.

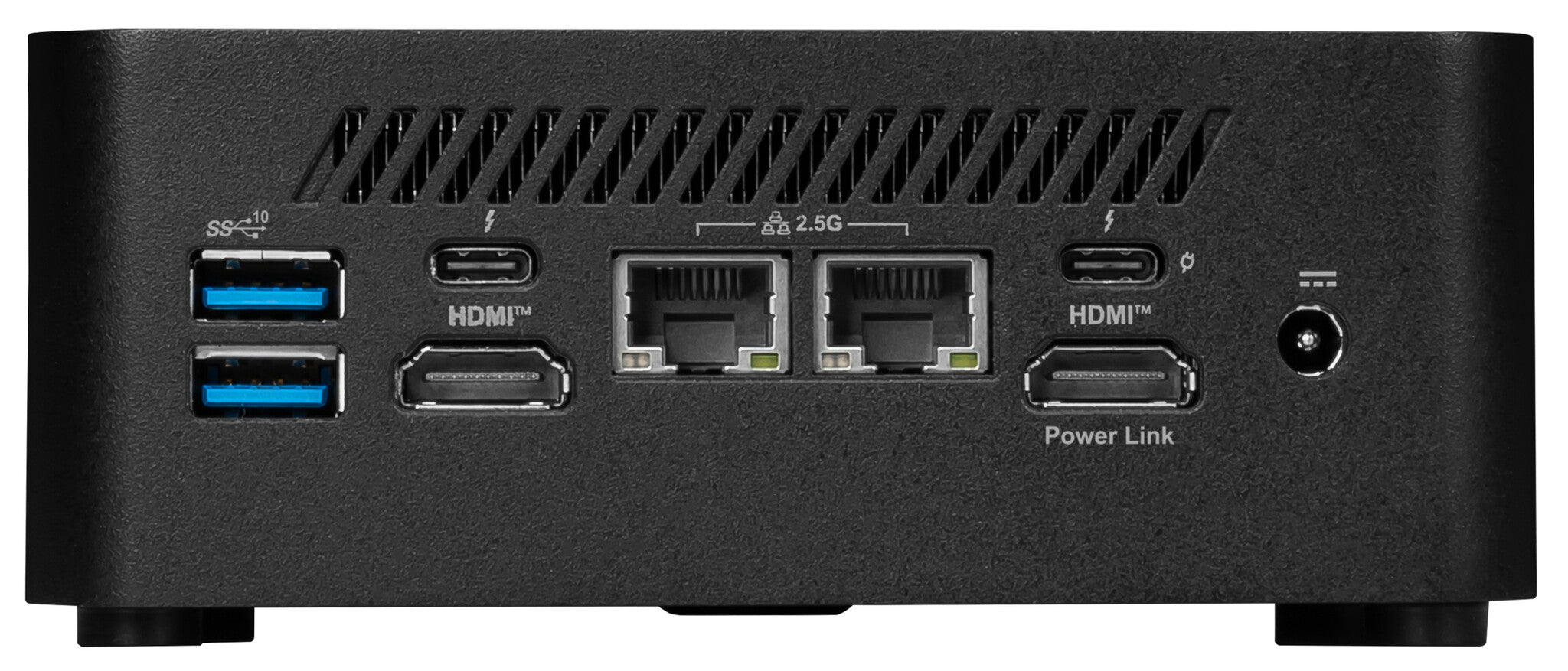

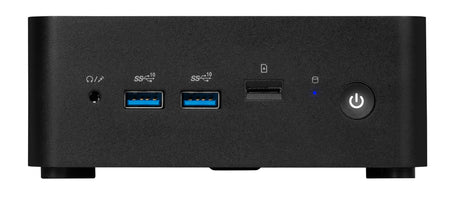

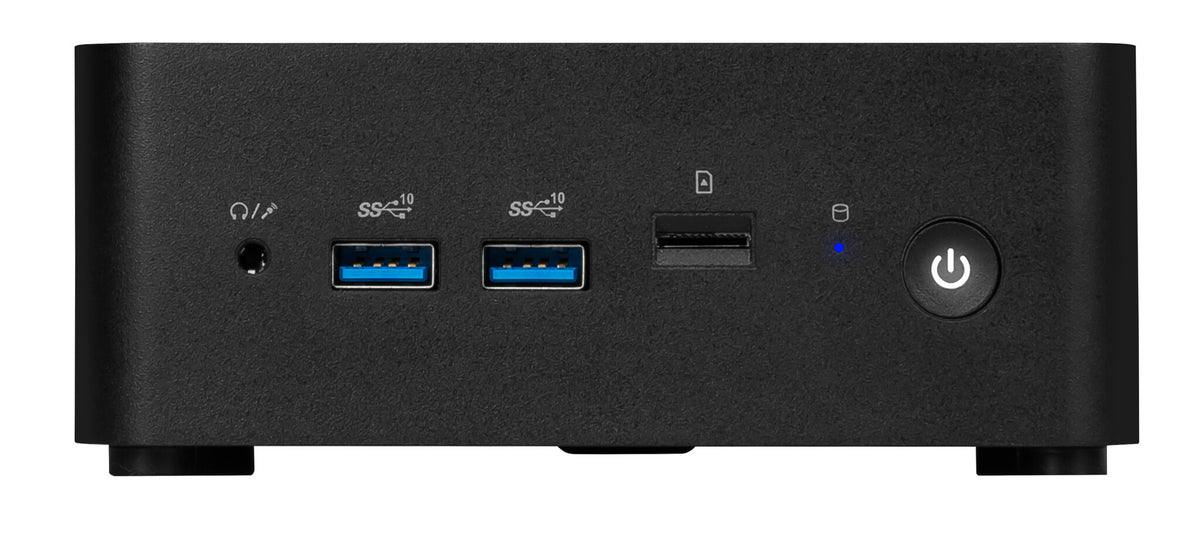

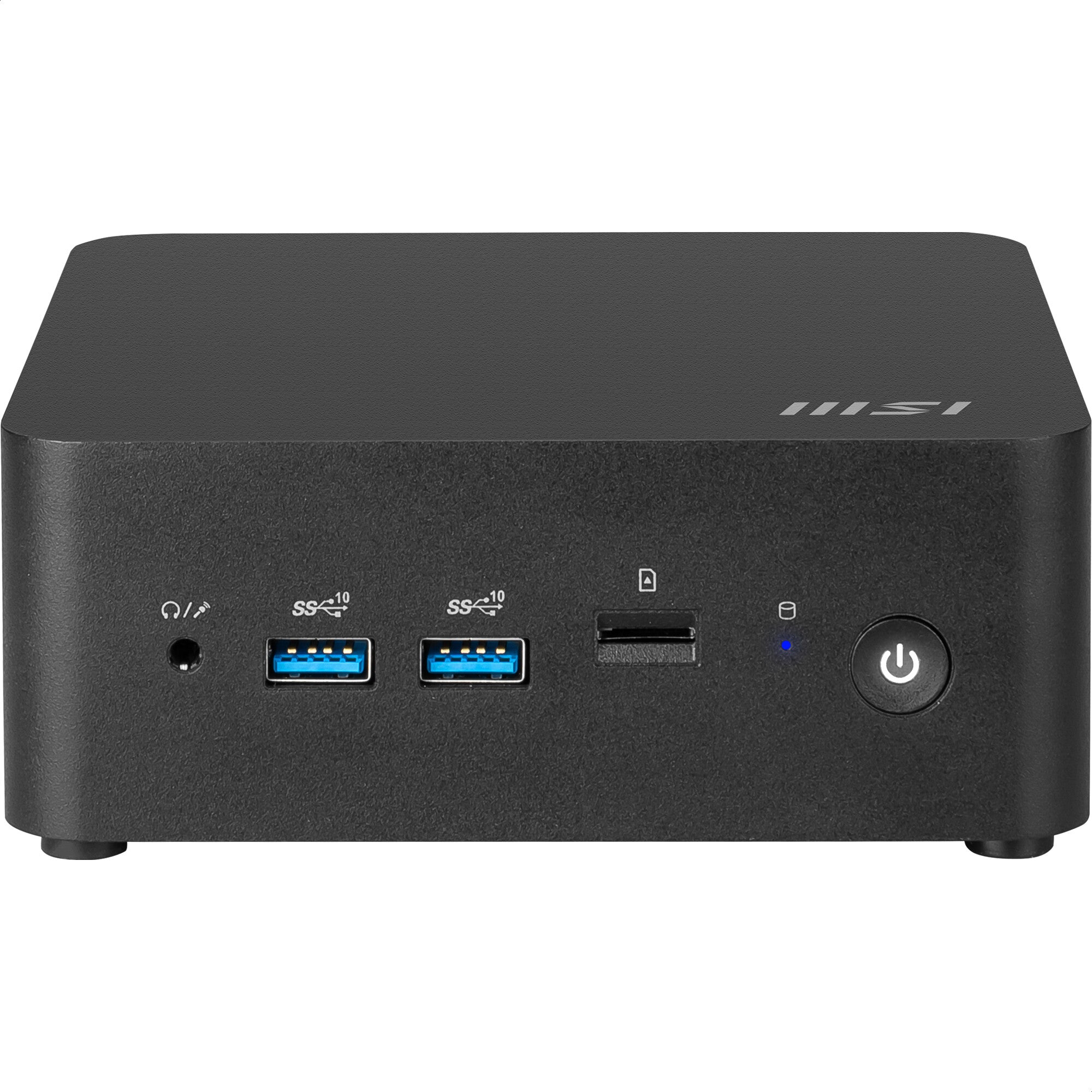

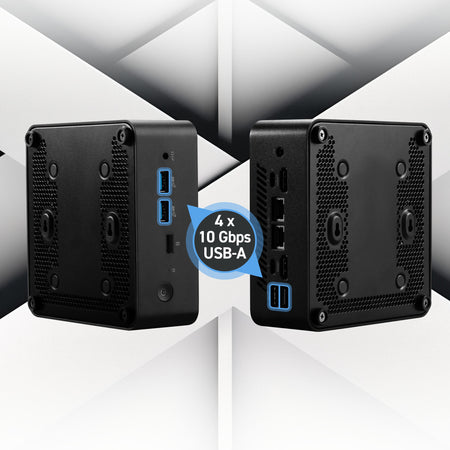

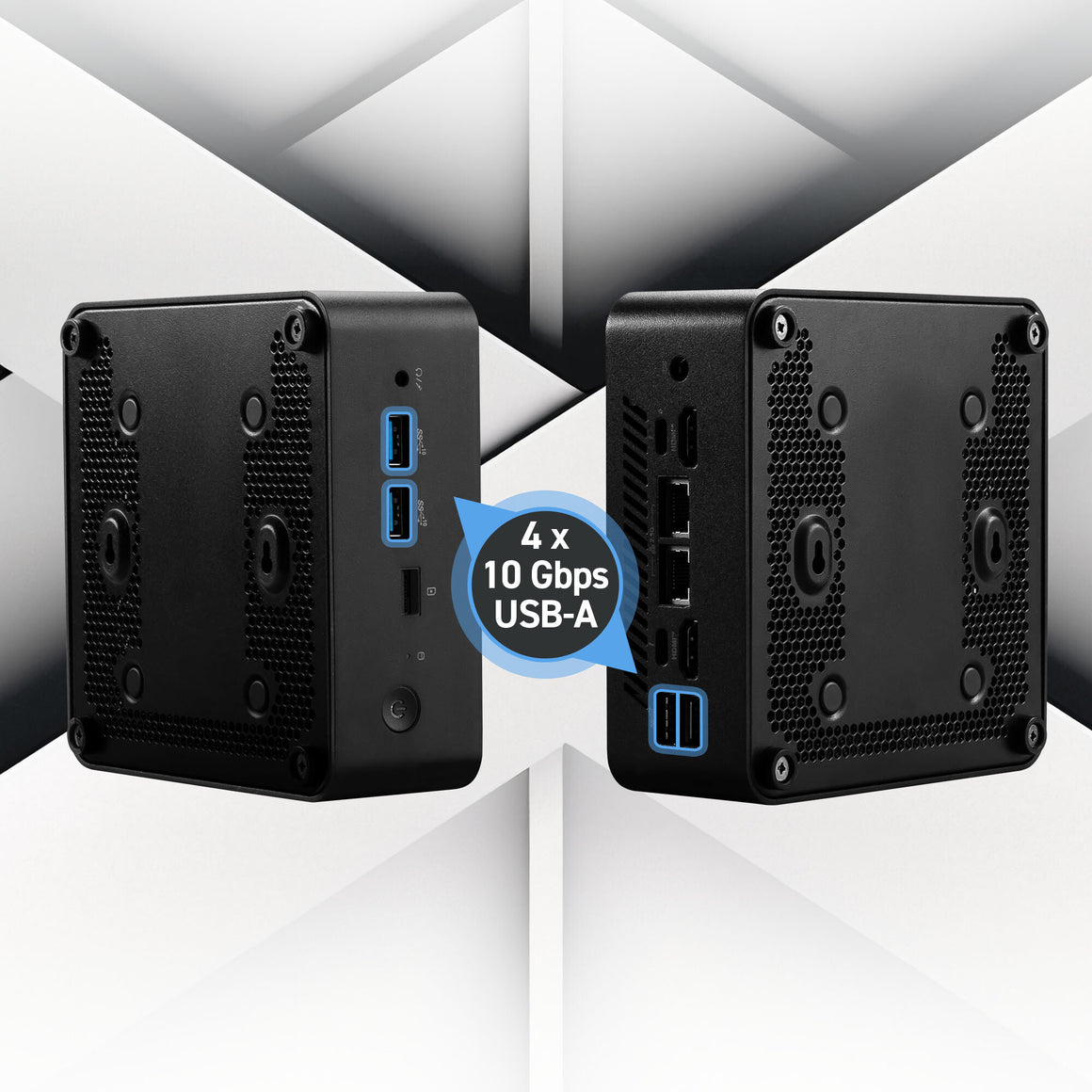

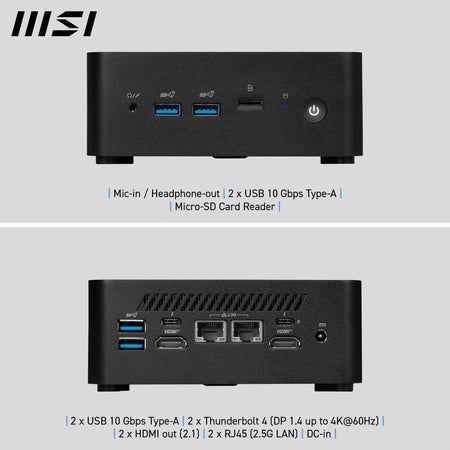

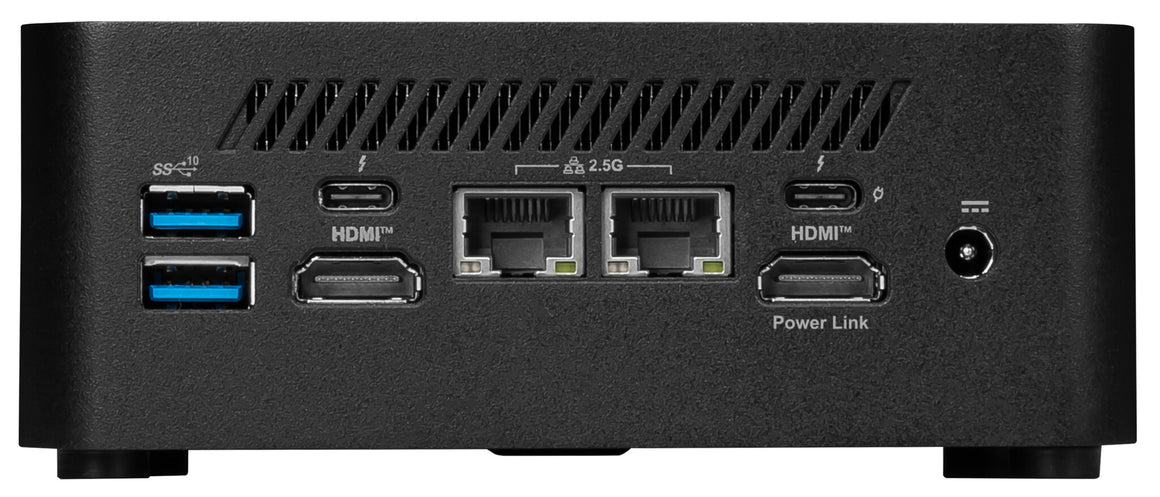

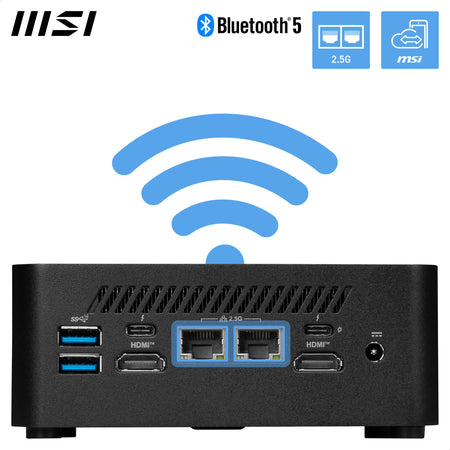

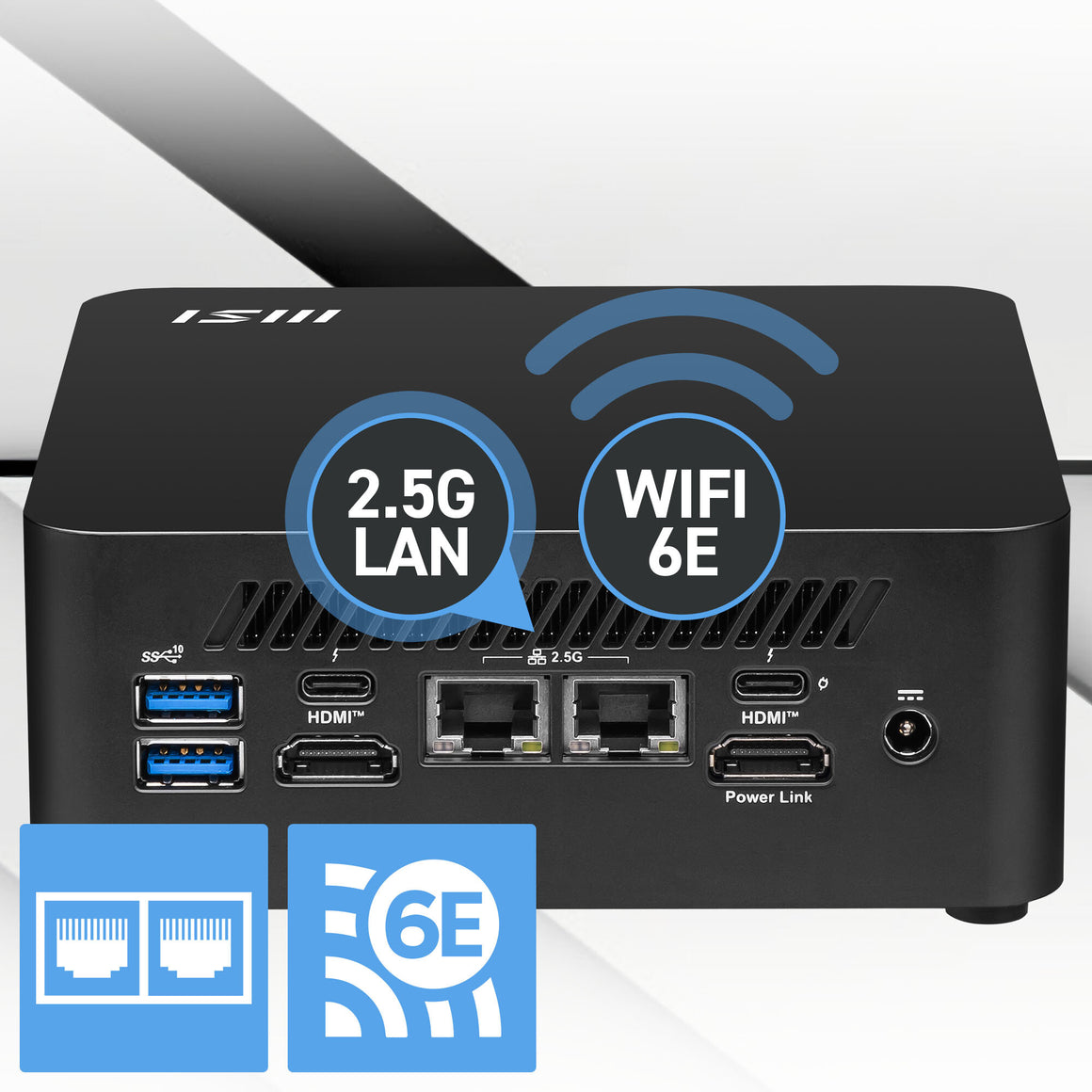

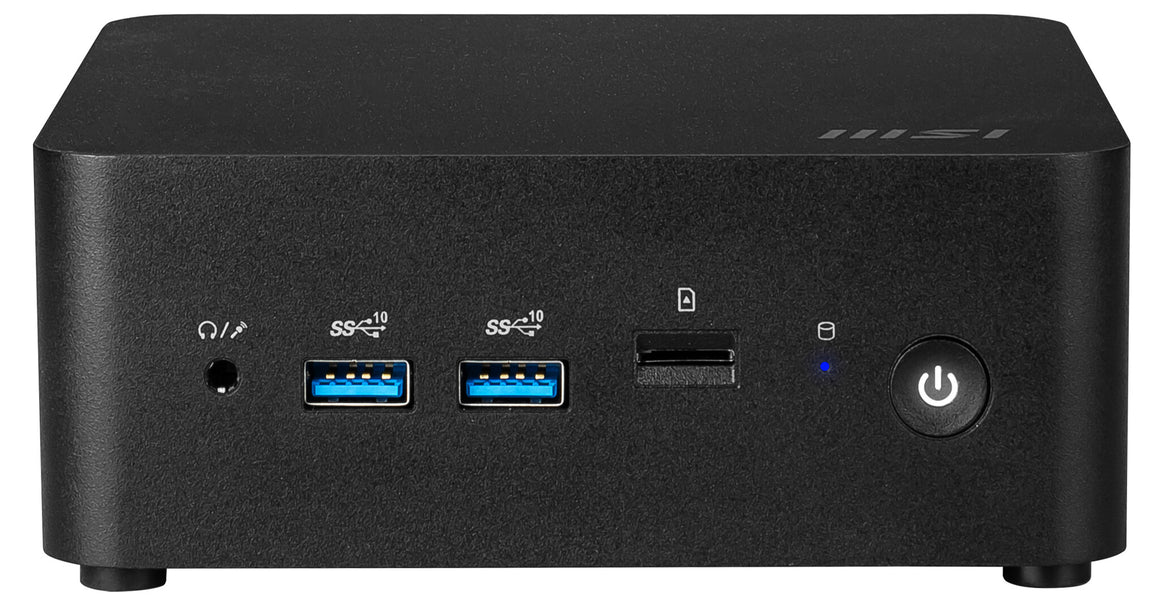

Front I/O connectivity includes a Mic-in/Headphone-out combo jack, 2x USB 10Gbps Type A and 1x Micro-SD card Reader. The rear I/O features dual 2.5Gbps ethernet LAN ports, 2x Thunderbolt 4, 2 x HDMI 2.1 and 2x USB 10Gbps Type A"
| Processor |
|---|
| Processor base power |
15 W |
| Maximum turbo power |
55 W |
| Number of processors installed |
1 |
| Processor cache |
12 MB |
| Efficient-core base frequency |
1.2 GHz |
| Performance-core base frequency |
1.8 GHz |
| Efficient-core Max Turbo Frequency |
4 GHz |
| Performance-core Max Turbo Frequency |
5.4 GHz |
| Efficient cores |
8 |
| Performance cores |
2 |
| Processor threads |
12 |
| Processor cores |
10 |
| Processor model |
150U |
| Processor generation |
Intel Core (Series 1) |
| Processor family |
Intel Core 7 |
| Processor manufacturer |
Intel |
| Memory |
|---|
| Memory clock speed |
5200 MHz |
| Memory slots |
2x SO-DIMM |
| Memory layout (slots x size) |
2 x 8 GB |
| Internal memory type |
DDR5-SDRAM |
| Maximum internal memory |
64 GB |
| Internal memory |
16 GB |
| Storage |
|---|
| Compatible memory cards |
MicroSD (TransFlash) |
| Card reader integrated |
Yes |
| M.2 SSD size |
2280 (22 x 80 mm) |
| SSD form factor |
M.2 |
| NVMe |
Yes |
| SSD interface |
M.2 |
| SSD capacity |
1 TB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
1 TB |
| HDD size |
2.5" |
| Number of storage drives supported |
3 |
| Number of storage drives installed |
1 |
| Storage media |
SSD |
| Optical drive type |
No |
| Total storage capacity |
1 TB |
| Graphics |
|---|
| On-board graphics card model |
Intel Graphics |
| On-board graphics card family |
Intel Graphics |
| On-board GPU manufacturer |
Intel |
| Discrete graphics card model |
Not available |
| On-board graphics card |
Yes |
| Discrete graphics card |
No |
| Network |
|---|
| Bluetooth version |
5.3 |
| Wi-Fi standards |
Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| Wi-Fi |
Yes |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
2 |
| HDMI ports quantity |
2 |
| Performance |
|---|
| Product type |
Mini PC |
| Software |
|---|
| Operating system installed |
Windows 11 Pro |
| Power |
|---|
| Power supply input frequency |
50-60 Hz |
| Power supply input voltage |
100-240 V |
| Power supply |
120 W |
| Sustainability |
|---|
| Sustainability certificates |
ENERGY STAR, Forest Stewardship Council (FSC), Post-Consumer Recycled Plastic |
| Weight & dimensions |
|---|
| Package weight |
1.45 kg |
| Package height |
94 mm |
| Package depth |
220 mm |
| Package width |
205 mm |
| Weight |
625 g |

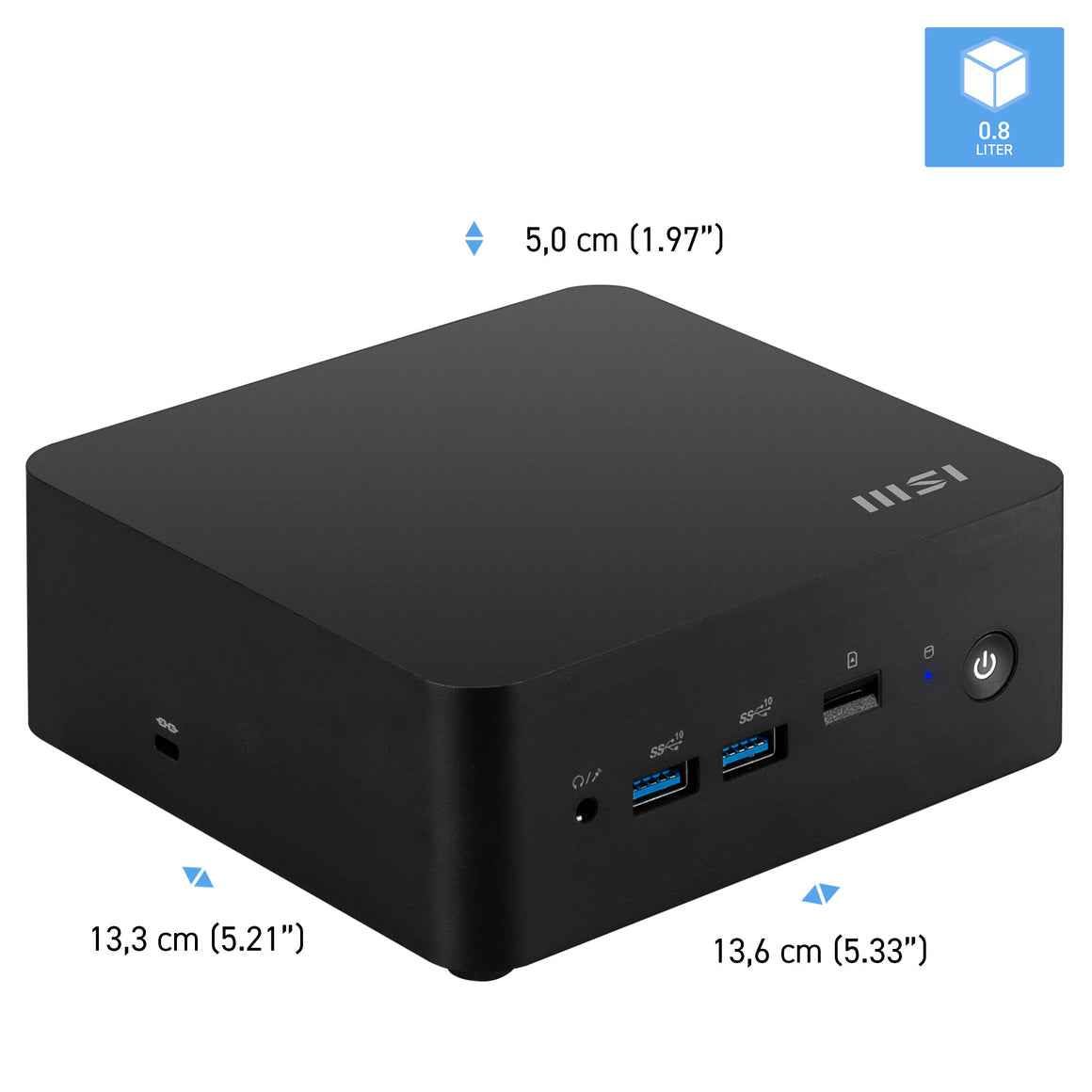

| Height |
50.1 mm |
| Depth |
135.6 mm |
| Width |
132.5 mm |
| Packaging content |
|---|
| Screws included |
Yes |
| VESA mount included |
Yes |
| Cables included |
AC, Power |
| Keyboard included |
No |
| Mouse included |
No |
| Display included |
No |
| General |
|---|
| Product family |
Cubi |
| Other features |
|---|
| Built-in microphone |
No |
| Locale |
English |
| Warranty period |
3 year(s) |
| TV tuner integrated |
No |
