MSI Cubi NUC AI 1UMG Intel Core Ultra 5 125H , Barebone, NUC, SFF, Mini Computer, HTPC, (NO RAM, NO Storage, NO OS), Intel Graphics/DDR5/Dual ThunderBolt 4/Dual HDMI/Dual LAN/WiFi 6E/BT 5.3/VESA
Couldn't load pickup availability
- Up to Intel® CoreTM Ultra 5 processor 125H with Intel® AI Boost NPU
- Supports DDR5 5200MHz memory
- Supports 1x M.2 2280 SSD (PCIE, factory pre-installed), 1x M.2 2242 SSD (PCIE)

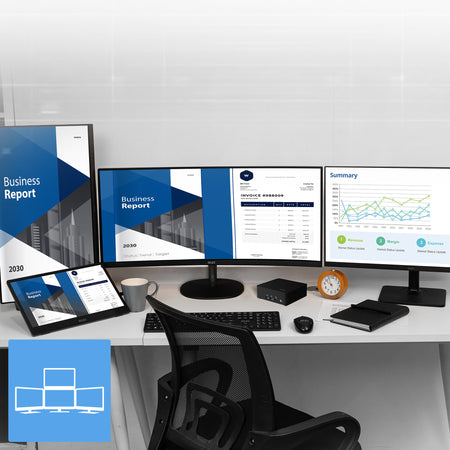

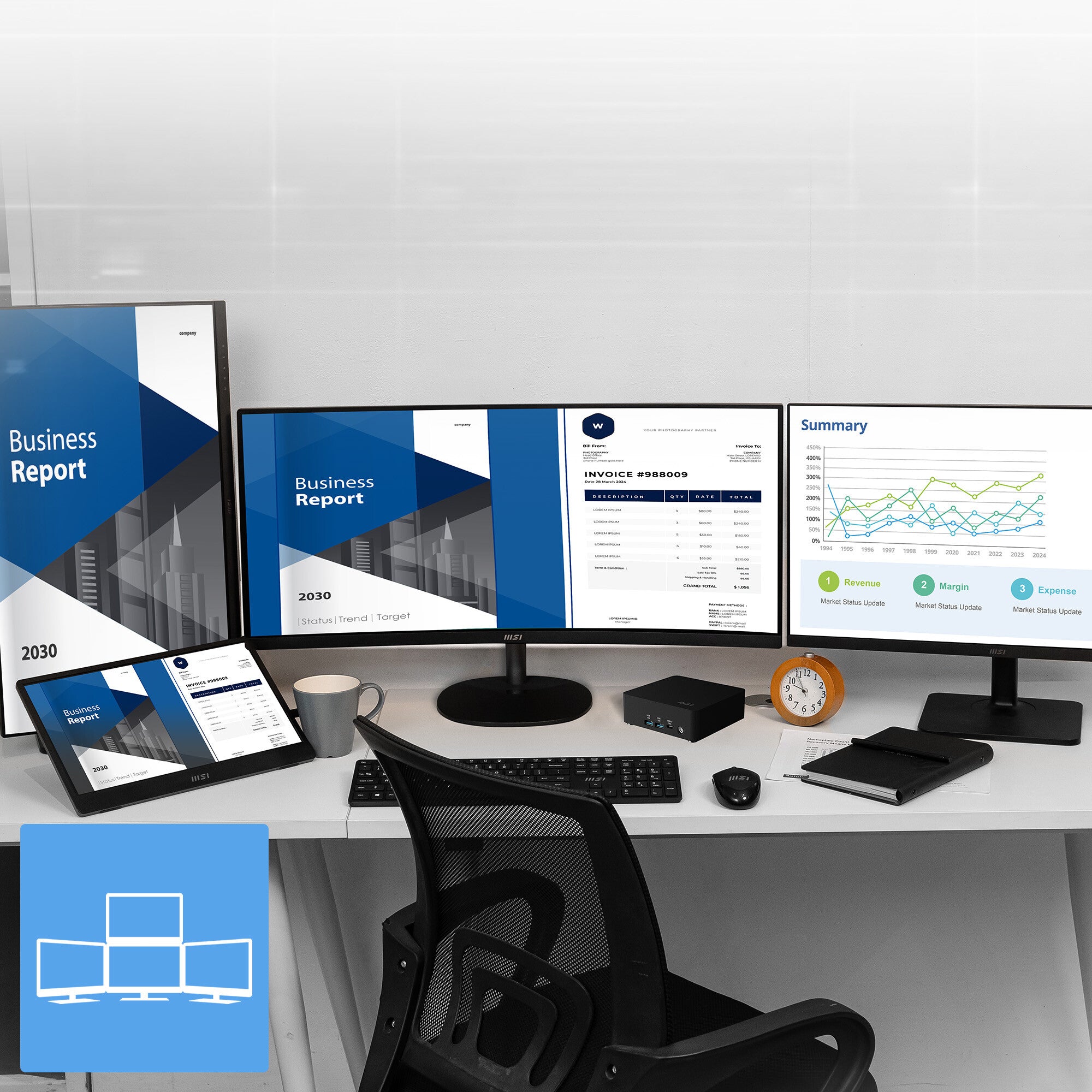

- Quadruple monitor support (Thunderbolt 4, HDMI 2.1)
- 1 x USB 10GbpsType-C port front, 2 x USB 10GbpsType-A ports front
- MSI Power Link support
- MSI Power Meter software
- Dual 2.5G LAN, Wi-fi 6E AX211 & BT 5.3
The Cubi NUC AI 1UM is a mini pc equipped with Intel® AI Boost NPU and Intel® CoreTM Ultra processor, and it won the Red Dot Design Award in 2024. With quadruple monitor support, dual 2.5G LAN network capabilities, sustainable material and packing design, the Cubi NUC AI is compact, versatile, yet capable mini desktop PC for home or the office with AI features.
Up to Intel® CoreTM Ultra 5 processor 125H with Intel® AI Boost NPU -Equipped with a built-in Intel® AI Boost NPU, the Cubi NUC AI Series provides users with an AI-ready PC experience

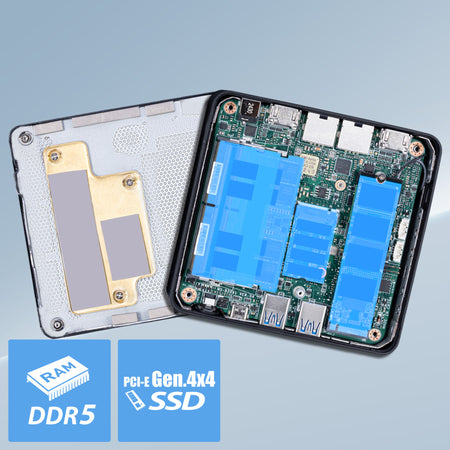

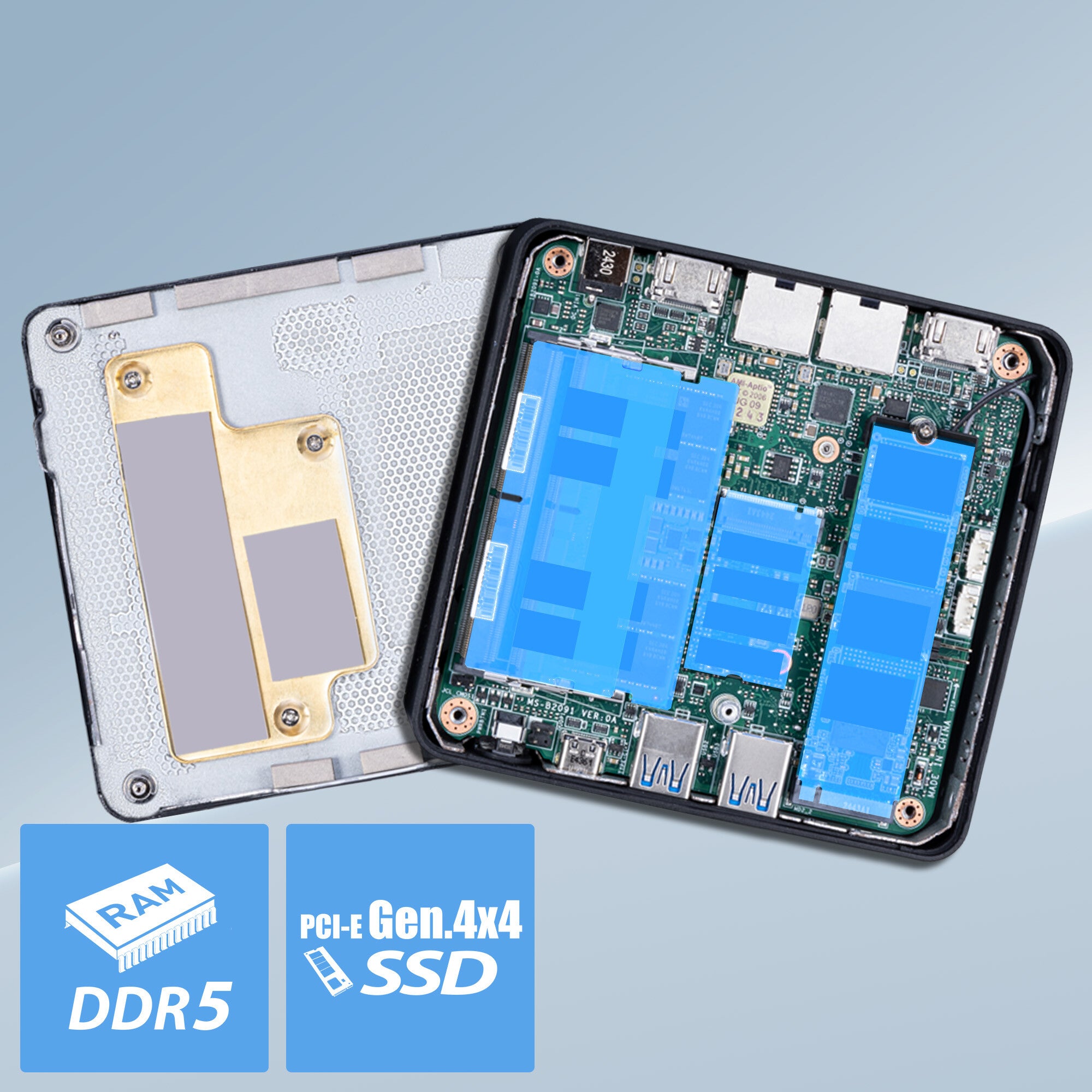

RAM capacity: The Cubi NUC AI Series can support DDR5 5200MHz memory (2 x SO-DIMM, up to 64GB).

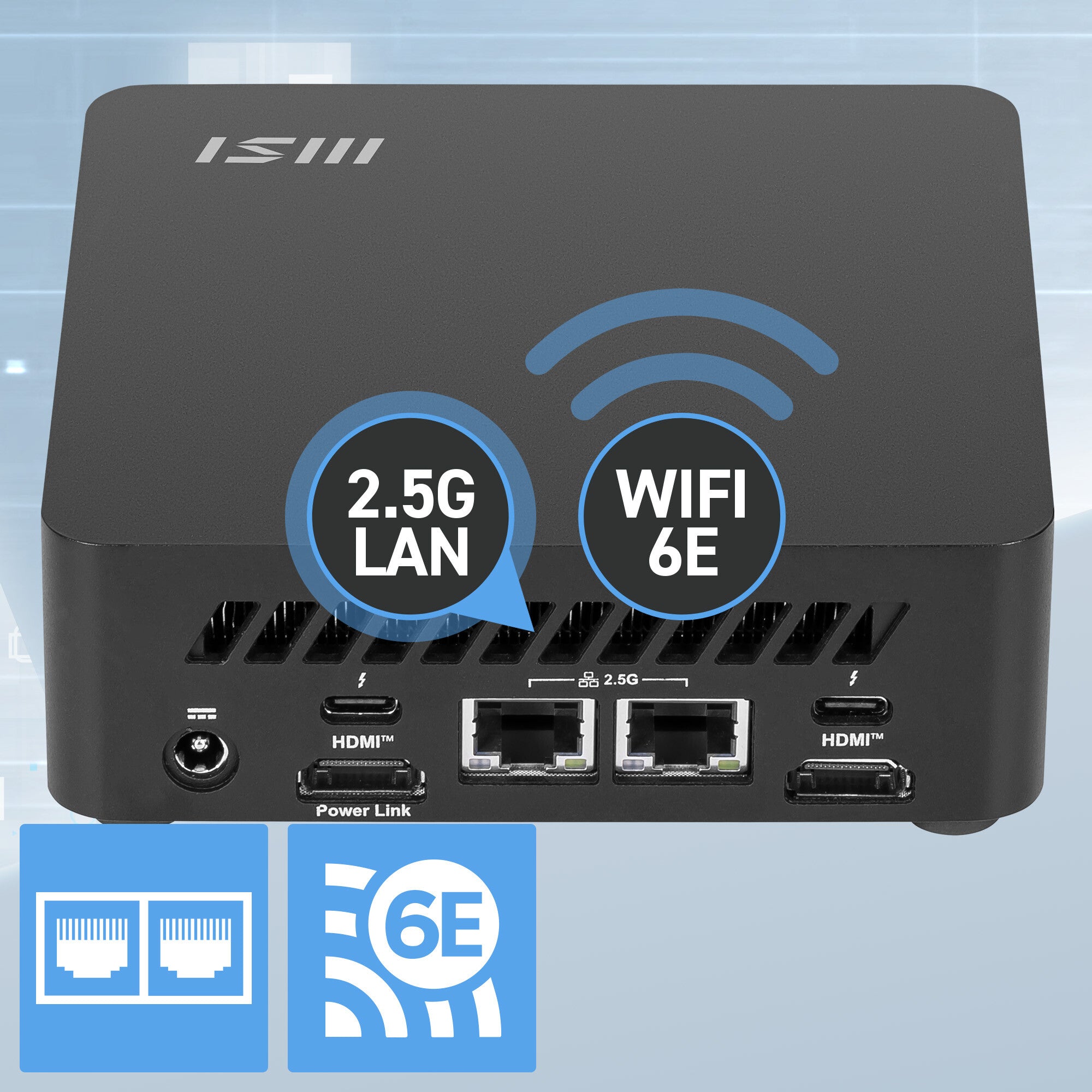

The rear I/O panels include two Thunderbolt 4, two HDMI 2.1 outputs, which support quadruple monitor setups for improved workflow efficiency or previewing e-commerce content
Network connectivity includes Intel wireless, Bluetooth, and dual 2.5G ethernet LAN
dTPM 2.0 (discrete Trusted Platform Module) hardware technology provides security for storing sensitive data & passwords
Kensington Lock slot included

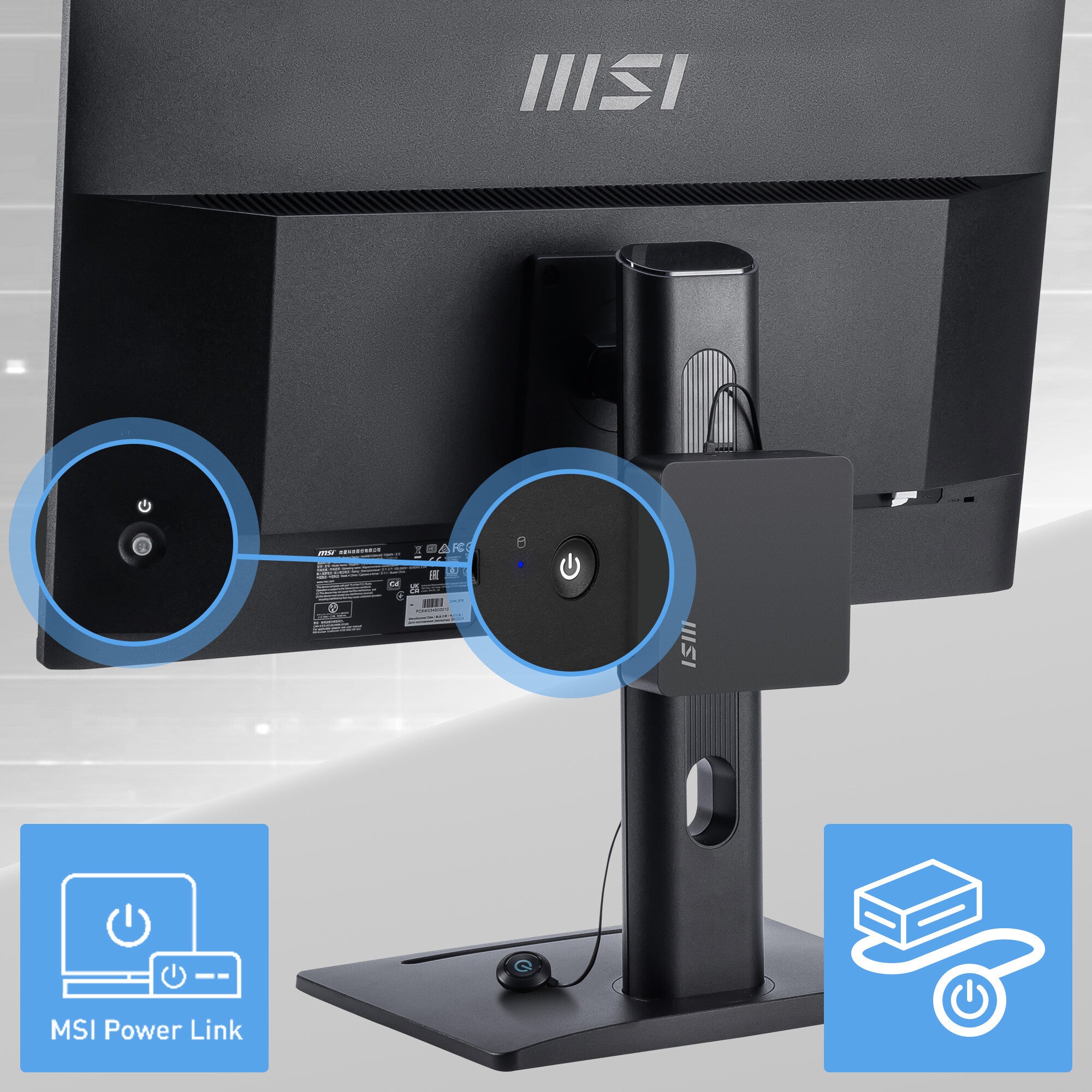

The MSI Power Link allows the power button of MSI-selected monitors to turn on the Cubi NUC AI Series
The chassis is VESA-mountable (standard 100x100 & 75x75), which can transform a standard compact desktop layout into an ultra-minimalist, distraction-free environment

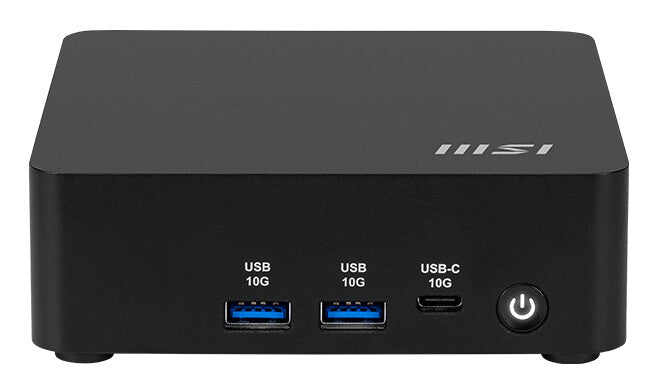

The front 1 x USB 10Gbps Type C and 2 x Type A ensure that plugging in and transferring data between devices is quick and hassle-free

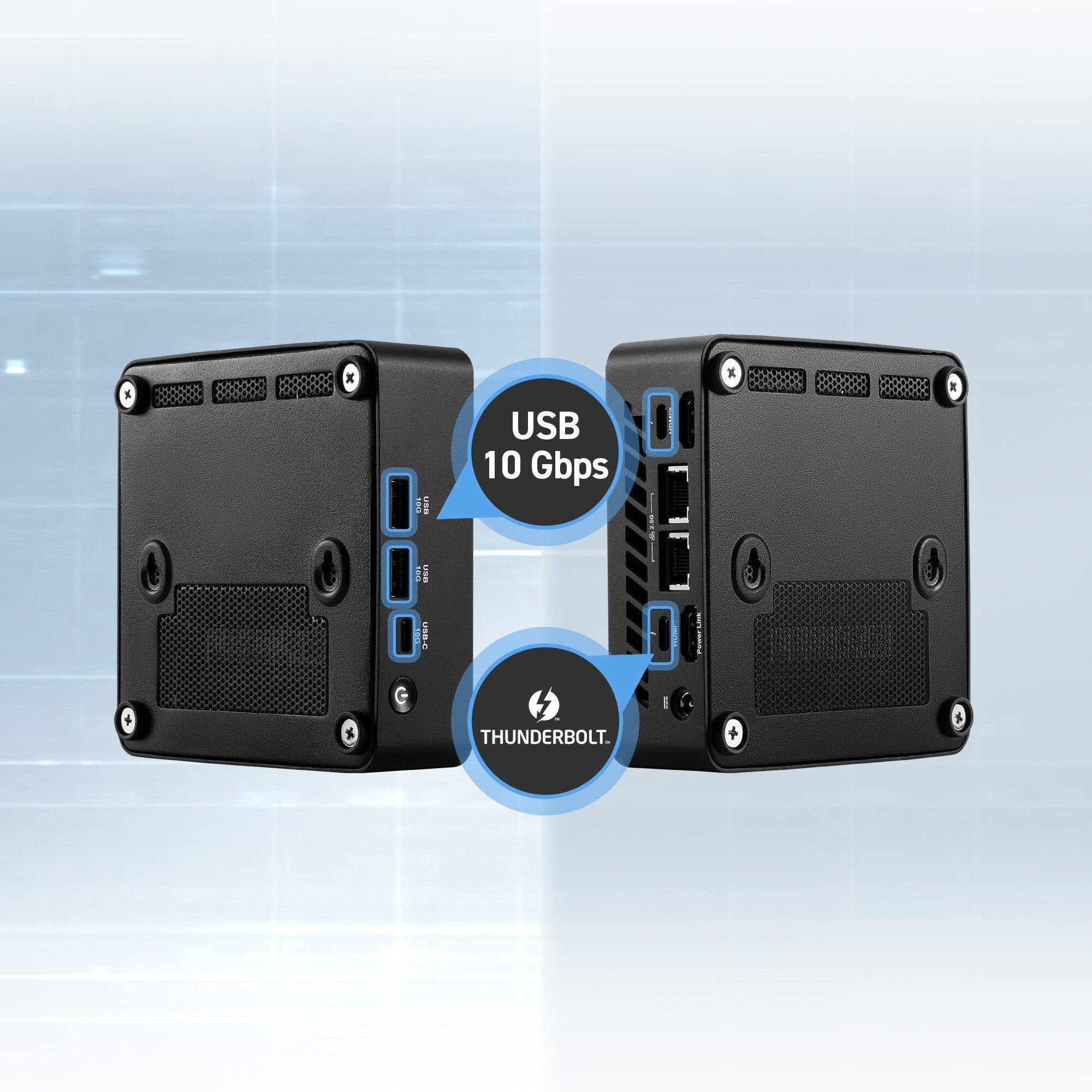

The two rear Thunderbolt 4 ports support the display and power delivery output of 15W

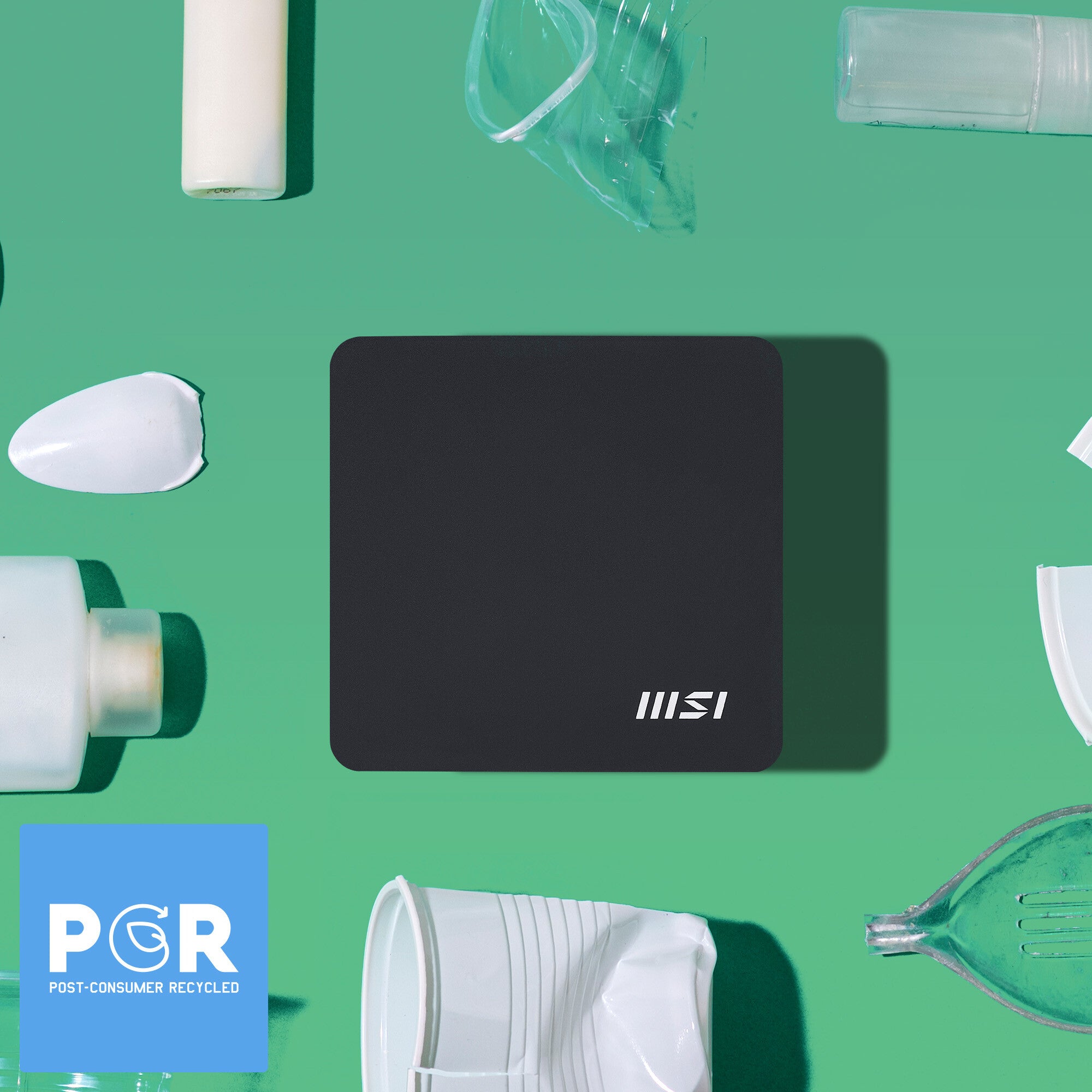

Made with PCR (Post-consumer Recycled) plastic materials
Reduce waste by using a recycled molded pulp tray packing design
Manufatured with 99% of renewable energy in factory
MSI AI Engine offers multiple optimizations that can help lighten the workload

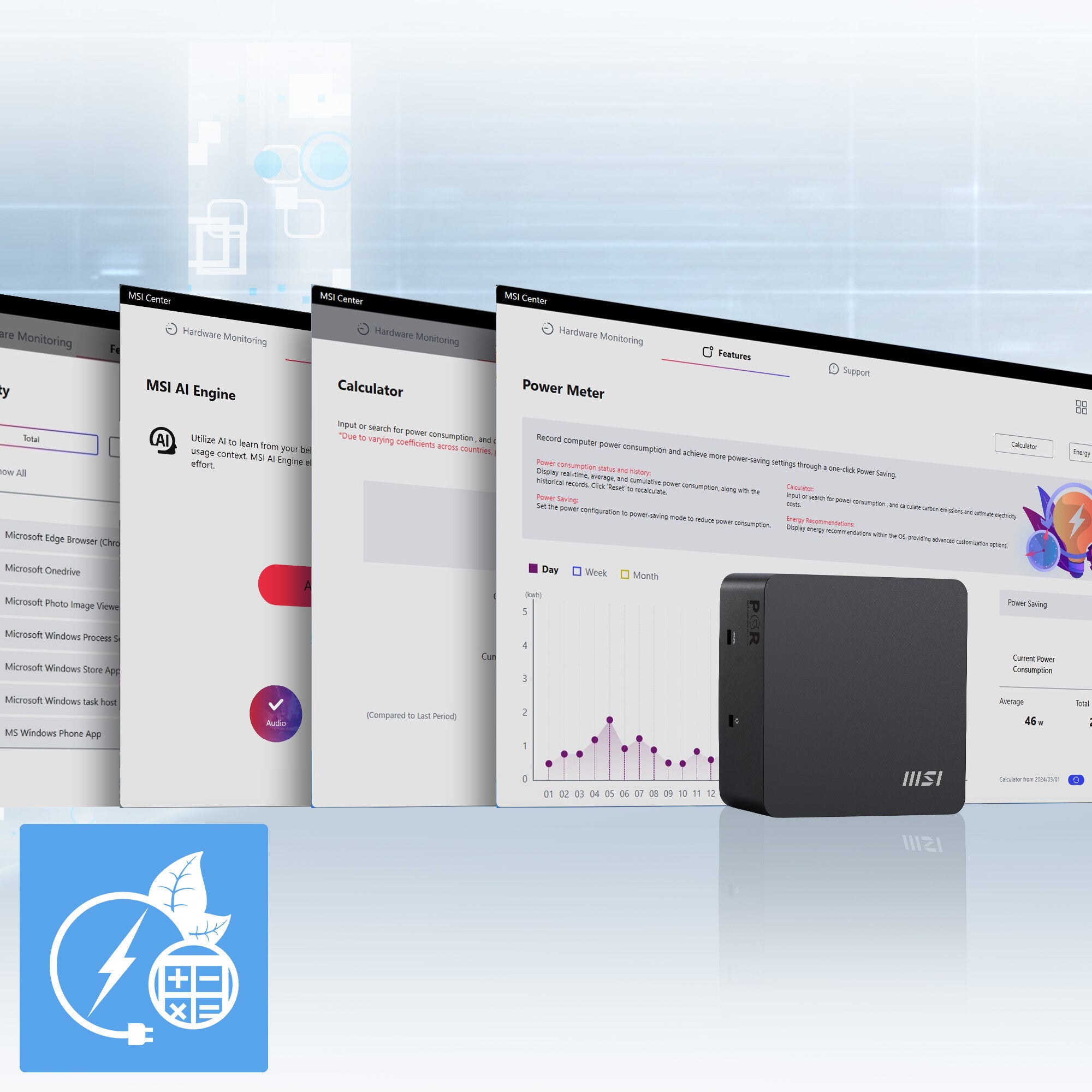

Power Meter enables one-click power saving, carbon emission calculation & electricity cost estimation
| Processor | |
|---|---|
| ECC supported by processor | No |
| Thermal Design Power (TDP) | 28 W |
| L3 cache | 8 MB |
| L2 cache | 10 MB |
| Processor cache | 18 MB |
| Processor lithography | 7 nm |
| Low Power Efficient-core Base Frequency | 800 MHz |
| Performance-core base frequency | 1.2 GHz |
| Efficient-core Max Turbo Frequency | 3.5 GHz |
| Performance-core Max Turbo Frequency | 4.5 GHz |
| Low Power Efficient-cores | 2 |
| Efficient cores | 8 |
| Performance cores | 4 |
| Processor frequency | 1.2 GHz |
| Processor boost frequency | 4.5 GHz |
| Processor threads | 18 |
| Processor cores | 14 |
| Processor model | 125H |
| Processor family | Intel Core Ultra 5 |
| Processor manufacturer | Intel |
| Built-in processor | Yes |
| Memory | |
|---|---|
| Non-ECC | Yes |
| ECC | No |
| Supported memory types | GDDR5 |
| Maximum internal memory | 64 GB |
| Supported memory clock speeds | 5200 MHz |
| Memory channels | Dual-channel |
| Number of memory slots | 2 |
| Memory slots type | SO-DIMM |
| Audio | |
|---|---|
| Built-in speaker(s) | No |
| Network | |
|---|---|
| LAN controller | Intel I226-V |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Design | |
|---|---|
| Product type | Mini PC barebone |
| Cooling type | Passive |
| Product colour | Black |
| Chassis type | Cube |
| Performance | |
|---|---|
| Number of processors supported | 1 |
| Motherboard form factor | NUC |
| Processor special features | |
|---|---|
| Intel® High Definition Audio (Intel® HD Audio) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® Optane™ Memory Ready | No |
| Intel® Platform Trust Technology (Intel® PTT) | Yes |
| Intel On-Demand Power Redundancy Technology | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Dual Display Capable Technology | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Intel FDI Technology | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Turbo Boost Technology | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel Demand Based Switching | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel Fast Memory Access | No |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Smart Cache | Yes |
| Intel Visual BIOS | No |
| Intel Express BIOS update | No |
| Intel® Matrix Storage Technology (Intel® MST) | No |
| Intel Smart Connect Technology | No |
| Intel® Small Business Advantage (Intel® SBA) | No |
| Intel® Secure Key | Yes |
| Intel® Smart Response Technology | No |
| Intel® OS Guard | Yes |
| Conflict-Free | Yes |
| Intel® Rapid Start Technology | No |
| Intel Advanced Management Technology | No |
| Intel® Unite™ | No |
| Intel Unite installed | No |
| Intel® Virtualization Technology (Intel® VT) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Embedded options available | No |
| Intel Rapid Storage Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel 64 | Yes |
| Idle States | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel Trusted Execution Technology | No |
| Execute Disable Bit | Yes |
| Intel TSX-NI | No |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Clear Video Technology | Yes |
| Intel® vPro™ Platform Eligibility | No |
| General | |
|---|---|
| Product family | Cubi |
| Technical details | |
|---|---|
| PSTI certified | No |
| Not classified as hazardous under GHS | No |
| Software | |
|---|---|
| Operating system installed | No |
| Power | |
|---|---|
| Power supply | 120 W |
| Number of power supply units | 1 |
| Power supply type | External AC adapter |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 85% |

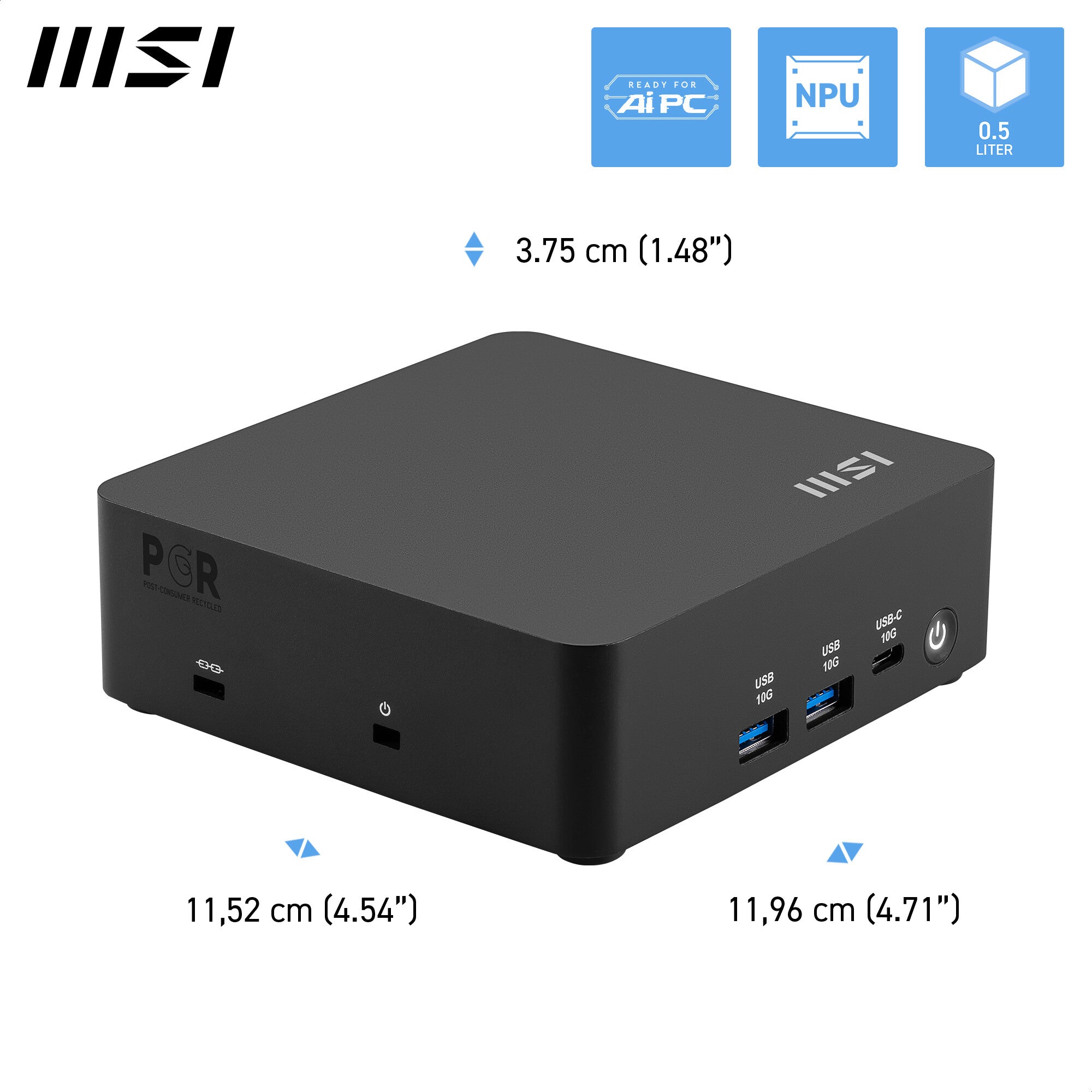

| Weight & dimensions | |
|---|---|

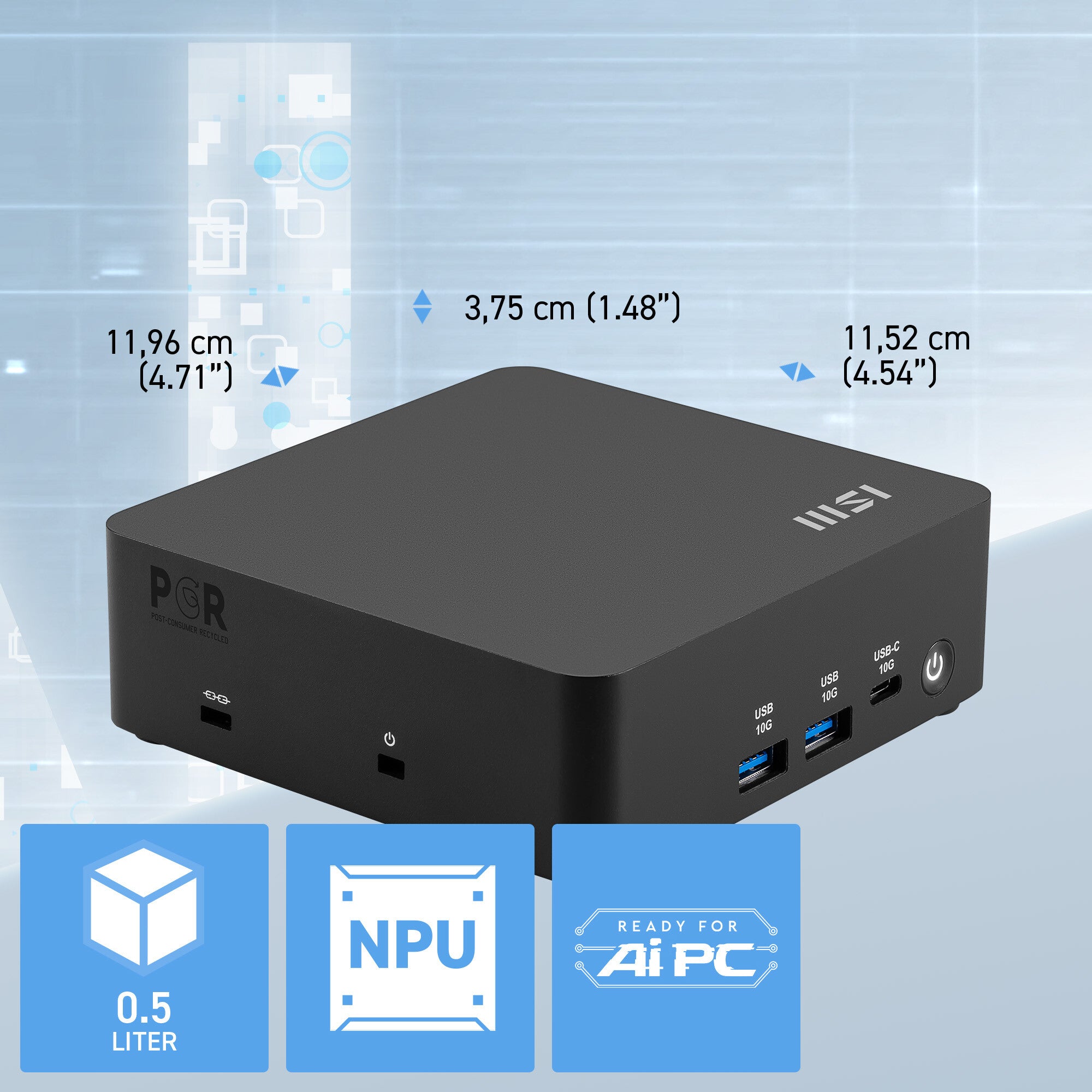

| Height | 37.5 mm |
| Depth | 115.2 mm |
| Width | 119.6 mm |
| Packaging content | |
|---|---|
| Drivers included | No |
