"Cubi NUC AI+ 2MG: The Sustainable Coiplot+ PC

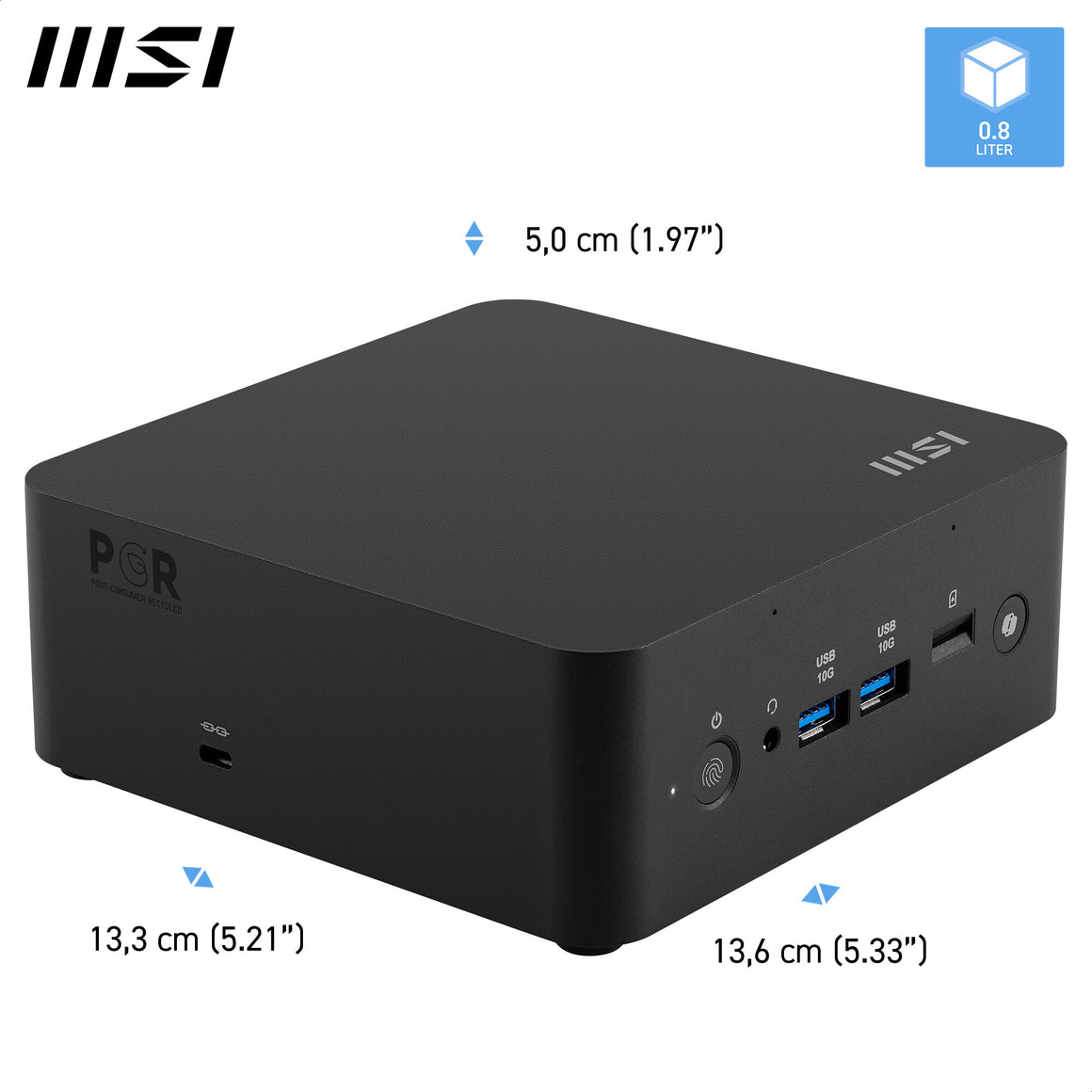

The MSI Cubi NUC AI+ 2MG i7 258V FS 32GB 1TB W11PP is a small yet powerful Copilot+ PC with an incredibly compact 0.826L design suitable for commercial office work or use as a home-theatre/entertainment PC (supports UHD/4K 60Hz display output & triple-monitor setups).
The Cubi NUC AI+ 2MG i7 258V FS 32GB 1TB W11PP configuration is a complete system equipped with an Intel's Intel® CoreTM Ultra 7 processor 258V, 32 GB of LPDDR5X-8533 MT/s memory, 1TB of M.2 SSD storage, Intel Wi-Fi AX211 & Bluetooth 5.3 connectivity, as well as Windows 11 Pro NextGen Premium software pre-installed.
Made with PCR (Post-consumer Recycled) plastic materials and recycled molded pulp tray packing design.

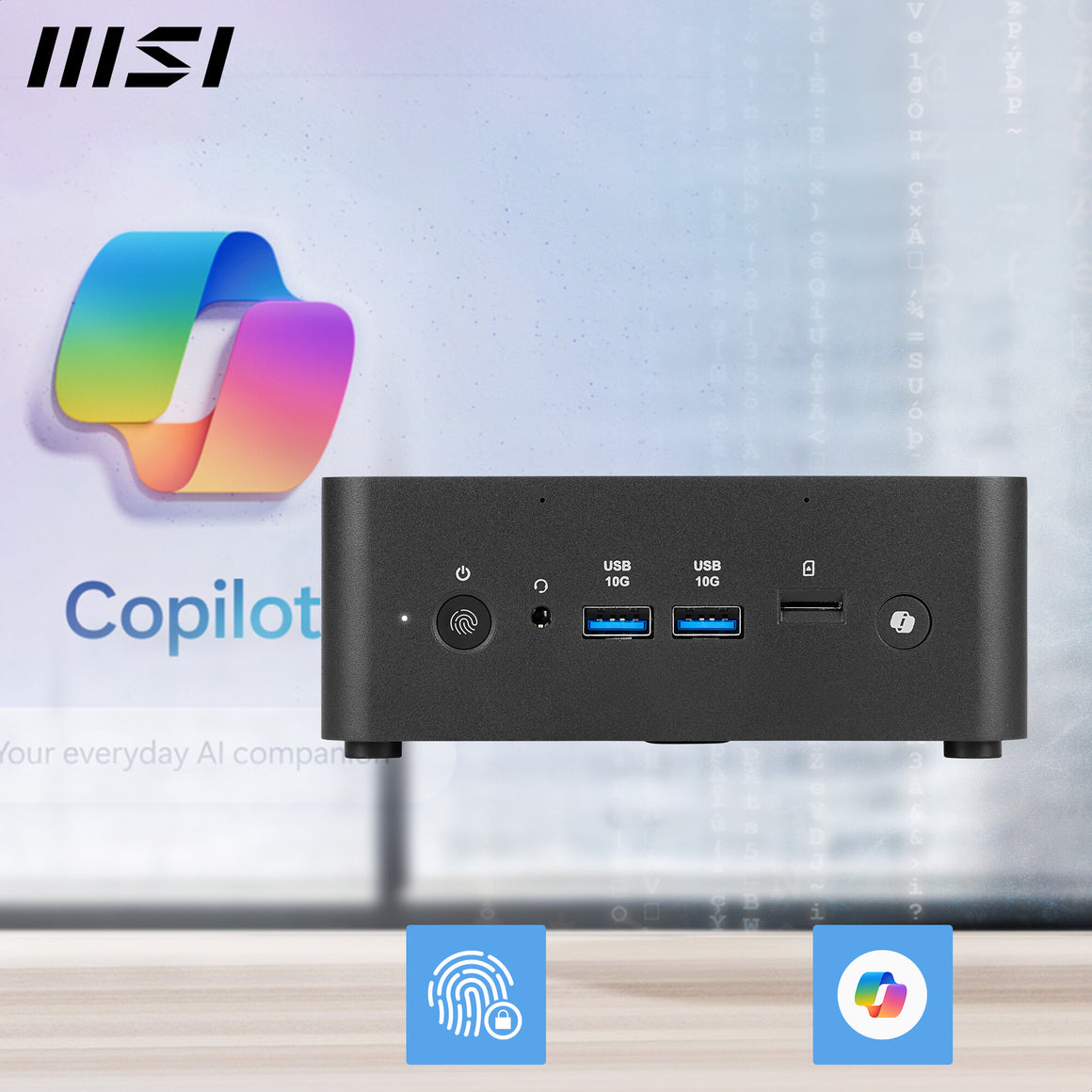

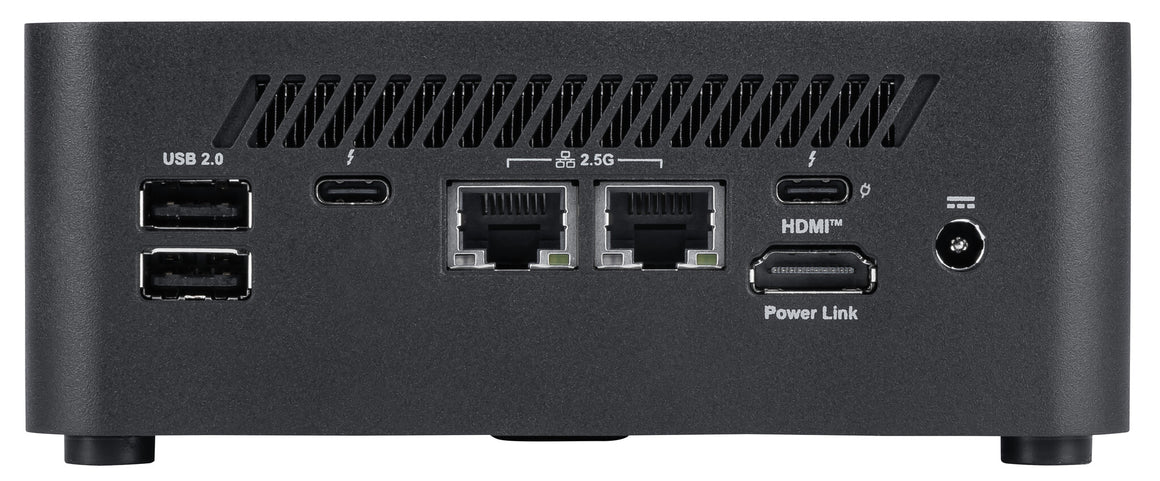

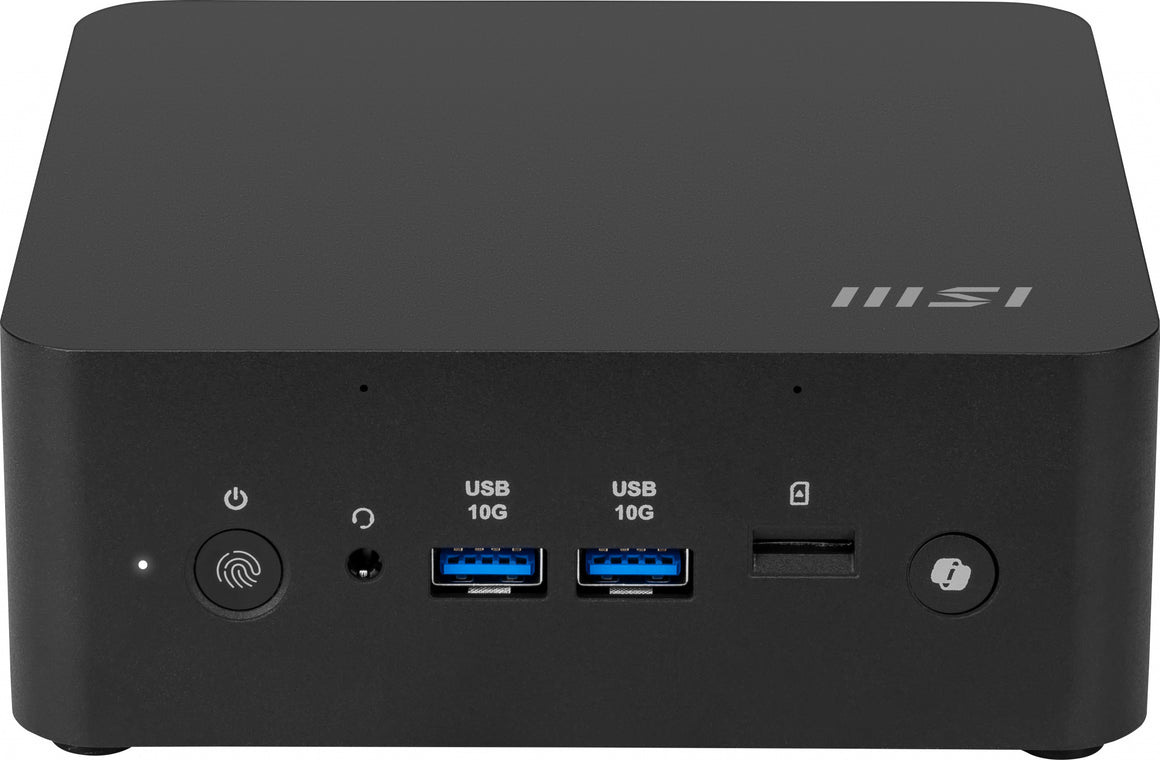

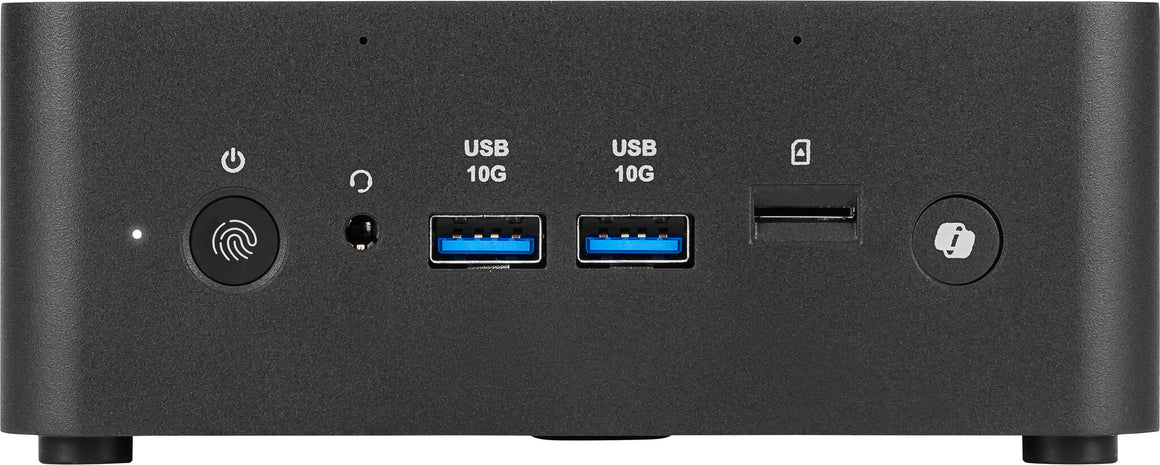

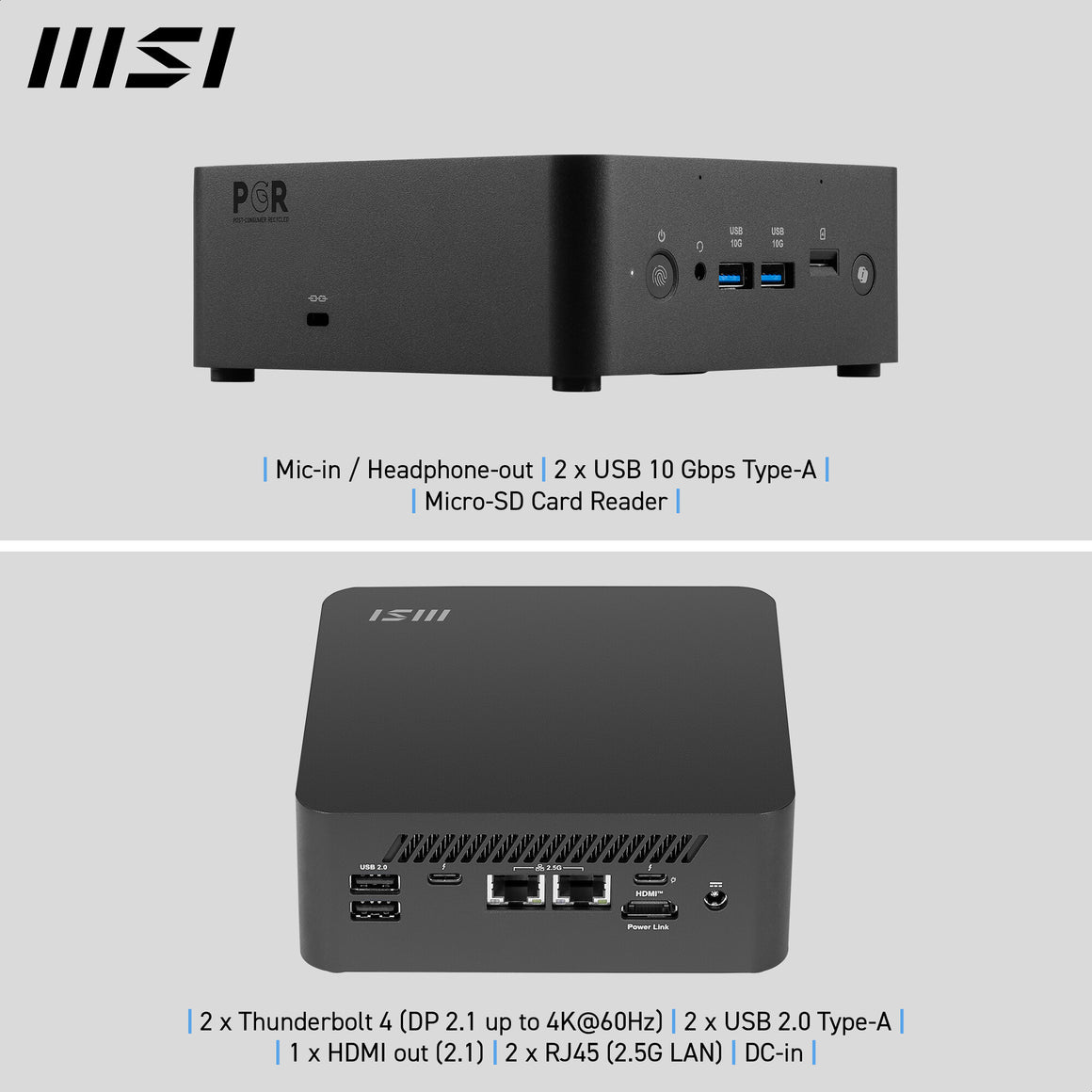

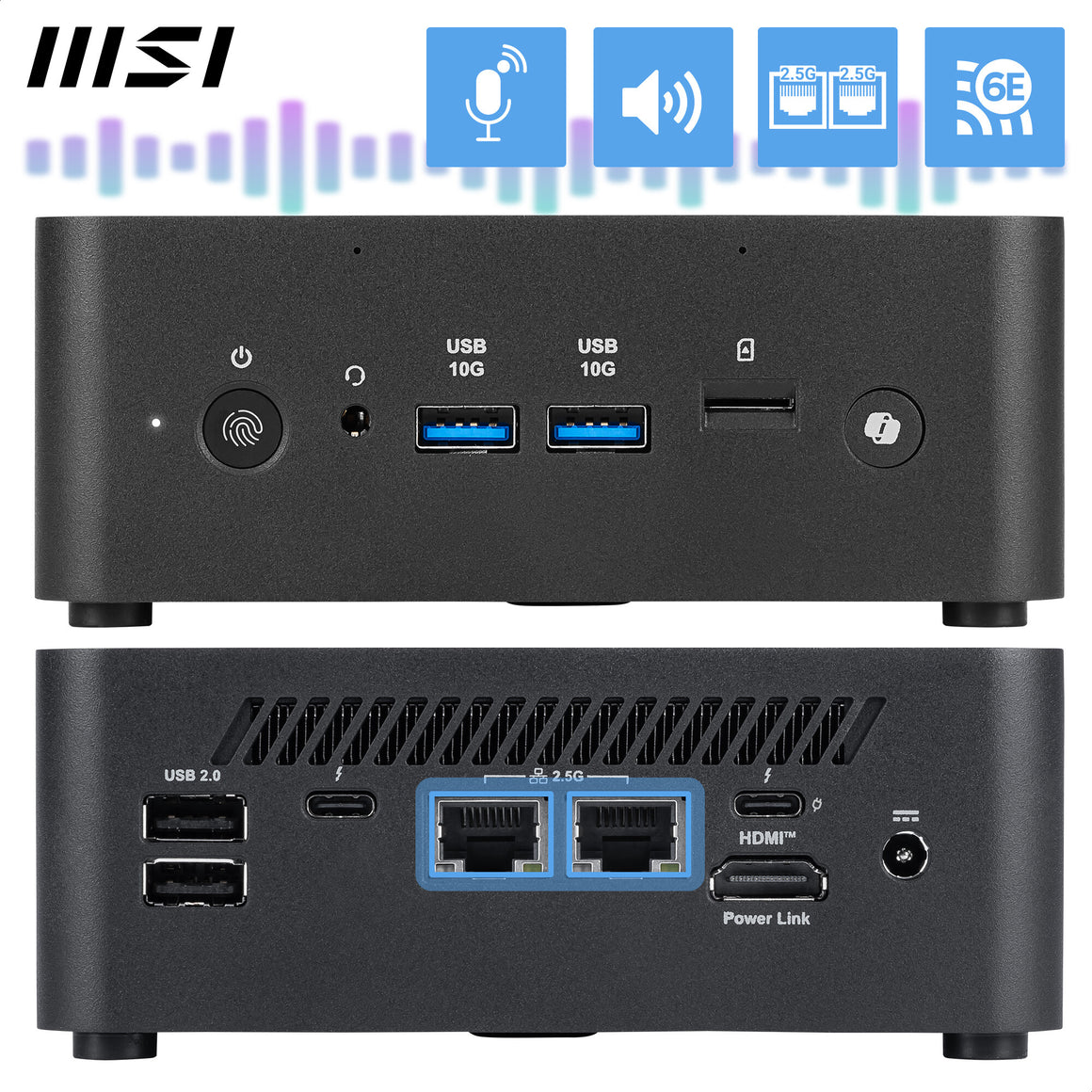

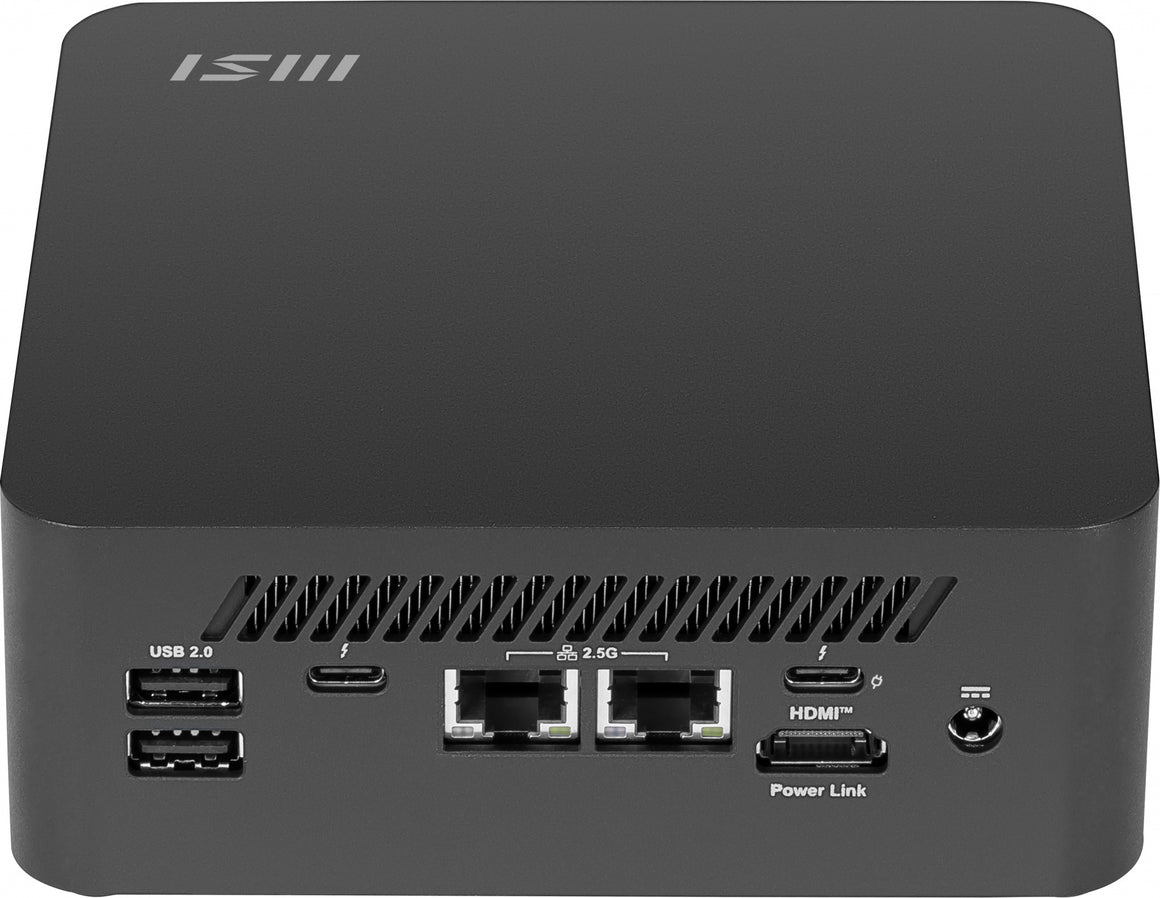

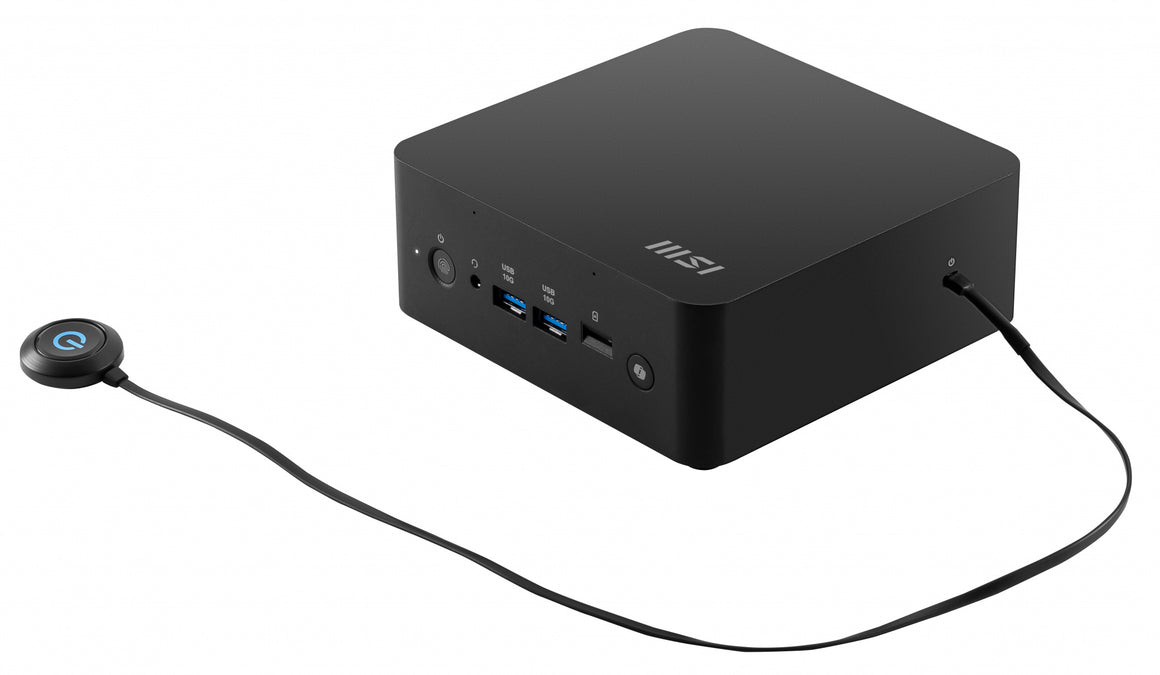

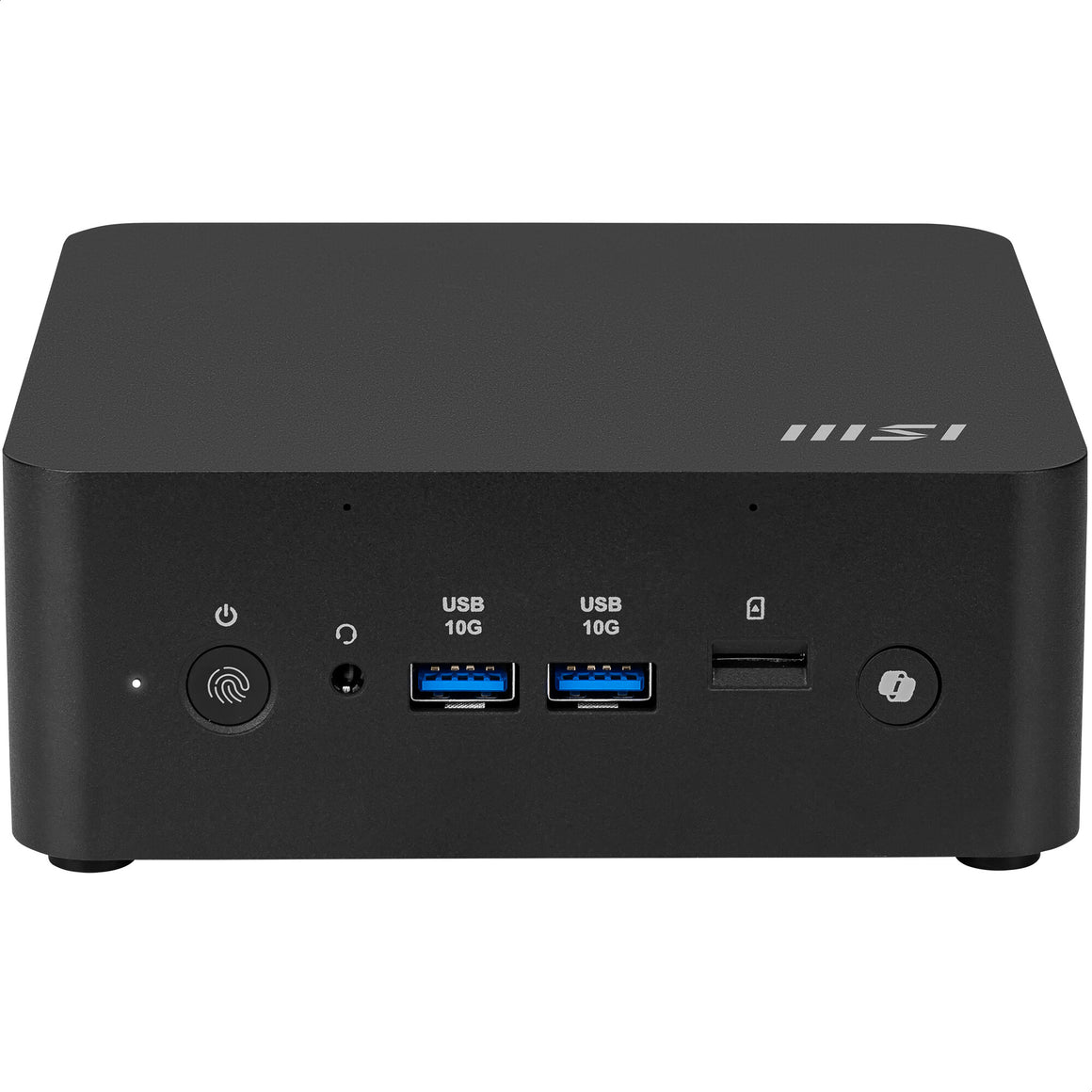

Front I/O connectivity includes 2x USB 10Gbps Type A, 1x Mic-in / Headphone-out combo, 1x Micro-SD Card Reader. The rear I/O features dual 2.5Gbps ethernet LAN ports, 2x Thunderbolt 4, 1x HDMI 2.1. The side I/O features 1x Kensington Lock and 1x External Power Switch Pin Header."
| Processor |
|---|
| Processor base power |
17 W |
| Maximum turbo power |
37 W |
| Number of processors installed |
1 |
| Processor cache type |
Smart Cache |
| Processor cache |
12 MB |
| Low Power Efficient-core Base Frequency |
2.2 MHz |
| Performance-core base frequency |
2.2 GHz |
| Low Power Efficient-core Max Turbo Frequency |
3.7 GHz |
| Performance-core Max Turbo Frequency |
4.8 GHz |
| Low Power Efficient-cores |
4 |
| Performance cores |
4 |
| Processor frequency |
2.2 GHz |
| Processor boost frequency |
4.8 GHz |
| Processor threads |
4 |
| Processor cores |
8 |
| Processor model |
258V |
| Processor family |
Intel Core Ultra 7 |
| Processor manufacturer |
Intel |
| Neural processor unit (NPU) |
|---|
| GPU performance up to |
15 TOPs |
| NPU performance up to |
10 TOPs |
| Total processor performance up to |
34 TOPs |
| AI software frameworks supported by NPU |
ONNX RT, OpenVINO |
| AI datatype support on NPU |
FP16, Int8 |
| Windows Studio effects support |
Yes |
| Sparsity support |
Yes |
| Neural processor unit (NPU) |
Intel AI Boost |
| Memory |
|---|
| Non-ECC |
Yes |
| ECC |
No |
| Buffered memory type |
Clocked unregistered (unbuffered) |
| Memory channels |
Dual-channel |
| Memory data transfer rate |
7467 MT/s |
| Memory clock speed |
7467 MHz |
| Memory slots |
1x SO-DIMM |
| Memory layout (slots x size) |
1 x 32 GB |
| Internal memory type |
LPDDR5x-SDRAM |
| Maximum internal memory |
96 GB |
| Internal memory |
32 GB |
| Storage |
|---|
| Intel® Optane™ Memory module installed |
No |
| Card reader integrated |
No |
| M.2 SSD size |
2280 (22 x 80 mm) |
| SSD form factor |
M.2 |
| NVMe |
Yes |
| SSD interface |
PCI Express |
| SSD capacity |
1 TB |
| SSD memory type |
TLC |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
1 TB |
| Total HDDs capacity |
0 GB |
| Number of storage drives supported |
1 |
| Number of storage drives installed |
1 |
| Storage media |
SSD |
| Optical drive type |
No |
| Total storage capacity |
1 TB |
| Graphics |
|---|
| Ray tracing acceleration |
Yes |
| NVIDIA G-SYNC |
No |
| NVIDIA GameWorks VR |
No |
| CUDA |
No |
| AMD FreeSync |
Yes |
| Graphics card Open GL support |
Yes |
| Number of external displays supported |
4 |
| On-board graphics card 8K support |
Yes |
| On-board graphics card 6K support |
Yes |
| On-board graphics card cores |
8 |
| On-board graphics card model |
Intel Arc Graphics |
| On-board graphics card family |
Intel Arc Graphics |
| On-board GPU manufacturer |
Intel |
| On-board graphics card |
Yes |
| Discrete graphics card |
No |
| Network |
|---|
| Bluetooth version |
5.3 |
| Wi-Fi standards |
Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| Wi-Fi |
Yes |
| Ethernet LAN data rates |
2500 Mbit/s |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI ports quantity |
1 |
| USB 2.0 ports quantity |
2 |
| Expansion slots |
|---|
| PCI Express x16 (Gen 3.x) slots |
1 |
| PCI Express x16 slots |
1 |
| PCI Express x1 (Gen 3.x) slots |
1 |
| PCI Express x1 slots |
1 |
| Performance |
|---|
| Built-in speaker(s) |
Yes |
| Product type |
Mini PC |
| Software |
|---|
| Drivers included |
Yes |
| Copilot+ PC |
No |
| Apple Intelligence |
No |
| Operating system language |
English |
| Windows 11 free upgrade |
No |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 11 Pro |
| Processor special features |
|---|
| Video decode engine |
Yes |
| Video encode engine |
Yes |
| Power |
|---|
| Power supply input frequency |
50 - 60 Hz |
| Power supply input voltage |
100 - 240 V |
| Power supply |
120 W |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-20 - 60 °C |
| Certificates |
|---|
| Compliance certificates |
CB, Federal Communications Commission (FCC) |
| Waste Electrical and Electronic Equipment (WEEE) compliance |
Yes |
| Weight & dimensions |
|---|
| Package weight |
1.38 kg |
| Package height |
94 mm |
| Package depth |
220 mm |
| Package width |
205 mm |
| Weight |
630 g |
| Height |
50.1 mm |
| Depth |
132.5 mm |
| Width |
135.6 mm |
| Packaging content |
|---|
| Manual |
Yes |
| Screws included |
Yes |

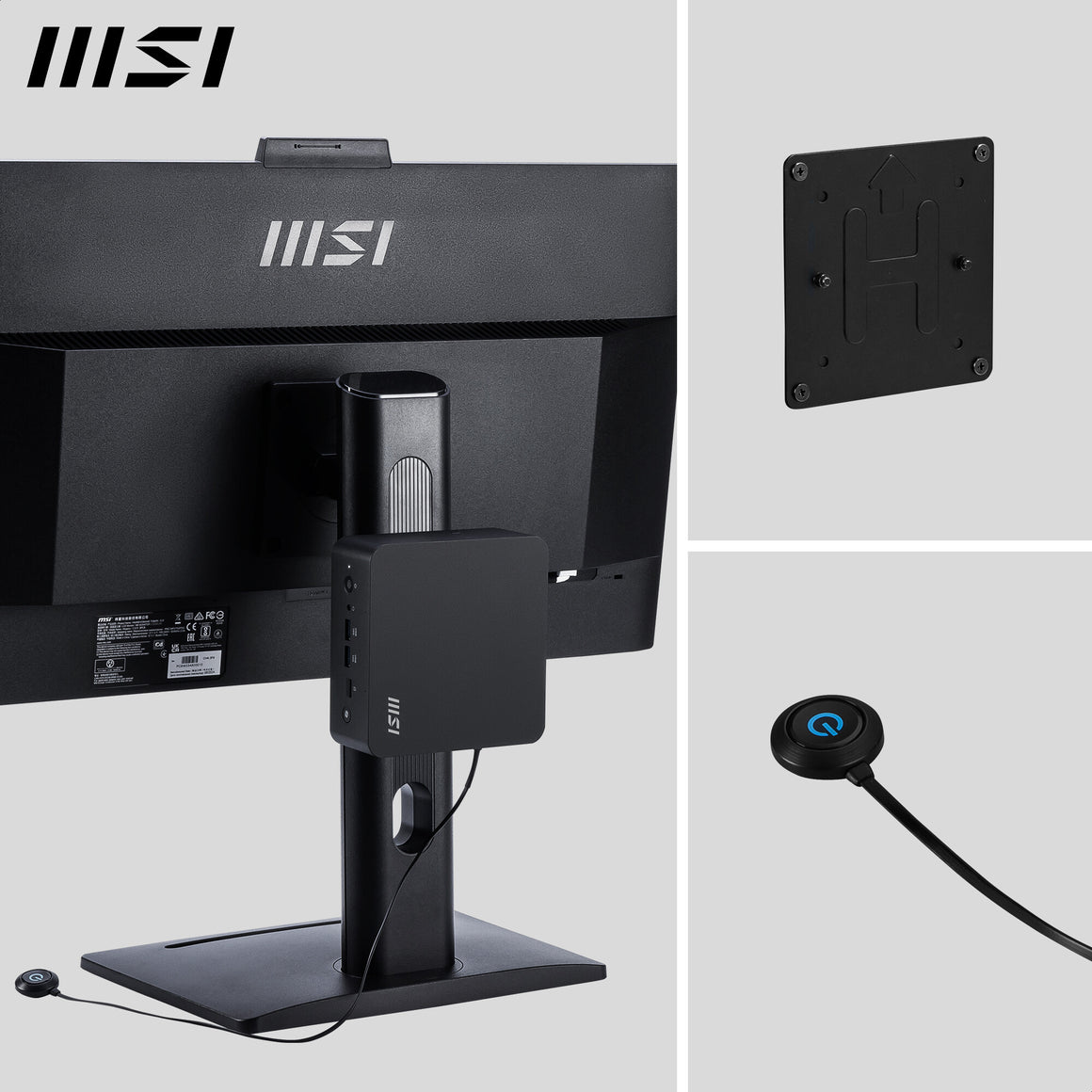

| VESA mount included |
Yes |
| Cables included |
AC |
| Numeric keypad |
No |
| Keyboard backlit |
No |
| Keyboard included |
No |
| Mouse included |
No |
| Display included |
No |
| General |
|---|
| Product family |
Cubi |
| Technical details |
|---|
| Statement of conformance & platform certificate included |
Yes |
| Not classified as hazardous under GHS |
Yes |
| Other features |
|---|
| Built-in microphone |
No |
| Locale |
English |
| Warranty period |
3 year(s) |
| TV tuner integrated |
No |
