SKU: CUBI Z AI 8M R5 8645HS BB

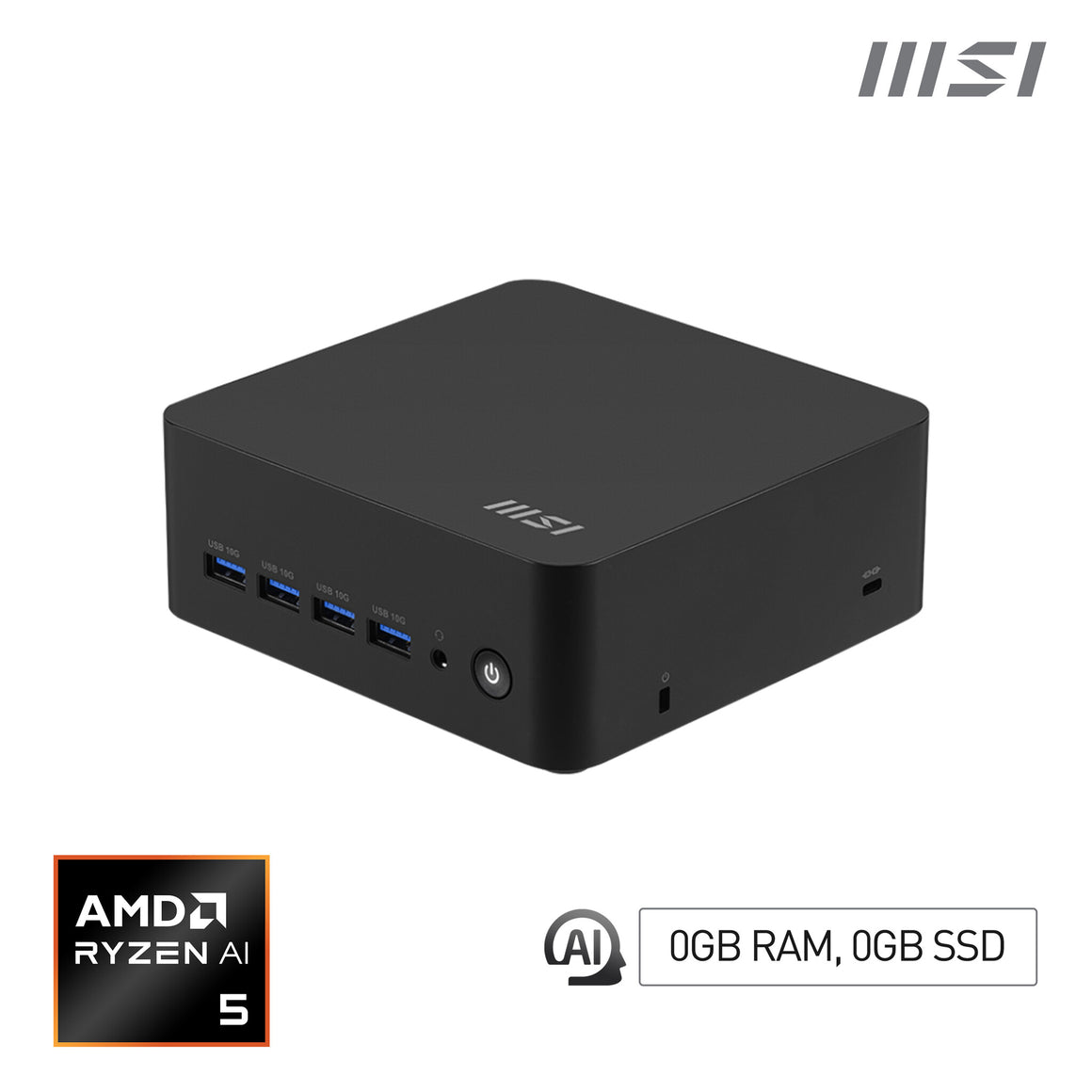

MSI Cubi Z AI 8M AMD Ryzen 5 8645HS Barebone, NUC, USFF, Mini Computer, HTPC (NO RAM, NO Storage, NO OS), AMD Radeon Graphics/DDR5/Dual ThunderBolt 4/Dual HDMI/Dual LAN/WiFi 6E/BT 5.3/VESA

MSI
£724.76

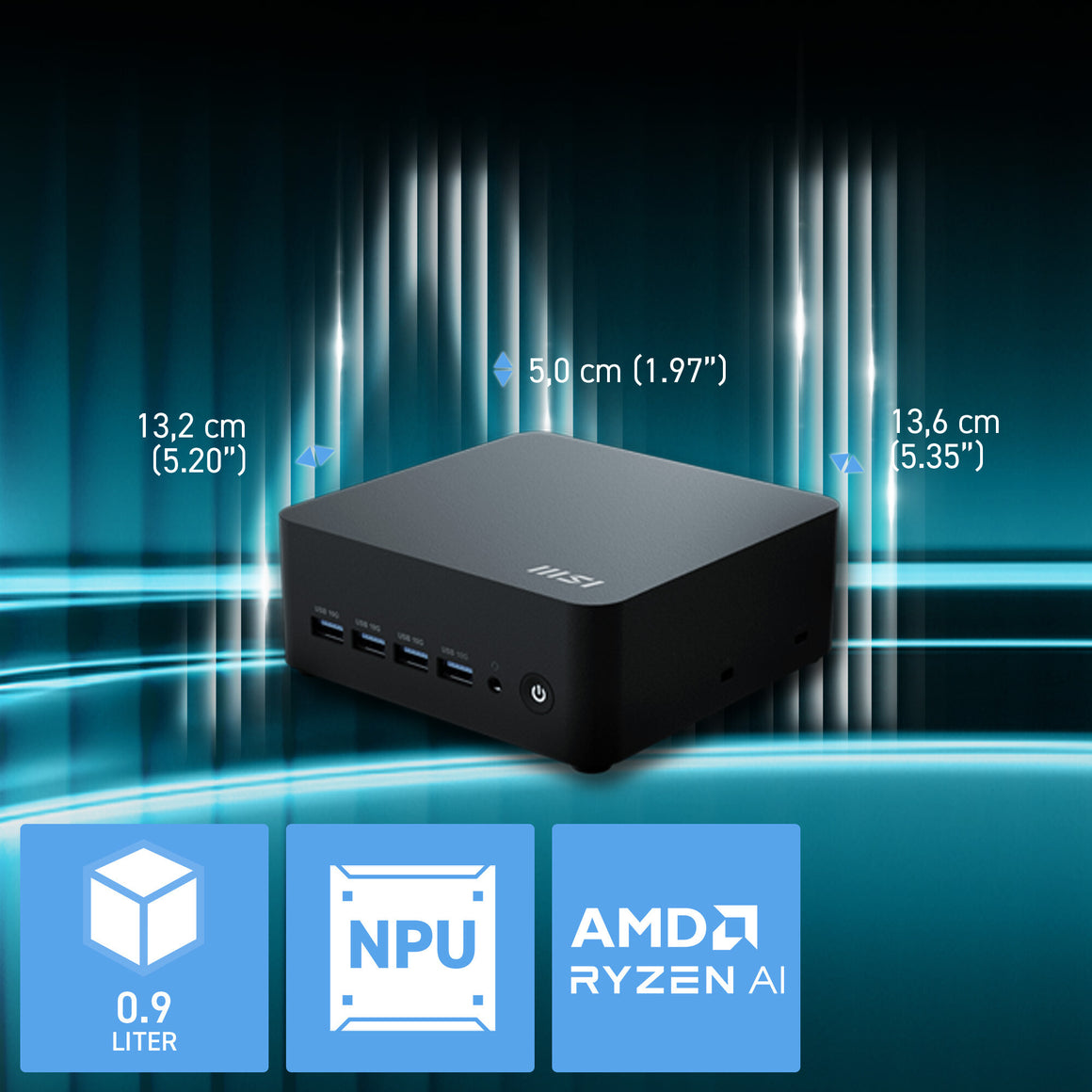

  • Compact Design with Powerful AI -The Cubi Z AI Series Mini PC comes in a palm-sized 136.00 x 132.00 x 50.10 mm case (0.9L/0.79Kg) with far less performance trade-off compared to laptops. Equipped with a built-in AI Boost NPU, the Cubi Z AI Series provides users with an AI-ready PC experience

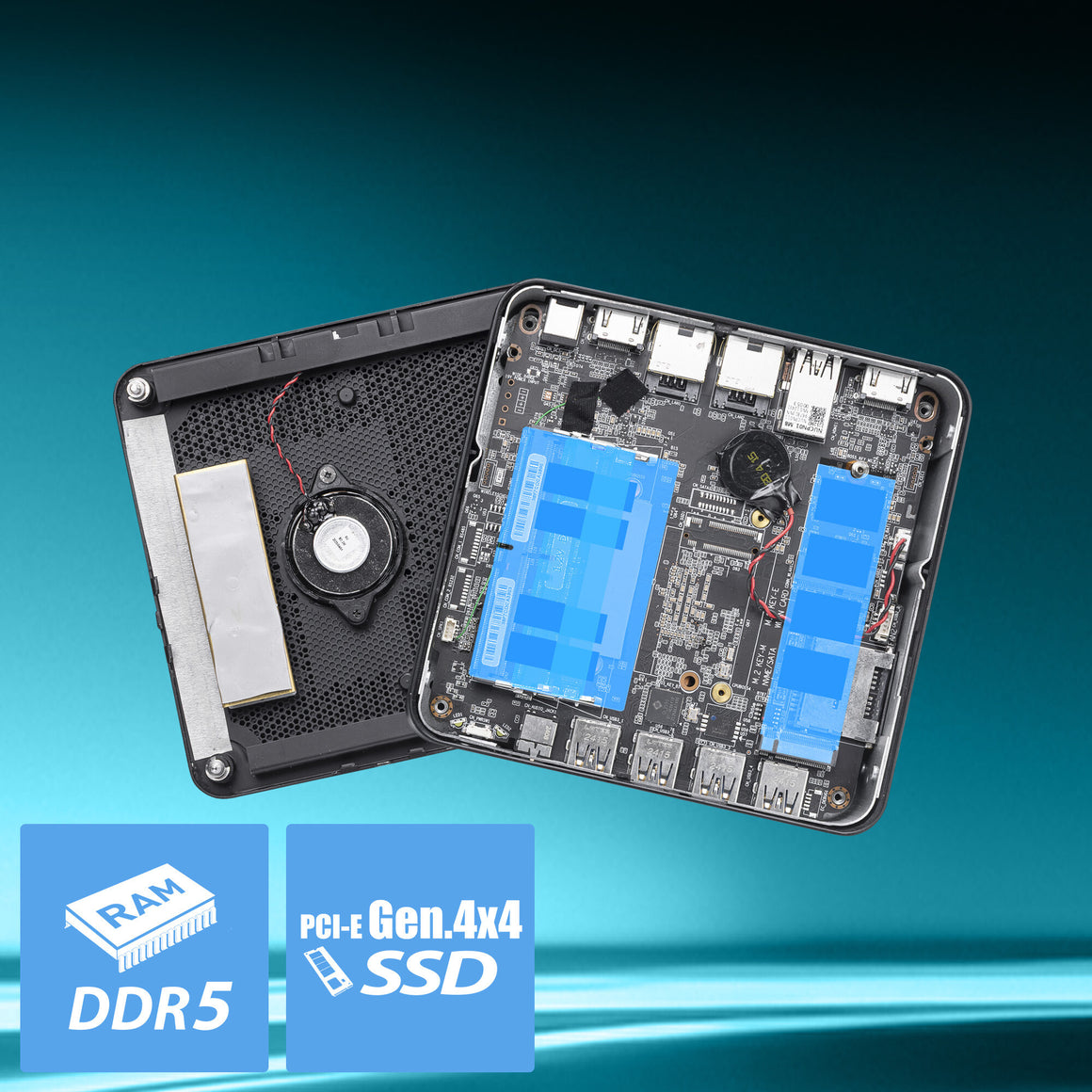

  • Capable - RAM capacity: The Cubi Z AI Series can support DDR5 5600MHz memory (2 x SO-DIMM, up to 64GB).Storage options:1 x M.2 2280 SSD (PCIE, factory pre-installed)
  • Quadruple Display Support -The rear I/O panels feature two USB4 ports and two HDMI 2.1 outputs, supporting quadruple monitor setups for enhanced workflow efficiency or previewing e-commerce content
  • Dual 2.5G LAN - Network connectivity includes AMD wireless, Bluetooth, and dual 2.5G Ethernet LAN. dTPM 2.0 (discrete Trusted Platform Module) hardware technology provides security for storing sensitive data & passwords. Kensington Lock slot included
  • VESA Mountable Design - The chassis is VESA-mountable (standard 100x100 & 75x75), which can transform a standard compact desktop layout into an ultra-minimalist, distraction-free environment. External power switch (optional) enhances the convenience of turning on the computer

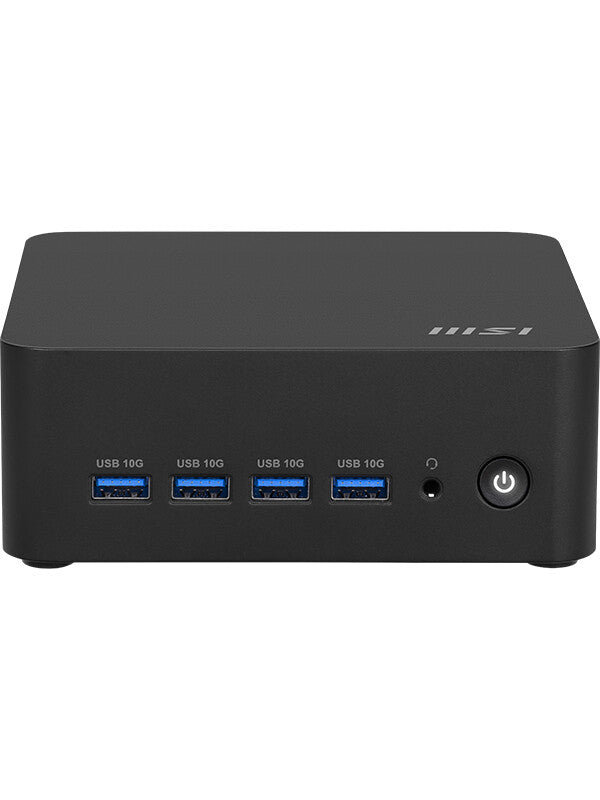

  • Connection - The front features four USB 10Gbps Type A ports, and the rear has two USB Type A ports, ensuring that plugging in and transferring data between devices is quick and hassle-free. The two rear USB4 ports support the display and power delivery output of 15W
  • Sustainable Design -Made with PCR (Post-consumer Recycled) plastic materials.Reduce waste by using a recycled molded pulp tray packing design. Manufatured with 99% of renewable energy in factory
  • MSI AI Engine & Built-in Speaker - MSI AI Engine offers multiple optimizations that can help lighten the workload. A Built-in Speaker can eliminate the need for external speakers for notifications and calls, saving space and reducing clutter

The MSI Cubi Z AI 8M combines AMD Ryzen™ 8000 Series with a built-in NPU in a compact 0.9-liter design. Features dual USB4 ports with speeds of up to 40Gbps, a 100W power delivery input, dual HDMI ports supporting up to four displays, dual 2.5G LAN ports for fast networking, a Kensington Lock for security, a built-in speaker, and a VESA mountable design.

Processor
Processor frequency 4.3 GHz
Processor family AMD Ryzen™ 5
Processor manufacturer AMD
Built-in processor Yes
Memory
Maximum internal memory 64 GB
Number of memory slots 2
Memory slots type SO-DIMM
Internal memory installed No
Storage
Storage drives installed No
Graphics
On-board graphics card No
Audio
RMS rated power 2 W
Number of speakers 1
Built-in speaker(s) Yes
Network
LAN controller Realtek RTL8125B
Bluetooth Yes
Bluetooth version 5.3
WLAN controller model AMD RZ616
Wi-Fi standards Wi-Fi 6E (802.11ax)
Top Wi-Fi standard Wi-Fi 6E (802.11ax)
Wi-Fi Yes
Ethernet LAN Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports 2
HDMI ports quantity 2
USB4 Gen 3x2 ports quantity 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 5
USB 2.0 ports quantity 1
Design
Product type Mini PC barebone
Cooling type Active
Product colour Black
Chassis type 0.9L sized PC
Performance
Number of processors supported 1
Motherboard chipset AMD SoC
General
Product family Cubi
Sustainability
Sustainability certificates Certified Enviro Cranberries (CEC), ENERGY STAR, ErP
Software
Operating system installed No
Power
Power supply 120 W
Number of power supply units 1
Power supply type External AC adapter
Operational conditions
Operating temperature (T-T) 0 - 35 °C
Storage temperature (T-T) -20 - 60 °C
Operating relative humidity (H-H) 0 - 85%
Weight & dimensions
Weight 790 g
Height 50.1 mm
Depth 132 mm
Width 136 mm
Packaging content
Drivers included No
