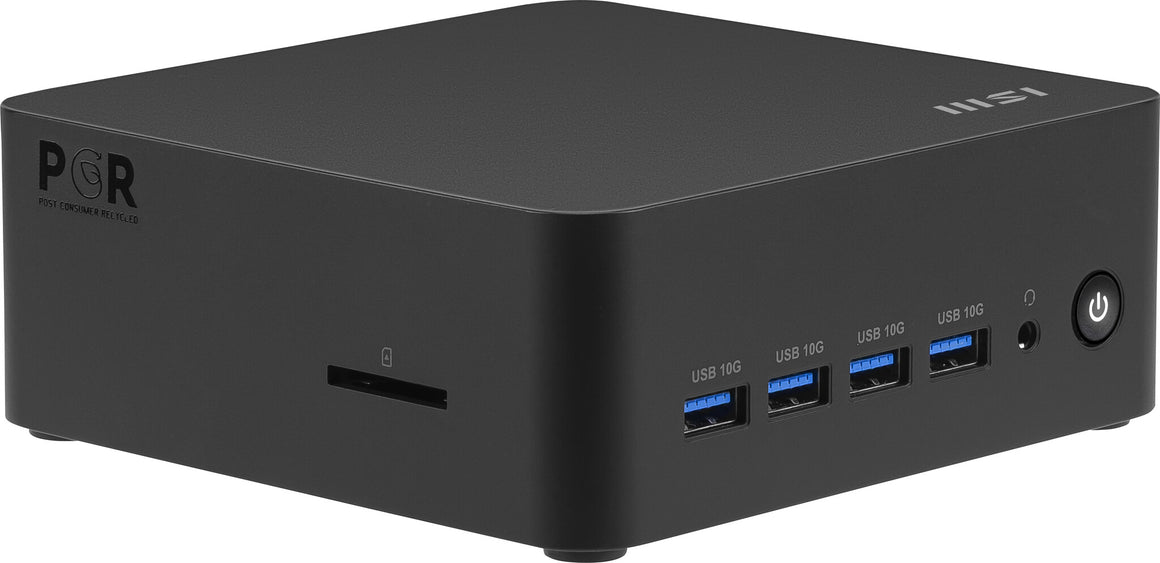

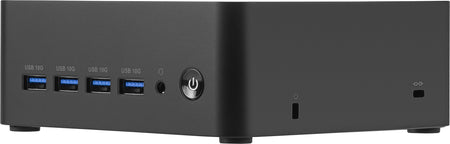

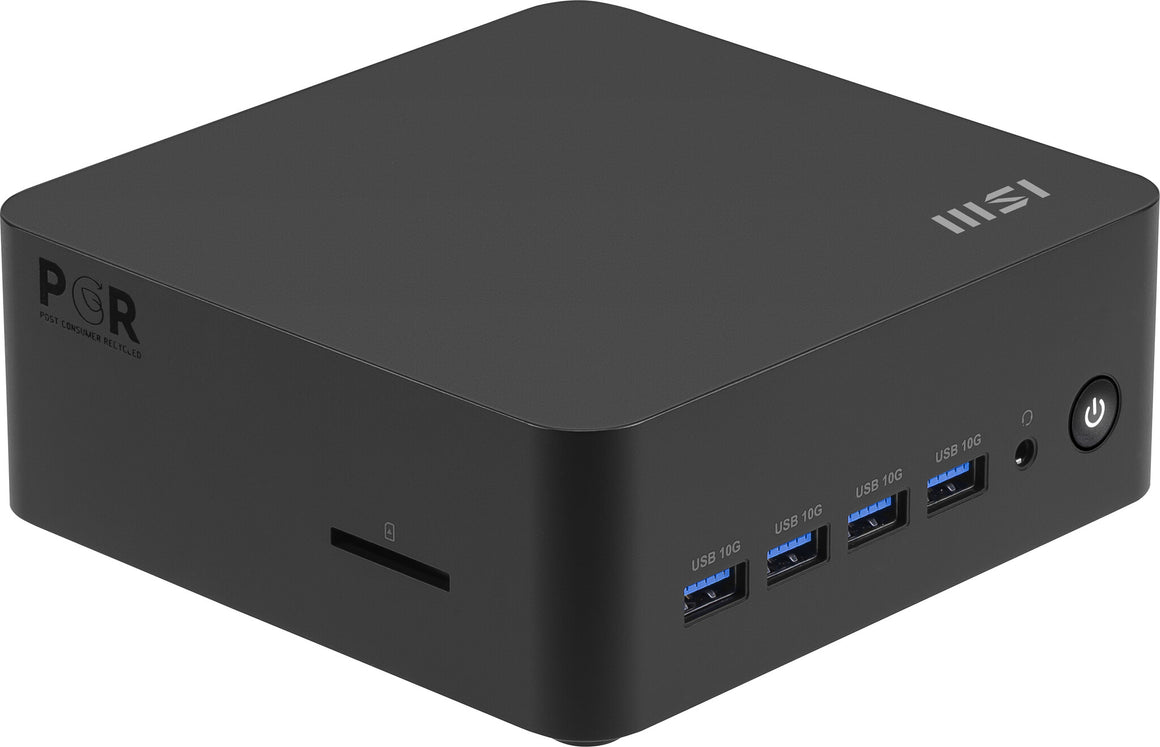

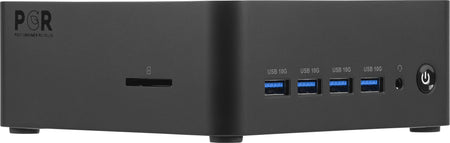

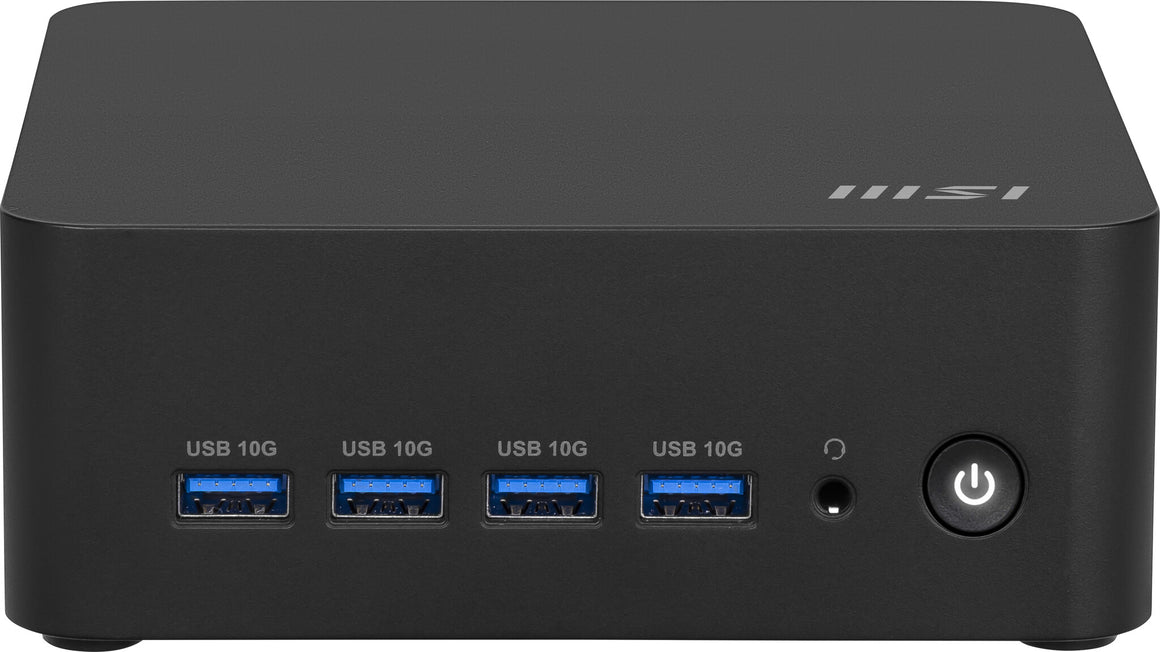

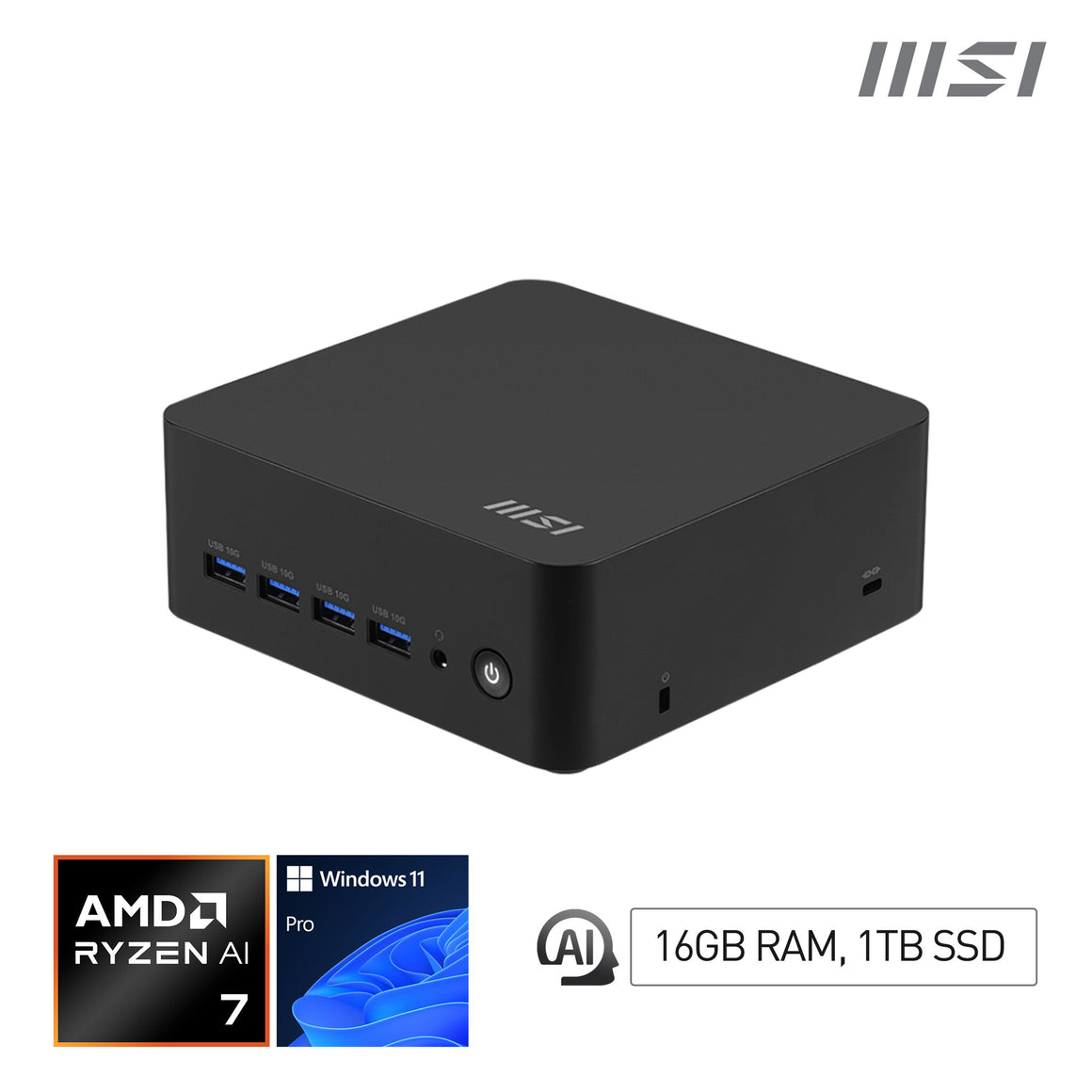

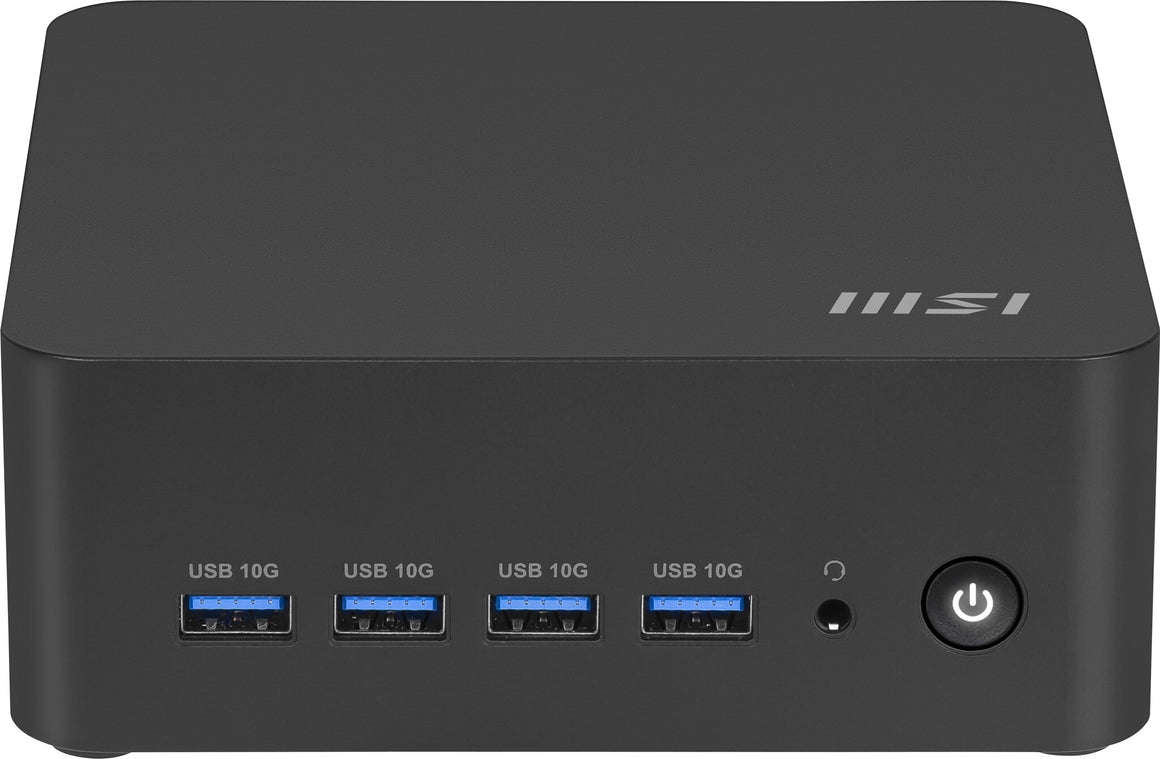

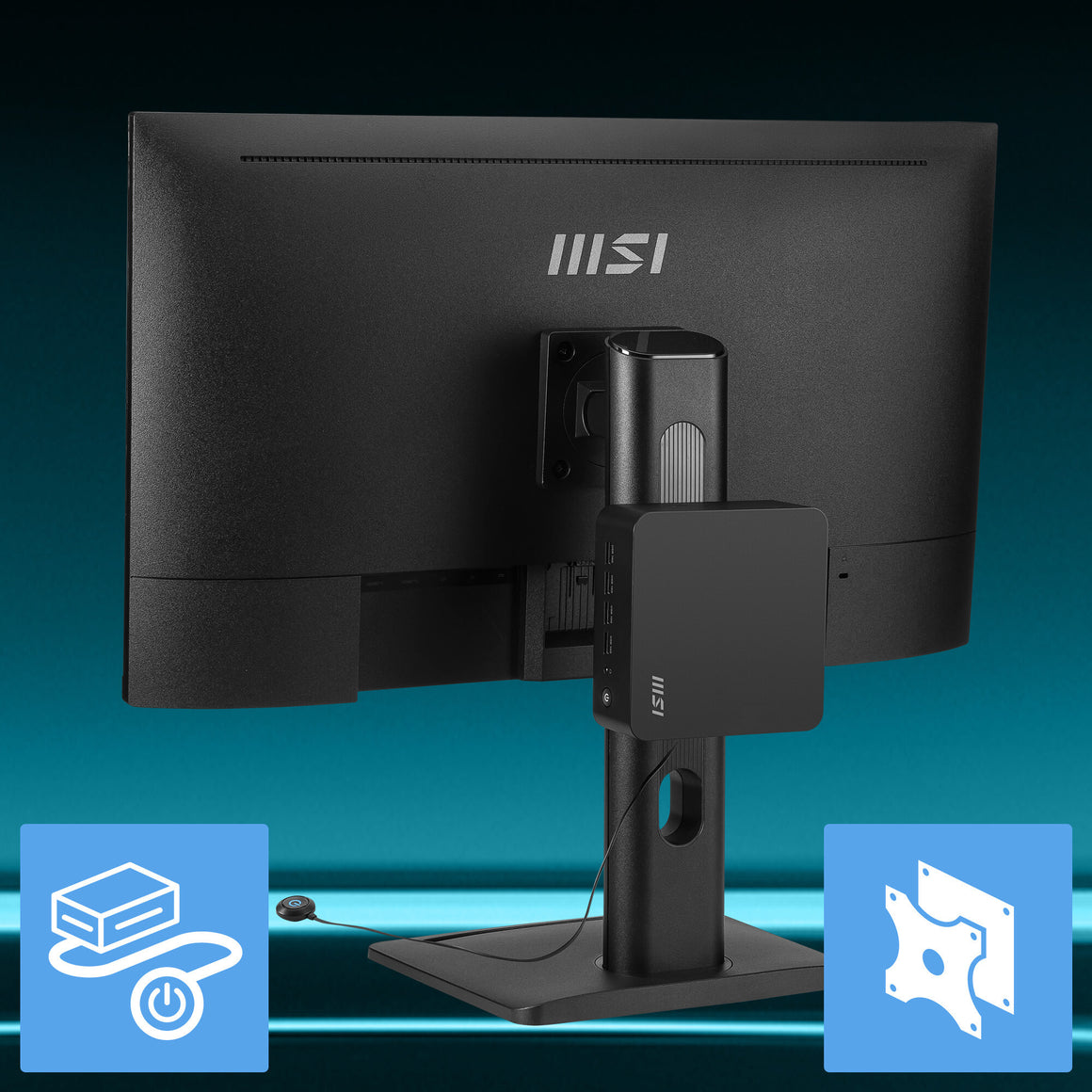

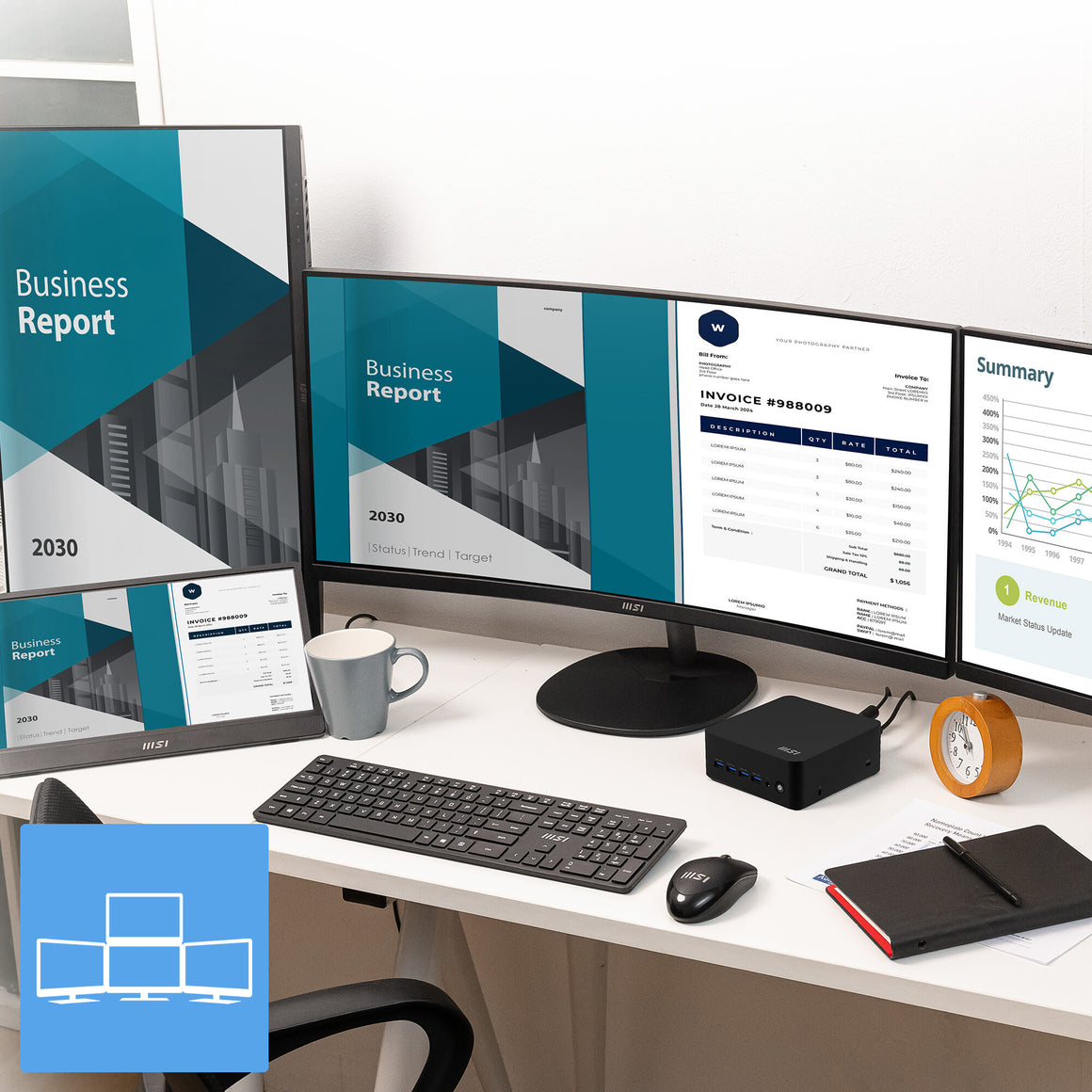

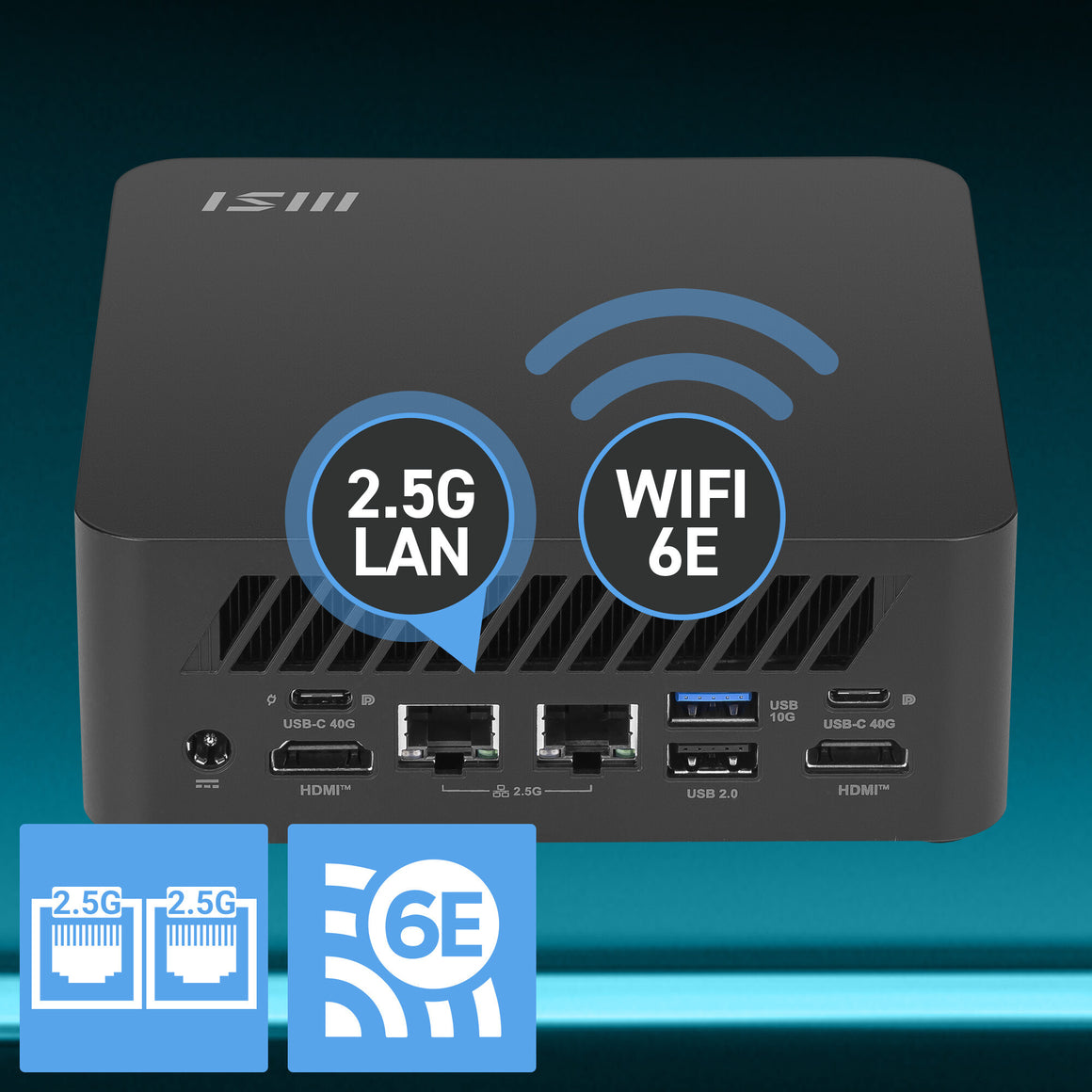

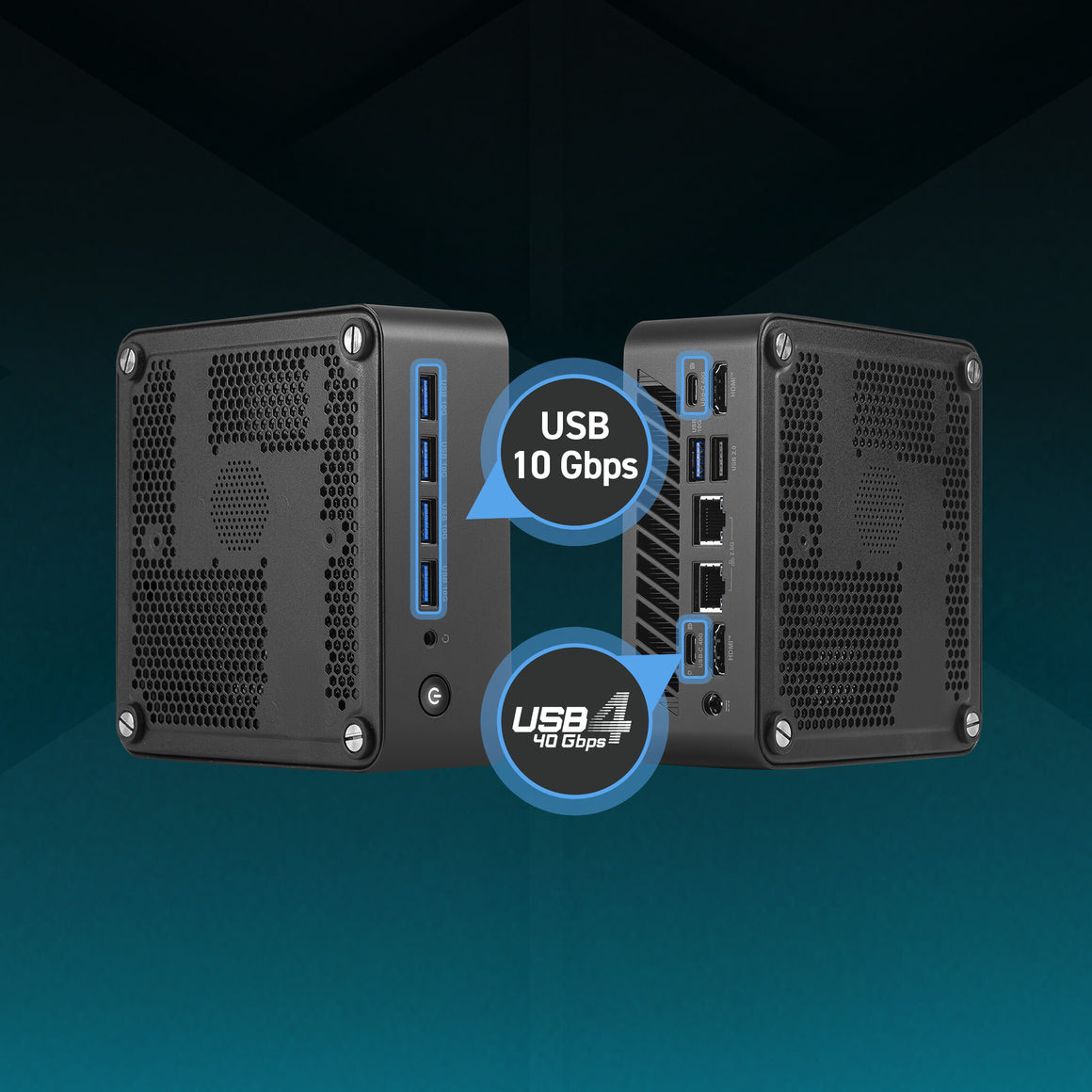

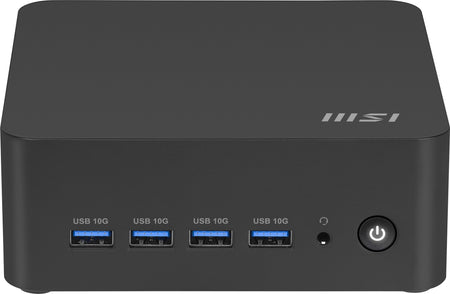

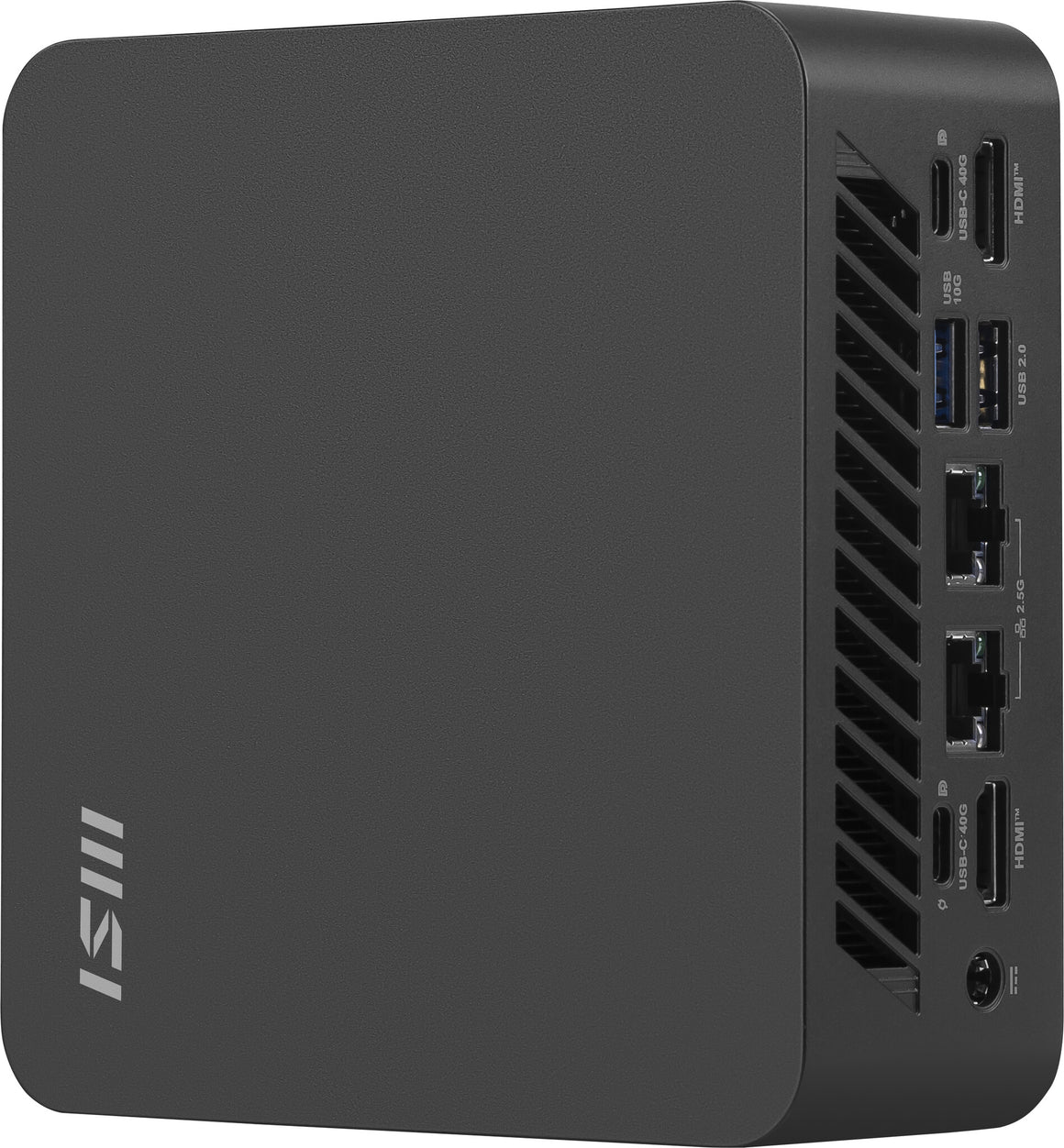

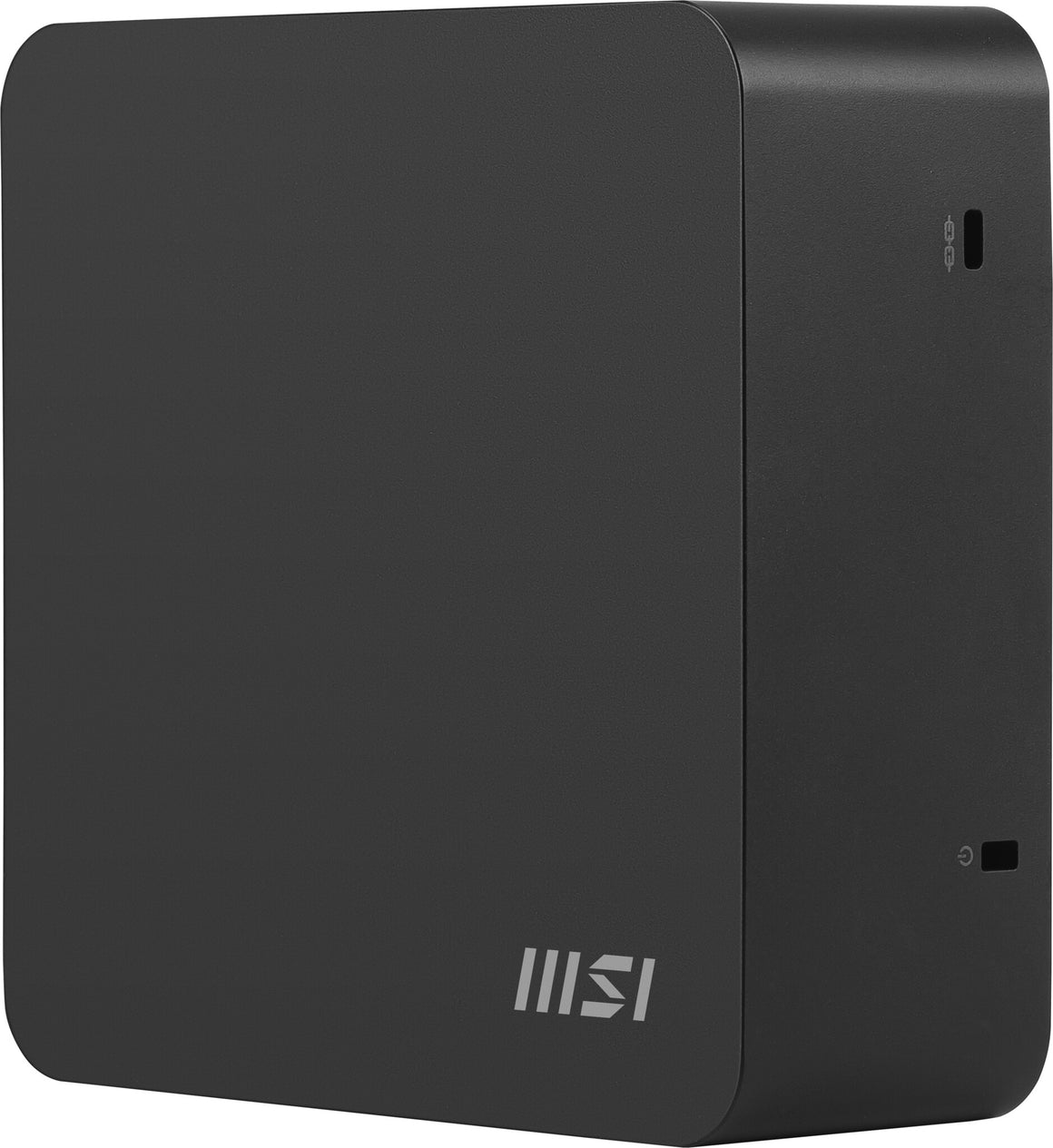

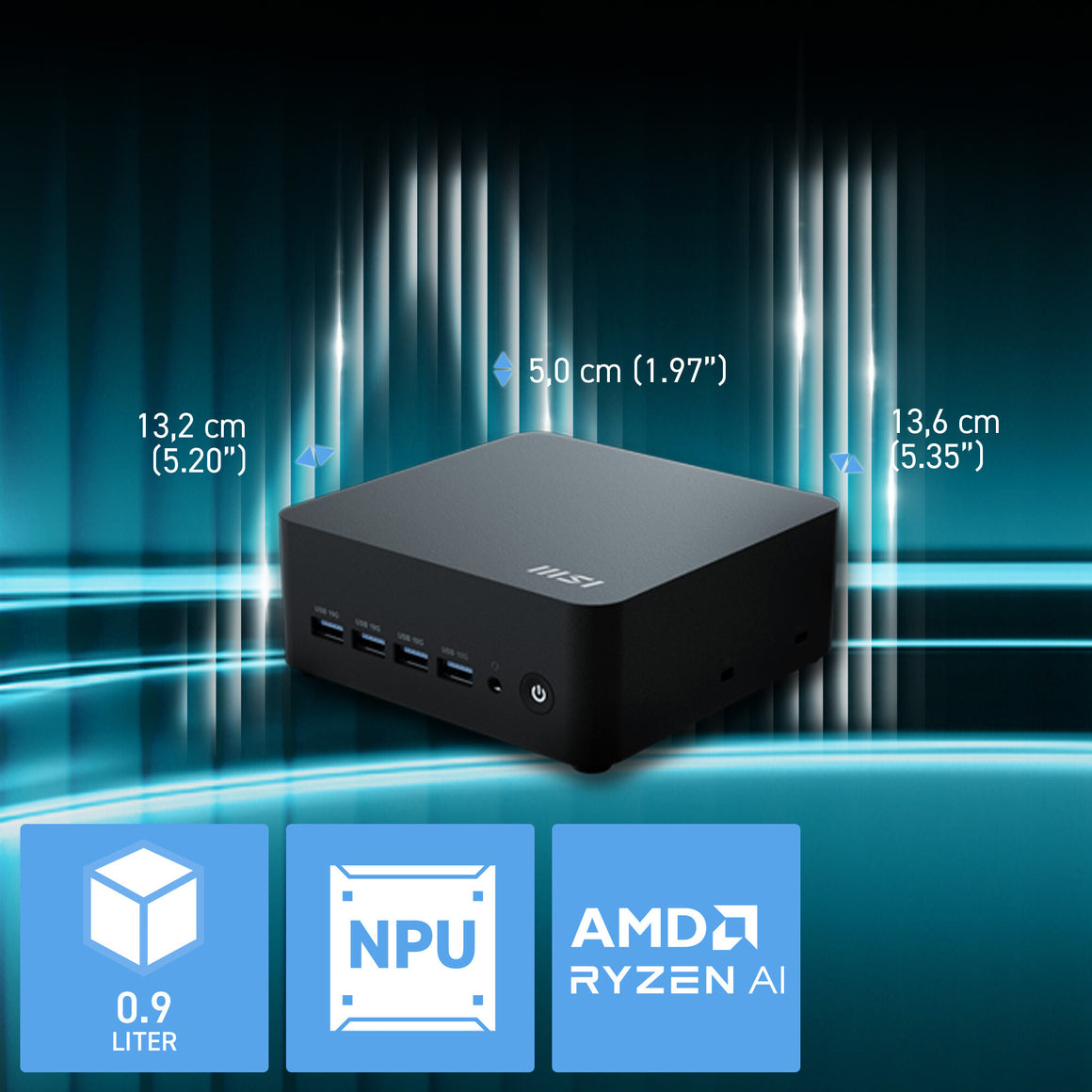

The MSI Cubi Z AI 8M combines AMD Ryzen™ 8000 Series with a built-in NPU in a compact 0.9-liter design. Features dual USB4 ports with speeds of up to 40Gbps, a 100W power delivery input, dual HDMI ports supporting up to four displays, dual 2.5G LAN ports for fast networking, a Kensington Lock for security, a built-in speaker, and a VESA mountable design.
| Processor |
|---|
| Number of processors installed |
1 |
| Processor frequency |
3.8 GHz |
| Processor model |
8845HS |
| Processor generation |
AMD Ryzen 8000 Series |
| Processor family |
AMD Ryzen™ 7 |
| Processor manufacturer |
AMD |
| Neural processor unit (NPU) |
|---|
| AI software frameworks supported by NPU |
Onnx, Windows ML |
| AI datatype support on NPU |
FP16, Int8 |
| Windows Studio effects support |
Yes |
| Sparsity support |
Yes |
| Neural processor unit (NPU) |
AMD Ryzen AI |
| Memory |
|---|
| Non-ECC |
Yes |
| ECC |
No |
| Buffered memory type |
Unregistered (unbuffered) |
| Memory channels |
Dual-channel |
| Memory data transfer rate |
5600 MT/s |
| Memory clock speed |
5600 MHz |

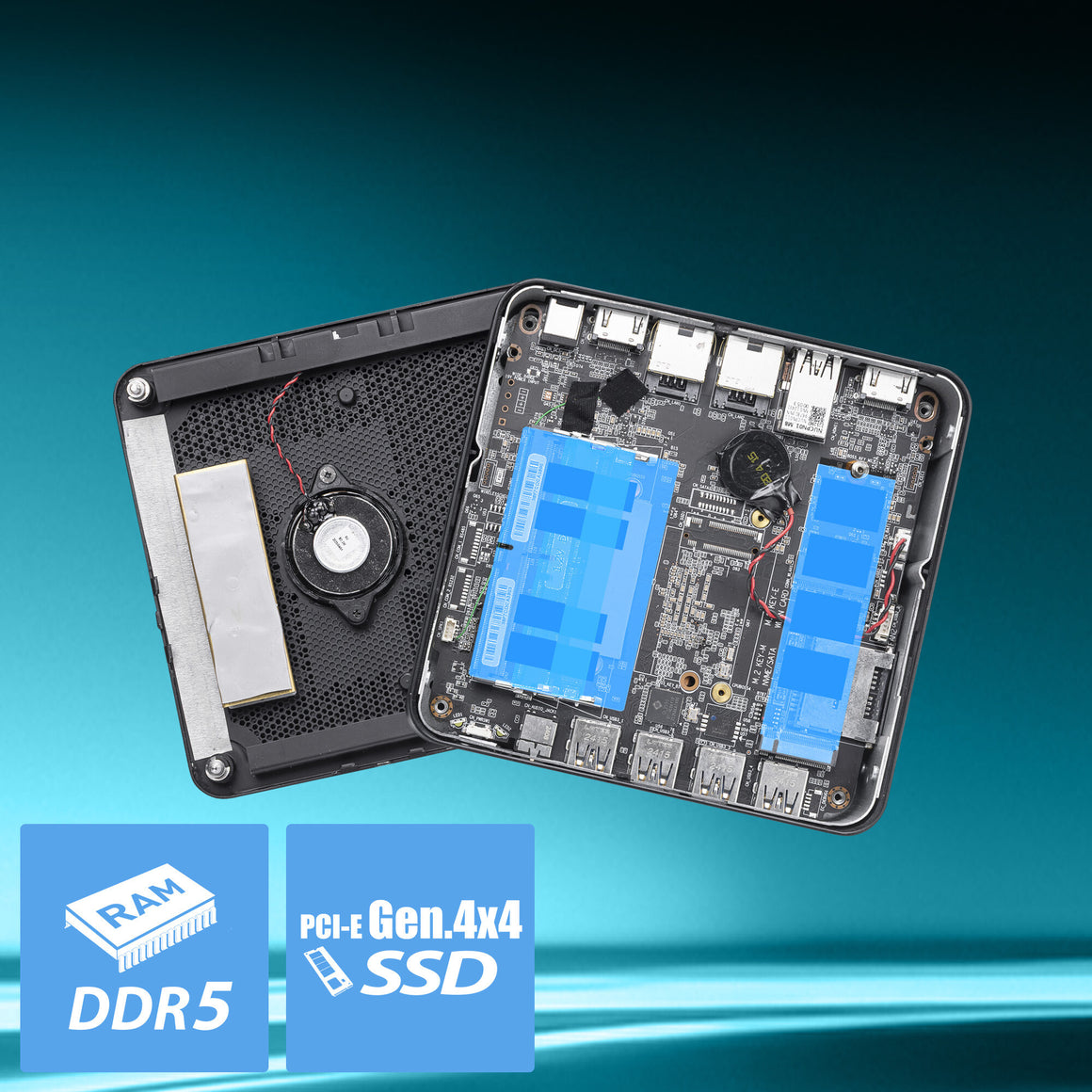

| Memory slots |
2x SO-DIMM |
| Memory layout (slots x size) |
2 x 8 GB |
| Internal memory type |
DDR5-SDRAM |
| Maximum internal memory |
64 GB |
| Internal memory |
16 GB |
| Storage |
|---|
| Intel® Optane™ Memory module capacity |
0 GB |
| Intel® Optane™ Memory module installed |
No |
| Compatible memory cards |
Not supported |
| Card reader integrated |
Yes |
| M.2 SSD size |
2280 (22 x 80 mm) |
| SSD form factor |
M.2 |
| NVMe |
Yes |
| SSD interface |
M.2 |
| SSD capacity |
1 TB |
| SSD memory type |
TLC |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
1 TB |
| Total HDDs capacity |
0 GB |
| Number of storage drives supported |
1 |
| Number of storage drives installed |
1 |
| Storage media |
SSD |
| Optical drive type |
No |
| Total storage capacity |
1 TB |
| Graphics |
|---|
| On-board graphics card |
No |
| Discrete graphics card |
No |
| Network |
|---|
| Bluetooth version |
5.3 |
| Wi-Fi standards |
Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| Wi-Fi |
Yes |
| Ethernet LAN data rates |
10,100,1000,2500 Mbit/s |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
2 |
| HDMI ports quantity |
2 |
| USB 2.0 ports quantity |
1 |
| Performance |
|---|
| Built-in speaker(s) |
Yes |
| Compatible processor series |
AMD Ryzen 8000 Series |
| Product type |
Mini PC |
| Software |
|---|
| Pre-installed software |
MSI Center、Nahimic 3 |
| Drivers included |
Yes |
| Copilot+ PC |
No |
| Compatible operating systems |
Windows 11 Pro |
| Apple Intelligence |
No |
| Operating system language |
English |
| Windows 11 free upgrade |
No |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 11 Pro |
| Processor special features |
|---|
| Video decode engine |
Yes |
| Video encode engine |
Yes |
| Power |
|---|
| Power supply input frequency |
50-60 Hz |
| Power supply input voltage |
100-240 V |
| Power supply |
120 W |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
0 - 90% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Certificates |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS, UL |
| Waste Electrical and Electronic Equipment (WEEE) compliance |
Yes |
| Weight & dimensions |
|---|
| Package weight |
2 kg |
| Package height |
517 mm |
| Package depth |
221 mm |
| Package width |
469 mm |
| Weight |
790 g |
| Height |
50.1 mm |
| Depth |
132 mm |
| Width |
136 mm |
| Packaging content |
|---|
| Manual |
Yes |
| VESA mount included |
Yes |
| Power cable length |
1.8 m |
| Cables included |
AC, Power |
| Numeric keypad |
No |
| Keyboard backlit |
No |
| Keyboard included |
No |
| Mouse included |
No |
| Display included |
No |
| General |
|---|
| Product family |
Cubi |
| Other features |
|---|
| Locale |
English |
| Warranty period |
3 year(s) |
