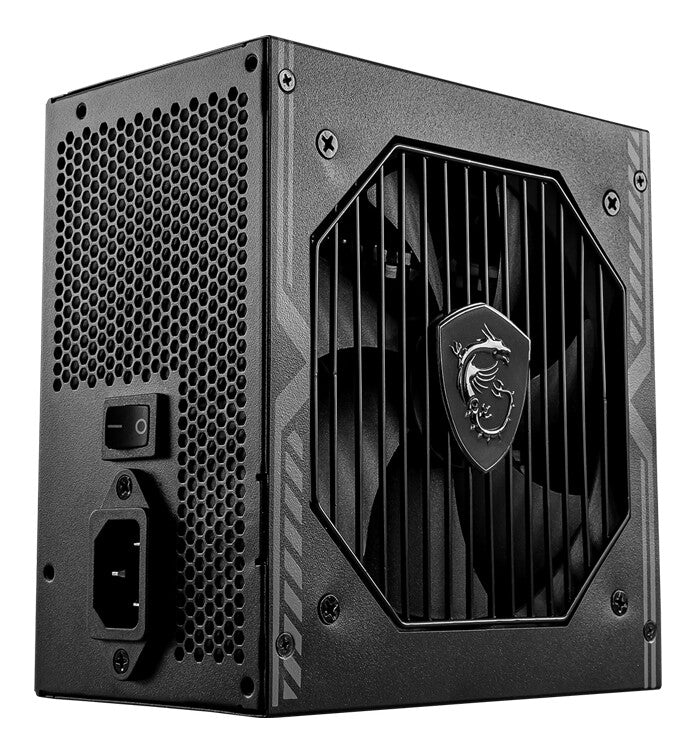

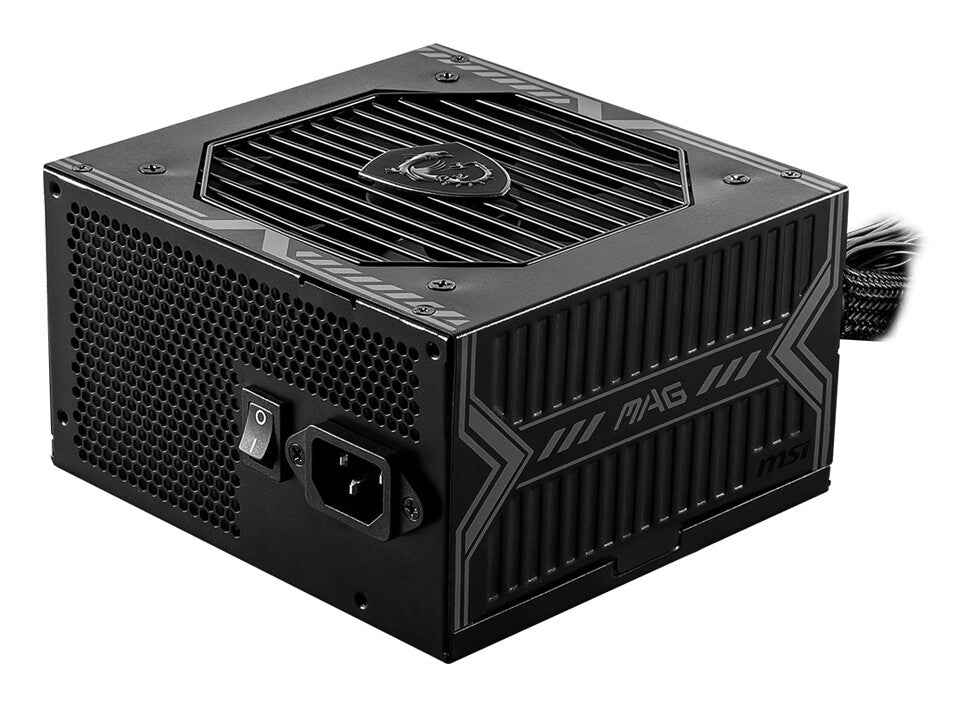

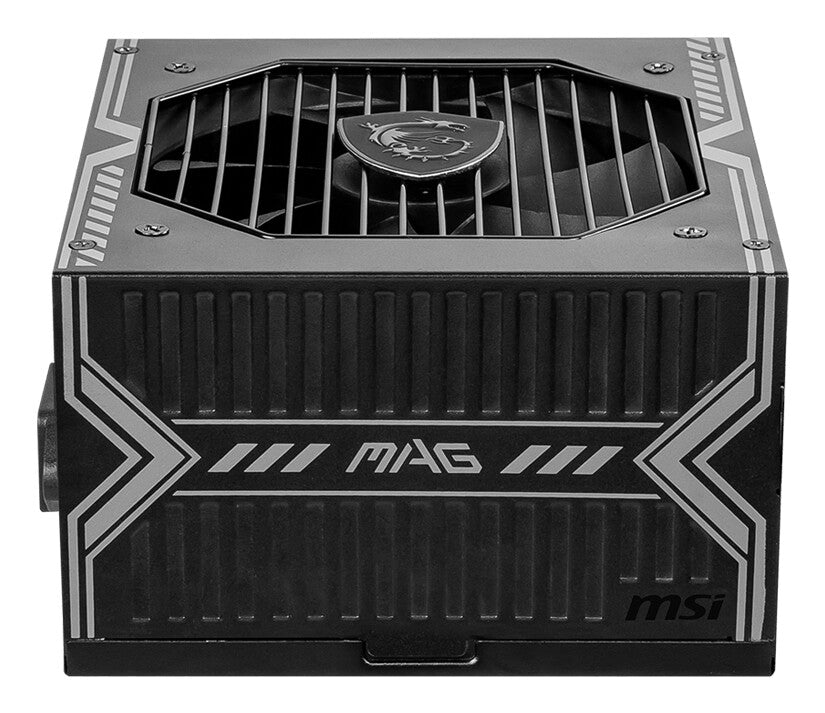

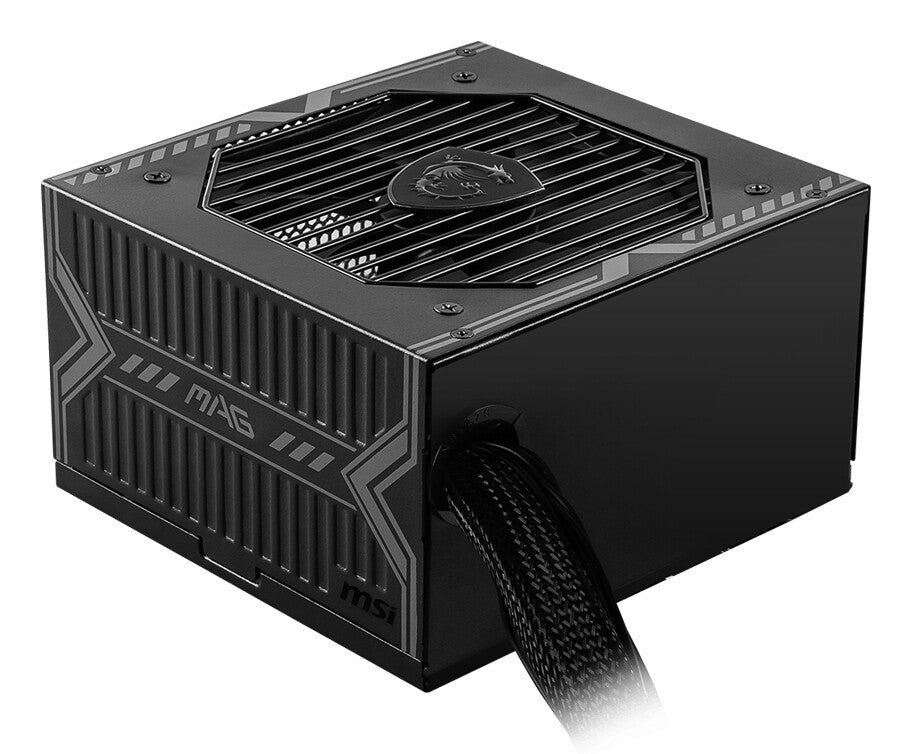

MAG A550BN provides players with a safe, reliable, and efficient entry-level power supply option. Its core features include 80 PLUS Bronze certification, DC to DC circuit design, 12V single rail, active PFC, and low-noise fan. The MAG A550BN will be one of the best choices for players who are just getting started with looking into DIY computers. After installation, gamers can immediately enjoy a reliable performance experience without additional settings.
80 PLUS BRONZE CERTIFIED
The efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS BRONZE certification promises lower energy consumption and higher efficiency.
120MM LOW NOISE FAN
The fan’s sleeve bearing reduces the noise generated while maintaining excellent heat dissipation.
DC TO DC CIRCUIT DESIGN
Adopted DC-DC circuit design reduces the instability of output voltage, and ads stability to the supply of power.
COMPREHENSIVE CIRCUIT PROTECTION
Supports OCP, OVP, SCP, OPP, OTP protection
mechanisms and provides comprehensive protection.
5-YEAR LIMITED WARRANTY
The MAG A550BN is proudly backed by a 5-year limited warranty, guaranteeing long term reliable operation.
| Power |
|---|
| Power protection features |
Over current, Over power, Over voltage, Overheating, Short circuit |
| Efficiency |
85% |
| Max output current (+5Vsb) |
2.5 A |
| Max output current (-12V) |
0.3 A |
| Max output current (+5V) |
20 A |
| Max output current (+12V) |
45.5 A |
| Max output current (+3.3V) |
20 A |
| Combined power (+5Vsb) |
12.5 W |
| Combined power (-12V) |
3.6 W |
| Combined power (+5V) |
110 W |
| Combined power (+12V) |
546 W |
| Combined power (+3.3V) |
110 W |
| Power Factor Correction (PFC) type |
Active |
| Maximum input current (@220V) |
4 A |
| Maximum input current (@110V) |
8 A |
| AC input frequency |
50 - 60 Hz |
| AC input voltage |
100 - 240 V |
| Total power |
550 W |
| Ports & interfaces |
|---|
| Cabling type |
Non-Modular |
| Floppy drive power connector |
1 |
| Floppy disk drive connector |
Yes |
| ATX power connector (20+4 pin) |
No |
| ATX Power connector (24-pin) |
No |
| CPU power connector (4+4 pin) |
Yes |
| PCI Express power connectors (6+2 pin) |
2 |
| EPS power connector (4+4 pin) |
Yes |
| EPS power connector (8-pin) |
No |
| Peripheral (Molex) power connectors (4-pin) |
2 |
| Number of SATA power connectors |
5 |
| Motherboard power cable length |
60 cm |
| Motherboard power connector |
20+4 pin ATX |
| Performance |
|---|
| 80 PLUS certification |
80 PLUS Bronze |
| Power supply unit (PSU) form factor |
ATX |
| Purpose |
PC |
| Design |
|---|
| On/off switch |
Yes |
| Number of fans |
1 fan(s) |
| Fan diameter |
12 cm |
| Cooling type |
Active |
| Product colour |
Black |
| General |
|---|
| Product family |
MAG |
| Weight & dimensions |
|---|
| Height |
86 mm |
| Depth |
140 mm |
| Width |
150 mm |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733020 |
