The MAG series fights alongside gamers in pursuit of honor. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.

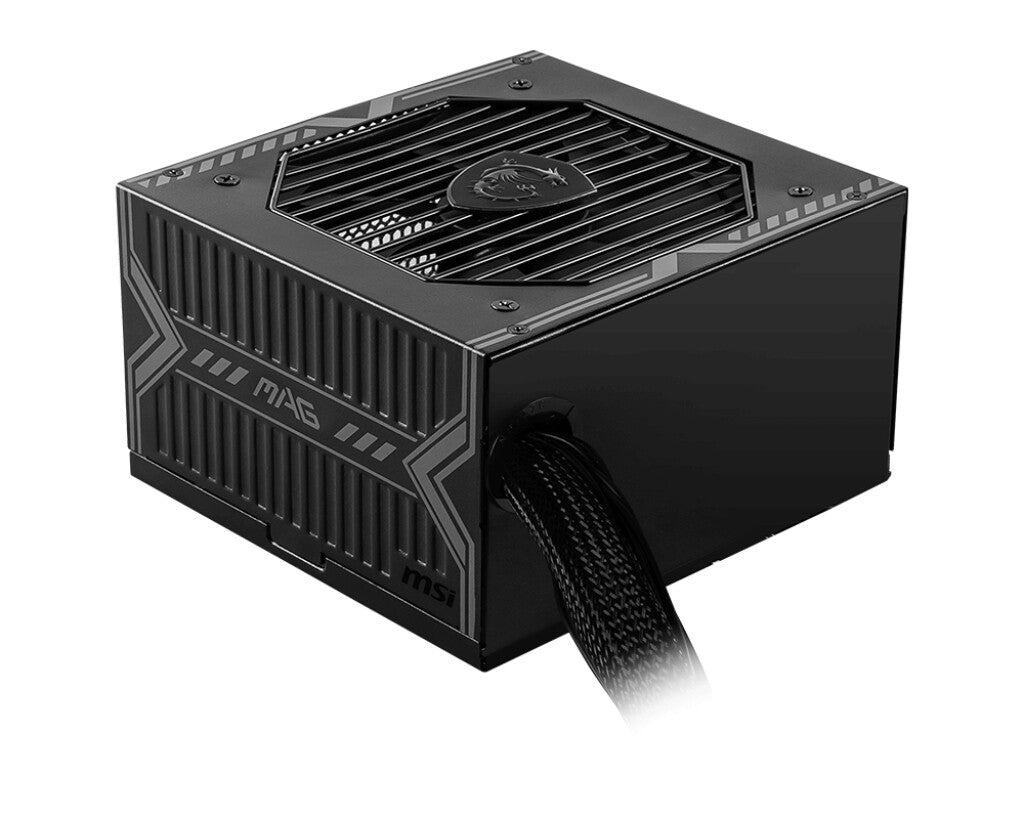

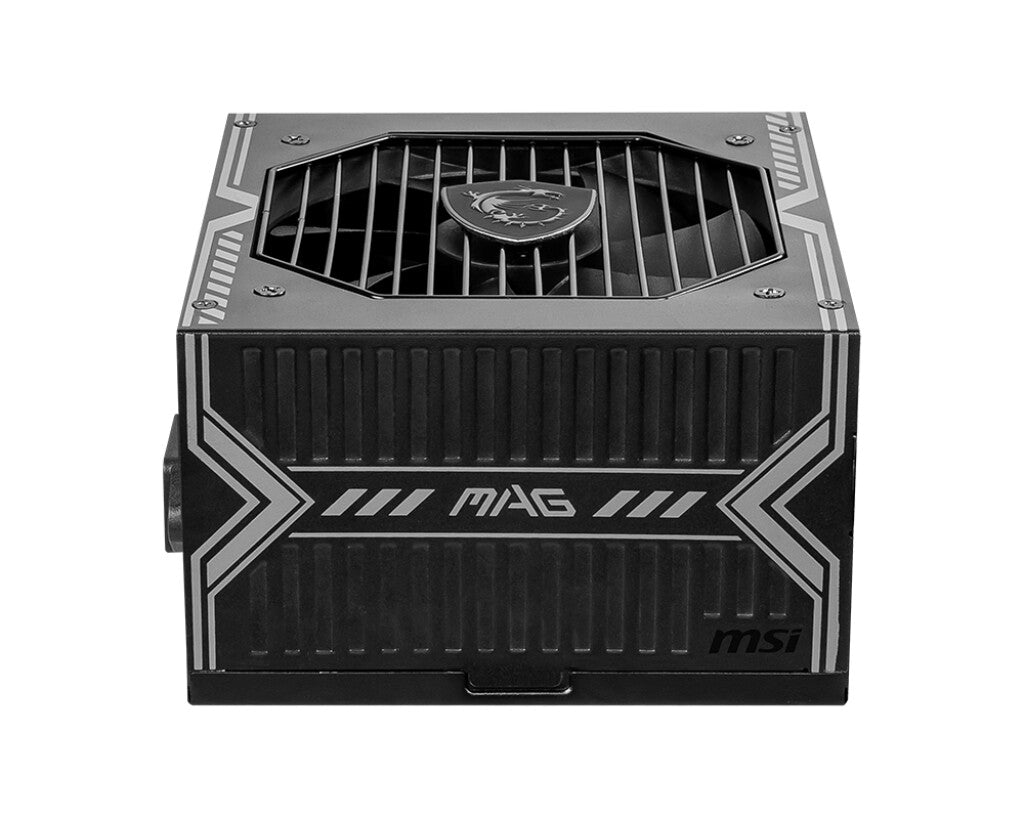

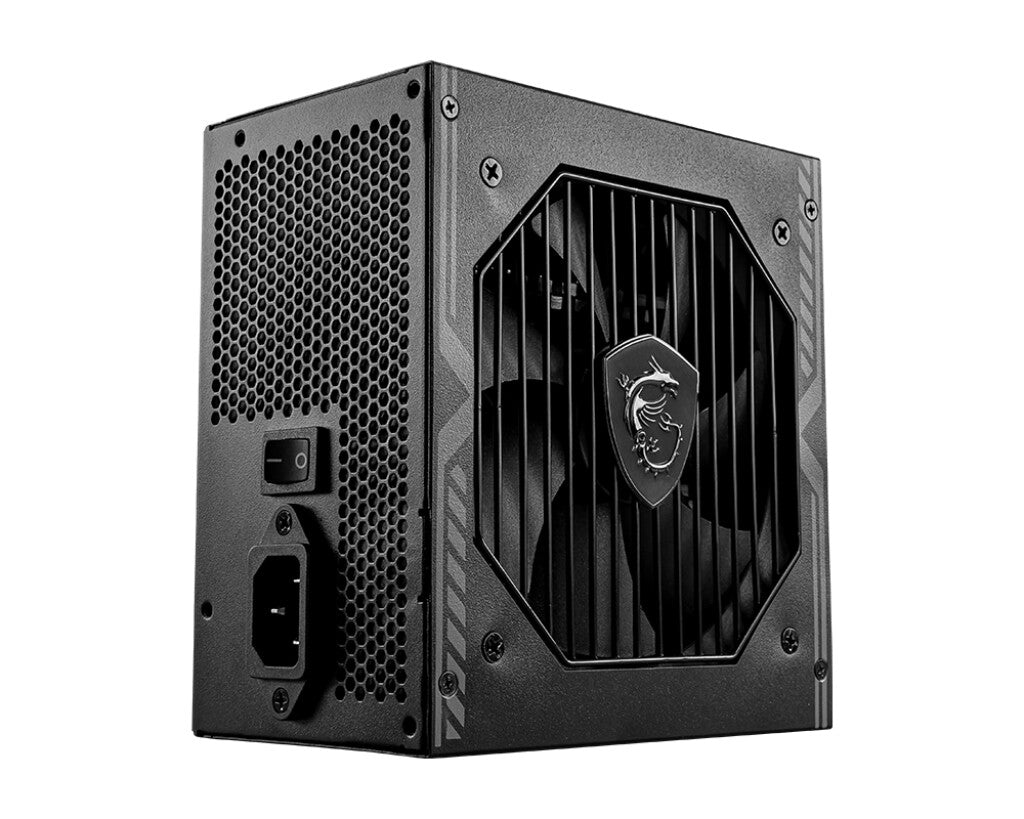

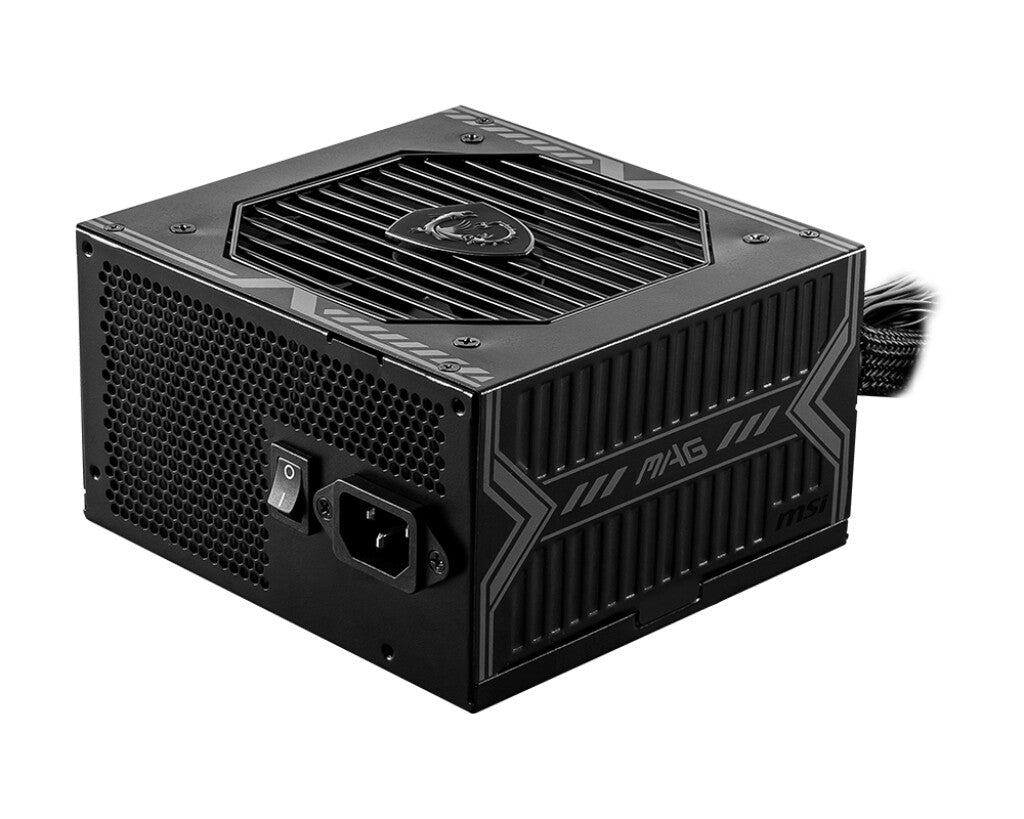

The MAG A750BN PCIE5's distinctive design patterns symbolize unity and strength. It unites all the components by reliably and stably supplying power to the entire system. With the MAG A750BN PCIE5's , any system has the power it needs to survive all challenges.
PCIE5.0 READY
It has an output port that is compliant with PCIe 5.0, enabling to support the RTX 4070* series graphics cards.
80 PLUS BRONZE CERTIFICATION
The efficiency of your power supply directly influences your system’s performance and power consumption. The 80 PLUS certification promises lower energy consumption and qualified efficiency level.
PROTECTION DEISGN
Protection is designed to protect the unit mechanisms and provides comprehensive protection.
TEMPERATURE ADAPTATION
Engineered for reliability, your system operates safely at peak performance even in high-temperature conditions. This rugged power supply ensures sustained operation regardless of your environment.

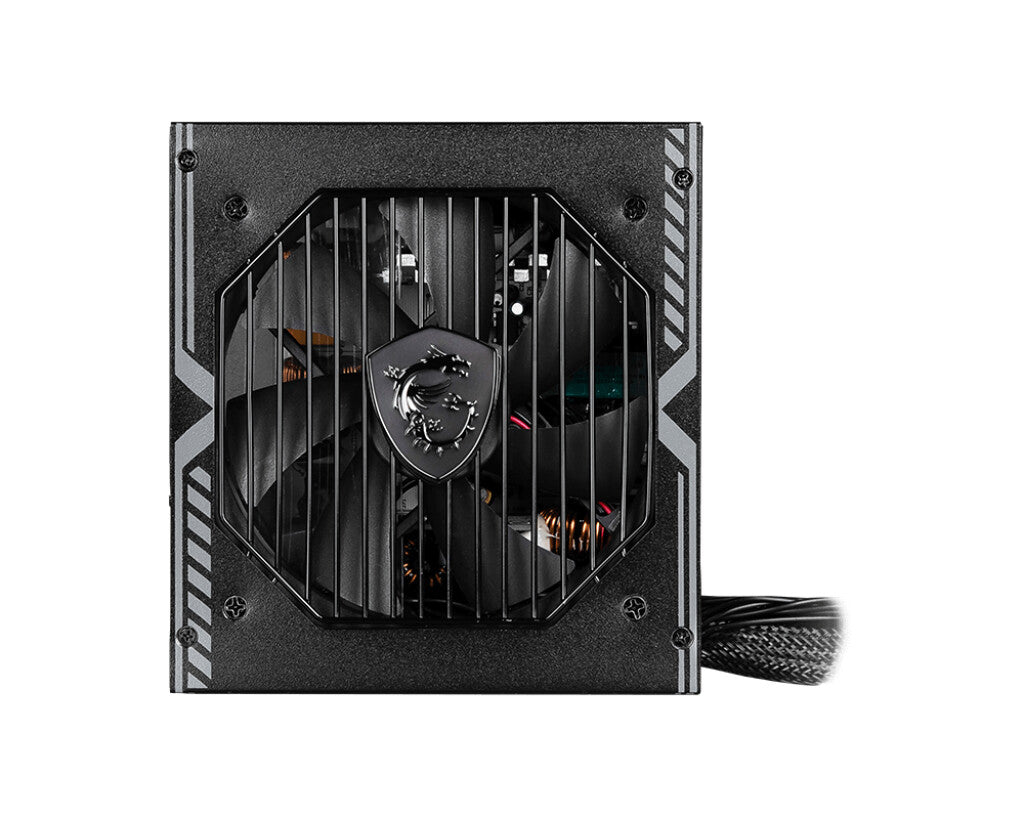

120MM LOW NOISE FAN
The 120mm fan reduces the noise generated while maintaining excellent heat dissipation.
| Power |
|---|
| Power protection features |
Over current, Over power, Over voltage, Short circuit |
| Efficiency |
85% |
| Max output current (+5Vsb) |
2.5 A |
| Max output current (-12V) |
0.3 A |
| Max output current (+5V) |
20 A |
| Max output current (+12V) |
62.5 A |
| Max output current (+3.3V) |
20 A |
| Combined power (+5Vsb) |
12.5 W |
| Combined power (-12V) |
3.6 W |
| Combined power (+5V) |
120 W |
| Combined power (+12V) |
750 W |
| Combined power (+3.3V) |
120 W |
| Power Factor Correction (PFC) type |
Active |
| Maximum input current (@220V) |
5 A |
| Maximum input current (@110V) |
10 A |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 - 240 V |
| Total power |
750 W |
| Ports & interfaces |
|---|
| Cabling type |
Non-Modular |
| Floppy drive power connector |
1 |
| ATX Power connector (24-pin) |
Yes |
| PCI Express power connectors (16-pin) |
1 |
| PCI Express power connectors (6+2 pin) |
2 |
| EPS power connector (4+4 pin) |
Yes |
| Peripheral (Molex) power connectors (4-pin) |
2 |
| Number of SATA power connectors |
5 |
| Motherboard power connector |
24-pin ATX |
| Performance |
|---|
| 80 PLUS certification |
80 PLUS Bronze |
| Power supply unit (PSU) form factor |
ATX |
| Purpose |
PC |
| Design |
|---|
| On/off switch |
Yes |
| Illumination |
No |
| Number of fans |
1 fan(s) |
| Fan diameter |
12 cm |
| Cooling type |
Active |
| Product colour |
Black |
| General |
|---|
| Product family |
MAG |
| Packaging data |
|---|
| Package height |
86 mm |
| Package depth |
140 mm |
| Package width |
150 mm |
