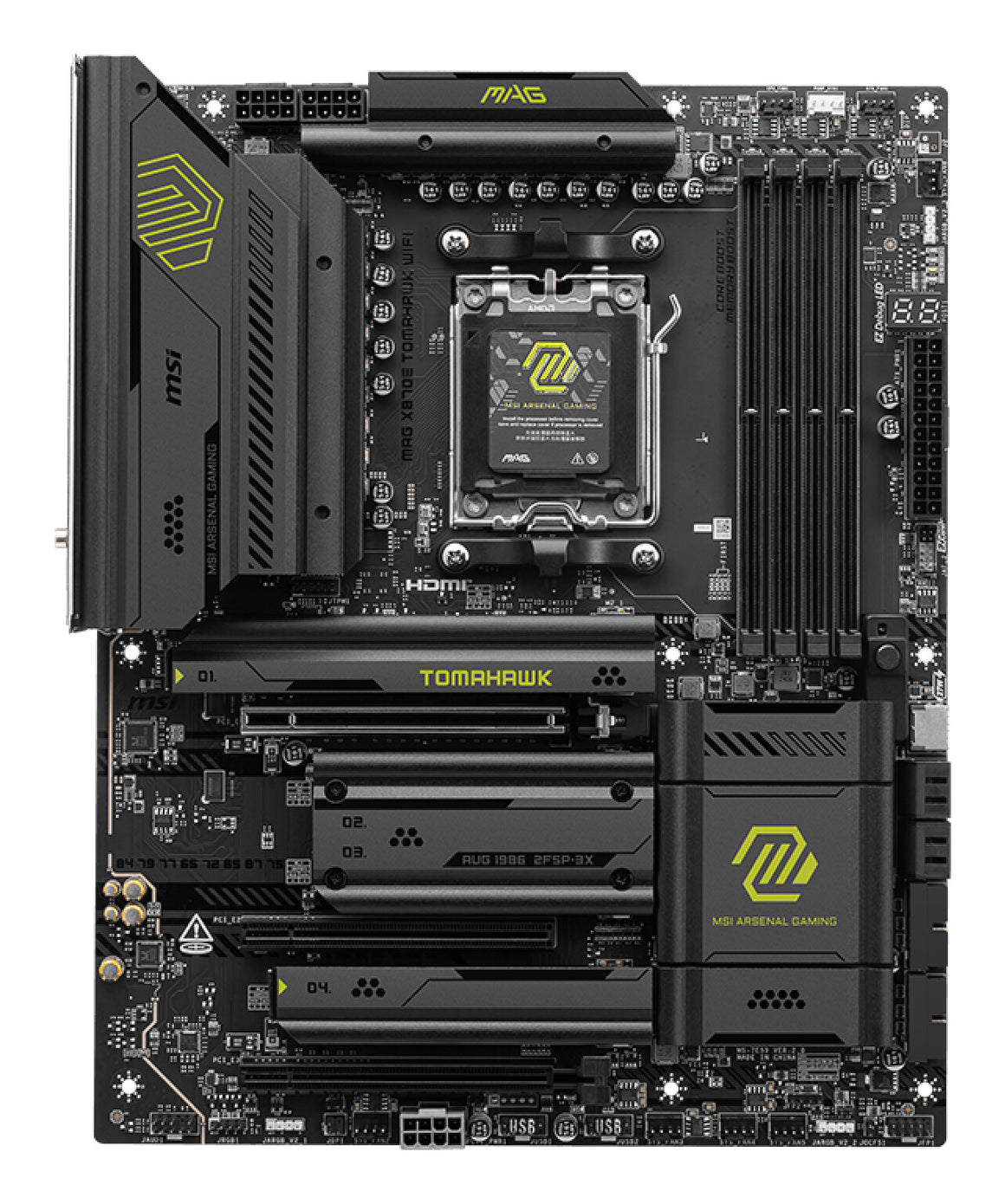

Msi X870 Tomahawk wifi title

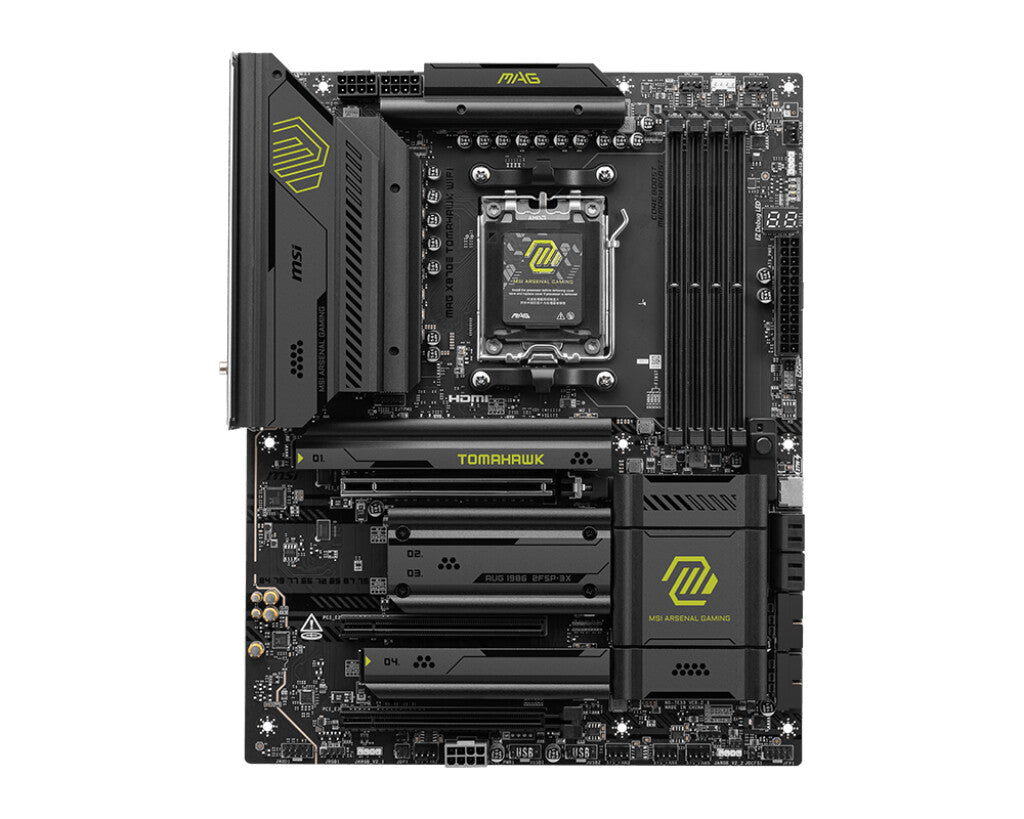

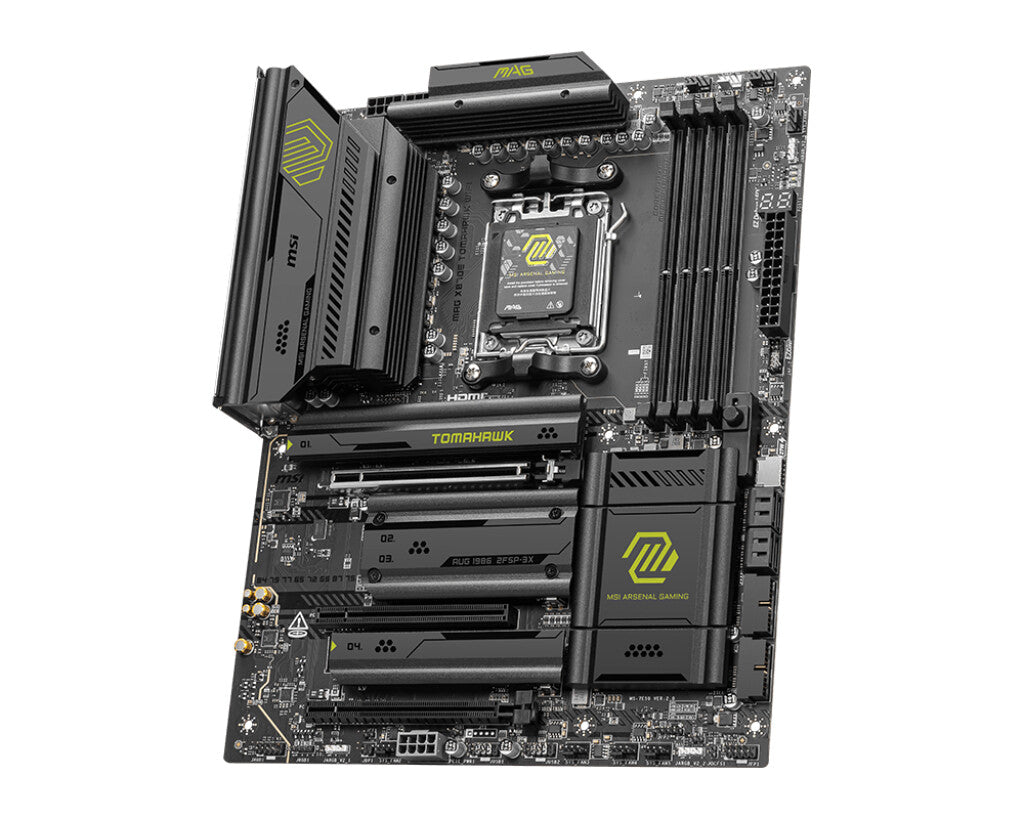

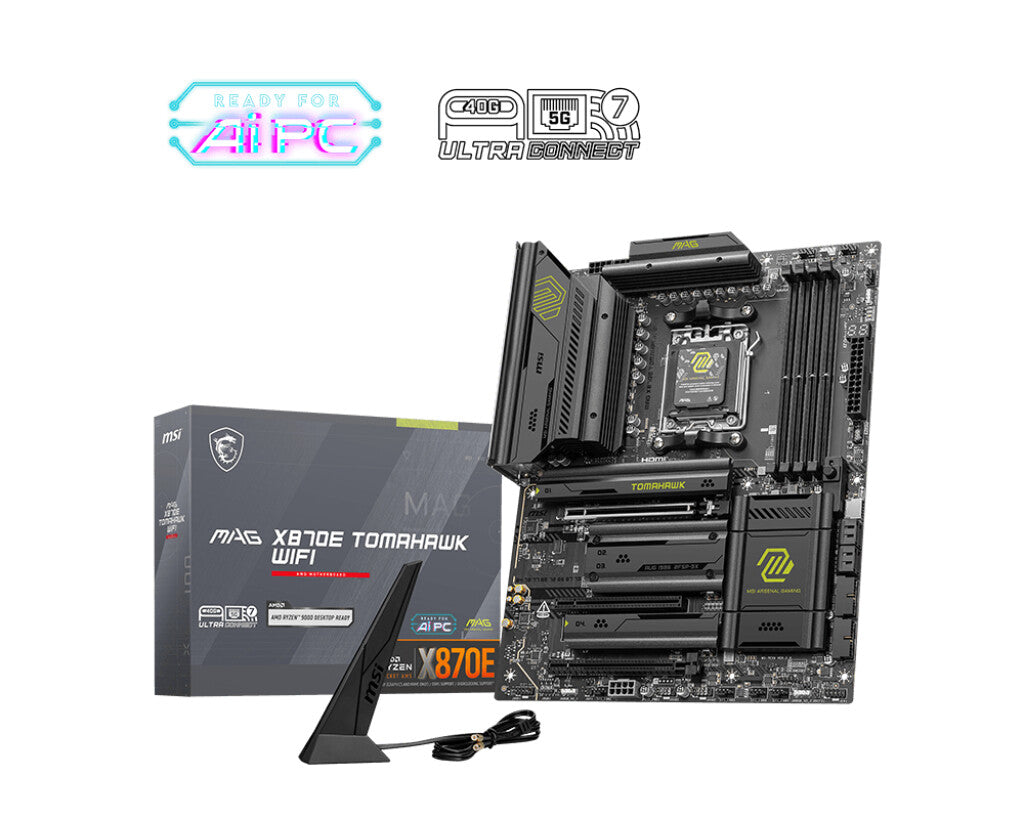

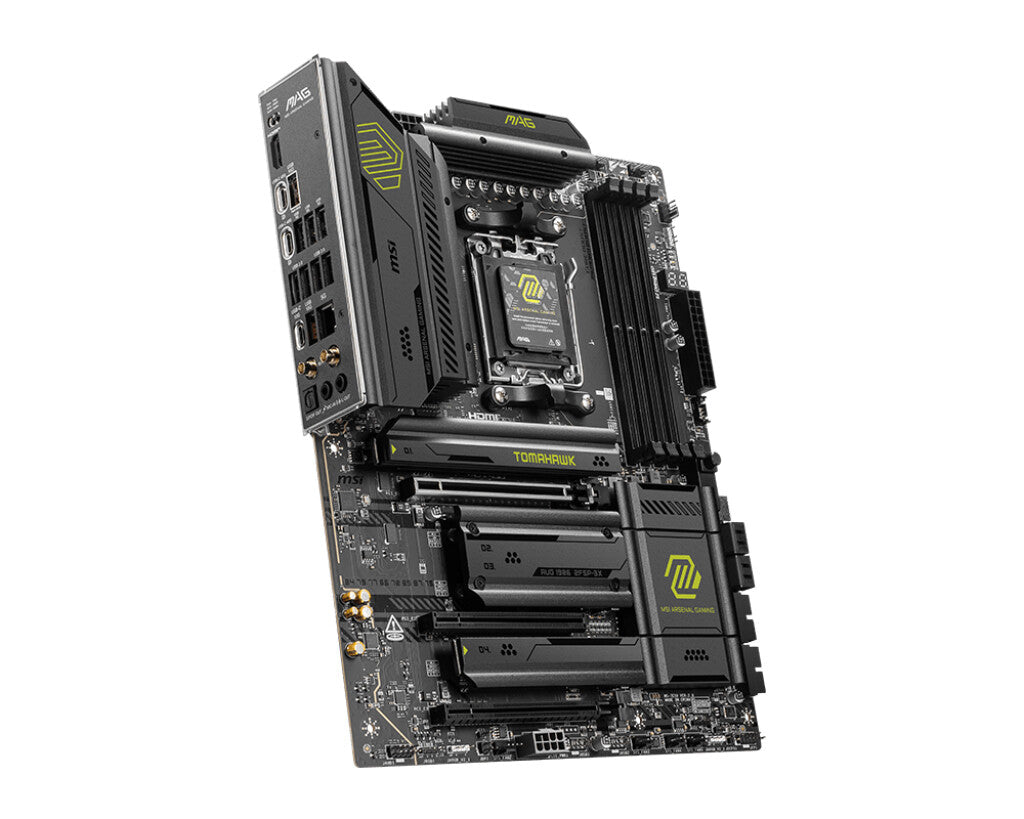

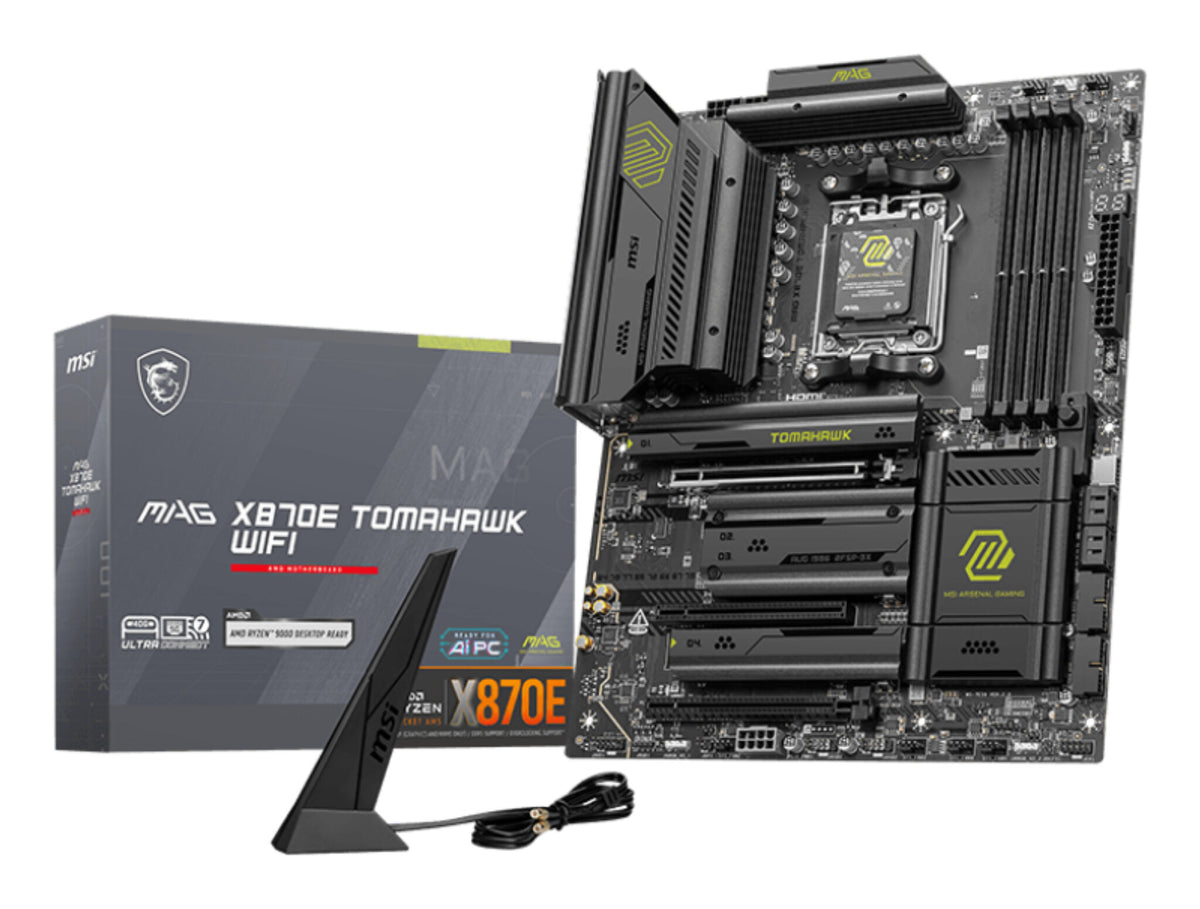

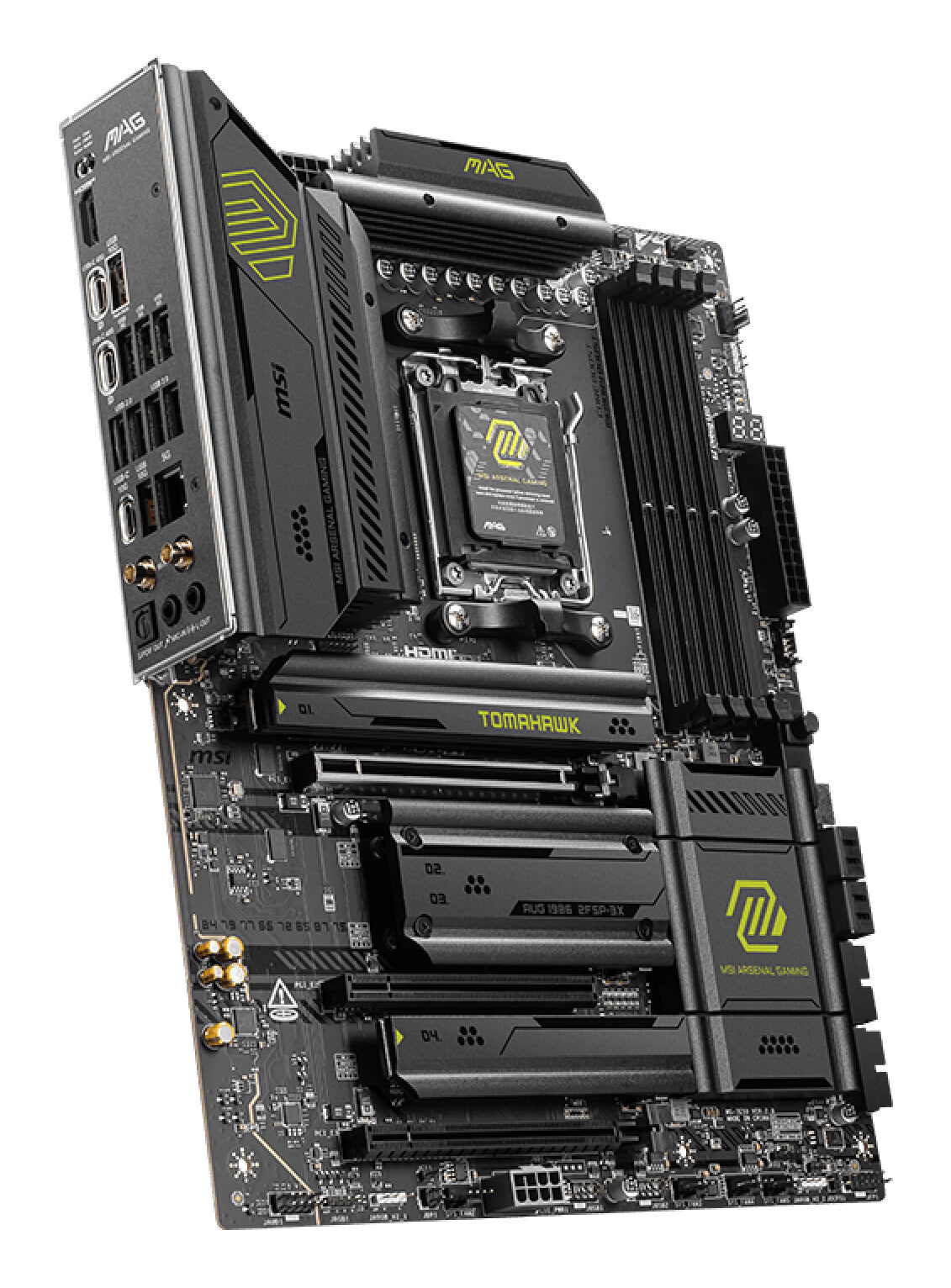

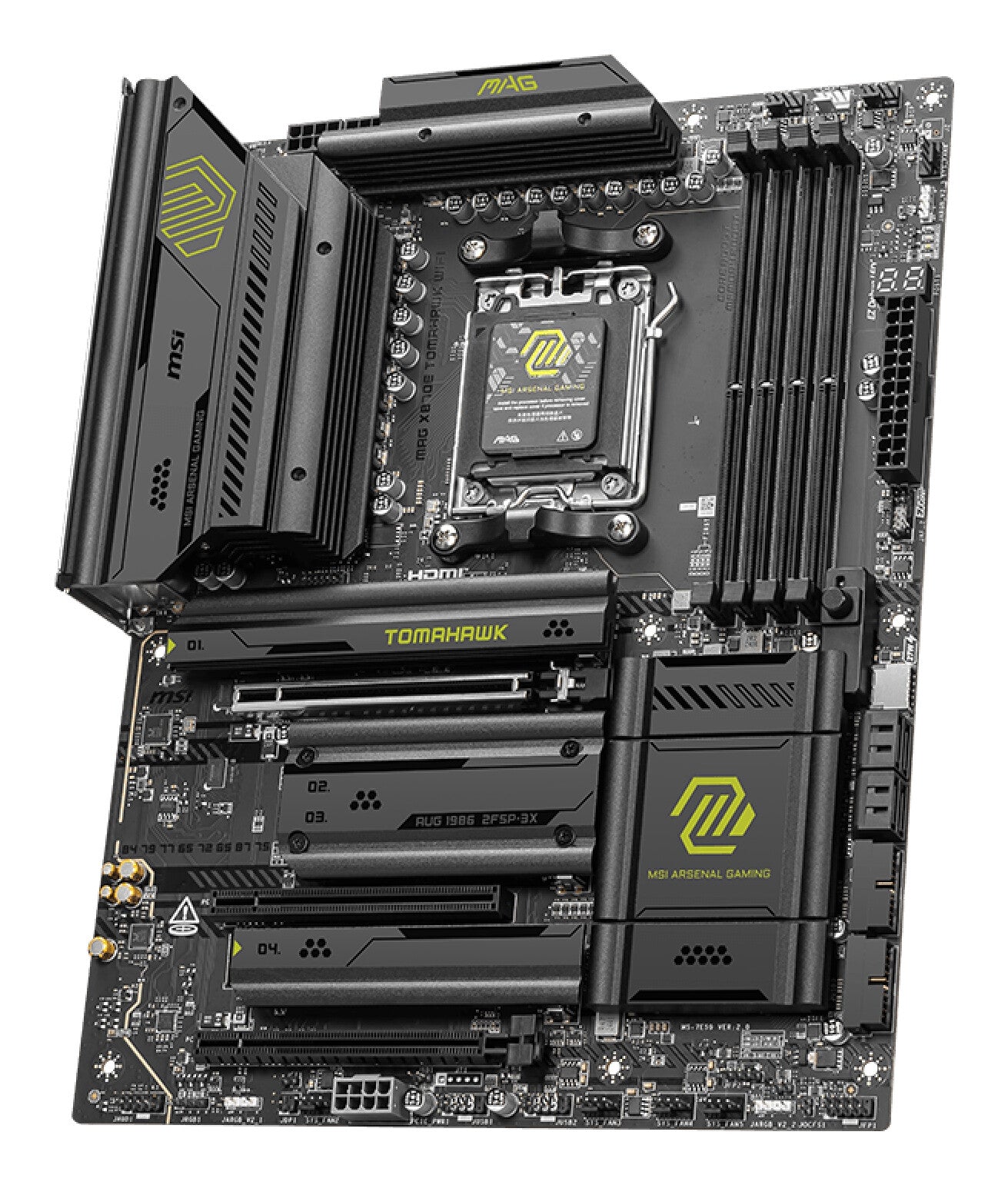

MAG X870E TOMAHAWK WIFI is designed for gamers with a stable, durable and DIY friendly foundation for their PC builds. Coming up with true Wi-Fi 7 solution, 5G LAN, USB 40Gbps, PCIe 5.0 solutions, Supplemental PCIe Power, and exclusive EZ DIY features, it's ready for the battlefield of AMD Ryzen™ 9000 series processors.
MAG msi arsenal gaming
MSI's mainstream MAG series epitomizes stability and durability and is built to withstand the most intense gaming sessions. The entire lineup features robust construction with metallic-like hardness and excellent heat dissipation, ensuring stability for all critical gaming components.
| Processor |
|---|
| Maximum internal memory supported by processor |
256 GB |
| Supported processor sockets |
Socket AM5 |
| Compatible processor series |
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Processor socket |
Socket AM5 |
| Processor manufacturer |
AMD |
| Memory |
|---|
| Maximum internal memory |
256 GB |
| Supported memory clock speed (max) |
8400 MHz |
| Supported memory clock speeds |
4800,5600,8400 MHz |
| ECC сompatibility |
Non-ECC |
| Memory channels |
Dual-channel |
| Memory slots type |
DIMM |
| Number of memory slots |
4 |
| Supported memory types |
DDR5-SDRAM |
| Storage controllers |
|---|
| Number of storage drives supported |
8 |
| Number of HDDs supported |
4 |
| Supported storage drive interfaces |
M.2, SATA III |
| Supported storage drive types |
HDD & SSD |
| Graphics |
|---|
| On-board graphics card |
No |
| Internal I/O |
|---|
| EPS power connector (8-pin) |
Yes |
| CPU fan connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| Total number of SATA connectors |
4 |
| Number of SATA III connectors |
4 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
4 |
| USB 2.0 connectors |
4 |

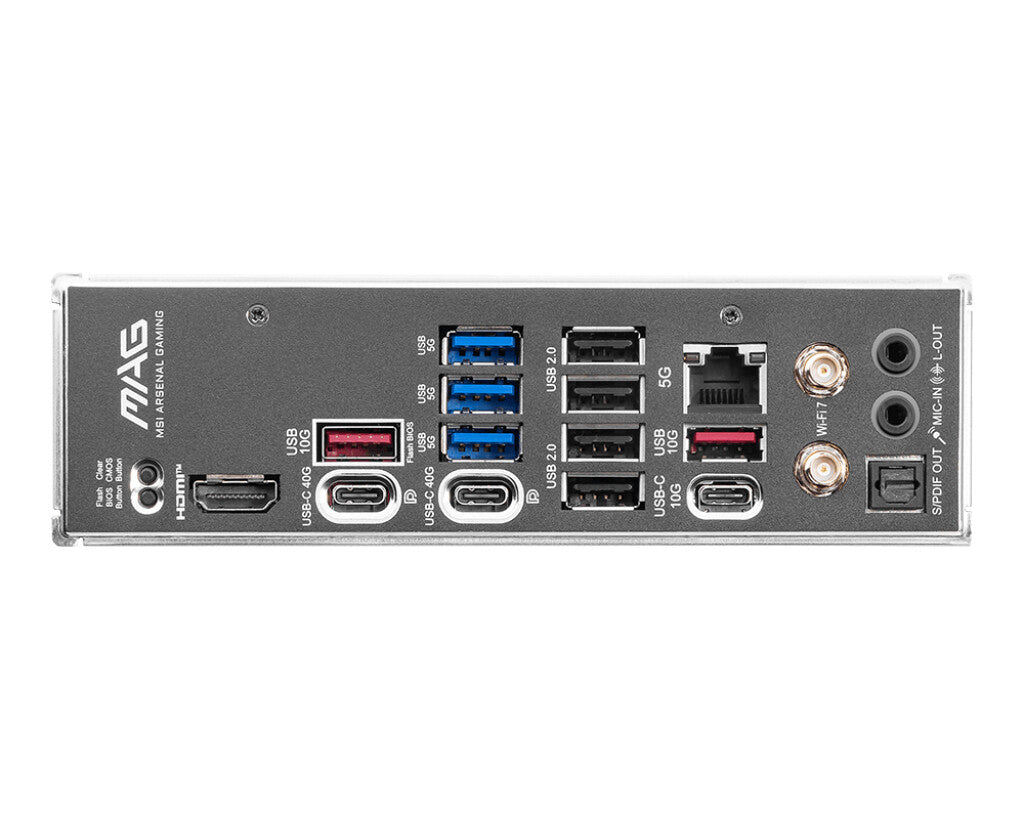

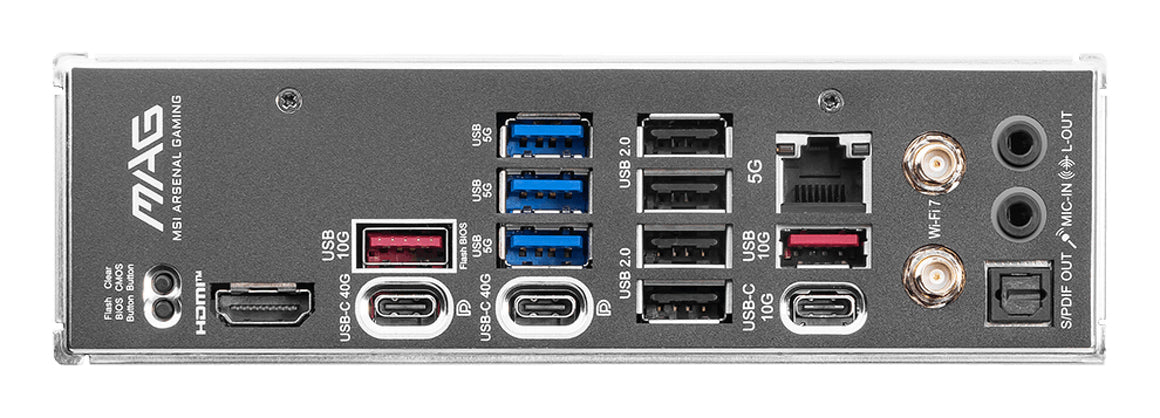

| Rear panel I/O ports |
|---|
| S/PDIF out port |
Yes |
| Microphone in |
Yes |
| DisplayPort version |
1.4 |
| DisplayPorts quantity |
2 |
| HDMI version |
2.1 |
| HDMI ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB4 Gen 2x2 ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
| USB 2.0 ports quantity |
4 |
| Network |
|---|
| Bluetooth version |
5.4 |
| Bluetooth |
Yes |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| Top Wi-Fi standard |
Wi-Fi 7 (802.11be) |
| Wi-Fi |
Yes |
| LAN controller |
Realtek RTL8126 |
| Ethernet interface type |
5 Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Features |
|---|
| PC health monitoring |
CPU, Fan, Temperature, Voltage |
| Product colour |
Black |
| Audio output channels |
7.1 channels |
| Motherboard chipset |
AMD X870E |
| Motherboard chipset family |
AMD |
| Motherboard form factor |
ATX |
| Component for |
PC |
| Expansion slots |
|---|
| 4th M.2 highest PCI Express generation |
4.0 |
| 4th M.2 largest key size |
2280 |
| 3rd M.2 highest PCI Express generation |
4.0 |
| 3rd M.2 largest key size |
2280 |
| 2nd M.2 highest PCI Express generation |
5.0 |
| 2nd M.2 largest key size |
2280 |
| 1st M.2 highest PCI Express generation |
5.0 |
| 1st M.2 largest key size |
22110 |
| Number of M.2 (M) slots |
4 |
| PCI Express x16 (Gen 5.x) slots |
1 |
| PCI Express x16 (Gen 3.x) slots |
1 |
| PCI Express x16 (Gen 4.x) slots |
1 |
| Weight & dimensions |
|---|
| Depth |
304.8 mm |
| Width |
243.8 mm |
