SKU: MPG X870E CARBON WIFI

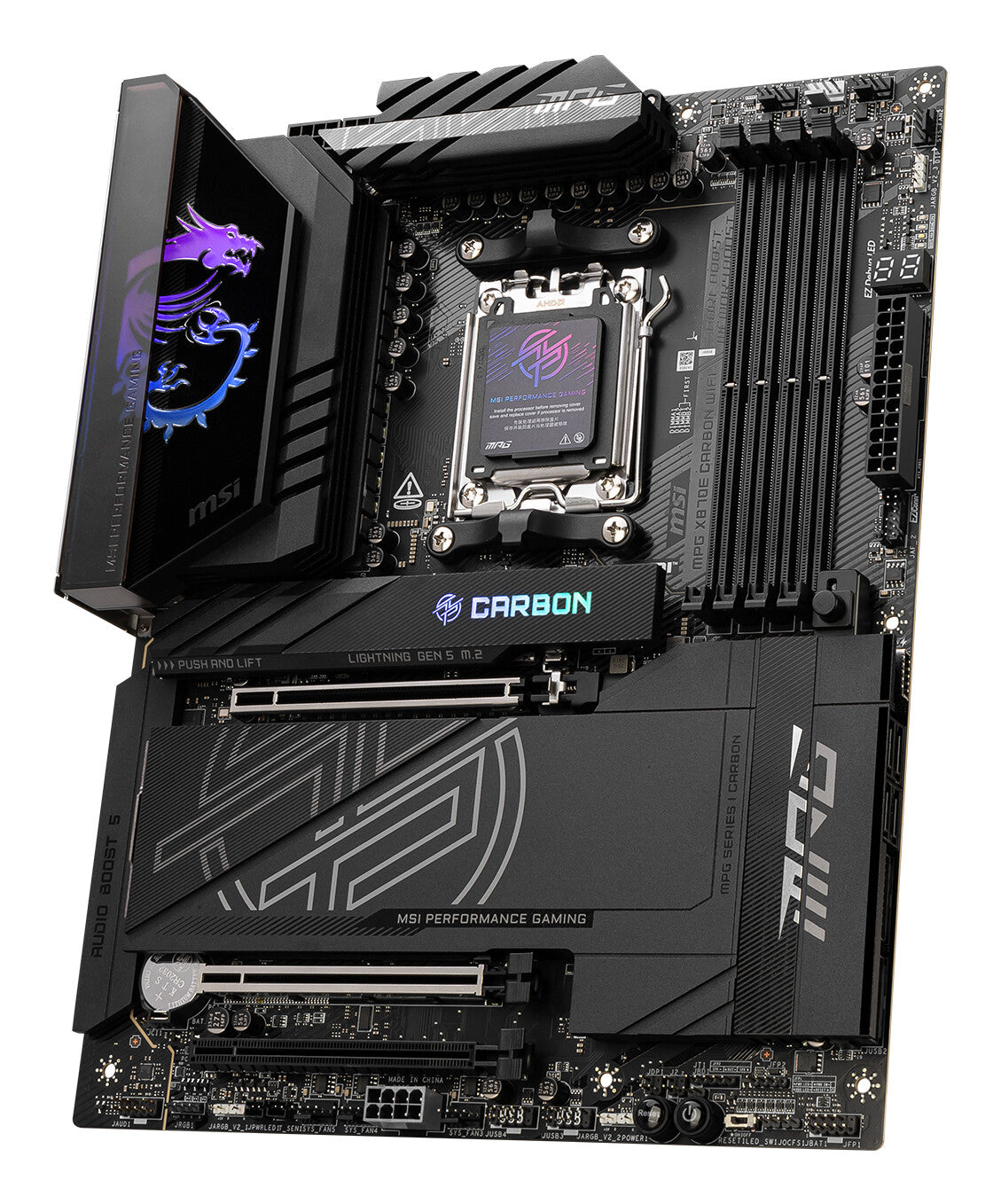

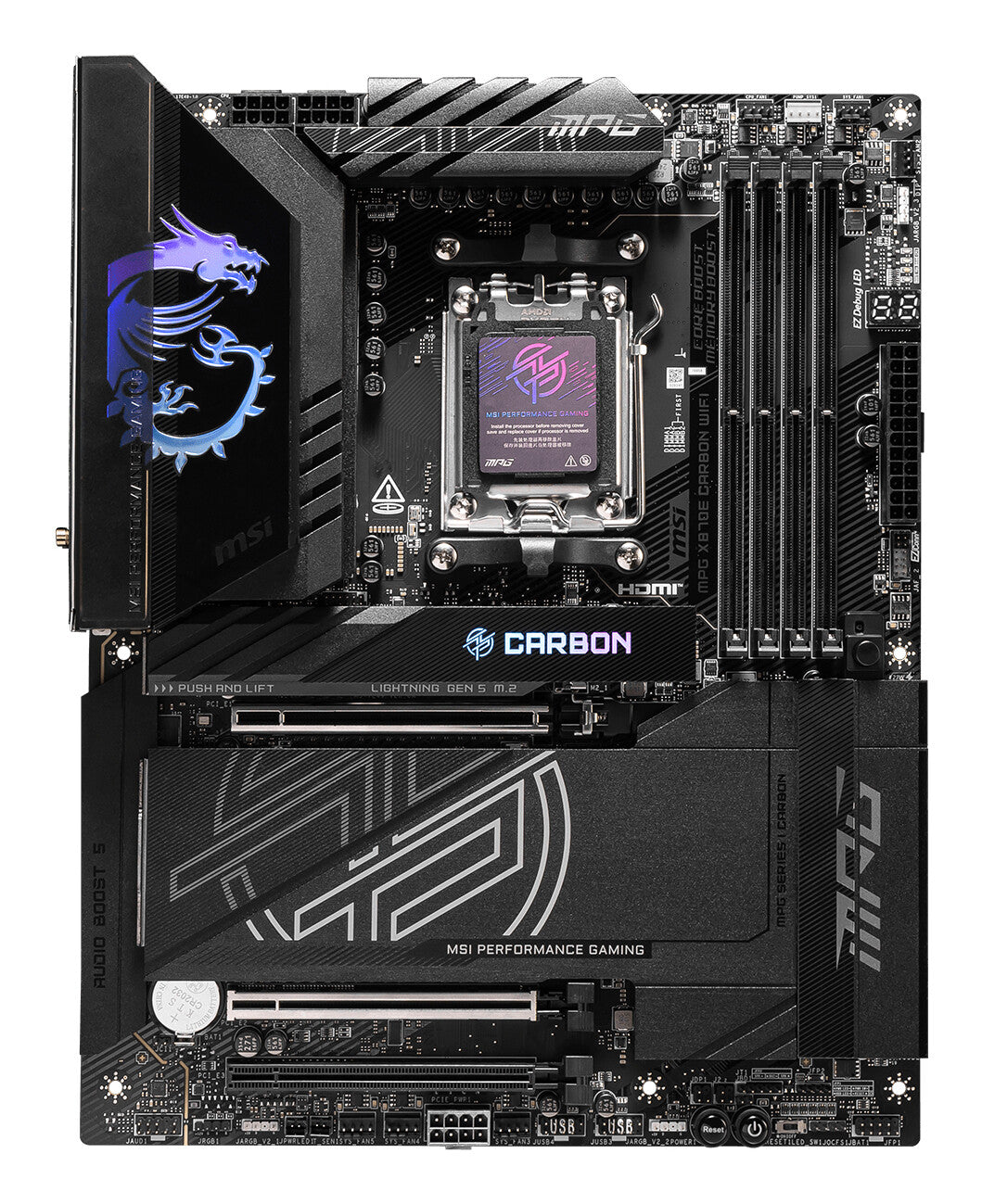

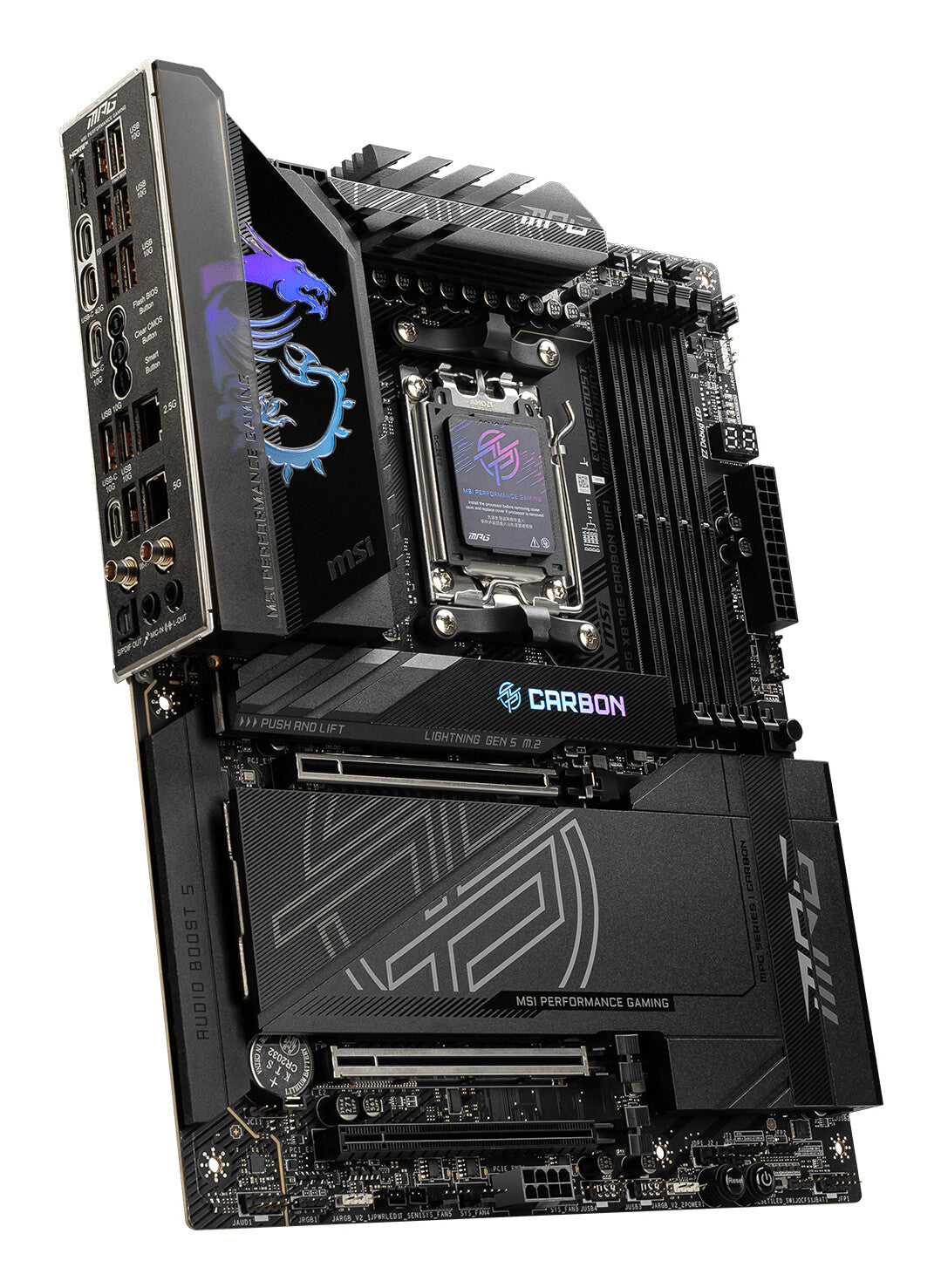

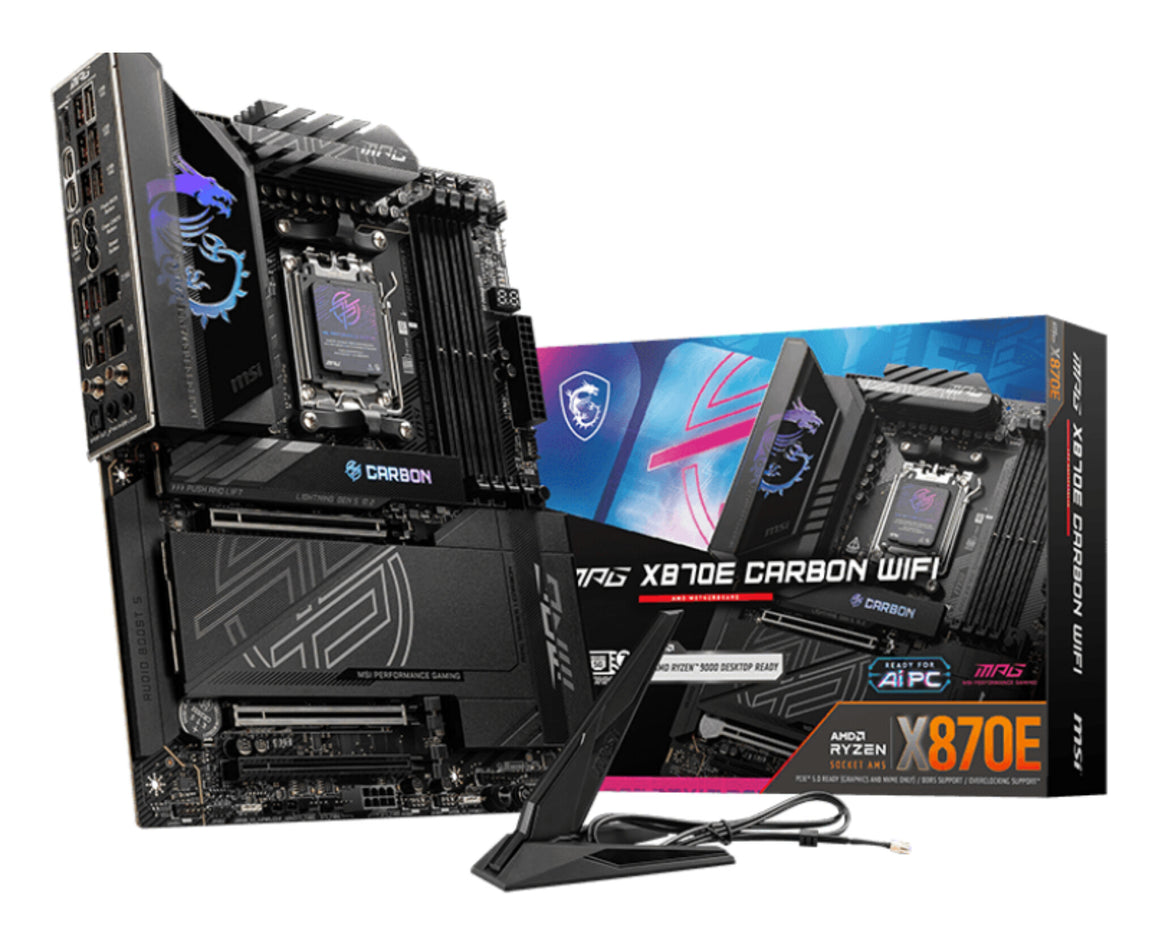

MSI MPG X870E CARBON WIFI motherboard AMD X870E Socket AM5 ATX

MSI
£470.03
  • AMD Socket AM5 AMD Ryzen™ 7
  • PC ATX AMD X870E 7.1 channels
  • DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB
  • HDD & SSD M.2, SATA III RAID support
  • 2.5 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4
Processor
Supported processor sockets Socket AM5
Compatible processor series AMD Ryzen™ 7
Processor socket Socket AM5
Processor manufacturer AMD
Memory
Maximum internal memory 256 GB
ECC сompatibility Non-ECC
Memory channels Dual-channel
Memory slots type DIMM
Number of memory slots 4
Supported memory types DDR5-SDRAM
Storage controllers
RAID support Yes
Supported storage drive interfaces M.2, SATA III
Supported storage drive types HDD & SSD
Graphics
On-board graphics card No
Internal I/O
EPS power connector (8-pin) Yes
CPU fan connector Yes
ATX Power connector (24-pin) Yes
Total number of SATA connectors 4
Number of SATA III connectors 4
USB 2.0 connectors 4

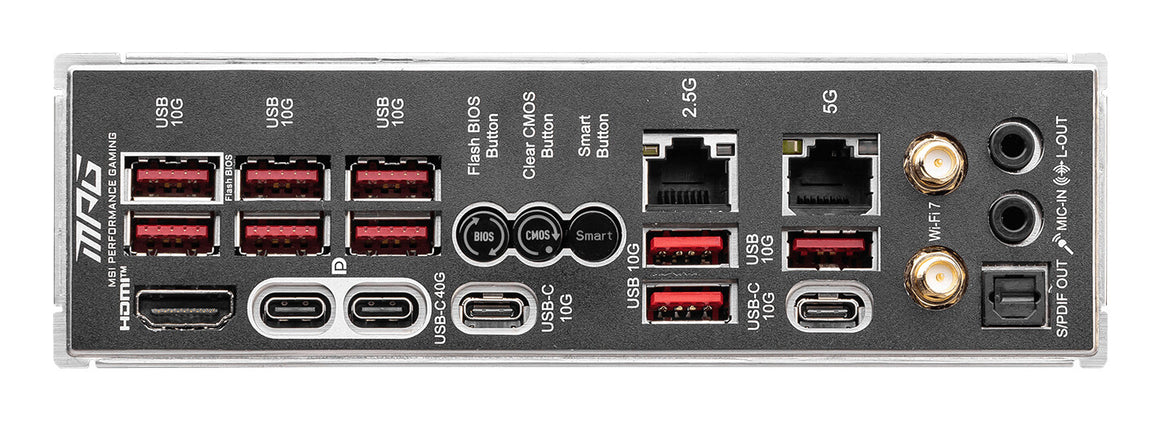

Rear panel I/O ports
S/PDIF out port Yes
Microphone in Yes
DisplayPorts quantity 2
HDMI ports quantity 1
Ethernet LAN (RJ-45) ports 1
USB4 Gen 2x2 ports quantity 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 6
Network
Bluetooth version 5.4
Bluetooth Yes
Wi-Fi standards Wi-Fi 7 (802.11be)
Top Wi-Fi standard Wi-Fi 7 (802.11be)
Wi-Fi Yes
Ethernet interface type 2.5 Gigabit Ethernet
Ethernet LAN Yes
Features
PC health monitoring CPU, Fan, Temperature, Voltage
Product colour Black
Audio output channels 7.1 channels
Motherboard chipset AMD X870E
Motherboard chipset family AMD
Motherboard form factor ATX
Component for PC
Expansion slots
Number of M.2 (M) slots 4
PCI Express x16 (Gen 5.x) slots 1
