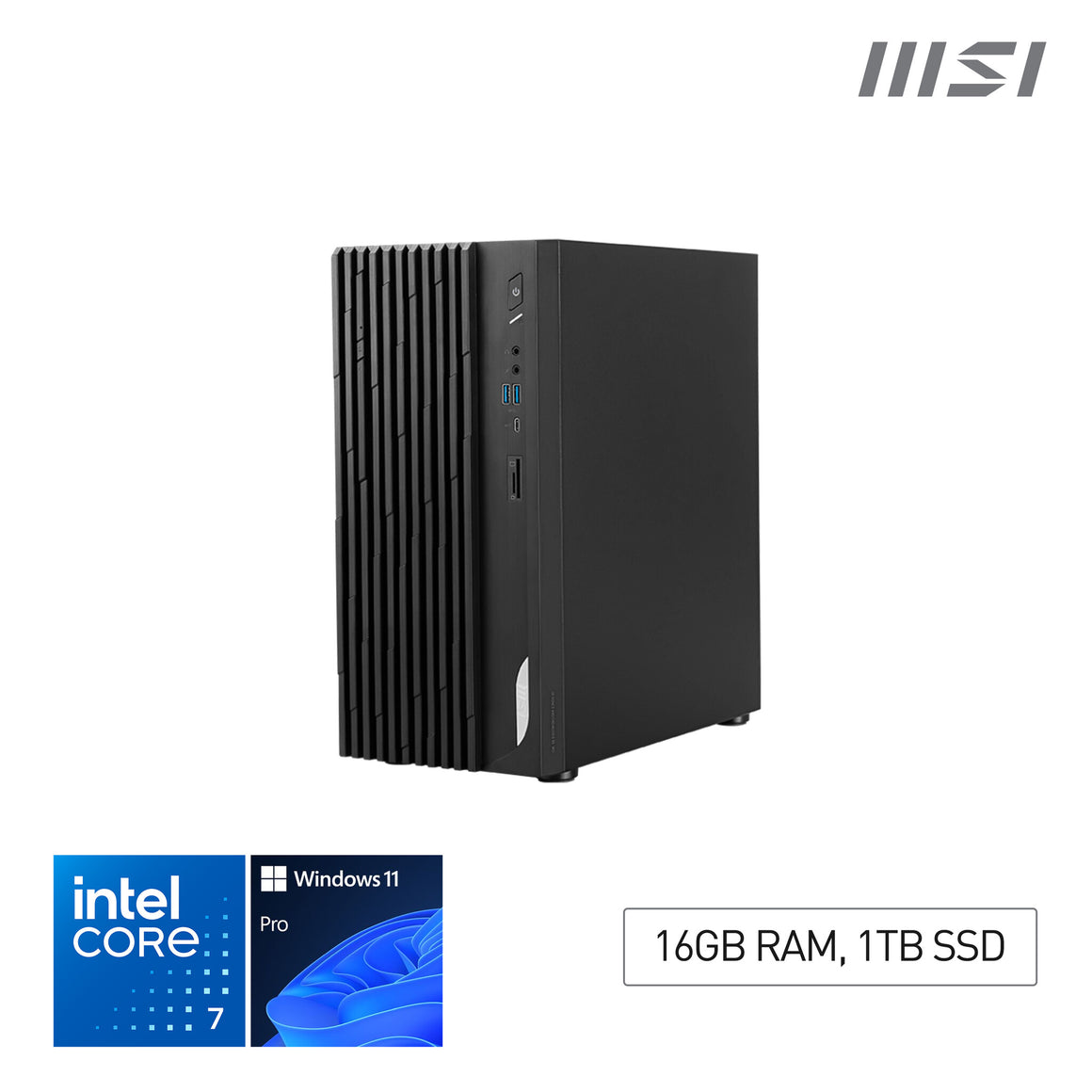

"PRO DP180 14A: The Powerful Mid-tower PC
The MSI PRO DP180 14A is a mid-toer yet powerful desktop with an incredible 18L design suitable for commercial office work or use as a home-theatre/entertainment PC (4K 60Hz display output, and it supports NVIDIA Graphics card which supports up to four-monitor setups).
The PRO DP180 14A-xxxEU- is a complete system equipped with an Intel 14th Gen Core i7 Processor 14700 processor, 16 GB of DDR5-5600MHz memory, 1TB of M.2 SSD storage, Intel Wi-Fi 6E & Bluetooth 5.3 connectivity, as well as Windows 11 Pro software pre-installed.

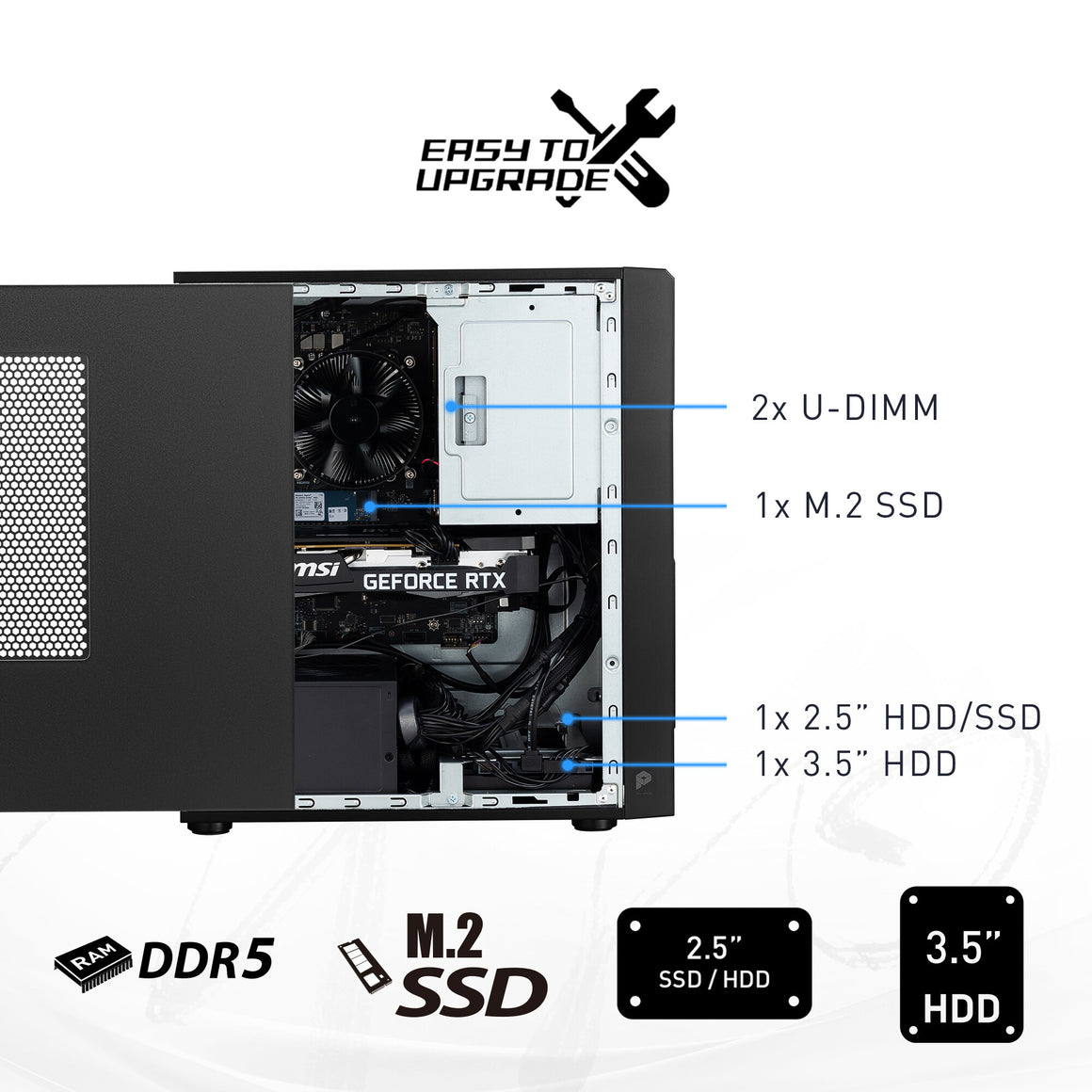

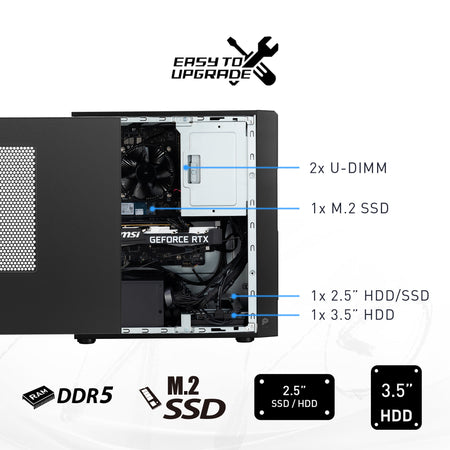

The easy-to-upgrade mid-tower case can house both M.2 (with auto switch), 2.5-in SSD/HDD, and 3.5-inch HDD storage, as well as up to 64 GB of system memory (2 x DDR5 5600MHz U-DIMMs).
Thanks to its cooling-optimized layout and low-noise fan, the MSI PRO DP180 14A is not only an energy-efficient computing solution but is also very quiet, running at a whisper-level 28 dBA while in idle mode.

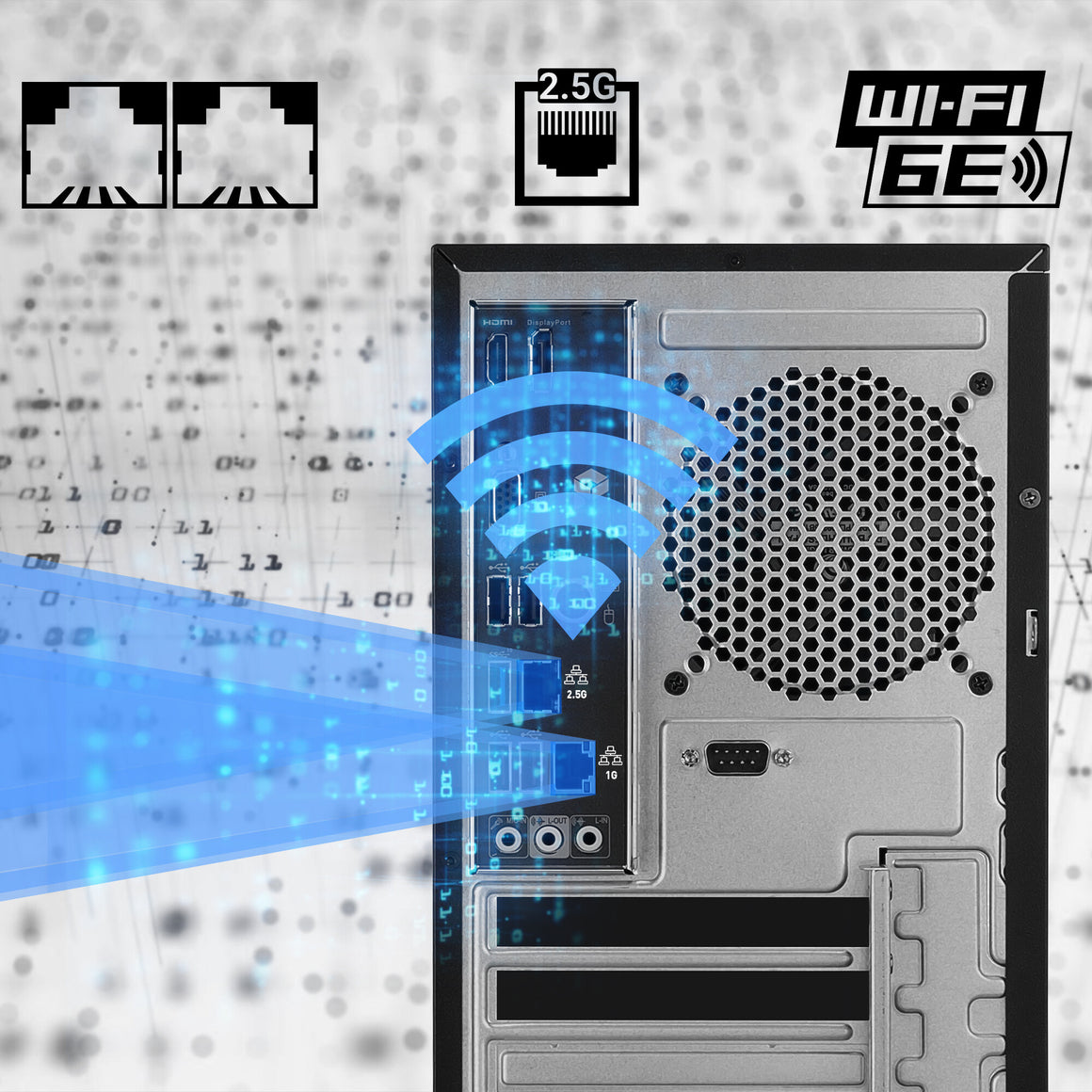

Front & rear I/O include dual LA (1G & 2.5Gbps Ethernet LAN), Mic-in and Headphones-out combo design, built-in card reader (SD & Micro SD card), 1 x USB 3.2 Gen 2 Type-C, 3 x USB 3.2 Gen 1 Type-A, and 4 USB 2.0 ports."
| Processor |
|---|
| Processor base power |
65 W |
| Maximum turbo power |
219 W |
| Number of processors installed |
1 |
| Processor cache type |
Smart Cache |
| Processor cache |
33 MB |
| Efficient-core base frequency |
1.5 GHz |
| Performance-core base frequency |
2.1 GHz |
| Efficient-core Max Turbo Frequency |
4.2 GHz |
| Performance-core Max Turbo Frequency |
5.4 GHz |
| Efficient cores |
12 |
| Performance cores |
8 |
| Processor frequency |
2.1 GHz |
| Processor boost frequency |
5.4 GHz |
| Processor threads |
28 |
| Processor cores |
20 |
| Processor model |
i7-14700 |
| Processor generation |
Intel® Core™ i7 (14th gen) |
| Processor family |
Intel® Core™ i7 |
| Processor manufacturer |
Intel |
| Neural processor unit (NPU) |
|---|
| Neural processor unit (NPU) |
No |
| Memory |
|---|
| Non-ECC |
Yes |
| ECC |
No |
| Buffered memory type |
Clocked unregistered (unbuffered) |
| Memory channels |
Dual-channel |
| Memory data transfer rate |
5600 MT/s |
| Memory clock speed |
5600 MHz |
| Memory slots |
2x SO-DIMM |
| Memory layout (slots x size) |
2 x 8 GB |
| Internal memory type |
DDR5-SDRAM |
| Maximum internal memory |
64 GB |
| Internal memory |
16 GB |
| Storage |
|---|
| Intel® Optane™ Memory module installed |
No |
| Card reader integrated |
No |
| M.2 SSD size |
2280 (22 x 80 mm) |
| SSD form factor |
M.2 |
| NVMe |
Yes |
| SSD interface |
PCI Express 3.0 |
| SSD capacity |
1 TB |
| SSD memory type |
TLC |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
1 TB |
| HDD capacity |
0 GB |
| Total HDDs capacity |
0 GB |
| Number of storage drives supported |
1 |
| Number of storage drives installed |
1 |
| Storage media |
SSD |
| Optical drive type |
No |
| Total storage capacity |
1 TB |
| Graphics |
|---|
| Graphics card DisplayPorts quantity |
1 |
| Graphics card HDMI ports quantity |
1 |
| Ray tracing acceleration |
No |
| NVIDIA G-SYNC |
No |
| NVIDIA GameWorks VR |
No |
| CUDA |
No |
| AMD FreeSync |
No |
| Graphics card Open GL support |
Yes |
| Number of external displays supported |
3 |
| On-board graphics card 8K support |
Yes |
| On-board graphics card 6K support |
Yes |
| On-board graphics card cores |
32 |
| On-board graphics card model |
Intel UHD Graphics 770 |
| On-board graphics card family |
Intel® UHD Graphics |
| On-board GPU manufacturer |
Intel |
| Discrete graphics card memory |
0 GB |
| On-board graphics card |
Yes |
| Discrete graphics card |
No |
| Network |
|---|
| Bluetooth version |
5.3 |
| Wi-Fi standards |
Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| Wi-Fi |
Yes |
| Ethernet LAN data rates |
1000 Mbit/s |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
2 |
| HDMI ports quantity |
1 |
| USB 2.0 ports quantity |
4 |
| Performance |
|---|
| Built-in speaker(s) |
No |
| Compatible processor series |
Intel Core i7 14th Gen |
| Product type |
Mini PC |
| Software |
|---|
| Drivers included |
Yes |
| Copilot+ PC |
No |
| Apple Intelligence |
No |
| Operating system language |
English |
| Windows 11 free upgrade |
No |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 11 Pro |
| Power |
|---|
| Power supply input frequency |
50 - 60 Hz |
| Power supply input voltage |
100 - 240 V |
| Power supply |
350 W |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
0 - 90% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Certificates |
|---|
| Low halogen |
No |
| Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS |
| Waste Electrical and Electronic Equipment (WEEE) compliance |
Yes |
| PSTI certified |
No |
| Weight & dimensions |
|---|
| Package weight |
9.03 kg |
| Package height |
510 mm |
| Package depth |
242 mm |
| Package width |
565 mm |
| Weight |
7.59 kg |

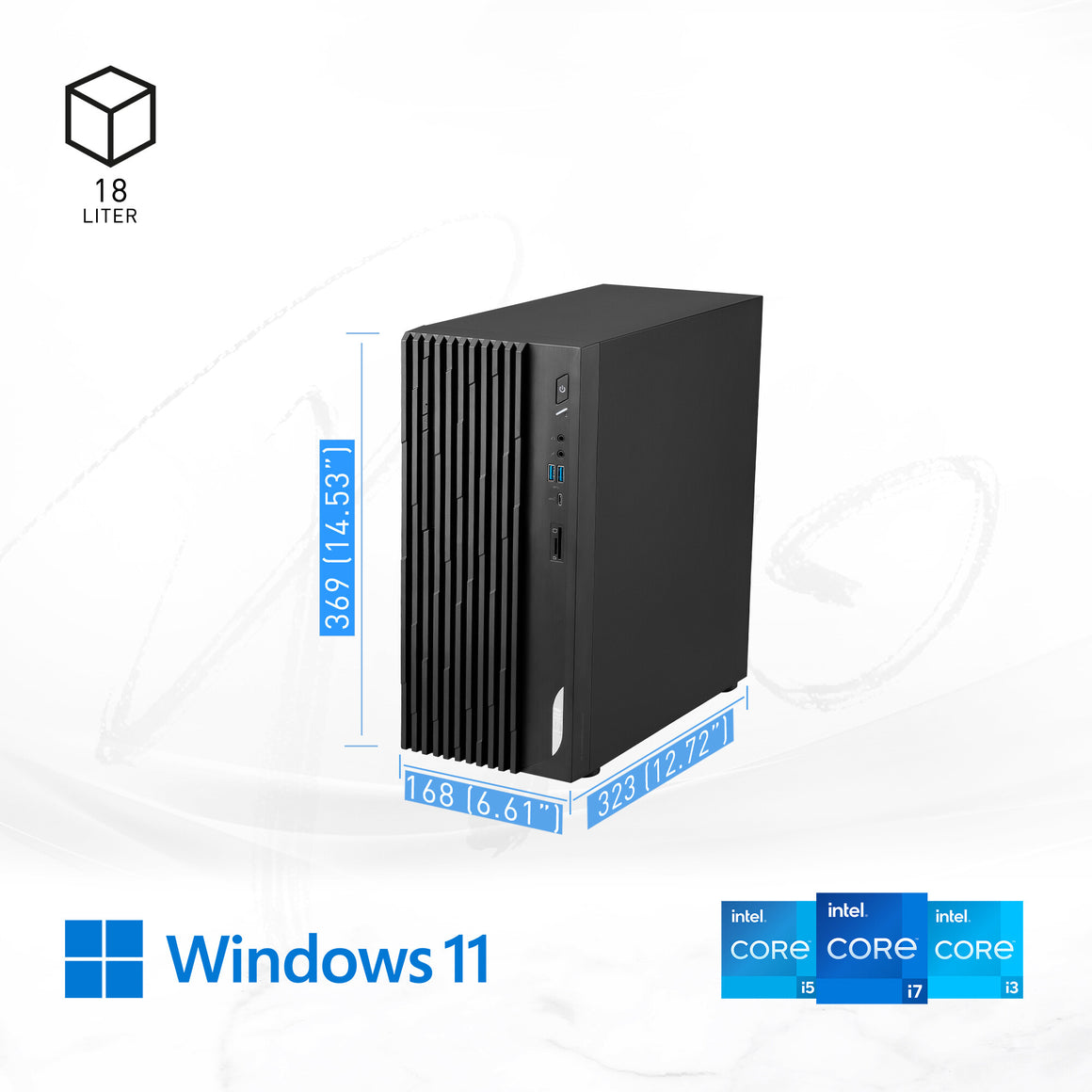

| Height |
369 mm |
| Depth |
323 mm |
| Width |
168 mm |
| Packaging content |
|---|
| Manual |
Yes |
| Screws included |
No |
| VESA mount included |
No |
| Power cable length |
1.5 m |
| Cables included |
AC |
| Numeric keypad |
No |
| Keyboard backlit |
No |
| Keyboard included |
No |
| Mouse included |
No |
| Display included |
No |
| General |
|---|
| Product family |
Pro |
| Technical details |
|---|
| Statement of conformance & platform certificate included |
Yes |
| Other features |
|---|
| Built-in microphone |
No |
| Locale |
English |
| Warranty period |
3 year(s) |
| TV tuner integrated |
No |
