SKU: PRO DP21 14M I5 14400 FS 16GB 500GB W11P

MSI Pro DP21 14M Intel Core 5 14400, Desktop PC, DP21 14M, SFF, Mini Computer, HTPC, (16GB RAM, 512GB Storage, Windows 11 ), Intel Graphics/DDR5/Dual HDMI/Dual LAN/WiFi 6E/BT 5.3

MSI
£635.09
iFrame

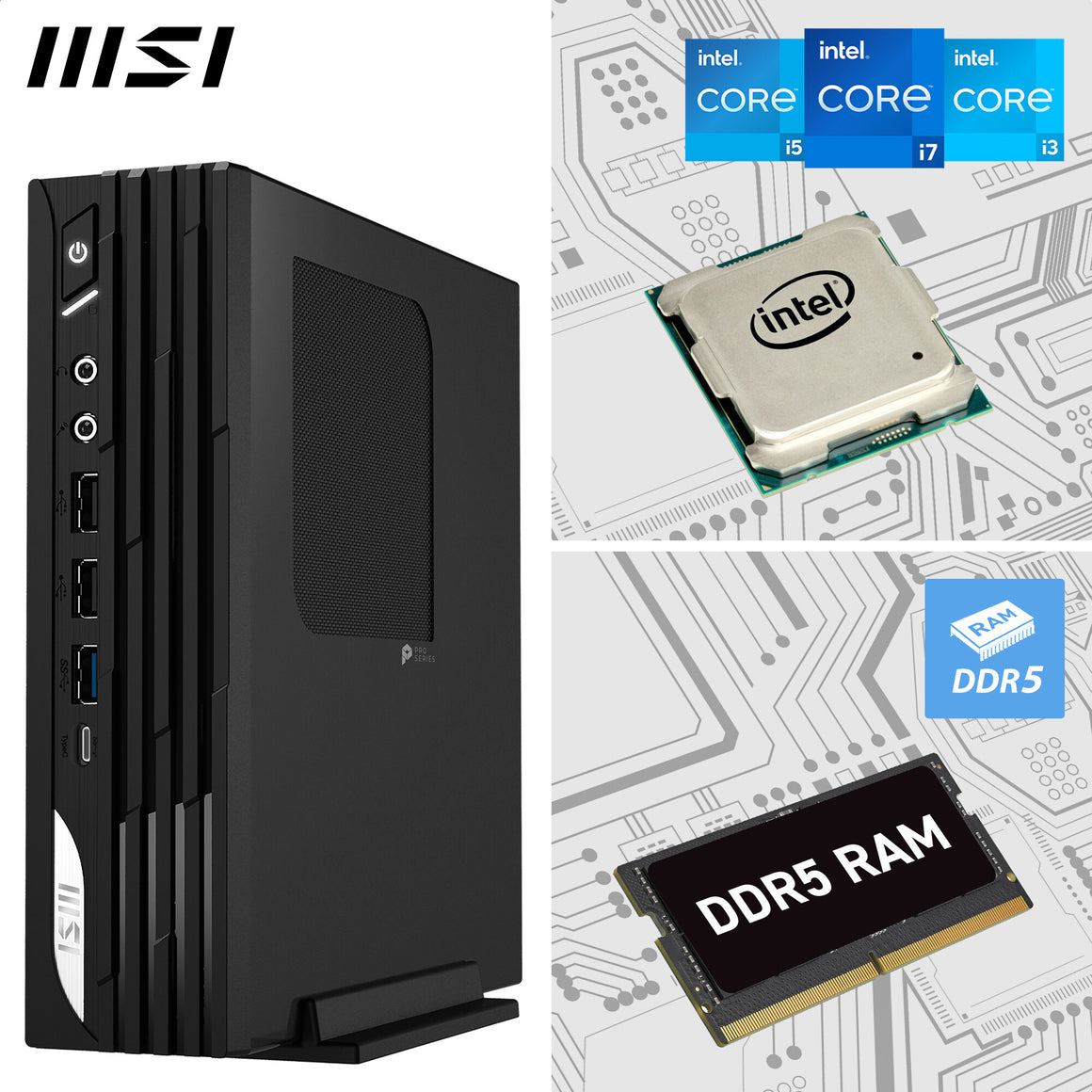

  • INTEL 14TH GEN CORE i5 PC - DP21 14M is a compact (2.3L) mini PC featuring an Intel 14th Gen. Core i5-14400 processor with 20-core / 28-thread architecture (2.1GHz base frequency, 5.4GHz max. turbo); Windows 11 Pro software pre-installed
  • 16GB RAM, UHD GRAPHICS - The system includes 16GB of pre-installed DDR5 memory (2 x SO-DIMMs up to 64GB) and supports 4K display at up to 60Hz - ideal for watching hi-res movies
  • The rear I/O includes HDMI 2.0 & DP 1.4 ports for dual monitor setups

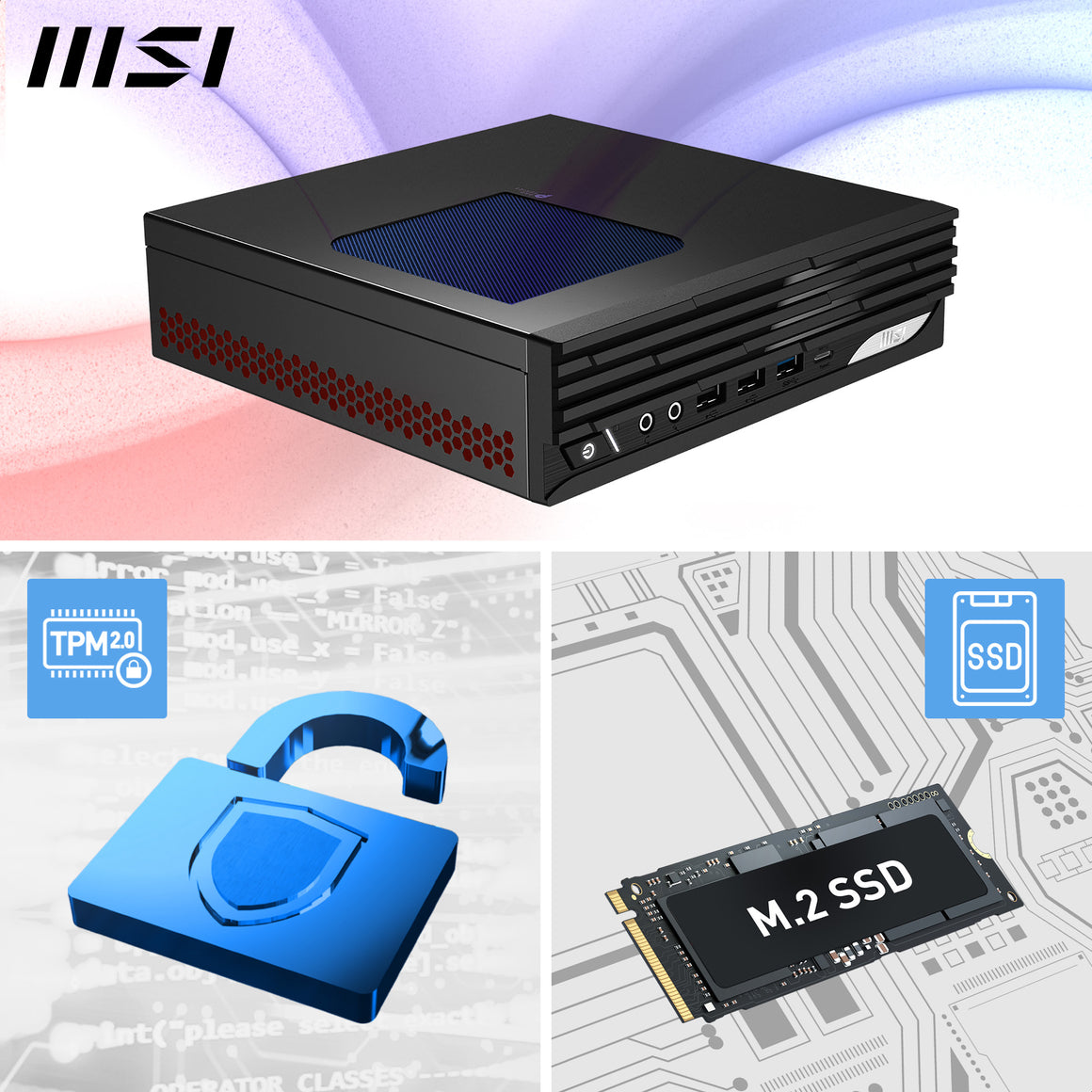

  • 1TB PCIe M.2 SSD STORAGE- 512GB of pre-installed PCIe M.2 SSD storage ensures faster loading speeds (supports up to 2 x 2.5" HDD/SSD & 1 x M.2 with auto switch)
  • The dTPM2.0 (Trusted Platform Module 2.0) technology provides security for storing sensitive data & passwords
  • A server-grade thermal module distributes the cooling of different components within the system
  • MSI Power Meter & MSI AI Engine - Power Meter enables one-click power saving, carbon emission calculation & electricity cost estimation

"MSI PRO DP21 14M Mini PC (SFF):

The MSI PRO DP21 14M is a small yet powerful mini-desktop with a compact 2.3L design suitable for commercial office work.

The PRO DP21 14M I5 14400 FS 16GB 512GB W11P is a complete system equipped with an Intel 14th Gen Core i5-14400 processor with 10-core / 16-thread architecture (2.1GHz base frequency, 5.4GHz max. turbo), 16GB DDR5 memory, 512GB of M.2 SSD storage, Intel Wi-Fi 6E & Bluetooth 5.3 connectivity. Windows 11 Pro software is pre-installed.

The easy-to-upgrade SFF case can house both M.2 (with auto switch) & 2 x 2.5-inch SSD/HDD storage, as well as up to 64 GB of system memory (2 x DDR5 SO-DIMMs)

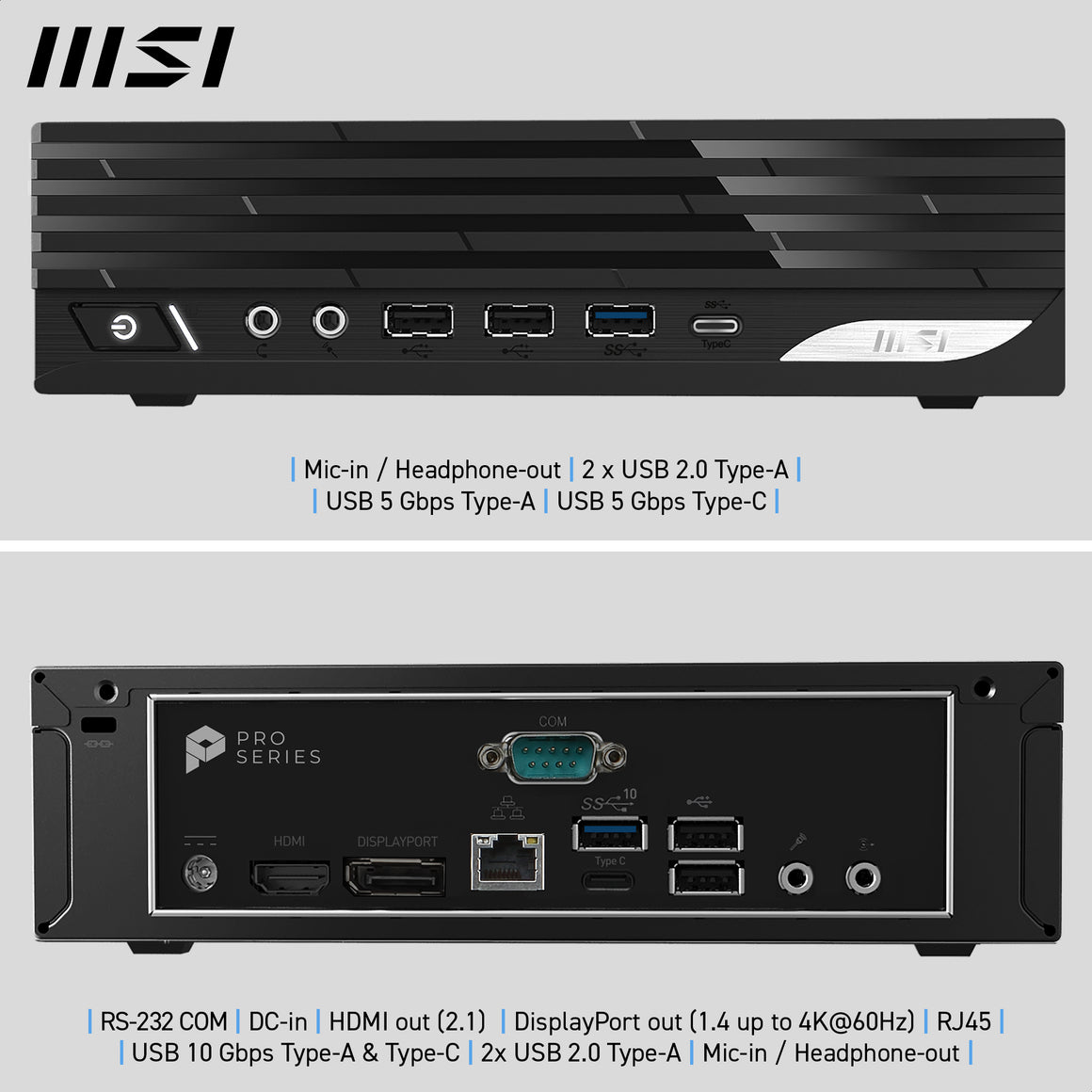

Front & rear I/O include Intel 1Gbps ethernet LAN RJ45, Mic-in, Headphones-out, 8 x USB (10Gbps Type-A & C, 5Gbps Type-A & C, 2.0 Type-A), and HDMI 2.1 & DP 1.4 ports. The PRO DP21 14M also contains a COM port for connecting to POS devices. dTrusted Platform Module 2.0 (dTPM2.0) technology provides security for storing sensitive information."

Processor
Processor base power 65 W
Maximum turbo power 148 W
Number of processors installed 1
Processor cache type Smart Cache
Processor cache 20 MB
Efficient-core base frequency 1.8 GHz
Performance-core base frequency 2.5 GHz
Efficient-core Max Turbo Frequency 3.5 GHz
Performance-core Max Turbo Frequency 4.7 GHz
Efficient cores 4
Performance cores 6
Processor frequency 2.5 GHz
Processor boost frequency 4.7 GHz
Processor threads 16
Processor cores 10
Processor model i5-14400
Processor generation Intel® Core™ i5 (14th gen)
Processor family Intel® Core™ i5
Processor manufacturer Intel
Neural processor unit (NPU)
Neural processor unit (NPU) No
Memory
Non-ECC Yes
ECC No
Buffered memory type Clocked unregistered (unbuffered)
Memory channels Dual-channel
Memory data transfer rate 5600 MT/s
Memory clock speed 5600 MHz
Memory slots 2x SO-DIMM
Memory layout (slots x size) 2 x 8 GB
Internal memory type DDR5-SDRAM
Maximum internal memory 64 GB
Internal memory 16 GB
Storage
Intel® Optane™ Memory module installed No
Card reader integrated No
M.2 SSD size 2280 (22 x 80 mm)
SSD form factor M.2
NVMe Yes
SSD interface PCI Express 3.0
SSD capacity 512 GB
SSD memory type TLC
Number of SSDs installed 1
Total HDDs capacity 0 GB
Number of storage drives supported 3
Number of storage drives installed 1
Storage media SSD
Optical drive type No
Total storage capacity 512 GB
Graphics
Graphics card DisplayPorts quantity 1
Graphics card HDMI ports quantity 1
Ray tracing acceleration No
NVIDIA G-SYNC No
NVIDIA GameWorks VR No
CUDA No
AMD FreeSync No
Graphics card Open GL support Yes
Number of external displays supported 2
On-board graphics card 8K support Yes
On-board graphics card 6K support No
On-board graphics card cores 24
On-board graphics card model Intel® UHD Graphics
On-board graphics card family Intel® UHD Graphics
On-board GPU manufacturer Intel
Discrete graphics card memory 0 GB
On-board graphics card Yes
Discrete graphics card No
Network
Bluetooth version 5.3
Wi-Fi standards Wi-Fi 6E (802.11ax)
Top Wi-Fi standard Wi-Fi 6E (802.11ax)
Wi-Fi Yes
Ethernet LAN data rates 1000 Mbit/s
Ports & interfaces
Ethernet LAN (RJ-45) ports 1
HDMI ports quantity 1
USB 2.0 ports quantity 4
Performance
Sound pressure level 28 dB
Built-in speaker(s) No
Compatible processor series Intel Core i5 14th Gen
Product type Mini PC
Software
Drivers included Yes
Copilot+ PC No
Apple Intelligence No
Operating system language English
Windows 11 free upgrade Yes
Operating system architecture 64-bit
Operating system installed Windows 11 Pro
Power
Power supply input frequency 50 - 60 Hz
Power supply input voltage 100 - 240 V
Power supply 120 W
Operational conditions
Storage relative humidity (H-H) 0 - 90%
Storage temperature (T-T) -20 - 60 °C
Certificates
Low halogen No
Compliance certificates CE, Federal Communications Commission (FCC), RoHS
Waste Electrical and Electronic Equipment (WEEE) compliance Yes
PSTI certified No

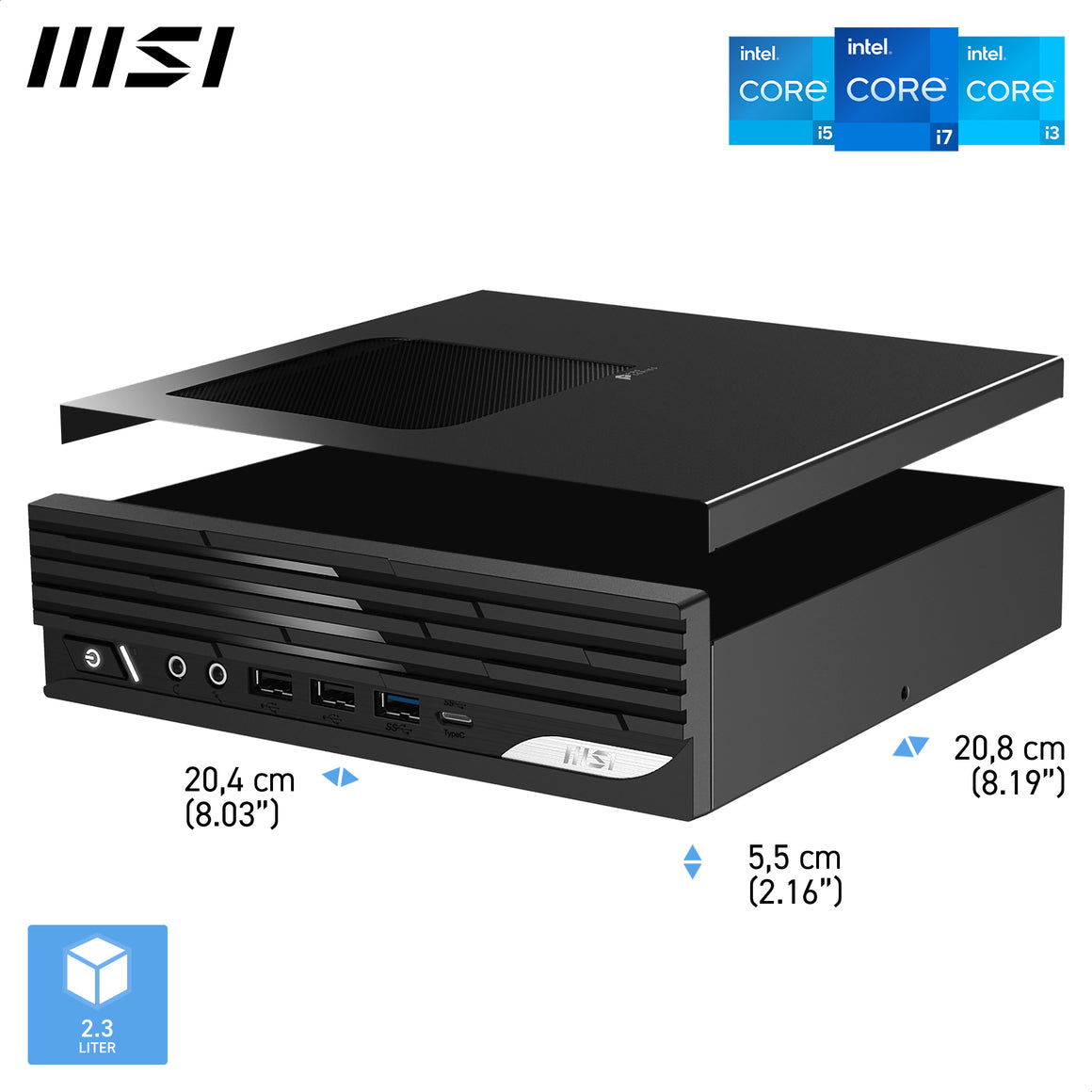

Weight & dimensions
Package weight 2.8 kg
Package height 122 mm
Package depth 382 mm
Package width 271 mm
Weight 1.27 kg
Height 54.8 mm
Depth 208 mm
Width 204 mm
Packaging content
Manual Yes
Screws included No
VESA mount included No
Power cable length 1.5 m
Cables included AC
Numeric keypad No
Keyboard backlit No
Keyboard included No
Mouse included No
Display included No
General
Product family Pro
Technical details
Dangerous goods No
Statement of conformance & platform certificate included Yes
Other features
Built-in microphone No
Locale English
Warranty period 3 year(s)
TV tuner integrated No
