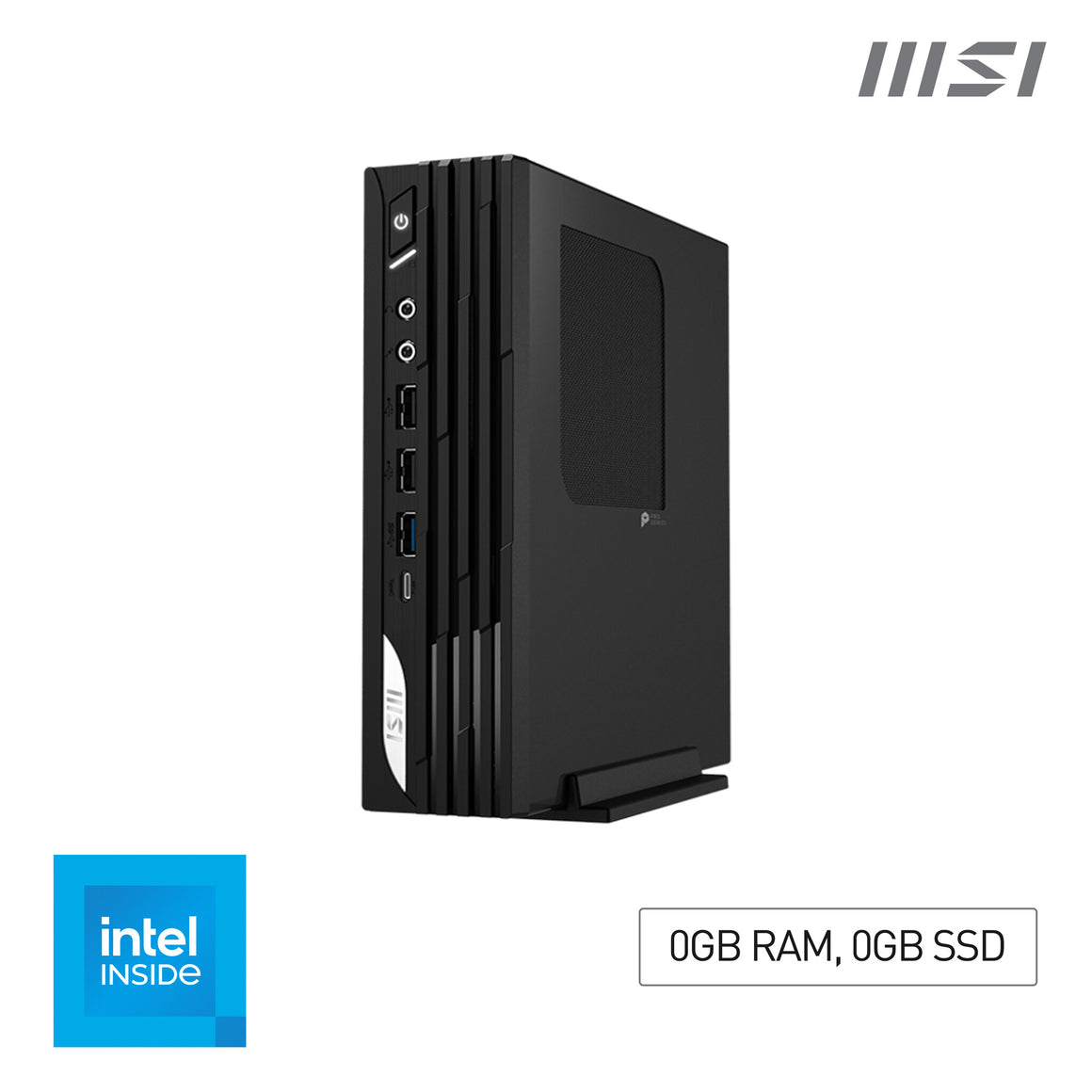

MSI PRO DP21 14M Intel Core 7 14700, Barebone, DP21 14M, SFF, Mini Computer, HTPC, (NO RAM, NO Storage, NO OS), Intel Graphics/DDR5/Dual HDMI/Dual LAN/WiFi 6E/BT 5.3

SKU: PRO DP21 14M I7 14700 BB

£574.87 inc. VAT

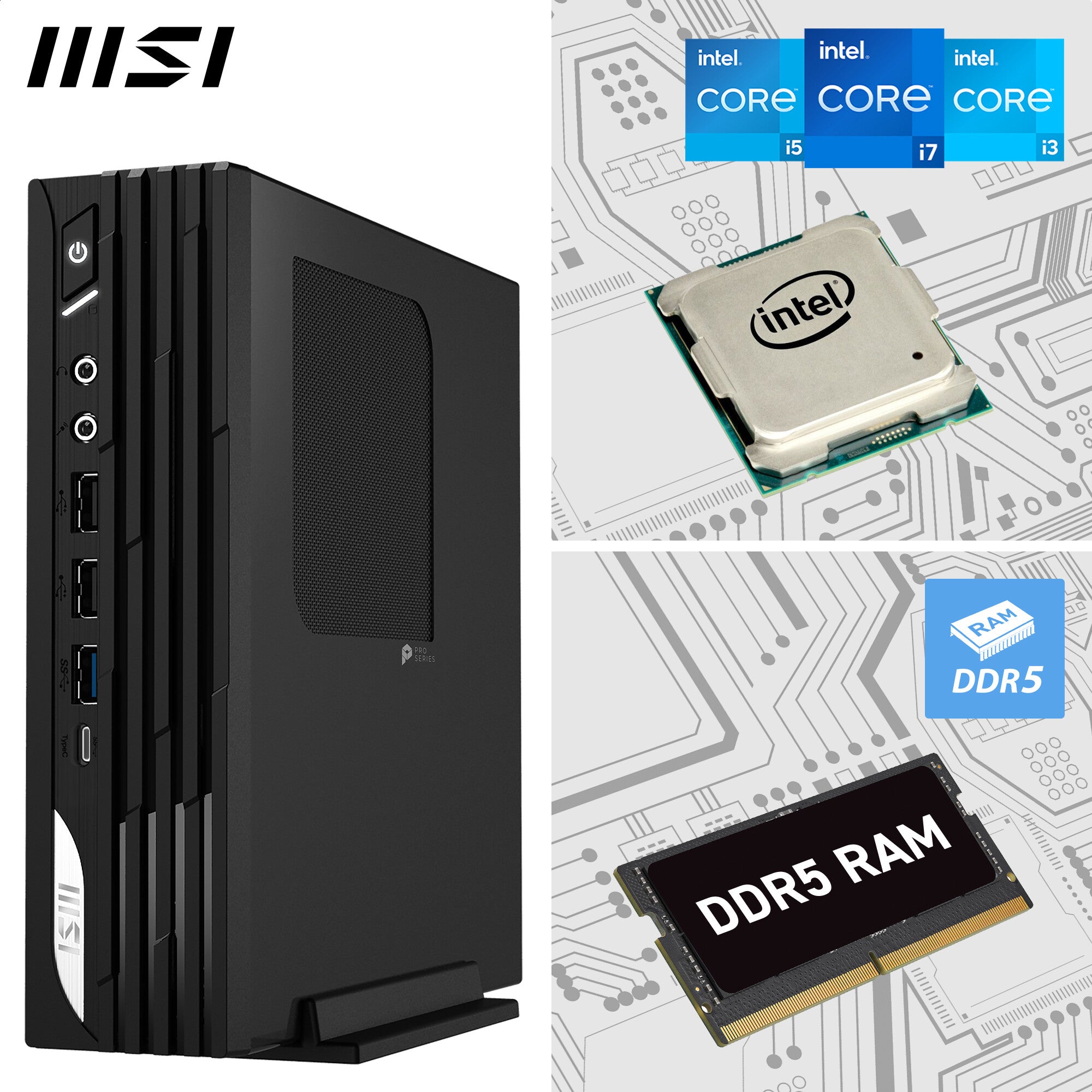

INTEL 14TH GEN CORE i7 PC - DP21 14M is a compact (2.3L) mini PC featuring an Intel 14th Gen. Core i7-14700 processor with 20-core / 28-thread architecture (2.1GHz base frequency, 5.4GHz max. turbo); Windows 11 Pro software pre-installed

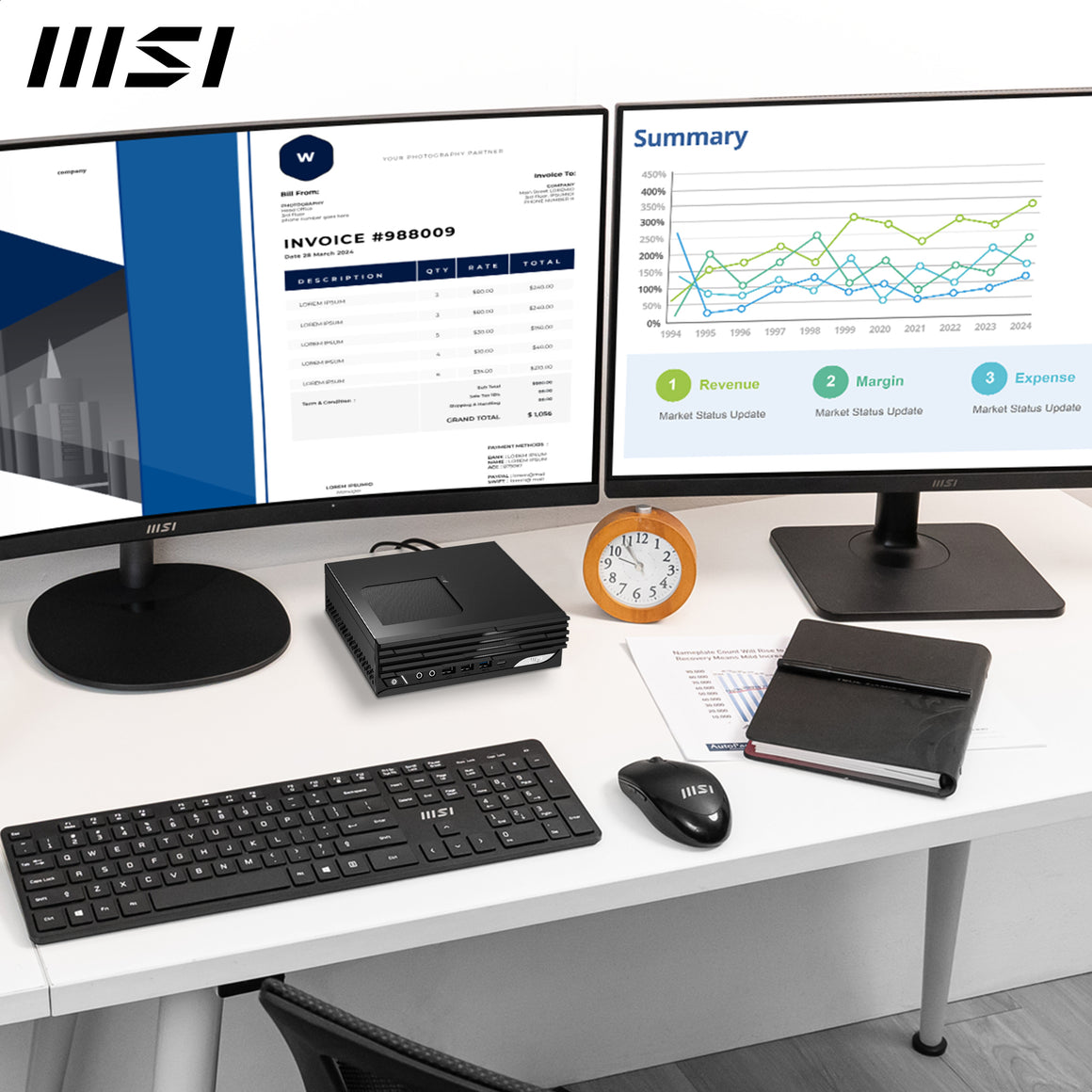

UHD GRAPHICS - supports 4K display at up to 60Hz - ideal for watching hi-res movies; The rear I/O includes HDMI 2.0 & DP 1.4 ports for dual monitor setups
supports up to 2 x 2.5" HDD/SSD & 1 x M.2 with auto switch

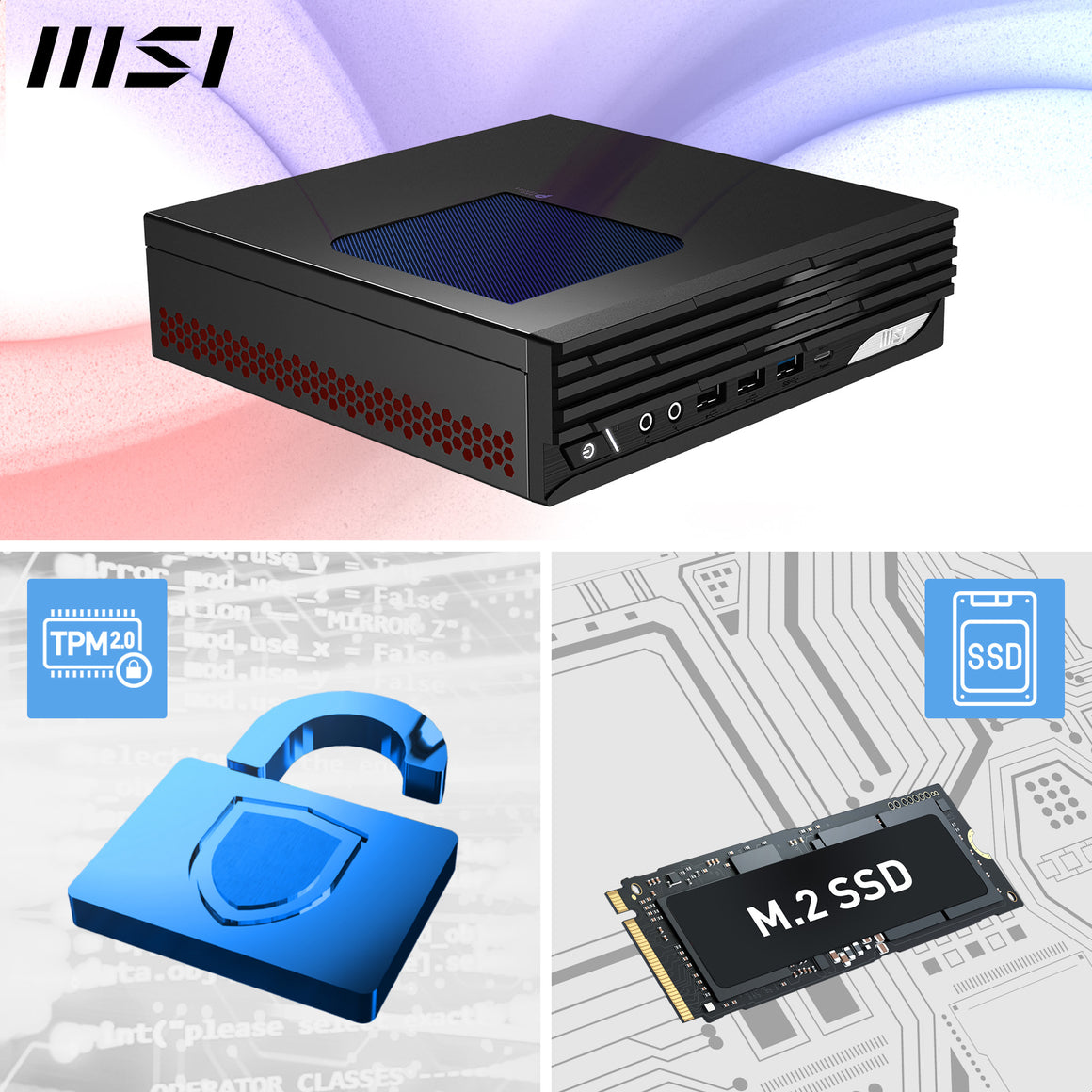

The dTPM2.0 (Trusted Platform Module 2.0) technology provides security for storing sensitive data & passwords. A server-grade thermal module distributes the cooling of different components within the system
MSI Power Meter & MSI AI Engine - Power Meter enables one-click power saving, carbon emission calculation & electricity cost estimation

"MSI PRO DP21 14M Mini PC (SFF):

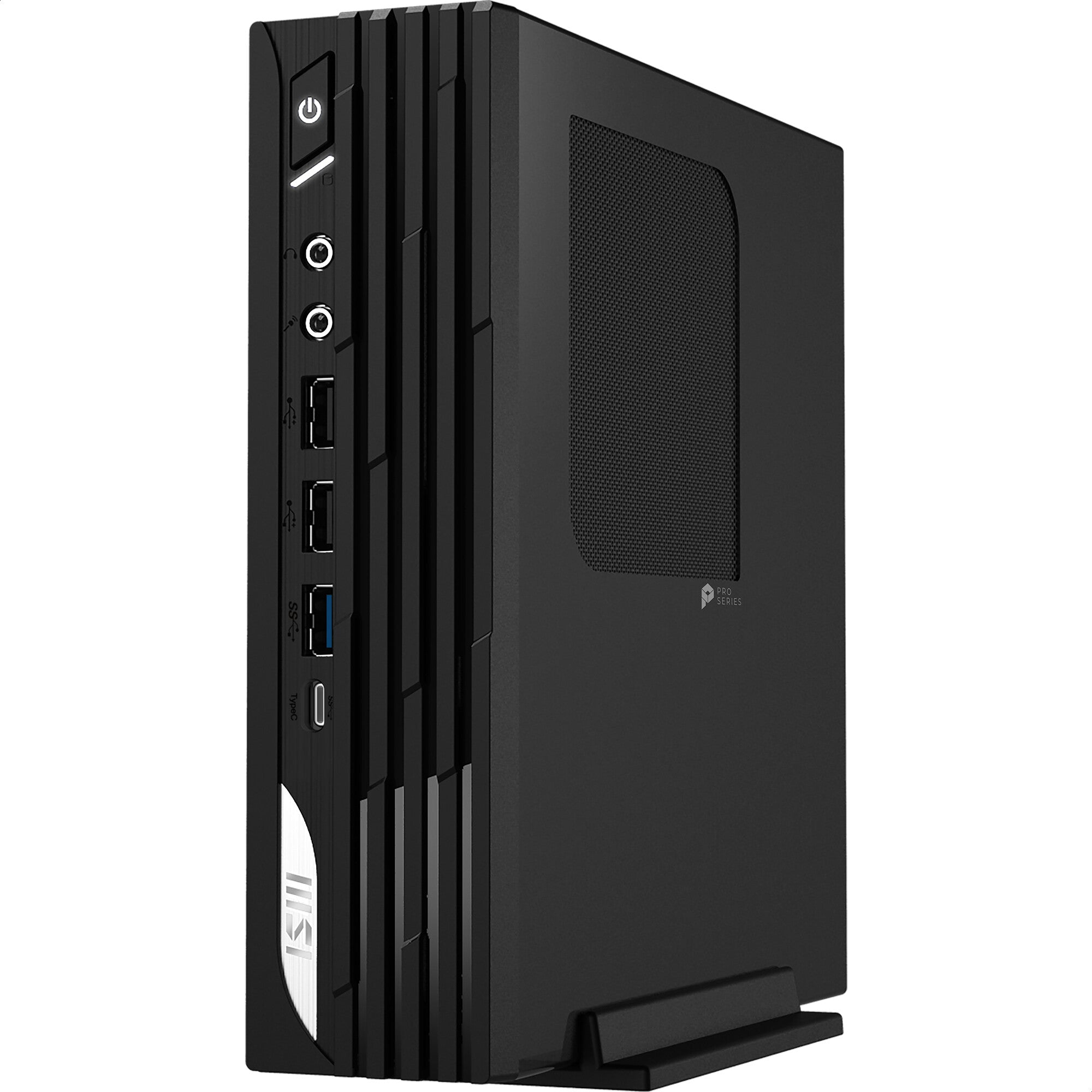

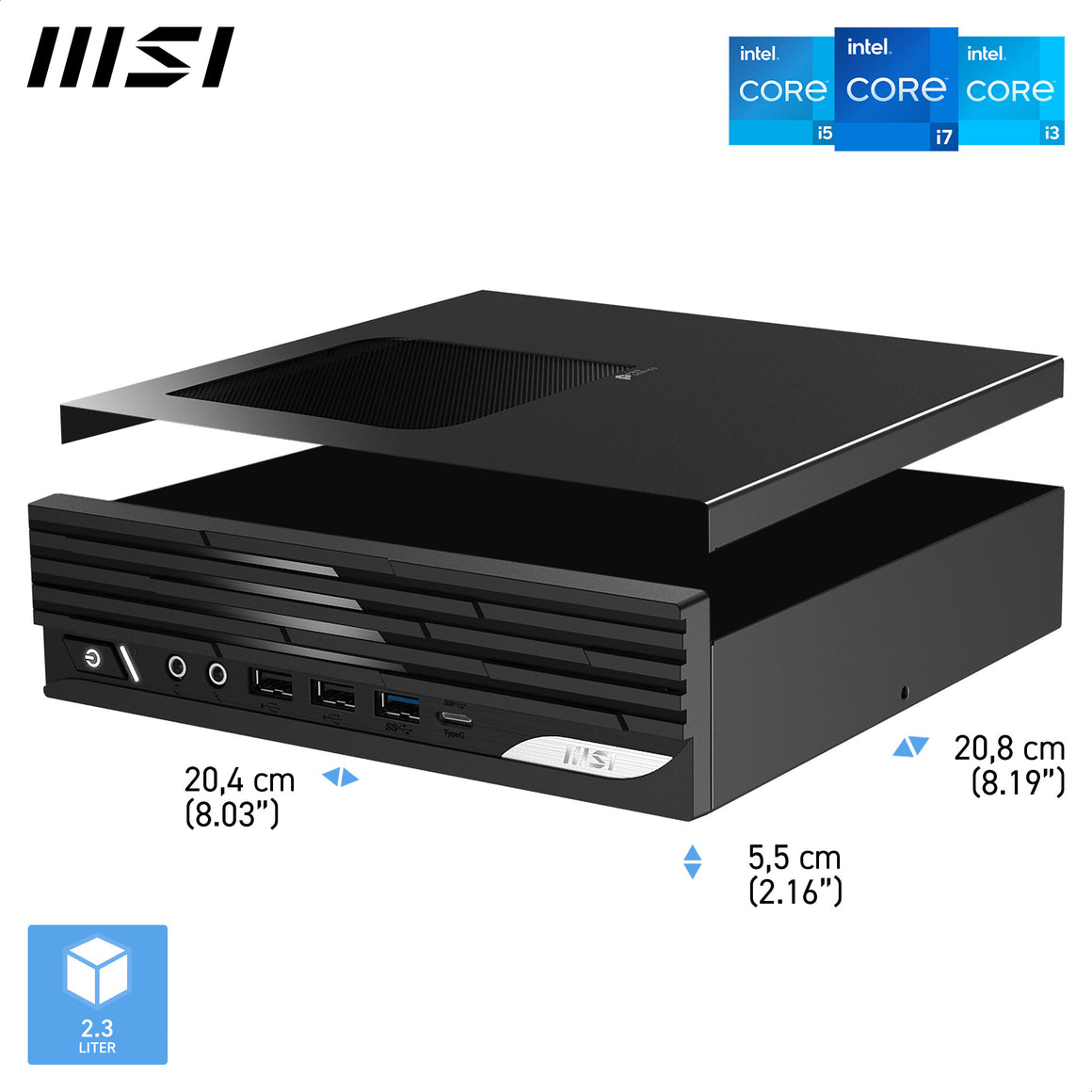

The MSI PRO DP21 14M is a small yet powerful mini-desktop with a compact 2.3L design suitable for commercial office work.

The PRO DP21 14M i7 14700 BB is a complete system equipped with an Intel 14th Gen Core i7-14700 processor with 20-core / 28-thread architecture (2.1GHz base frequency, 5.4GHz max. turbo), Intel Wi-Fi 6E & Bluetooth 5.3 connectivity. Windows 11 Pro software is pre-installed.

The easy-to-upgrade SFF case can house both M.2 (with auto switch) & 2 x 2.5-inch SSD/HDD storage, as well as up to 64 GB of system memory (2 x DDR5 SO-DIMMs)

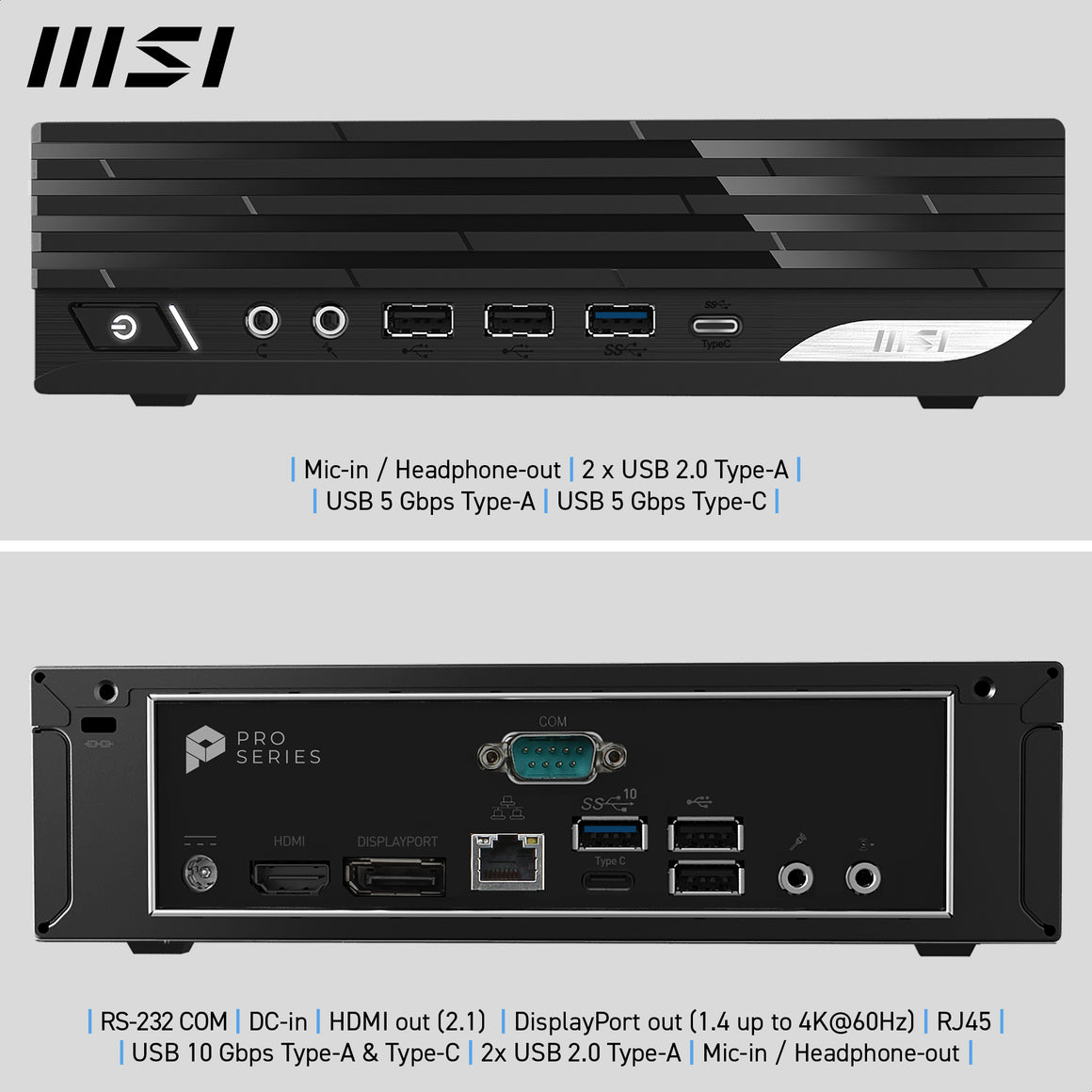

Front & rear I/O include Intel 1Gbps ethernet LAN RJ45, Mic-in, Headphones-out, 8 x USB (10Gbps Type-A & C, 5Gbps Type-A & C, 2.0 Type-A), and HDMI 2.1 & DP 1.4 ports. The PRO DP21 14M also contains a COM port for connecting to POS devices. dTrusted Platform Module 2.0 (dTPM2.0) technology provides security for storing sensitive information."

Processor
ECC supported by processor	No
Thermal Design Power (TDP)	65 W
L3 cache	33 MB
Processor cache	33 MB
Performance-core base frequency	2.1 GHz
Efficient-core Max Turbo Frequency	4.3 GHz
Performance-core Max Turbo Frequency	5.4 GHz
Efficient cores	12
Performance cores	8
Processor frequency	2.1 GHz
Processor boost frequency	5.4 GHz
Processor threads	16
Processor cores	20
Processor family	Intel® Core™ i7
Processor manufacturer	Intel
Built-in processor	Yes

Memory
Non-ECC	Yes
ECC	No
Supported memory types	DDR5-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	5600 MHz
Memory channels	Dual-channel

Graphics
On-board graphics card model	Intel UHD Graphics 770
Graphics card family	Intel
On-board graphics card	Yes

Display
Touchscreen	No

Audio
Built-in speaker(s)	No

Network
LAN controller	Realtek RTL8111H
Bluetooth	Yes
Bluetooth version	5.3
Bluetooth Low Energy (BLE)	Yes
WLAN controller model	Intel Wi-Fi 6E AX211
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi	Yes
Ethernet LAN	Yes

Ports & interfaces
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 2.0 ports quantity	4

Design
Product type	Mini PC barebone
Cooling type	Active
Product colour	Black
Chassis type	Mini-Tower

Performance
ACPI version	6.3
BIOS memory size	256 Mbit
BIOS type	UEFI
Supported processor frequency (max)	5.4 GHz
Number of processors supported	1
Processor socket	LGA 1700
Motherboard chipset	Intel H610
Motherboard form factor	micro ATX

Processor special features
Intel® High Definition Audio (Intel® HD Audio)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® Optane™ Memory Ready	Yes
Intel® Platform Trust Technology (Intel® PTT)	Yes
Intel On-Demand Power Redundancy Technology	No
Intel Virtualization Technology (VT-x)	Yes
Intel Dual Display Capable Technology	Yes
Intel® Quick Sync Video Technology	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Wireless Display (Intel® WiDi)	No
Intel FDI Technology	No
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Turbo Boost Technology	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® My WiFi Technology (Intel® MWT)	No
Intel Demand Based Switching	No
Thermal Monitoring Technologies	Yes
Intel Fast Memory Access	No
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Smart Cache	Yes
Intel Visual BIOS	No
Intel Express BIOS update	No
Intel® Matrix Storage Technology (Intel® MST)	No
Intel Smart Connect Technology	No
Intel® Small Business Advantage (Intel® SBA)	No
Intel® Secure Key	Yes
Intel® Smart Response Technology	No
Intel® OS Guard	Yes
Conflict-Free	Yes
Intel® Rapid Start Technology	No
Intel Advanced Management Technology	No
Intel® Unite™	No
Intel Unite installed	No
Intel® Virtualization Technology (Intel® VT)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Embedded options available	No
Intel Rapid Storage Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel 64	Yes
Idle States	Yes
Enhanced Intel SpeedStep Technology	Yes
Intel Flex Memory Access	Yes
Intel Trusted Execution Technology	No
Execute Disable Bit	Yes
Intel TSX-NI	No
Intel Stable Image Platform Program (SIPP)	No
Intel Clear Video Technology	Yes
Intel® vPro™ Platform Eligibility	No

Certificates
Waste Electrical and Electronic Equipment (WEEE) compliance	Yes

Technical details
Compliance certificates	BSMI, CB, CE, Federal Communications Commission (FCC), UL

Power
Power supply	120 W
Number of power supply units	1
Power supply type	External AC adapter

Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	10 - 90%

Weight & dimensions
Weight	1.27 kg
Height	54.8 mm
Depth	208 mm
Width	204 mm

Packaging content
Drivers included	Yes
