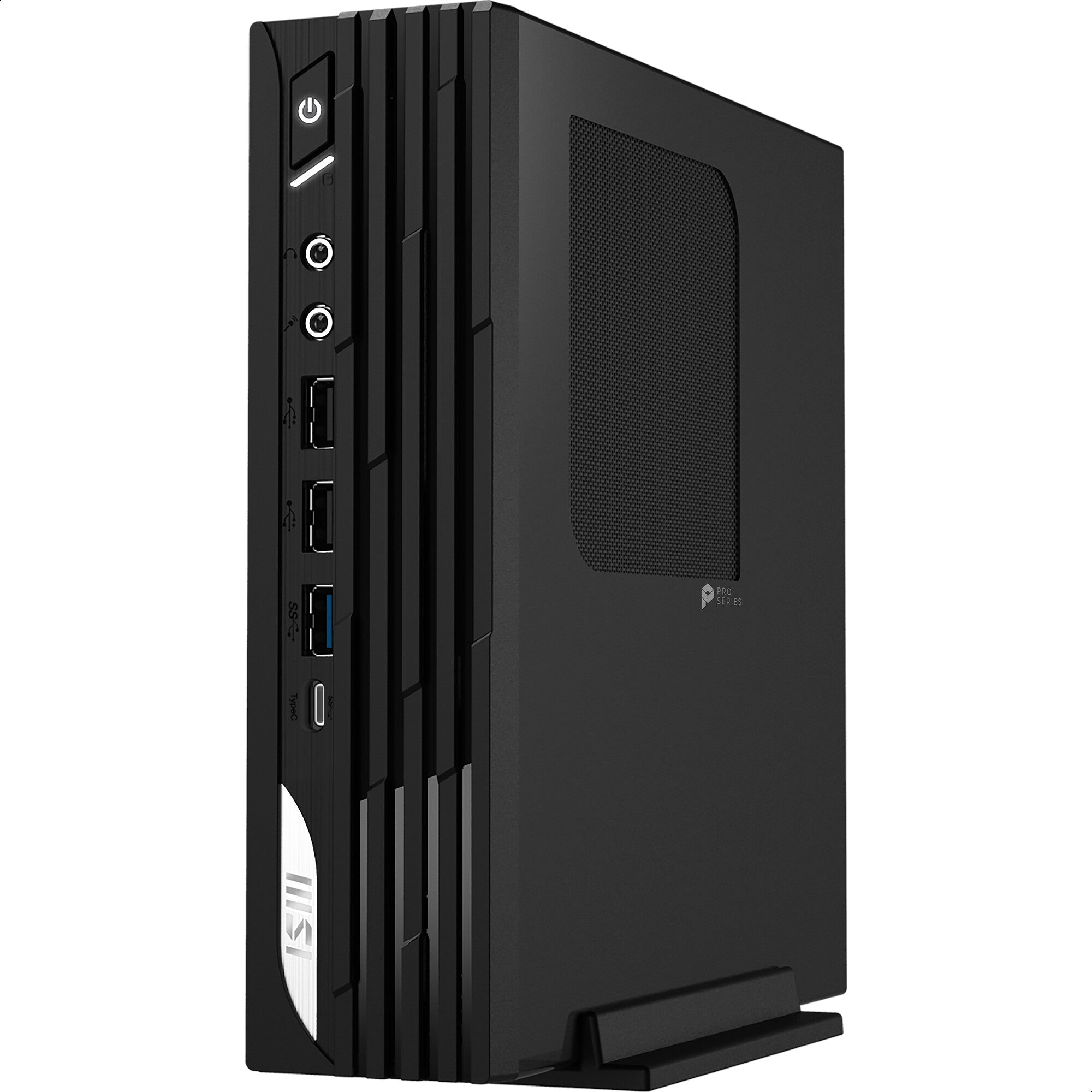

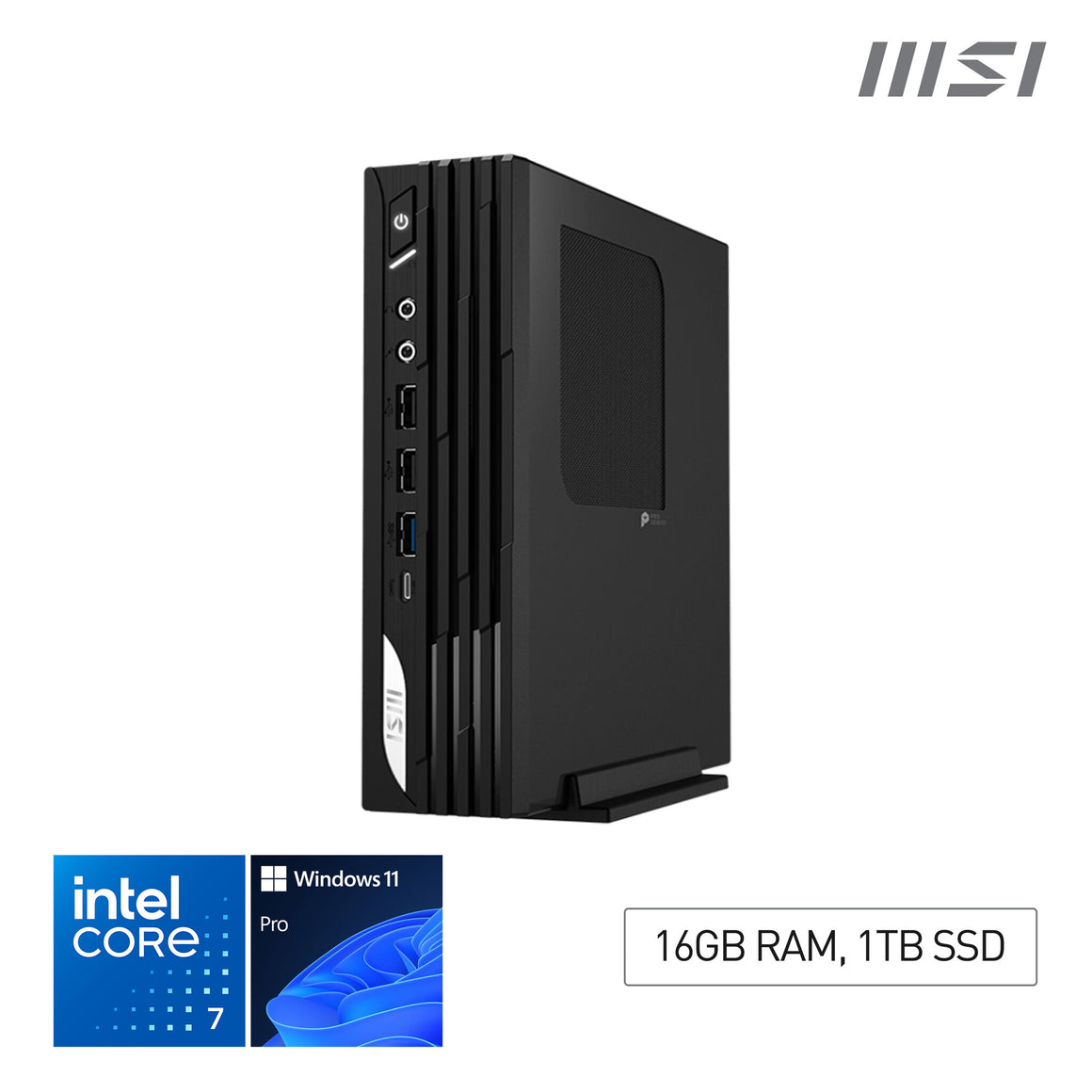

"MSI PRO DP21 14M Mini PC (SFF):

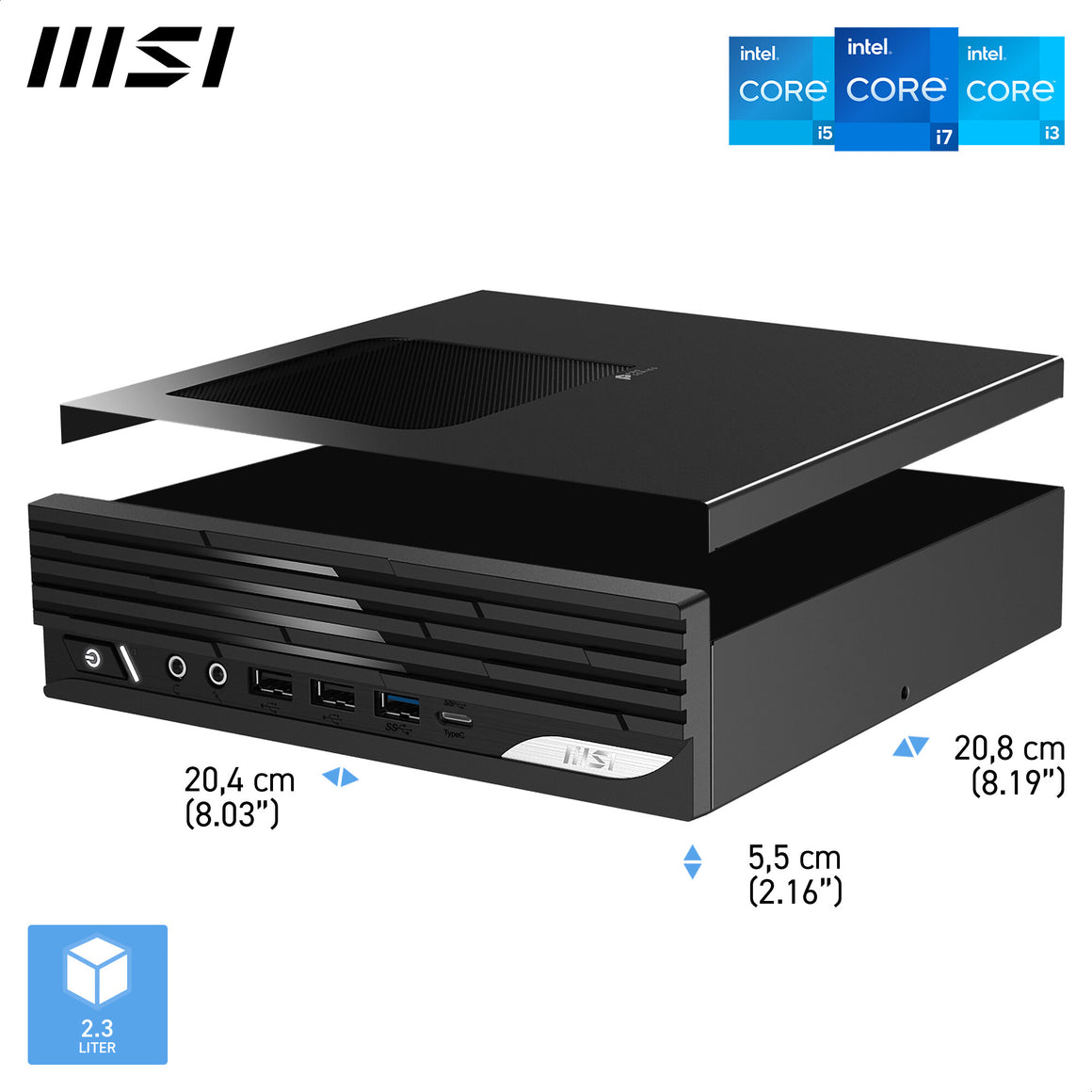

The MSI PRO DP21 14M is a small yet powerful mini-desktop with a compact 2.3L design suitable for commercial office work.

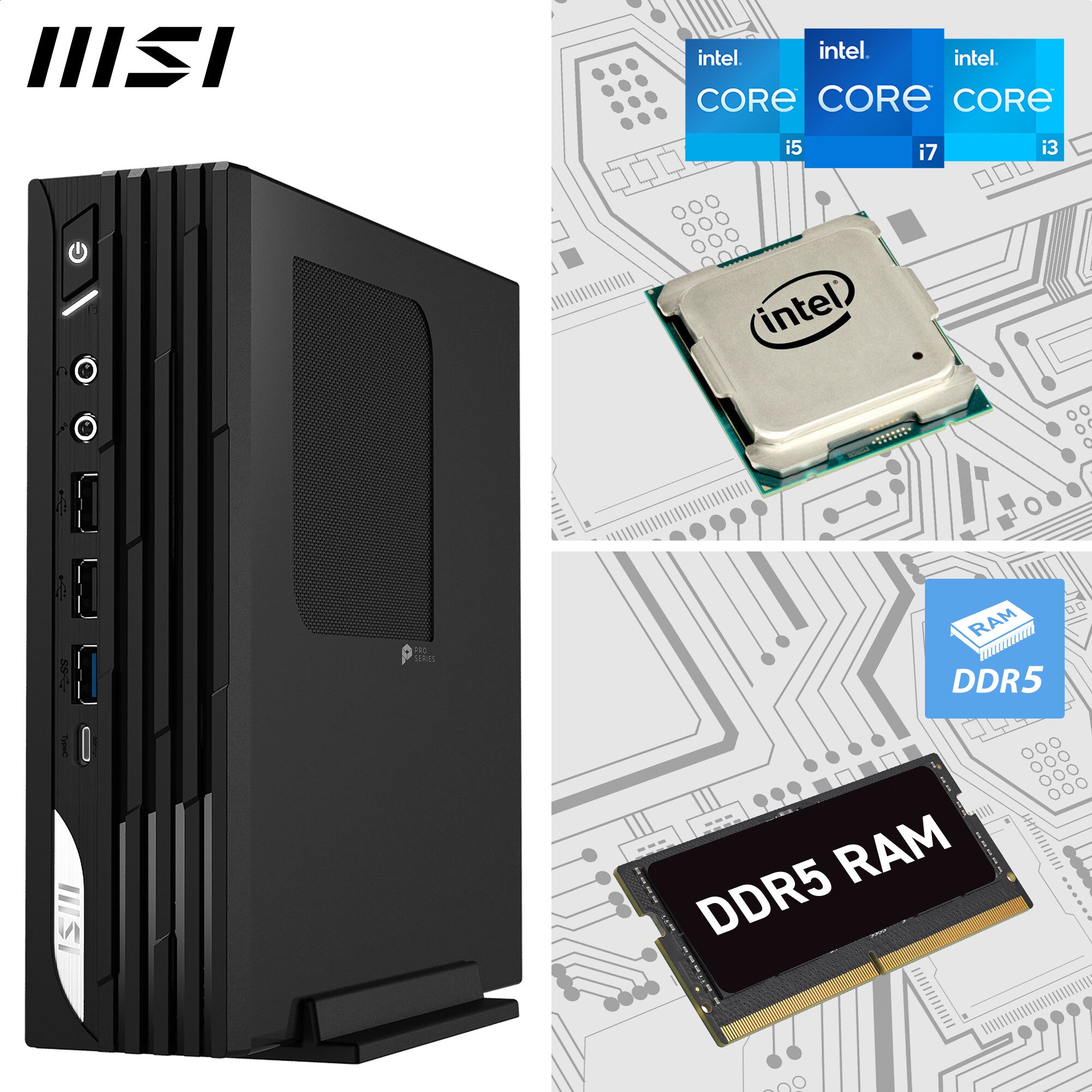

The PRO DP21 14M-xxxEU is a complete system equipped with an Intel 14th Gen Core i7-14700 processor with 20-core / 28-thread architecture (2.1GHz base frequency, 5.4GHz max. turbo), DDR5 memory, 1TB of M.2 SSD storage, Intel Wi-Fi 6E & Bluetooth 5.3 connectivity. Windows 11 Pro software is pre-installed.

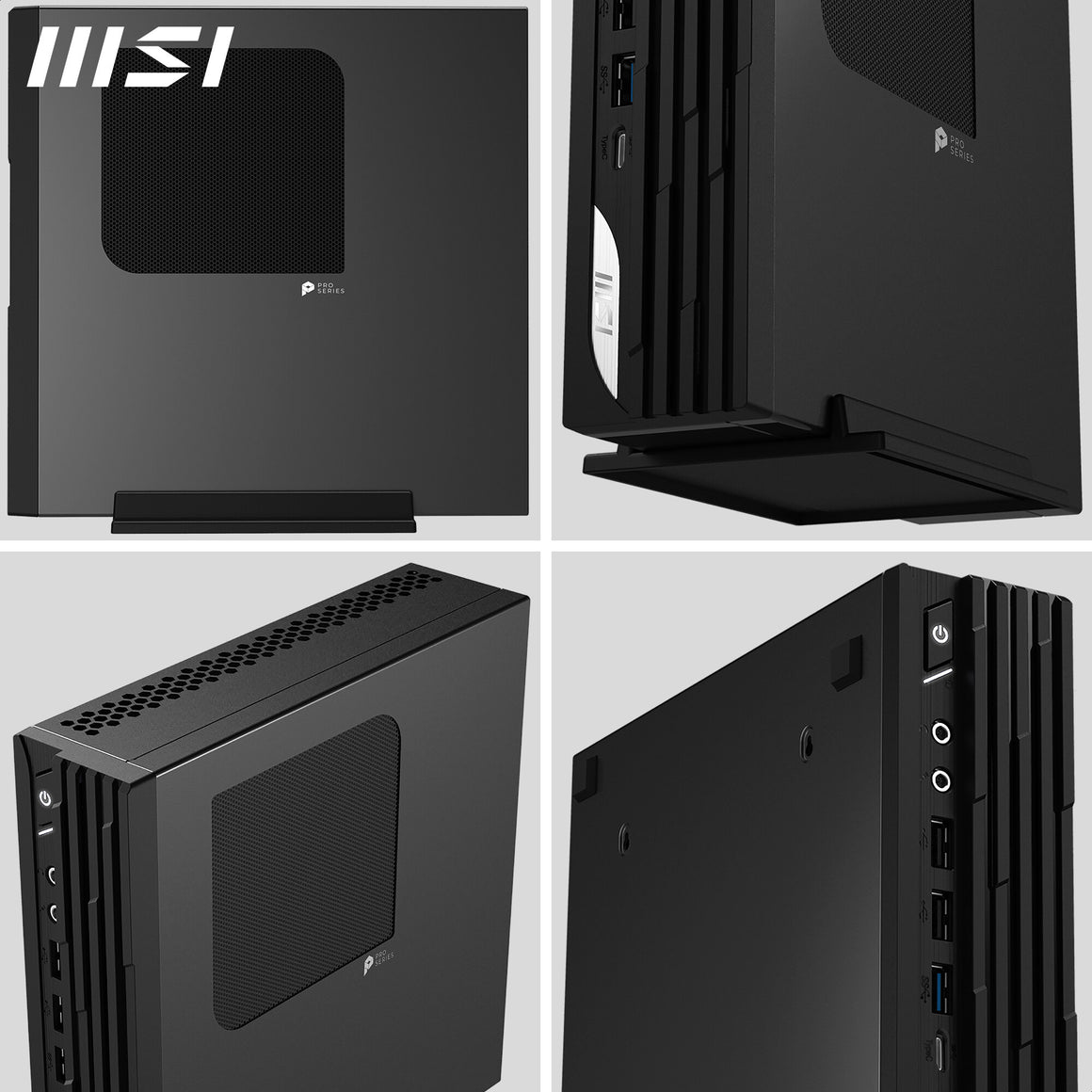

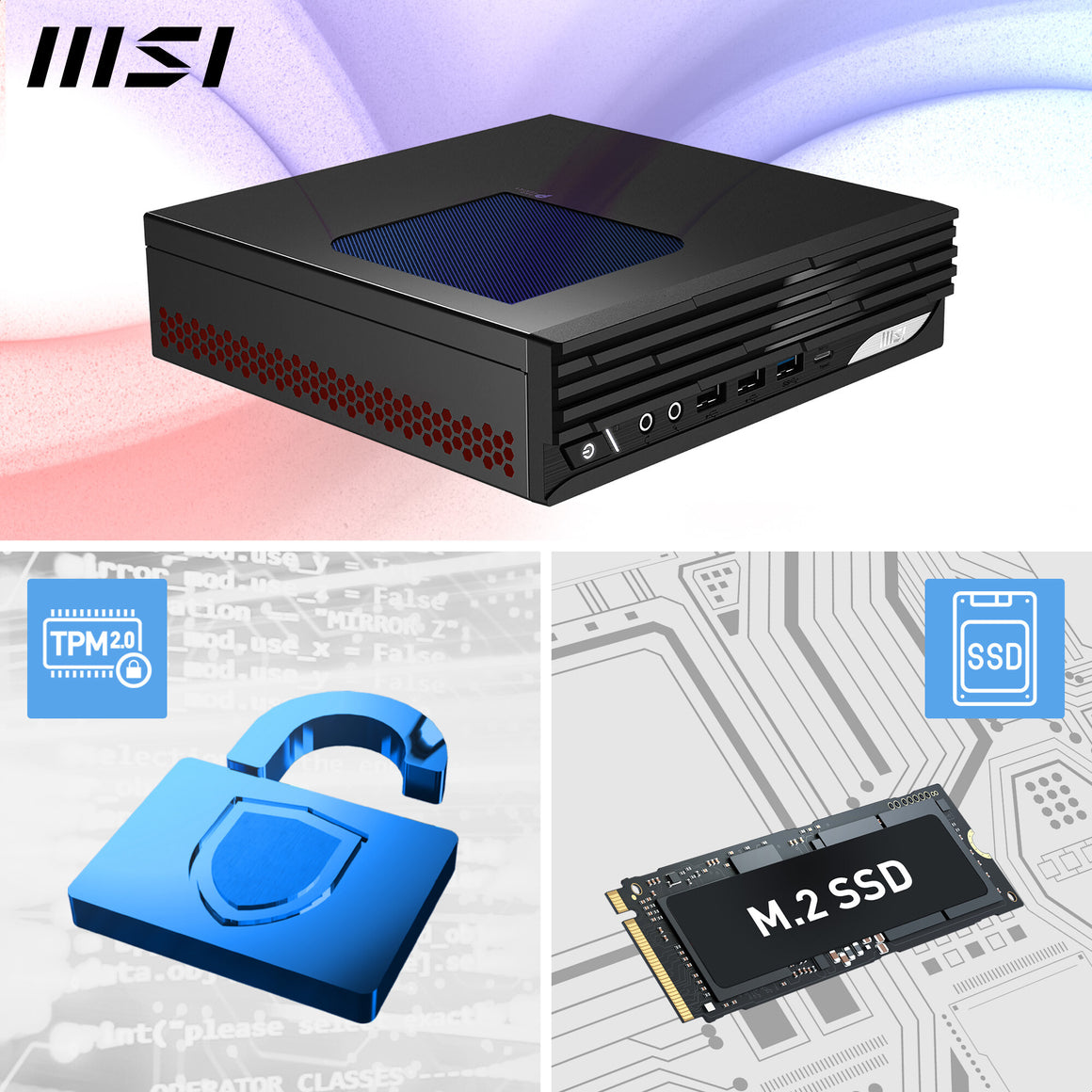

The easy-to-upgrade SFF case can house both M.2 (with auto switch) & 2 x 2.5-inch SSD/HDD storage, as well as up to 64 GB of system memory (2 x DDR5 SO-DIMMs)

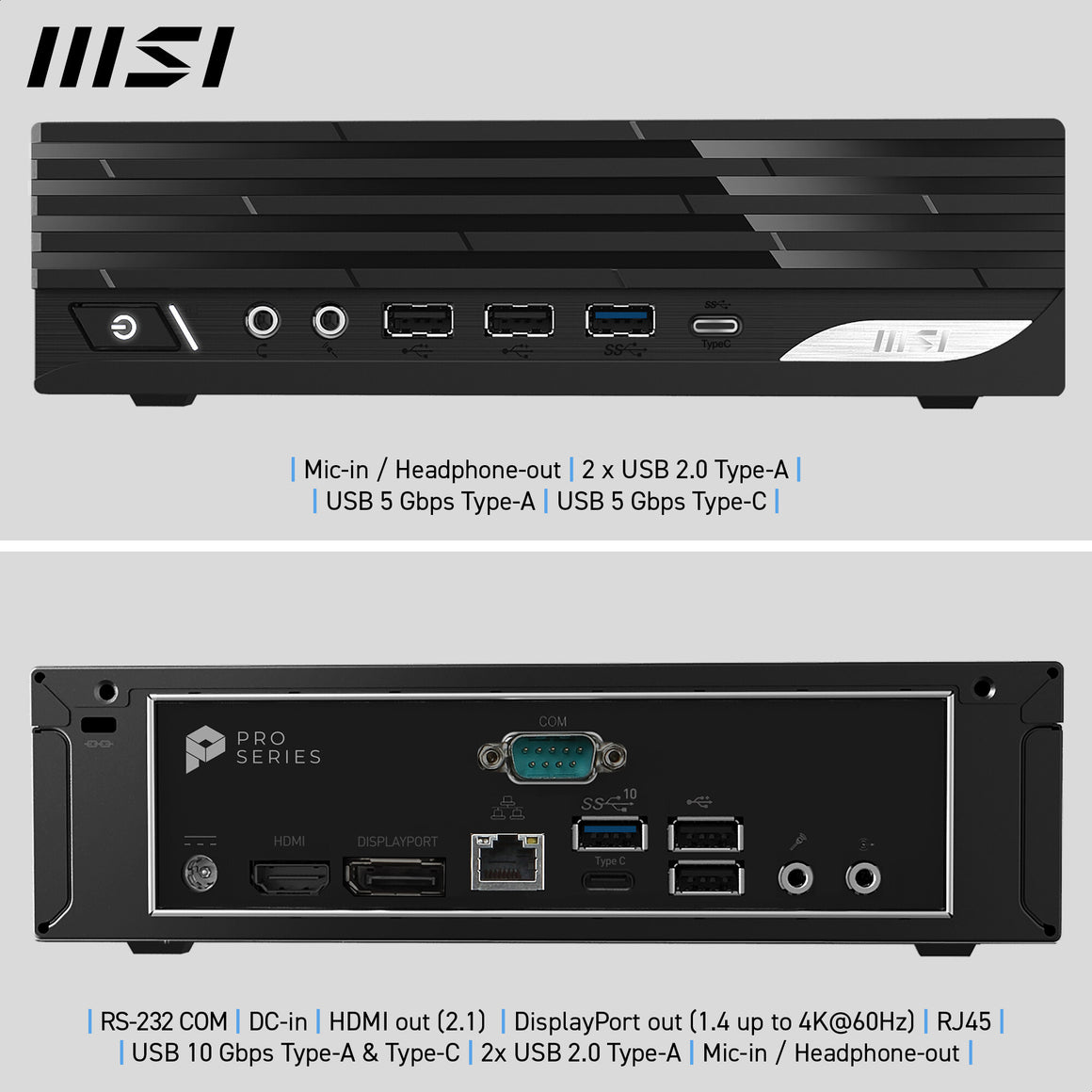

Front & rear I/O include Intel 1Gbps ethernet LAN RJ45, Mic-in, Headphones-out, 8 x USB (10Gbps Type-A & C, 5Gbps Type-A & C, 2.0 Type-A), and HDMI 2.1 & DP 1.4 ports. The PRO DP21 14M also contains a COM port for connecting to POS devices. dTrusted Platform Module 2.0 (dTPM2.0) technology provides security for storing sensitive information."
| Processor |
|---|
| Processor base power |
65 W |
| Maximum turbo power |
219 W |
| Number of processors installed |
1 |
| Processor cache type |
Smart Cache |
| Processor cache |
33 MB |
| Efficient-core base frequency |
1.5 GHz |
| Performance-core base frequency |
2.1 GHz |
| Efficient-core Max Turbo Frequency |
4.2 GHz |
| Performance-core Max Turbo Frequency |
5.4 GHz |
| Efficient cores |
12 |
| Performance cores |
8 |
| Processor frequency |
2.1 GHz |
| Processor boost frequency |
5.4 GHz |
| Processor threads |
28 |
| Processor cores |
20 |
| Processor model |
i7-14700 |
| Processor generation |
Intel® Core™ i7 (14th gen) |
| Processor family |
Intel® Core™ i7 |
| Processor manufacturer |
Intel |
| Neural processor unit (NPU) |
|---|
| Neural processor unit (NPU) |
No |
| Memory |
|---|
| Non-ECC |
Yes |
| ECC |
No |
| Buffered memory type |
Clocked unregistered (unbuffered) |
| Memory channels |
Dual-channel |
| Memory data transfer rate |
5600 MT/s |
| Memory clock speed |
5600 MHz |
| Memory slots |
2x SO-DIMM |
| Memory layout (slots x size) |
2 x 8 GB |
| Internal memory type |
DDR5-SDRAM |
| Maximum internal memory |
64 GB |
| Internal memory |
16 GB |
| Storage |
|---|
| Intel® Optane™ Memory module installed |
No |
| Card reader integrated |
No |
| M.2 SSD size |
2280 (22 x 80 mm) |
| SSD form factor |
M.2 |
| NVMe |
Yes |
| SSD interface |
PCI Express 3.0 |
| SSD capacity |
1 TB |
| SSD memory type |
TLC |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
1 TB |
| Total HDDs capacity |
0 GB |
| Number of storage drives supported |
1 |
| Number of storage drives installed |
1 |
| Storage media |
SSD |
| Optical drive type |
No |
| Total storage capacity |
1 TB |
| Graphics |
|---|
| Graphics card DisplayPorts quantity |
1 |
| Graphics card HDMI ports quantity |
1 |
| Ray tracing acceleration |
No |
| NVIDIA G-SYNC |
No |
| NVIDIA GameWorks VR |
No |
| CUDA |
No |
| AMD FreeSync |
No |
| Graphics card Open GL support |
Yes |
| Number of external displays supported |
3 |
| On-board graphics card 8K support |
Yes |
| On-board graphics card 6K support |
Yes |
| On-board graphics card cores |
32 |
| On-board graphics card model |
Intel UHD Graphics 770 |
| On-board graphics card family |
Intel® UHD Graphics |
| On-board GPU manufacturer |
Intel |
| Discrete graphics card memory |
0 GB |
| On-board graphics card |
Yes |
| Discrete graphics card |
No |
| Network |
|---|
| Bluetooth version |
5.3 |
| Wi-Fi standards |
Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| Wi-Fi |
Yes |
| Ethernet LAN data rates |
1000 Mbit/s |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI ports quantity |
1 |
| USB 2.0 ports quantity |
4 |
| Performance |
|---|
| Sound pressure level |
28 dB |
| Built-in speaker(s) |
No |
| Compatible processor series |
Intel Core i7 14th Gen |
| Product type |
Mini PC |
| Software |
|---|
| Drivers included |
Yes |
| Copilot+ PC |
No |
| Apple Intelligence |
No |
| Operating system language |
English |
| Windows 11 free upgrade |
No |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 11 Pro |
| Power |
|---|
| Power supply input frequency |
50 - 60 Hz |
| Power supply input voltage |
100 - 240 V |
| Power supply |
120 W |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
0 - 90% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Certificates |
|---|
| Low halogen |
No |
| Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS |
| Waste Electrical and Electronic Equipment (WEEE) compliance |
Yes |
| PSTI certified |
No |

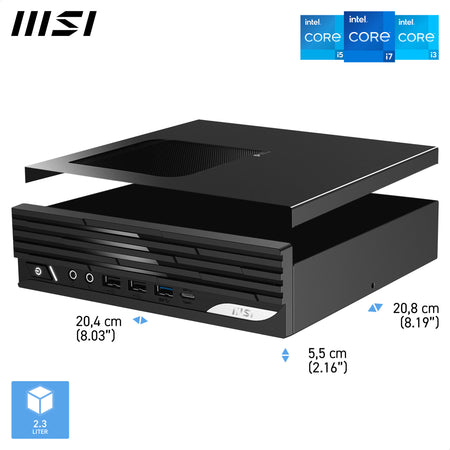

| Weight & dimensions |
|---|
| Package weight |
2.8 kg |
| Package height |
122 mm |
| Package depth |
382 mm |
| Package width |
271 mm |
| Weight |
1.27 kg |
| Height |
54.8 mm |
| Depth |
208 mm |
| Width |
204 mm |
| Packaging content |
|---|
| Manual |
Yes |
| Screws included |
No |
| VESA mount included |
No |
| Power cable length |
1.5 m |
| Cables included |
AC |
| Numeric keypad |
No |
| Keyboard backlit |
No |
| Keyboard included |
No |
| Mouse included |
No |
| Display included |
No |
| General |
|---|
| Product family |
Pro |
| Technical details |
|---|
| Statement of conformance & platform certificate included |
Yes |
| Other features |
|---|
| Built-in microphone |
No |
| Locale |
English |
| Warranty period |
3 year(s) |
| TV tuner integrated |
No |
