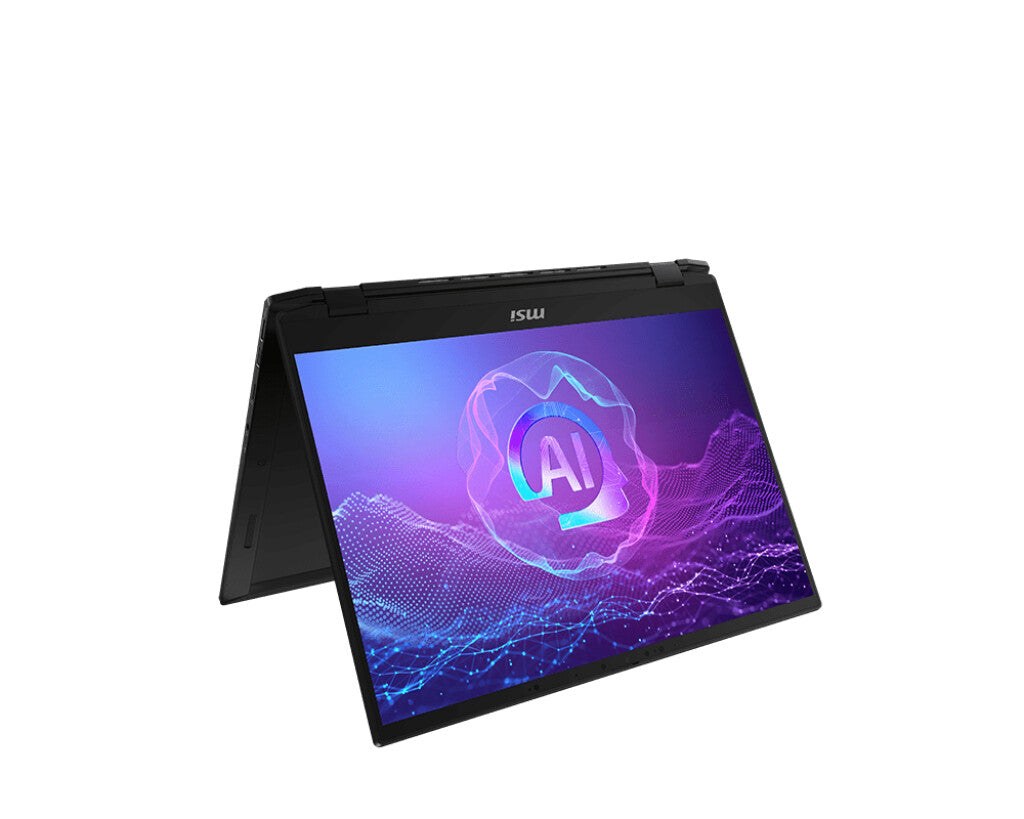

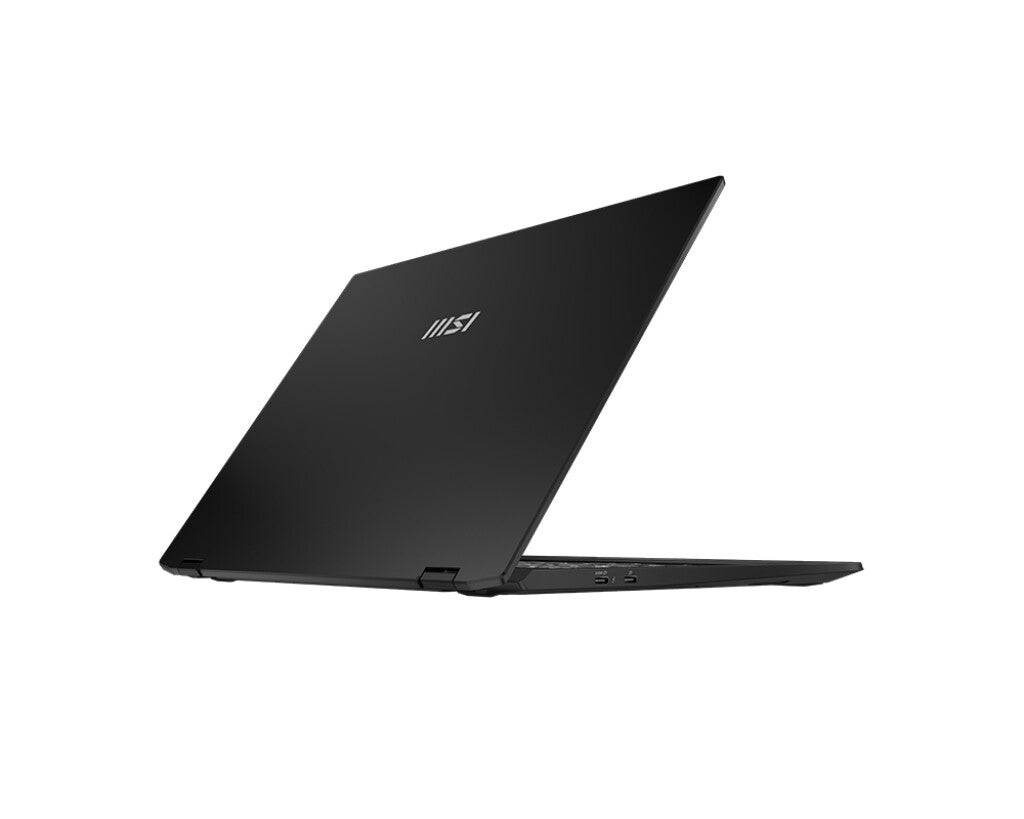

Experience unmatched performance and refined style with the Summit 16 AI Evo. Its 16-inch touchscreen and MSI Pen 2 support unlock unlimited creativity. AI-powered features enhance your workflow, making it the ideal companion for achieving your peak performance.
| Design |
|---|
| Country of origin |
China |
| Original brand name |
MSI |
| Form factor |
Convertible (Folder) |
| Colour name |
Ink Black |
| Product colour |
Black |
| Product type |
Hybrid (2-in-1) |
| Display |
|---|
| Maximum refresh rate |
165 Hz |
| HD type |
Quad HD+ |
| Touchscreen |
Yes |
| Display resolution |
2560 x 1600 pixels |
| Display diagonal |
40.6 cm (16") |
| Processor |
|---|
| Processor base power |
28 W |
| Maximum turbo power |
115 W |
| Processor cache |
24 MB |
| Low Power Efficient-core Base Frequency |
700 MHz |
| Efficient-core base frequency |
1.5 GHz |
| Performance-core base frequency |
2 GHz |
| Low Power Efficient-core Max Turbo Frequency |
2.5 GHz |
| Efficient-core Max Turbo Frequency |
4.4 GHz |
| Performance-core Max Turbo Frequency |
5.1 GHz |
| Low Power Efficient-cores |
2 |
| Efficient cores |
8 |
| Performance cores |
6 |
| Processor boost frequency |
5.1 GHz |
| Processor threads |
16 |
| Processor cores |
16 |
| Processor model |
255H |
| Processor generation |
Intel Core Ultra (Series 2) |
| Processor family |
Intel Core Ultra 7 |
| Processor manufacturer |
Intel |
| Neural processor unit (NPU) |
|---|
| GPU performance up to |
74 TOPs |
| NPU performance up to |
13 TOPs |
| Total processor performance up to |
96 TOPs |
| AI software frameworks supported by NPU |
DirectML, OpenVINO, Windows ML, ONNX RT, WebNN |
| Windows Studio effects support |
Yes |
| Sparsity support |
Yes |
| Neural processor unit (NPU) |
Intel AI Boost |
| Memory |
|---|
| Maximum internal memory |
32 GB |
| Memory clock speed |
6400 MHz |
| Memory form factor |
On-board |
| Internal memory type |
LPDDR5-SDRAM |
| Internal memory |
32 GB |
| Storage |
|---|
| Compatible memory cards |
MicroSD (TransFlash) |
| Card reader integrated |
Yes |
| Optical drive type |
No |
| SSD form factor |
M.2 |
| SSD interface |
PCI Express 4.0 |
| NVMe |
Yes |
| SSD capacity |
1 TB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
1 TB |
| Storage media |
SSD |
| Total storage capacity |
1 TB |
| Graphics |
|---|
| On-board graphics card model |
Intel Arc 140T |
| On-board graphics card family |
Intel Arc Graphics |
| On-board GPU manufacturer |
Intel |
| Discrete graphics card model |
Not available |
| Discrete graphics card |
No |
| On-board graphics card |
Yes |
| Audio |
|---|
| Speaker power |
2 W |
| Number of built-in speakers |
2 |
| Camera |
|---|
| Privacy type |
Privacy shutter |
| Privacy camera |
Yes |
| Infrared (IR) camera |
Yes |
| Video capturing speed |
30 fps |
| Front camera resolution |
1920 x 1080 pixels |
| Front camera HD type |
Full HD |
| Front camera |
Yes |
| Network |
|---|
| Bluetooth version |
5.4 |
| Bluetooth |
Yes |
| Wi-Fi standards |
Wi-Fi 7 (802.11be) |
| Top Wi-Fi standard |
Wi-Fi 7 (802.11be) |
| Mobile network connection |
No |
| Ports & interfaces |
|---|
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Combo headphone/mic port |
Yes |
| Intel® Thunderbolt 4 |
Yes |
| Thunderbolt 4 ports quantity |
2 |
| HDMI version |
2.1 |
| HDMI ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
| Performance |
|---|
| Accelerometer |
Yes |
| Gyroscope |
Yes |
| Ambient light sensor |
Yes |
| Proximity sensor |
Yes |
| Keyboard |
|---|
| Copilot key |
Yes |
| Keyboard backlit colour |
White |
| Numeric keypad |
Yes |
| Keyboard backlit |
Yes |
| Keyboard language |
UK English |
| Keyboard layout |
QWERTY |
| Pointing device |
Touchpad |
| Battery |
|---|
| Battery capacity |
82 Wh |
| Number of battery cells |
4 |
| Power |
|---|
| USB Power Delivery (USB PD) |
Yes |
| AC adapter power |
100 W |
| Security |
|---|
| Trusted Platform Module (TPM) |
Yes |
| Trusted Platform Module (TPM) version |
2.0 |
| Fingerprint reader |
Yes |
| Cable lock slot |
Yes |
| Weight & dimensions |
|---|
| Height (rear) |
1.74 cm |
| Height (front) |
1.69 cm |
| Depth |
258.6 mm |
| Width |
358 mm |
| Weight |
2.1 kg |
| Packaging data |
|---|
| Package volume |
14229.6 cm³ |
| Package weight |
3.6 kg |
| Package height |
333 mm |
| Package depth |
88 mm |
| Package width |
499 mm |
| Logistics data |
|---|
| Commodity Classification Automated Tracking System (CCATS) |
8471300000 |
