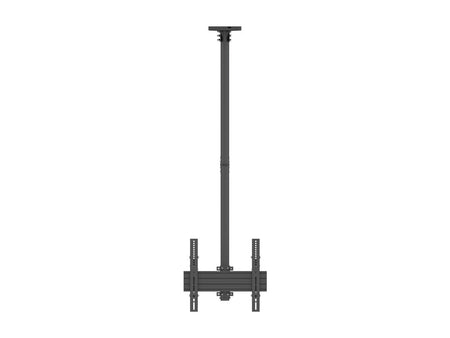

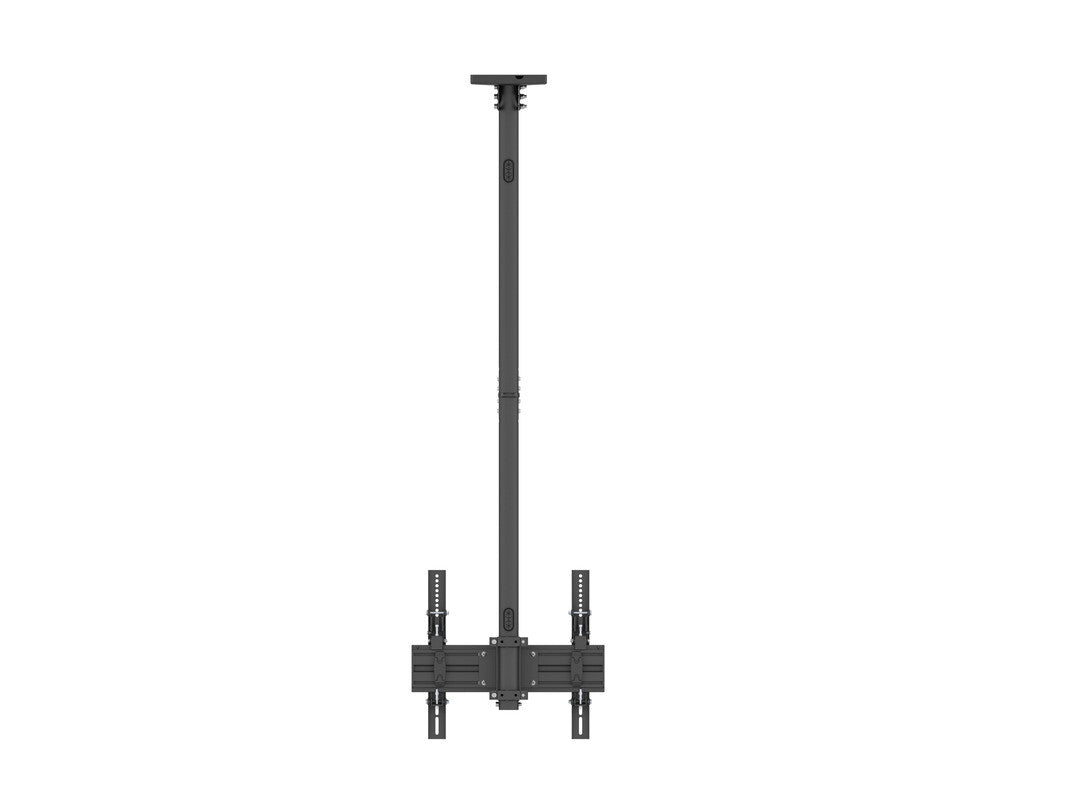

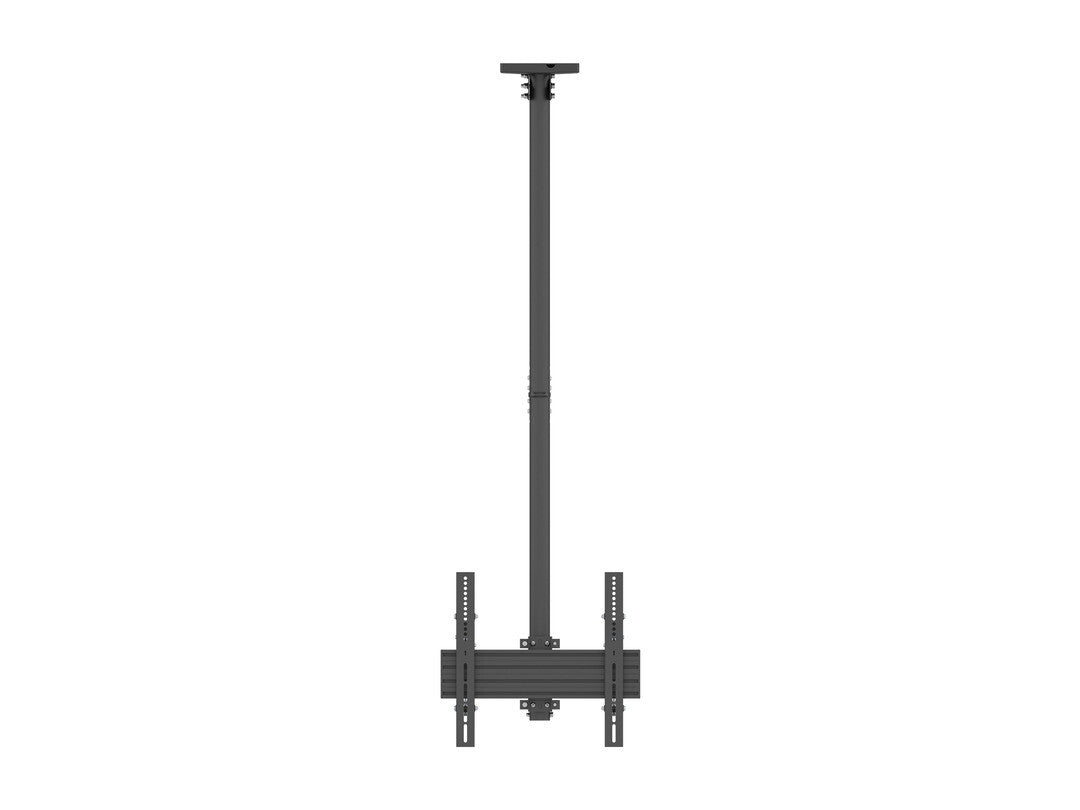

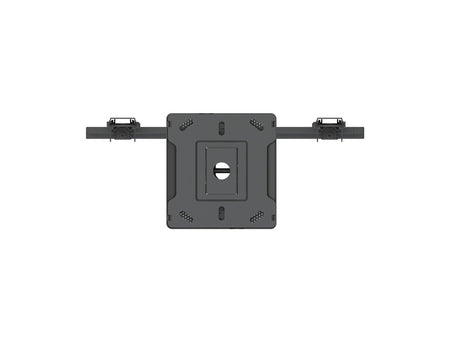

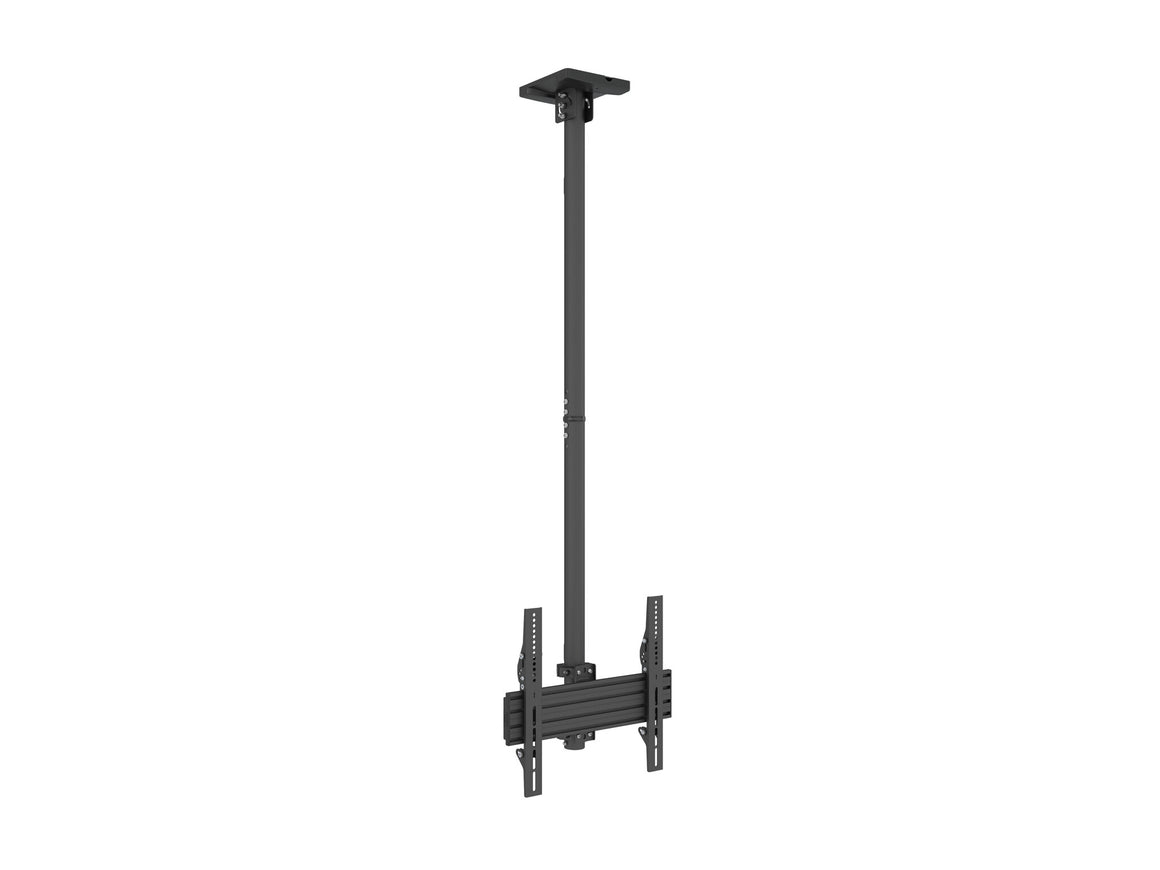

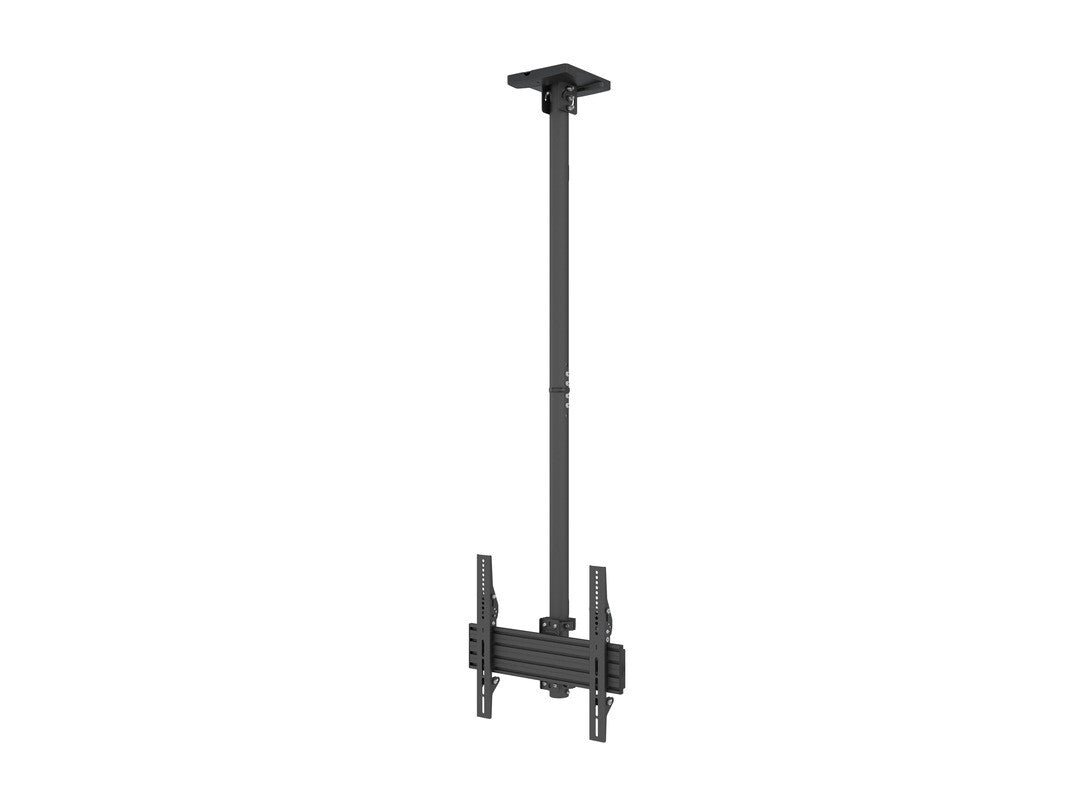

Multibrackets Pro Series M Ceiling Mount Pro MBC1U VESA 400 is our innovative - ready to be installed Single-Display Ceiling Mount.
The new professional Pro Series A/V line from Multibrackets was designed with the installer in mind. Modular, easy to configure, quick to install, and simple to maintain. Working closely with installers we created a range with close to unlimited flexibility. This model the M Ceiling Mount Pro MBC1U VESA 400 is no exception. The product provides the versatility and flexibility demanded by installers. Based upon the Pro Series strong and ultra-flexible aluminum rail it is completely modular and has built in cable management throughout the entire solution to quicken installation and creating an esthetic result worth the public eye.
With its modular construction installers have vast possibilities to change, update and reconfigure its design if ideas change over time then Pro Series can follow.
Designed with our Scandinavian heritage in mind and providing a clean Nordic look each part and detail serves its purpose. The result is a sleek Nordic solution emphasizing quality and function. Used in a variety of environments this ceiling mount is truly versatile and is made of the highest quality materials.
The Pro Series possibilities to extend pipes and add details by individual choice is vast so that one can tailor each mount to its location and function. The Pro Series includes hardware so that a basic installation should not be a hassle.
Multibrackets Pro Series Public Ceiling Mounts is ideal for any large screen digital signage ceiling application.
| Mounting |
|---|
| Number of displays supported |
1 |
| Panel mounting interface |
100 x 100,200 x 200,300 x 300,400 x 400 |
| Maximum VESA mount |
400 x 400 mm |
| Minimum VESA mount |
100 x 100 mm |
| Mounting type |
Ceiling |
| Maximum screen size |
165.1 cm (65") |
| Minimum screen size |
81.3 cm (32") |
| Maximum weight capacity |
35 kg |
| Ergonomics |
|---|
| Cable management |
Yes |
| Ceiling mounting tube length (min) |
58 cm |
| Ceiling mounting tube length (max) |
155 cm |
| Angle of rotation |
360° |
| Swivel angle |
90° |
| Tilt angle range |
-6 - 15° |
| Height adjustment range |
580 - 1550 mm |
| Height adjustment type |
Manual |
| Height adjustment |
Yes |
| Design |
|---|
| Certification |
CE |
| Housing material |
Aluminium, Plastic, Steel |
| Product colour |
Black |
| Weight & dimensions |
|---|
| Other metals content weight |
0 g |
| Steel content weight |
8.17 kg |
| Aluminium content weight |
1.2 kg |
| Weight |
8.17 kg |
| Height |
830 mm |
| Depth |
145 mm |
| Width |
205 mm |
| Packaging data |
|---|
| Quantity per pack |
1 pc(s) |
| Package weight |
8.85 kg |
| Package height |
120 mm |
| Package depth |
820 mm |
| Package width |
200 mm |
| Technical details |
|---|
| Paper/cardboard packaging weight |
600 g |
| Metal packaging weight |
0 g |
| Plastic packaging weight |
80 g |
| Logistics data |
|---|
| Products per shipping (inner) case |
1 pc(s) |
