With its modular construction Pro Series parts have vast possibilities to change, update and reconfigure a Pro Series installation. Combine the parts with a Pro Series installation and create a new configuration.

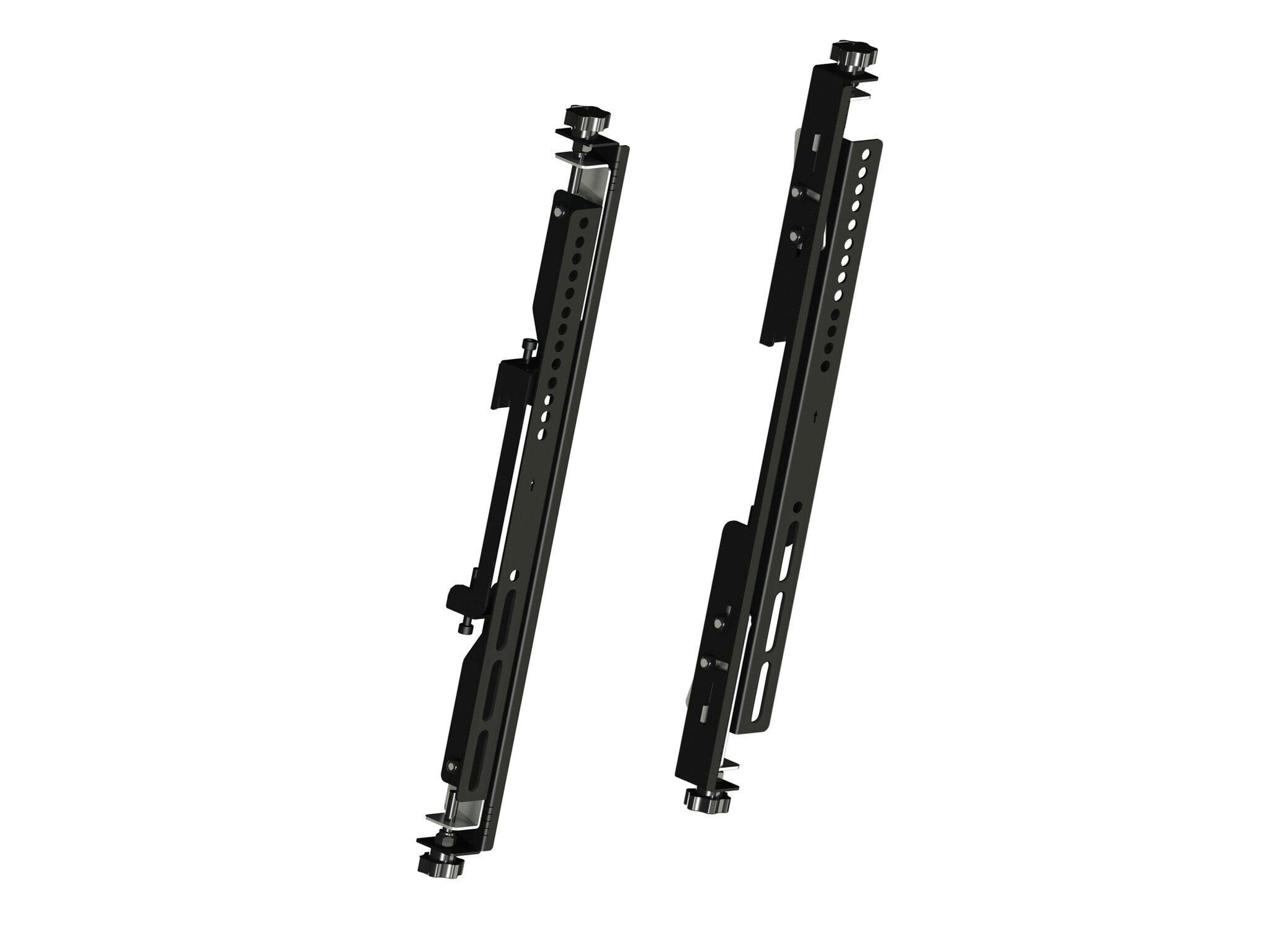

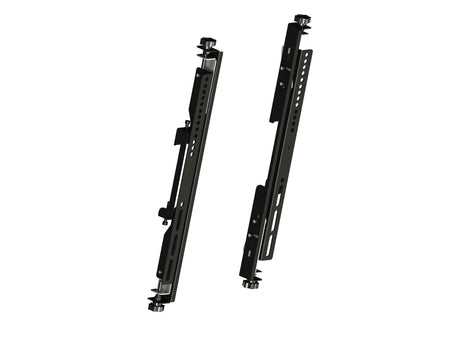

Micro-Adjustable Arms 400mm are ideal screen mounts when fine tuning screen of position is needed.
This Part for M Pro Series is made of steel and has a 30kg max weight capacity

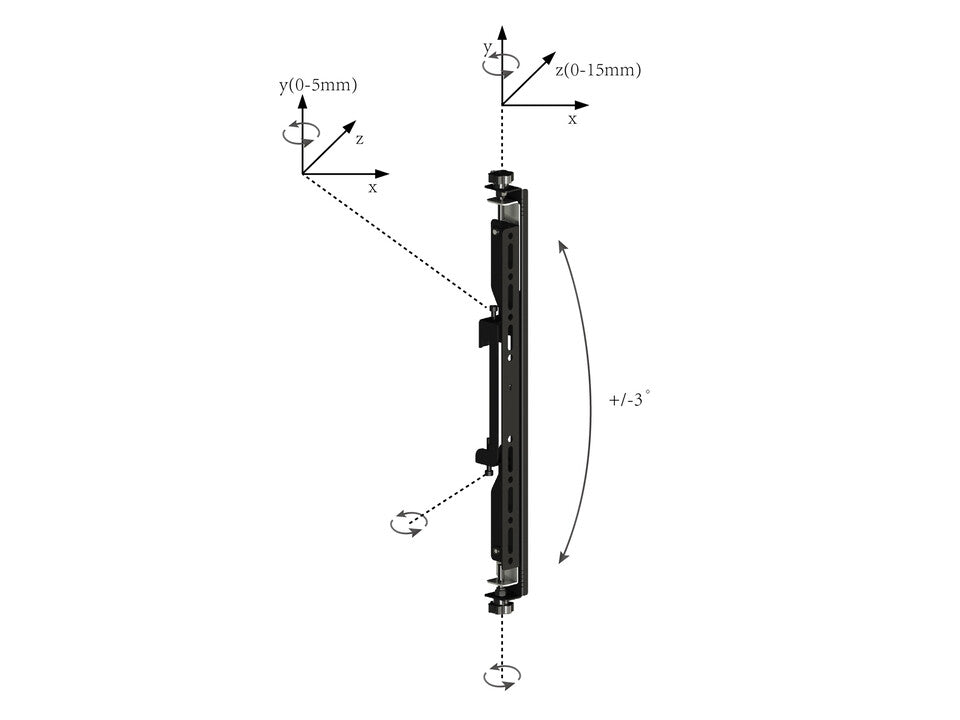

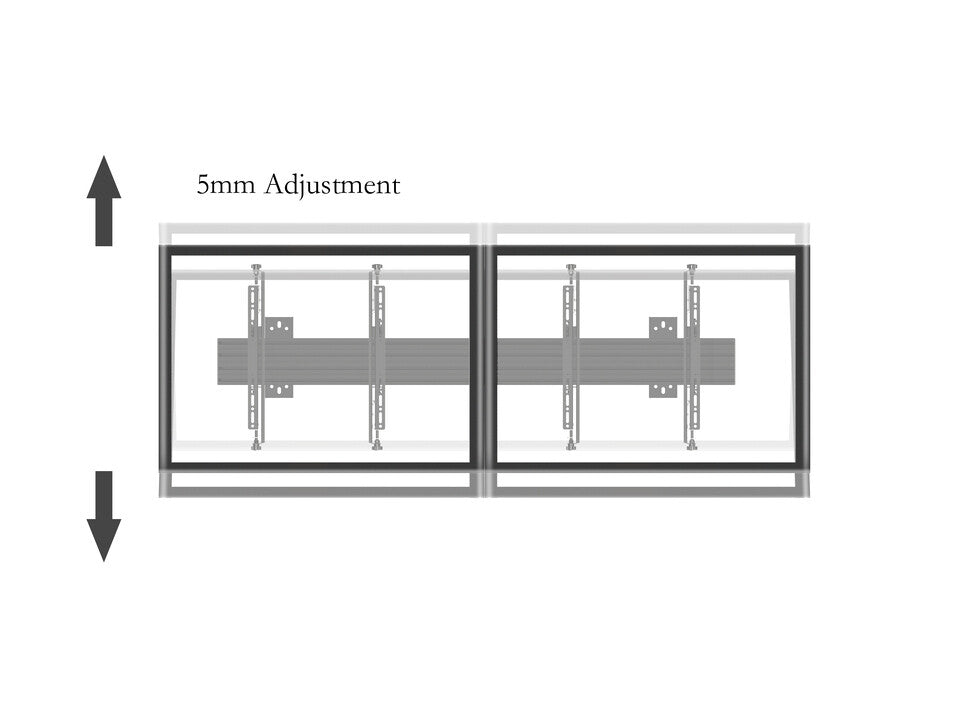

Adjustable y-axis 0-5mm
Adjustable z-axis 0-15mm

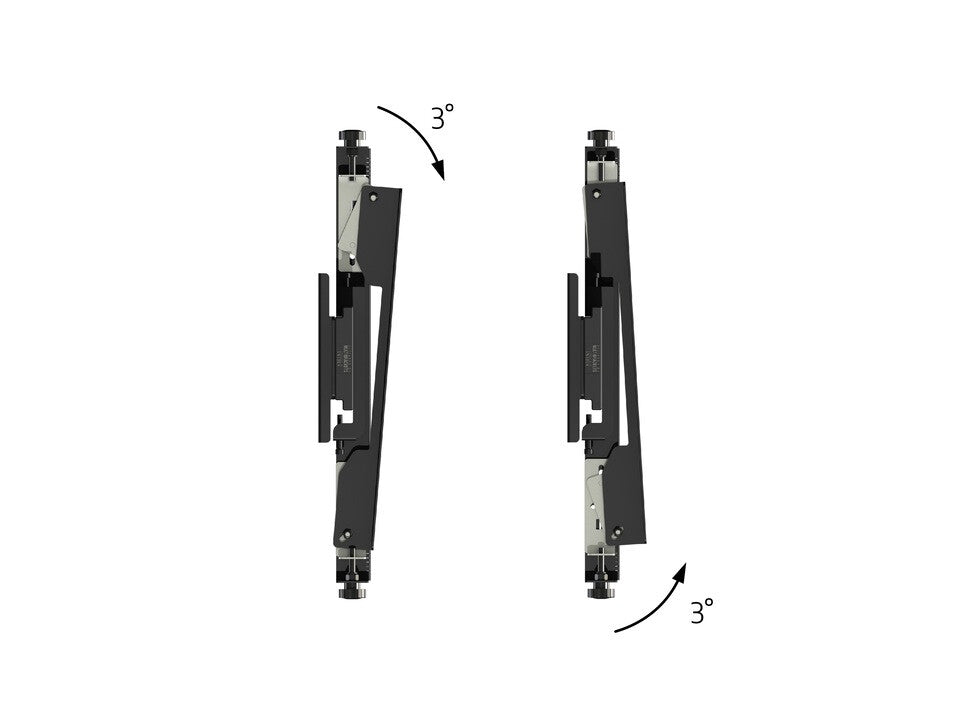

Adjustable ±3° rotate
MB Pro Series is design protected by Multibrackets
| Features |
|---|
| Compatibility |
M Pro Series |

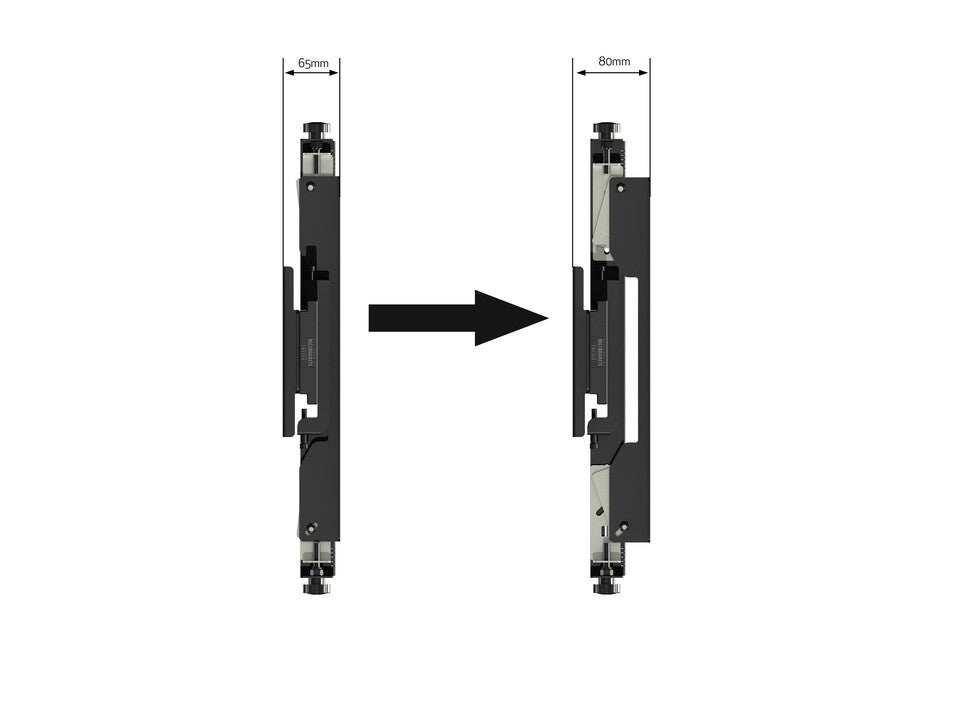

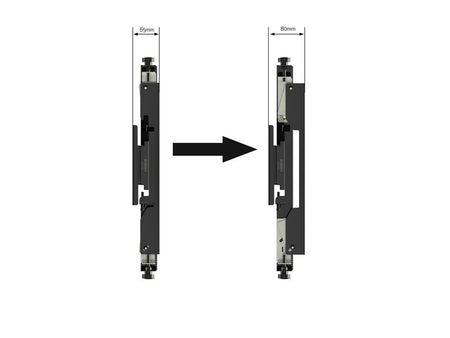

| Adjustable depth |
Yes |
| Height adjustment range |
0 - 5 mm |
| Height adjustment |
Yes |
| Tilt angle range |
-3 - 3° |
| Number of displays supported |
1 |
| Minimum screen size |
101.6 cm (40") |
| Maximum screen size |
165.1 cm (65") |
| Panel mounting interface |
100 x 100,600 x 400 mm |
| Maximum weight capacity |
30 kg |
| Housing material |
Steel |
| Product colour |
Black |
| Product type |
Flat panel mount arm |
| Weight & dimensions |
|---|
| Other metals content weight |
0 g |
| Steel content weight |
2.37 kg |
| Aluminium content weight |
0 g |

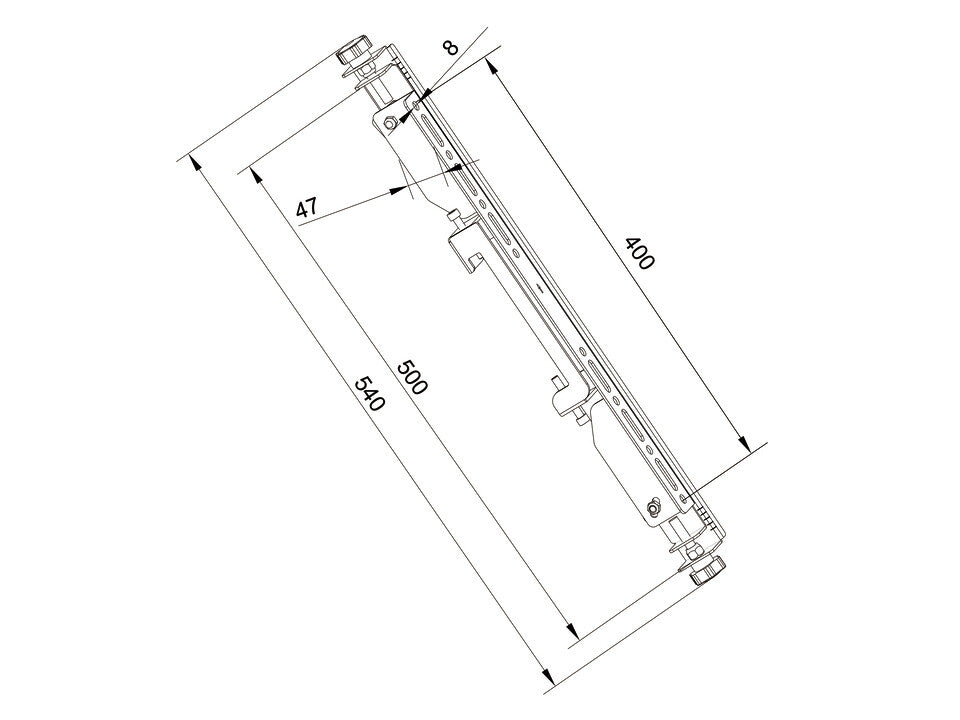

| Width |
543 mm |
| Depth |
49 mm |
| Height |
47 mm |
| Weight |
2.37 kg |
| Packaging data |
|---|
| Package height |
120 mm |
| Package width |
57 mm |
| Package depth |
572 mm |
| Package weight |
2.6 kg |
| Packaging content |
|---|
| Quantity per pack |
2 pc(s) |
| Technical details |
|---|
| Paper/cardboard packaging weight |
200 g |
| Metal packaging weight |
0 g |
| Plastic packaging weight |
30 g |
| Logistics data |
|---|
| Products per pallet (EU) |
100 pc(s) |
| Products per shipping (inner) case |
5 pc(s) |
| Shipping (inner) case gross weight |
12.9 kg |
| Shipping (inner) case height |
13.8 cm |
| Shipping (inner) case length |
58.4 cm |
| Shipping (inner) case width |
30 cm |
