SKU: 1091

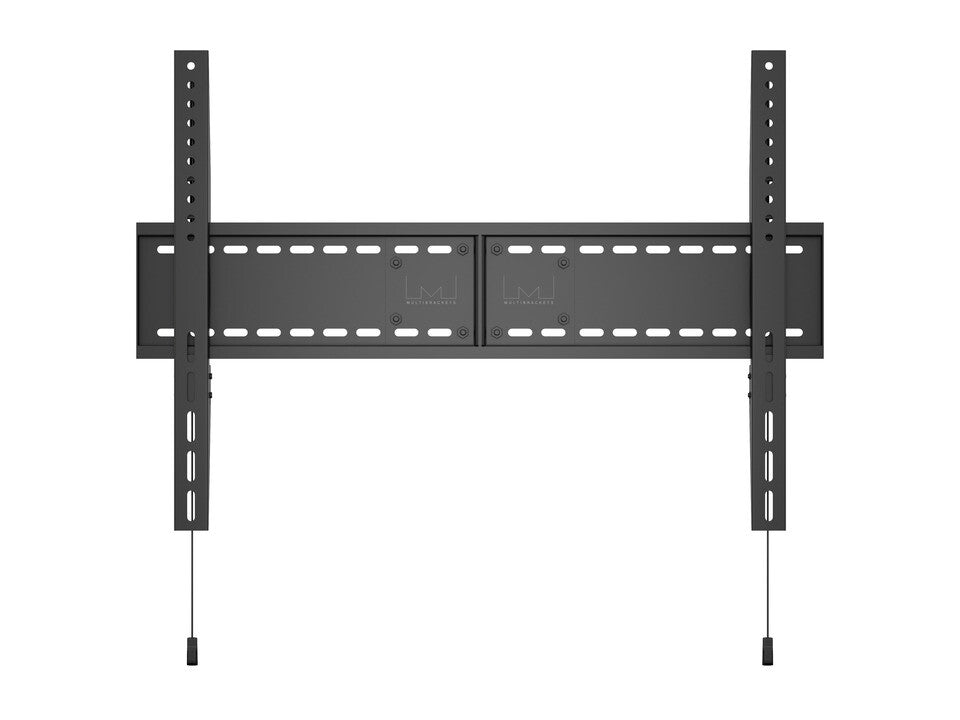

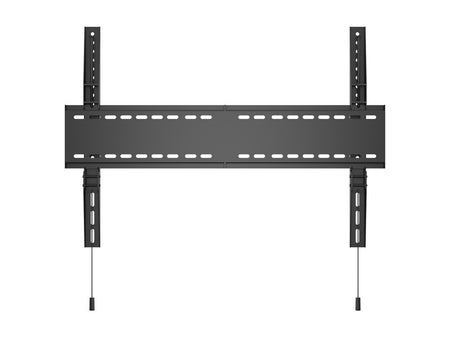

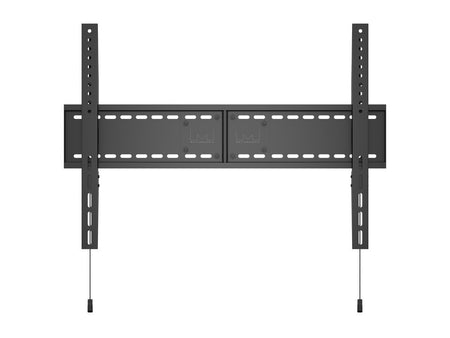

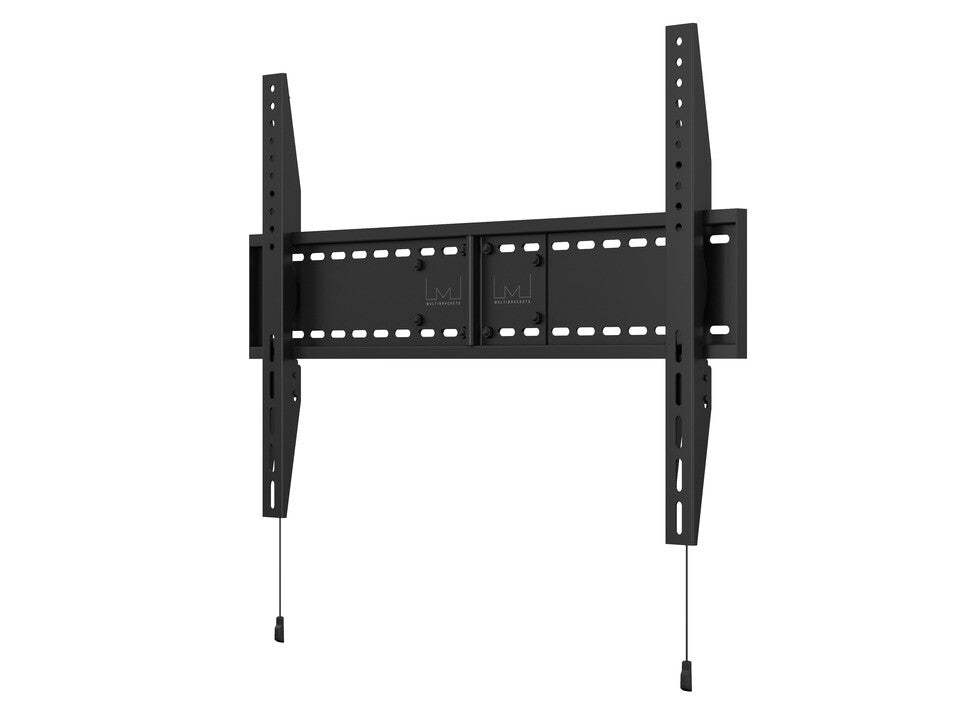

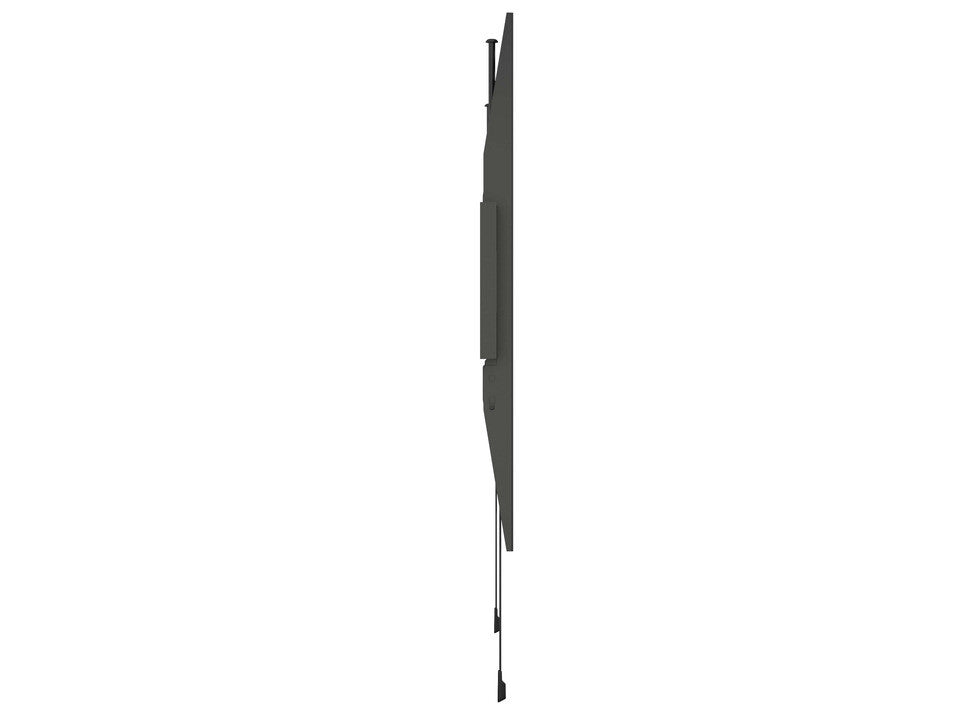

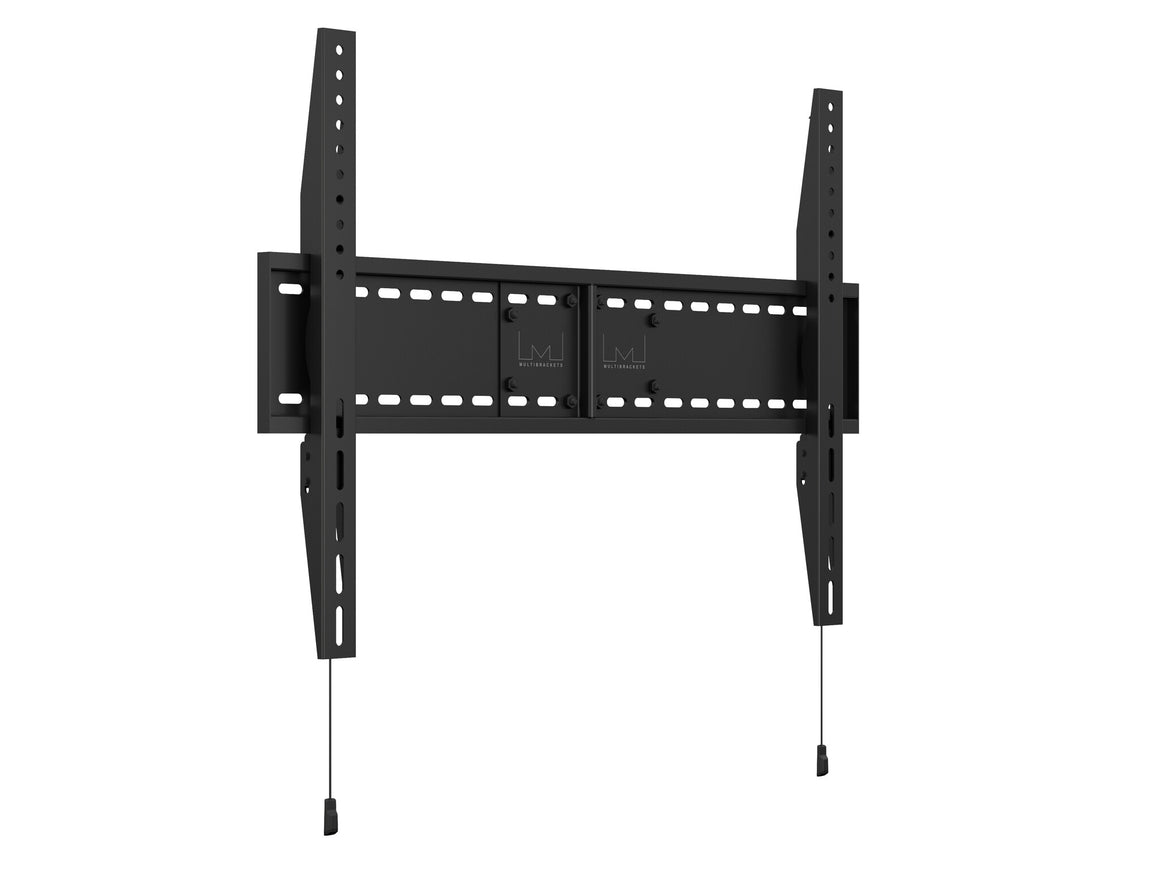

Multibrackets M Universal Fixed Wallmount SD MAX 800x600

Multibrackets
£125.09
  • Create almost any Video Wall configurations imaginable_x000D_
  • Clean look & easy to install_x000D_
  • Perfect for digital signage, educational and corporate installations._x000D_
  • To be used in both landscape and portait installations._x000D_
  • Engineered for speed of installation and usability._x000D_
  • Slim 45mm distance to wall_x000D_
  • Super Duty (SD) 125kg max load_x000D_
  • Superduty 3mm cold-rolled steel _x000D_
  • Arms latch securely _x000D_
  • Anti-theft: Lock and key (optional)

The Multibrackets M Universal Fixed SD is a versatile wall mount for large display installations. With its smart design the mount can be used for both landscape and portrait installations. With a maxweight capacity of 125kg it can handle screens up to 110". With a wide VESA range of 800x600 it can also handle most VESA specifications large screens are using.
The Multibrackets M Universal Mount SD series of fixed, tilt and pull-out mounts from Multibrackets are engineered to solve tough installation problems such as leveling and stud location. Installerinspired features make installation and maintenance safe and easy. This series of mounts makes it easy to take control of your installation. Universal and with low-profile mounts they are engineeredfor speed of installation and usability. With a variety of products ranging from a single TV to a video wall matrix for digital signage, Multibrackets SD mounts are the perfect solution for manyapplications.

Mounting
Number of displays supported 1
Panel mounting interface 200 x 300,200 x 400,200 x 600,400 x 400,400 x 600,600 x 200,600 x 400,600 x 600,600 x 300,800 x 300,800 x 400,800 x 500,800 x 600
Maximum VESA mount 800 x 600 mm
Minimum VESA mount 200 x 300 mm
Mounting type Wall
Maximum screen size 2.79 m (110")
Minimum screen size 152.4 cm (60")
Maximum weight capacity 125 kg
Ergonomics
Distance to the wall (min) 3.9 cm
Design
Accepts padlock Yes
Anti-theft function Yes
Housing material Steel
Product colour Black
Technical details
Metal packaging weight 4.5 kg
Plastic packaging weight 45 g
Paper/cardboard packaging weight 3.2 kg
Orientation Landscape/Portrait
Weight & dimensions
Weight 8.5 kg
Height 630 mm
Depth (min) 3.9 cm
Packaging data
Package type Box
Package weight 7.74 kg
Package height 100 mm
Package depth 670 mm
Package width 200 mm
Logistics data
Products per shipping (inner) case 5 pc(s)
Shipping (inner) case gross weight 39.4 kg
Shipping (inner) case height 23 cm
Shipping (inner) case length 68 cm
Shipping (inner) case width 50 cm
