Functionality you need, at the price you want
A professional solution for low-budget applications, the E series forestalls the lure of domestic TVs which are not fit-for-purpose. Designed for the rigours of commercial usage, the E Series delivers the functionality and reliability you need, at the price you want.
An integrated MediaPlayer supports native UHD resolution and High Dynamic Range (HDR) for deep contrasts and natural looking content playback with auto-play function. Requiring no additional cables, external devices or signage software, the USB MediaPlayer enables a simple seamless professional signage solution. Meanwhile, a 10W USB interface supports connection of external devices should additional computing power be required.
For instant start-up in meeting spaces, inputs are detected automatically with easy switching between HDMI sources. Facilities managers will welcome the ability to remotely control their digital estate via the network thanks to the integrated LAN and NEC’s NaviSet Administrator 2 functionality making the E Series the perfect choice for corporate meeting rooms and entry level digital signage.
| Display |
|---|
| High Dynamic Range (HDR) supported |
Yes |
| High Dynamic Range (HDR) technology |
Hybrid Log-Gamma (HLG) |
| Native refresh rate |
60 Hz |
| Horizontal scan range |
15 - 136 kHz |
| Vertical scan range |
24 - 75 Hz |
| Haze rate |
1% |
| Number of displays |
1 |
| Display diagonal (metric) |
139 cm |
| Active display area (W x H) |
1210 x 680 mm |
| Pixel pitch |
0.315 x 0.315 mm |
| Display number of colours |
1.073 billion colours |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Contrast ratio (typical) |
1200:1 |
| Response time |
8 ms |
| Native aspect ratio |
16:9 |
| Touchscreen |
No |
| HD type |
4K Ultra HD |
| Display brightness |
350 cd/m² |
| Display resolution |
3840 x 2160 pixels |
| LED backlighting type |
Direct-LED |
| Panel type |
IPS |
| Display technology |
LCD |
| Display diagonal |
138.7 cm (54.6") |

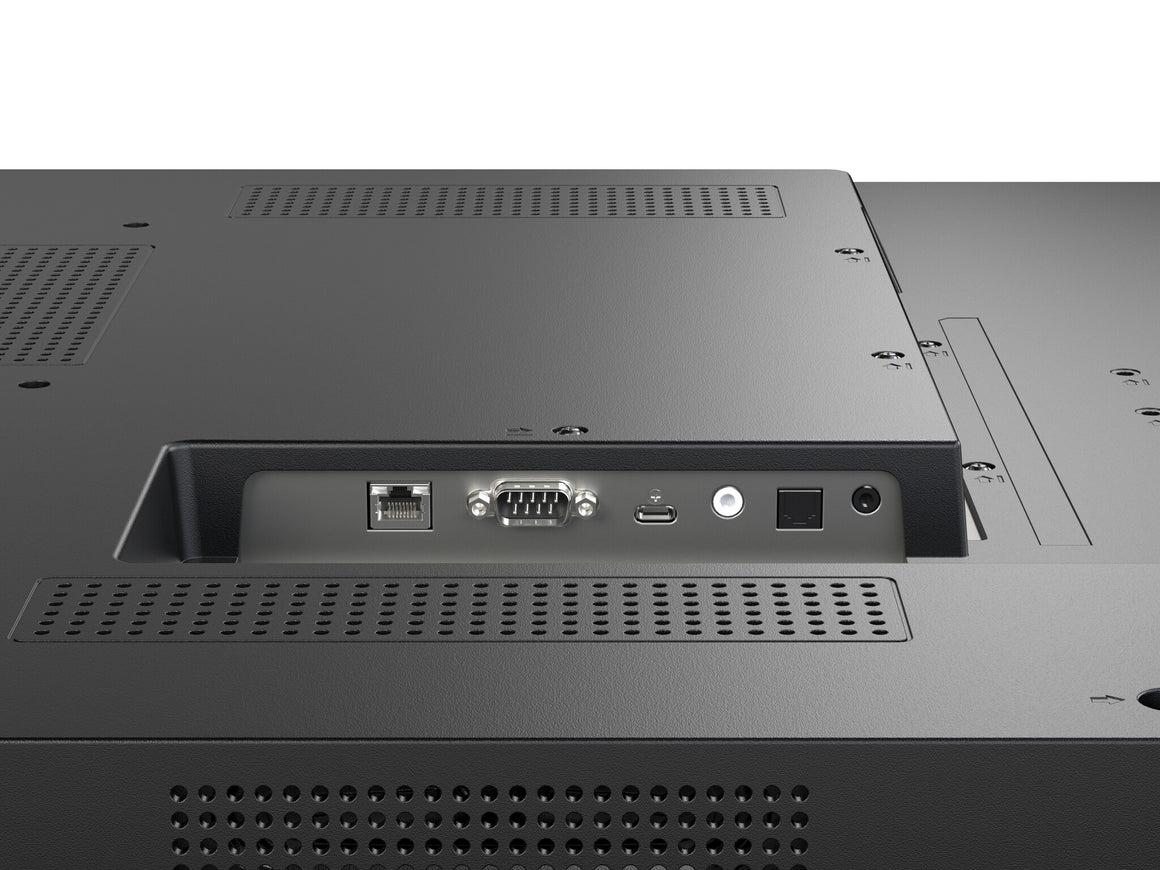

| Ports & interfaces |
|---|
| Remote (IR) input |
1 |
| Infrared data port |
Yes |
| RS-232C |
Yes |
| RS-232 interface |
Yes |
| Audio (L/R) out |
1 |
| Audio (L/R) in |
1 |
| Component video (YPbPr/YCbCr) in |
1 |
| Composite video in |
1 |
| Wi-Fi |
No |
| Ethernet LAN data rates |
100 Mbit/s |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN |
Yes |
| USB version |
2.0 |
| USB ports quantity |
2 |
| USB port |
Yes |
| VGA (D-Sub) input ports |
1 |
| DVI port |
No |
| HDMI input ports quantity |
3 |
| HDMI ports quantity |
3 |
| Audio |
|---|
| RMS rated power |
20 W |
| Number of built-in speakers |
2 |
| Built-in speaker(s) |
Yes |
| Design |
|---|
| Mounting type |
Wall |
| Bezel width (top) |
1.25 cm |
| Bezel width (side) |
1.25 cm |
| Bezel width (bottom) |
1.39 cm |
| Panel mounting interface |
400 x 200 mm |
| VESA mounting |
Yes |
| Orientation |
Horizontal |
| Placement supported |
Indoor |
| Product colour |
Black |
| Product design |
Digital signage flat panel |
| Performance |
|---|
| Hybrid Log-Gamma (HLG) |
Yes |
| Operating hours (hours/days) |
16/7 |
| Ambient light sensor |
Yes |
| Browsing |
Yes |
| Purpose |
Universal |
| Power |
|---|
| Energy efficiency scale |
A to G |
| AC input frequency |
50 - 60 Hz |
| AC input voltage |
100 - 240 V |
| Energy consumption (HDR) per 1000 hours |
92 kWh |
| Energy consumption (SDR) per 1000 hours |
76 kWh |
| Energy efficiency class (HDR) |
G |
| Energy efficiency class (SDR) |
G |
| Power consumption (sleep) |
0.5 W |
| Power consumption (standby) |
2 W |
| Power consumption (typical) |
105 W |
| Computer system |
|---|
| Mac operating systems supported |
Yes |
| Windows operating systems supported |
Yes |
| Image formats supported |
JPG |
| Audio formats supported |
AAC, LPCM, MP3 |
| Video formats supported |
MP4, MPG, TS, WMV |
| Built-in processor |
No |
| Computer system |
No |
| Weight & dimensions |
|---|
| Weight |
16.8 kg |
| Height |
717.7 mm |
| Depth |
72 mm |
| Width |
1238.6 mm |
| Packaging content |
|---|
| Cables included |
AC, HDMI |
| Batteries included |
Yes |
| Remote control included |
Yes |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
5 - 85% |
| Storage temperature (T-T) |
-10 - 60 °C |
| Operating relative humidity (H-H) |
10 - 80% |
| Operating temperature (T-T) |
0 - 40 °C |
| General |
|---|
| Product family |
E series |
| Logistics data |
|---|
| Harmonized System (HS) code |
85285210 |
| Features |
|---|
| Wall mountable |
Yes |
| Suitable for indoor use |
Yes |
| Base colour |
Black |
