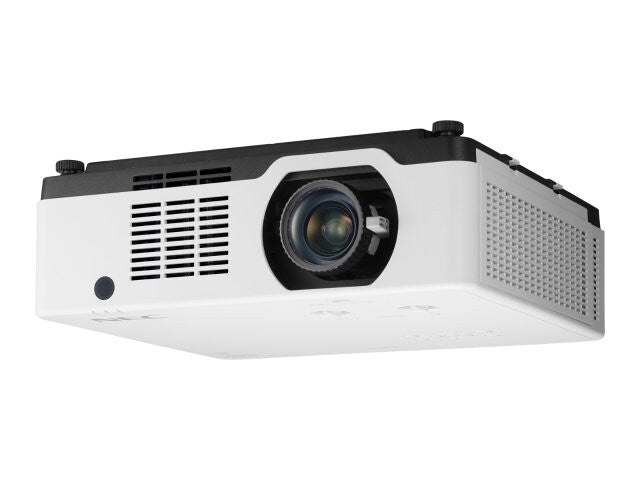

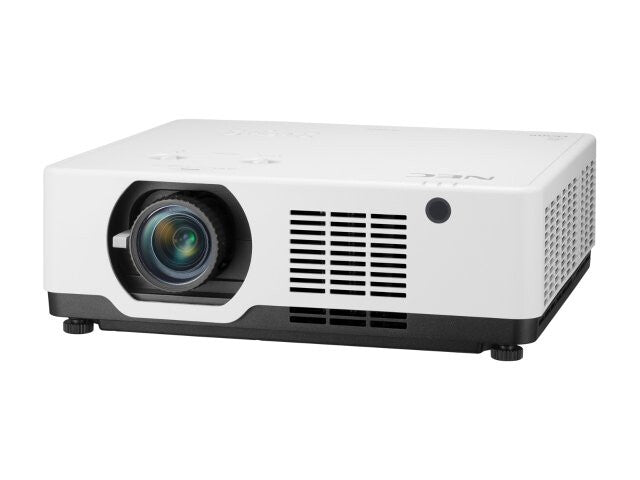

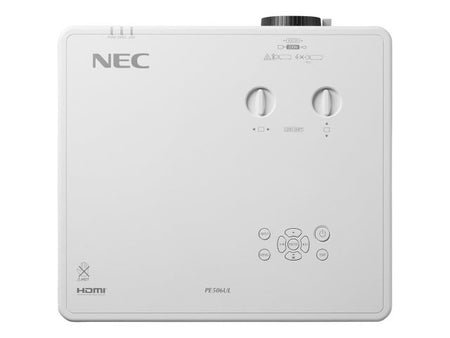

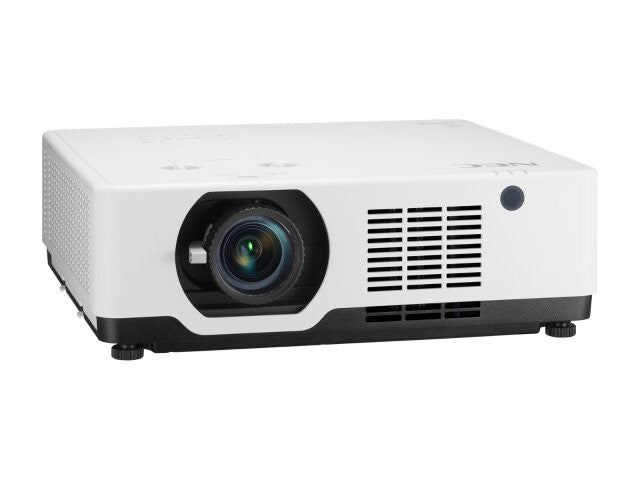

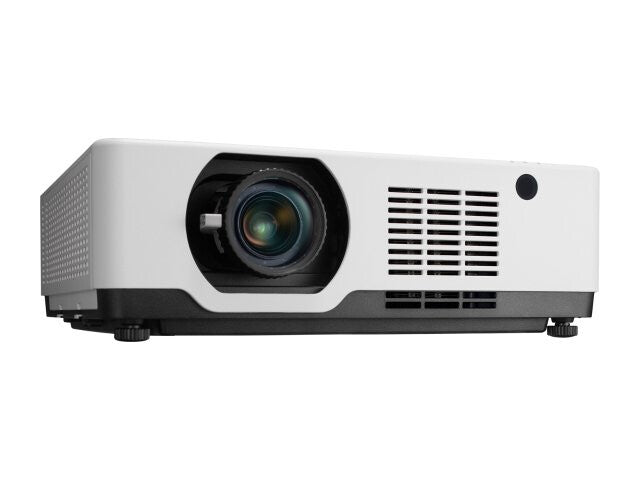

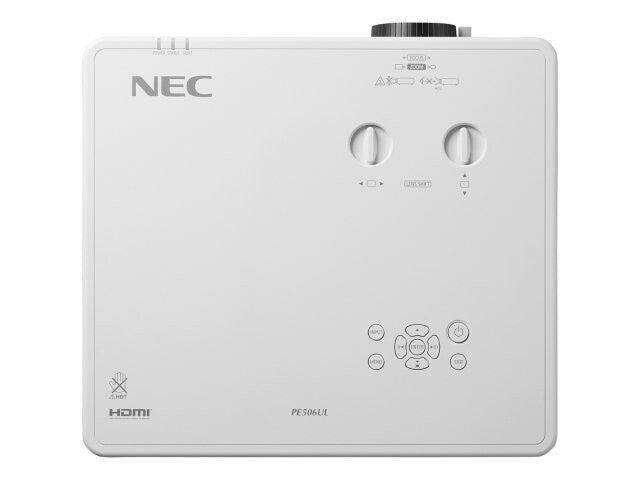

High brightness in compact format

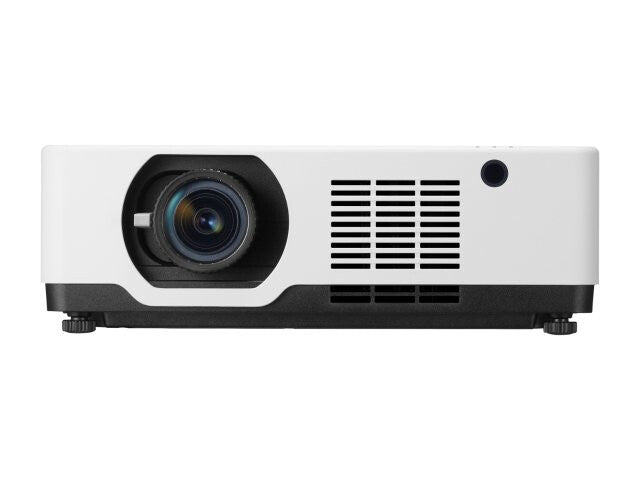

With a long life cycle, the PE506UL brings an exceptionally low cost of ownership for cost-conscious users requiring professional and reliable projection performance. Lighter in weight and more compact compared to its predecessor, yet this powerful projector generates a higher brightness level at 5,200 ANSI lumen and the vivid brilliance of 3 LCD technology.
With wireless presentation and screen sharing capability, versatile adjustability, and compatibility with leading control systems, the PE506UL is feature packed for classrooms, training rooms and meeting rooms.
| Projector |
|---|
| Keystone correction, horizontal |
-30 - 30° |
| Keystone correction, vertical |
-30 - 30° |
| Projection distance |
0.75 - 13 m |
| Native aspect ratio |
16:10 |
| Contrast ratio (typical) |
3000000:1 |
| Projector native resolution |
WUXGA (1920x1200) |
| Projection technology |
LCD |
| Projector brightness |
5200 ANSI lumens |
| Light source |
|---|
| Service life of light source |
20000 h |
| Light source type |
Laser |
| Lens system |
|---|
| Vertical lens shift range |
0 - 60% |
| Horizontal lens shift range |
-29 - 29% |
| Zoom capability |
Yes |
| Focus |
Manual |

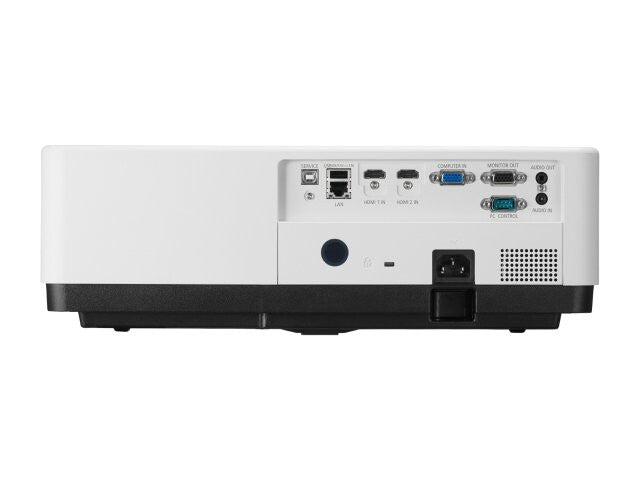

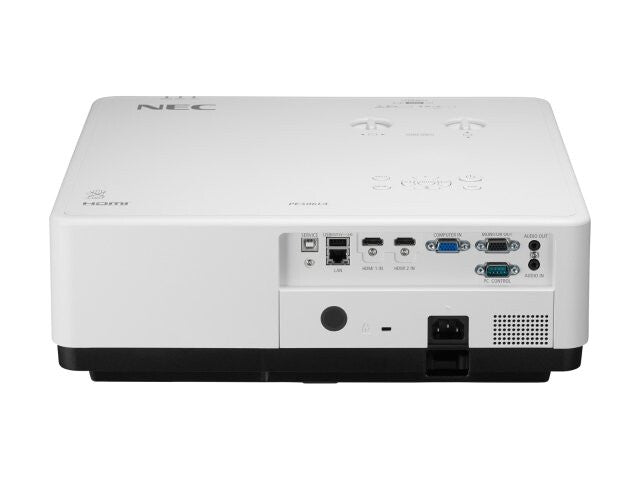

| Ports & interfaces |
|---|
| Microphone in |
Yes |
| Headphone outputs |
1 |
| USB 2.0 Type-B ports quantity |
1 |
| USB 2.0 ports quantity |
2 |
| Component video (YPbPr/YCbCr) in |
1 |
| HDMI ports quantity |
2 |
| VGA (D-Sub) ports quantity |
1 |
| Network |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN |
Yes |
| Features |
|---|
| Noise level (economic mode) |
27 dB |
| Noise level |
37 dB |
| Multimedia |
|---|
| RMS rated power |
16 W |
| Number of built-in speakers |
1 |
| Built-in speaker(s) |
Yes |
| Design |
|---|
| Product colour |
White |
| Market positioning |
Presentation |
| Product type |
Large venue projector |
| Display |
|---|
| Built-in display |
No |
| Power |
|---|
| AC input frequency |
50 - 60 Hz |
| AC input voltage |
120 - 240 V |
| Power consumption (economy mode) |
177 W |
| Power consumption (standby) |
0.5 W |
| Power consumption (typical) |
335 W |
| Power source |
AC |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
20 - 88% |
| Storage temperature (T-T) |
-10 - 50 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Height |
137 mm |
| Depth |
358 mm |
| Width |
405 mm |
| Weight |
7.95 kg |
| Packaging content |
|---|
| Manual |
Yes |
| Cables included |
VGA |
| Batteries included |
Yes |
| Remote control included |
Yes |
