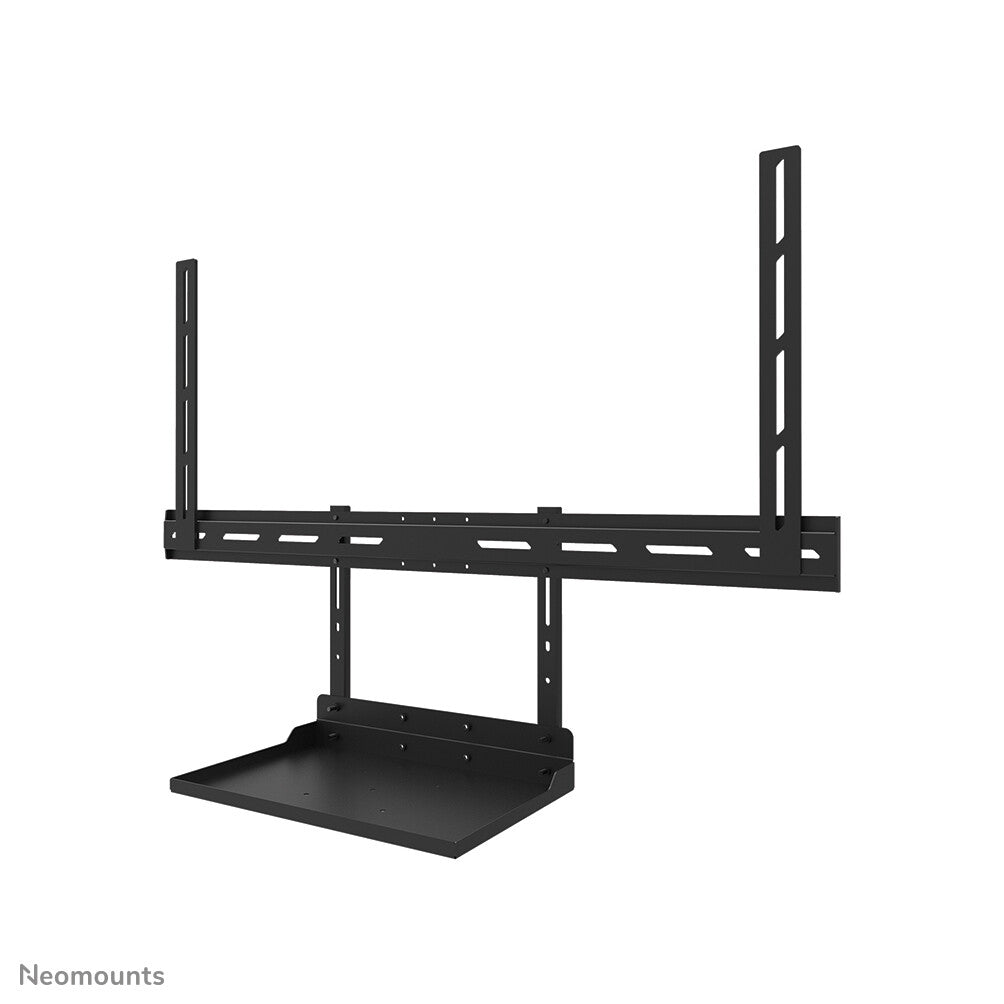

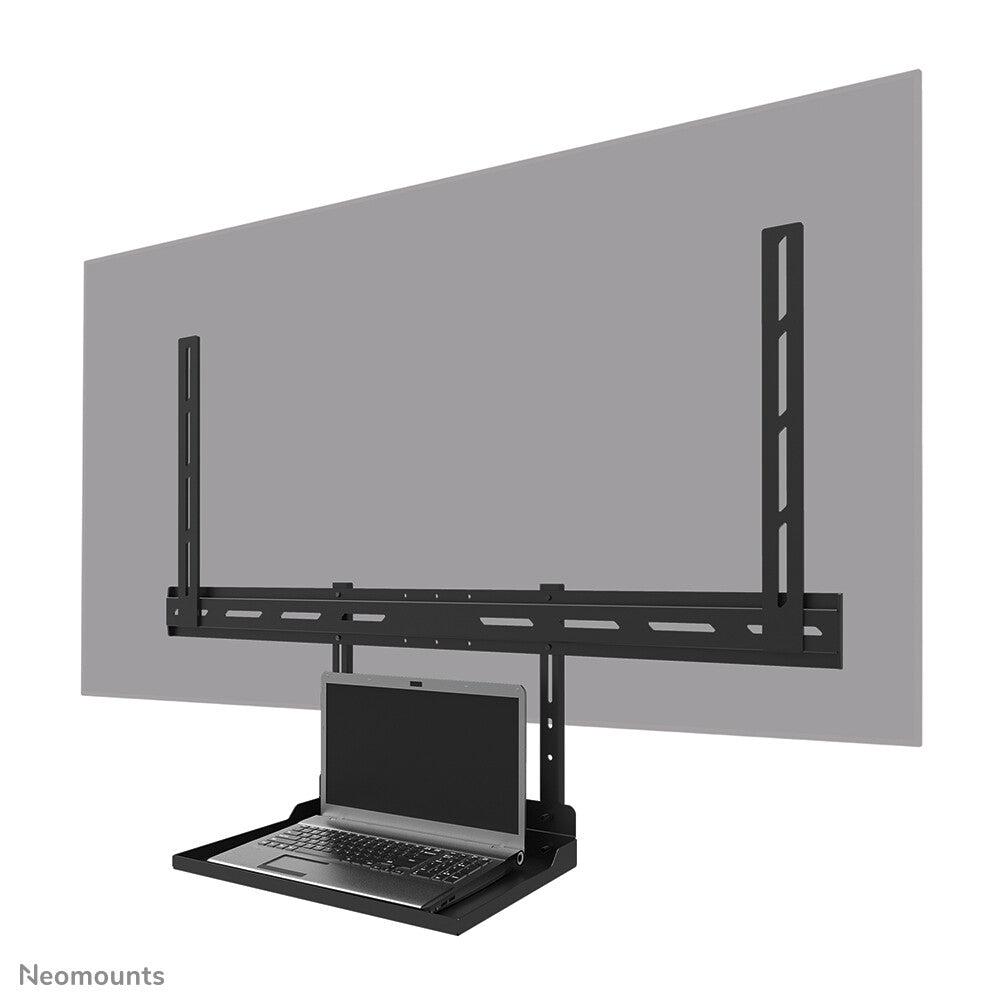

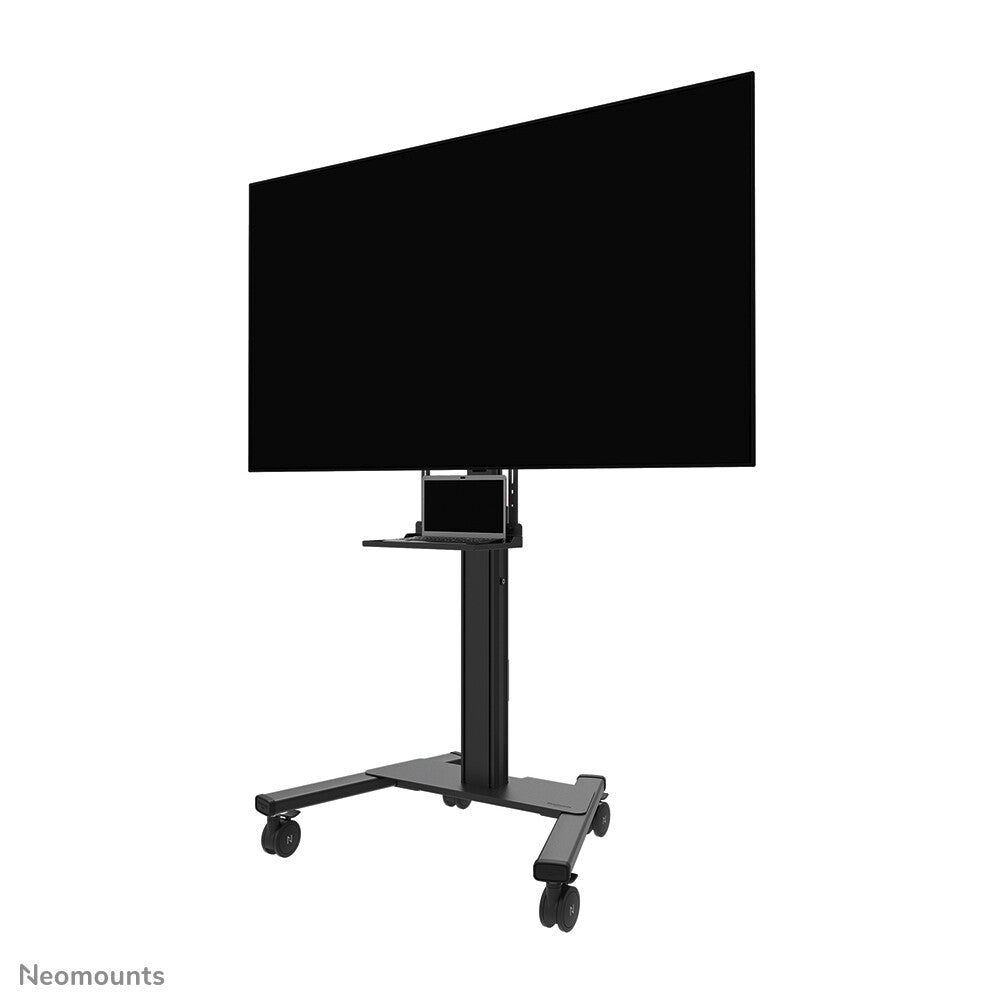

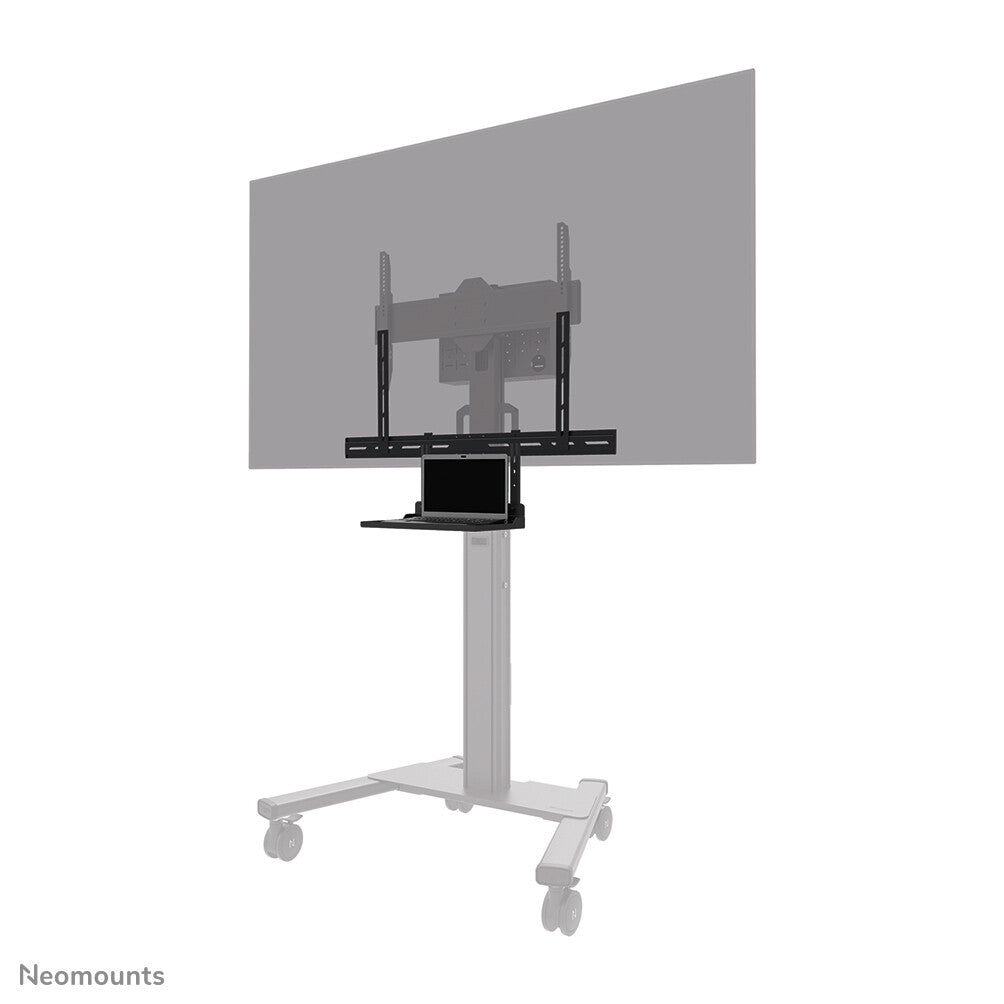

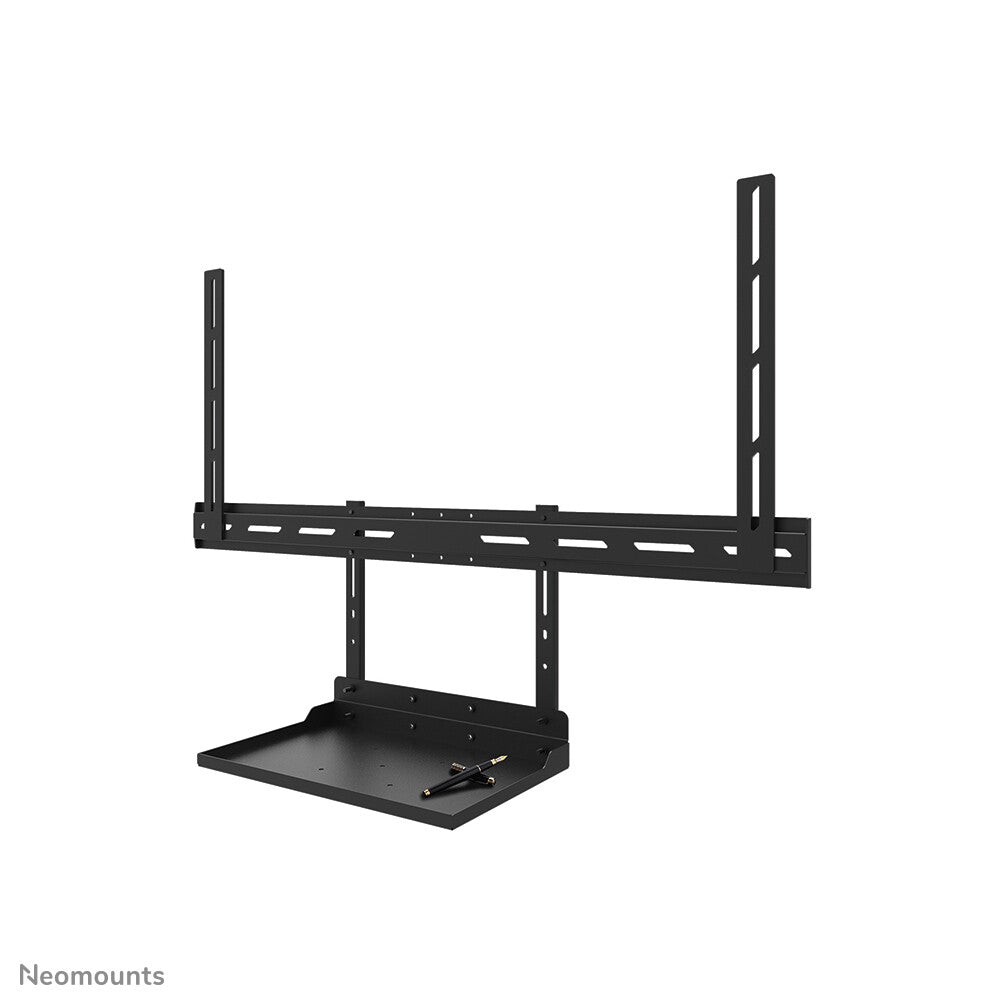

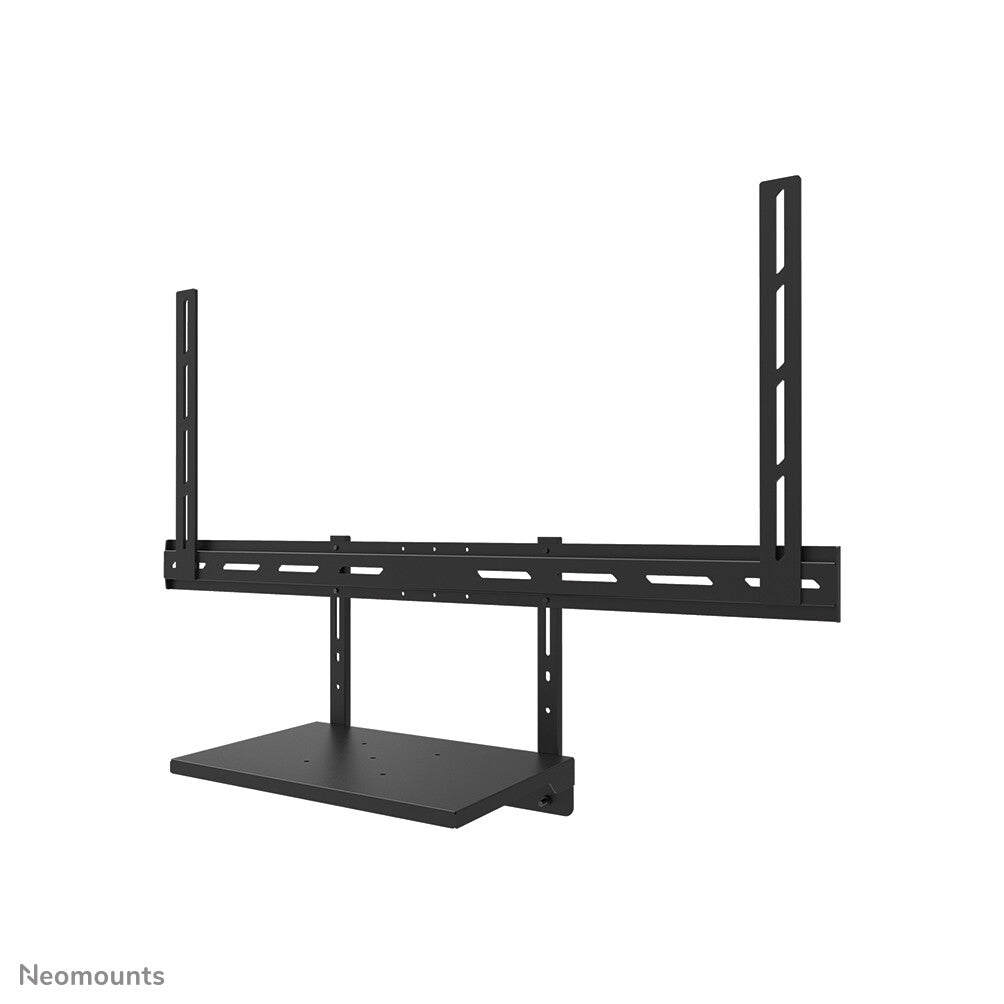

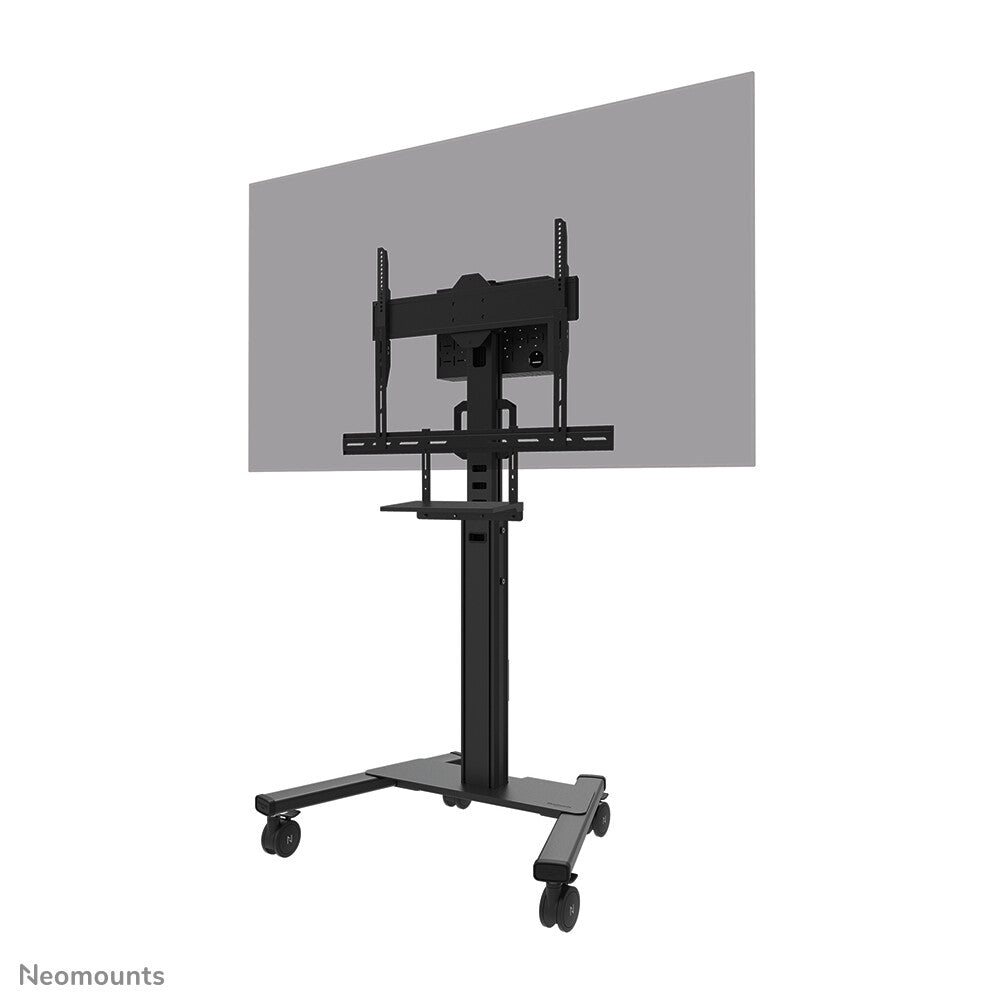

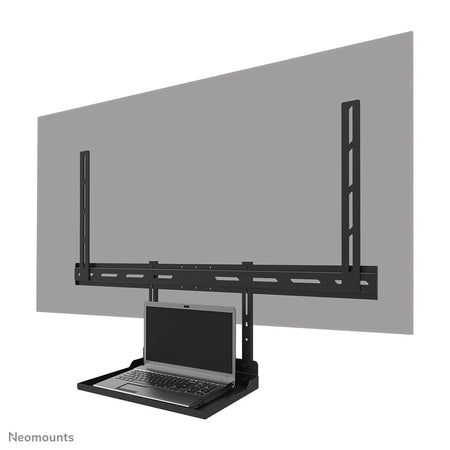

The Neomounts AV45-500BL is a universal laptop shelf kit designed for installation under displays from 43" and larger, supporting VESA hole patterns from 200x200 up to 800x600 mm. The VESA-based design makes the shelf compatible with all VESA-oriented trolleys and wall mounts, ensuring broad applicability across different setups.

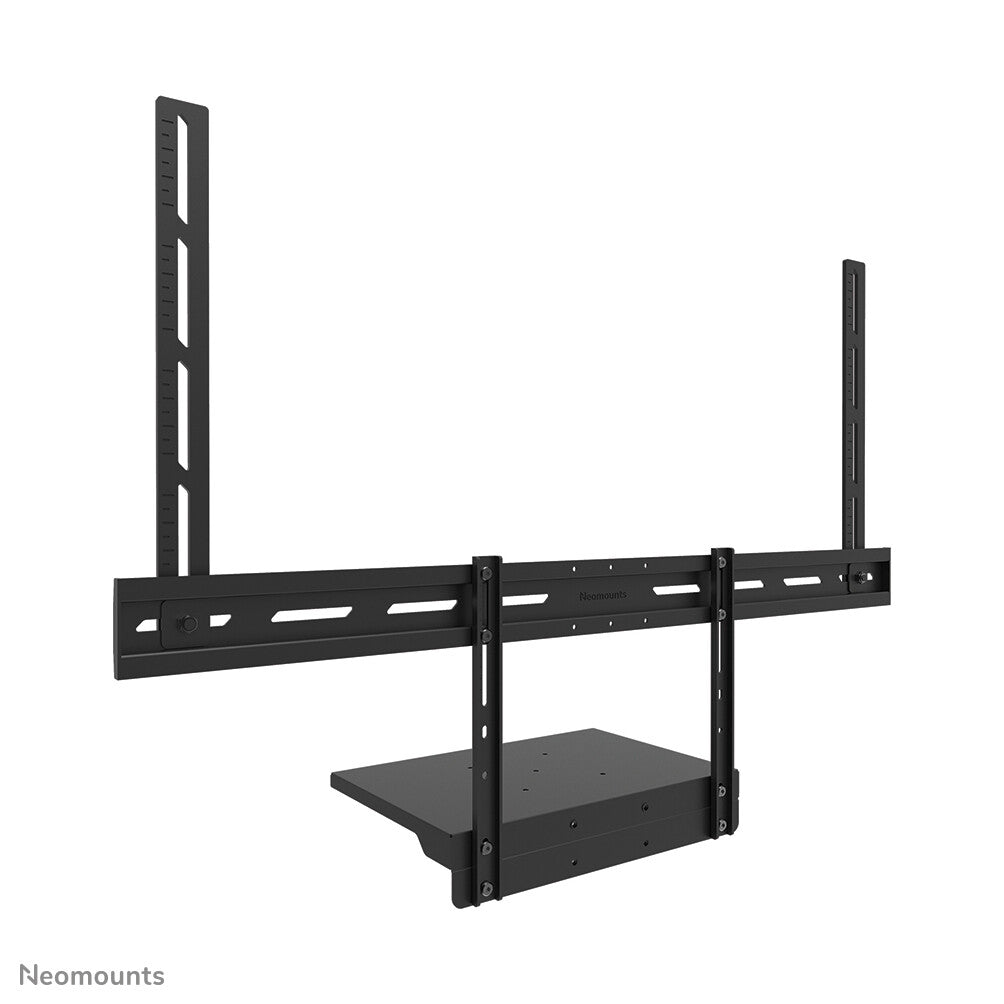

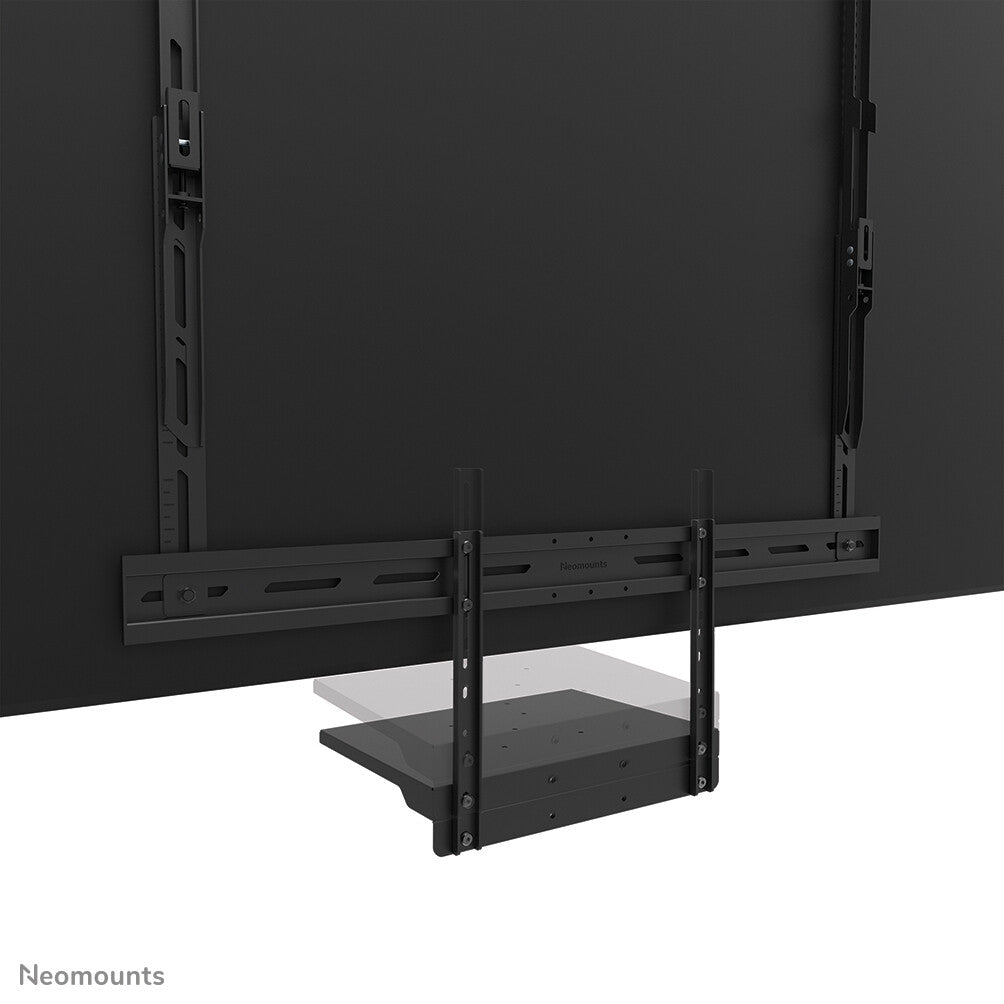

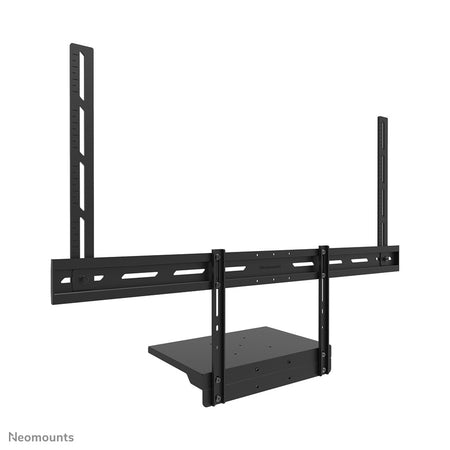

Both the shelf support and backplate brackets are height-adjustable, providing maximum flexibility. The AV45-500BL mounting holes accommodate width and height variations, while the VESA frame adjusts in four positions (200/400/600/800). The kit is suitable for use with both wall and floor mounts and has a maximum load capacity of 2,5 kg. Installation is quick and straightforward, with ruler-guided alignment ensuring a precise and seamless fit.
For detailed compatibility with specific models and mounting sizes, please refer to the online manual.
| Features |
|---|
| Minimum VESA mount |
200 x 200 mm |
| Maximum VESA mount |
800 x 600 mm |
| Housing material |
Steel |
| Product colour |
Black |
| Height adjustment range |
0 - 55 mm |
| Number of displays supported |
1 |
| Maximum weight capacity |
2.5 kg |
| Maximum screen size |
2.79 m (110") |
| Minimum screen size |
109.2 cm (43") |
| Panel mounting interface |
200 x 200,200 x 300,200 x 400,400 x 200,400 x 300,400 x 400,400 x 600,600 x 300,600 x 200,600 x 400,600 x 500,600 x 600,800 x 800,800 x 200,800 x 400,800 x 450,800 x 500,800 x 600 |
| Product type |
Shelf |
| Technical details |
|---|
| Warranty period |
5 year(s) |
| Country of origin |
China |
| Weight & dimensions |
|---|
| Weight |
5.5 kg |
| Height |
640 mm |
| Depth |
242 mm |
| Width |
900 mm |
| Packaging data |
|---|
| Package height |
79 mm |
| Package depth |
932 mm |
| Package width |
260 mm |
| Logistics data |
|---|
| Harmonized System (HS) code |
7326909890 |
| Products per master (outer) case |
3 pc(s) |
| Master (outer) case gross weight |
18.2 kg |
| Master (outer) case height |
280 mm |
| Master (outer) case length |
952 mm |
| Master (outer) case width |
255 mm |
| Master (outer) case net weight |
13.5 kg |
