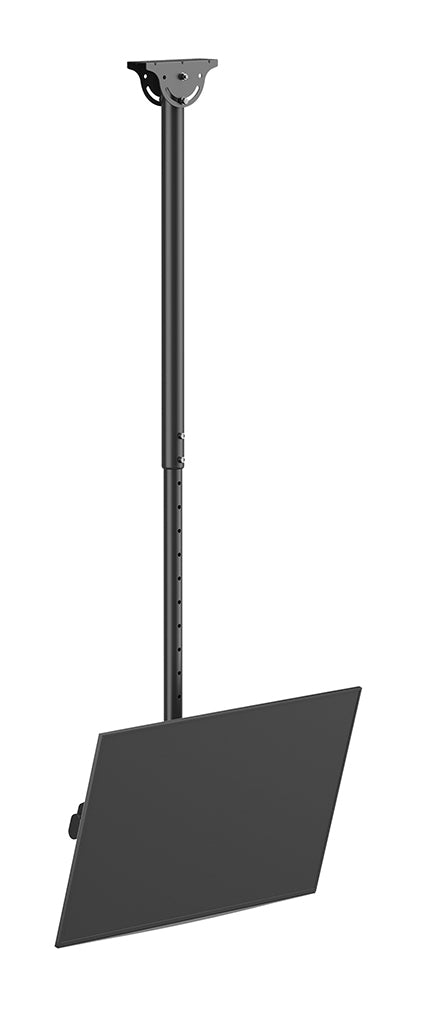

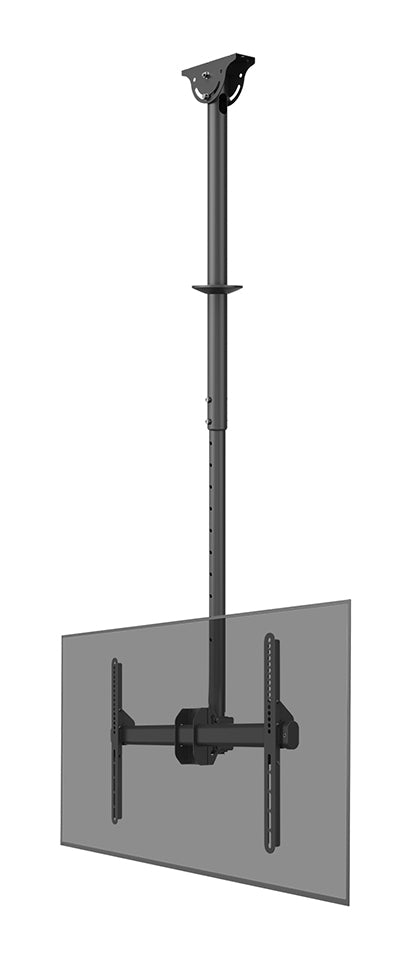

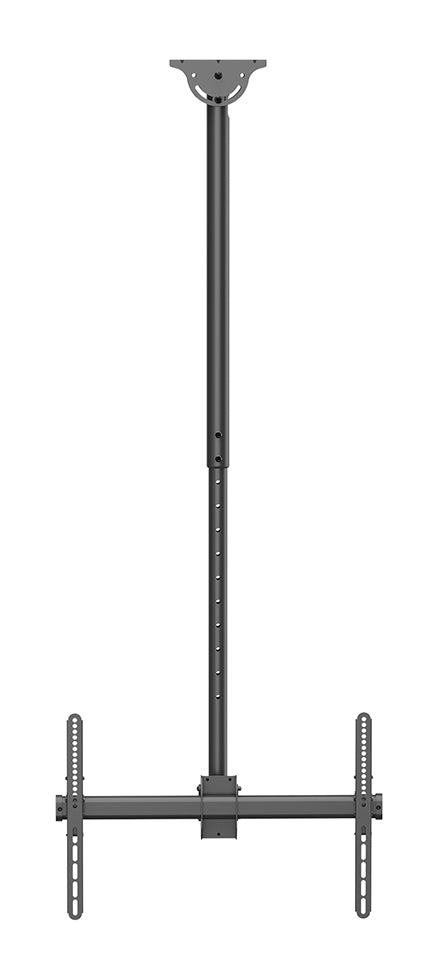

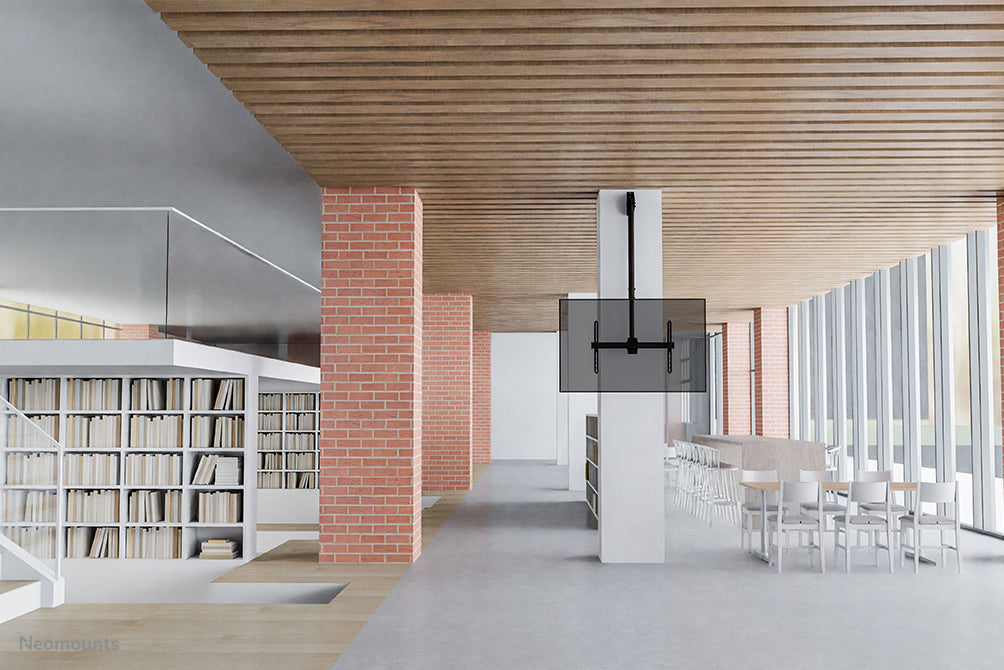

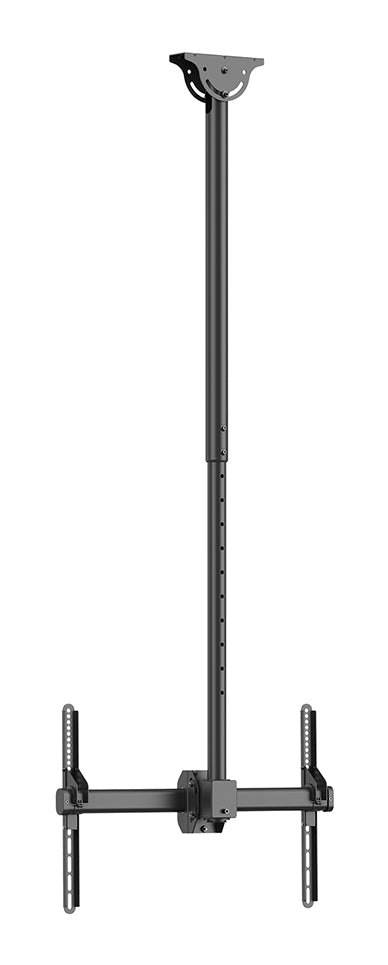

The Neomounts CL35-440BL16L is a full motion ceiling mount for flat screens up to 70". The unique tilt (25°) and swivel (360°) technology allows the mount to change to the optimal viewing angle. Level adjustment is available for the perfect installation.

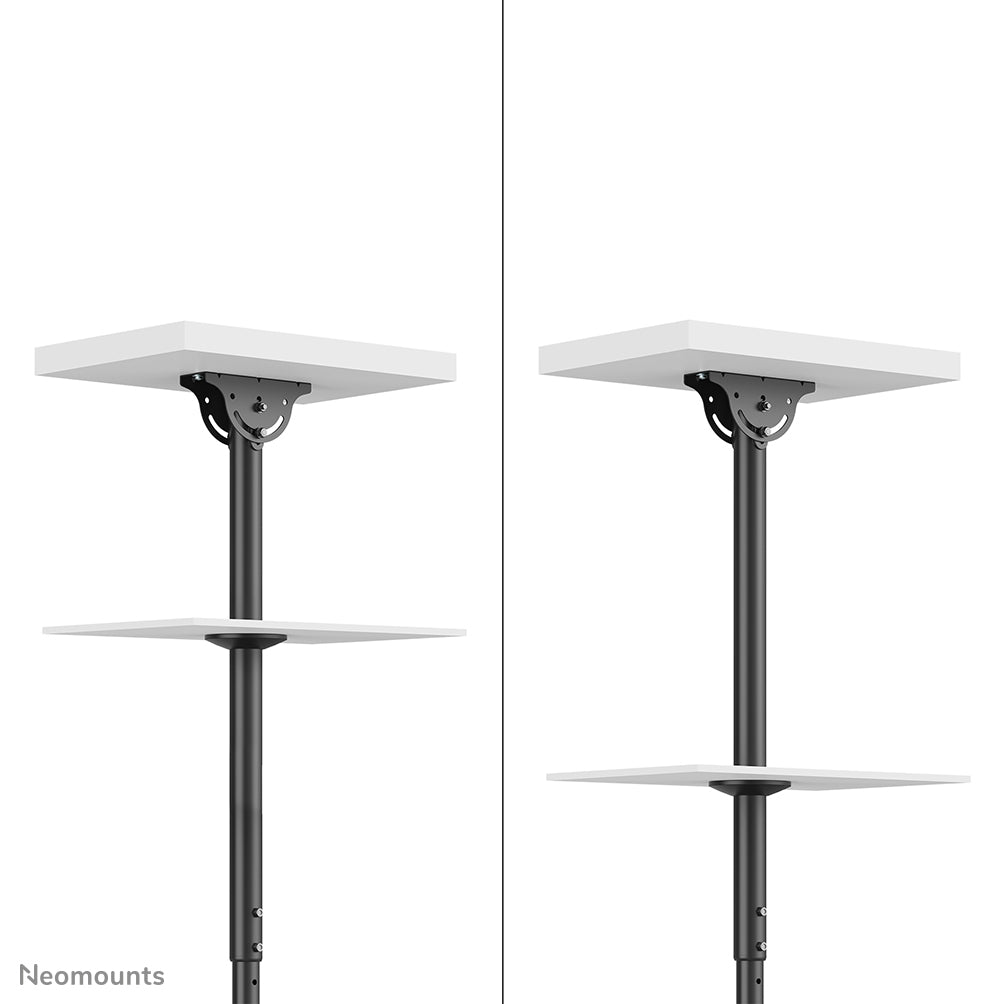

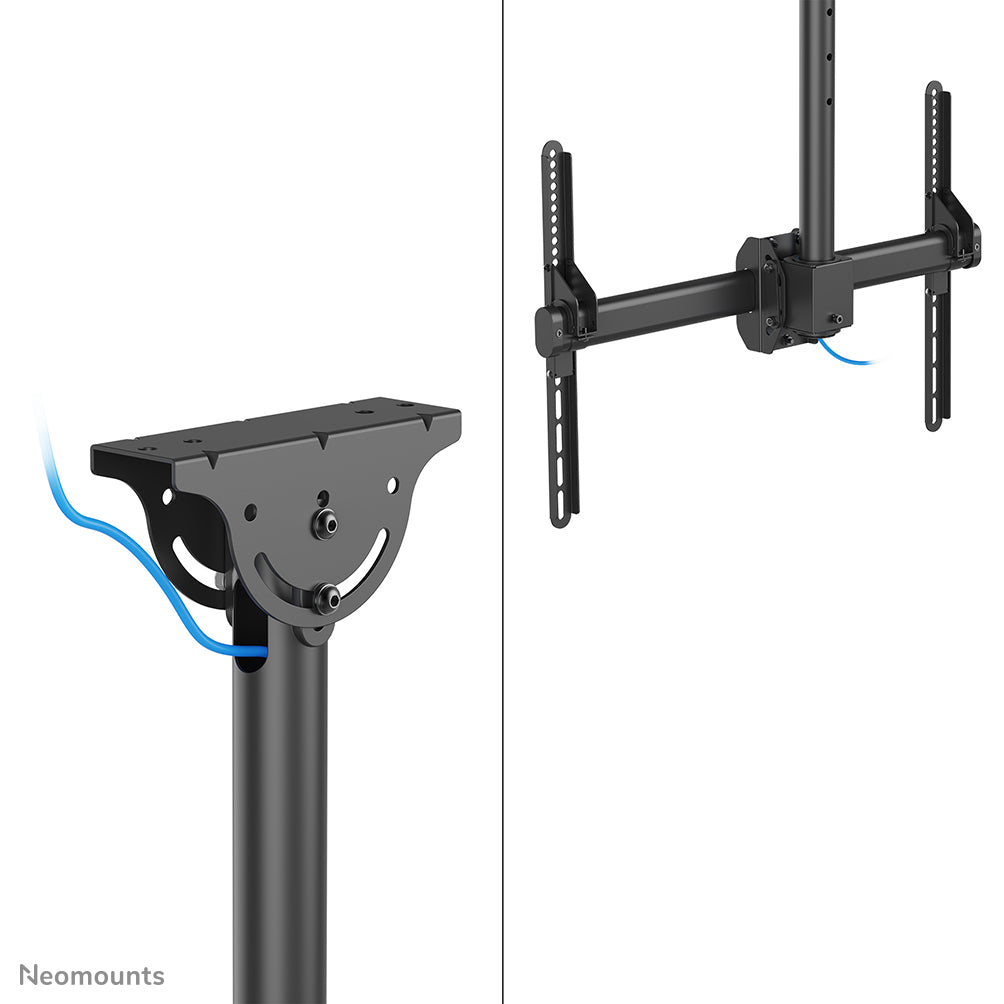

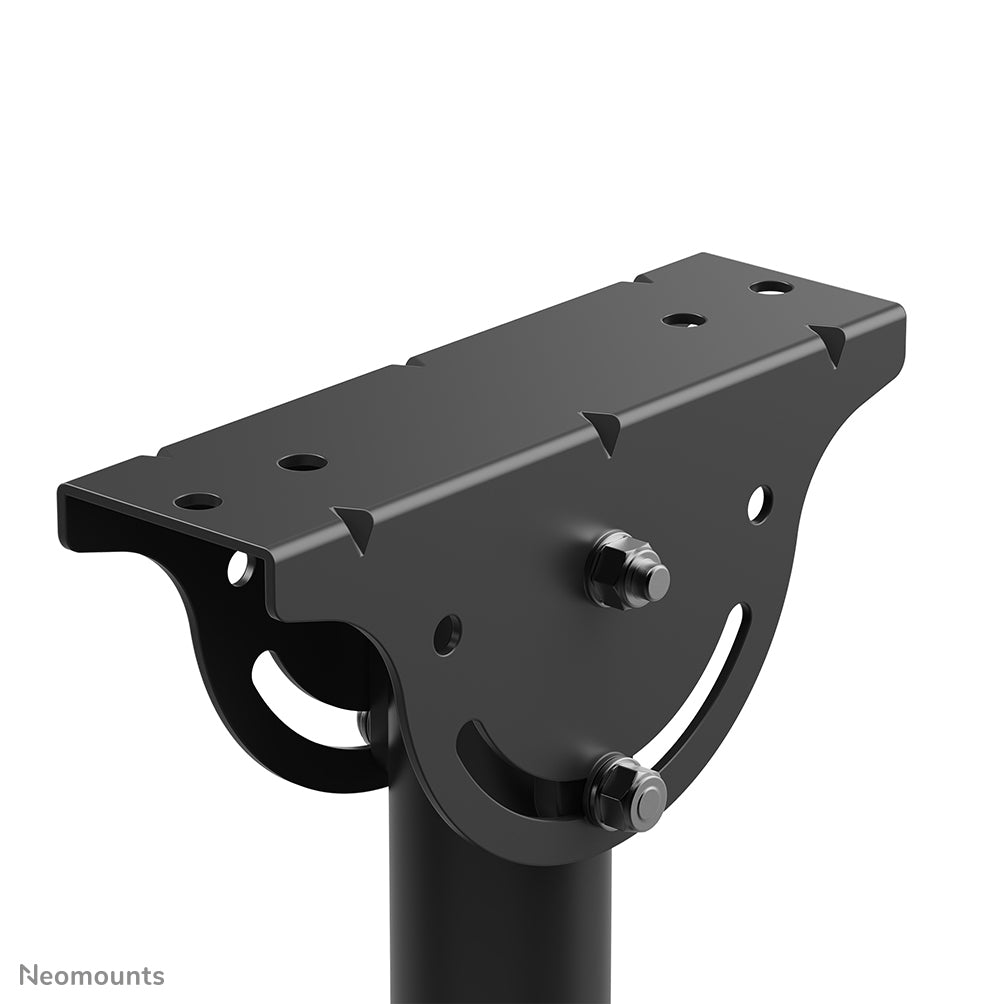

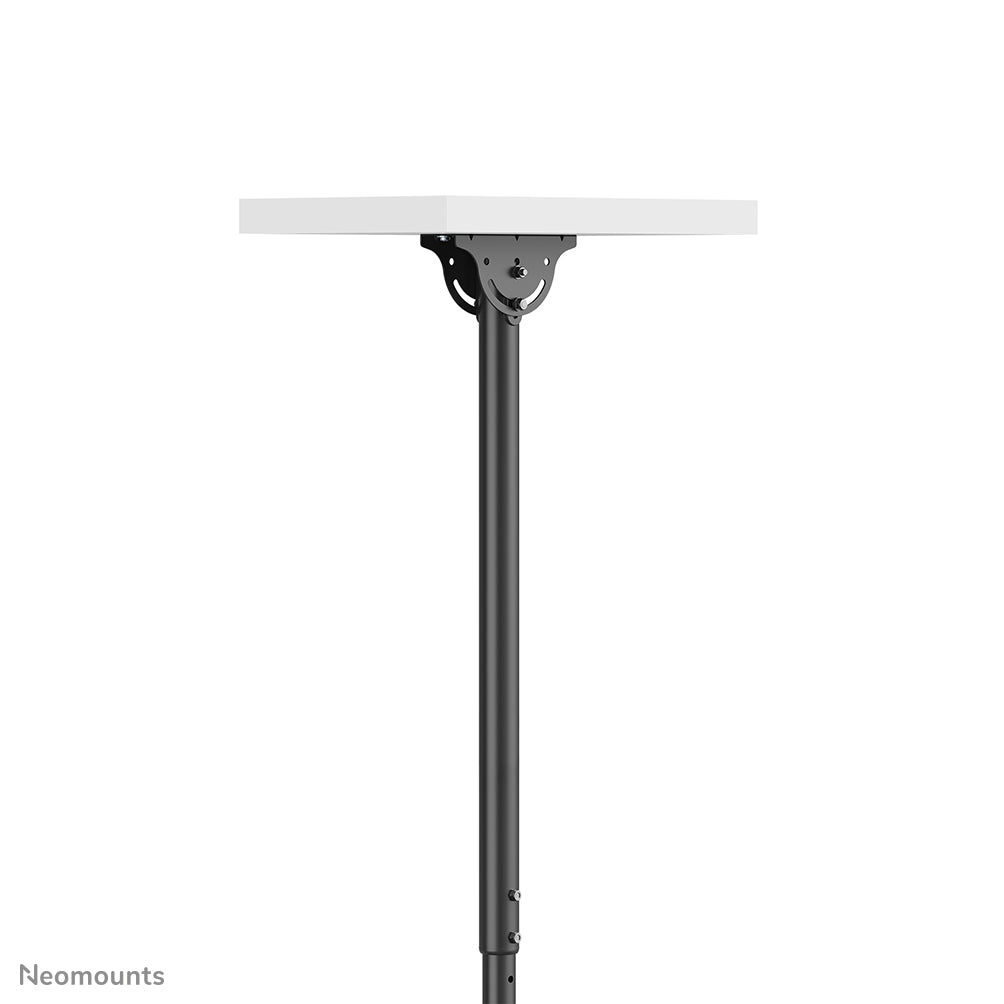

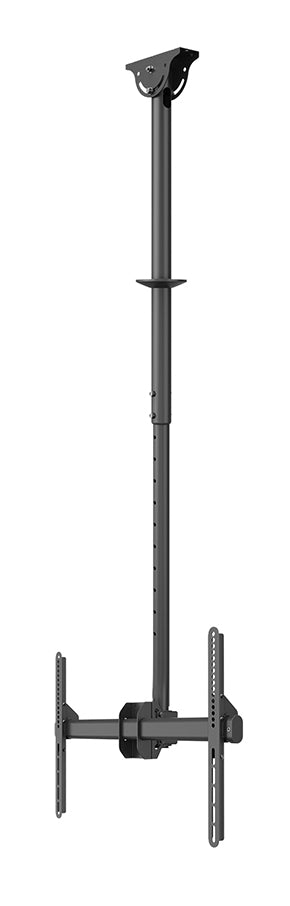

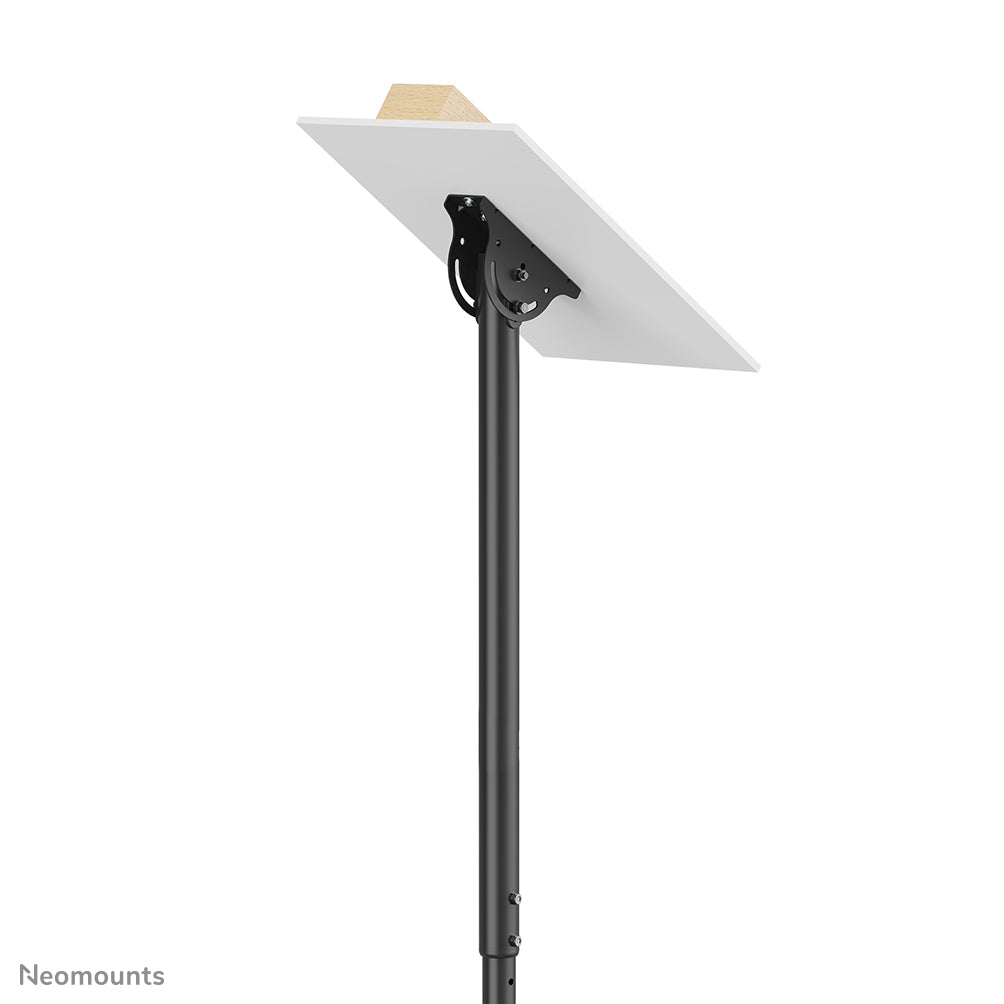

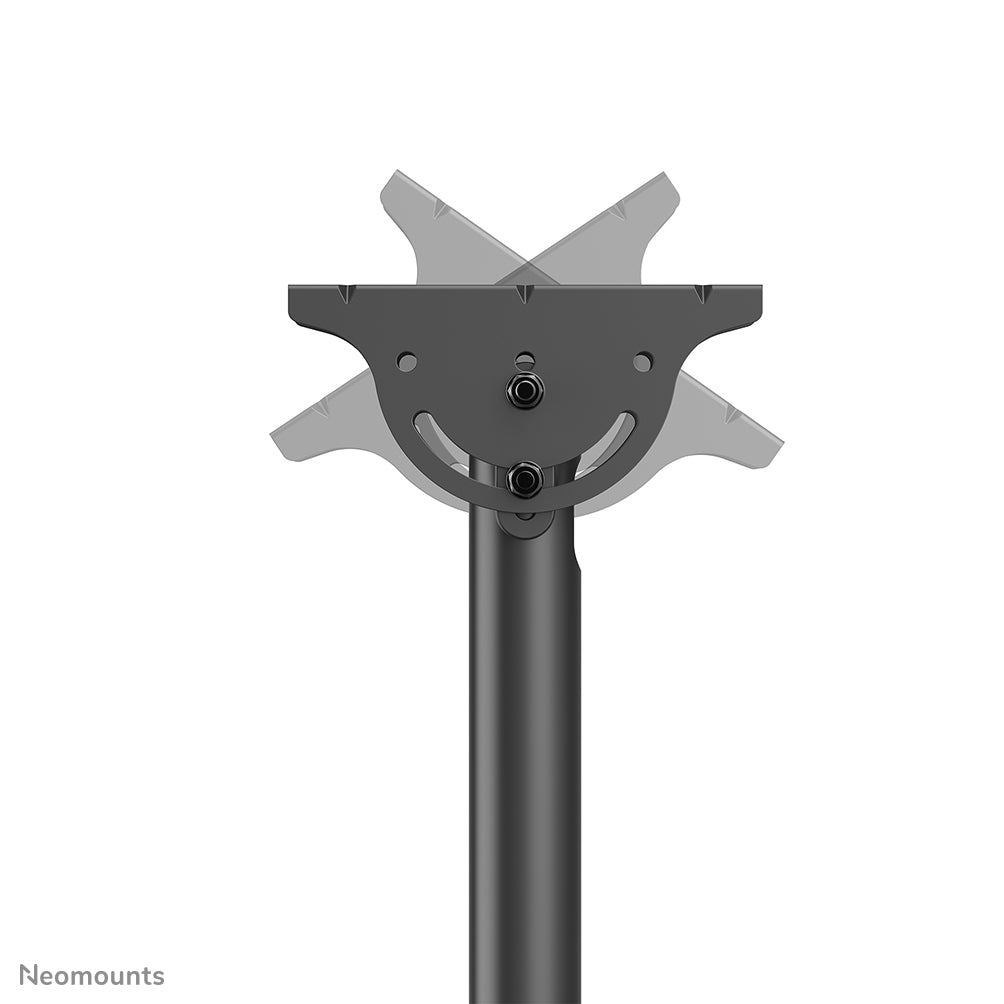

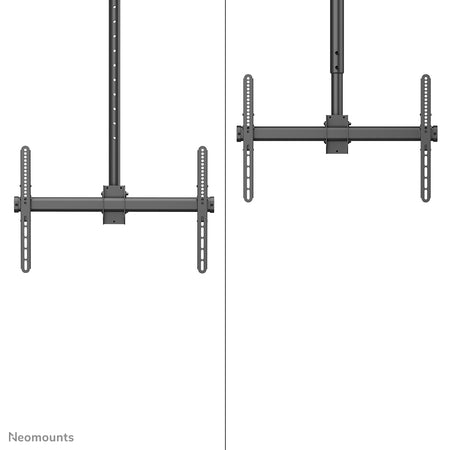

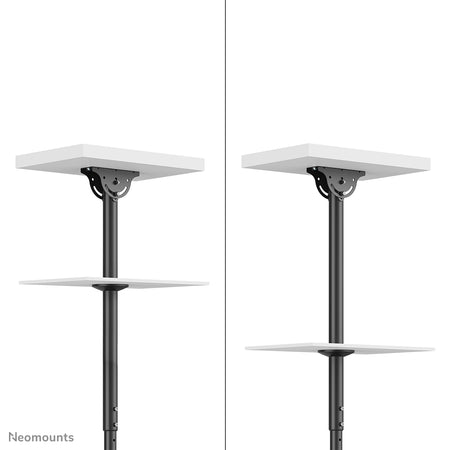

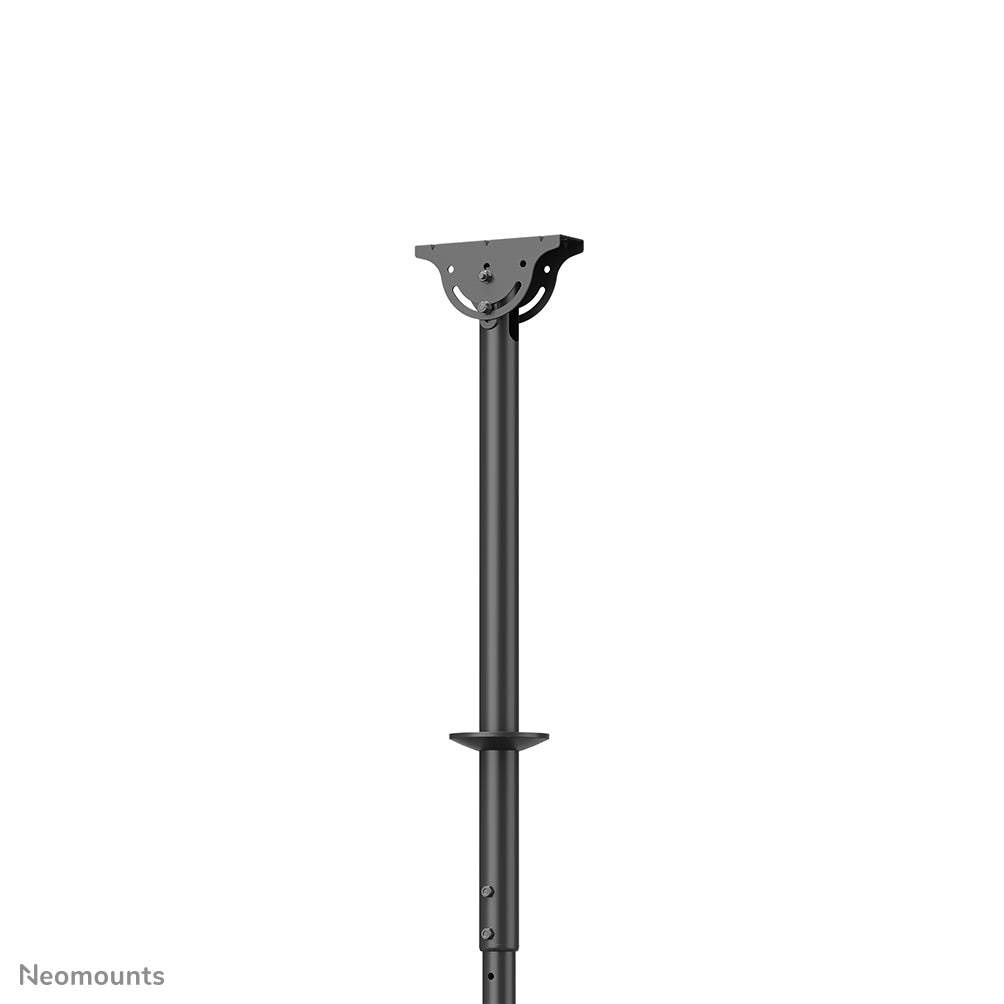

The ceiling mount can be easily adjusted in height from 106 to 156 cm* and has a weight capacity of 50 kg. The CL35-440BL16L is suitable for screens that meet VESA hole pattern 150x200 to 600x400 mm. A practical cable management system conceals and routes cables from ceiling to screen. The mount features an adjustable mounting angle for sloped ceilings and comes with an additional cover for installation on suspended ceilings.

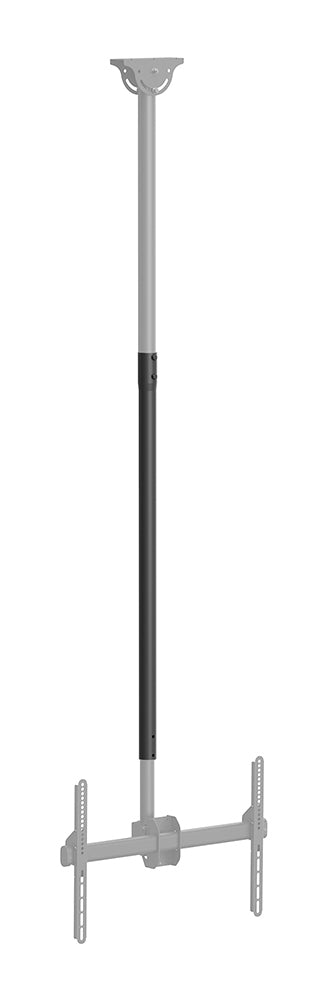

* The Neomounts NS-EP100BLACK extension pole can be used as extra extension to the pole included with the ceiling mount. In this way, the height of the mount can be increased with an extra 107,5 cm.
| Mounting |
|---|
| Number of displays supported |
1 |
| Panel mounting interface |
200 x 200,200 x 400,400 x 400,200 x 300,300 x 300,440 x 400,500 x 400,600 x 200,600 x 300,600 x 400,300 x 200,400 x 300,200 x 100,300 x 100,350 x 350,400 x 200,150 x 200,200 x 150 |
| Maximum VESA mount |
600 x 400 mm |
| Minimum VESA mount |
150 x 200 mm |
| Mounting type |
Ceiling |
| Maximum screen size |
177.8 cm (70") |
| Minimum screen size |
94 cm (37") |
| Maximum weight capacity |
50 kg |
| Ergonomics |
|---|
| Cable management |
Yes |

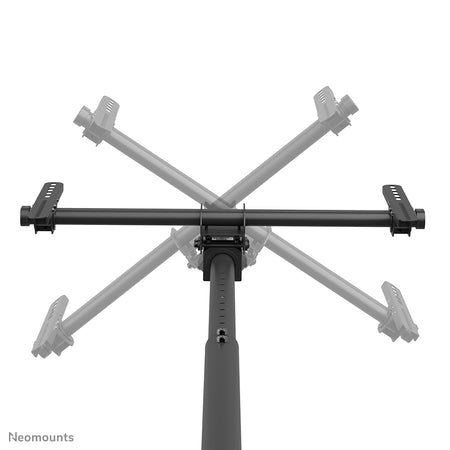

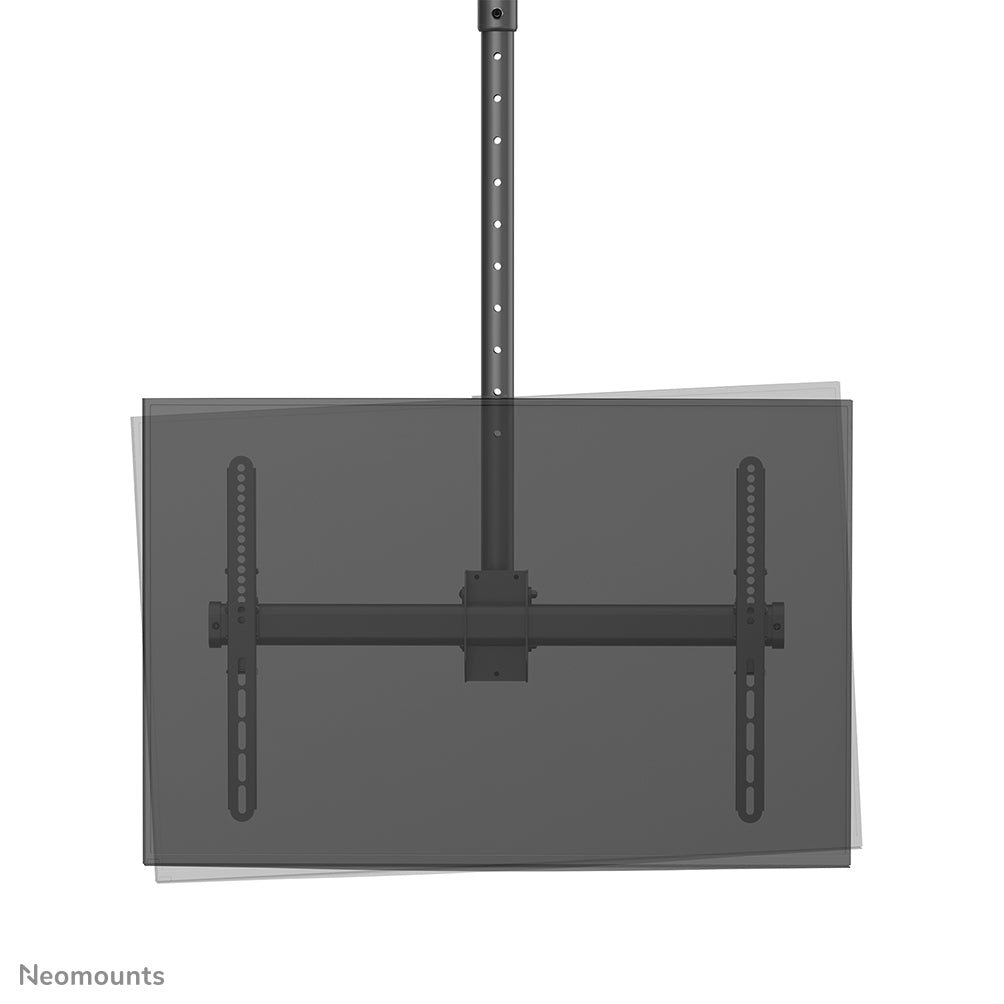

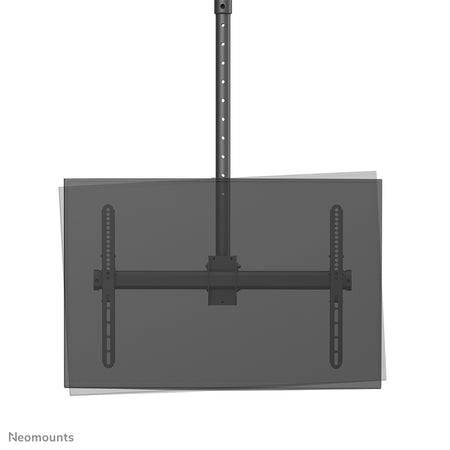

| Angle of rotation |
3° |
| Rotating |
Yes |
| Swivel angle range |
-180 - 180° |
| Swivelling |
Yes |
| Tilt angle range |
-25 - 0° |
| Tilt adjustment |
Yes |

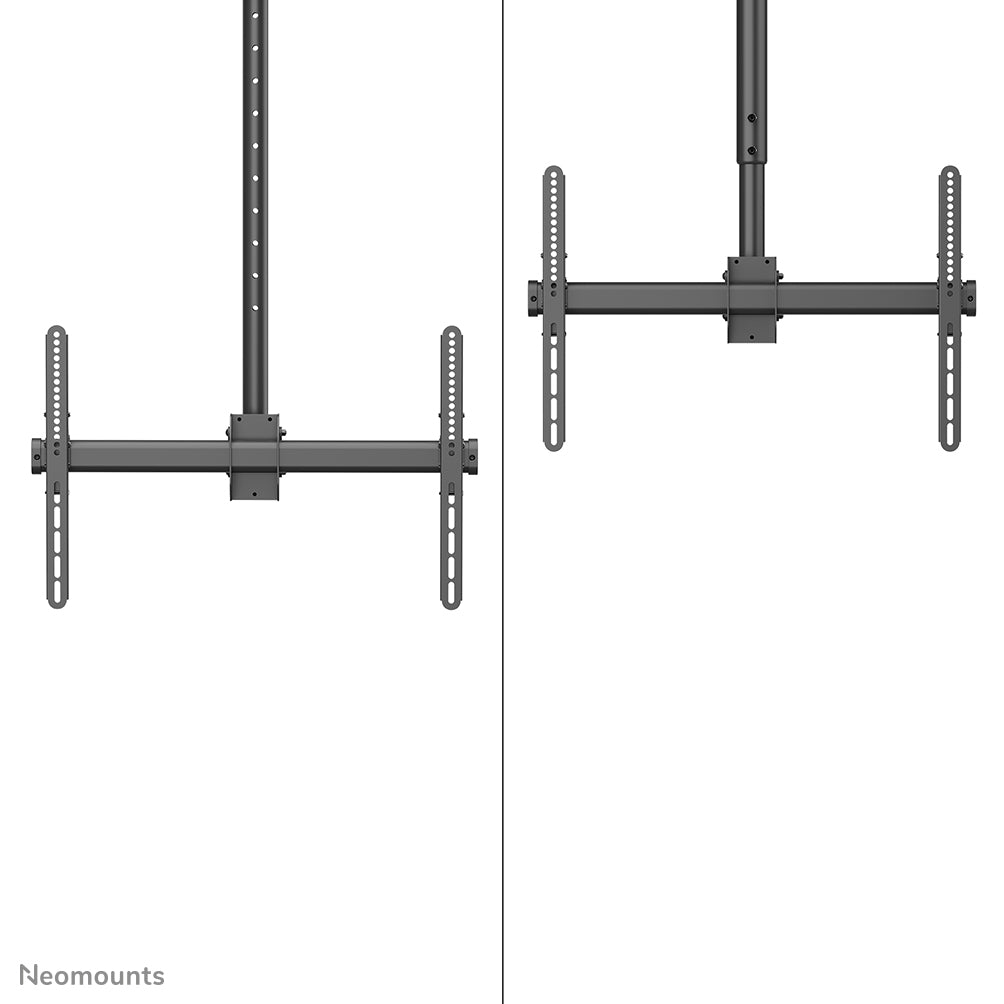

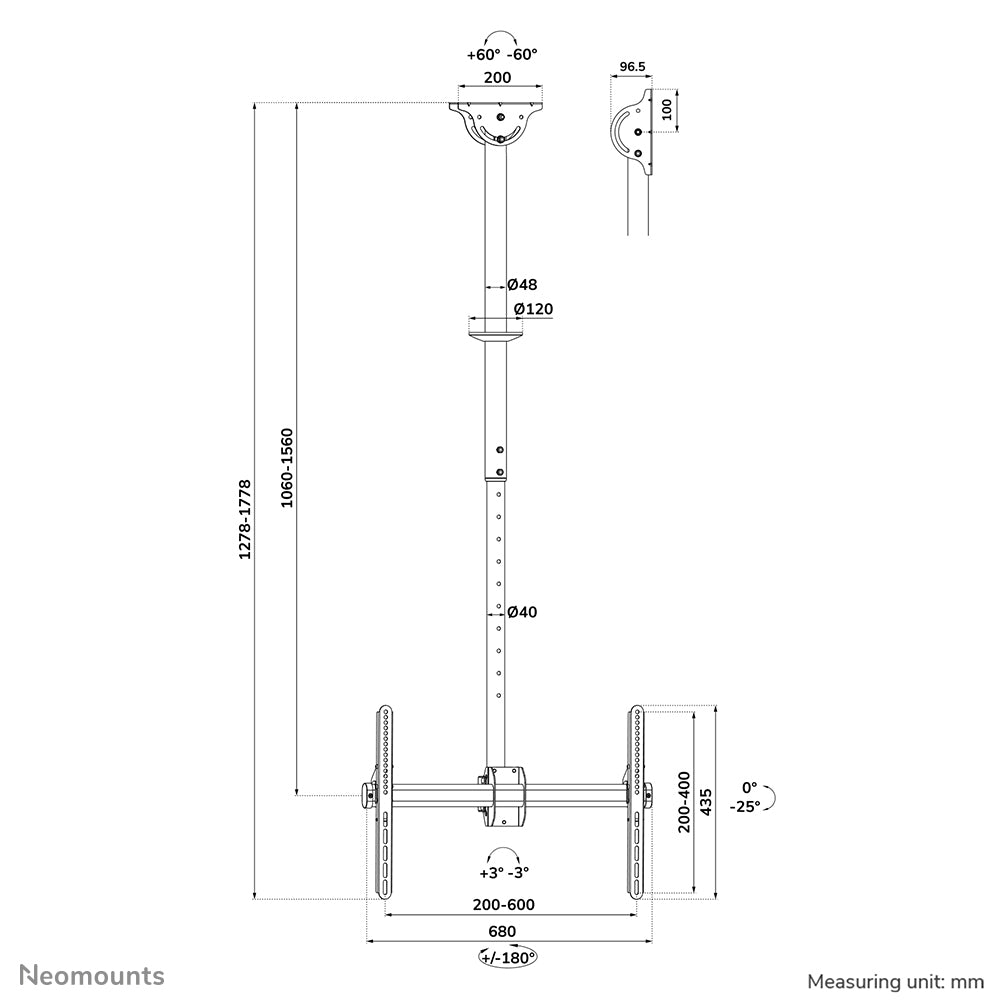

| Height adjustment range |
1060 - 1560 mm |
| Height adjustment type |
Manual |
| Height adjustment |
Yes |
| Design |
|---|
| Housing material |
Steel |
| Product colour |
Black |
| Technical details |
|---|
| Warranty period |
5 year(s) |
| Country of origin |
China |

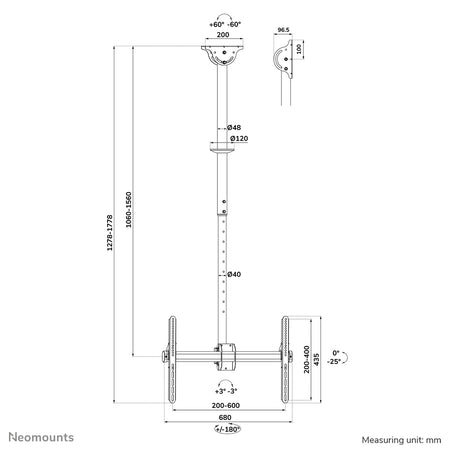

| Weight & dimensions |
|---|
| Weight |
6.36 kg |
| Height |
1780 mm |
| Depth (max) |
13.8 cm |
| Depth |
138 mm |
| Width |
680 mm |
| Packaging data |
|---|
| Package weight |
7.8 kg |
| Package height |
935 mm |
| Package depth |
145 mm |
| Package width |
310 mm |
| Logistics data |
|---|
| Products per pallet (EU) |
20 pc(s) |
| Harmonized System (HS) code |
7326909890 |
| Products per master (outer) case |
2 pc(s) |
| Master (outer) case net weight |
156 g |
| Master (outer) case gross weight |
166 g |
| Master (outer) case height |
955 mm |
| Master (outer) case length |
310 mm |
| Master (outer) case width |
330 mm |
