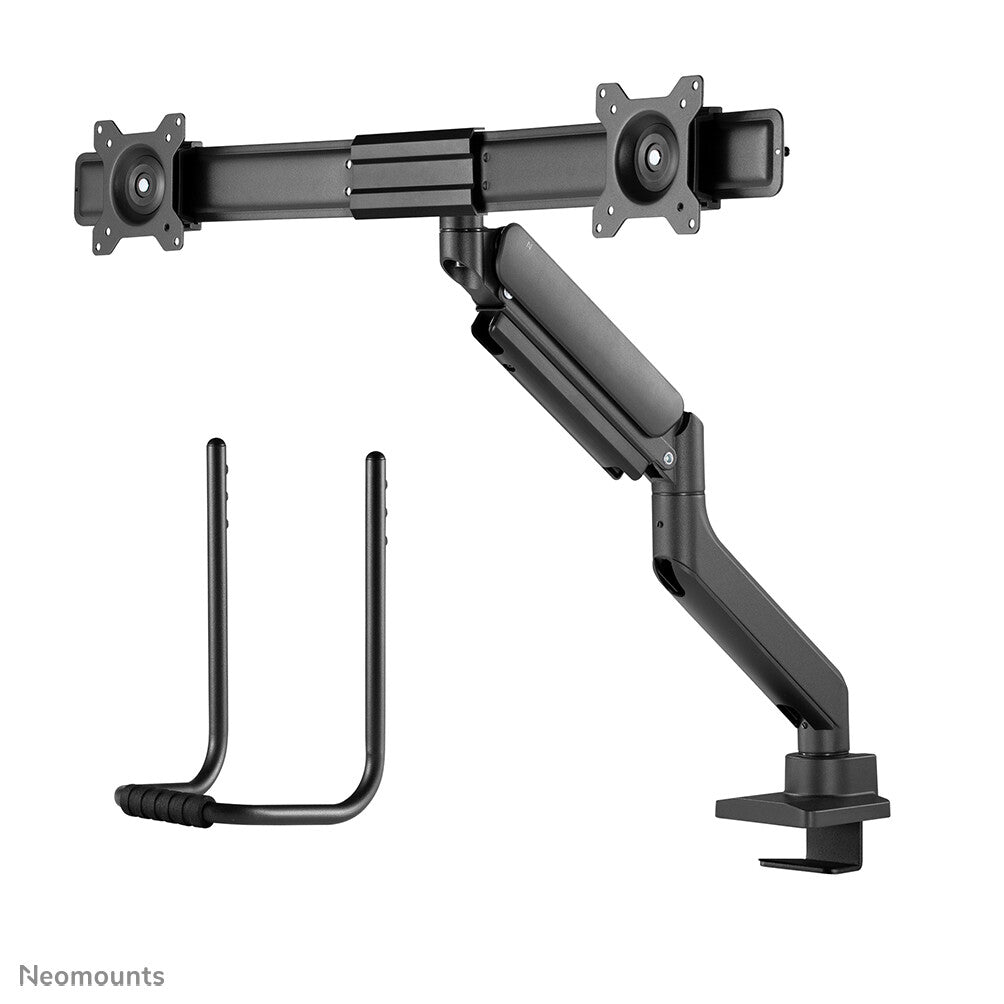

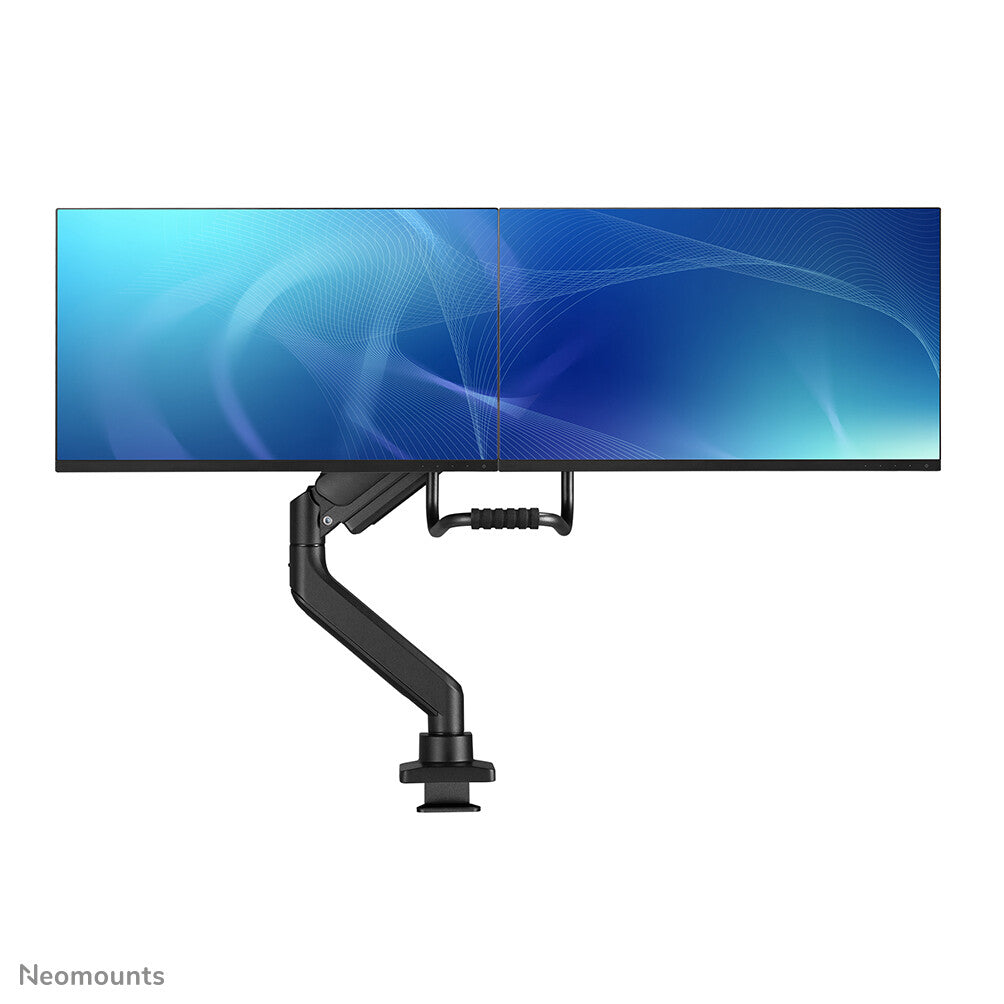

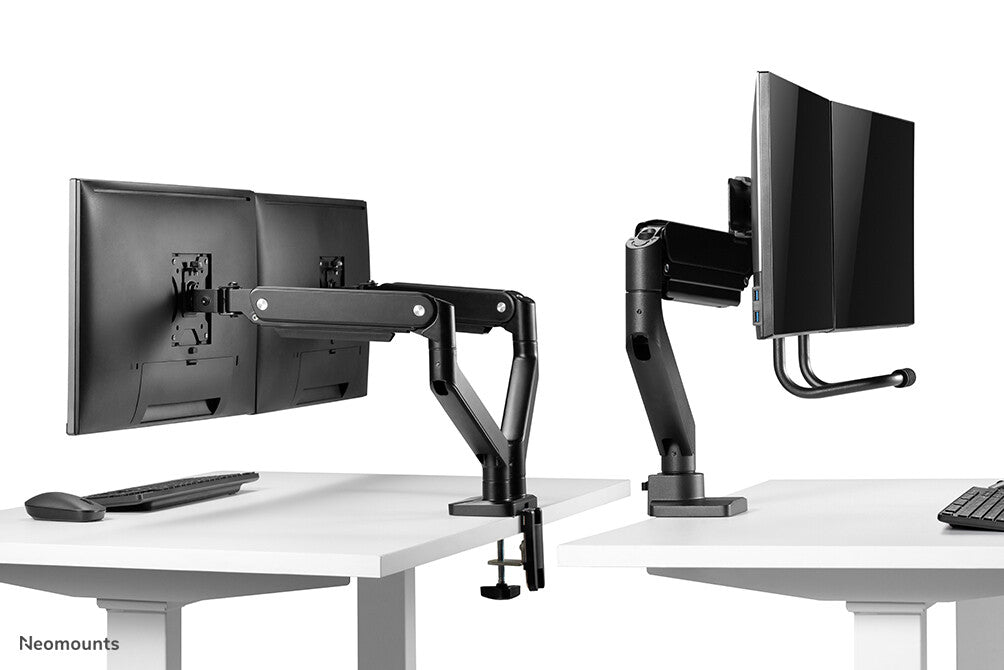

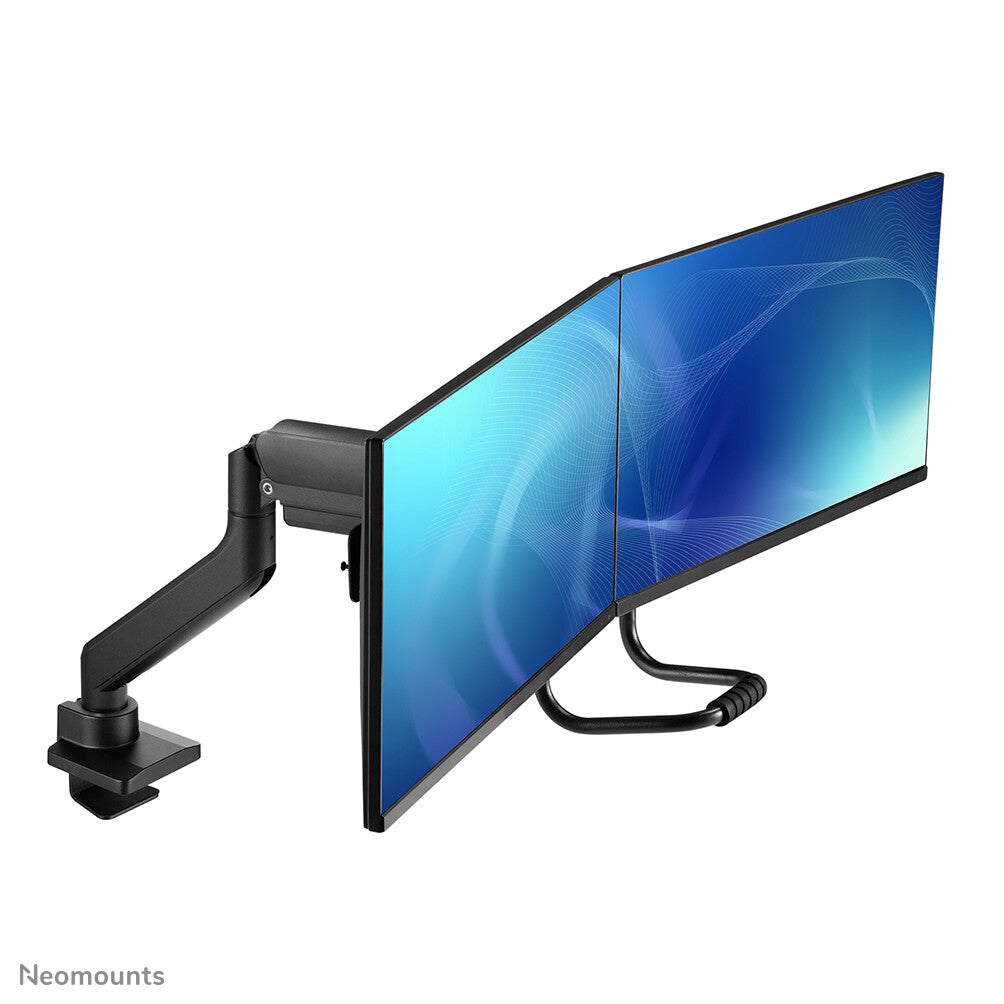

The Neomounts desk mount, model FPMA-D550DBLACK is a tilt-, swivel and rotatable desk mount for 2 flat screens up to 32". This mount is a great choice for space saving placement on desks using a desk clamp or grommet mount.

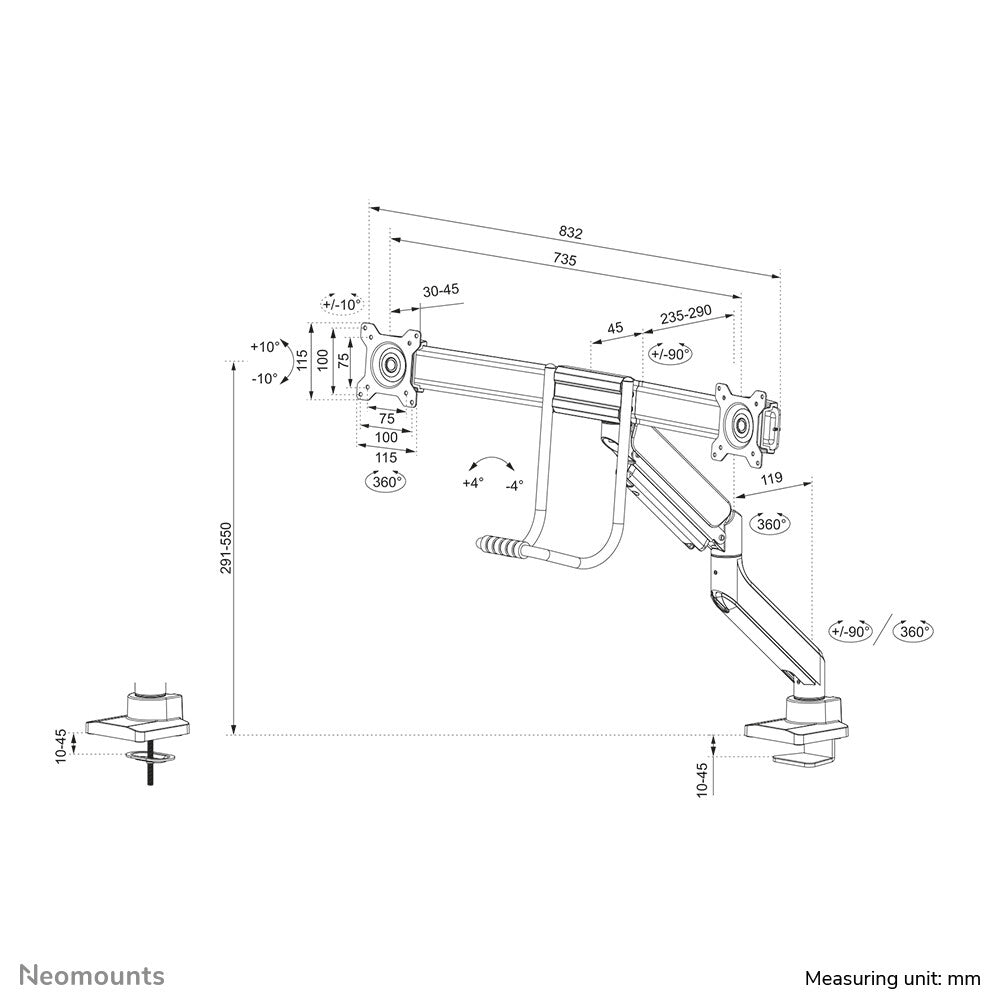

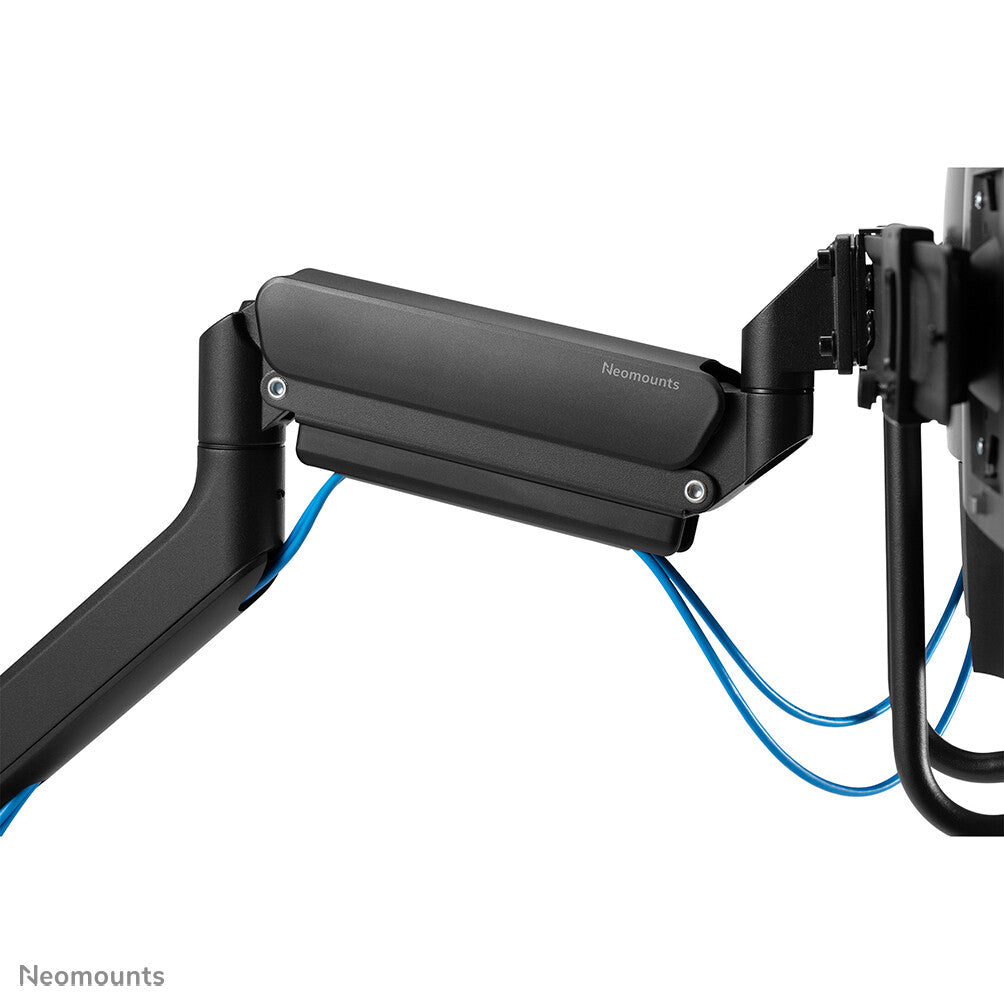

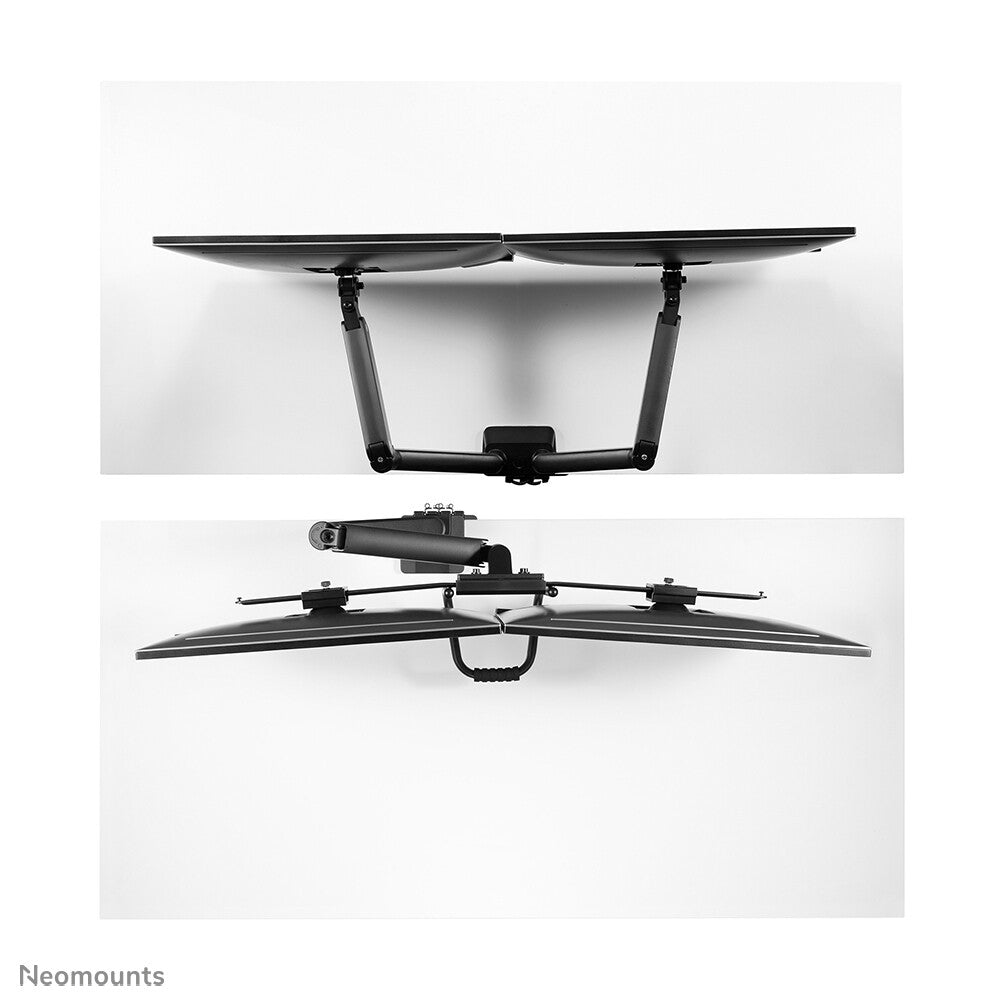

Neomounts versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 0 to 44 centimetres. Depth adjustable from 4 to 46 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.

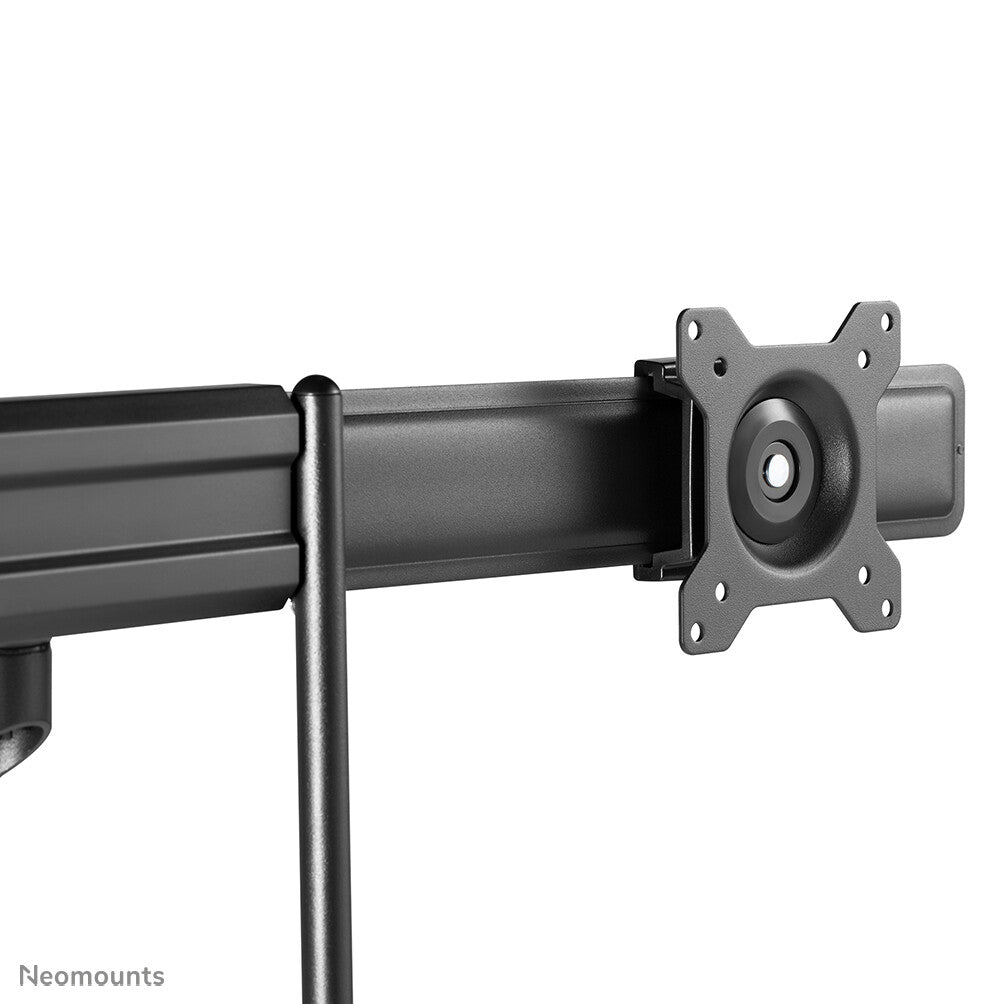

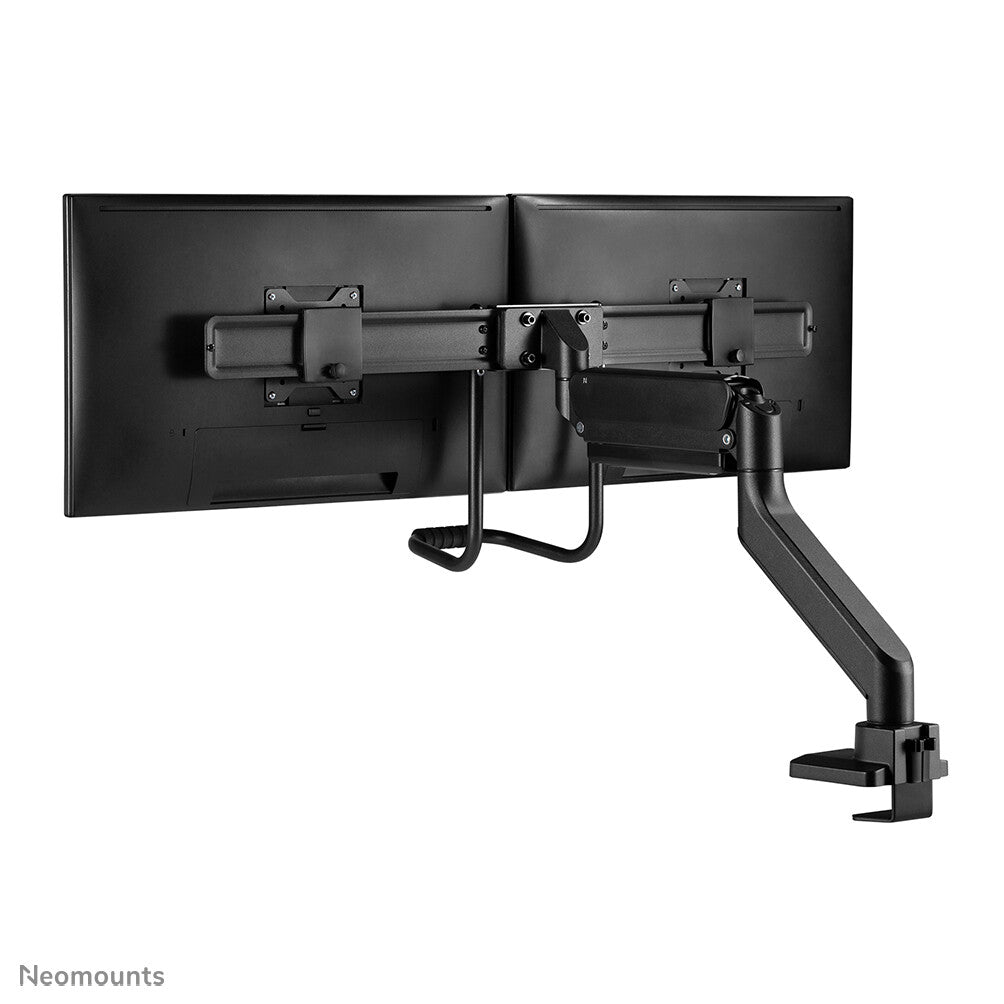

Neomounts FPMA-D550DBLACK has three pivot points and is suitable for screens up to 32". The weight capacity of this product is 8 kg each screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.

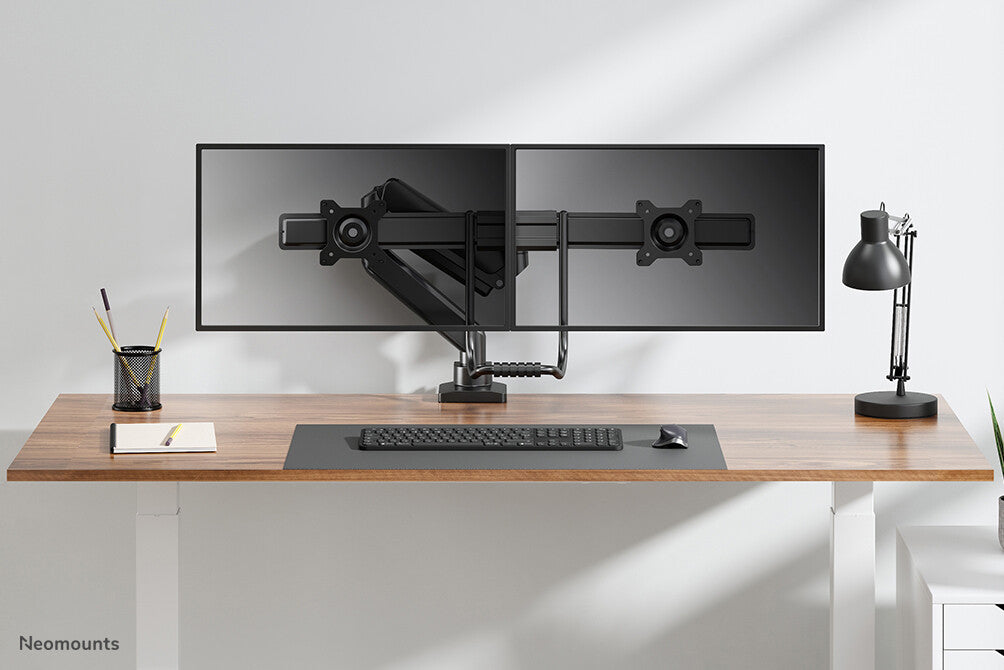

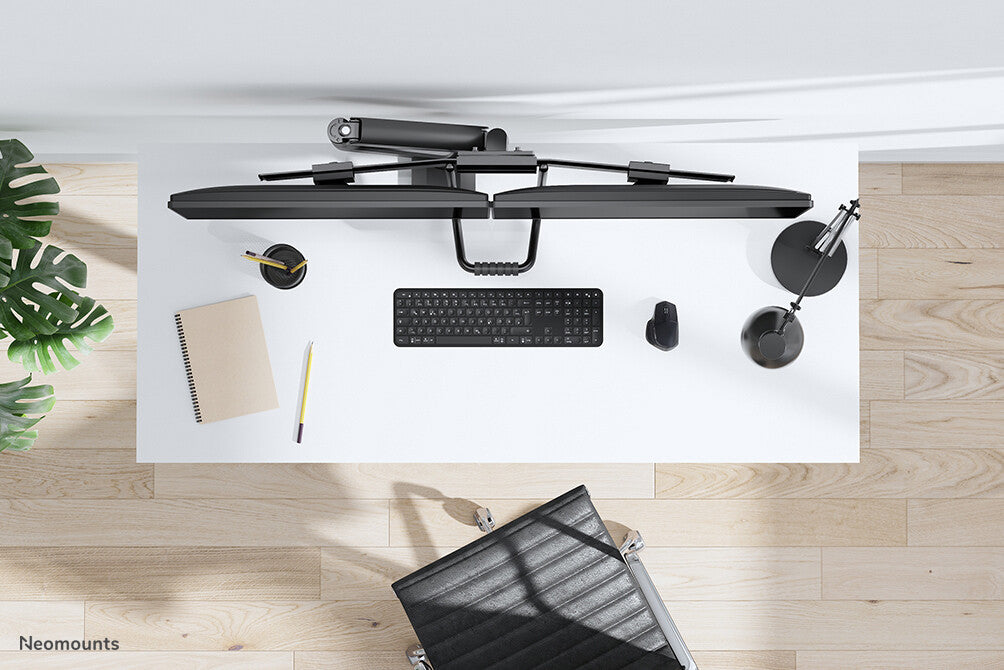

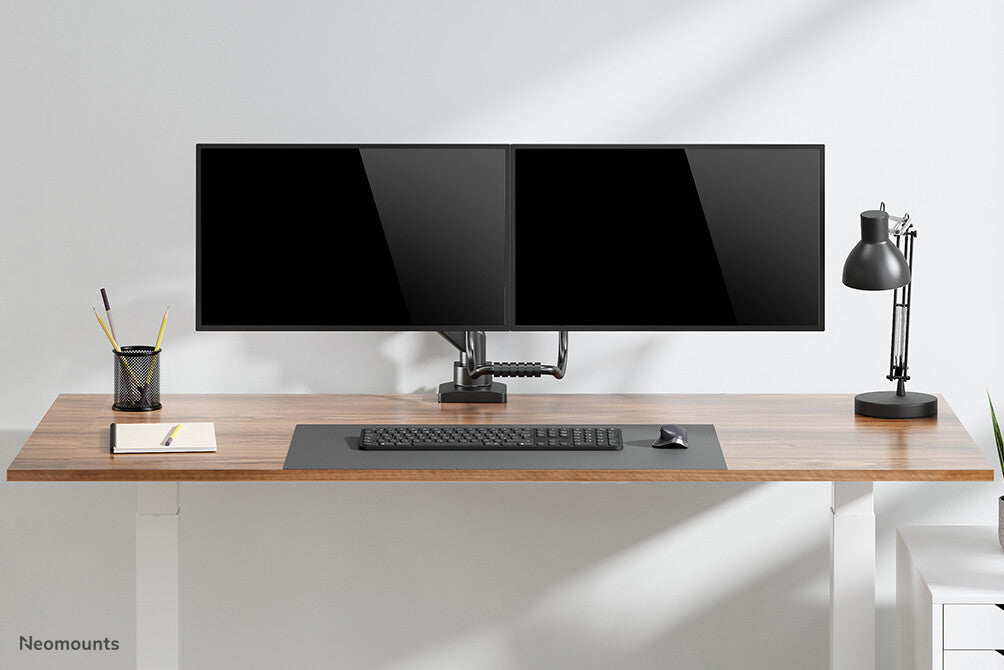

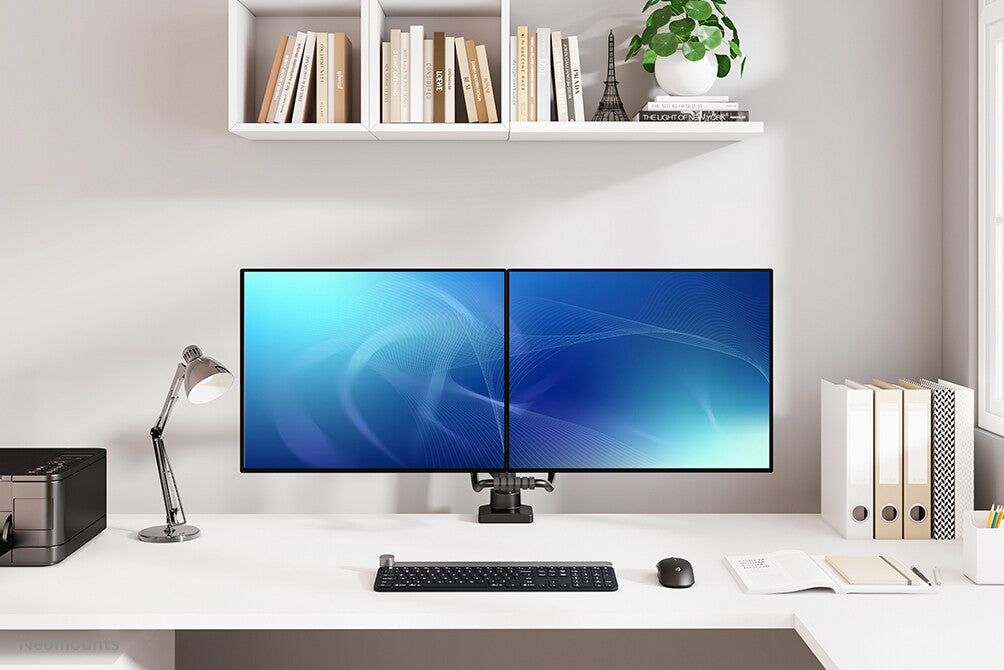

By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.
All installation material is included with the product.
| Mounting |
|---|
| Desk thickness (max) |
8.8 cm |
| Desk thickness (min) |
1 cm |
| Number of displays supported |
2 |
| Panel mounting interface |
75 x 75,100 x 100 mm |
| Maximum VESA mount |
100 x 100 mm |
| Minimum VESA mount |
75 x 75 mm |
| Mounting |
Clamp/Grommet |
| Mounting type |
Desk |
| Maximum screen size |
81.3 cm (32") |
| Minimum screen size |
25.4 cm (10") |
| Maximum weight capacity |
8 kg |
| Ergonomics |
|---|
| Cable management |
Yes |
| Angle of rotation |
360° |
| Rotating |
Yes |
| Swivel angle |
180° |
| Swivelling |
Yes |
| Tilt angle range |
0 - 90° |
| Tilt adjustment |
Yes |
| Depth adjustment range |
40 - 460 mm |
| Adjustable depth |
Yes |
| Height adjustment range |
0 - 440 mm |
| Height adjustment type |
Manual |
| Height adjustment |
Yes |
| Design |
|---|
| Housing material |
Steel |
| Product colour |
Black |
| Weight & dimensions |
|---|
| Height |
440 mm |
| Depth |
460 mm |
| Width |
800 mm |
| Packaging data |
|---|
| Package weight |
4.8 kg |
| Package height |
489 mm |
| Package depth |
120 mm |
| Package width |
190 mm |
| Other features |
|---|
| Width adjustment range |
0 - 800 mm |
| Logistics data |
|---|
| Master (outer) case net weight |
3.8 kg |
| Products per pallet (EU) |
96 pc(s) |
| Country of origin |
China |
| Harmonized System (HS) code |
7326909890 |
| Products per master (outer) case |
4 pc(s) |
| Master (outer) case gross weight |
4.8 kg |
| Master (outer) case height |
505 mm |
| Master (outer) case length |
375 mm |
| Master (outer) case width |
265 mm |
