The Neomounts DS70S-950BL1 NEXT One is a full motion desk mount for screens up to 49". The DS70S-950BL1 is a true all-in one solution for small to large displays. The NEXT One features a strengthened head specifically designed to also support curved ultra-wide screens and features a higher maximum weight capacity up to 18 kg (curved 15 kg). The versatile tilt (180°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screen. Additionally, the mount has gas spring height adjustment (20-52 cm) and depth adjustment (8,8-62,5 cm), to create the perfect working position.

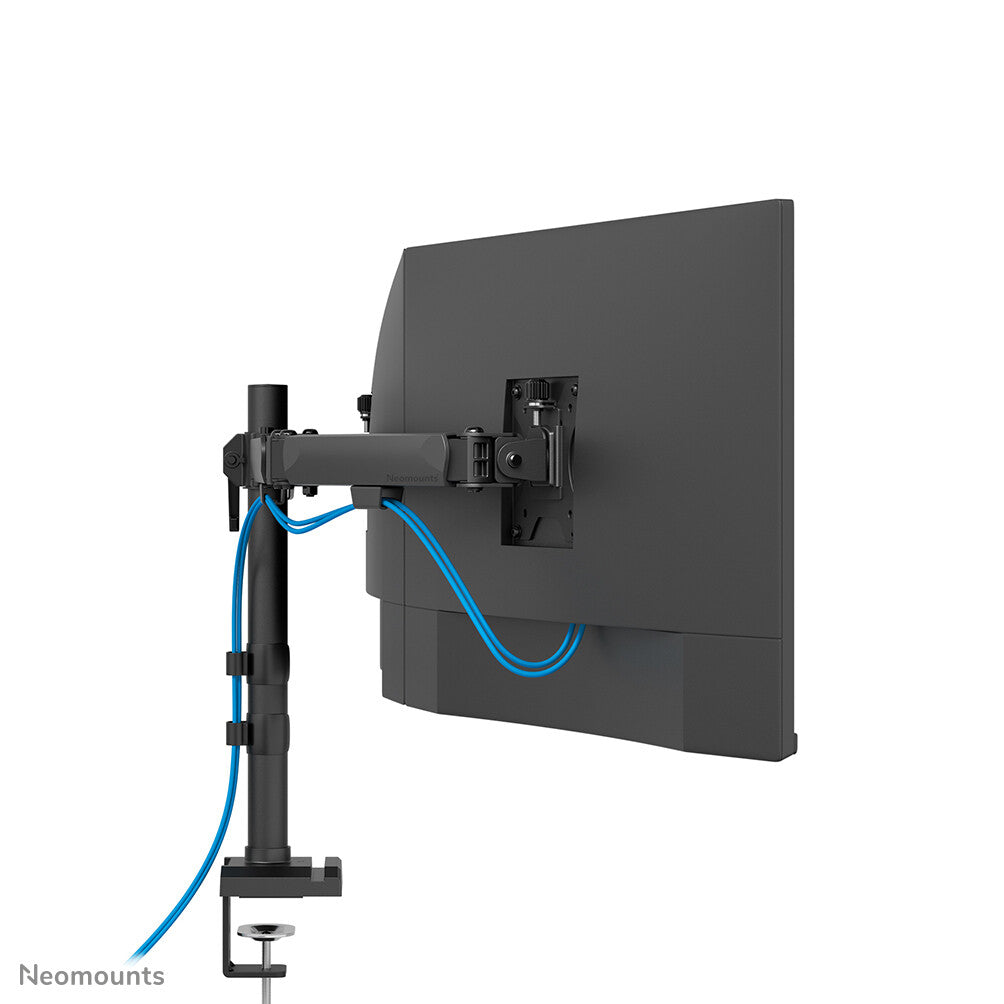

The DS70S-950BL1 features the nifty 180° stop mechanism, that prevents the mount from making contact with the wall or separation panel when installed near it. The smart cable management system ensures orderly routing of the cables.

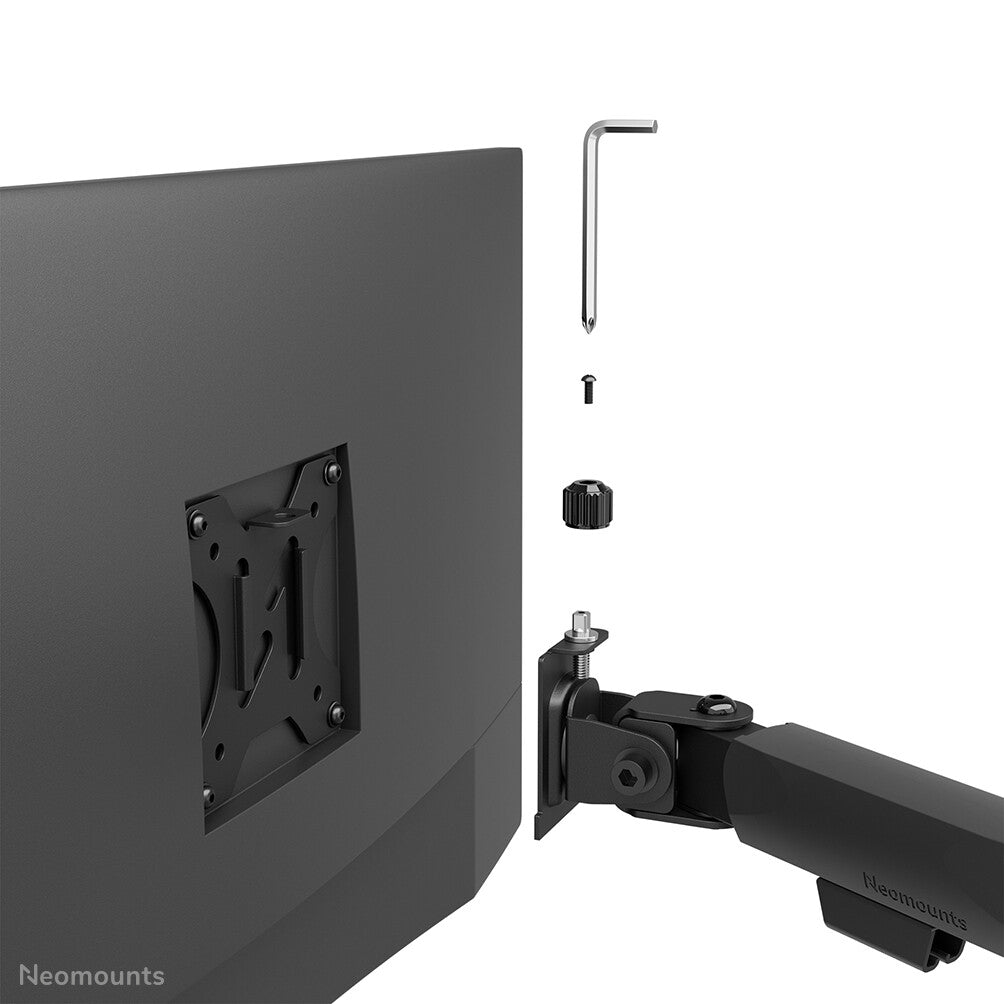

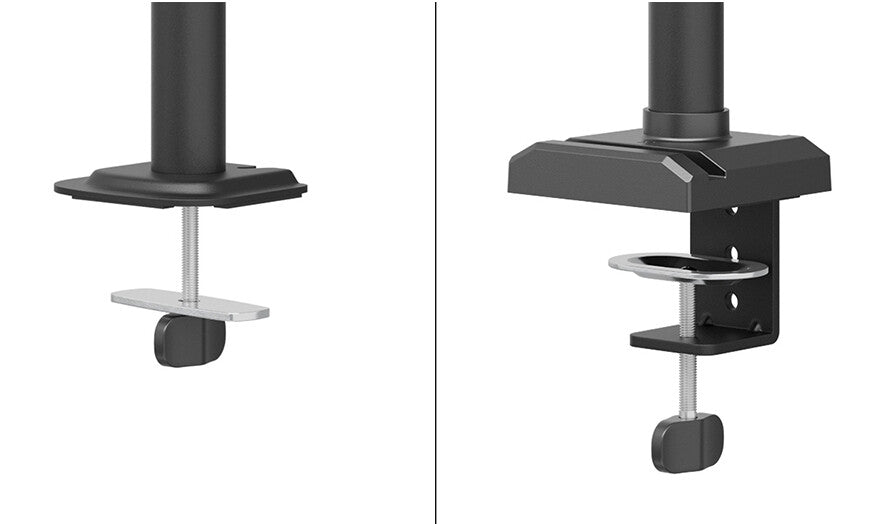

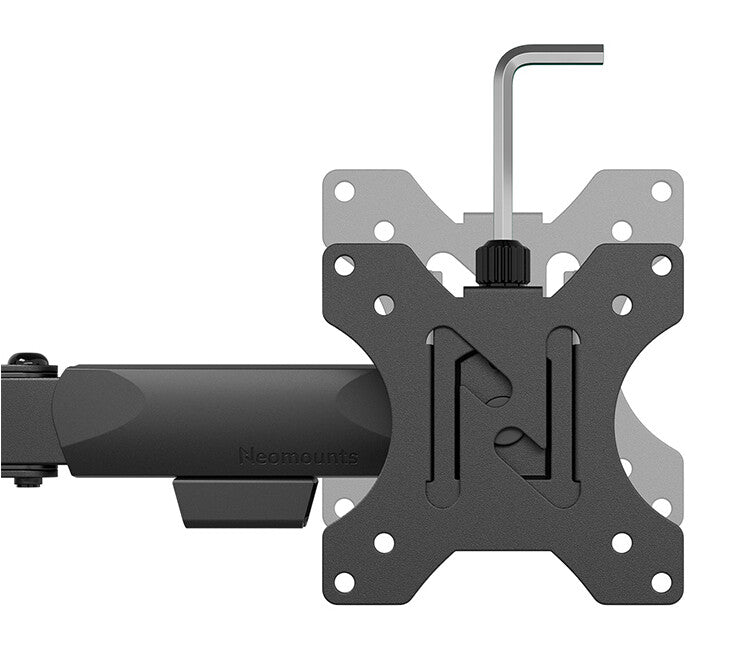

The black VESA plate of the NEXT One integrate stylishly with the black back of your screen. The DS70S-950BL1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. For non-standard hole patterns, Neomounts has various optional VESA adapter plates available. The monitor arm is equipped with a Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.
The packaging of the DS70S-950BL1 desk mount 100% plastic free and entirely made from cardboard and paper. The NEXT One products have an extended warranty period of 10-years.
| Mounting |
|---|
| Distance to the wall (max) |
65.6 cm |
| Distance to the wall (min) |
11.9 cm |
| Grommet mount desk thickness (max) |
5.5 cm |
| Clamp mount desk thickness (max) |
5 cm |
| Desk thickness (max) |
5.5 cm |
| Desk thickness (min) |
1 cm |
| Number of displays supported |
1 |
| Panel mounting interface |
75 x 75,100 x 100 mm |
| Maximum VESA mount |
100 x 100 mm |
| Minimum VESA mount |
75 x 75 mm |
| Mounting |
Clamp/Grommet |
| Maximum weight capacity (per curved/ultra-wide display) |
15 kg |
| Mounting type |
Desk |
| Maximum screen size |
124.5 cm (49") |
| Minimum screen size |
43.2 cm (17") |
| Maximum weight capacity |
18 kg |
| Ergonomics |
|---|
| Cable management |
Yes |
| Number of arms |
1 |
| Angle of rotation |
360° |
| Rotating |
Yes |
| Swivel angle range |
-90 - 90° |
| Swivelling |
Yes |
| Tilt angle range |
-90 - 90° |
| Tilt adjustment |
Yes |
| Depth adjustment range |
88 - 625 mm |
| Adjustable depth |
Yes |
| Height adjustment range |
200 - 520 mm |
| Height adjustment type |
Gas spring |
| Height adjustment |
Yes |
| Design |
|---|
| Easy to install |
Yes |
| Housing material |
Aluminium |
| Product colour |
Black |
| Weight & dimensions |
|---|
| Height |
579 mm |
| Depth |
656 mm |
| Width |
135 mm |
| Packaging data |
|---|
| Package net weight |
4.3 kg |
| Package type |
Box |
| Package weight |
4.3 kg |
| Package height |
423 mm |
| Package depth |
122 mm |
| Package width |
333 mm |
| Other features |
|---|
| Minimum weight |
1 kg |
| Warranty period |
10 year(s) |
| Width adjustment range |
0 - 1074 mm |
| Logistics data |
|---|
| Master (outer) case net weight |
14.9 kg |
| Products per pallet (EU) |
80 pc(s) |
| Country of origin |
China |
| Harmonized System (HS) code |
7326909890 |
| Products per master (outer) case |
4 pc(s) |
| Master (outer) case gross weight |
17.9 kg |
| Master (outer) case height |
490 mm |
| Master (outer) case length |
290 mm |
| Master (outer) case width |
355 mm |
