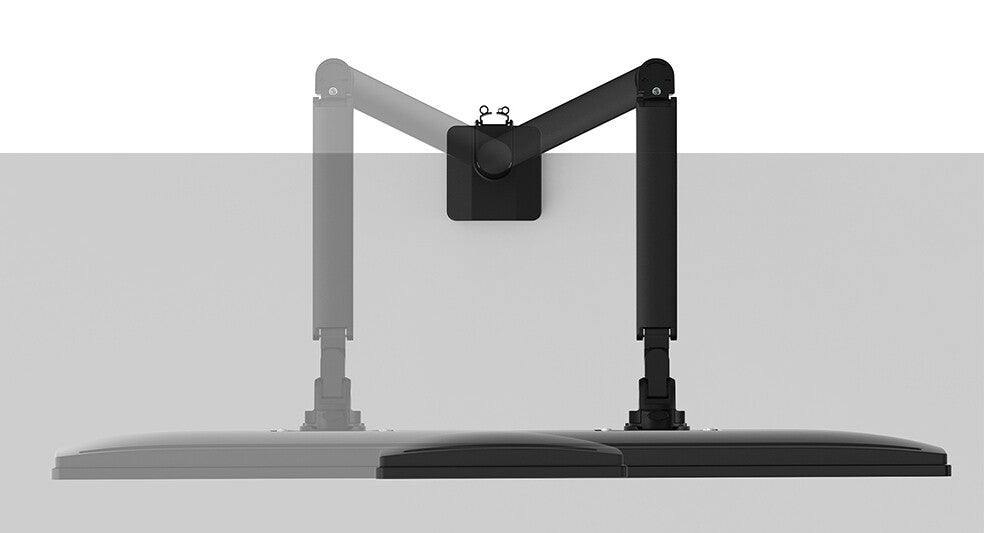

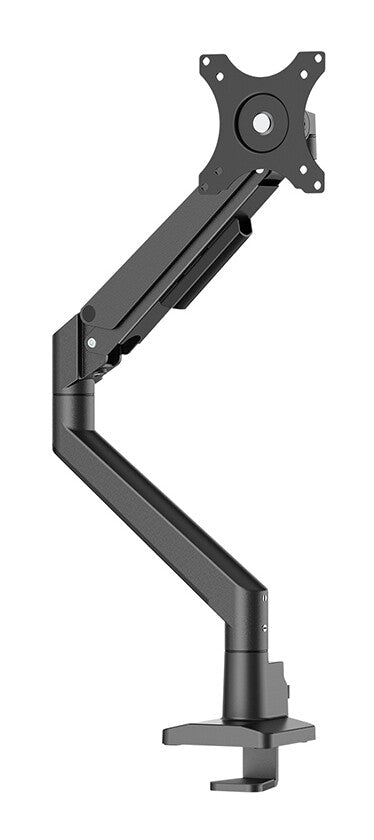

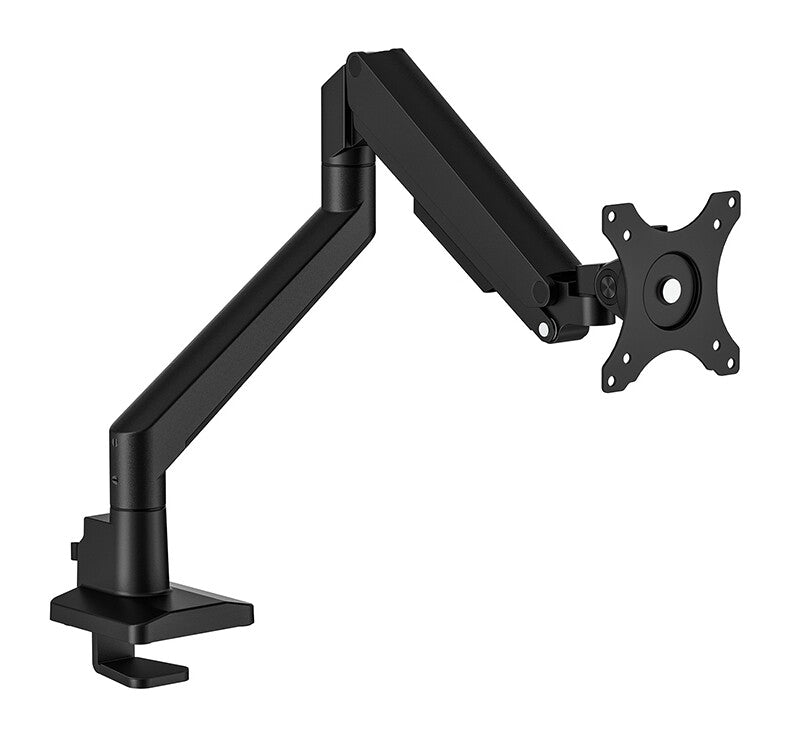

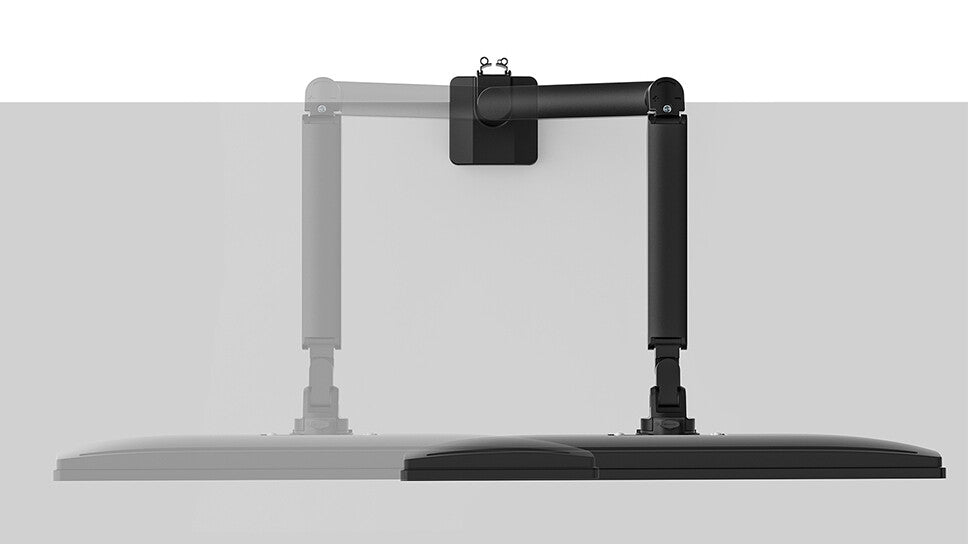

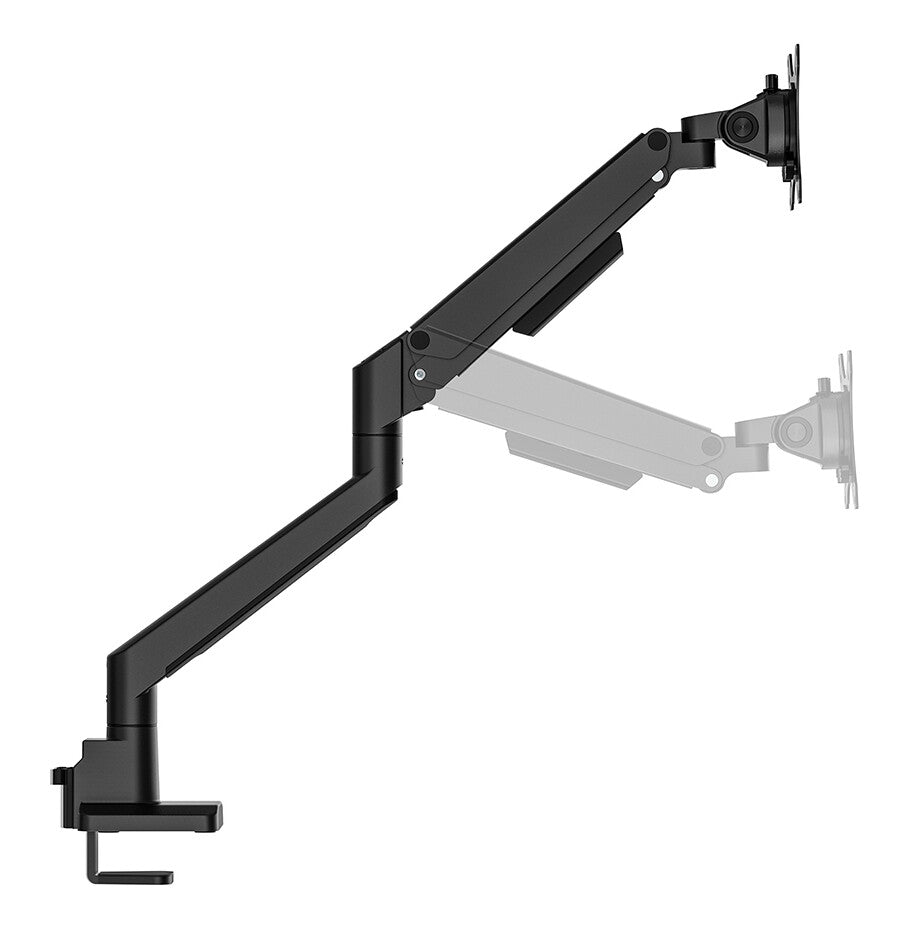

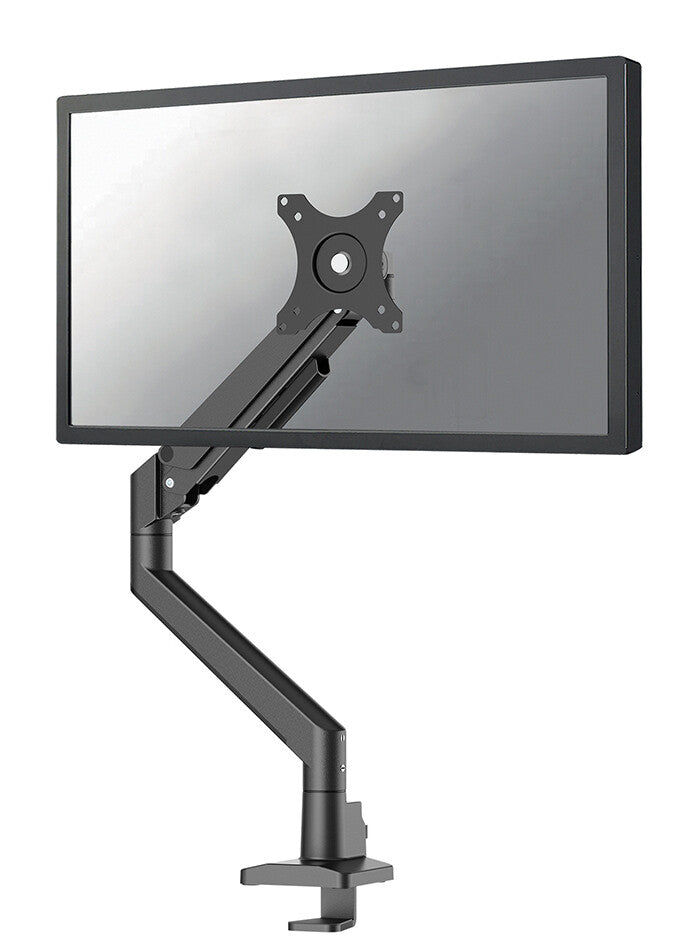

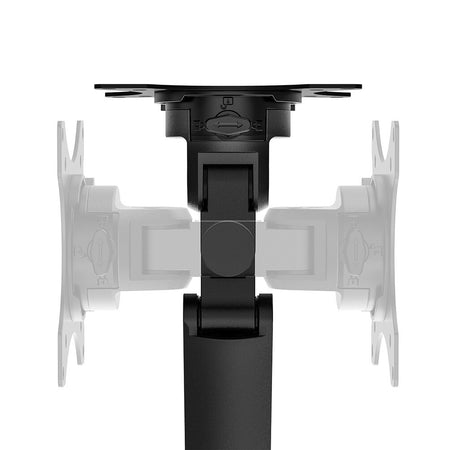

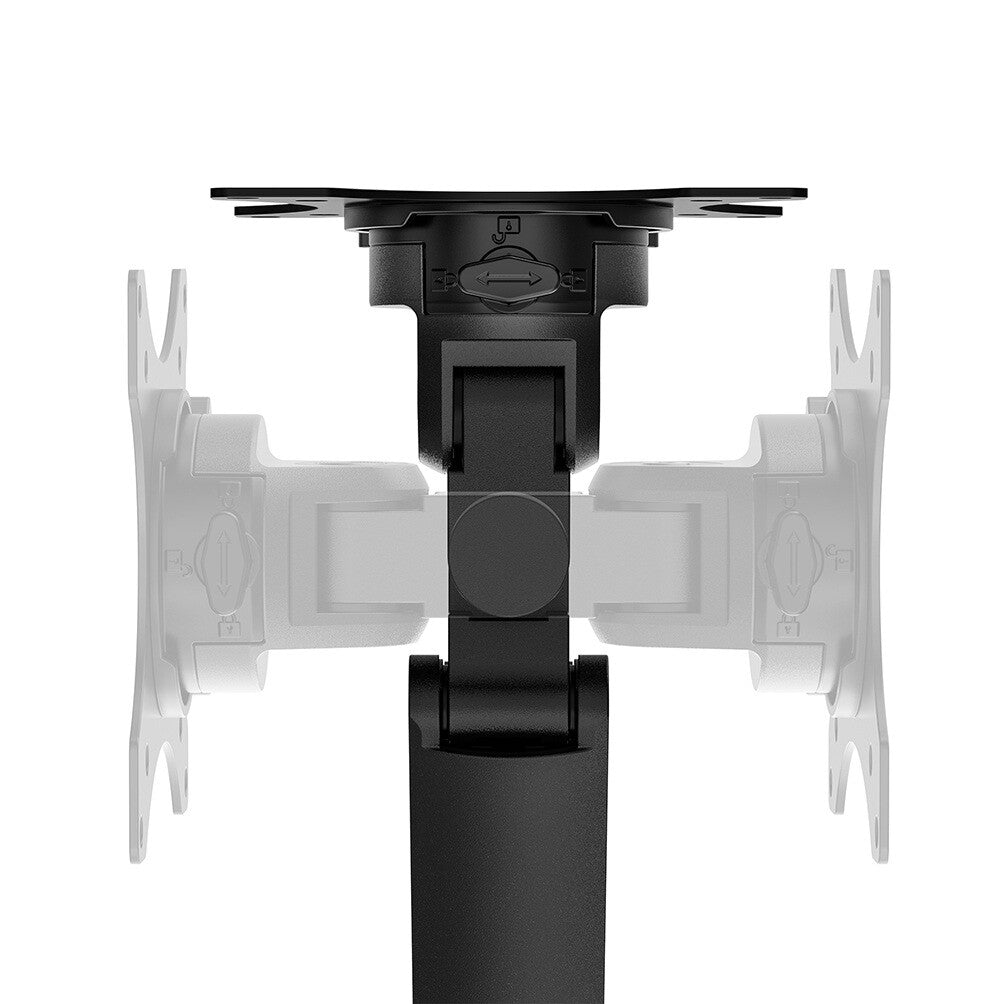

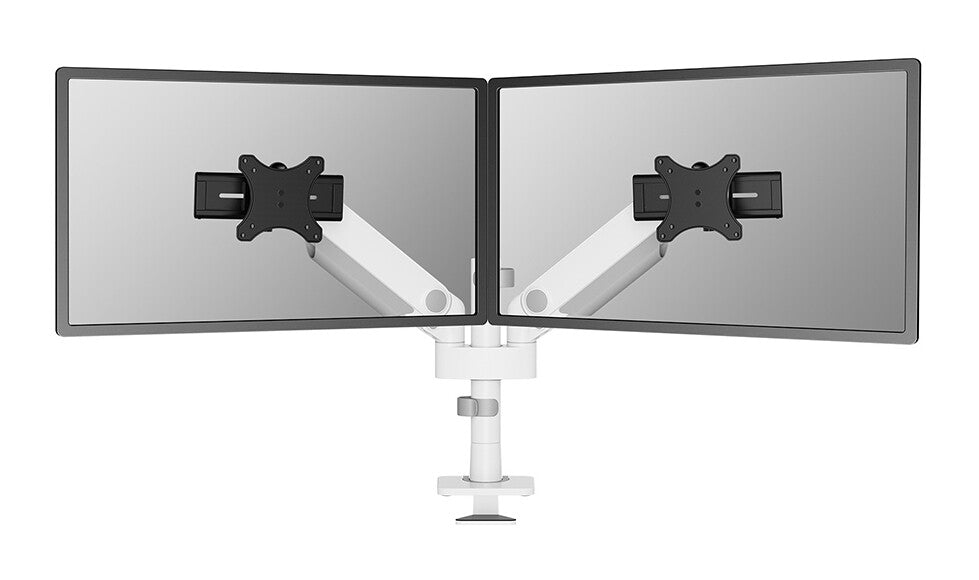

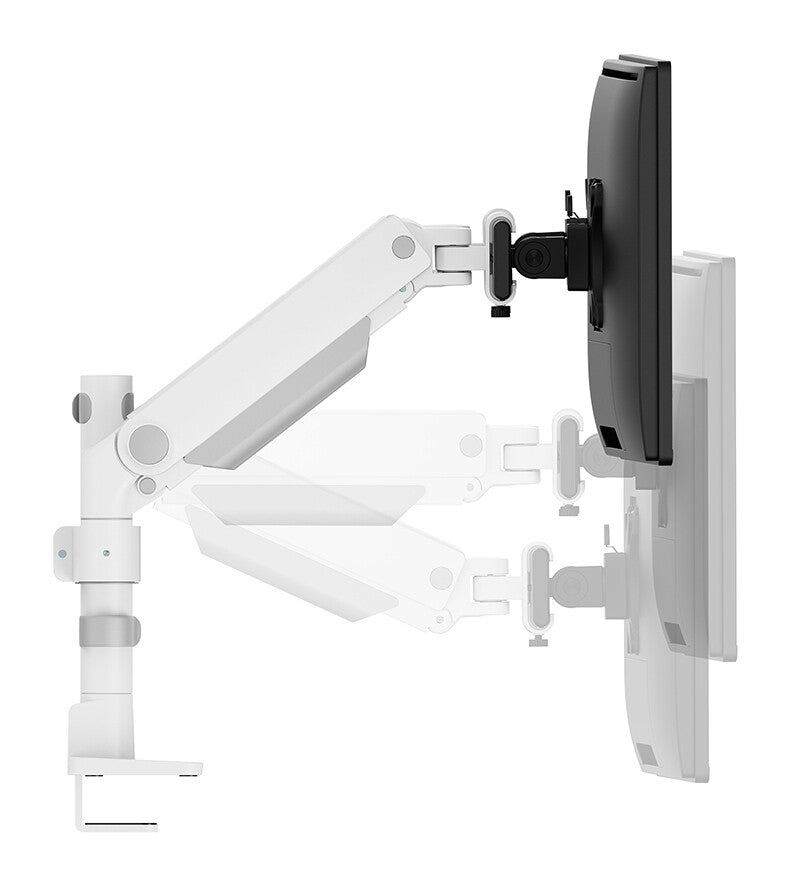

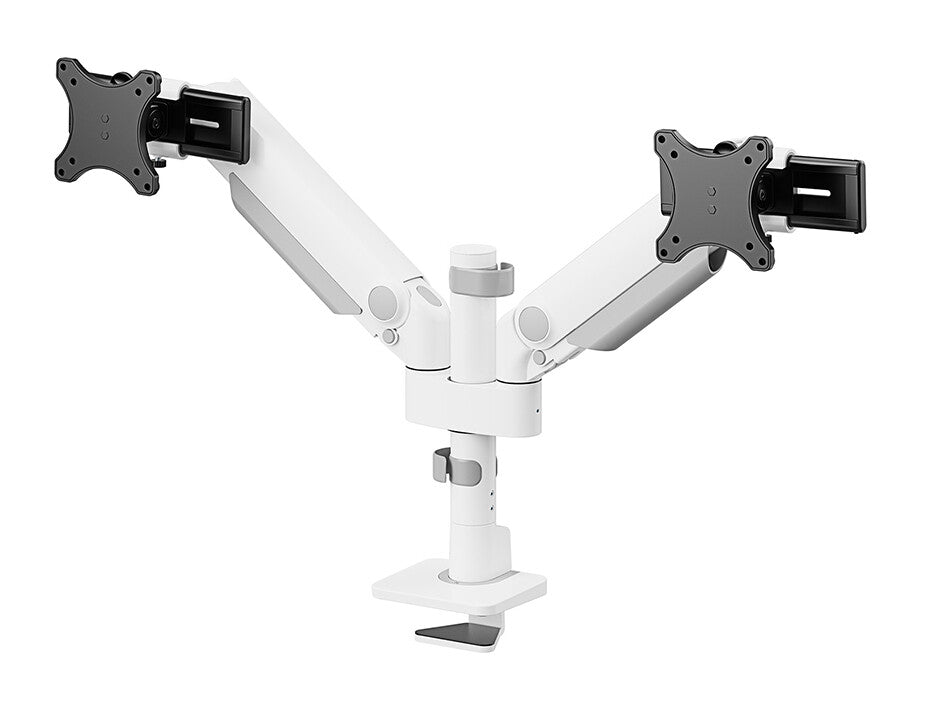

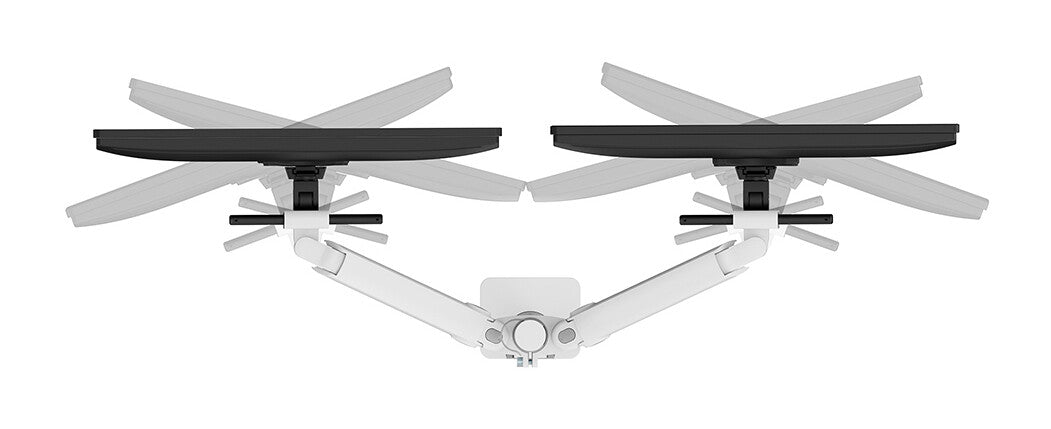

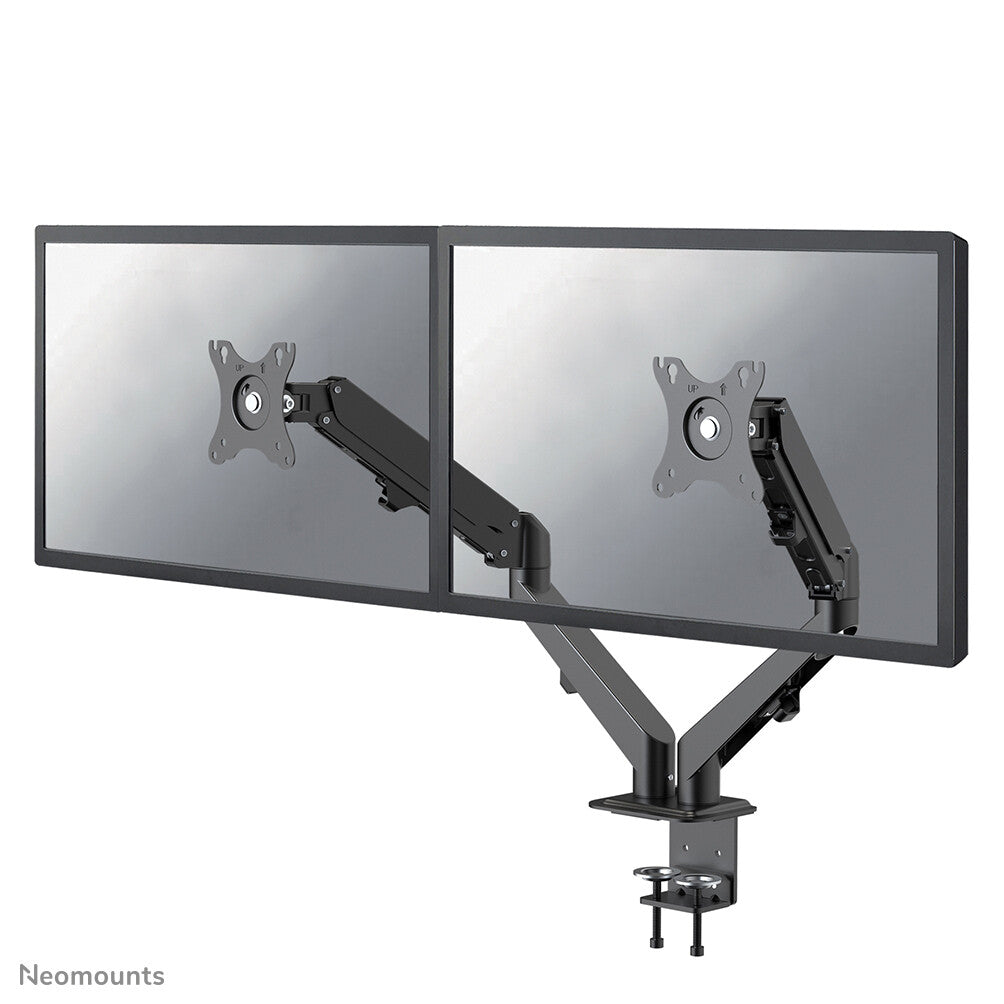

The Neomounts DS70-700BL2 is a full motion desk mount for two flat screens up to 27" with a maximum weight capacity of 7 kg per screen. The versatile tilt (135°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of your screens. Additionally, the mount features gas spring height adjustment (15,2-40,2 cm) and depth adjustment (0-48 cm), to create the perfect working position.

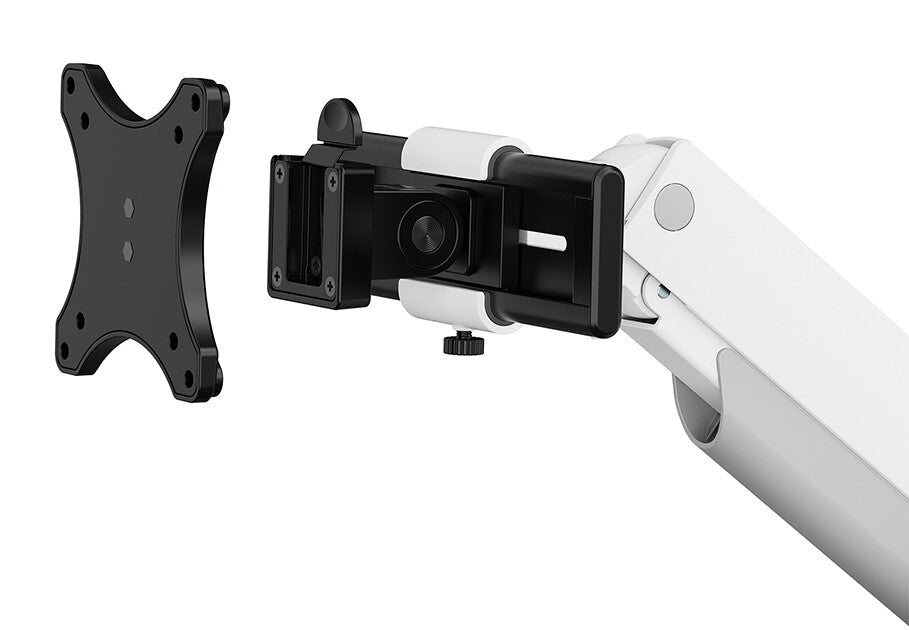

The DS70-700BL2 is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Unused hole patterns can be covered using one of Neomounts VESA adapter plates.
| Mounting |
|---|
| Desk thickness (max) |
8 cm |
| Desk thickness (min) |
1 cm |
| Number of displays supported |
2 |
| Panel mounting interface |
75 x 75,100 x 100 mm |
| Maximum VESA mount |
100 x 100 mm |
| Minimum VESA mount |
75 x 75 mm |
| Mounting |
Clamp |
| Maximum weight capacity (per display) |
7 kg |
| Mounting type |
Desk |
| Maximum screen size |
68.6 cm (27") |
| Minimum screen size |
43.2 cm (17") |
| Maximum weight capacity |
7 kg |
| Ergonomics |
|---|

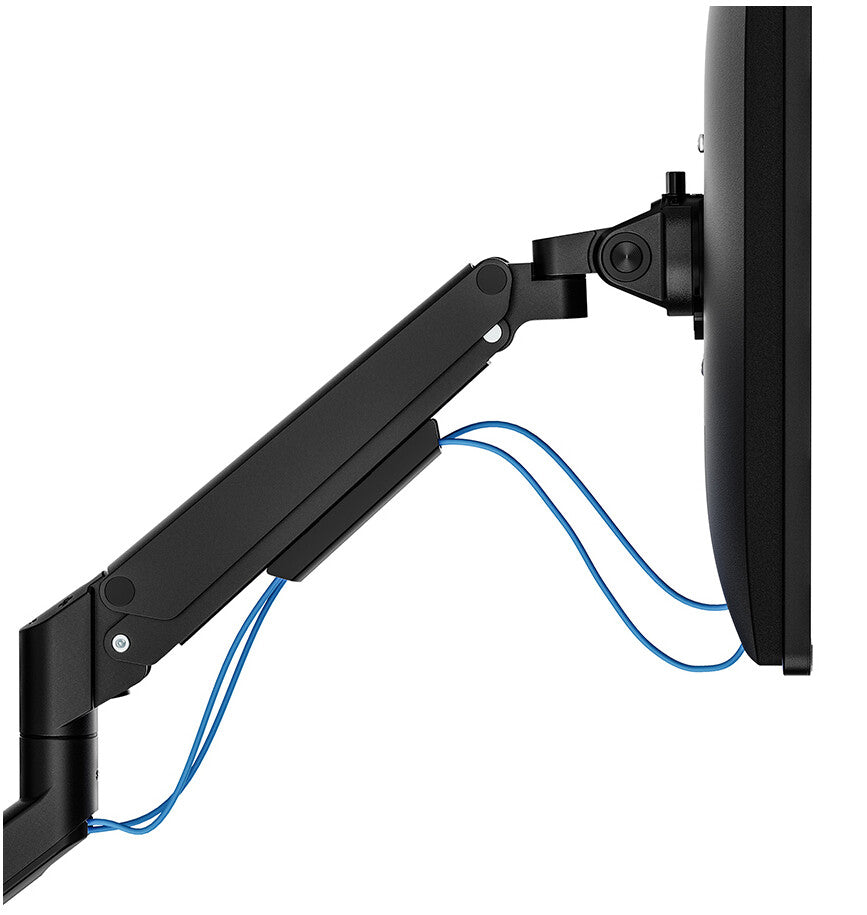

| Cable management |
Yes |
| Angle of rotation |
360° |
| Rotating |
Yes |
| Swivel angle range |
-90 - 90° |
| Swivelling |
Yes |

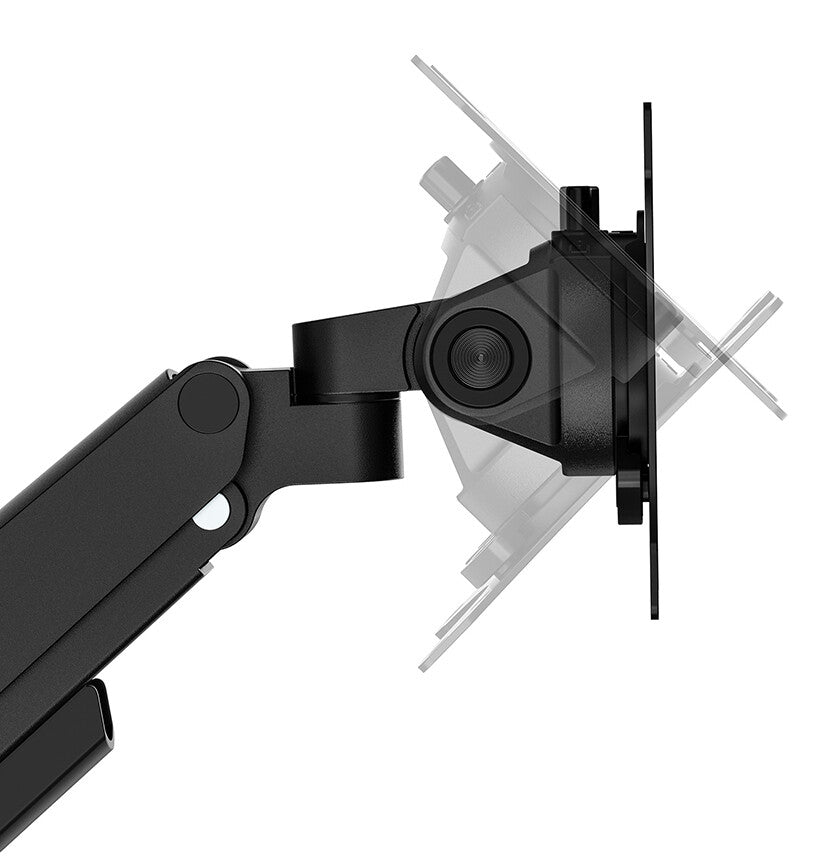

| Tilt angle range |
-45 - 90° |
| Tilt adjustment |
Yes |
| Depth adjustment range |
0 - 480 mm |
| Adjustable depth |
Yes |
| Height adjustment range |
152 - 402 mm |
| Height adjustment type |
Gas spring |
| Height adjustment |
Yes |
| Design |
|---|

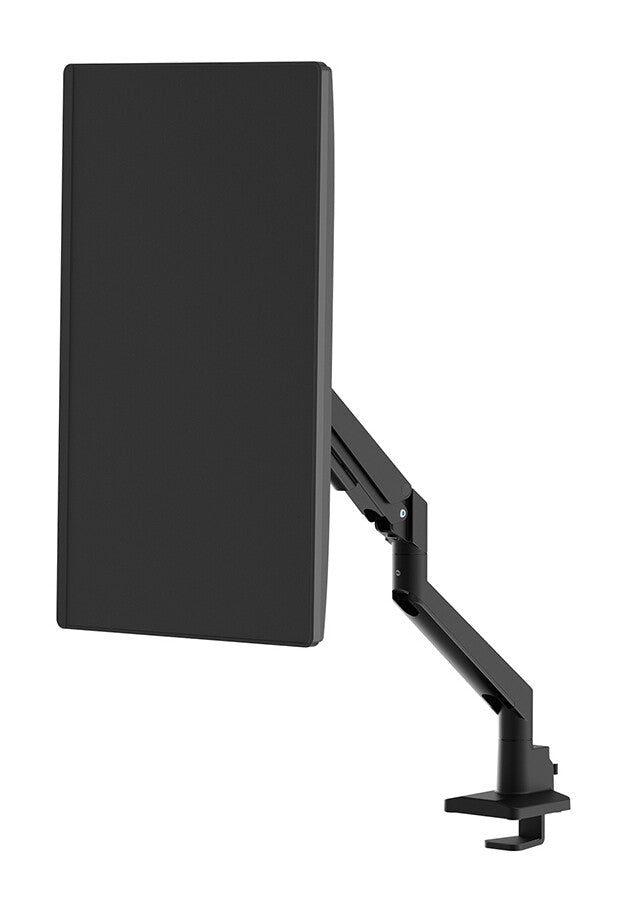

| Orientation |
Landscape/Portrait |
| Housing material |
Steel |
| Product colour |
Black |
| Weight & dimensions |
|---|
| Height |
566 mm |
| Depth |
542 mm |
| Width |
117 mm |

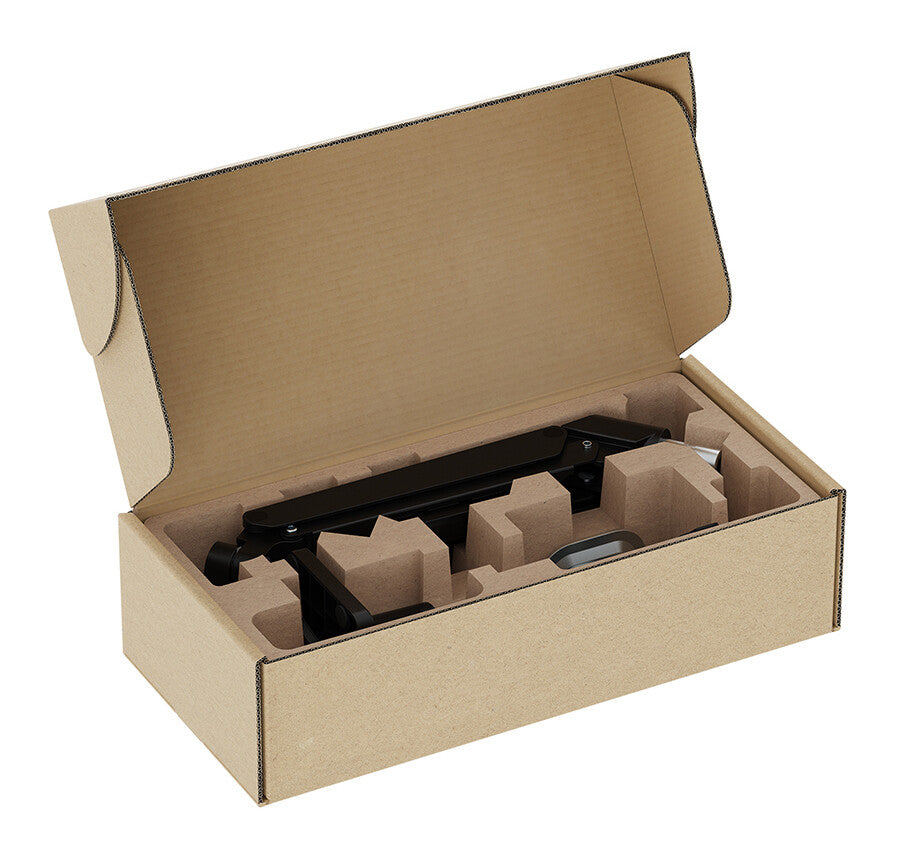

| Packaging data |
|---|
| Package net weight |
4.6 kg |
| Package weight |
4.6 kg |
| Package height |
132 mm |
| Package depth |
270 mm |
| Package width |
405 mm |
| Quantity per pack |
1 pc(s) |
| Other features |
|---|
| Minimum weight |
2 kg |
| Width adjustment range |
0 - 1056 mm |
| Logistics data |
|---|
| Master (outer) case net weight |
3.9 kg |
| Products per pallet (EU) |
90 pc(s) |
| Country of origin |
China |
| Harmonized System (HS) code |
7326909890 |
| Products per master (outer) case |
1 pc(s) |
| Master (outer) case gross weight |
4.6 kg |
| Master (outer) case height |
132 mm |
| Master (outer) case length |
270 mm |
| Master (outer) case width |
405 mm |
