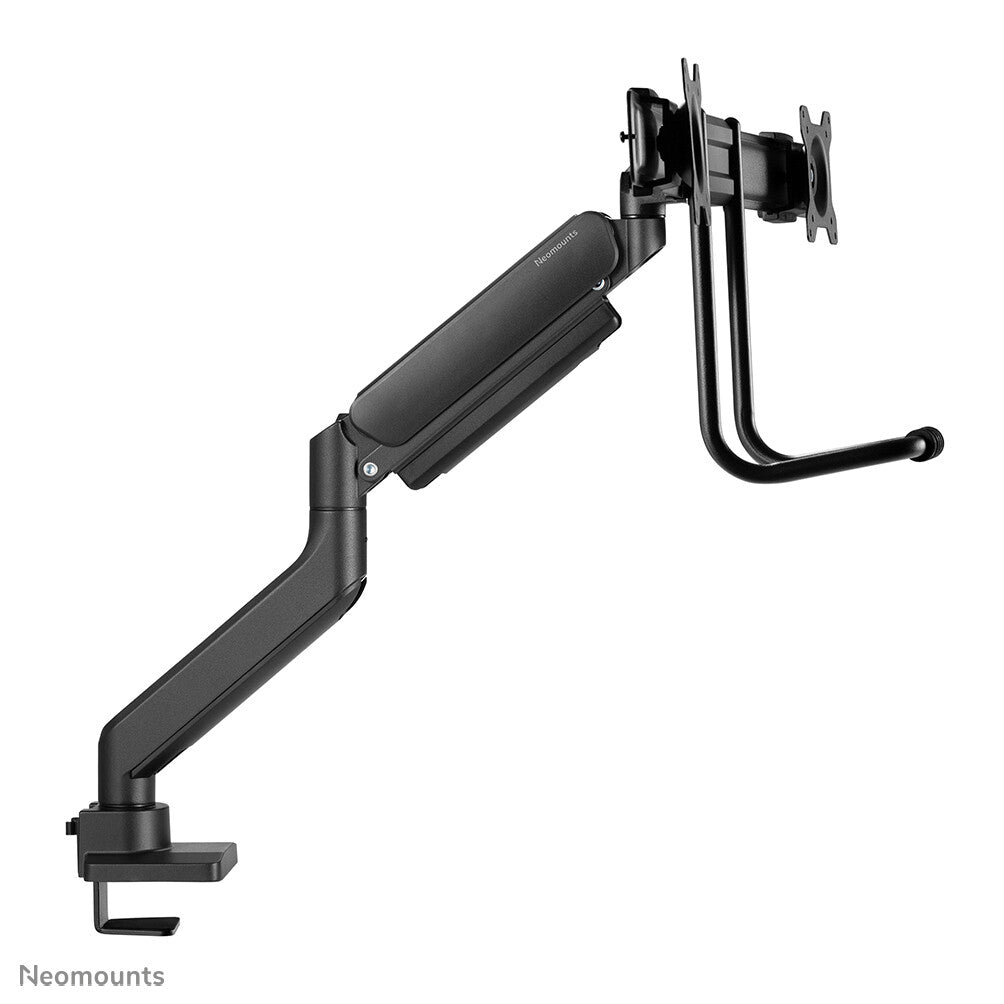

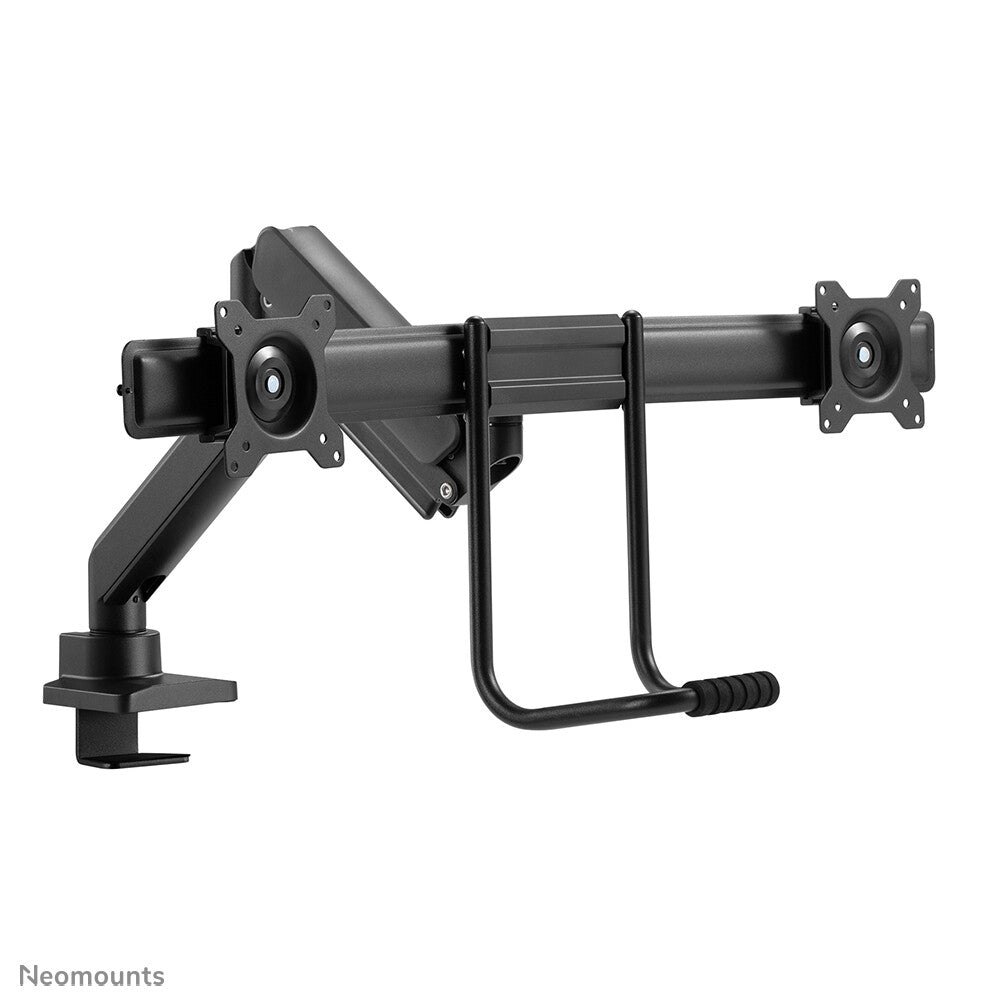

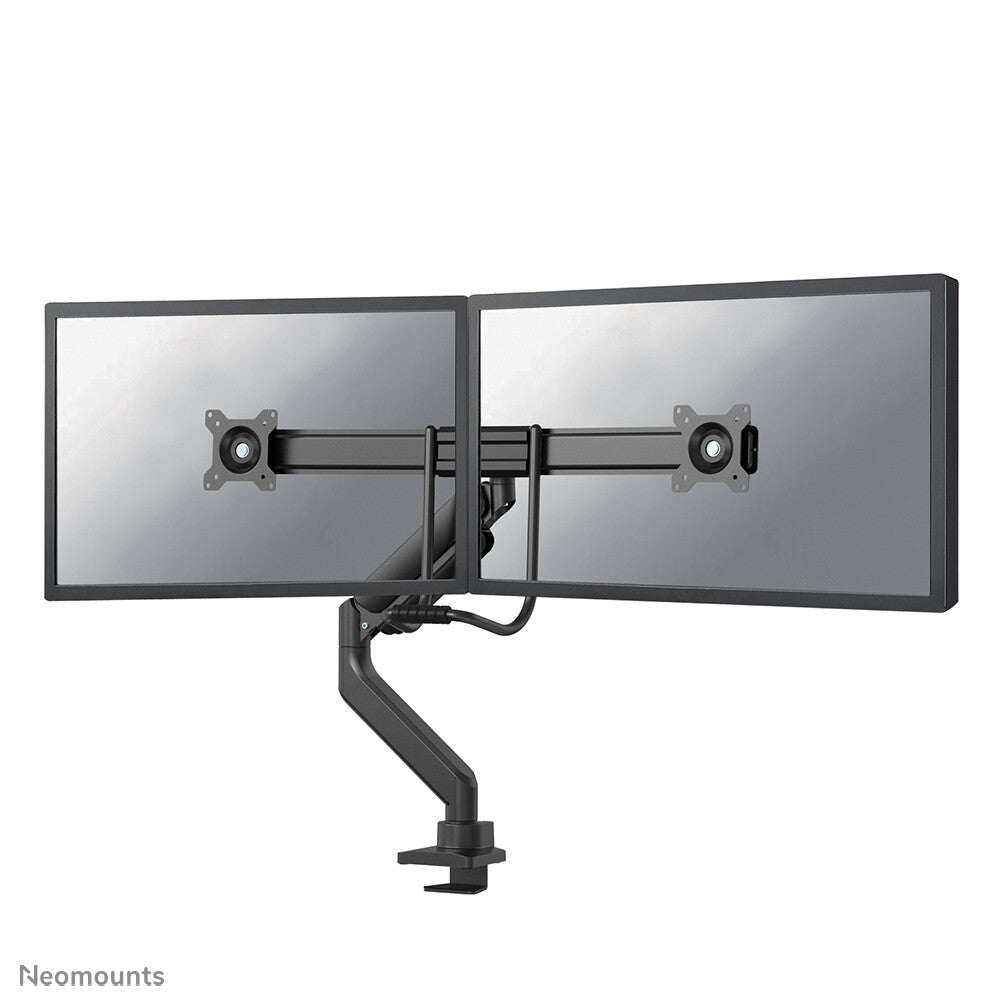

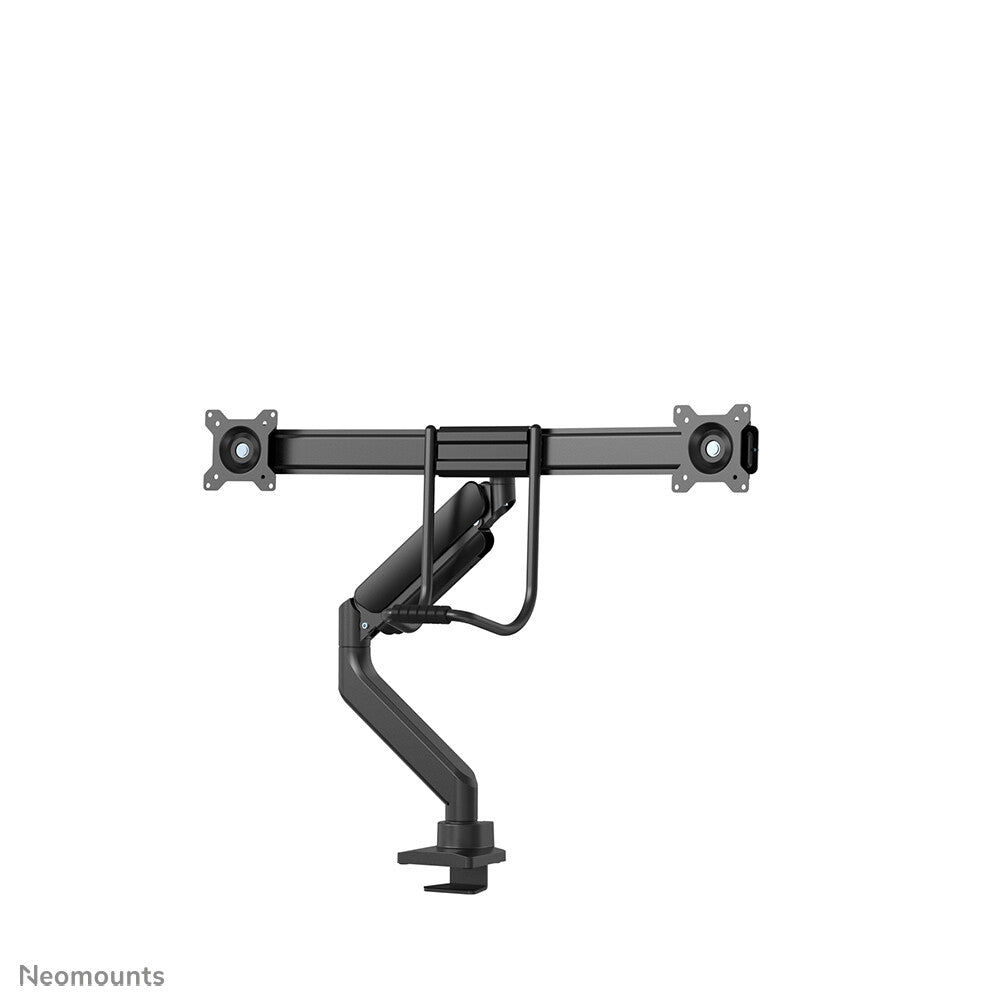

The Neomounts DS70-750BL2 is a full motion desk mount for two flat screens up to 27" with a maximum weight capacity of 7 kg per screen. The versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of your screens. Additionally, the mount features gas spring height adjustment (7,3-48,1 cm) and depth adjustment (0-37,8 cm), to create the perfect working position.

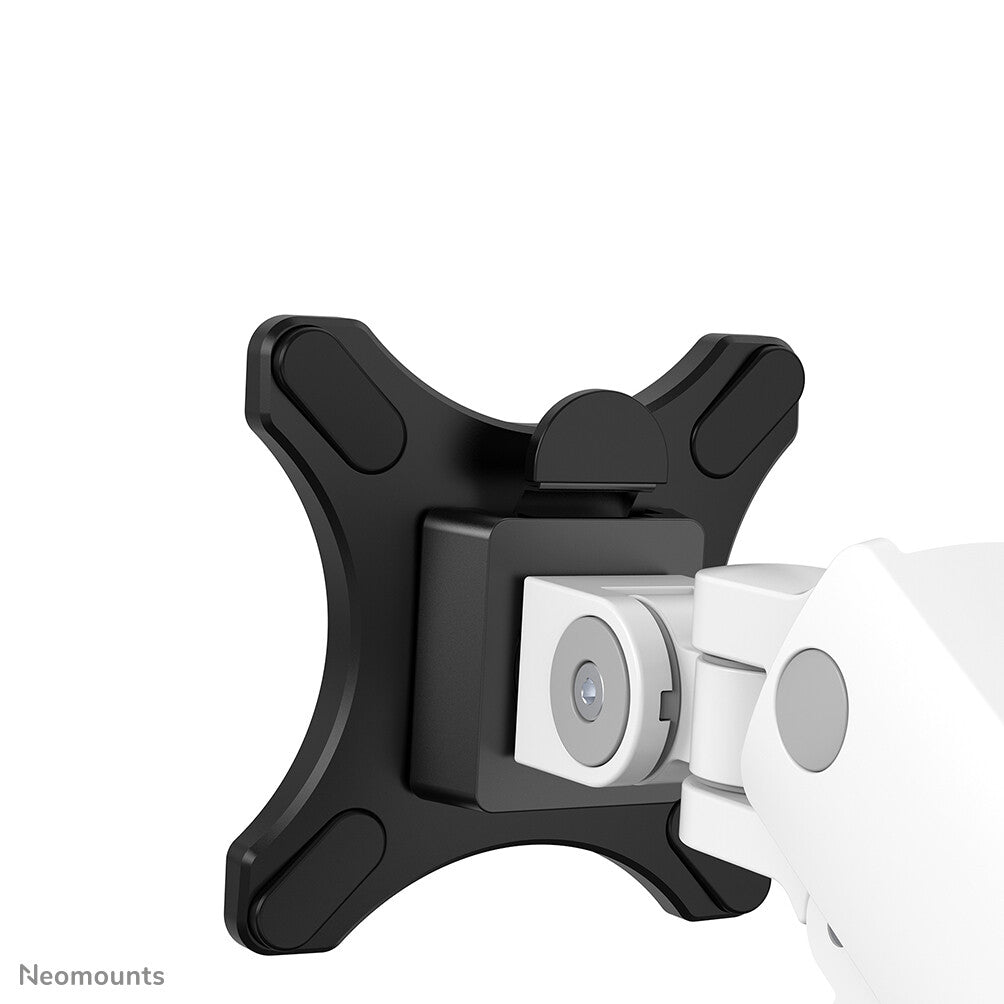

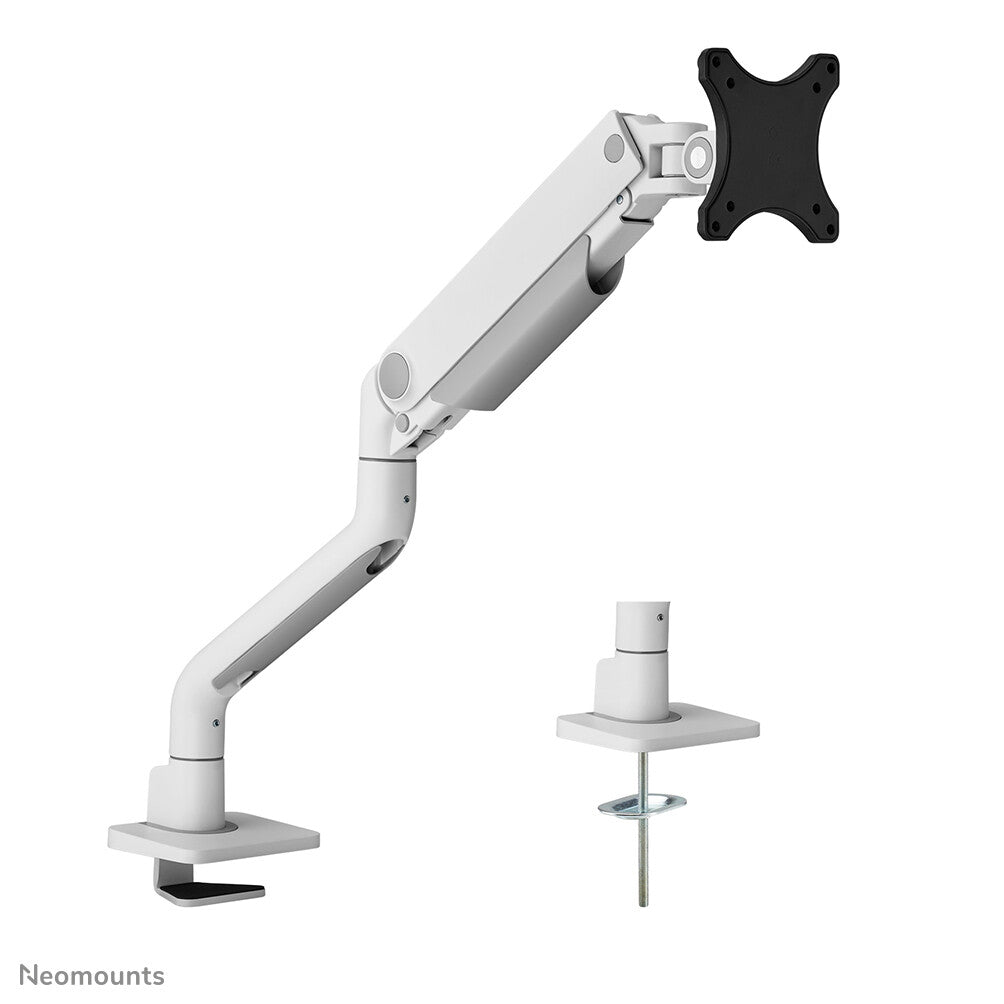

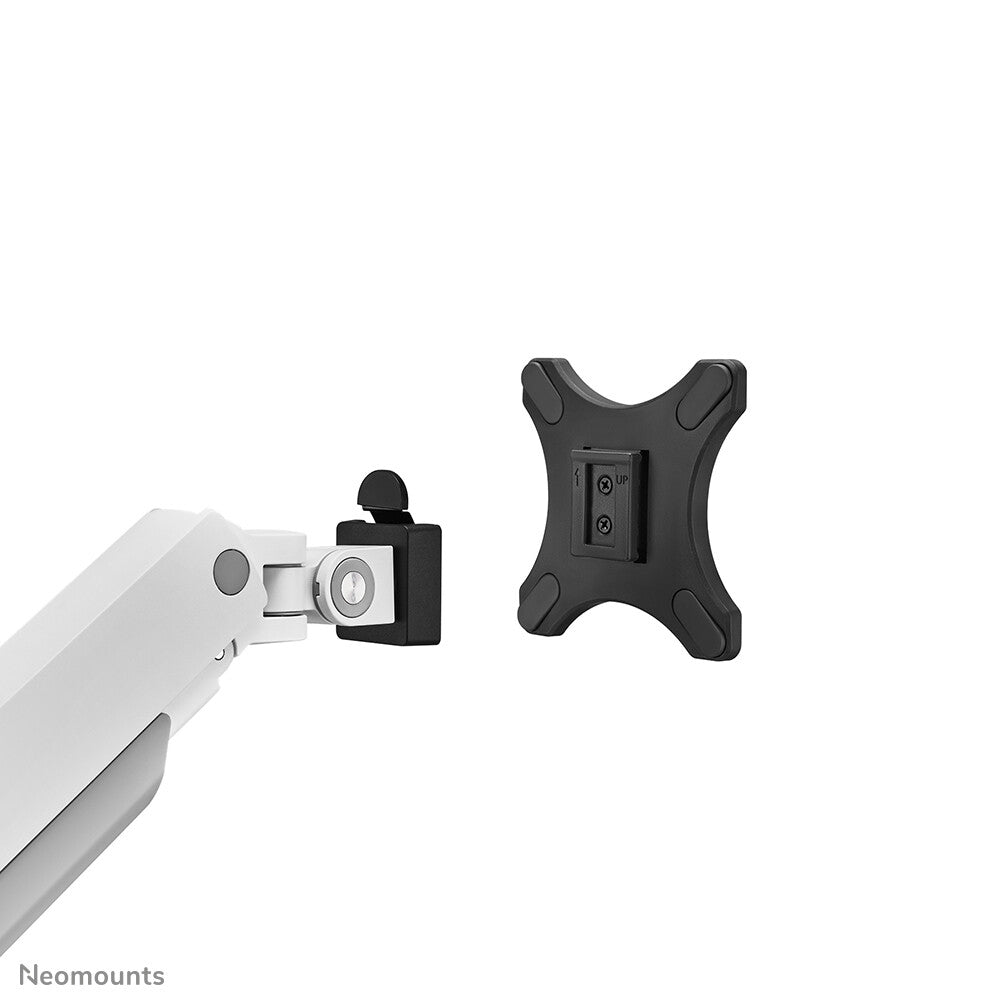

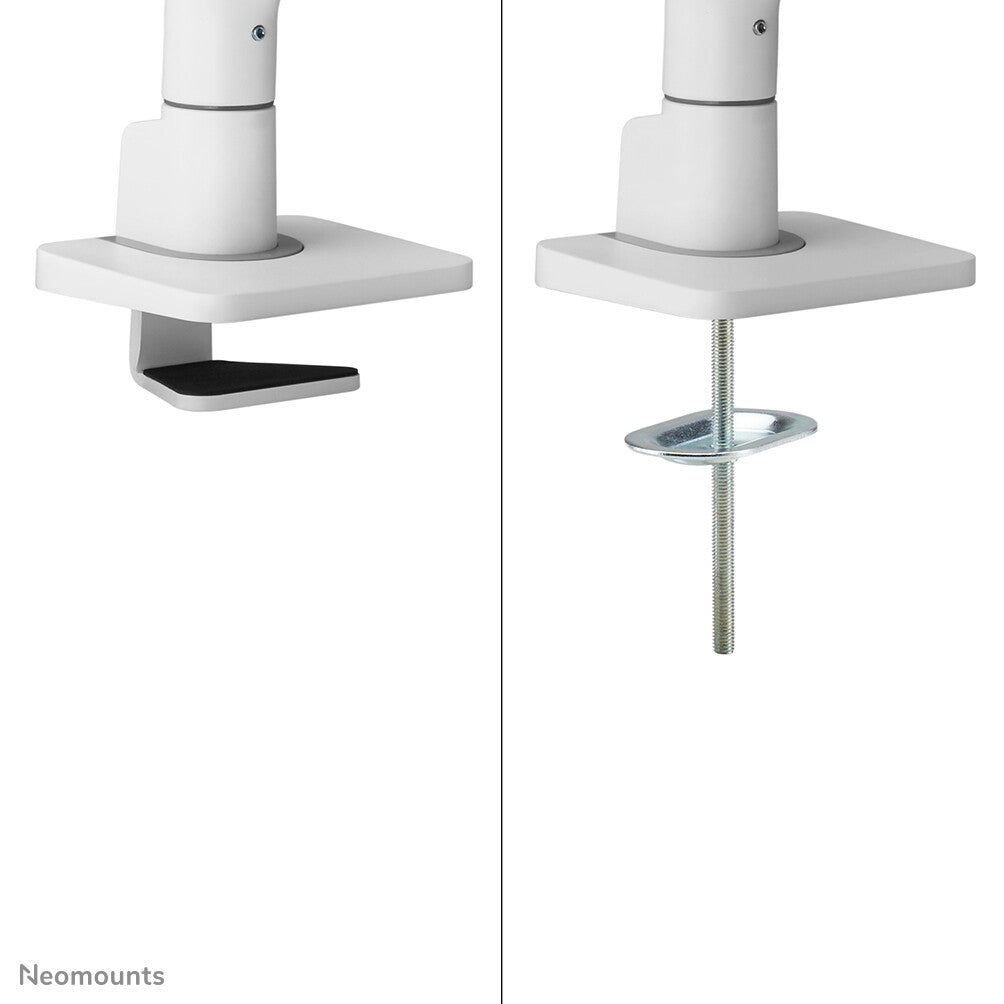

The DS70-750BL2 is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Unused hole patterns can be covered using one of Neomounts VESA adapter plates. The DS70-750BL2 is equipped with an Easy-release VESA system for easy installation and comes with both desk clamp and grommet.
| Mounting |
|---|
| Desk thickness (max) |
8.5 cm |
| Desk thickness (min) |
1 cm |
| Number of displays supported |
2 |
| Panel mounting interface |
75 x 75,100 x 100 mm |
| Maximum VESA mount |
100 x 100 mm |
| Minimum VESA mount |
75 x 75 mm |
| Mounting |
Clamp/Grommet |
| Maximum weight capacity (per display) |
7 kg |
| Mounting type |
Desk |
| Maximum screen size |
68.6 cm (27") |
| Minimum screen size |
43.2 cm (17") |
| Maximum weight capacity |
7 kg |
| Ergonomics |
|---|

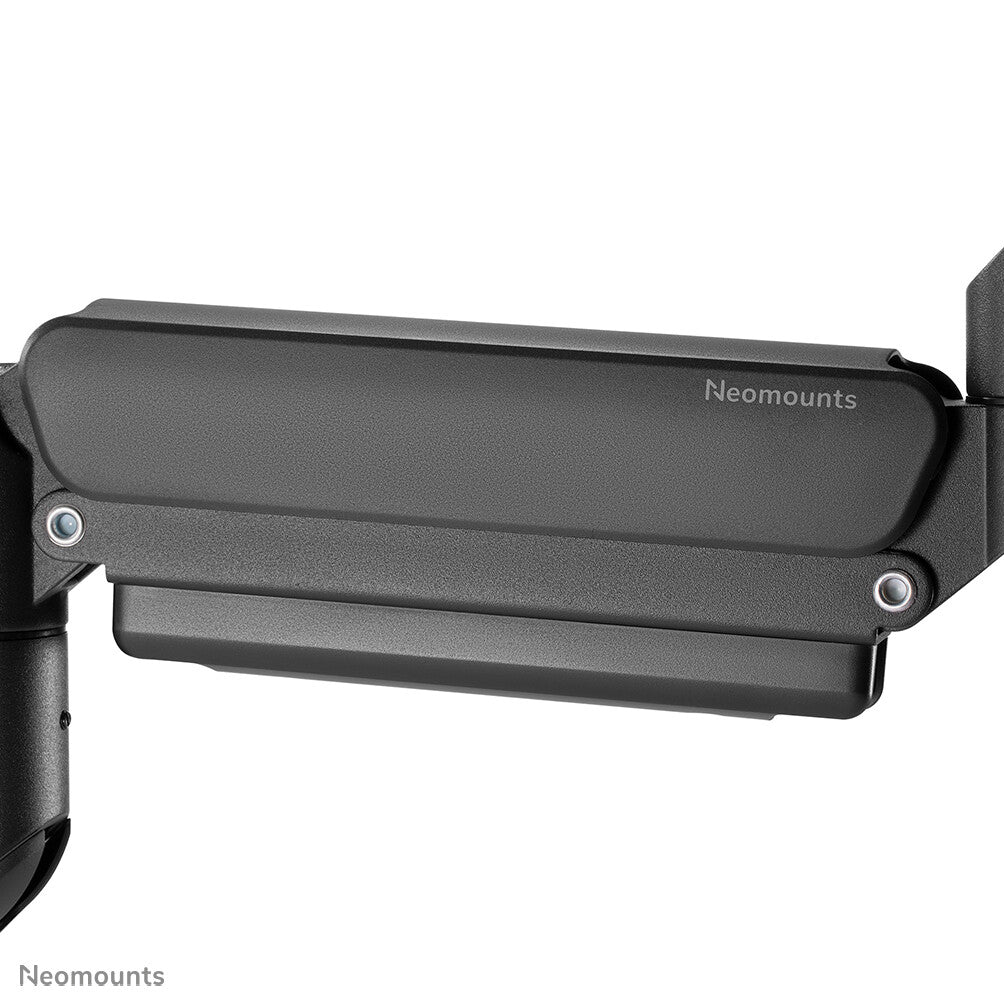

| Cable management |
Yes |
| Angle of rotation |
360° |
| Rotating |
Yes |
| Swivel angle range |
-90 - 90° |
| Swivelling |
Yes |
| Tilt angle range |
-45 - 45° |
| Tilt adjustment |
Yes |
| Depth adjustment range |
0 - 378 mm |
| Adjustable depth |
Yes |
| Height adjustment range |
73 - 481 mm |
| Height adjustment type |
Gas spring |
| Height adjustment |
Yes |
| Design |
|---|
| Orientation |
Landscape/Portrait |
| Housing material |
Steel |
| Product colour |
Black |

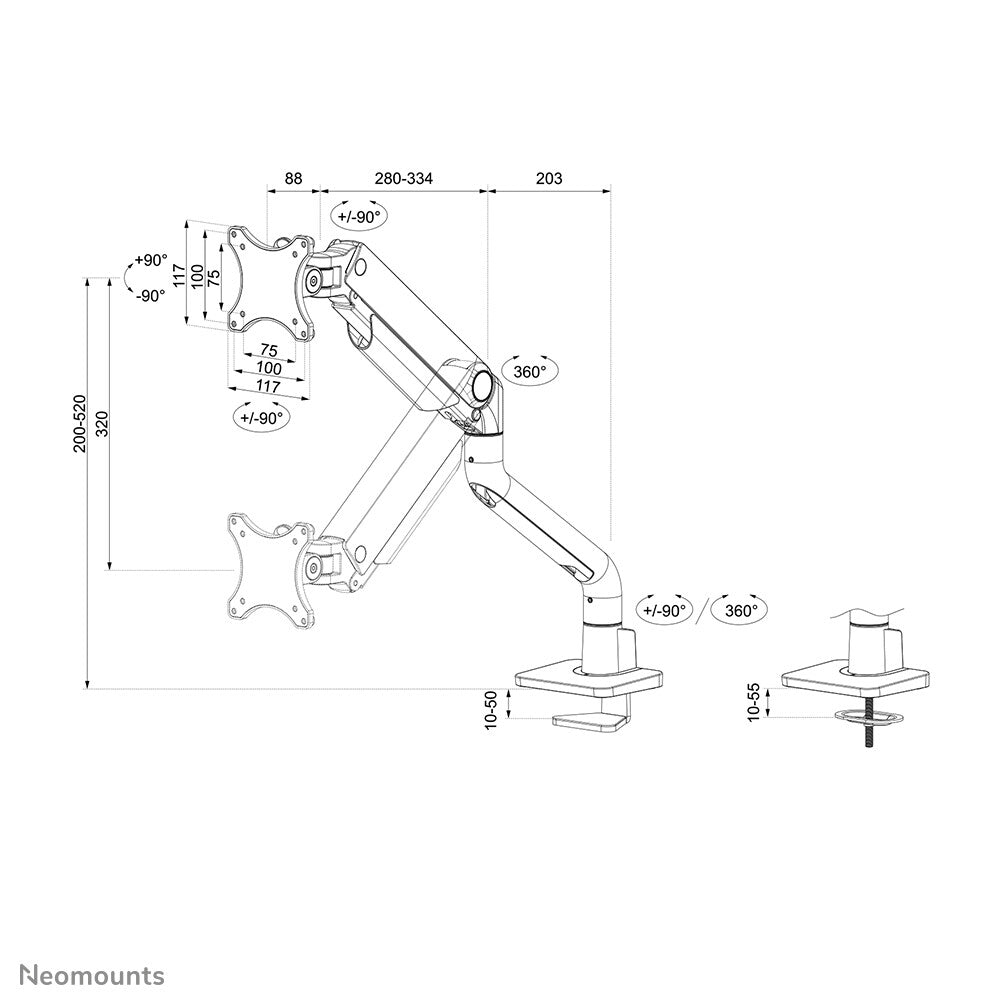

| Weight & dimensions |
|---|
| Height |
679 mm |
| Depth |
440 mm |
| Width |
825 mm |

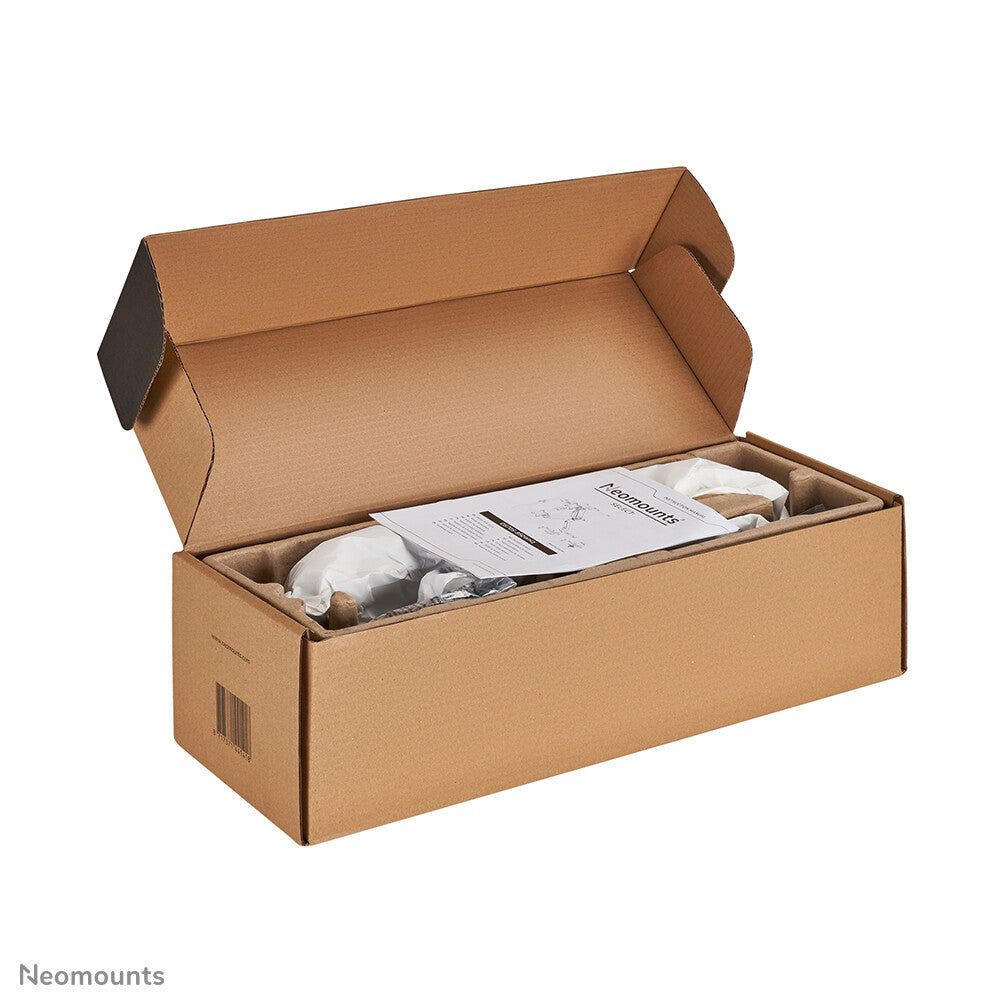

| Packaging data |
|---|
| Package net weight |
4.4 kg |
| Package weight |
4.4 kg |
| Package height |
425 mm |
| Package depth |
132 mm |
| Package width |
266 mm |
| Quantity per pack |
1 pc(s) |
| Other features |
|---|
| Minimum weight |
2 kg |
| Width adjustment range |
0 - 825 mm |
| Logistics data |
|---|
| Master (outer) case net weight |
14.4 kg |
| Products per pallet (EU) |
64 pc(s) |
| Country of origin |
China |
| Harmonized System (HS) code |
7326909890 |
| Products per master (outer) case |
4 pc(s) |
| Master (outer) case gross weight |
18.2 kg |
| Master (outer) case height |
550 mm |
| Master (outer) case length |
280 mm |
| Master (outer) case width |
440 mm |
