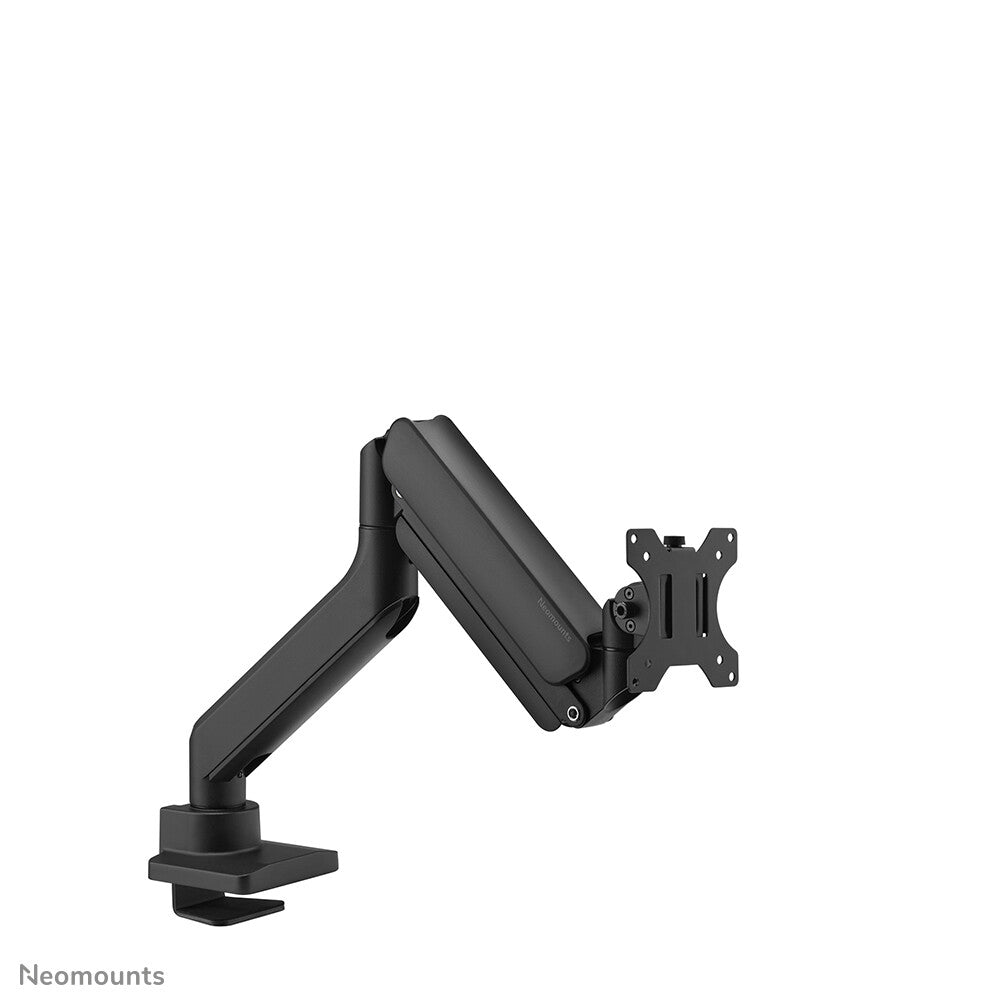

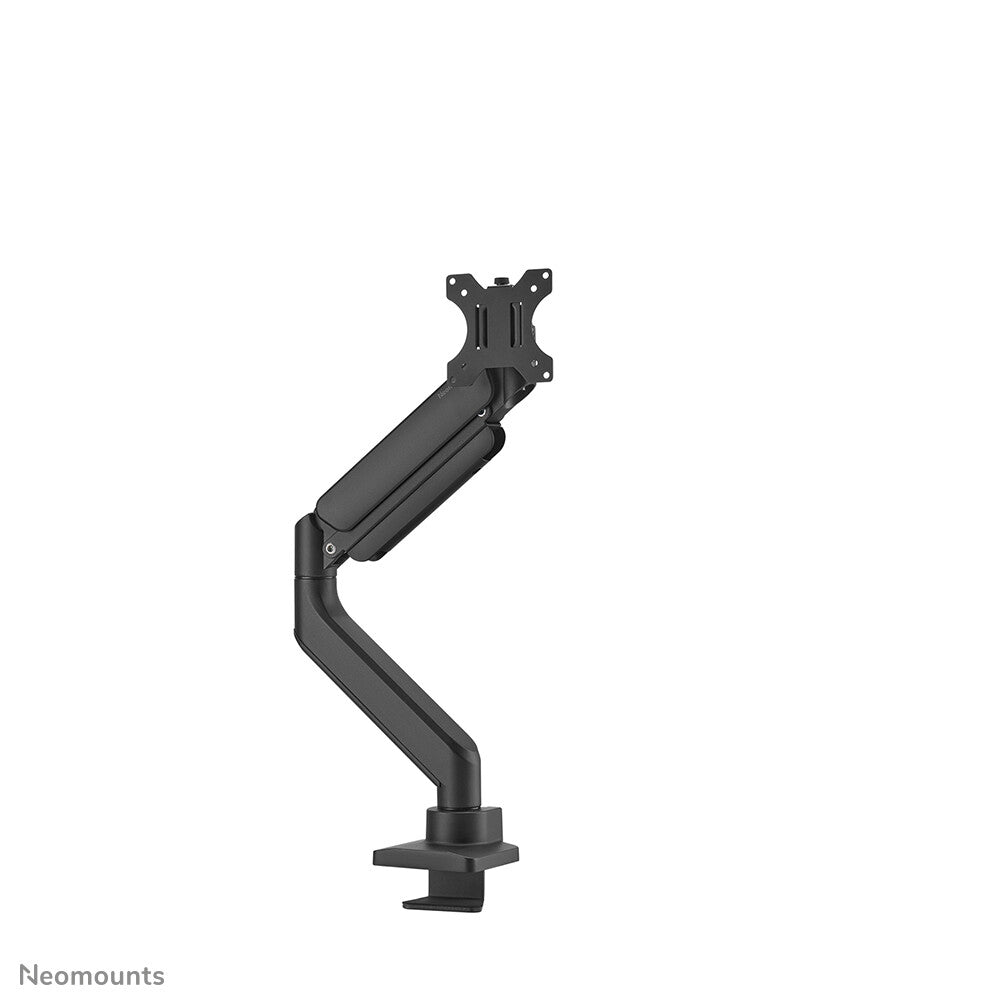

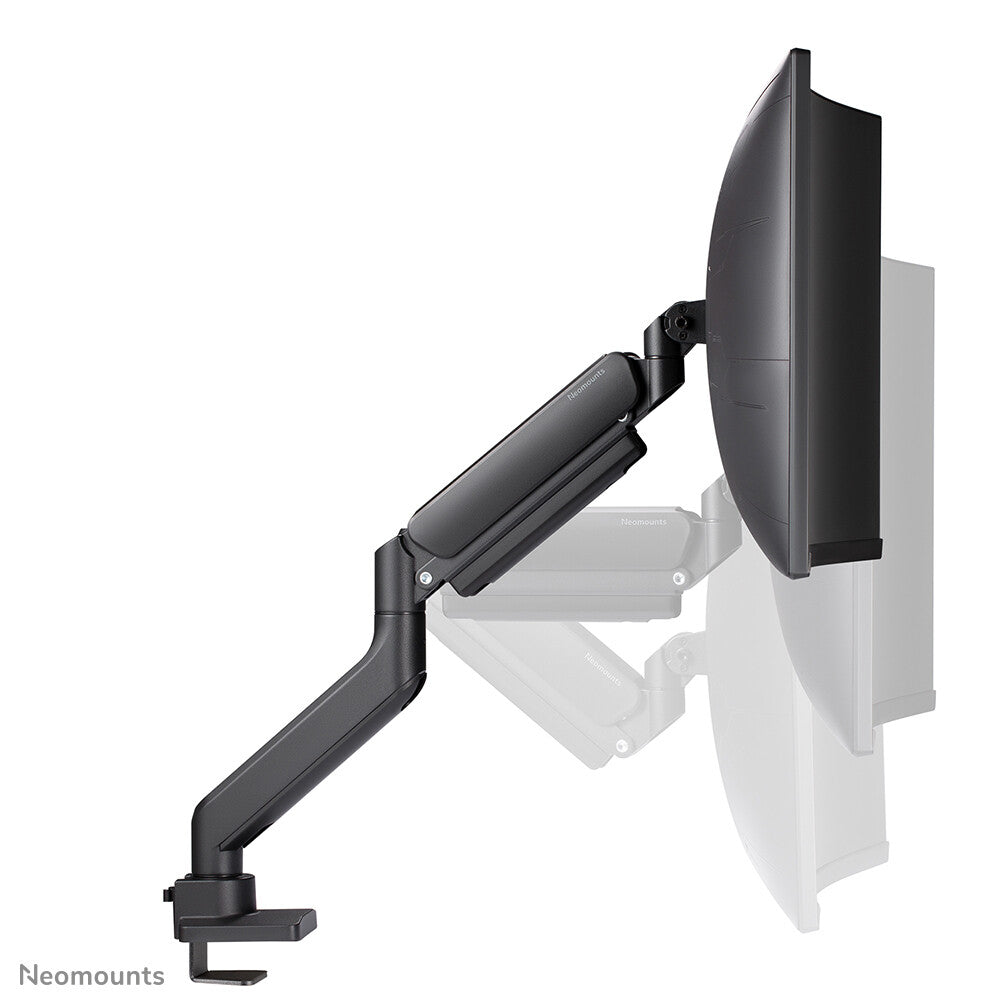

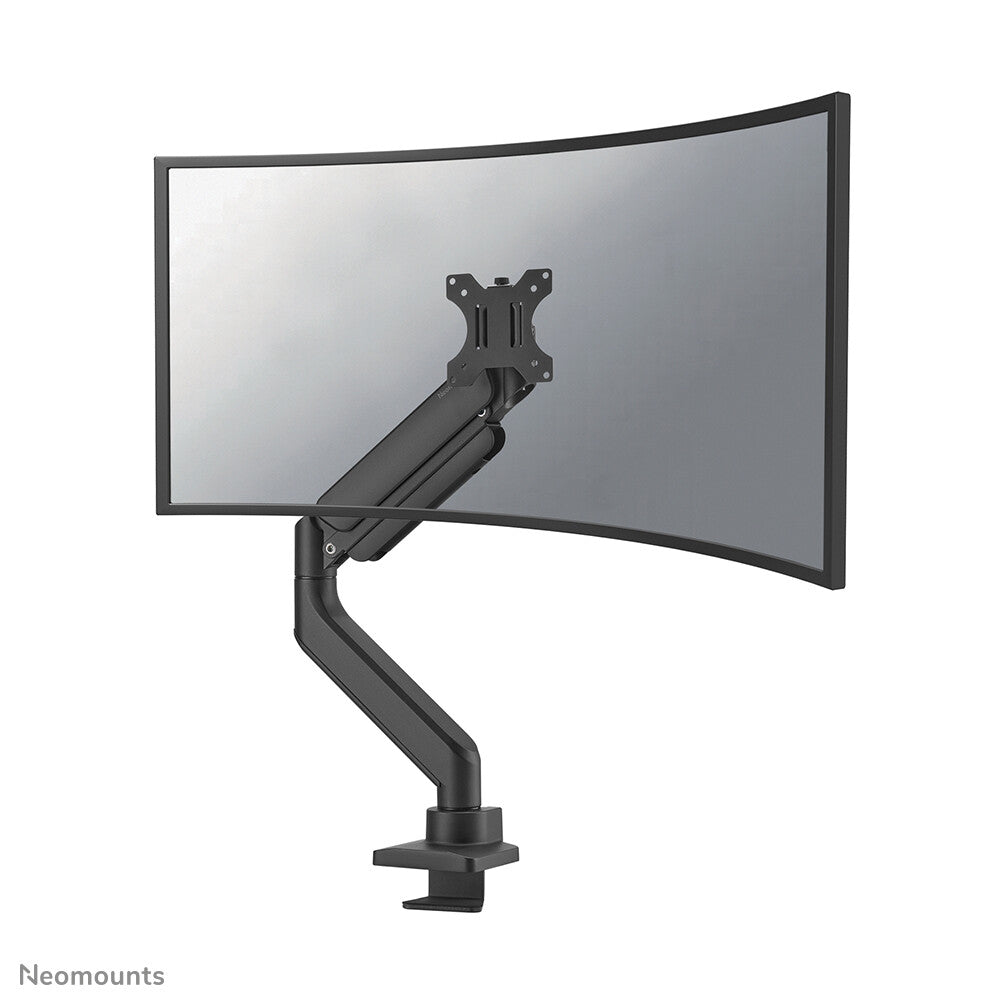

The Neomounts DS70PLUS-450BL1 NEXT Core is a full motion desk mount for curved ultra-wide screens up to 49". The mount features a strengthened head specifically designed for curved ultra-wide screens and to support a higher maximum weight up to 18 kg (curved 14 kg). The versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screen. Additionally, the mount has gas spring height adjustment (26,1-55 cm) and depth adjustment (5,4-49,7 cm), to create the perfect working position.

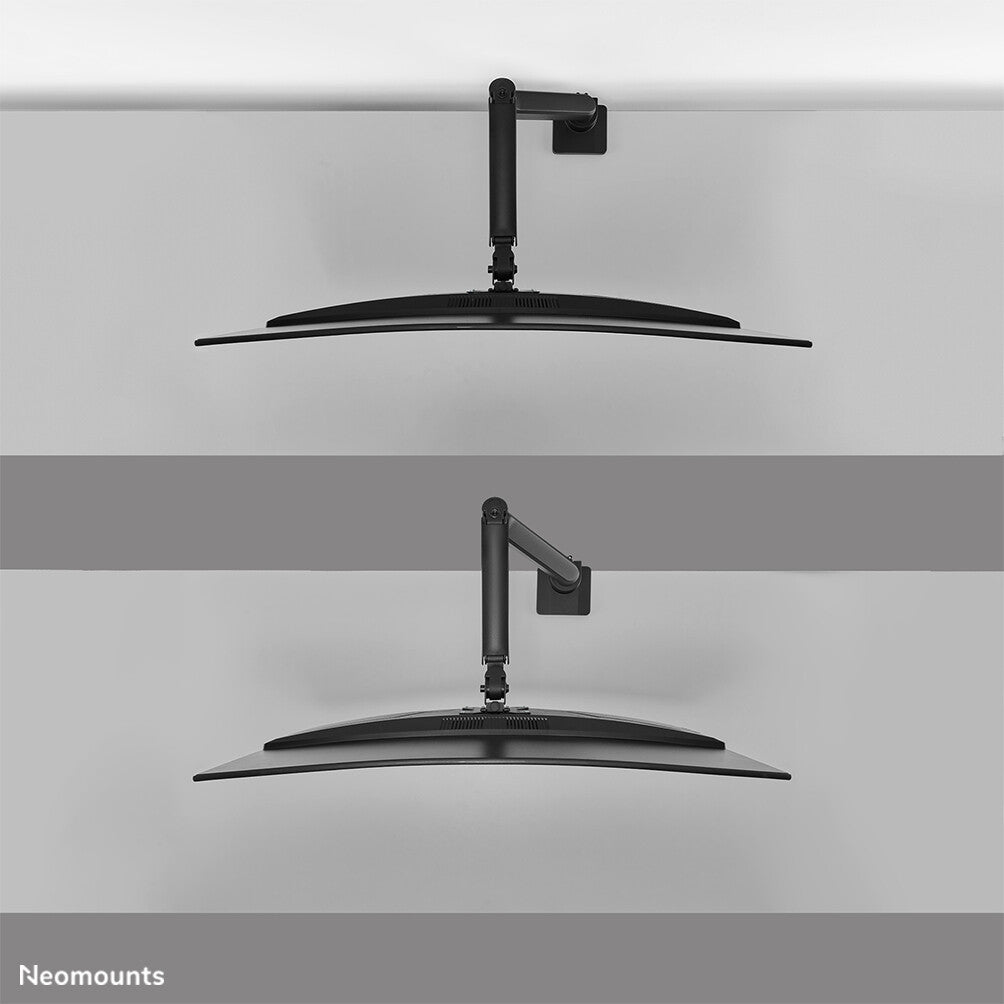

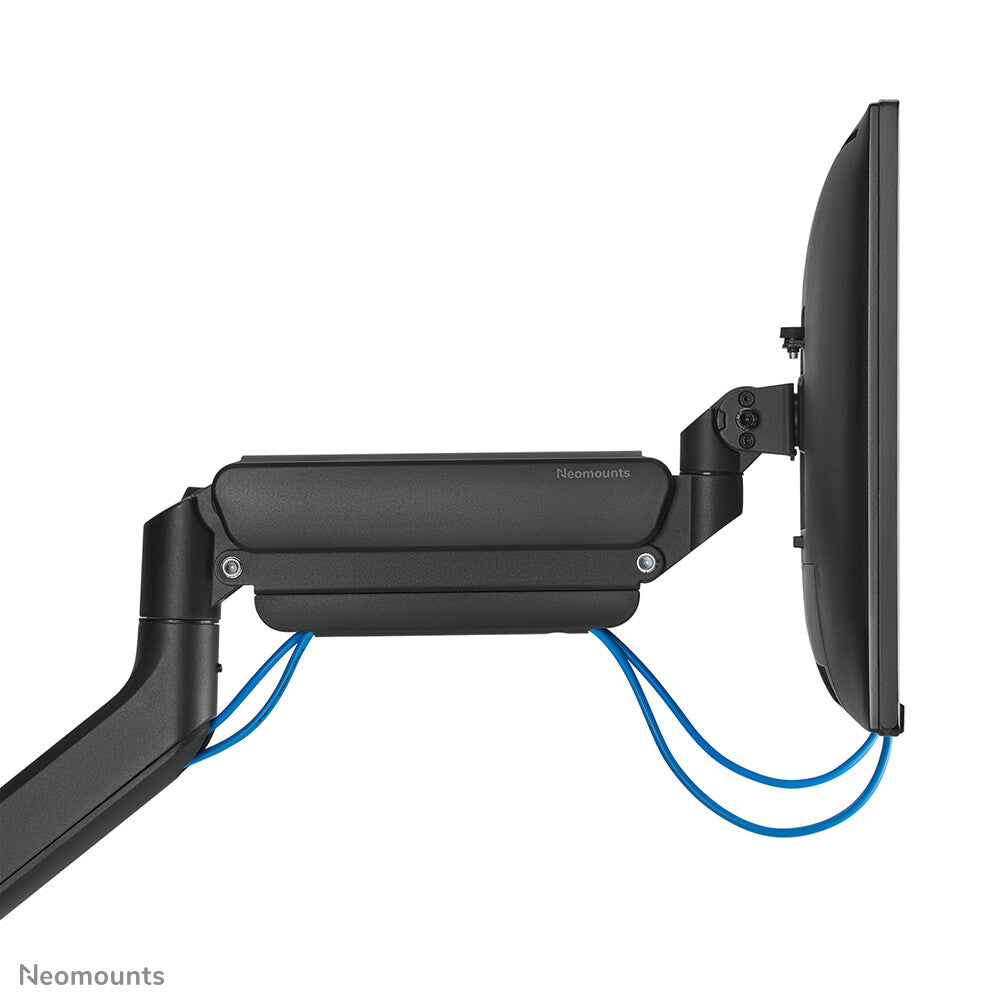

The DS70PLUS-450BL1 NEXT Core features the nifty 180° stop mechanism, that allows you to safely adjust the mount even when it's placed close to a wall or separation panel without making contact with the wall. The smart cable management system ensures orderly routing of the cables.

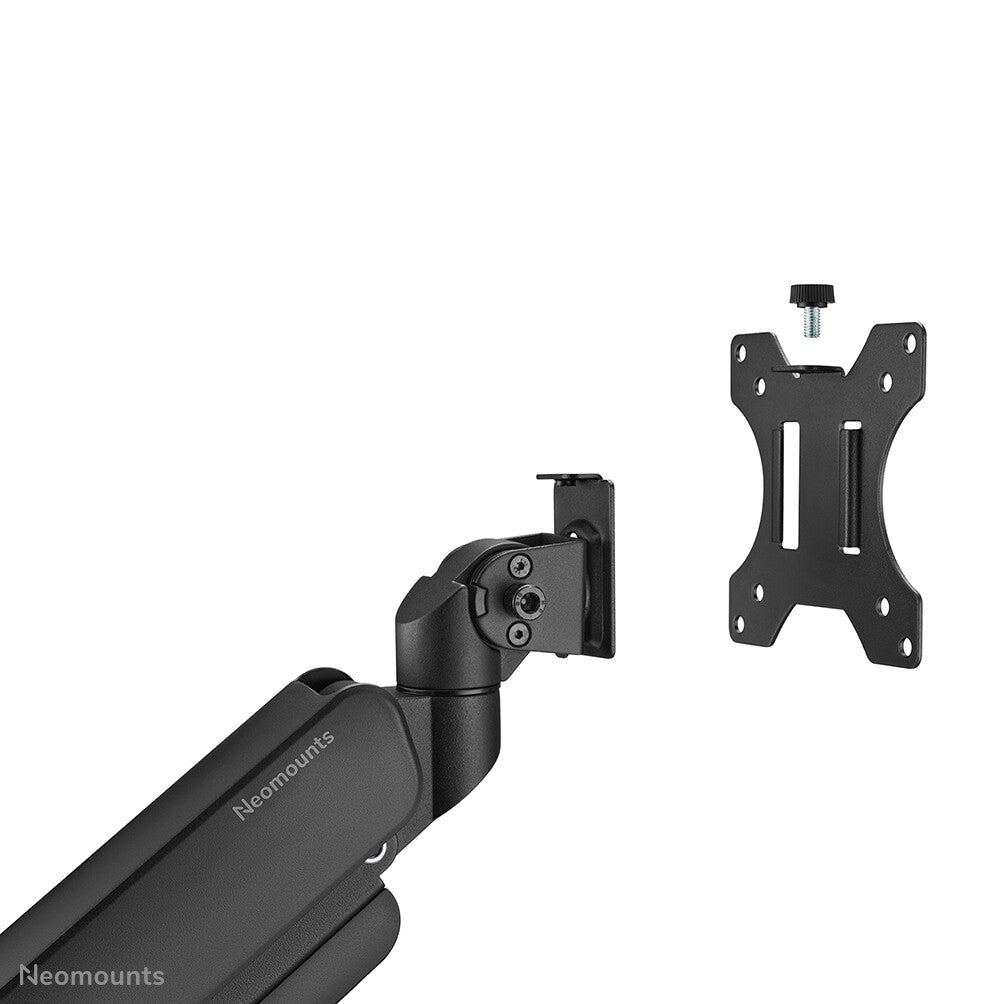

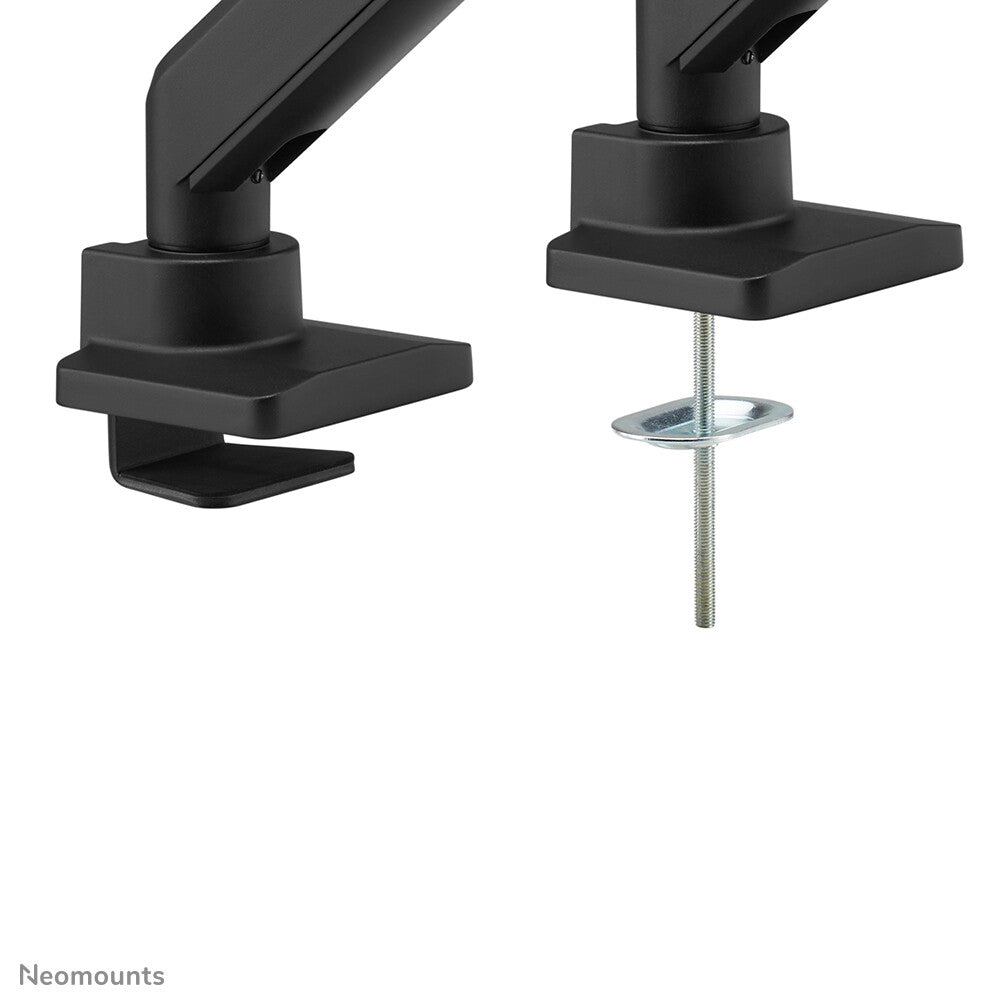

The DS70PLUS-450BL1 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. For non-standard hole patterns, Neomounts has various VESA optional adapter plates available. The desk mount is equipped with an Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.

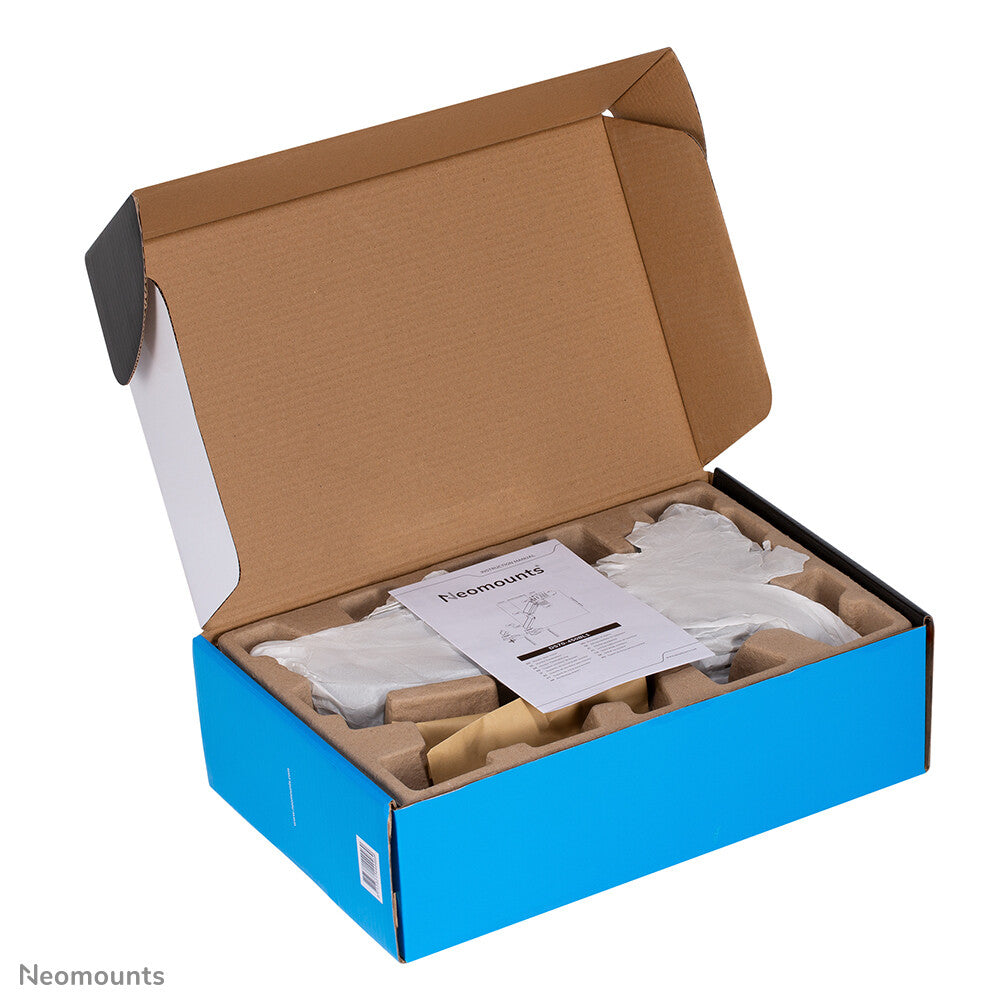

The packaging of the NEXT Core is 100% plastic free and entirely made from cardboard and paper.
For wall installation, the AWL75-450BL wall adapter is optionally available.
| Mounting |
|---|
| Distance to the wall (max) |
56.8 cm |
| Distance to the wall (min) |
10.8 cm |
| Desk thickness (max) |
4.5 cm |
| Desk thickness (min) |
1 cm |
| Number of displays supported |
1 |
| Panel mounting interface |
75 x 75,100 x 100 mm |
| Maximum VESA mount |
100 x 100 mm |
| Minimum VESA mount |
75 x 75 mm |
| Mounting |
Clamp/Grommet |
| Maximum weight capacity (per curved/ultra-wide display) |
14 kg |
| Mounting type |
Desk |
| Maximum screen size |
124.5 cm (49") |
| Minimum screen size |
43.2 cm (17") |
| Maximum weight capacity |
18 kg |
| Ergonomics |
|---|
| Cable management |
Yes |
| Angle of rotation |
360° |
| Rotating |
Yes |
| Swivel angle range |
-90 - 90° |
| Swivelling |
Yes |
| Tilt angle range |
-45 - 45° |
| Tilt adjustment |
Yes |
| Depth adjustment range |
54 - 511 mm |
| Adjustable depth |
Yes |
| Height adjustment range |
261 - 555 mm |
| Height adjustment type |
Gas spring |
| Height adjustment |
Yes |
| Design |
|---|
| Housing material |
Steel |
| Product colour |
Black |
| Weight & dimensions |
|---|
| Weight |
3.98 kg |
| Height |
653 mm |
| Depth |
568 mm |
| Width |
120 mm |
| Packaging data |
|---|
| Package net weight |
5.1 kg |
| Package type |
Box |
| Package weight |
5.1 kg |
| Package height |
445 mm |
| Package depth |
127 mm |
| Package width |
280 mm |
| Quantity per pack |
1 pc(s) |
| Other features |
|---|
| Minimum weight |
1 kg |
| Width adjustment range |
0 - 920 mm |
| Logistics data |
|---|
| Master (outer) case net weight |
16 kg |
| Products per pallet (EU) |
64 pc(s) |
| Country of origin |
China |
| Harmonized System (HS) code |
7326909890 |
| Products per master (outer) case |
4 pc(s) |
| Master (outer) case gross weight |
20.5 kg |
| Master (outer) case height |
580 mm |
| Master (outer) case length |
275 mm |
| Master (outer) case width |
460 mm |
