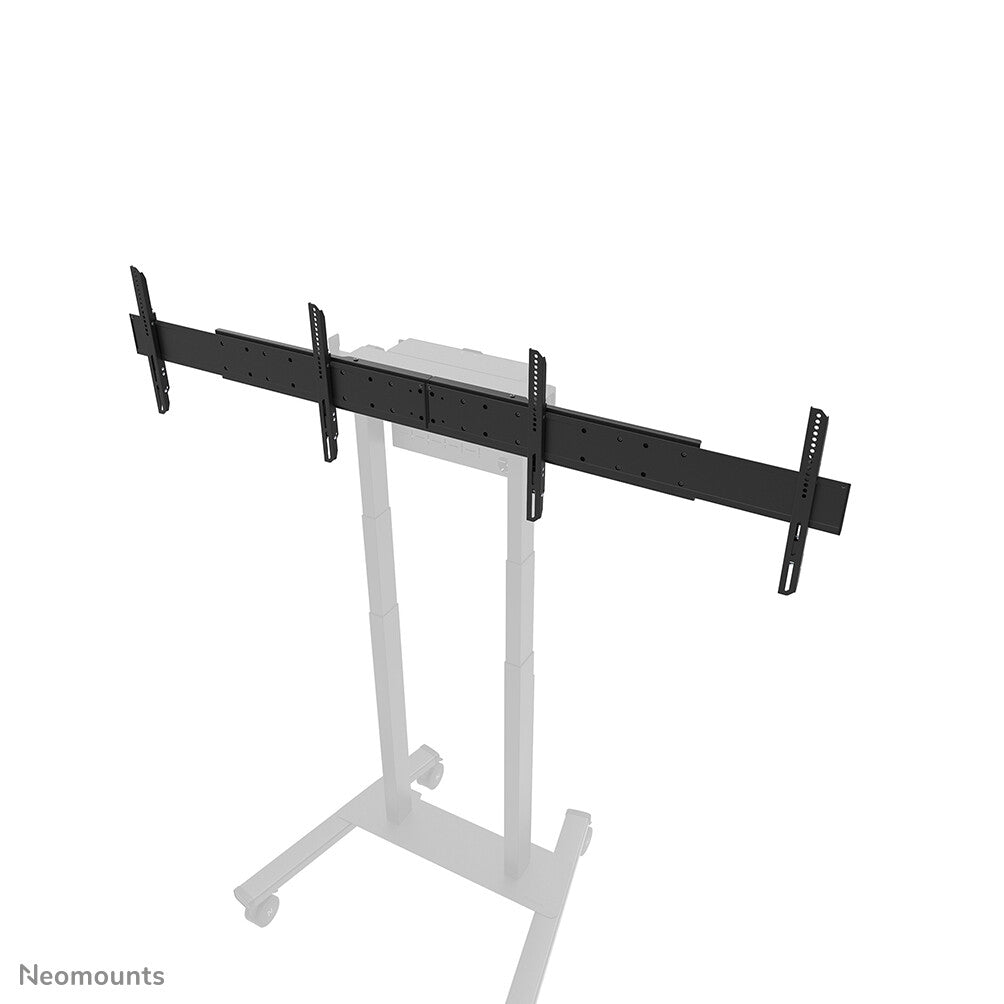

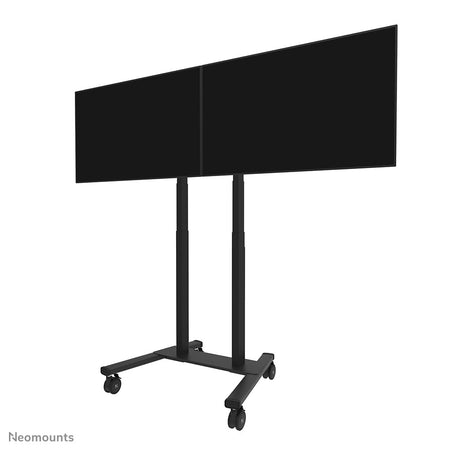

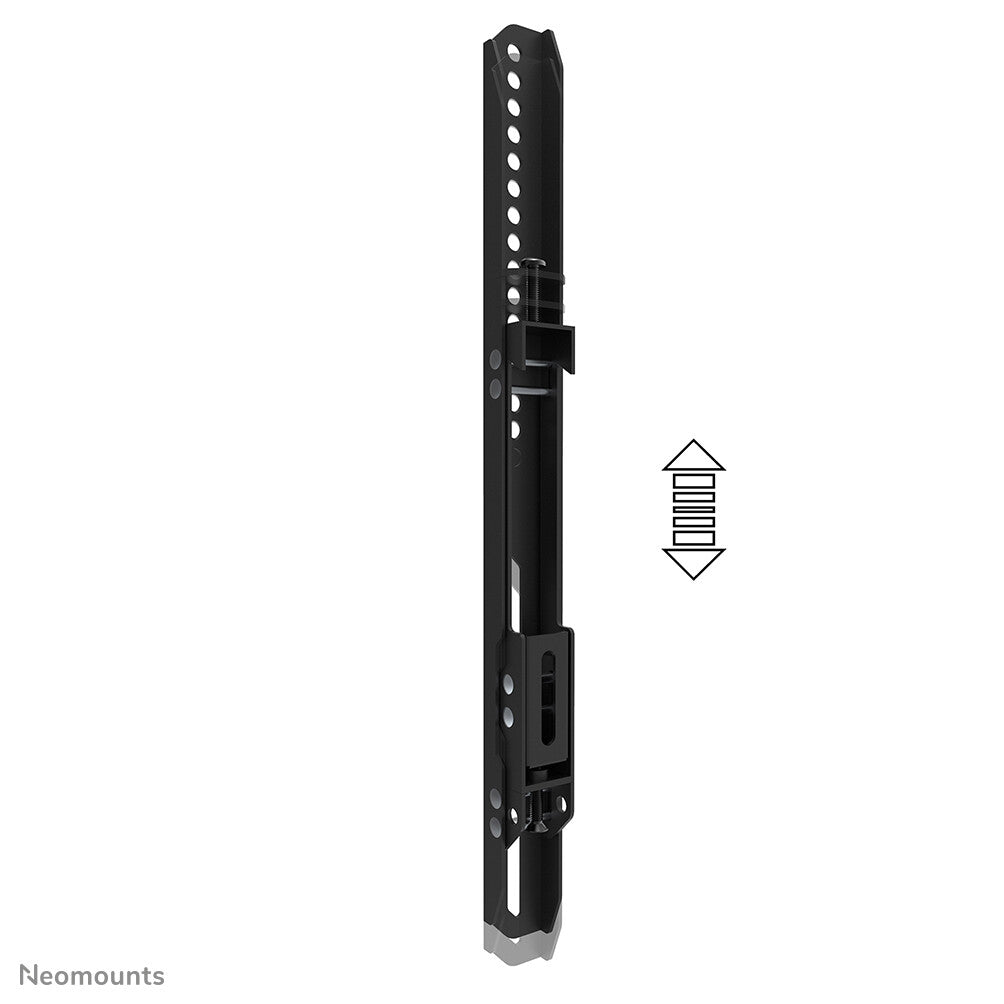

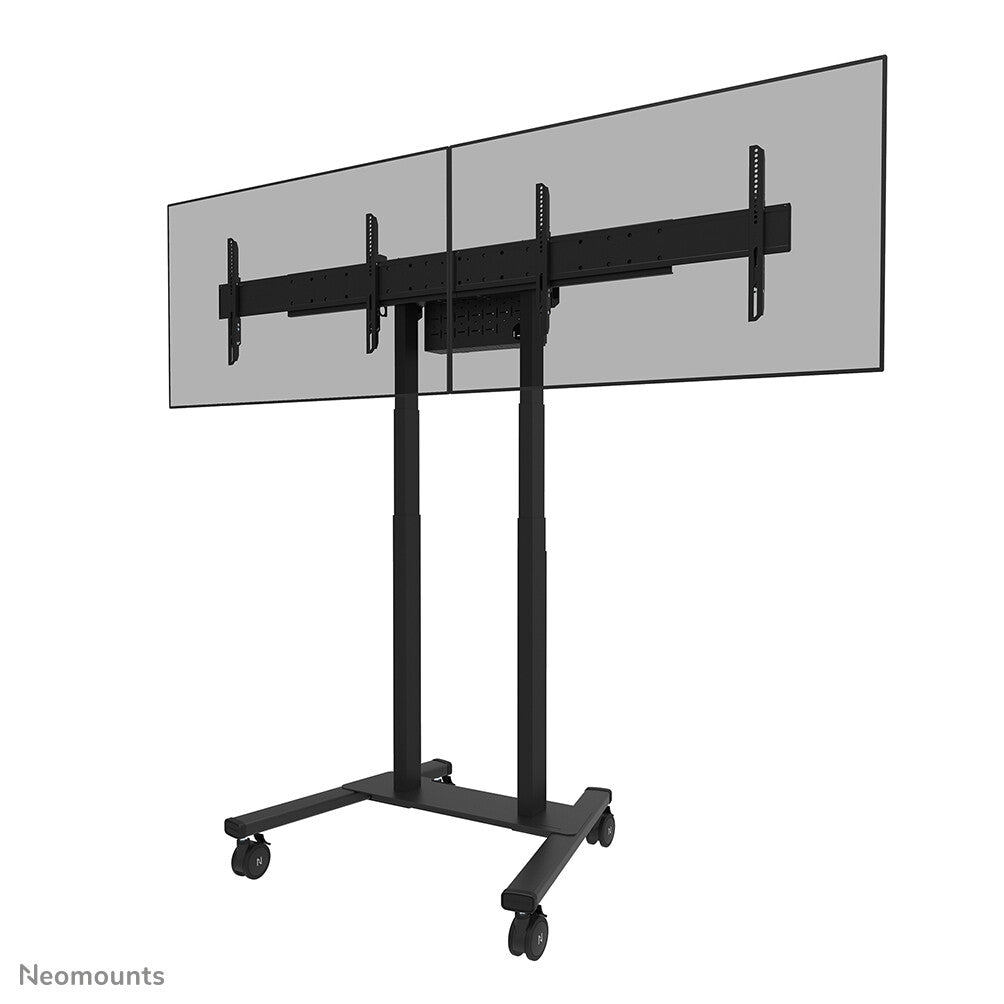

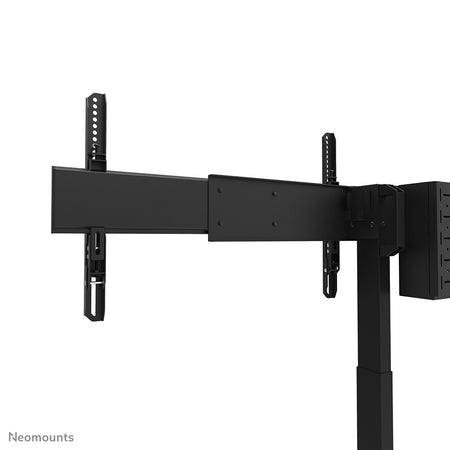

The Neomounts ADM-875BL2 is a dual screen adapter optional for the FL55-875BL1 mobile floor stand and WL55-875BL1 wall stand. The adapter allows the installation of 2 screens from 42" up to 65" with a maximum weight of 40 kg per screen. The height adjustable brackets ensure perfect alignments of the screens. It is possible to lock these brackets, using a padlock (not included). It is also possible to install a XXL display up to VESA 2000x600 mm and max 80 kg.
The optional AFL-875BL1 or AV1-875BL videobar & multimedia kit can be used in combination with the dual screen adapter without any problem.
| Features |
|---|
| Minimum screen size |
106.7 cm (42") |
| Maximum screen size |
165.1 cm (65") |
| Number of displays supported |
2 |
| Minimum VESA mount |
100 x 100 mm |
| Maximum VESA mount |
800 x 400 mm |
| Height adjustment |
Yes |
| Height adjustment range |
0 - 10 mm |
| Cable management |
No |
| Panel mounting interface |
100 x 100,100 x 150,100 x 200,120 x 120,200 x 100,200 x 200,200 x 300,200 x 400,300 x 100,300 x 200,300 x 300,350 x 350,400 x 200,400 x 300,400 x 400,440 x 400,500 x 400,600 x 200,600 x 300,600 x 400,680 x 300,800 x 200,800 x 400 |
| Lockable |
Yes |
| Maximum weight capacity |
40 kg |
| Material |
Steel |
| Product colour |
Black |
| Type |
Mounting bar |
| Weight & dimensions |
|---|
| Height |
650 mm |
| Depth |
59 mm |
| Width |
2130 mm |
| Packaging data |
|---|
| Package weight |
12.2 kg |
| Package height |
1010 mm |
| Package depth |
72 mm |
| Package width |
213 mm |
| Packaging content |
|---|
| Padlock included |
No |
| Other features |
|---|
| Country of origin |
China |
| Warranty period |
5 year(s) |
| Logistics data |
|---|
| Products per master (outer) case |
1 pc(s) |
| Products per pallet (EU) |
50 pc(s) |
| Harmonized System (HS) code |
7326909890 |
