Neomounts heavy duty TV wall mount

SKU: WL30S-950BL19
£162.37 inc. VAT
  • Maximum weight capacity: 160 kg
  • Minimum screen size: 139.7 cm (55") Maximum screen size: 2.79 m (110")
  • Number of displays supported: 1
  • Mounting type: Wall
  • Maximum VESA mount: 1500 x 900 mm
  • Height adjustment
  • Steel Black

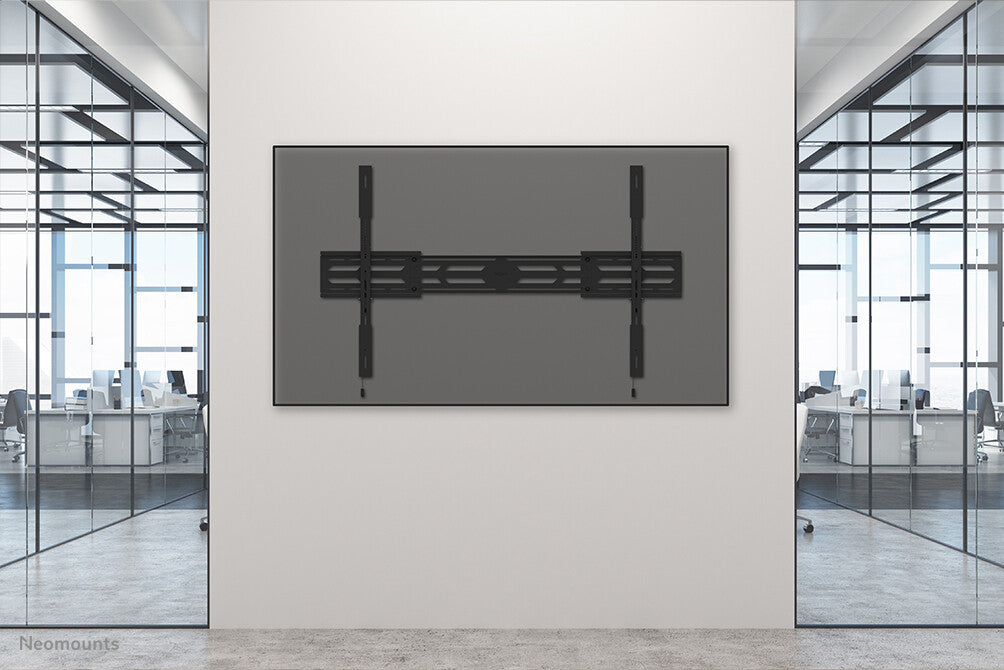

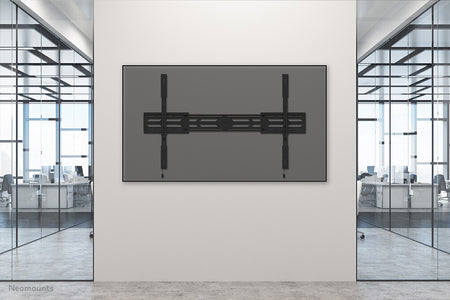

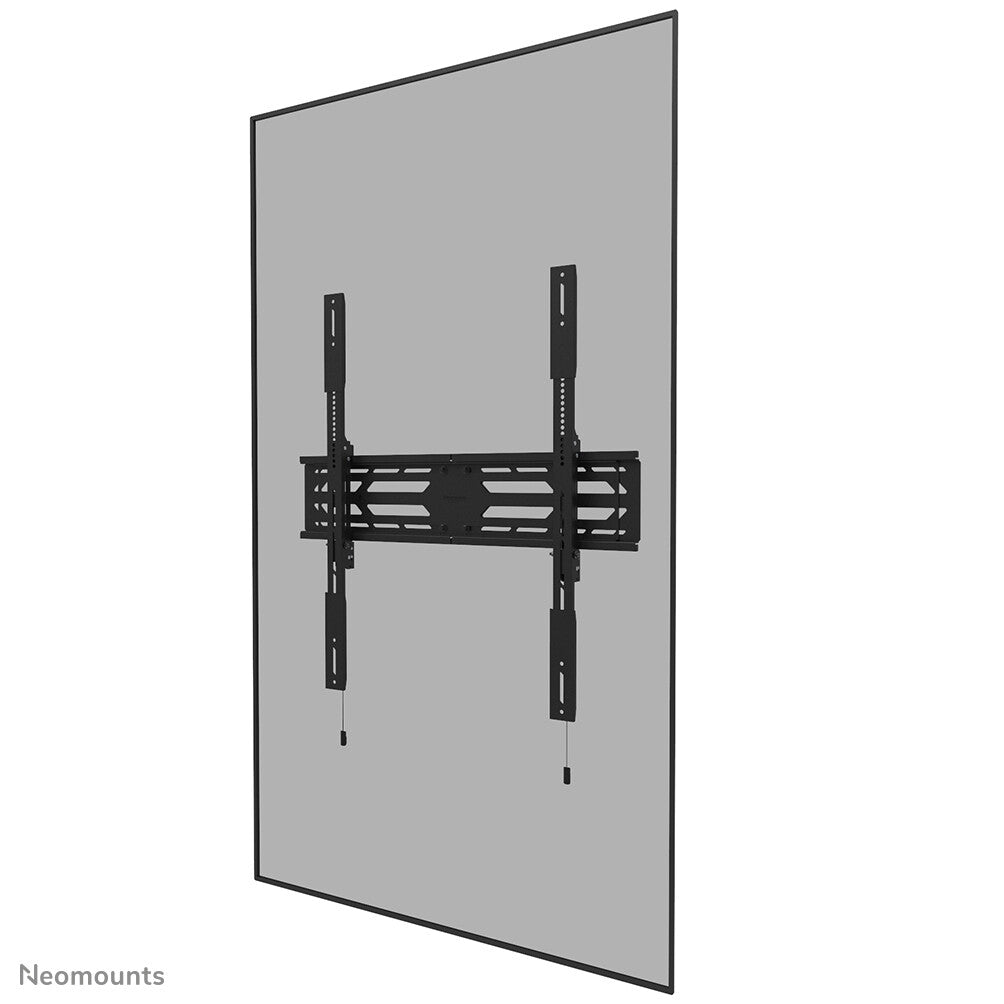

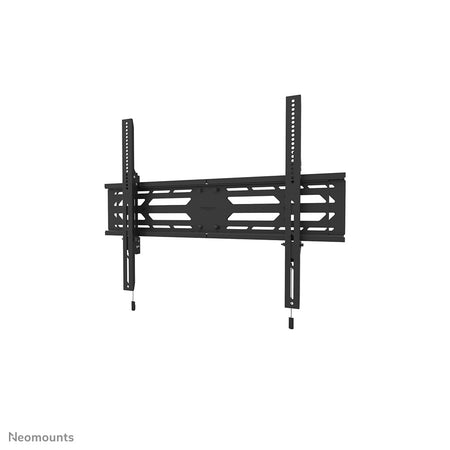

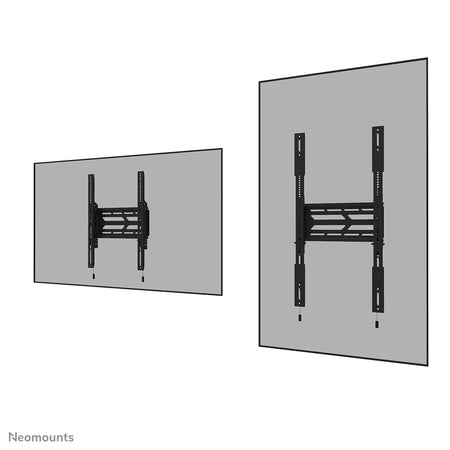

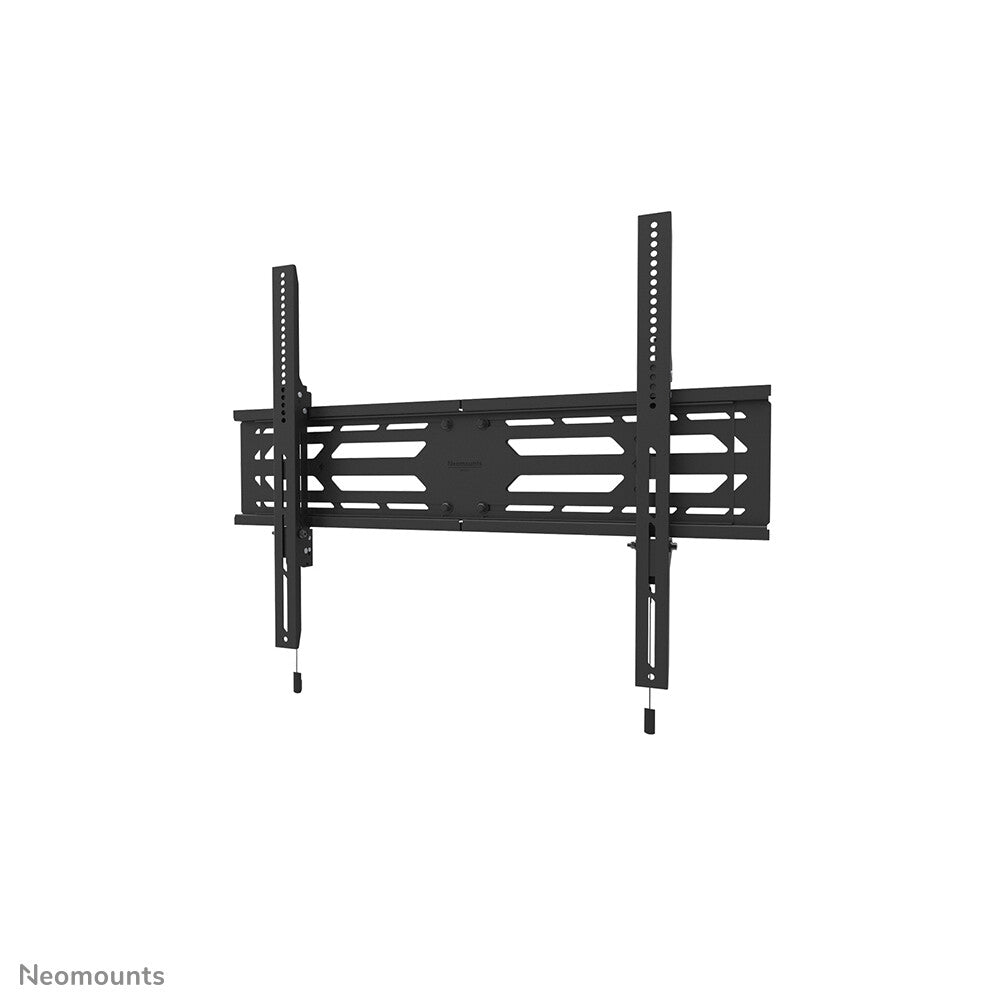

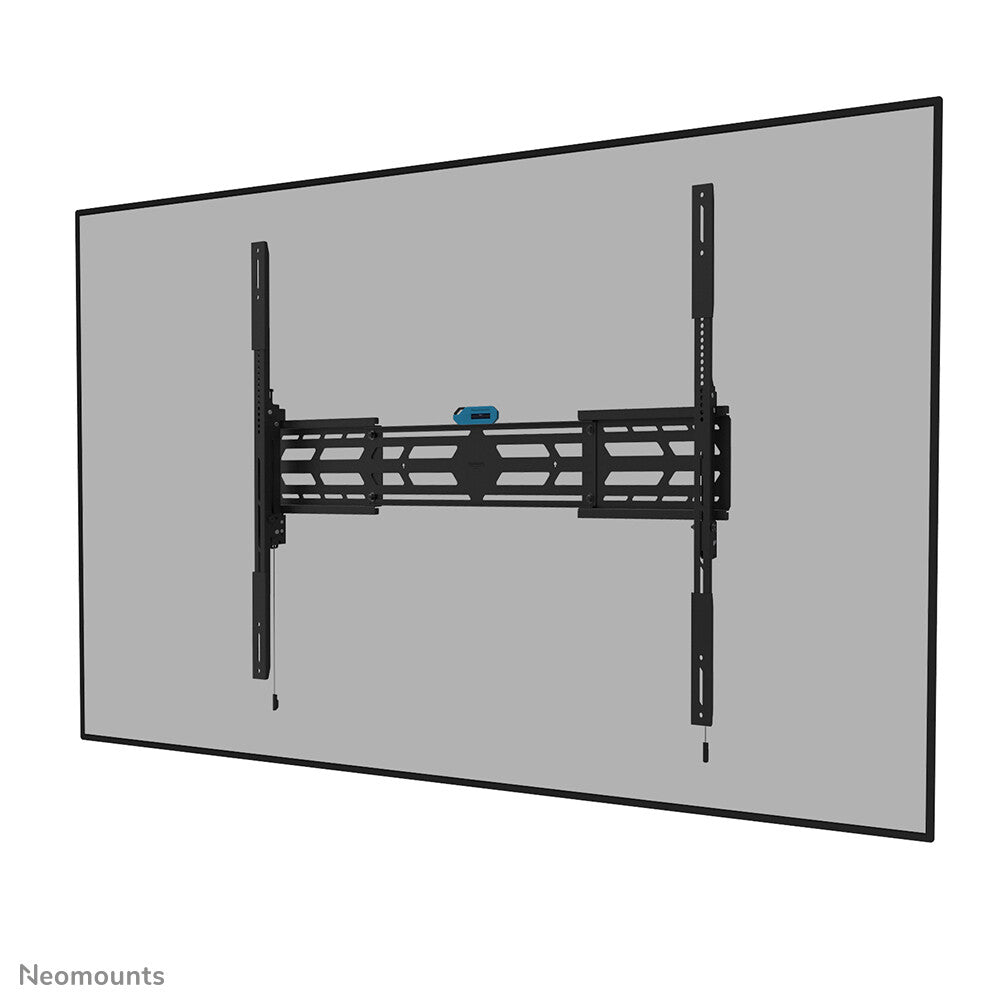

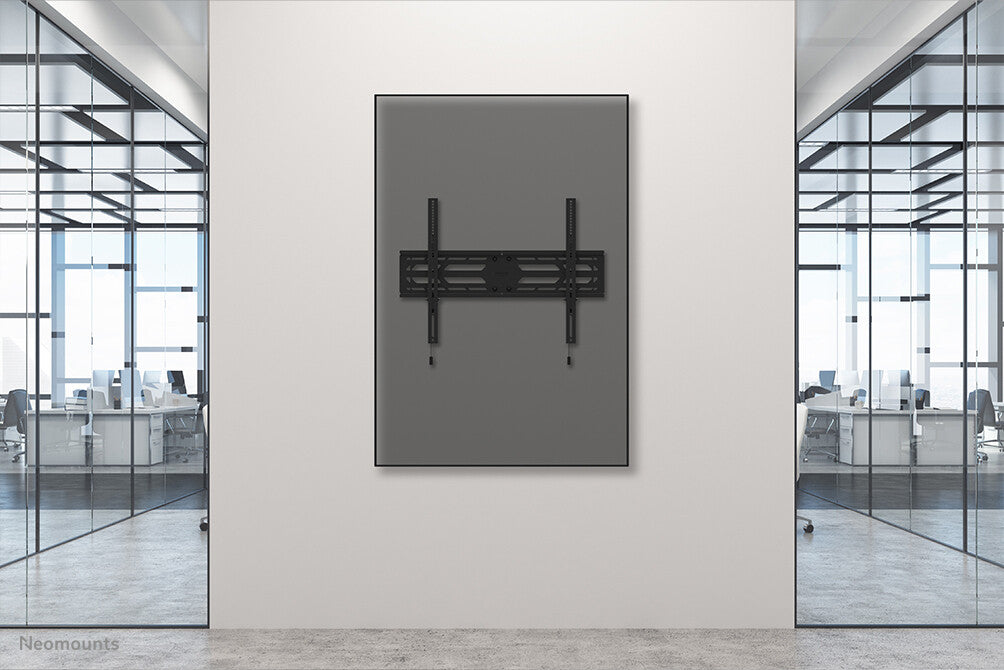

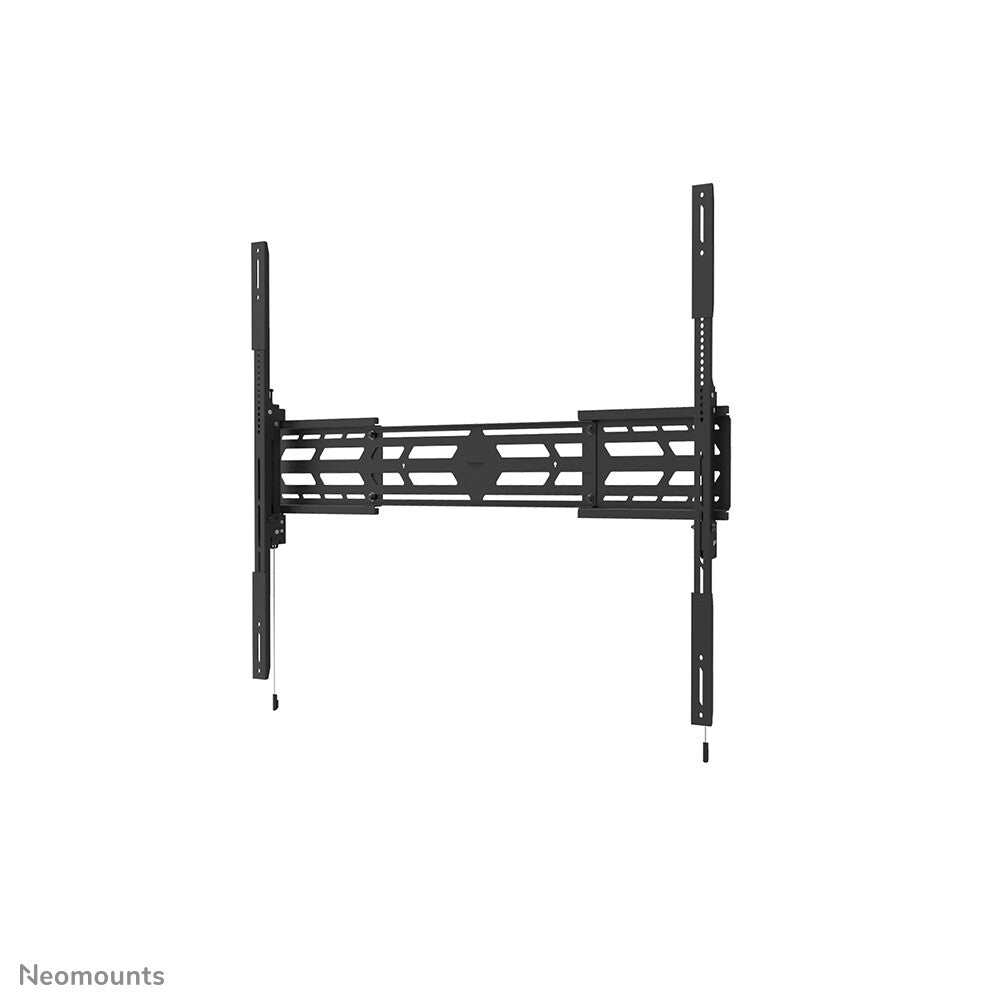

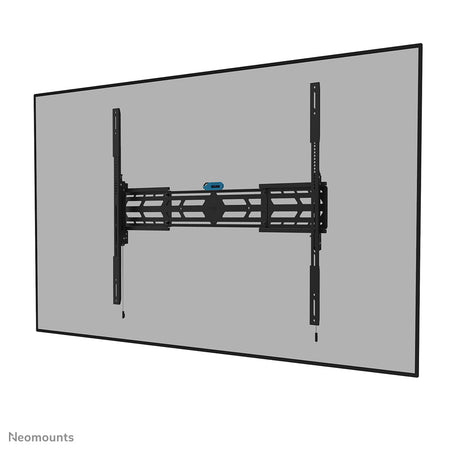

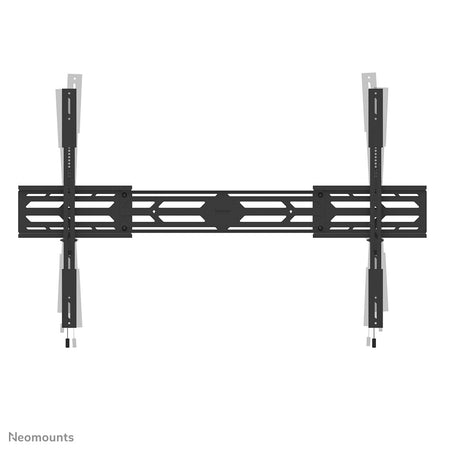

The Neomounts WL30S-950BL19 is a fixed heavy-duty wall mount for flat screens up to 110" with a maximum weight capacity of 160 kg. It is possible to install the screen in both portrait and landscape orientation. The mount features individual height adjustable brackets and level adjustment is available for the perfect installation.

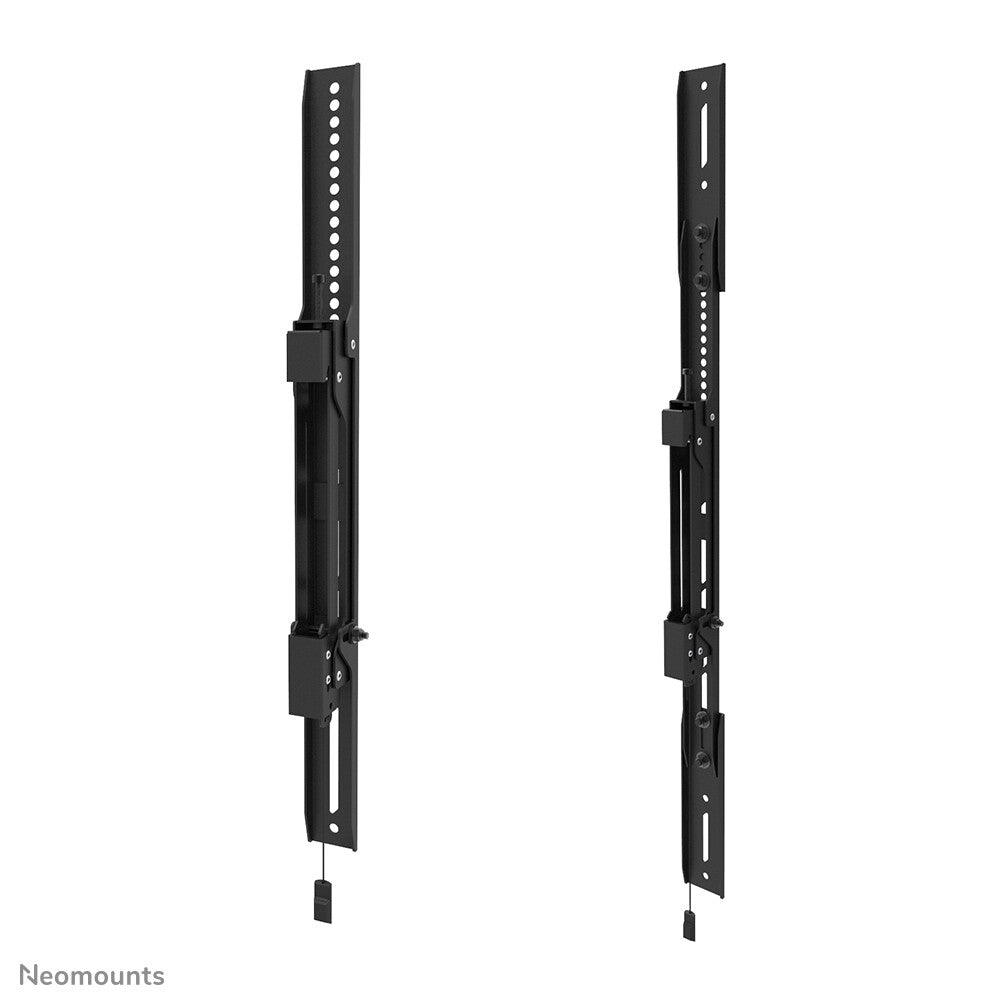

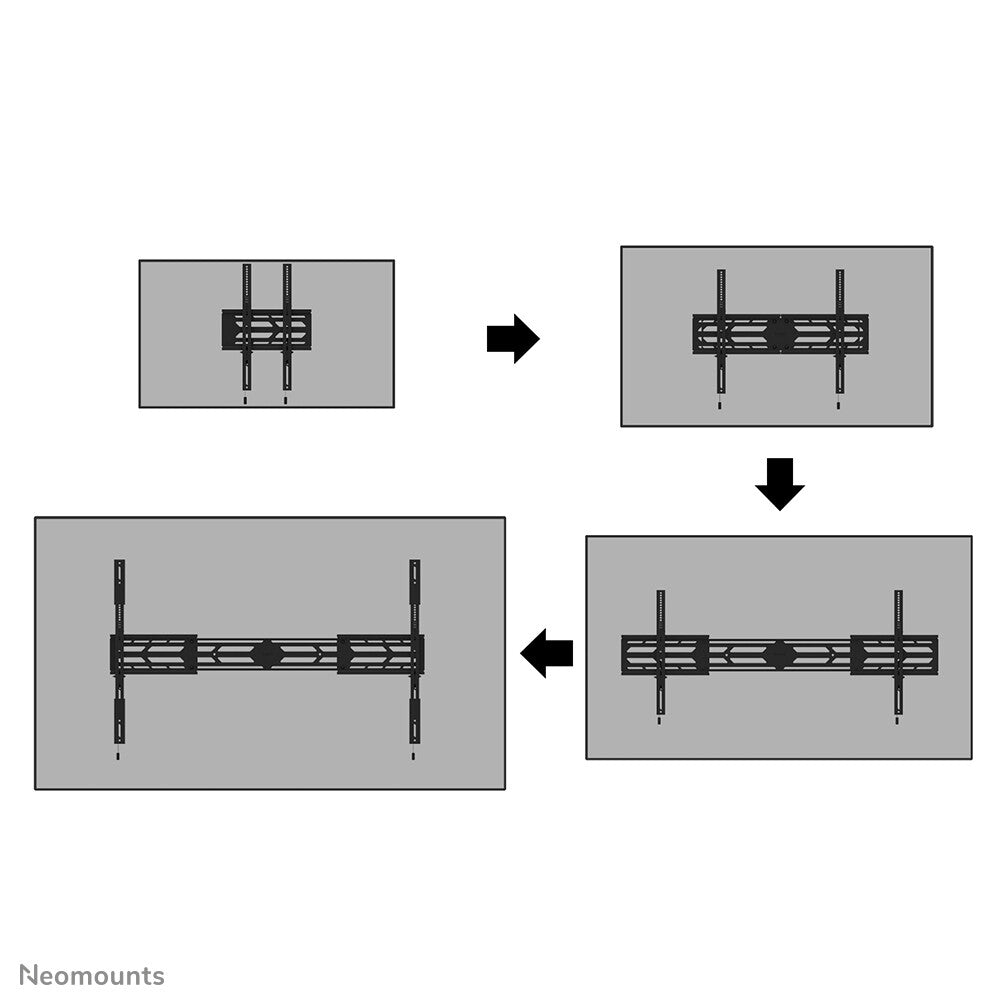

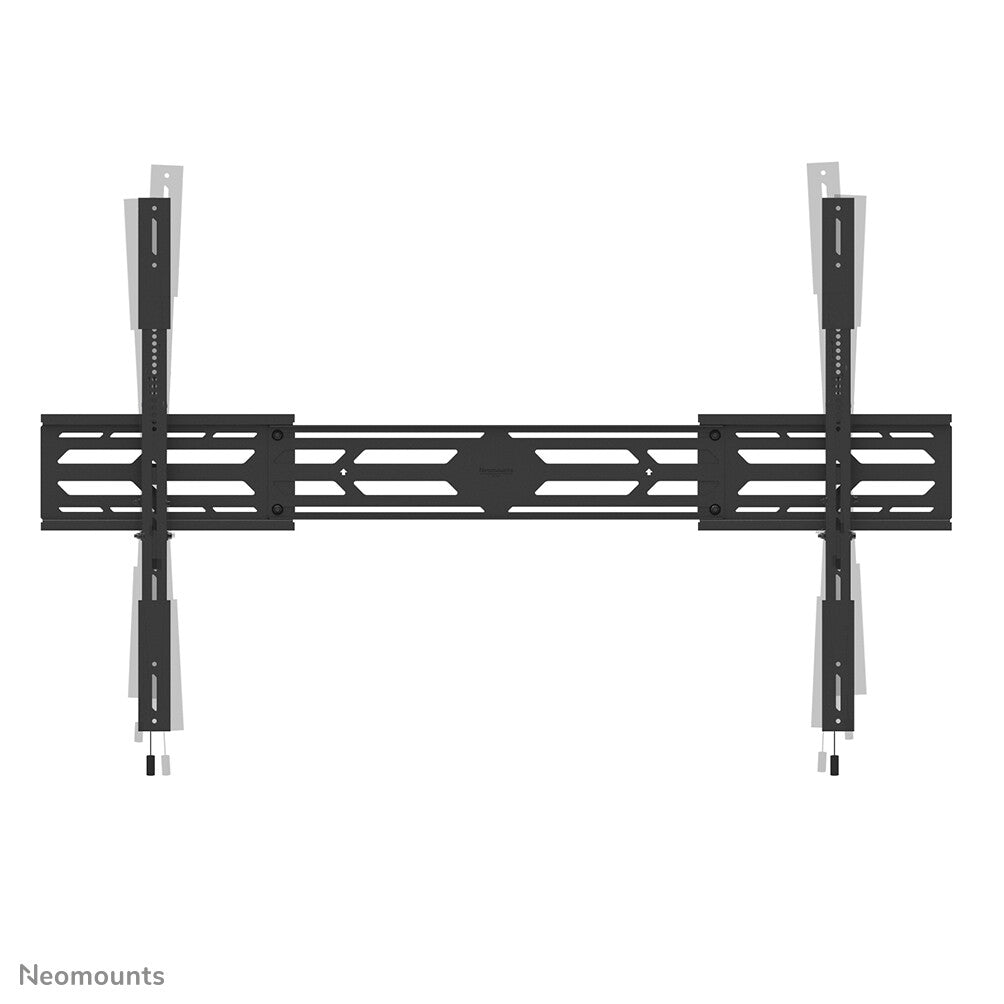

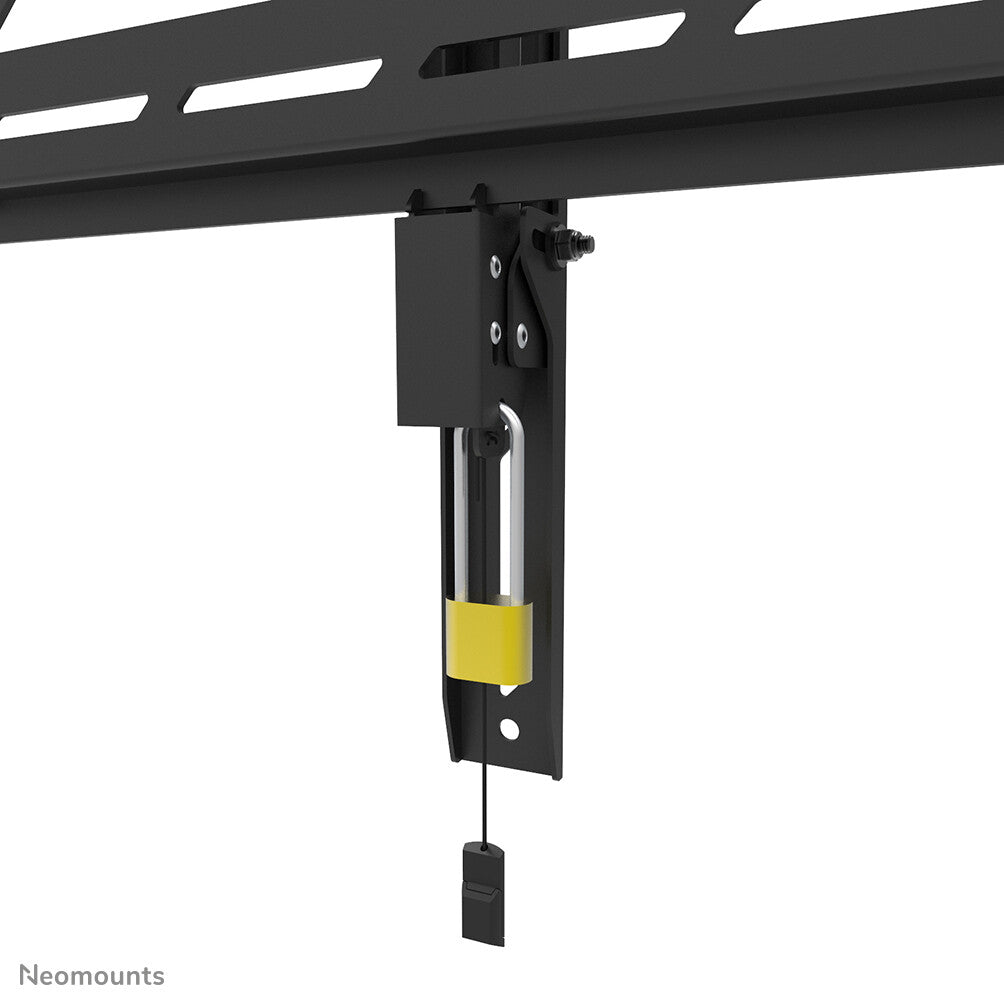

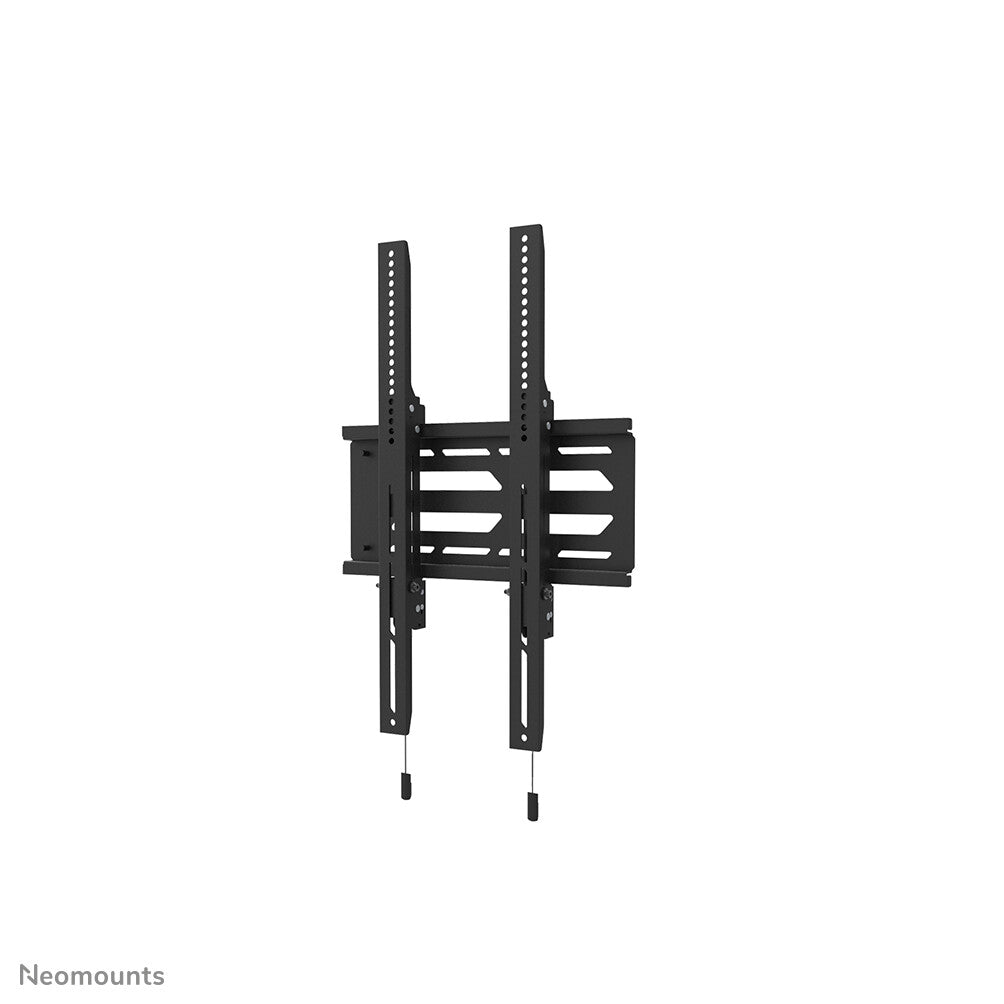

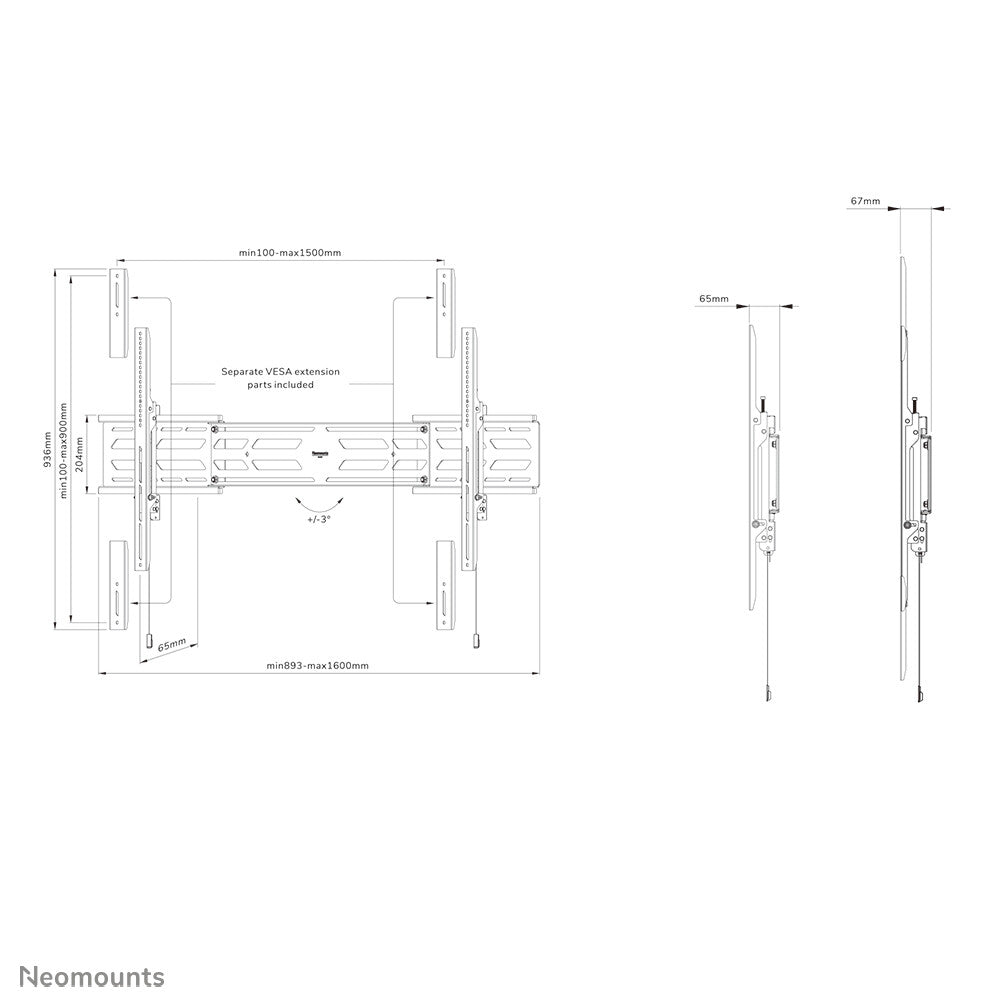

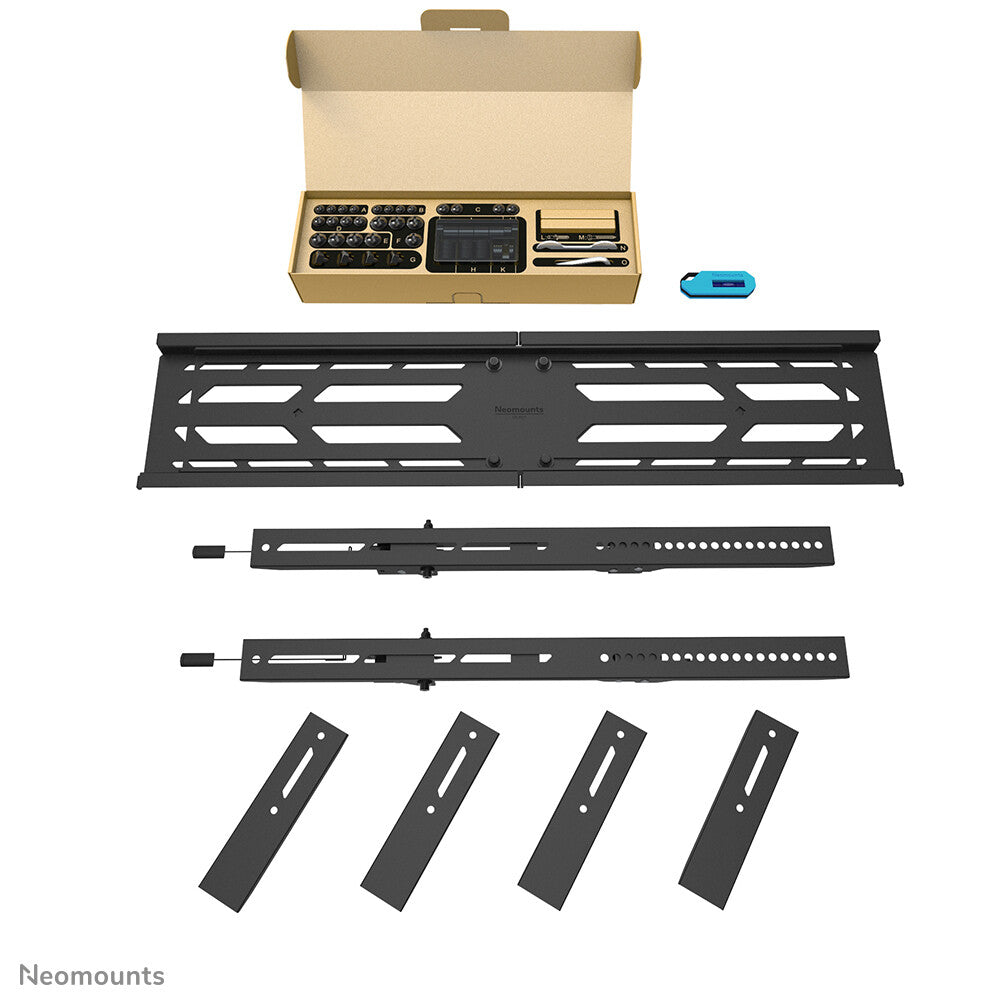

The WL30S-950BL19 has a depth of 6,5 cm and is, thanks to the included vertical extension brackets, suitable for screens that meet VESA hole pattern 100x100 to 1500x900 mm. Due to the unique extendable design, the mount can be adjusted to a wide range of screens dimensions; from 55" up to 110". It is possible to lock the mount using a padlock (not included).

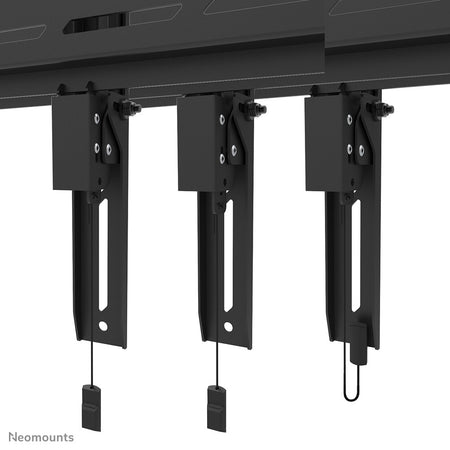

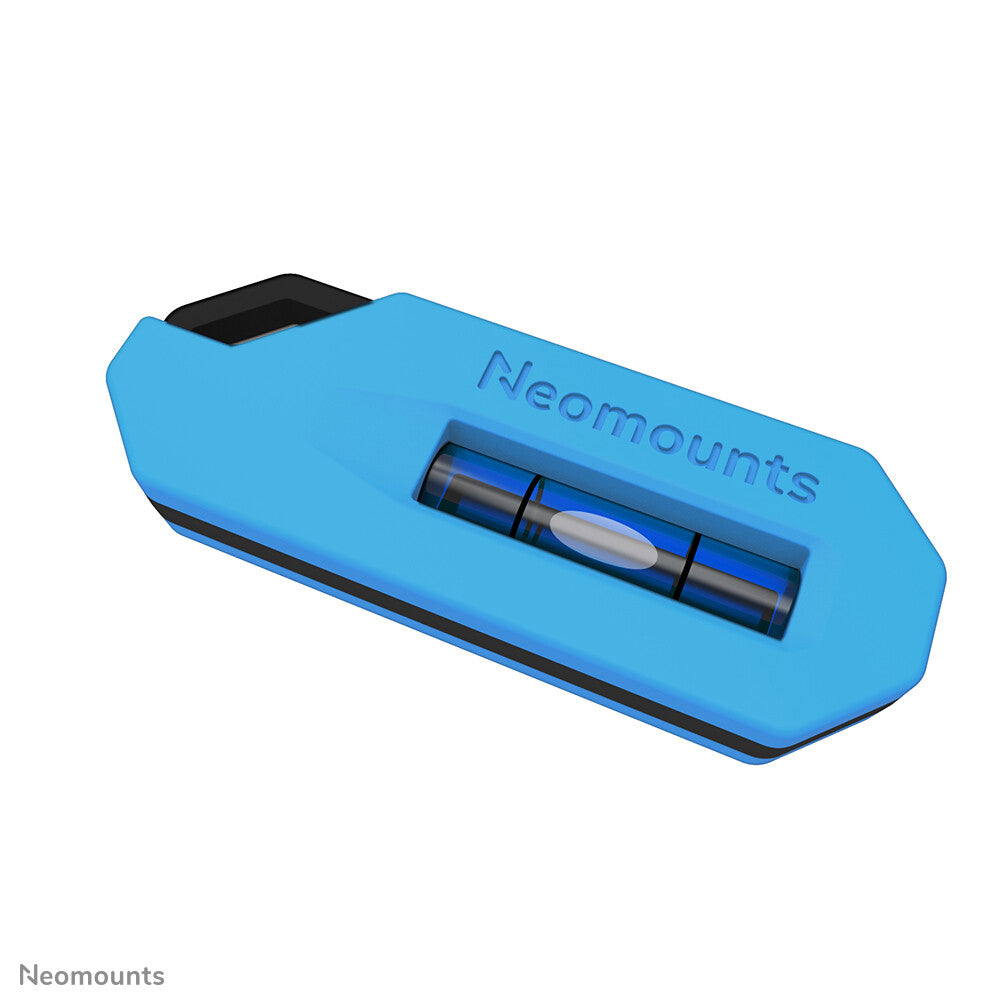

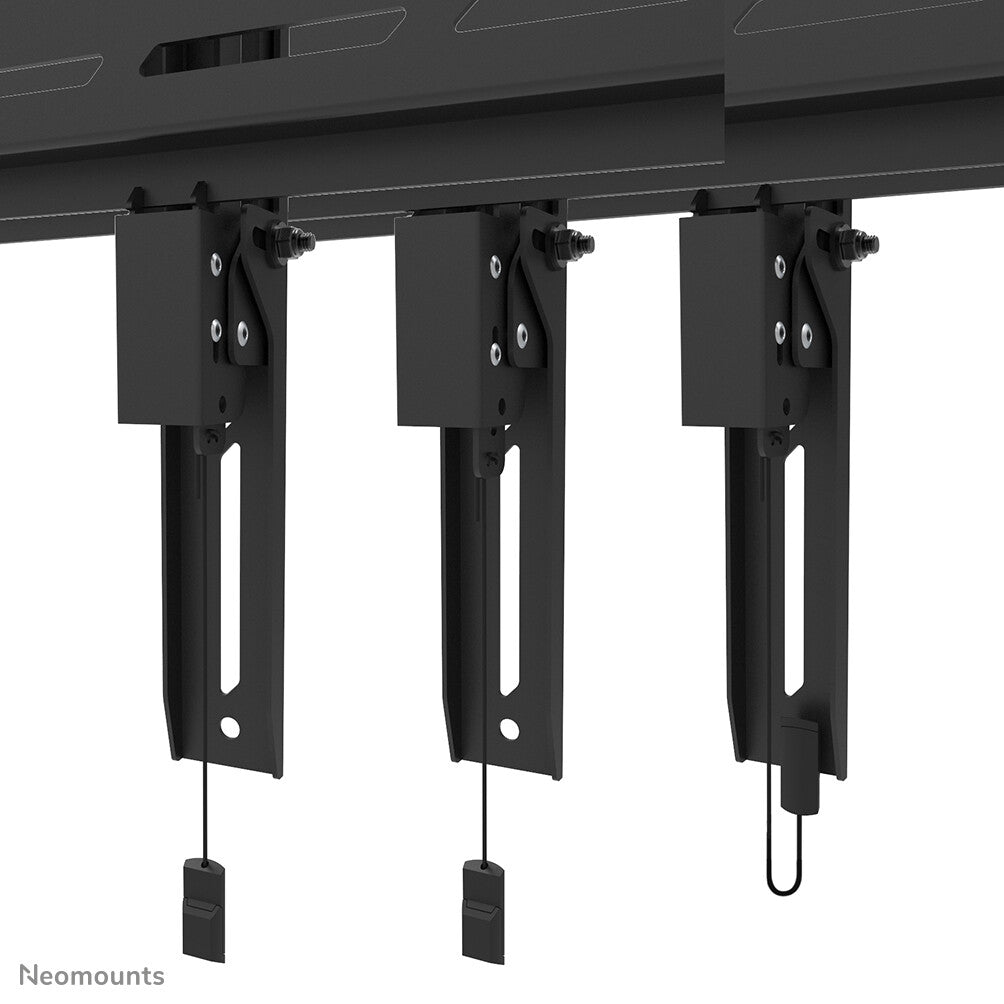

The mount features a nifty magnetic pull & release system, that allows you to attach the TV in a wink of an eye and secure the TV in safe and solid manner. Afterwards, the pull & release straps can be easily hidden behind the screen by clicking the magnet to the mount. A separate spirit level tool is included with the wall mount to ensure easy installation of the mount.

Mounting
Distance to the wall (max) 6.7 cm
Number of displays supported 1
Panel mounting interface 100 x 100,100 x 150,100 x 200,200 x 100,200 x 200,200 x 300,200 x 400,300 x 100,300 x 200,300 x 300,300 x 900,350 x 350,400 x 200,400 x 300,400 x 400,400 x 500,400 x 600,440 x 400,460 x 640,500 x 400,600 x 200,600 x 300,600 x 400,600 x 500,600 x 600,680 x 300,800 x 200,800 x 400,800 x 500,800 x 600,800 x 800,900 x 600,1000 x 400,1000 x 600,1000 x 700,1000 x 800,1200 x 600,1200 x 800,1200 x 900,1400 x 800,1500 x 600
Maximum VESA mount 1500 x 900 mm
Minimum VESA mount 100 x 100 mm
Suitable for TV Yes
Mounting type Wall
Maximum screen size 2.79 m (110")
Minimum screen size 139.7 cm (55")
Maximum weight capacity 160 kg
Ergonomics
Pivot angle -3 - 3°
Angle of rotation 6°

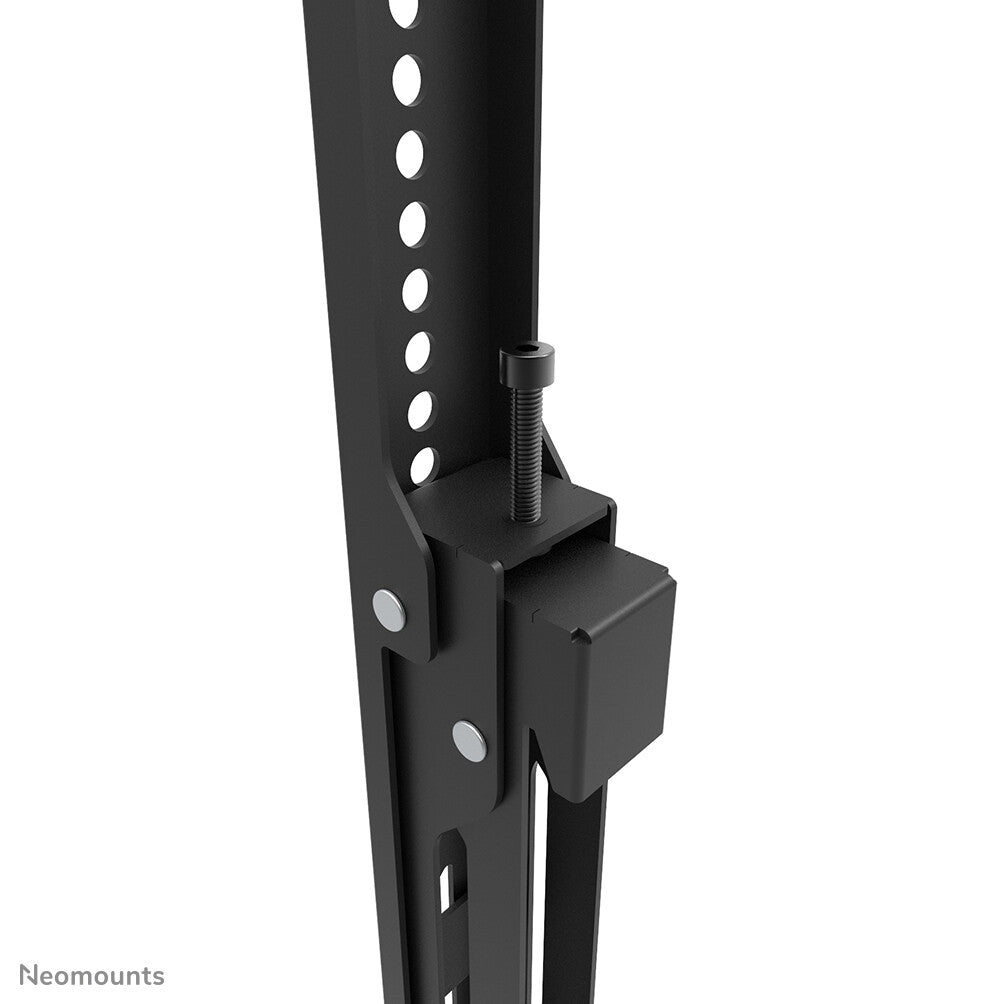

Height adjustment range 0 - 20 mm
Height adjustment Yes
Design
Accepts padlock Yes

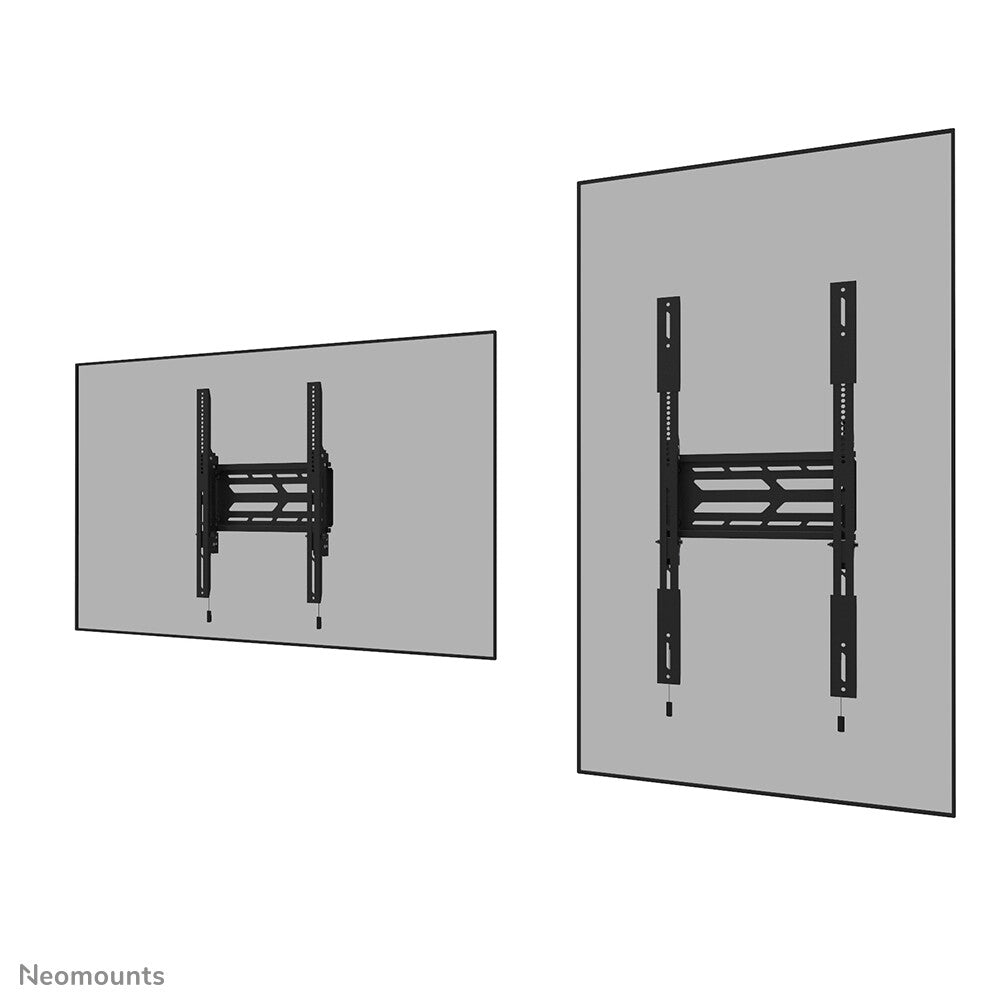

Orientation Landscape/Portrait
Housing material Steel
Product colour Black

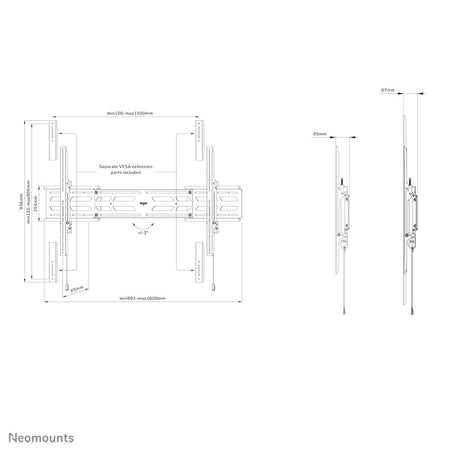

Weight & dimensions
Height 936 mm
Depth 67 mm
Width 1600 mm
Packaging data
Package net weight 11.7 kg
Package weight 11.7 kg
Package height 918 mm
Package depth 98 mm
Package width 222 mm
Other features
Warranty period 5 year(s)
Width adjustment range 893 - 1600 mm
Logistics data
Master (outer) case net weight 20.3 kg
Products per pallet (EU) 30 pc(s)
Country of origin China
Harmonized System (HS) code 7326909890
Products per master (outer) case 2 pc(s)
Master (outer) case gross weight 23.9 kg
Master (outer) case height 938 mm
Master (outer) case length 242 mm
Master (outer) case width 211 mm
