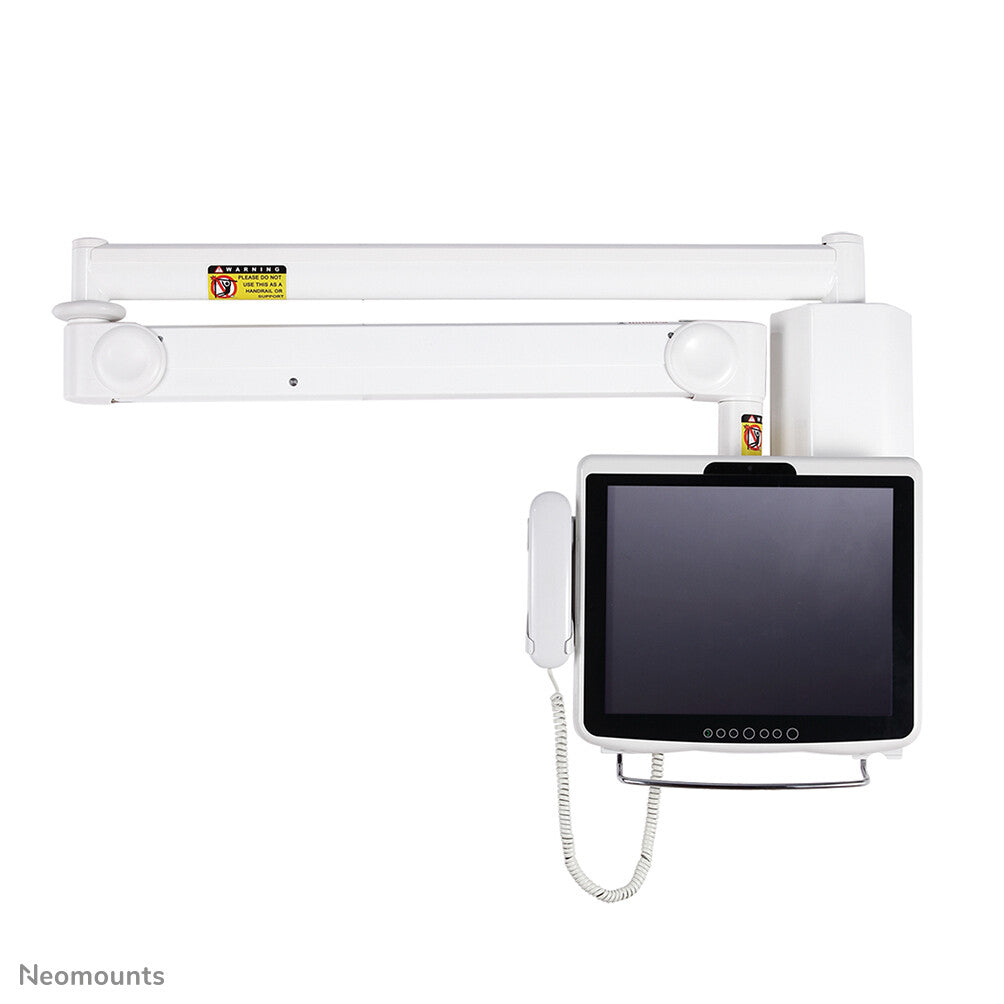

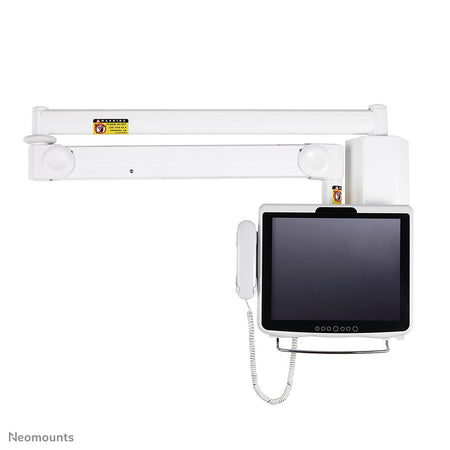

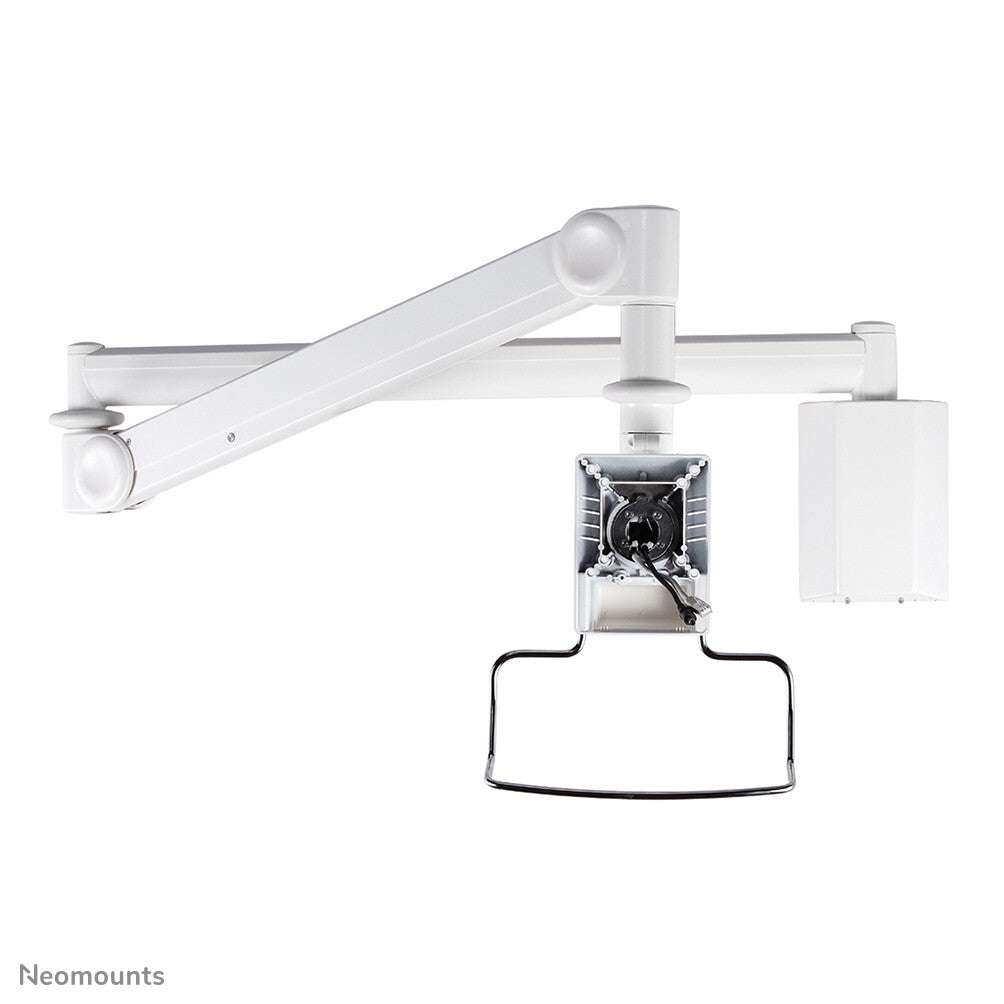

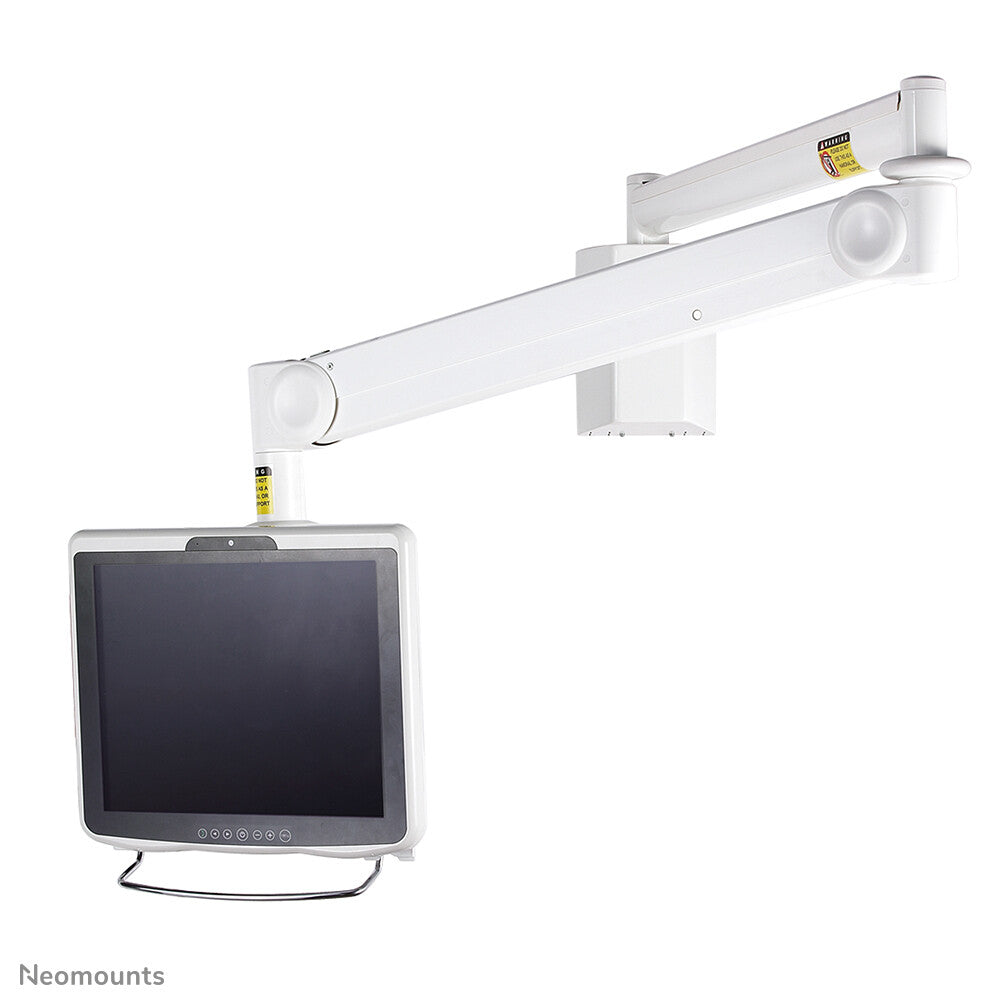

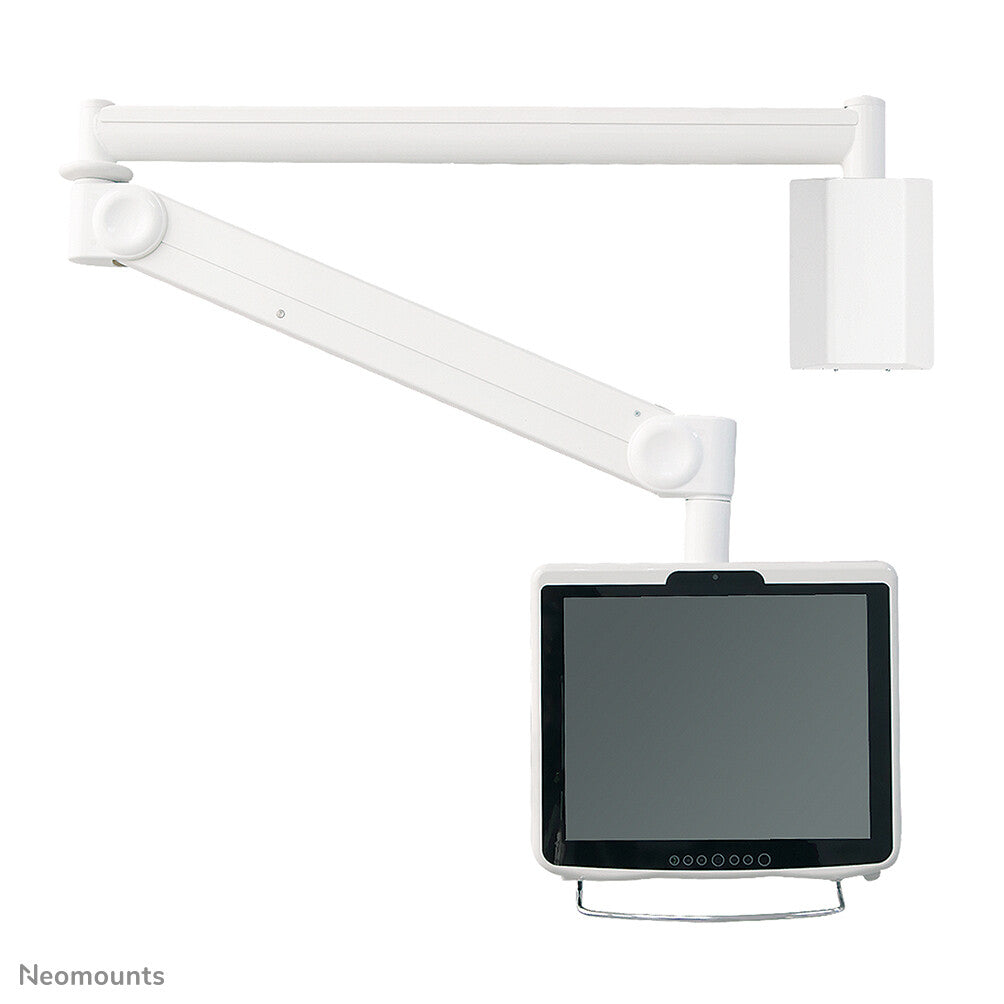

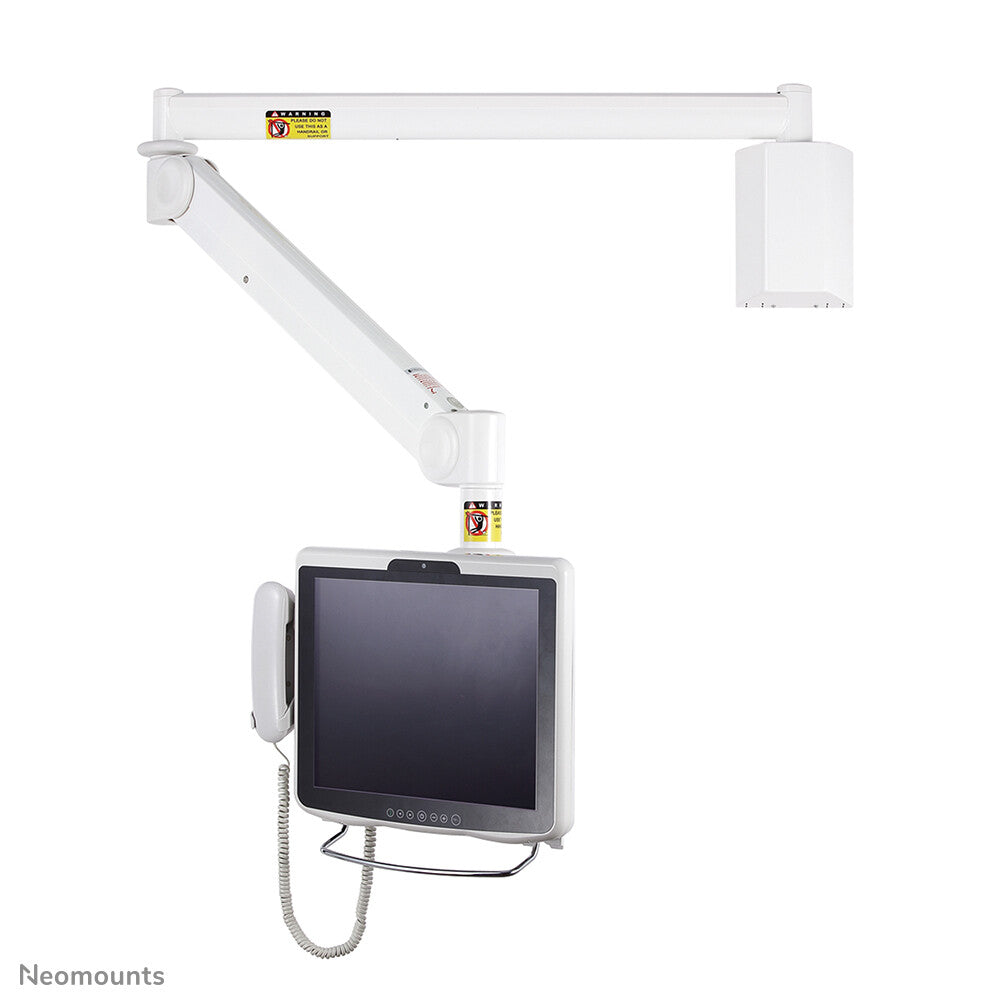

The Neomounts wall mount, model FPMA-HAW100HC is a tilt- and swivel wall mount for medical flat screens up to 32". This mount is a great choice for space saving placement or when ceiling mounting and floor placement is not an option.
Neomounts' unique tilt (55°) and swivel (370°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The support is easily height adjustable from 0 to 170 centimetres using a gas spring. Depth adjustable from 0 to 170 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.
Neomounts FPMA-HAW100HC has two pivot points and is suitable for screens up to 32" (81 cm). The weight capacity of this product is 6 - 12 kg each screen. The ceiling mount is suitable for screens that meetVESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
All installation material is included with the product.
| Mounting |
|---|
| Distance to the wall (max) |
170 cm |
| Number of displays supported |
1 |
| Panel mounting interface |
75 x 75,100 x 100 mm |
| Maximum VESA mount |
100 x 100 mm |
| Minimum VESA mount |
75 x 75 mm |
| Mounting type |
Wall |
| Maximum screen size |
81.3 cm (32") |
| Minimum screen size |
25.4 cm (10") |
| Maximum weight capacity |
12 kg |
| Ergonomics |
|---|
| Cable management |
Yes |
| Number of pivot points |
3 |
| Rotating |
Yes |
| Swivel angle range |
0 - 270° |
| Swivel angle |
370° |
| Swivelling |
Yes |
| Tilt angle range |
0 - 55° |
| Tilt adjustment |
Yes |
| Depth adjustment range |
0 - 1870 mm |
| Height adjustment range |
0 - 1700 mm |
| Height adjustment type |
Gas spring |
| Height adjustment |
Yes |
| Design |
|---|
| Housing material |
Aluminium |
| Product colour |
White |
| Weight & dimensions |
|---|
| Weight |
17.8 kg |
| Height |
1700 mm |
| Depth |
1870 mm |
| Packaging data |
|---|
| Package net weight |
14.2 kg |
| Package weight |
14.2 kg |
| Package height |
400 mm |
| Package depth |
300 mm |
| Package width |
1010 mm |
| Other features |
|---|
| Minimum weight |
6 kg |
| Logistics data |
|---|
| Master (outer) case net weight |
14.2 kg |
| Products per pallet (EU) |
8 pc(s) |
| Country of origin |
Taiwan |
| Harmonized System (HS) code |
83025000 |
| Products per master (outer) case |
1 pc(s) |
| Master (outer) case gross weight |
18.5 kg |
| Master (outer) case height |
400 mm |
| Master (outer) case length |
300 mm |
| Master (outer) case width |
1010 mm |
