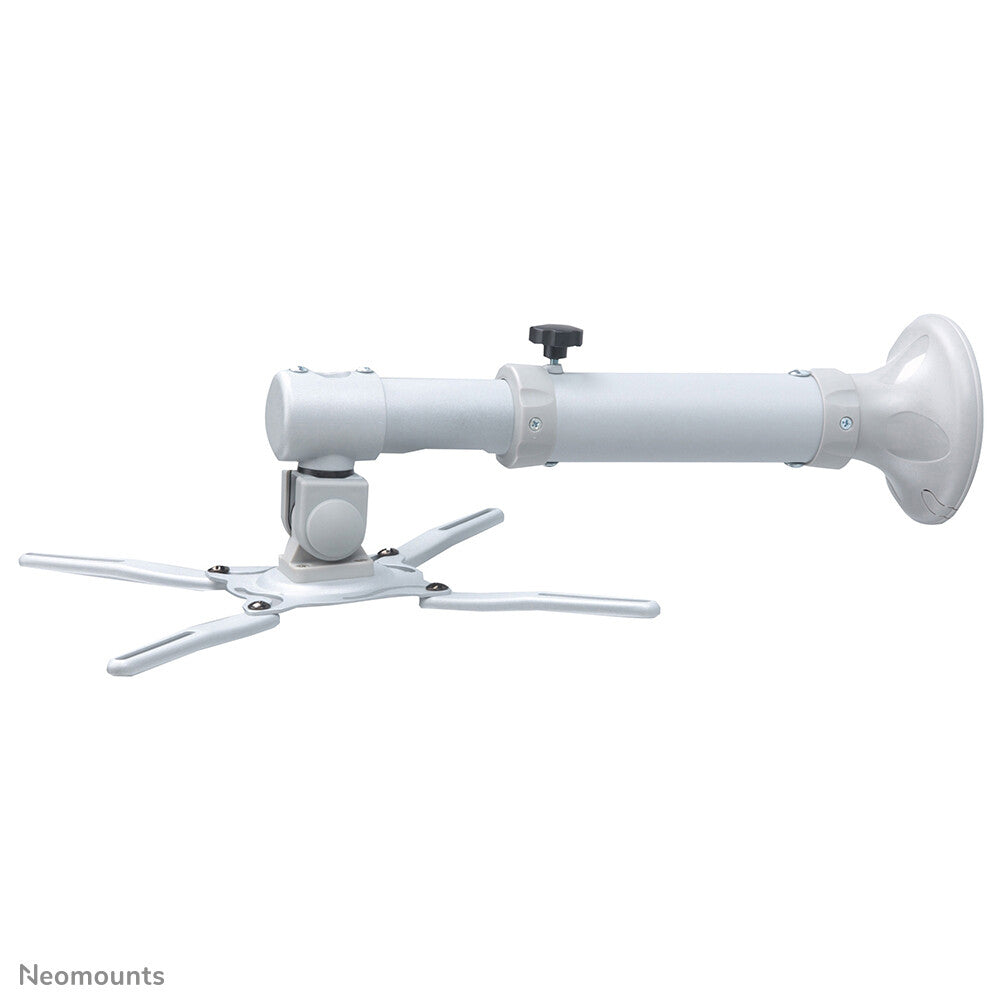

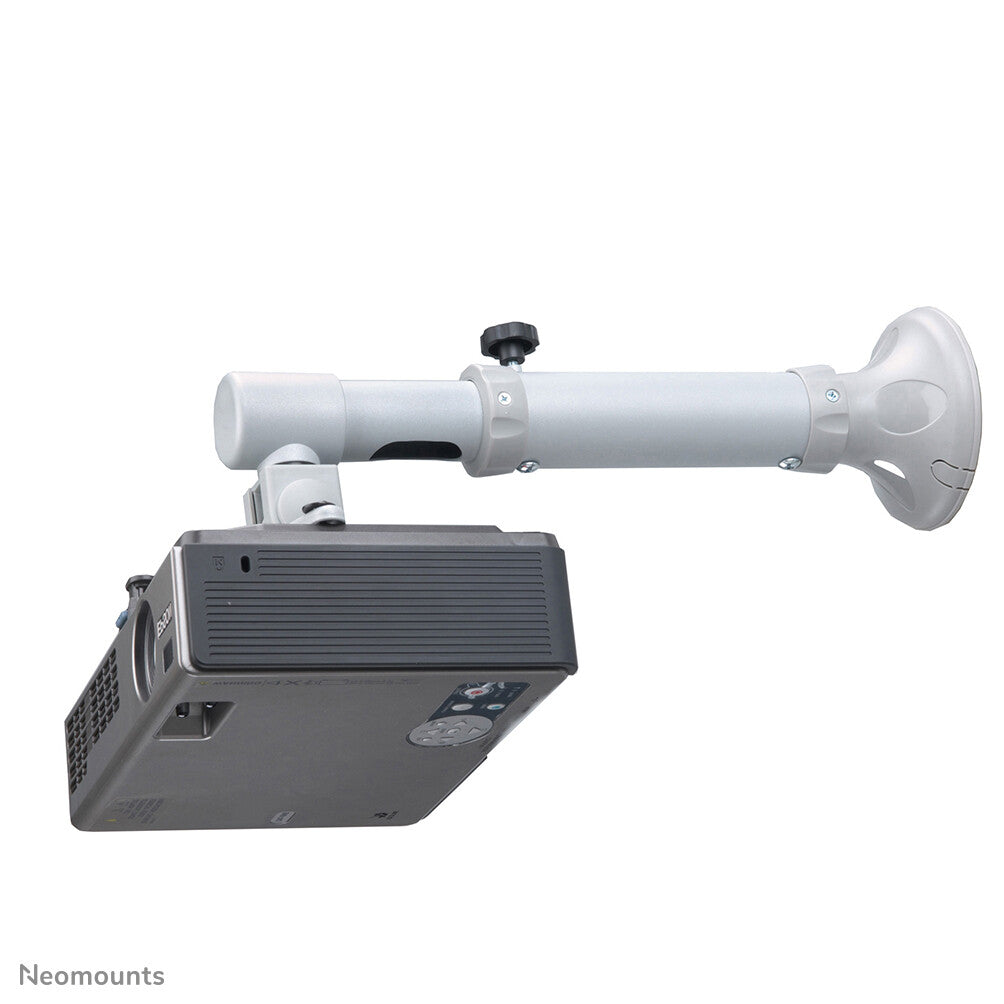

The Neomounts projector wall mount, model BEAMER-W050SILVER is a universal tilt-, swivel and/or rotatable wall mount for projectors up to 12 kilograms. This mount is a great choice for an optimal viewing experience. This versatile, ready to install mount, offers the convenience of installation to the wall without the need of additional accessories.

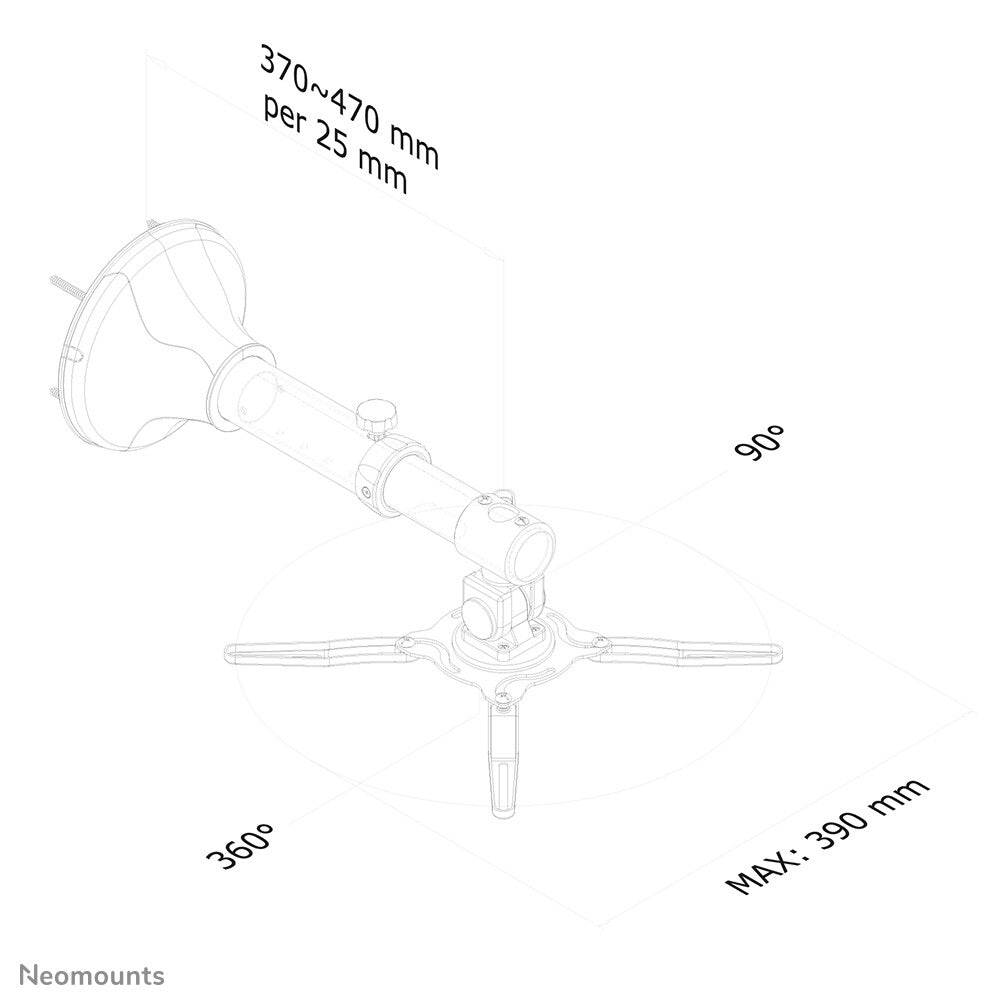

Neomounts versatile tilt (90°), rotate and/or swivel (360°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the projector. The mount is depth adjustable from 37 to 47 centimetres. An innovative cable management conceals and routes cables from wall to projector. Hide your cables to keep the installation nice and tidy.
Neomounts BEAMER-W050SILVER has two pivot points and is suitable for most projectors. The weight capacity of this product is 12 kilograms. This universal wall mount is easy to install and suitable for projectors using the mounting holes on the bottom side of the projector. The legs included with this mount, cover most projector hole patterns.
Projector mounts are ideal for use in offices, schools, hospitals or at home.
All installation material is included with the product.
| Performance |
|---|
| Rotating |
Yes |
| Width adjustment range |
0 - 390 mm |
| Depth adjustment range |
370 - 470 mm |
| Distance to the wall (max) |
47 cm |
| Distance to the wall (min) |
37 cm |
| Tilt angle range |
0 - 90° |
| Swivel angle range |
0 - 360° |
| Swivel angle |
360° |
| Height adjustment range |
0 - 50 mm |
| Height adjustment |
Yes |
| Housing material |
Steel |
| Product colour |
Silver |
| Maximum weight capacity |
12 kg |
| Mounting type |
Wall |
| Weight & dimensions |
|---|
| Package weight |
2.8 kg |
| Package height |
191 mm |
| Package depth |
182 mm |
| Package width |
403 mm |
| Weight |
2.56 kg |
| Depth |
470 mm |
| Height |
5 mm |
| Other features |
|---|
| Country of origin |
Taiwan |
| Logistics data |
|---|
| Master (outer) case gross weight |
10.5 kg |
| Master (outer) case height |
240 mm |
| Master (outer) case length |
437 mm |
| Master (outer) case width |
590 mm |
| Products per master (outer) case |
3 pc(s) |
| Master (outer) case net weight |
9.3 kg |
| Products per pallet (EU) |
63 pc(s) |
| Harmonized System (HS) code |
7326909890 |
