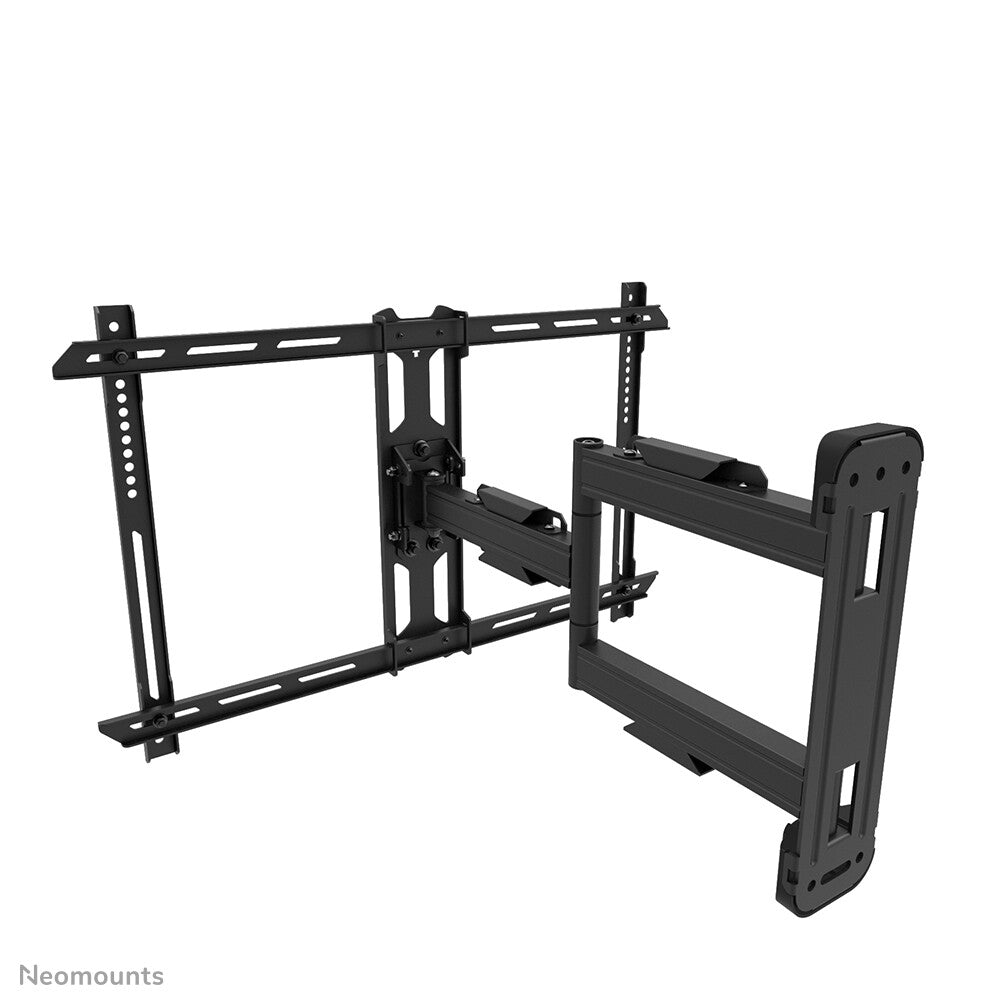

The Neomounts WL40S-850BL16 LEVEL is a full motion wall mount for flat screens up to 70" with a maximum weight capacity of 45 kg. The versatile tilt (14°) and swivel (40°) technology allows you to create the optimum viewing angle. The mount can be levelled for the perfect installation.
The LEVEL-850 wall mount has a depth of 4,7-55,5 cm and is suitable for screens that meet VESA hole pattern 200x100 to 600x400mm.

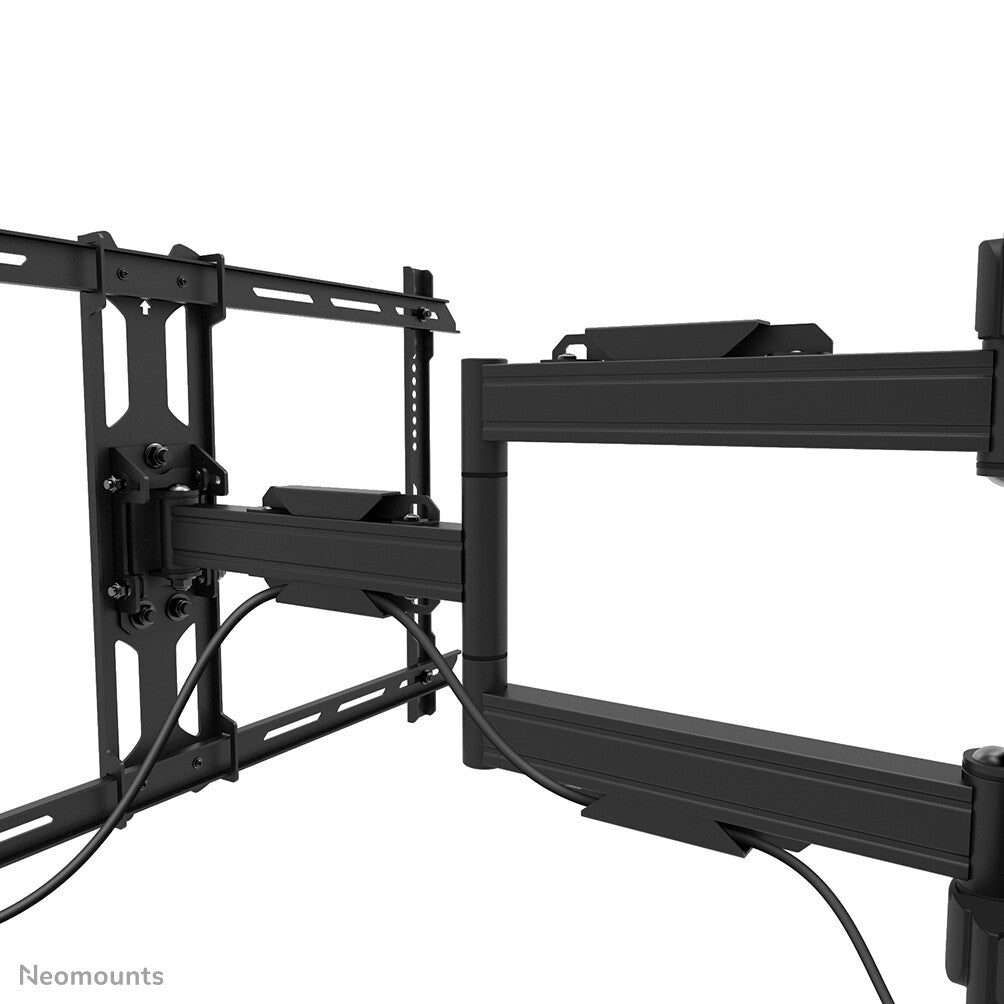

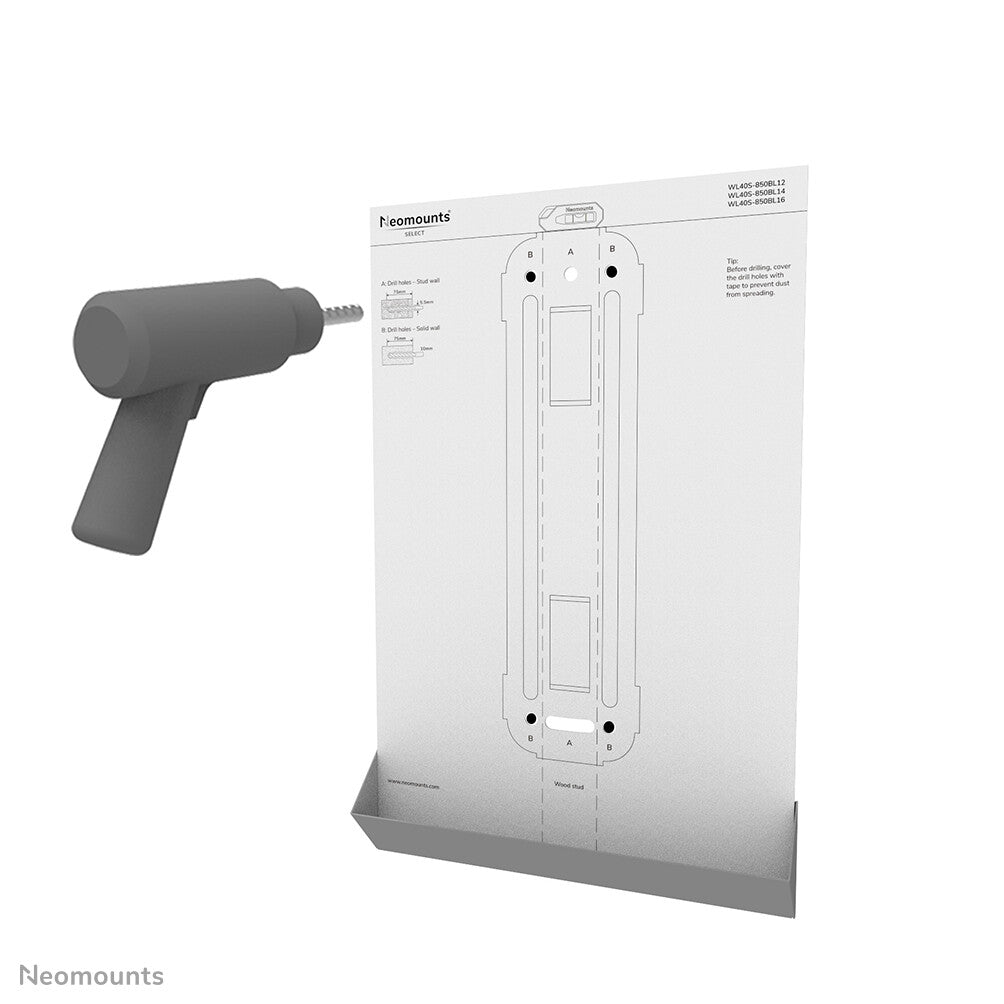

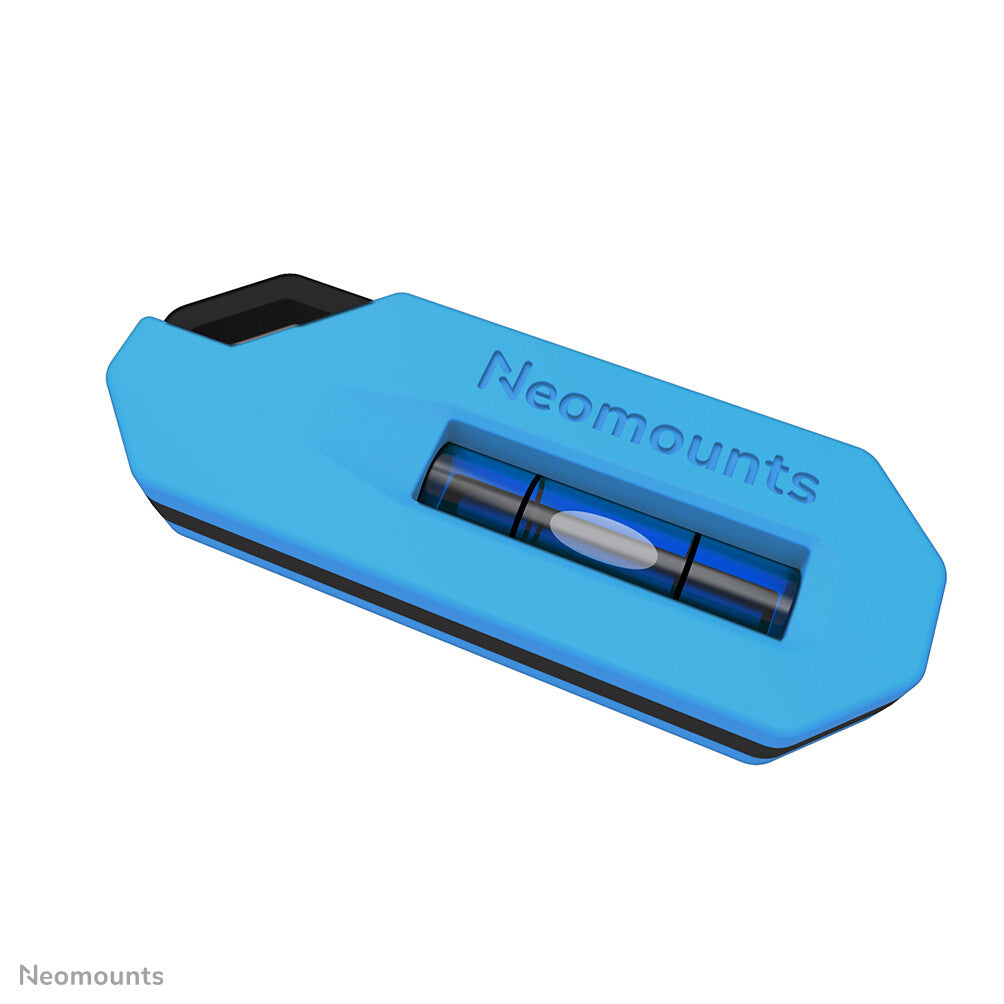

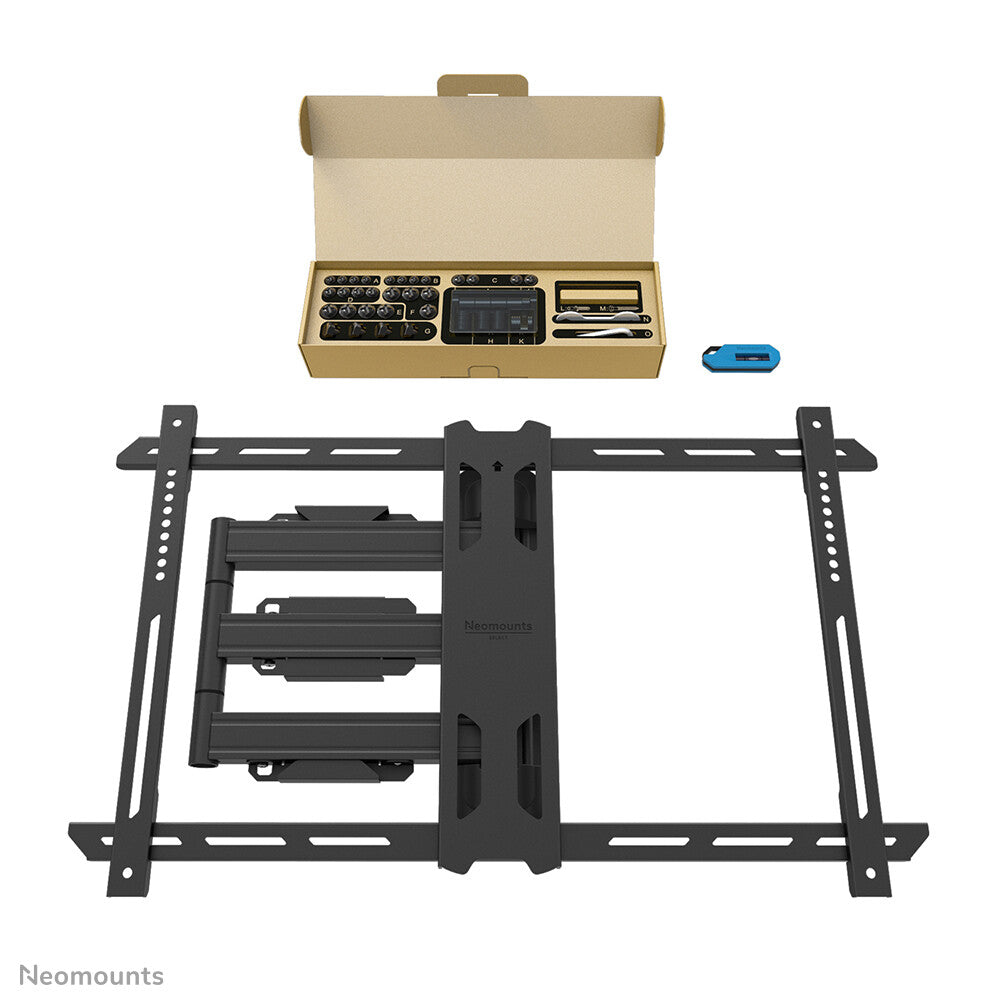

The WL40S-850BL16 features a nifty Easy-release system, that allows you to attach the TV in a wink of an eye. A separate spirit level tool is included with the wall mount, as well as a fixing template, to ensure easy installation of the mount. The mount is equipped with high quality steel cable management, to secure any loose cables at the back of the screen.
| Mounting |
|---|
| Number of displays supported |
1 |
| Panel mounting interface |
200 x 100,200 x 200,200 x 300,200 x 400,300 x 100,300 x 200,300 x 300,400 x 200,400 x 300,400 x 400,440 x 400,600 x 200,600 x 300,600 x 400 |
| Maximum VESA mount |
600 x 400 mm |
| Minimum VESA mount |
200 x 100 mm |
| Mounting type |
Wall |
| Maximum screen size |
177.8 cm (70") |
| Minimum screen size |
101.6 cm (40") |
| Maximum weight capacity |
45 kg |
| Ergonomics |
|---|
| Distance to the wall (min) |
4.7 cm |
| Distance to the wall (max) |
55.5 cm |
| Type |
Full motion |
| Cable management |
Yes |

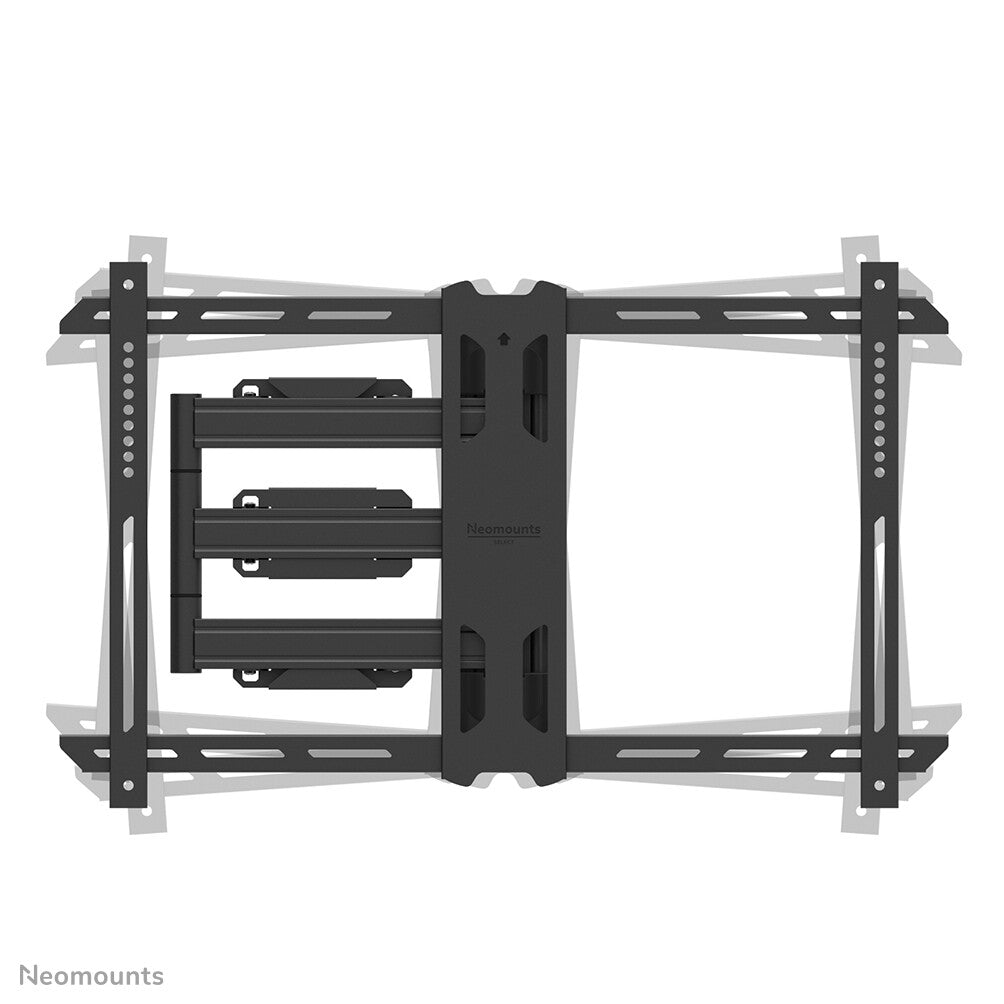

| Pivot angle |
-3 - 3° |
| Angle of rotation |
6° |
| Rotating |
Yes |
| Swivel angle range |
-45 - 45° |
| Swivel angle |
40° |
| Swivelling |
Yes |
| Tilt angle range |
-2 - 12° |
| Tilt adjustment |
Yes |
| Height adjustment |
No |
| Design |
|---|
| Housing material |
Steel |
| Product colour |
Black |
| Packaging content |
|---|
| Number of wrenches included |
1 |
| Hex key included |
Yes |

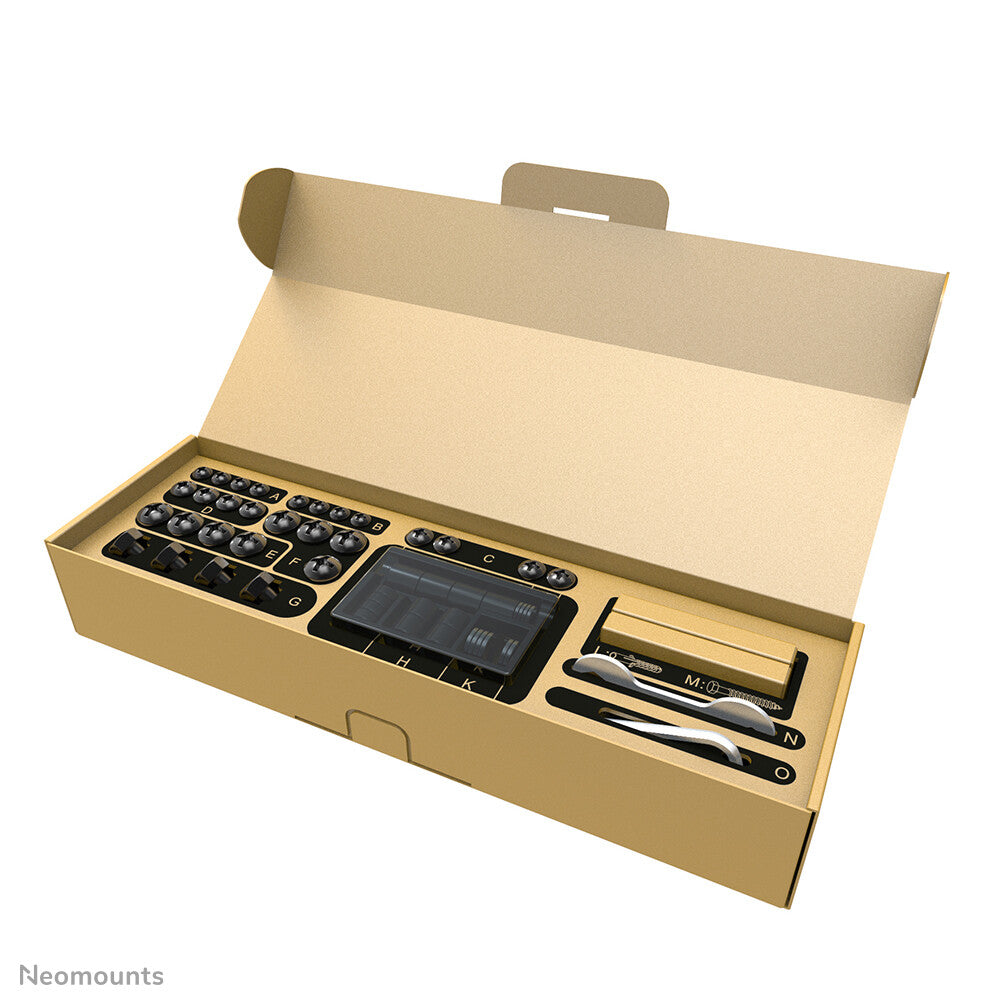

| Mounting kit |
Yes |
| Technical details |
|---|
| Lockable |
Not lockable |
| Package net weight |
7.8 kg |
| Country of origin |
China |
| Quantity per pack |
1 pc(s) |

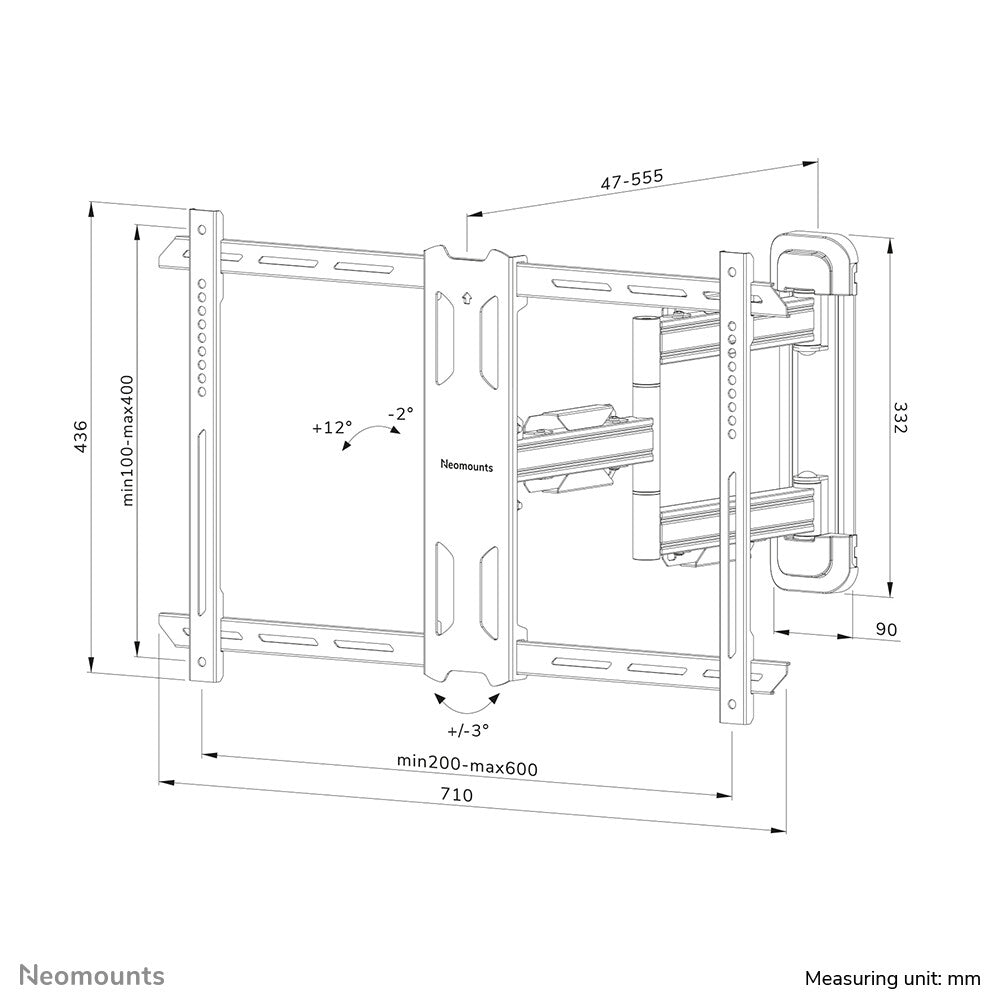

| Weight & dimensions |
|---|
| Height |
436 mm |
| Depth |
47 mm |
| Width |
710 mm |
| Packaging data |
|---|
| Package weight |
7.8 kg |
| Package height |
60 mm |
| Package depth |
366 mm |
| Package width |
736 mm |
| Logistics data |
|---|
| Products per pallet (EU) |
60 pc(s) |
| Harmonized System (HS) code |
7326909890 |
| Products per master (outer) case |
3 pc(s) |
| Master (outer) case net weight |
18.9 kg |
| Master (outer) case gross weight |
24.1 kg |
| Master (outer) case height |
386 mm |
| Master (outer) case length |
198 mm |
| Master (outer) case width |
756 mm |
